Classifieds Index -> Parts -> Type 2/Bus - 1949-67
-'67 Bus GREY / Black ABS Plastic Interior panels Pop-up ad layout What is this? | Turn on always show all large photos     Ad id: 1395327
This ad is a Featured Ad
Additional Photos
Click to load image
L & R arrow keys scroll through photos

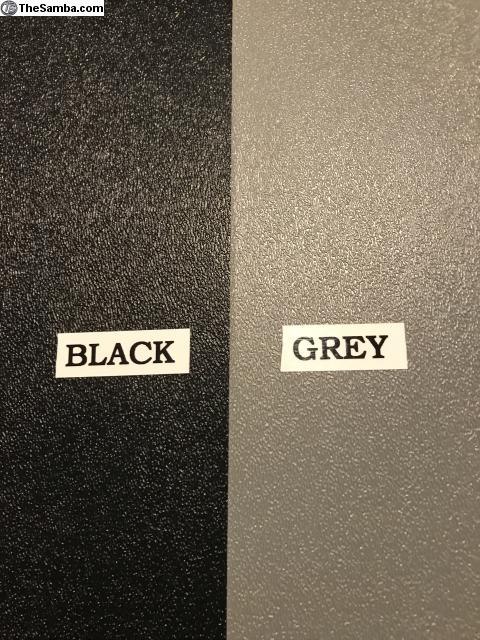

Black & GREY ABS samples

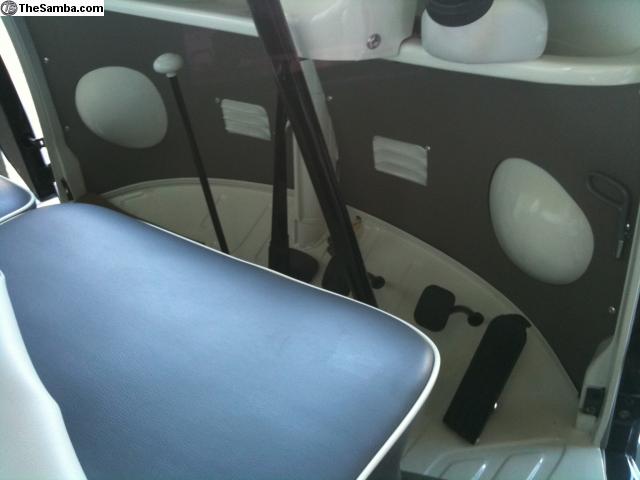

'64 - '67 Bus kick panels installed

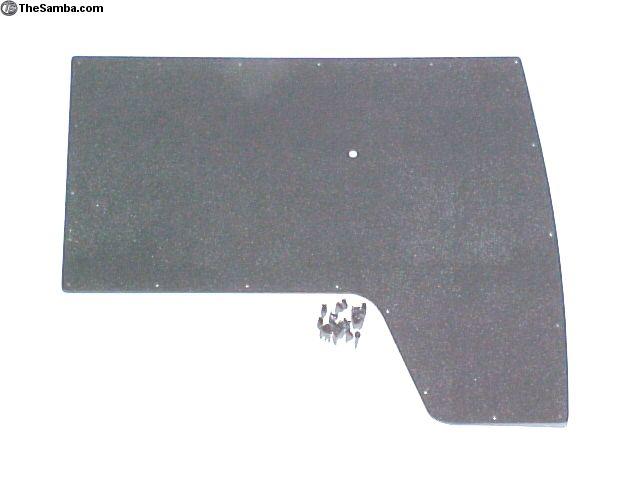

'64 - '67 Doors
ABS Plastic close up texture

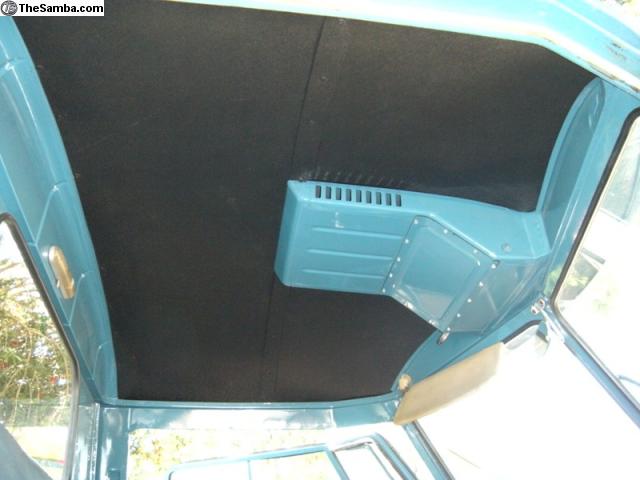

Head liners 2pc panels

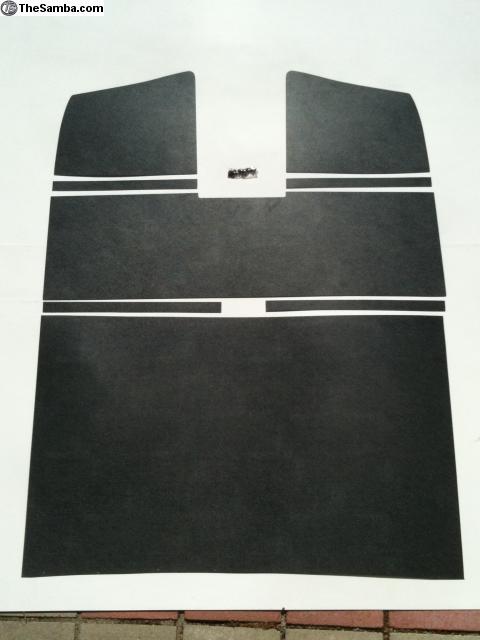

Single cab head liner panels
Dbl Cab head liner panels

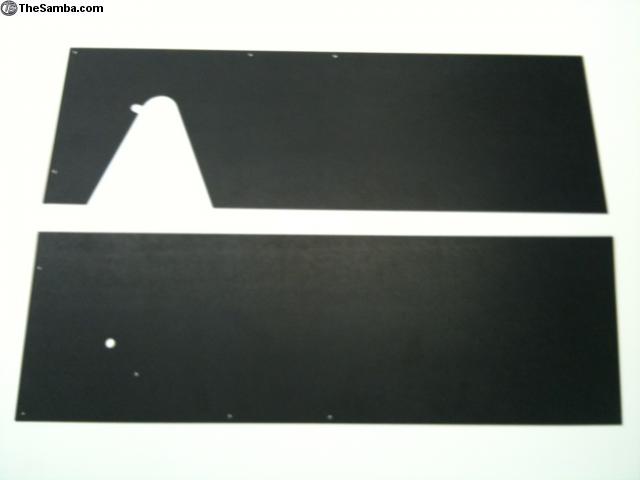

Long, rear seat 1/4 and seat back panels

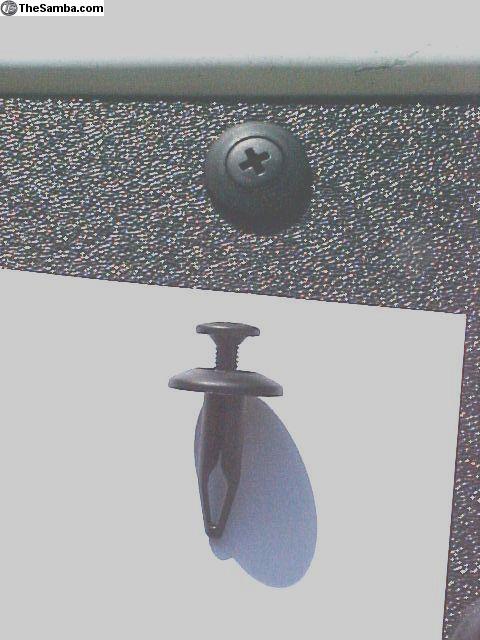

'64-'67 Molly door and rear hatch fasteners
ECC inside engine cover panel NON walk thru

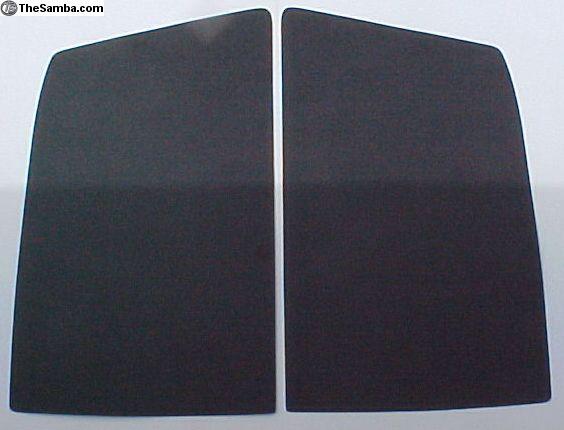

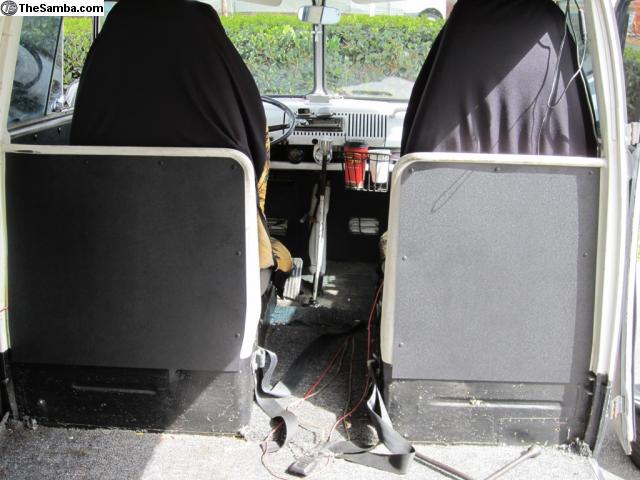

ABS Seat backs

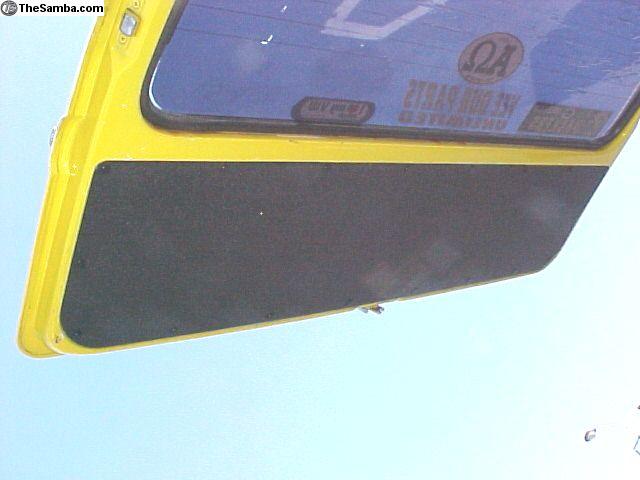

'64 - '75 Rear hatch panel

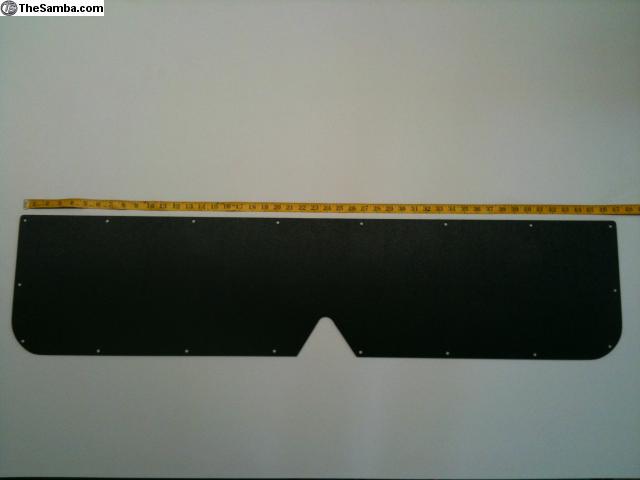

"64 - '71 Westy with V notch rear hatch panel
Kombi upper and lower panels

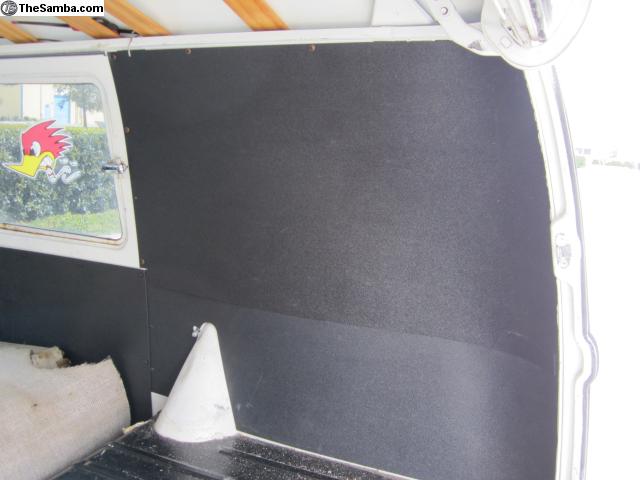

Lower rear 1/4 panels
Hand made in the USA

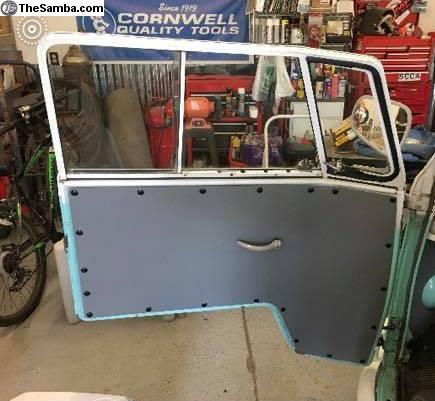

64-67 GREY door panels

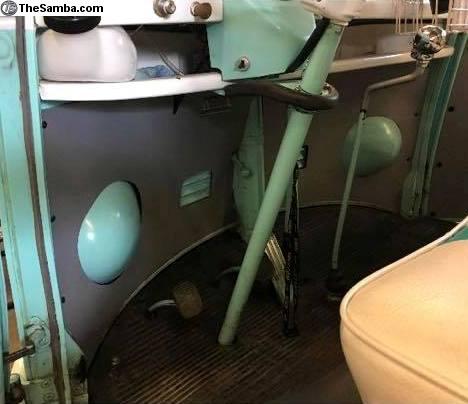

'64-'67 GREY Bus Kick Panels
-'67 Bus GREY / Black ABS Plastic Interior panels   Price: $25 and up...
4/23/18 Updated with some full set orders hipping costs... WITHIN the USA ONLY!

NEW Custom made for us Primer GREY color ABS panels (plus silver cad plated screws for the Grey panels) .... NEW Lower Prices!

BLACK or GREY (that can be painted or upholstered to whatever color / material you want) ABS Plastic Interior panels for up thru 1963 VW Buses:

BLACK ABS Plastic Interior panels for up thru 1963 VW Buses:
30-Part number-description and Samba prices for Up thru '63 VW Buses all with fasteners

NEW Custom made for us Primer GREY color ABS panels....cost more but wait until you see them in person! They are worth the extra money and can outlast your Bus! Limited inventory now but building it up....

BLACK (that can be painted or upholstered to whatever color / material you want) ABS Plastic Interior panels for up thru 1963 VW Buses:

30-Part number-years/description Black Samba prices for Up thru '67 VW Buses all with fasteners
G30 - part number - years / description GREY ABS panels

-405- kick panels
-425- door panels
-450- side cargo or slider panels
-460- Driver Side long panel
-465- rear seat 1/4's panels
-470- rear 1/4's panels by rear hatch
-475- rear hatch panels

Basic FULL kits are BASIC min. Kits / There are added options which are more $’s

BASIC Single cab full kit (kick panels, standard doors and .060"Head liner) :
Black $160
Grey $200
2x shipments UPS G $65

BASIC Double cab full kit (kick panels, standard doors, .060"Head liner and rear door / wall kit):
Black $335
Grey $405
2x shipments UPS G $85

BASIC Transporter - Kombi is more (kick panels, standard doors, 2pc .060"Head liner, cargo doors, long panel, rear seat 1/4's, rear 1/4's and rear hatch panel)
Black $425
Grey $525
2x shipments UPS G $125

Make a list (copy & paste) with the part #s (30-XXX- year range) & prices to resend back to me and I’ll see what I can do for you. Include where you are located too for shipping estimate!

30-405-52/53 Barn door Kick panels .060" thick 4 Piece kit $75 (Special Order only)
G30-405-52/53 Grey $85 (Special Order only)

30-405-54/M55 Barn door Kick panels 4 piece $75 (Special Order only)
G30-405-54/M55 Grey $85 (Special Order only)


30-405-A55/59 Kick panels April 55-59 $45
G30-405-A55/59 Grey $55

30-405-60/62 Kick panels 1960 - 1962 $45
G30-405-60/62 Grey $55

30-405-63 Kick panels 1963 ONLY $45
G30-405-63 Grey $55


30-425-63 Doors panels pair with spaced mounting holes $65
G30-425-63 Grey $85

30-425-63MP Door panels with holes for map pockets $80
G30-425-63MP Grey $100

30-420-63 Map Pockets for above early doors Pair w/ chrome rivets $50
G30-420-63 Grey w/ chrome rivets $60

30-435-67 2pc front head liner $45
(No complete head liners yet, see below)
G30-435-67 Grey $55

30-440-67 5 pc single cab head liner .060" thick $50 (separate shipping box, rolls up)
G30-440-67 Grey $65

30-440-67HD 5 pc single cab head liner .090" thick $60 (flat shipping or local pick up only)
G30-440-67HD Grey $85

30-445-67 Dbl cab head liners .060" (separate shipping box, rolls up) $105
G30-445-67 Grey $125

30-451-67 Dbl cab rear door & wall kit $120
G30-451-67 Grey $140

30-450-67C Side rear cargo door 2 pc (tight to door latch) $65
G30-450-67C Grey $80

30-475-63C Rear hatch panel Close to latch with screws $25
G30-475-63C Grey $30

Some of the '64 - '67 Bus panels (long and rear seat 1/4's) of ours MAY will fit earlier Buses but I'm not 100% for sure.

I’m trying to acquire more OEM panels to make my masters from, but it takes time for test fitting and making 100% they fit properly…..

UPS Shipping on each item is posted in Samba ads or on several of the panel’s together average $30 to $100+ (full kits 2x shipments) within the USA.


5/17 Current BLACK ABS Plastic Interior panels for 1964 – 1967 VW Buses:
30-Part number-years/ description Black ’64 – ’67 VW Buses all with fasteners
G30-part Number-years/ Description GREY


30-405-64/67 Kick panels $45
G30-405-64/67 Grey $55

30-405-64/67RHD Kick panels Right Hand Drive $55
G30-405--64/67RHD Grey $70

30-425-64/67 Doors panels pair $65 with Mollys
G30-425-64/67 Grey $85

30-425-64/67MP Door panels with cut holes for map pockets $75
G30-425-64/67MP Grey $95

30-420-64/67 Map Pockets for above doors Pair w/ chrome rivets $50
G30-420-64/67 Grey $60

30-455-64/67 Seat backs pair with black screws $40
G30-455-64/67 Grey $55

30-455-64/67T Seat backs pair with 1/8" trim holes $40
G30-455-64/67 Grey $55



30-435-67 2pc front head liner $45
(No complete head liners)
G30-435-67 Grey $55

30-440-67 5 pc single cab head liner .060" thick $50
(separate shipping box, rolls up)
G30-440-67 Grey $65

30-440-67HD 5 pc single cab head liner .090" thick $60
(flat shipping or local pick up only)
G30-440-67HD Grey $75

30-445-67 Dbl cab head liners $105
G30-445-67 Grey $135

30-451-67 Dbl cab rear door & wall kit $120
G30-451-67 Grey $145

30-450-67C Side rear cargo door 2 pc (tight to door latch) $65
G30-450-67C Grey $80


30-460-64/67 Bus DS long panel (needs rear seat 1/4's too) $70
G30-460-64/67 Grey $80

30-465-64/67 Bus rear seat 1/4's Pr (needs DS long panel too) $70
G30-465-64/67 Grey $80

30-470-64/67UW Upper Window Bus rear ¼ $25
G30-470-64/67UW Grey $35

30-470-64/67K Upper Kombi / panel rear ¼ $45
G30-470-64/67K Grey $55

30-470-64/67LNW Lower rear ¼ non walk thru $40
G30-470-64/67LNW Grey $50

30-470-64/67LS Lower rear ¼ walk thru with spare on DS $40
G30-470-64/67LS Grey $50

30-475-64/75 Rear hatch with Mollys $25
G30-475-64/75 Grey $35

30-475-64/71V Westy Rear hatch panel with V cut out Wire inside opener $25
G30-475-64/71 Grey $35

New applications, No shipping on these BELOW as they are just too big (I might will be selling a line drawing on HD butcher paper for customers to make their own panels):


30-480-64/67 Interior Engine Top cover panel 1/8" thick (non walk thru) $90
G30-480-64/67 Grey $105

30-480-64/67S Interior Engine Top cover panel 1/8" thick (walk thru w spare) $90
G30-480-64/67S Grey $105

I’m trying to acquire more OEM panels to make my masters from, but it takes time for test fitting and making 100% they fit properly…..

UPS Shipping on each item is posted in Samba ads or on several of the panel’s together average $30 to $100+ (full kits 2x shipments) within the USA.

Too see photos of most all of the panels installed go to Photobucket.com and search for werksberg and look for Split Bus ABS panels

The very popular, indestructible Interior panels made out of ABS plastic which never falls apart form the moisture in the air or the vinyl peels off from inside heat…might just out last your VW Bus if properly care for. Clean with plastic type cleaners like from a motorcycle shop / face shield plastic wax.

Can be painted with Krylon Fusion plastics spray paint:
First use the included test ABS scrap piece to practice on it.
Clean the ABS with rubbing alcohol to remove any mold releases and hand grease

Let them to fully dry (if you want the best paint job, then take them to a body shop for them to Bull Dog primer and paint them with flex additive paints)
Then spray them with Krylon Fusion plastic spray paint
Let them full dry before handling & installing them…..

Included are 1/8" black oxide sheet metal screws…but you will need to re-drill a 1/8" hole thru the ABS panels into your sheet metal behind the panels as they were random located drilled at the factory!

For mailed orders:
USPS Money order or check (held until it clears the bank before shipping the order):

Werksberg Products
7760 E. State Route 69
Suite C5-358
Prescott Valley, AZ 86314


Fill this out & type it in the “message section” at PayPal [email protected]

Part # 30- (or for Grey G30- )
Description:
Year & model of your vehicle:
Area code & Phone Number:
Any special instructions:

Local pick up by appointment only in Prescott, AZ areas....

UPS Shipping on each item is posted in Samba ads or on several of the panel’s together average $30 to $125 (full kits 2x shipments) within the USA.

To answer this often asked question on my ABS Interior Panels fastener holes:

All my ABS panels are pre drilled with the mounting holes for the sheet metal screws or molly's fasteners which are included.

BUT every VW factory had different stamping dies (these vehicles are +50 years old and they didn't have CNC or robotics back then...) with holes in slightly different locations and some holes may need minor massaging to line up. The holes are 1/4" and the molly heads are 1/2" so you have plenty of fudge room. Unless Vanagon as the body steel holes are 8mm...

The splits Buses had random drill holes where ever the assemble line wanted to drill the holes. Mine mounting holes are professional space apart. Plus the panels cover up all those ugly old holes...

Even the Bay window latch hole may need trimming as the OEM vs today's made in China are different sizes.

The reason the stock clips are L shaped, it is since the stamped parts holes was not standardized, they can just swing them and slap the panels on during production line assembling.

With most any parts for these old vehicles, most all need some custom fitting. It is called being a mechanic.

_________________
Werksberg Products...products that work!
Paypal: [email protected]
M/O, or check...will be held until they clear before shipping..... In AZ now!
