1968-1979 Bay Blk/Grey ABS plastic interior panels Turn on always show all large photos     Ad id: 1395334
Additional Photos
Click to load image
L & R arrow keys scroll through photos

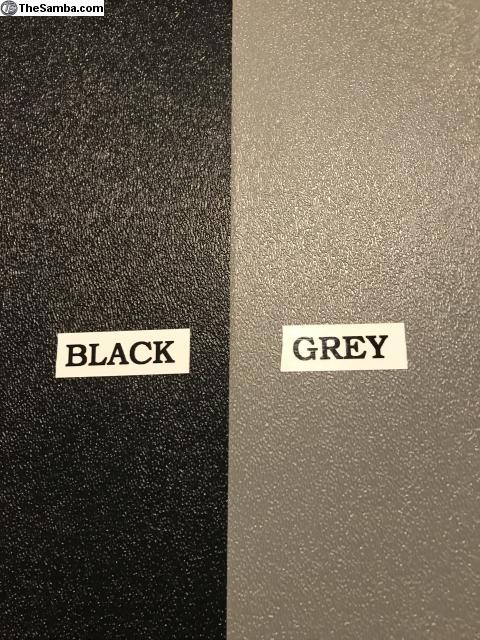

Black & GREY ABS samples

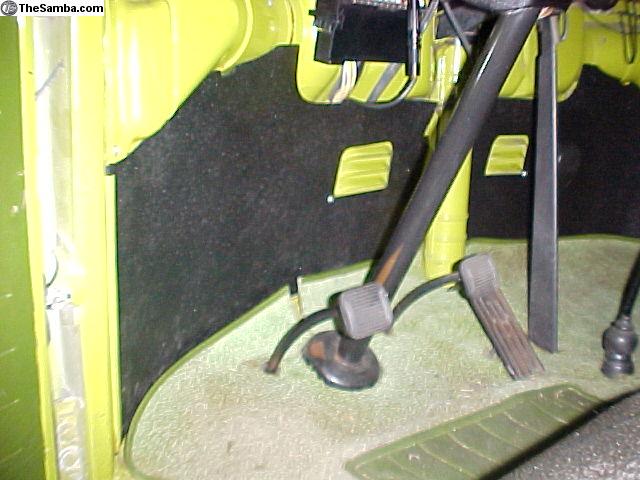

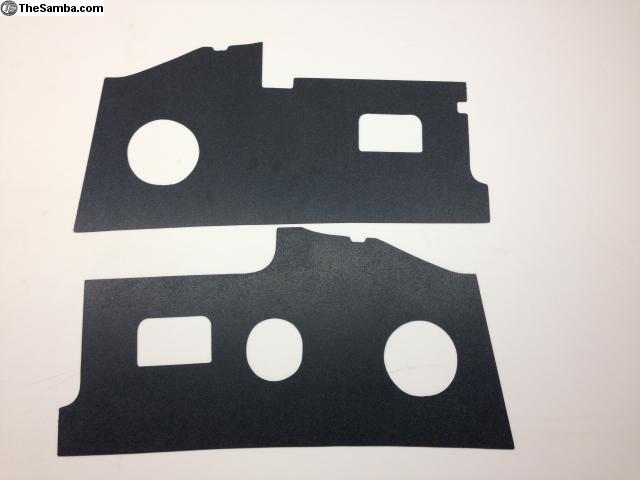

'71 - '79 Bus Kick panels

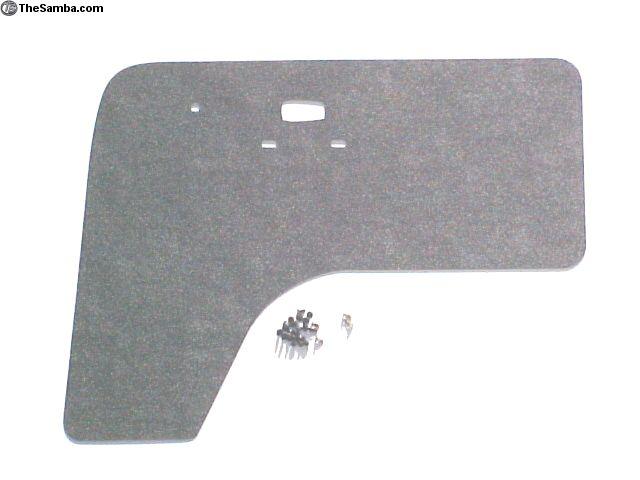

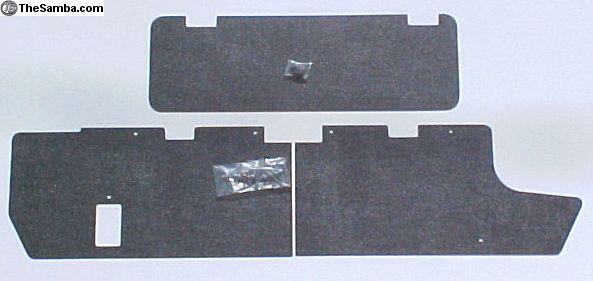

Bus door panels w/out vent holes
'75 - '79 doors with foam arm rest & vent
'75 - '79 doors with foam arm rest

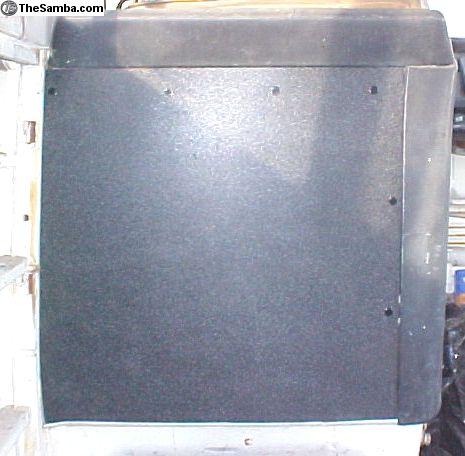

Long & rear seat 1/4's installed

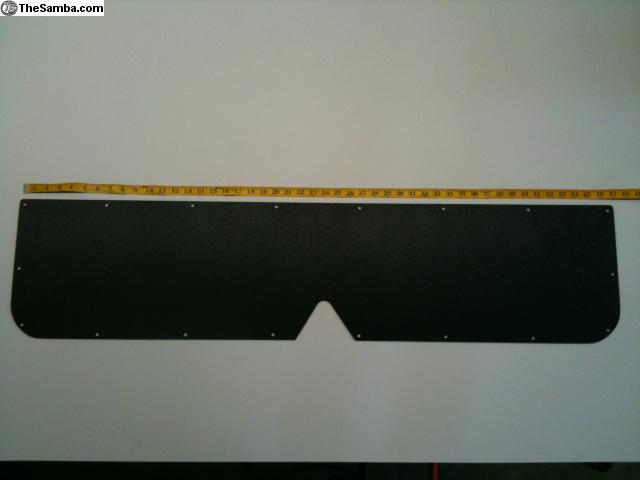

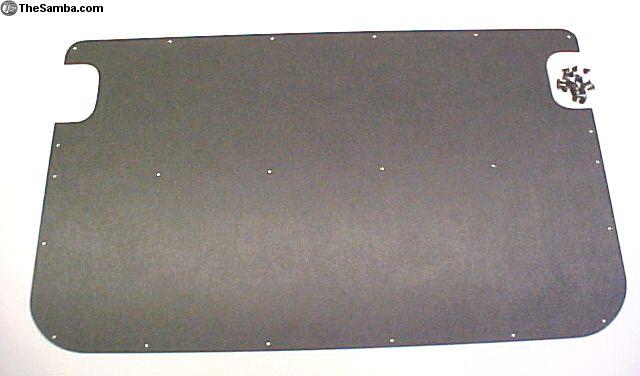

'64 - '71 Westy rear hatch with V cut out

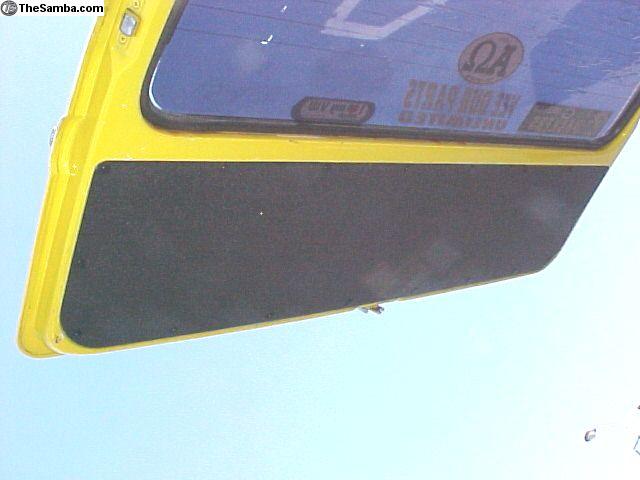

Rear hatch installed
Slider panel
plain seat back panel

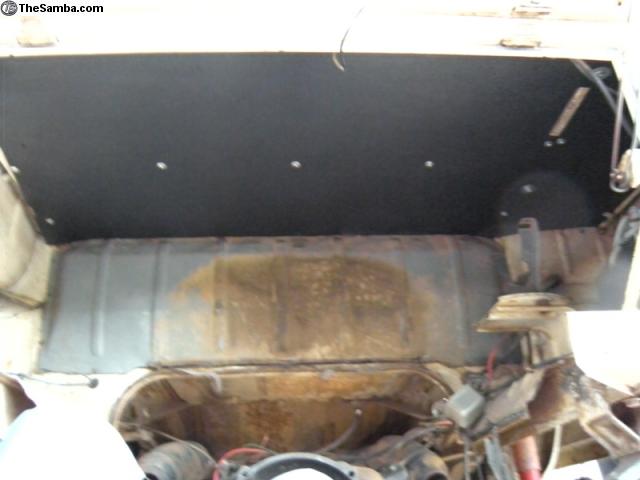

'68 - '71 ECC panels installed
'75- '79 ECC ABS panels with [] hole or without hole

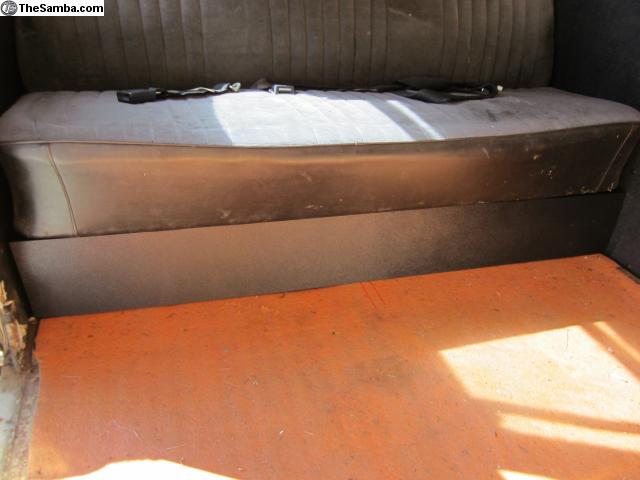

Rear seat kick panel plain
Made in USA
Split, Bays and Vanagons
'68-'70 HD BKP with Speaker holes

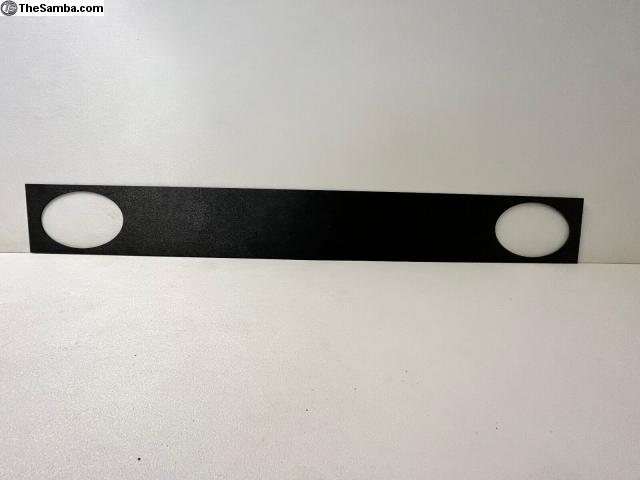

Rear seat Kp with 6x9 speaker holes
100% water proof Westy panels (full set only, not cheap)
1968-1979 Bay Blk/Grey ABS plastic interior panels   Price: $35 and up...

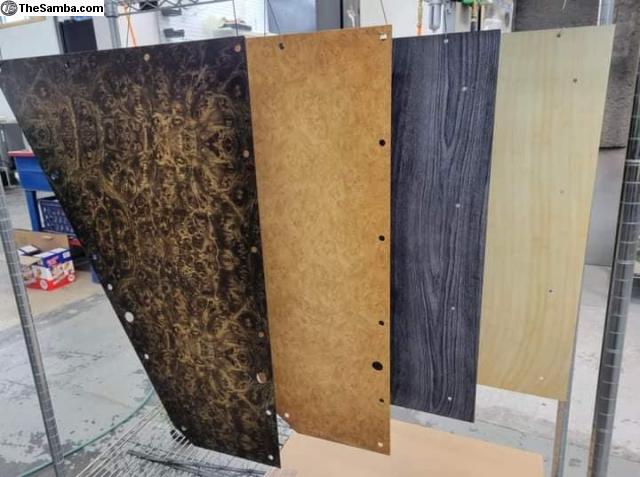

1/2024 stay tuned for earth shattering woody 100% water proof panels for Westys... 2 lite shades, 2x dark shades and BAMBOO....

ABS plastic Bay Window Bus Interior panels
No more custom 1 off orders as CNC the last 2 years

my Molly hardware kits has METAL black flat head allen screws for the S/B molly's and an allen wrench too. No extra charge.... Use hotel soap bar to lube the metal screws and pre thread in the molly's while watching TV one night...

Make a list (copy & paste) with the part #s (33-XXX- year range) & prices to resend back to me and I’ll see what I can do for you. Include where you are located too for shipping estimate!

-405- kick panels
-425- door panels
-450- side cargo or slider panels
-460- DS long panels
-465- rear seat 1/4's panels
-470- rear 1/4's panels by rear hatch
-475- rear hatch panels

-813- ECC Engine compartment ceiling panels

Black part # 33-
Grey part # G33-

I always need to be told in the PP payment (not some random e-mail) the YEAR, Model (walk thru or not....spare in the Driver's Side rear, under the front seat or otherwise) and any options you are needing....

Basic full kit (.060" BKP, Door panels (tell us which options), Slider panel, long panel, rear seat 1/4's, rear 1/4's and rear hatch only!)

Black $550 #33-400-B (AZ tax $46.00)
shipping $95

GREY $550 #G33-400-B (AZ tax $46.00)
shipping $95

Bay Double cab full kits are available too.

Prices for a ’68 – ’79 Bus ABS black panels (includes all fasteners):

STD. Kick panels 33-405-68/70 or 33-405-71/79 .060" thick $45
G33-405-68/70 or G33-405-71/79 .060” $45

HD Kick panels 33-405-68/70HD or 33-405-71/79HD .090" $50
G33-405-68/70HD or G33-405-71/79HD .090" $50

HD Kick Panels with 5 1/4" speaker holes 33-405-68/70HDS or
33-405-71/79HDS .090" $50
G33-405-68/70HDS or G33-405-71/79HDS .090" $50


Door (std.) panels
33-425-68/79 $130 Black
G33-425-68/79 $130 GREY

Door panels with lower corner vents
33-425-68/79V $130
G33-425-68/79V $130

Drilled holes for the OEM plastic air ducts arm rests on doors DISCONTINUED! 5/3/21 No longer available...

Door panels 1975 - 1979 with foam and vinyl arm rests
33-425-75/79 $130
G33-425-75/79 $130

Door panels 1975 - 1979 with foam and vinyl arm rests & vent holes 33-425-75/79V $130
G33-425-75/79V $130

Std seat back bulk head panels (plain pair w/pads)
33-455-P $45
G33-455-P $45

Std seat back bulk head panels (round fresh air holes pair w/pads)
33-455-R $45
G33-455-R $45

Std seat back bulk head panels (rounds plus cig tray hole pair w/pads)
33-455-all $45
G33-455-all $45

Weekender seat back LONG PANEL (without pads or sink, EACH) Black / cad silver screws included
33-455 $35 (33-455-DS driver 33-455-PS Passenger)
G33-455 $35 (G33-455-DS driver G33-455-PS Passenger)

Slider side door 33-450-68/70 or 33-450-71/79 $85
G33-450-68/70 or G33-450-71/79 $85

NEW: Dbl cab rear wall and door kit 33-451-68/79 $130
G33-451-68/79 $130

Long panel on DS 33-460-68/79 (needs -465-) $90
G33-460-68/79 (needs -465-) $90

Rear seat ¼’s (pr) 33-465-68/79 $90
G33-465-68/79 $85


Rear ¼’s (pr) without spare (non walk thru) 33-470-68/70, 33-470-71 or
33-470-72/79 $45
G33-470-68/70, G33-470-71 or G33-470-72/79 $46

Rear ¼’s (pr) with spare tire (walk thru) 33-470-68/70S, 33-470-71S or
33-470-72/79S $45
G33-470-68/70S, G33-470-71S or G33-470-72/79S $45

Rear Hatch 33-475-64/71V ('64 - '71 Westy with V notch too), 33-475-64/75 or 33-375-76/79 $40
G33-475-64/71V ('64 - '71 Westy with V notch too), G33-475-64/75 or G33-375-76/79 $40


Engine Compartment Ceiling panel kits:
33-813-68/71 Walk thru 1968 - 1971 Bus Engine ceiling panels 2pc w hardware $85
G33-813-68/71 Walk thru 1968 - 1971 Bus Engine ceiling panels 2pc w hardware $85

4/23 I found out 73 to 1st 1/2 of '75 ECC are different shape on the computer panel plus a different trapezoid shaped hole for the computer check bracket. I will be making those in a month or so....

33-813-73/74.5[] 1973 - 1974.5 Bus Engine ceiling panels W/computer [] hole 3pc w hardware $80
G33-813-73/74.5[] 1973 - 1974.5 Bus Engine ceiling panels W/computer [] hole 3pc w hardware $80

33-813-73/74.5P 1973 - 1974.5 Bus Engine ceiling panels W/O computer hole 3pc w hardware $80
G33-813-73/74.5P 1973 - 1974.5 Bus Engine ceiling panels W/O computer hole 3pc w hardware $80


33-813-75/79[] 1975 - 1979 Bus Engine ceiling panels W/computer [] hole 3pc w hardware $80
G33-813-75/79[] 1975 - 1979 Bus Engine ceiling panels W/computer [] hole 3pc w hardware $80

33-813-75/79P 1975 - 1979 Bus Engine ceiling panels W/O computer hole 3pc w hardware $75
G33-813-75/79P 1975 - 1979 Bus Engine ceiling panels W/O computer hole 3pc w hardware $75

NEW: Rear seat lower kick panel (plain, with 6x9 speaker holes or cut outs for rear heater) NO mounting holes as too many years differences You drill a few holes.

But comes with a rubber coated clamp kit, the back of the panels are scribe marks for you to drill for the stock clamps (2 rivet holes) or our Rubber clamp kit (single holes) and also for the early 68-70 (?) center V shaped brace. (shipping with the extra long length is $25 USPS)


33-468-68/79P Plain with no heater cut outs $50
G33-468-68/79P Plain with no heater cut outs $50

33-468-68/79S Plain with 6x9 speaker holes $50
G33-468-68/79S Plain with 6x9 speaker holes $50

33-468-68/79H With dbl Heater cut outs $50
G33-468-68/79H With dbl Heater cut outs $50

FedEx Shipping on each item is posted in Samba ads or on several of the panel’s together average $30 to $60 each (can be up to $120 for full kits to the East coast) within the USA in custom made packaging.

How to make a PayPal payment:
PayPal account: (you can copy e-mail link her) [email protected] (or I can send you a PP billing), but please leave a MESSAGE at PayPal what the payment is for as my "Crystal Ball" is in the shop! Plus your many e-mails does not attach to your PP payment....

Click PayPal top tab "SEND MONEY"
To: [email protected]

Select: "GOODS and services" (NO payments as “Friends and Family” or "Gifts" as no ship to address and my PP seller or your buyer protection)

Amount: Product price, shipping stated in the ad listing and AZ. sales tax if you are in AZ. or it is being ship to a AZ. address.
Continue....

State in the message link: What you are buying by the part #, ship cost, plus your year & model of the vehicle, (area code) and phone number (for shipping company to use if they can't find you) and listed address is a home or business too!


Local cash pick up by appointment only....Prescott Valley, AZ.

To answer this often asked question on my ABS Interior Panels fastener holes:

All my ABS panels are pre drilled with the mounting holes for the sheet metal screws or molly's fasteners which are included.

BUT every VW factory had different stamping dies (these vehicles are +50 years old and they didn't have CNC or robotics back then...) with holes in slightly different locations and some holes may need minor massaging to line up. The holes are 1/4" and the molly heads are 1/2" so you have plenty of fudge room. Unless Vanagon as the body steel holes are 8mm...

The Bay Buses had random drill holes where ever the assemble line worker wanted to drill the holes. Mine mounting holes are professional space apart. Plus the panels cover up all those ugly old holes...

1968 Bay door panels has 1x odd placed fastener hole each and buyer will have to drill a 1/4" thru my panels, into the steel door to add that 1 molly per door panel.

The reason the stock clips are L shaped, it is since the stamped parts holes was not standardized, they can just swing them and slap the panels on during production line assembling.

With most any parts for these old vehicles, most all need some custom fitting. It is called being a mechanic.

_________________
Werksberg Products...products that work!
Paypal: [email protected]
M/O, or check...will be held until they clear before shipping..... In AZ now!
