M-502 Uber - Panel interior set Turn on always show all large photos     Ad id: 1506483
Additional Photos
Click to load image
L & R arrow keys scroll through photos
Photo Photo Photo
Photo Photo
63-67 w/t
Photo Photo Photo
Photo Photo Photo
Photo Photo Photo
59- 61 w/t
Photo Photo
59 w/t DD Panelvan
rear hatch 55-63 now pre-drilled for stock screw location.
M-502 Uber - Panel interior set   Price: $730 / set
This ad is for the grey interior panels which feature the wood trim strips.

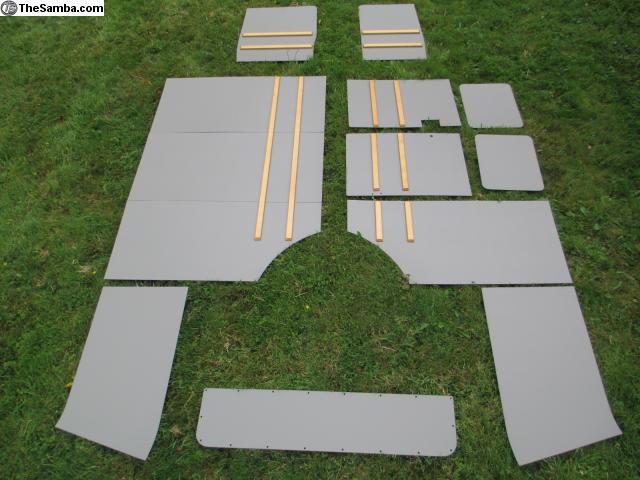

$730 The M-502 panel van Uber-Panel perimeter set consists of:

- Pair of cargo door panels
- a pair of 'window pressing' panels for the tops of the cargo doors
- A right side rear 1/4 panel (behind cargo doors) tall for panel van
- A long panel in three pieces (vertical seams)
- A pair of upper rear corner panels
- A rear hatch panel

A set for a panel with the double doors on both sides is the same price:

- Two Pair of cargo door panels
- Two pair of 'window pressing' panels for the tops of the cargo doors
- A right side rear 1/4 panel (behind cargo doors) tall for panel van
- A left side rear 1/4 panel (behind cargo doors) tall for panel van
- A pair of upper rear corner panels
- A rear hatch panel


I can make a set for a split bus with sliding door

Add a pair of 63-67 walkthrough bulkhead panels for $100.
Add a pair of 59-62 walkthrough bulkhead panels for $100.
Add a pair of 63-67 bench seat bulkhead panels for $100. (the bench seat bulkhead panels cup the spare tire well)
Add a 55- 62 bench seat one piece bulkhead panel for $150 with the wood trim strips
If you want the corner panels to have holes for the vents at the upper corners of bench seat panelvans, add $40.

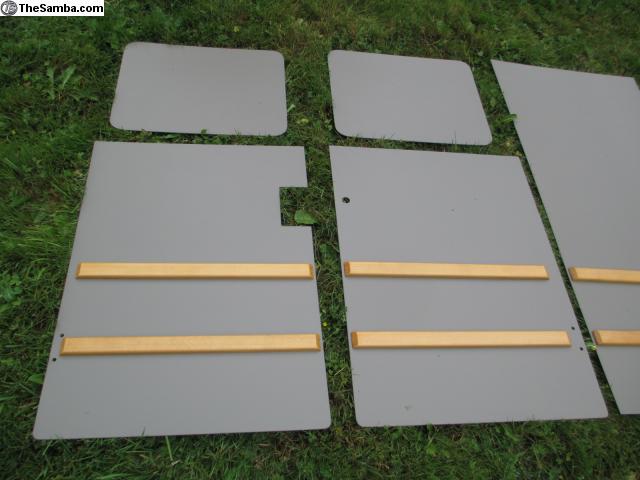

These panels come pre-painted grey and the lower wall panels come with varnished wood trim strips installed.

If you want it without the wood trim the set is $550
The long panel can be in three pieces to make it ship-able at a reasonable price, and the wood strips shipped separately for the long wall. Pre-drilled and marked, but some assembly required.
I can make a one piece long panel for local pick up or delivery to a show.

Originally this kit included a grey rear luggage shelf panel.
The grey rear luggage shelf panel is available with this package for an additional $50. Here is a link to my rear luggage panel ads, which have pictures:
http://www.thesamba.com/vw/classifieds/search.php?...ton=Search

There are three versions of this set:
1) 3/55 through mid 63 for buses with narrow back hatch and outie engine louvers
2) late 63 only for buses with narrow back hatch and innie engine air louvers
3) 64-67 for a bus with big back hatch and innie vents.

* These are considered a special order, and not kept in stock. *
I generally quote 2-8 weeks for an Uber-panel set, depending on what is on hand and how long the pending queue of orders is.
Please don't wait to order until shortly before you want your bus at a show.

--------------------------------------------------------------------------------------
The roof lining kit and cab panels are sold separately. Please see my other ads
I will need to make this for you. :)

___________________________________________________________________________________________________________
A bit about these panels.

There are various factory option codes to describe the parts of this package. You will see them outlined in the coachwork variations book listed under M 502, M 503, M 504, and M 505. It is very unlikely that your bus was equipped with these new from the factory, unless it was a German Post Office bus, but they could have easily been ordered by a dealer from Volkswagen and installed at a later date.

This is a list of the factory M-codes:

M 502 - Installation of an inside wall lining (without roof lining) made from Cefasit - hard fiber boards (not in connection with M 222 Highroof models)

M 503 - Installation of a roof lining made from Cefasit - hard fiber boards (not in connection with M 222 highroof models)

M 504 - Installation of a bench-seat bulkhead lining made from Cefasit - hard fiber boards

M 505 - Installation of a walk-through bulkhead lining made from Cefasit - hard fiber boards


This was a very rare factory option which not only looks cool, but is fairly functional as well.

A set of these panels will:
1) Help quiet down your bus.
2) Improve the look of your loading area
3) Cover up any unsightly welding areas or damage
4) Help protect the inside of your bus
5) Help insulate your bus making it more comfortable in the heat and the cold.
___________________________________________________________________________________________________________
These panels are made of tempered hardboard and are patterned off of original panels. I have been making these for over 15 years, and have fitted these in countless buses over the years. The panels are painted with two coats of grey paint, and are sanded in between each coat. The wood trim strips are made of hardwood, and are custom sized and shaped to resemble the original pieces. They are coated with two coats of varnish and are sanded before each coat.
The wood trip strips come pre-attached to the panels.

...........................................................................

_________________
Here is a link to pictures with installation tips:
http://goo.gl/WX1Y6
