Single Cab Truck Panel Set Turn on always show all large photos     Ad id: 928299
Additional Photos
Click to load image
L & R arrow keys scroll through photos

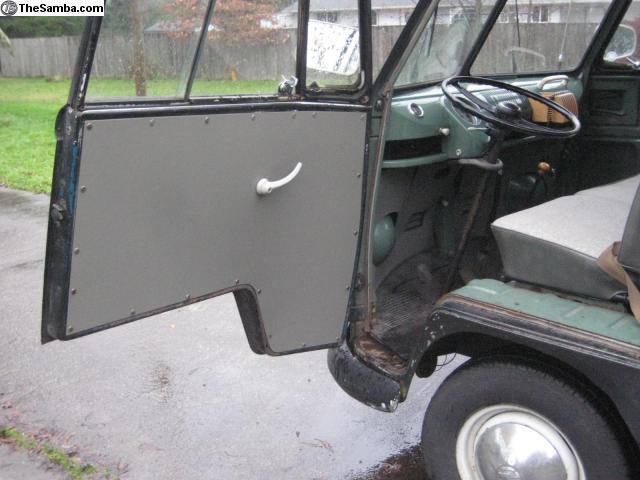

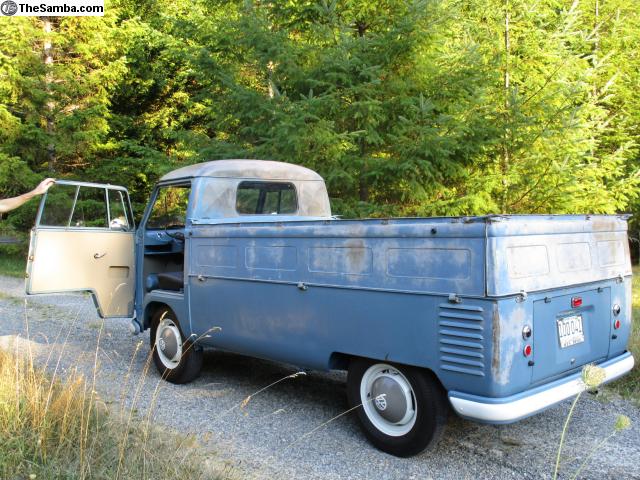

1957 SC

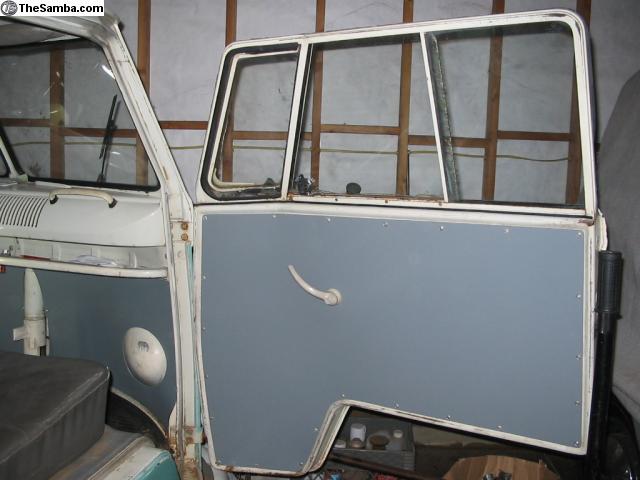

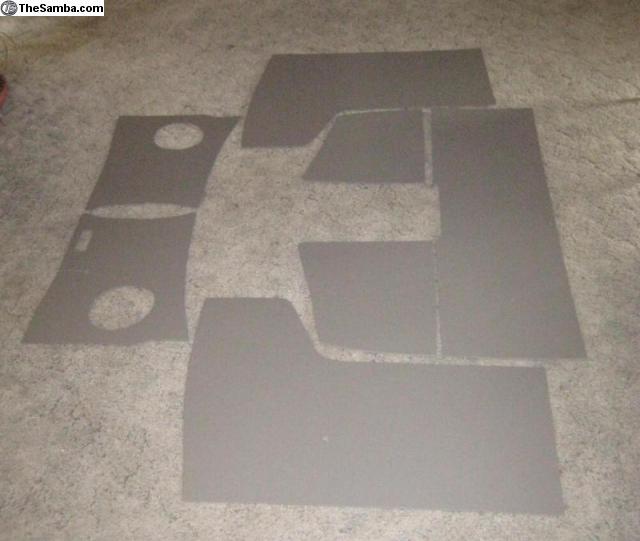

set for late 63 or early 64 SC

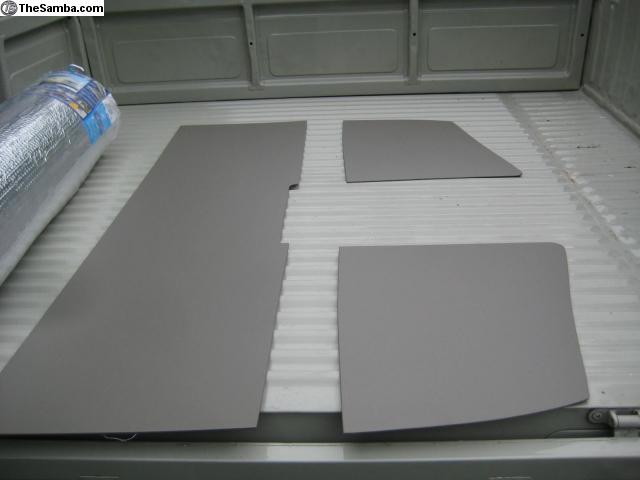

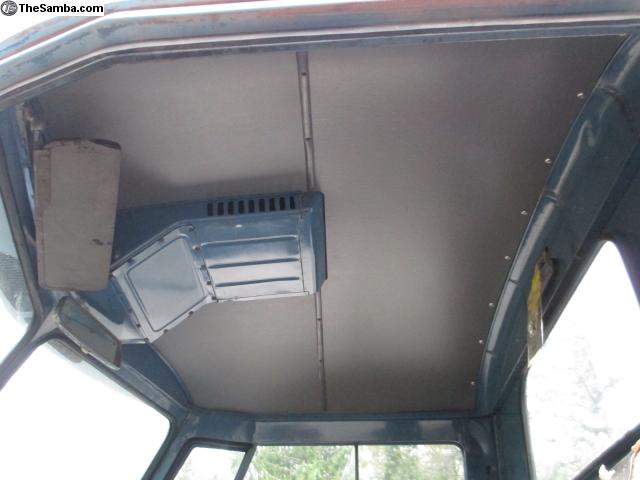

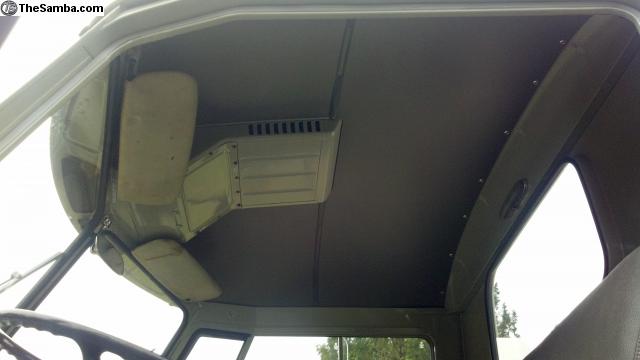

SC roof set in gray

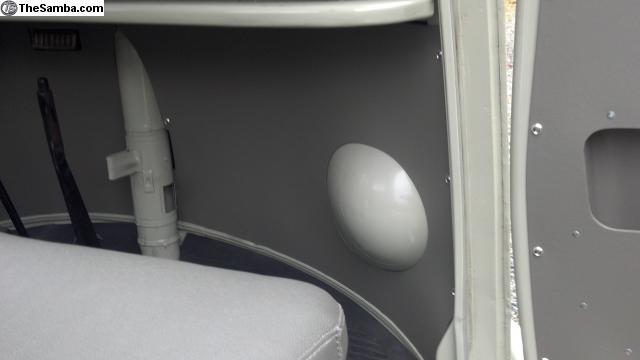

late 63 with late headlight bucket
Photo Photo

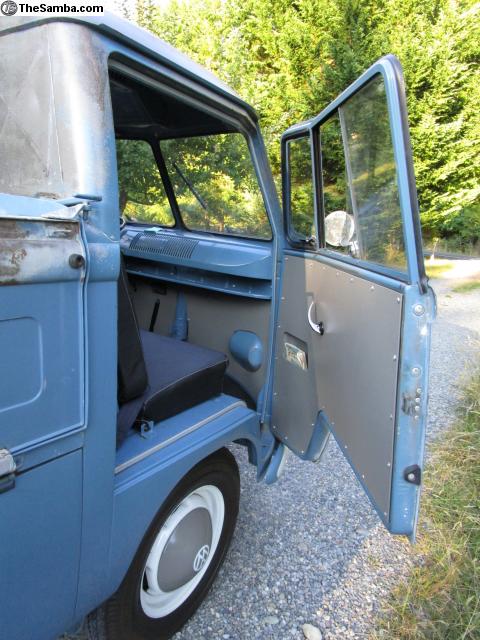

1957 SC -early headlight bucket

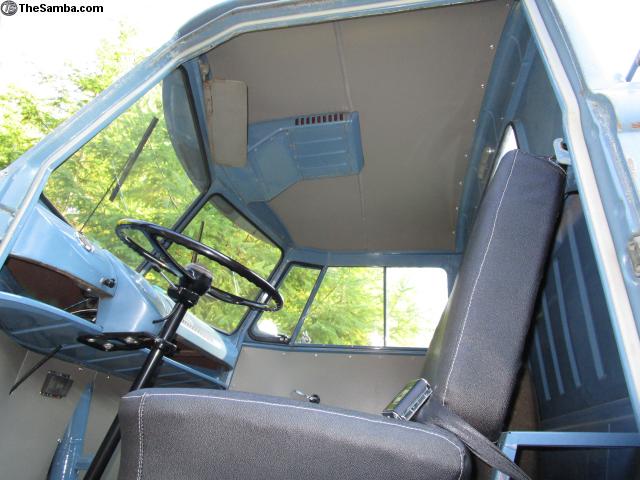

1957 SC

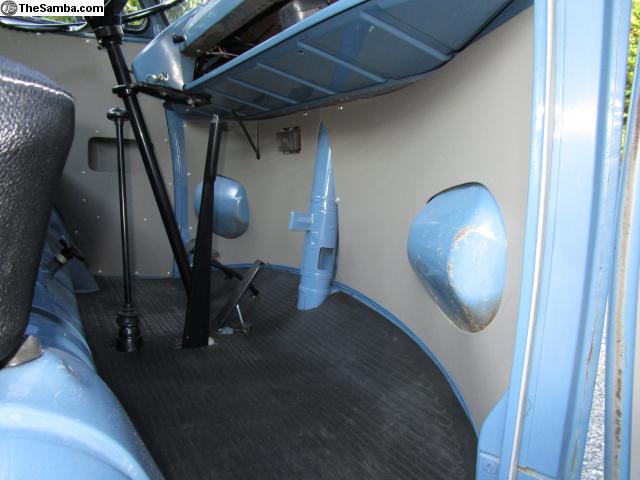

1957 SC
Photo Photo Photo
late headlight bucket
w/ holes for 64-67 snaps

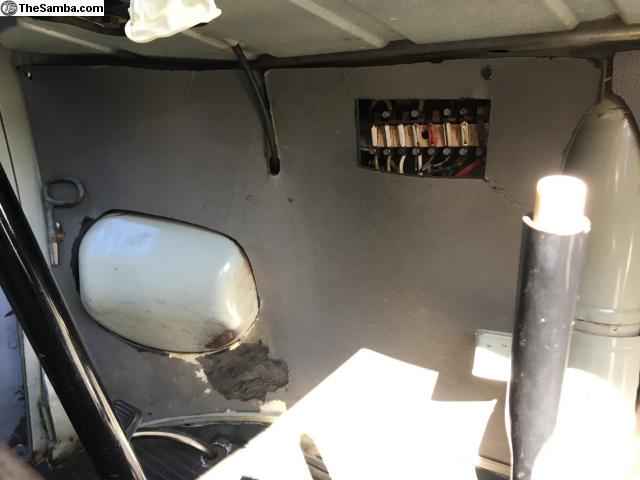

fusebox w/8 fuses, screw connection wires

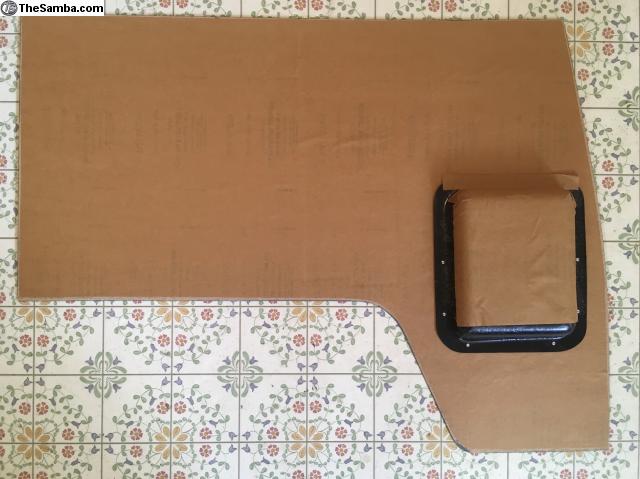

with vapor barrier like original
with vapor barrier like original
Single Cab Truck Panel Set   Price: $250, $385 w/pockets

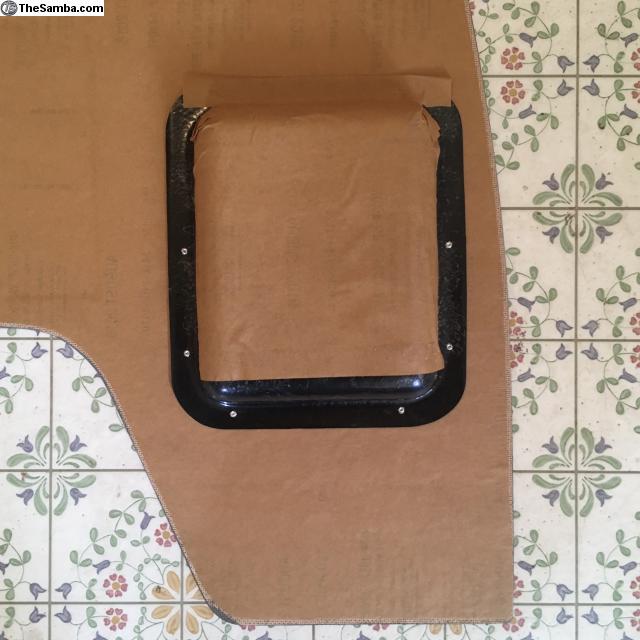

Door panels with pockets now (as of January 2020) come with a vapour barrier already installed before the pocket is riveted on. The price has been adjusted.

------------------------------------------------------------------------------

Here is a new reproduction Single Cab Truck Set of interior panels:
- kick panels for under the dash, pair (specify year of truck)
- SC roof set- 3 pieces - a small piece for each side of the fresh air vent, and a wider piece for behind the vent.
- cab door panels, pair (regular)

The price is $250 for the grey seven piece SC set with regular door panels. This was stock from May 1961 through mid December 1963.

$385 for a seven piece SC set with pockets on the cab door panels. They came with pockets on the door panels through April 1961. You can use them on later trucks through 12/63 with ice pick cab door handles if your like.


$270 for a set with clip holes on the front door panels for 12/63 through 67 truck with push button door handles.
$405 for a set with late (push button door bus) pockets and 12/63-67 clip holes.
$385 for a set with late pockets and no clip holes.

Estimated shipping cost as of Jan 2020 to California is ~$40
Estimated shipping cost as of Jan 2020 to the East Coast is ~$70
Please let me know your zip code so I can find the shipping cost.
Thanks!

Fasteners are not included.
A SC truck takes 23 screws per cab door + 5 per kick panel (6 for 4/64-67) + 4 per roof trim strip + 8 for the back of the back roof panel = 72 (or 74)
That means buy two bags of screws and trim washers from WW, and you have some left over for your next project.

------------------------------------------------------------------------------------------------------

For Type 2s built in 1960, there are three versions of fuse box used. The fuse box hole is different for each.
If your truck was built in 1960, let me know which fusebox it has.
- 6 fuses, with screw terminal wire connections
- 8 fuses, with screw terminal wire ends or
- 8 fuses, with push-on wire ends?

If you have a 63, does it have the early or late headlight buckets? see the pics!

If you want pocket door panels, and want to upholster them
$300 for a bare set with loose pockets:
- SC roof set (3 pieces)
- kick panels, pair
- cab door panels, pair, w/ pocket hole, pre-drilled for rivets
- pair pockets, also pre-drilled for the rivets
- 16 rivets to attach the pockets after the panels are upholstered
The rivets are the smash type, which you fold over with a punch and hammer.
$200 for a bare 7 piece set.

The panels are made of hardboard like the original truck roof panels.
I offer them bare, or original gray.

I do not make the original metal trim strips that covered the seams for the roof panels. Sometimes I have a used pair for sale. Please check my other ads!
If you want a pair of the hardboard strips like was used in the DC trucks, I can include them for an additional $20.
I can send you a partial SC set if you like.
Please look at my other ads for more interior panels, and feel free to ask me any questions.

_________________
- - - - - - - -
Here is a link to pictures with installation tips:
http://goo.gl/WX1Y6
