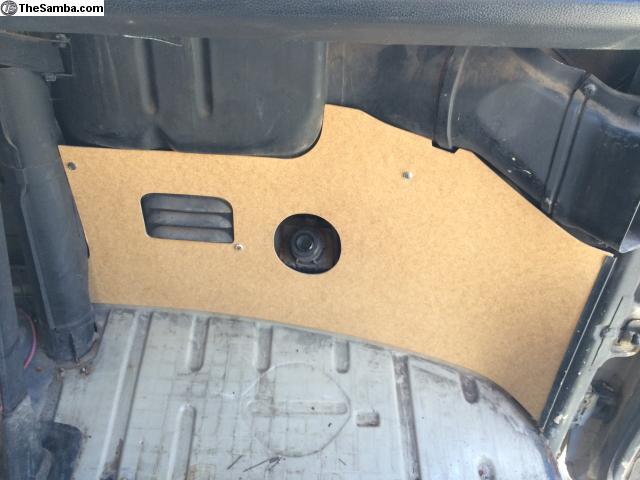

in my 70 bus

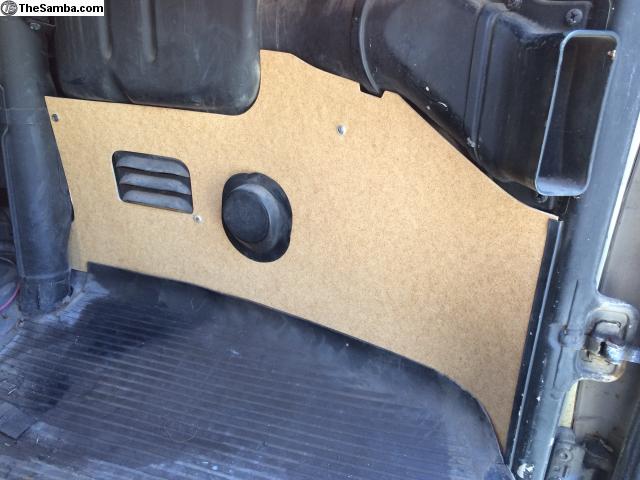

in my 70 bus

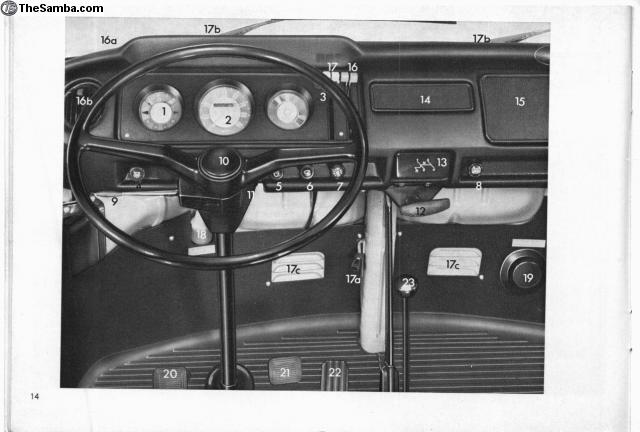

owners manual for 1970
69-70 bay front kick panels   Price: $60 or $70/ pair

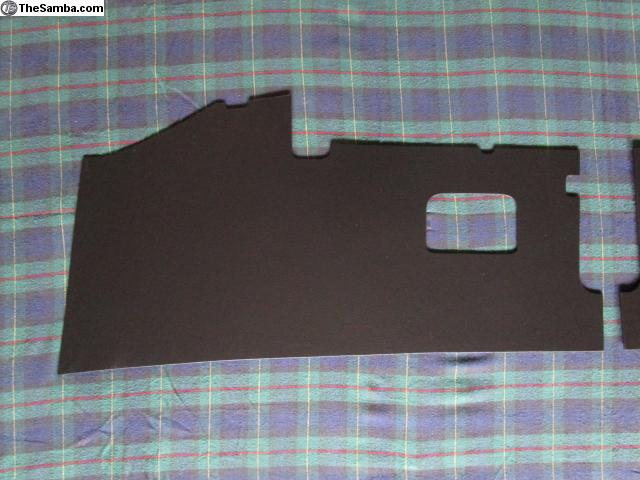

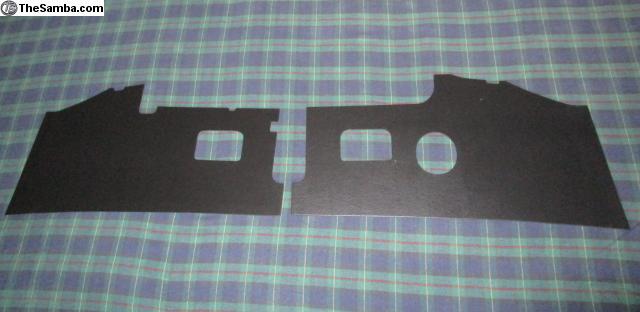

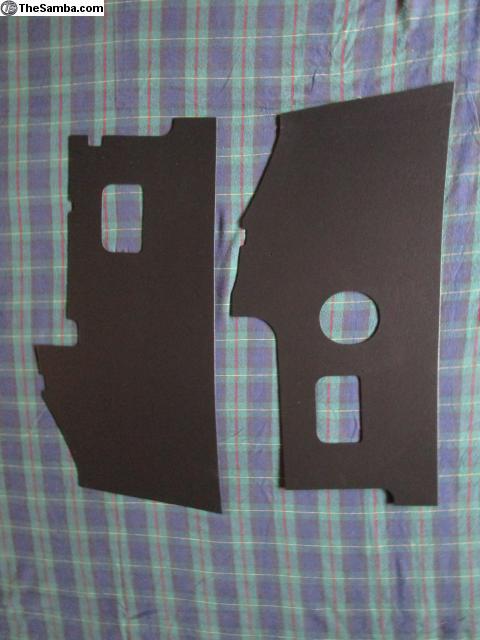

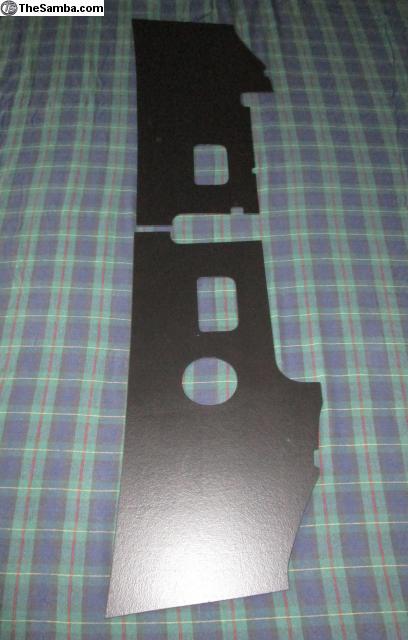

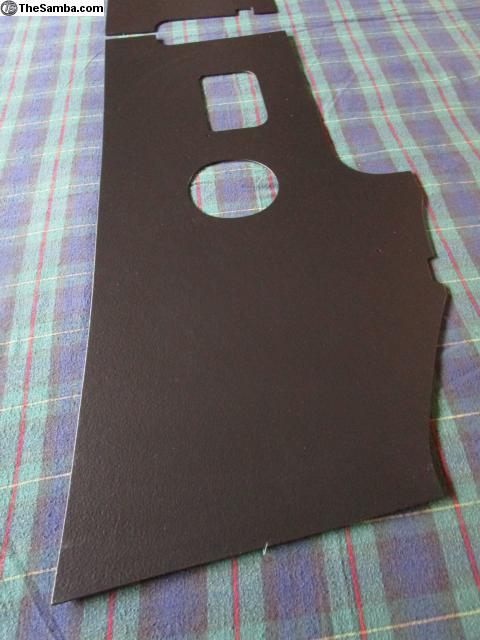

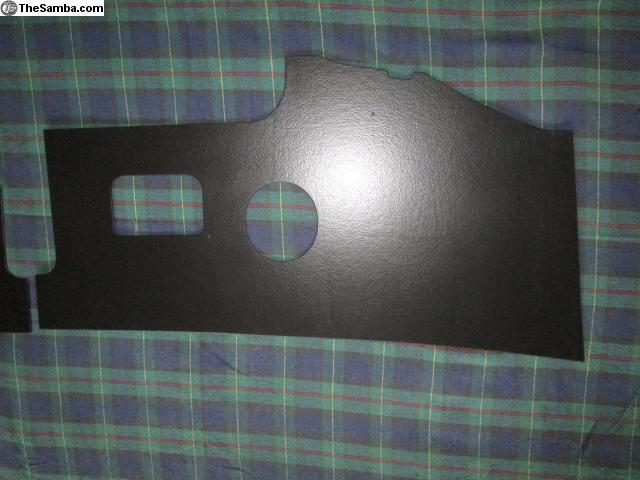

Pair of kick panels for 69-70 buses.
These are made of hardboard and painted black, or available bare if you want to paint or upholster them.

$70 the pair black, or $60 the pair bare unpainted.

Other year bay kick panels are available too.

Thanks!


---------------------------------------------------------------


Tips on installing bay kicks:
1) Put center end by heater tube in first,
2) Attach screw by heater vent but don't snug it down
3) Bend the panel so there is a bulge towards you, and fit the outer edge into the slot near the door.
4) Lift outer edge so screw holes in panel line up with screw holes in bus. A pokey thing and a flashlight helps.
5) Hold lower edge and pop bulge of panel forward.
6) Install last two screws, snug all screws

If screw holes are not pre-drilled, you can ignore some of the steps.
It's not like they will fall out if you don't screw them in place.

_________________
- - - - - - - -
Here is a link to pictures with installation tips:
http://goo.gl/WX1Y6
