late 66'-79' Bulletproof Pedals Stock/Wide width Turn on always show all large photos     Ad id: 626235
Additional Photos
Click to load image
L & R arrow keys scroll through photos
Photo Photo

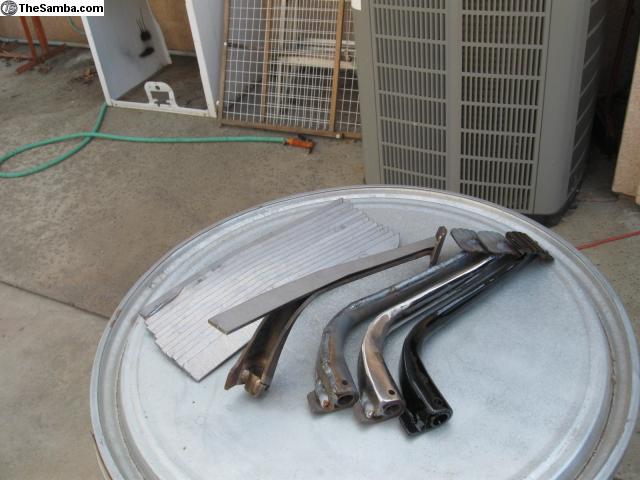

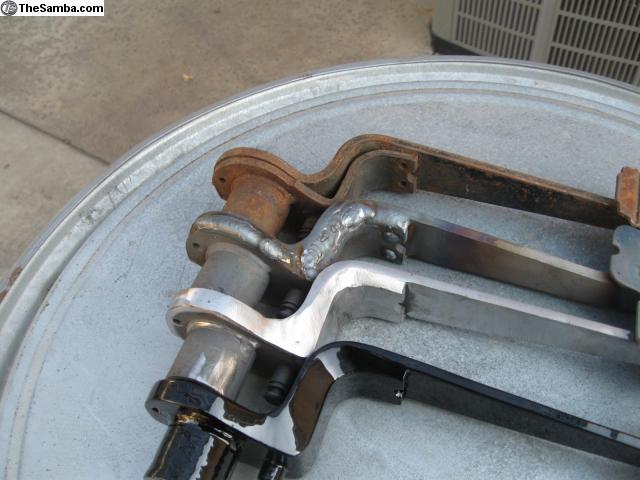

all clutch pedals are fully welled and "boxed in"

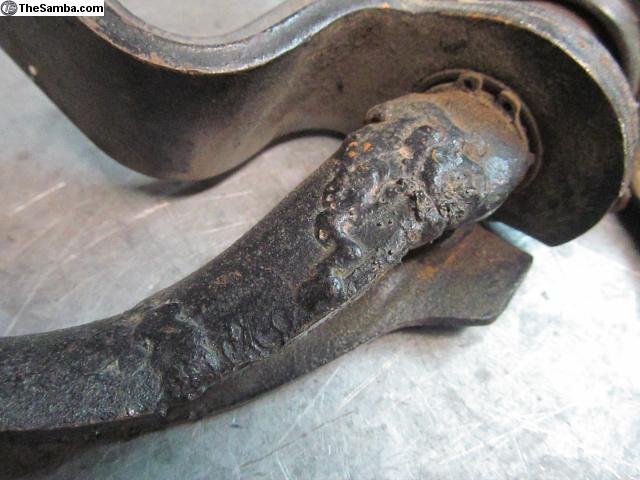

this pedal was cracked and repaired poorly I will not reuse these.
brake pedal on wide sets is fully welded
Photo Photo

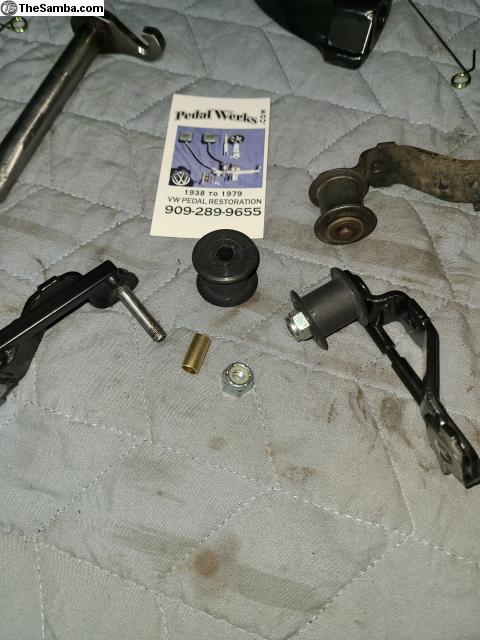

Stock Throttle arm roller is upgraded with a bushing to improve Throttle feel
standard width brake pedals are partially welded

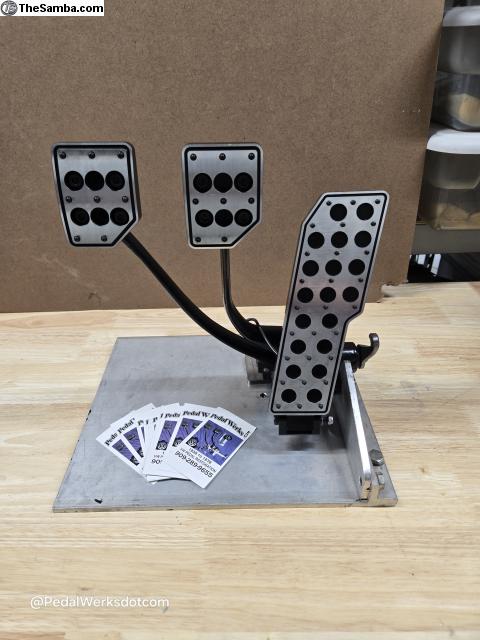

new TKP matching throttle and pads now availiable
late 66'-79' Bulletproof Pedals Stock/Wide width   Price: $345/$500 Exchange
Pedal Werks VW Pedal Restoration Services www.PedalWerks.com [email protected] IG @pedalwerksdotcom Facebook PedalWerks.com

late 66 to 79 pedals are made from stamped steel from the factory and are prone to cracking at the pin hole where the clutch hooks is pressed in, reinforced welding is the only way to prevent this.

I have installed my pedals on cars with stage 3 #3000 clutches. with no failures

United States Postal Money Orders, Personal checks ETC. and PayPal as a gift or +4% accepted

note effective Jan 2024 Sales Tax will be added to all inside California sales. (PW has been covering all sales tax for the last 18 years.

Please verify the year of your pan and that it has not been changed.
these will fit Bug, Ghia, from 1966 vin #116460614, Type 3 and Thing's from
1962, They will fit 58' to 66' also with minor mods.

Core charges as follows (I DO NOT ACCEPT NON GERMAN PARTS AS CORES)
(Complete pedal assembly $56) (complete with push rod $96)
$465 outright

breakdown is Pedal cluster $25, throttle pedal $12, throttle arm $10, throttle arm pin $4 brake spring $5, clutch hook $16, push rod $40 ($112)

Bad or missing parts will be subtracted from core refund. Example $96 core charge paid. But core received back with aftermarket or unusable clutch hook $80 will be refunded.

I do not use or accept NON GERMAN Pedals as Cores. (Except Brazilian Puma Pedals)

Please check my Feedback
http://www.thesamba.com/vw/forum/viewtopic.php?t=302803&highlight=scott+stuart

This ad is for Rebuilt Pedal Assemblies or Clusters for 1966 thru 1979 VW Bug, Ghia, Thing and type 3, that have been reworked Similar to the article in the April 2008 issue of Hot VW's magazine page 53, and August 2011 page 44.

All work is 100% Guaranteed. I have been a professional Mechanic/Machinist since 1978

I completely disassemble then sandblast and inspect all parts, I only reuse good German parts or use new as required, then I completely "BOX IN" Weld the clutch pedal for Strength,
you will NEVER break your clutch pedal again

The pedal foot pad surface gets rounded corners to improve grip and prolong pad life.

The throttle arm gets straightened and Reinforced & the pin gets threaded and lock nut added to hold roller on and eliminate the C clip.

The throttle pedal gets inspected, repaired and reinforced.

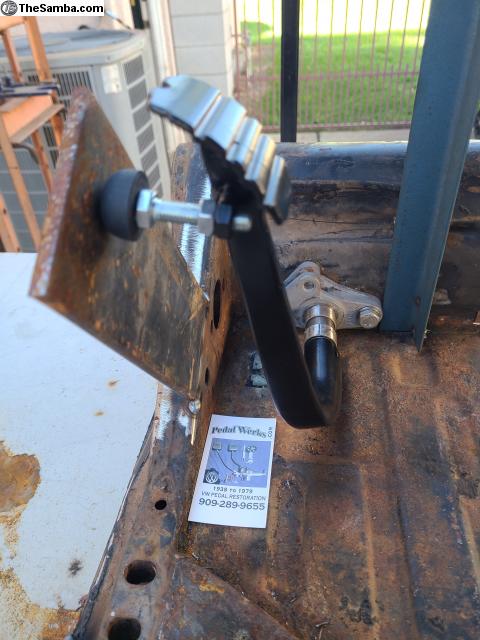

Add a Billet gas pedal for $125

included a Pedal Werks tool steel clutch hook, Classic Bug parts clutch hooks Available for additional cost.

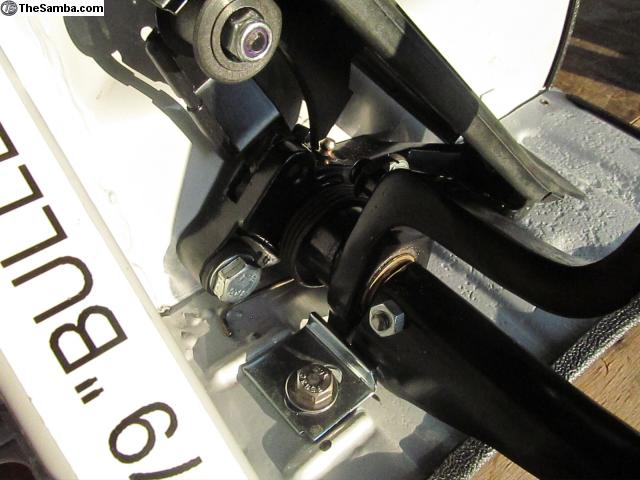

The "Base" and Brake pedal bushings are replaced, then the base gets drilled and a "zerk" fitting is install in the same place as the factory did on Earlier years. Remind your Mechanic to Grease it.

All parts are powder coated semi-Gloss Black, and assembled with grease, brake and clutch pedal "end play" are set and clutch arm is installed using a Grade 8 Bolt and lock nut for safety. new clutch, brake and throttle pedal pads are installed, other finishes are available, including chrome.


Extended width $425 (clutch moved 1.1/8" inch to left)
Extended Brake & Clutch $500 (brake moved 3/4" to the left, clutch moved 1.1/8")

Shipping to the U.S. is $25

Please E-mail,Text or Call me with any Questions,

See my other ads for other years.


Thank You, Scott
