vw narrowed link pin ball joint front end beams   Price: $895 exchange

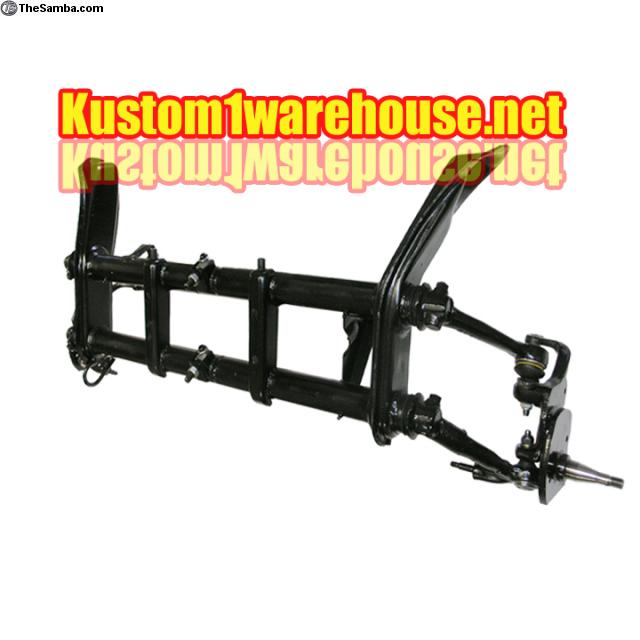

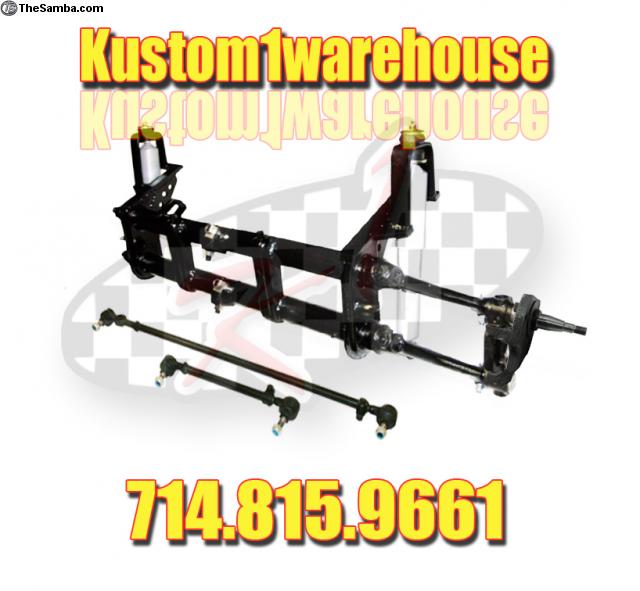

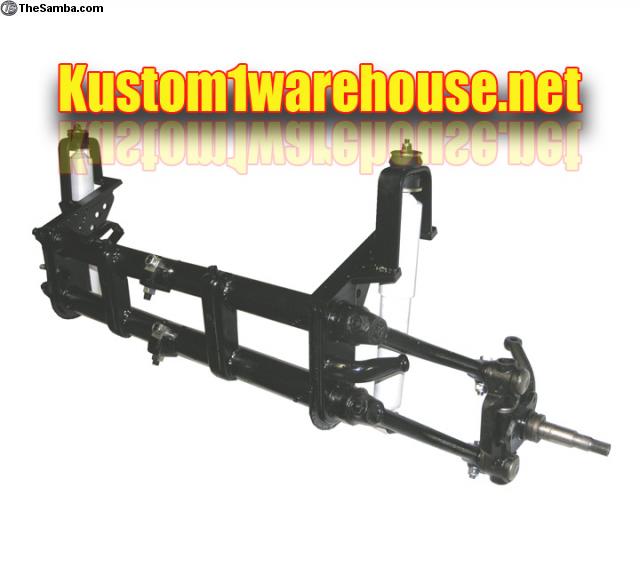

This is a narrowed 3, 4 or 5 inch front end with shock towers for VW Volkswagen standard Beetle 1953-1977 and Karmann Ghia (not Super Beetle). We take an original OEM factory VW German beam with needle bearings (rides smoother), narrow it 3, 4 or 5 inches and install Swayaway style adjusters for a desired ride height. Weld in adjuster allow 3 inches of adjustment, up or down. The shock towers are then modified using a lowered balljoint shock. This beam requires no modification to the body. Our spindles are reamed and bushed with new king and link pins in the USA. Ball joint front ends have a quality ball joint installed. If you choose lower spindles and an adjustable beam, we recommend you have the adjusters installed in the 50/50 position. Half way up and half way down. If you choose the standard adjustable lowered beam with dropped spindles, your car will be on the ground and have no adjustment up. Other options include standard and lowered drum spindles or lowered disc brake spindles for specific applications. Some disc brake spindles require late model rotors, wheel bearings, thrust washers and nuts. There is no accommodation for backing plates when dropped spindle disc brakes are used. If you purchase a front disc brake kit and a front end, we will install the spindles from the kit and use the king and link pins from the beam. Front axle beams are sold exchange and there is a core charge of $300, which is refundable when you return your straight rebuildable core. Check out our website link or just give us a call (714) 815-9661 PST.

For a stock, narrowed 2, 3 or 4 inch beams with shock towers, go to http://www.kustom1warehouse.net/SearchResults.asp?...earch.y=21

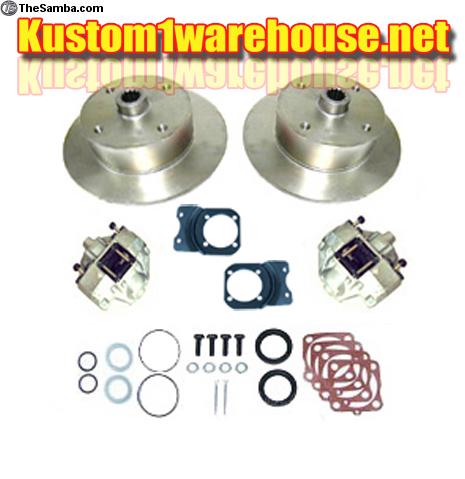

For a dropped spindle 5 on 205 disc brake kit, go to http://www.kustom1warehouse.net/2_5_inch_dropped_s...%20kit.htm

For a zero offset 5 on 205 front disc brake kit, go to http://www.kustom1warehouse.net/Zero_offset_front_...05x205.htm

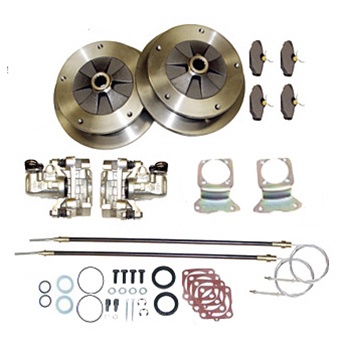

For a rear 5 on 205 disc brake kit with e brake, go to http://www.kustom1warehouse.net/Rear_disc_brake_ki..._5x205.htm

For BRM’s, Sprintstars, Porsche 911 style Fuchs, 5 spokes, 8 spokes and 2 liter alloys go to http://www.kustom1warehouse.net/SearchResults.asp?...earch.y=20

Check out my other ads, go to http://www.thesamba.com/vw/classifieds/search.php?username=Kustom1warehouse.net

Need a shipping quote? No problem, our REAL TIME shipping calculator call give you your exact cost including shipping using your zip code BEFORE you even sign-in to our website.

Kustom 1 Warehouse
Santa Fe Springs, Ca. 90670
(714) 815-9661 PST
M-F 10AM-6PM
SAT Varies
SUN Closed
