Crew / Double Cab Truck Interior Panel Set Turn on always show all large photos     Ad id: 948457
Additional Photos
Click to load image
L & R arrow keys scroll through photos
Photo Photo Photo

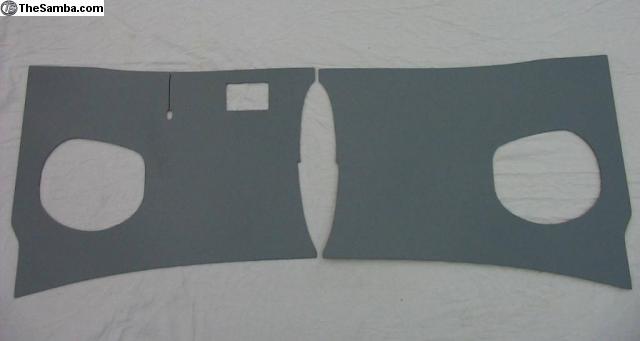

3/55 - 2/60 kicks

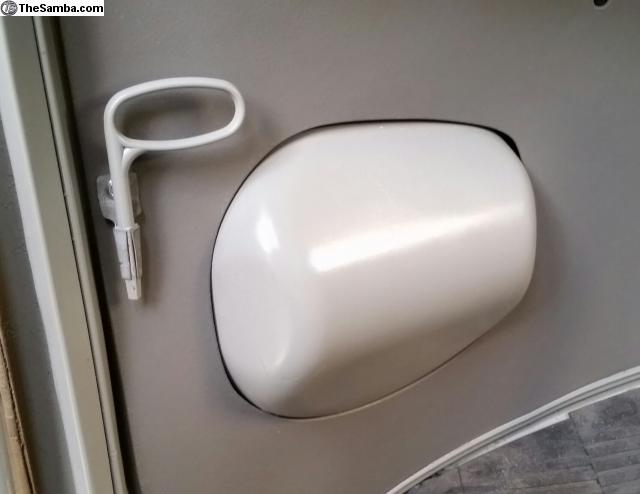

Late 63 headlight bucket
4/64-67 kicks, snap cab door panels
Photo Photo

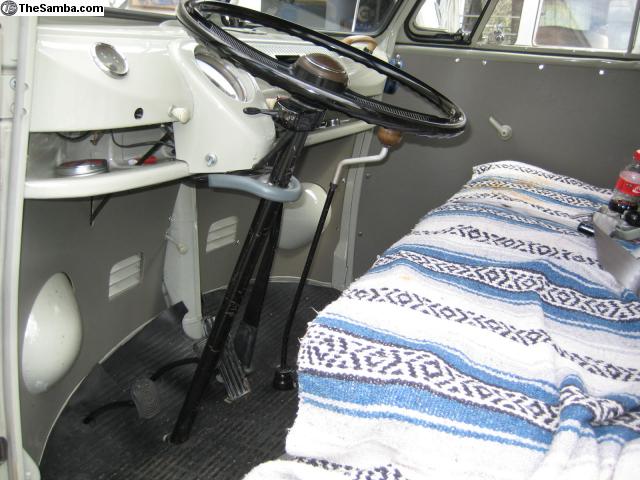

Lee's early '63
early '63 headlight bucket
early '63
photo thanks to Lee Hedges
find me at this bus

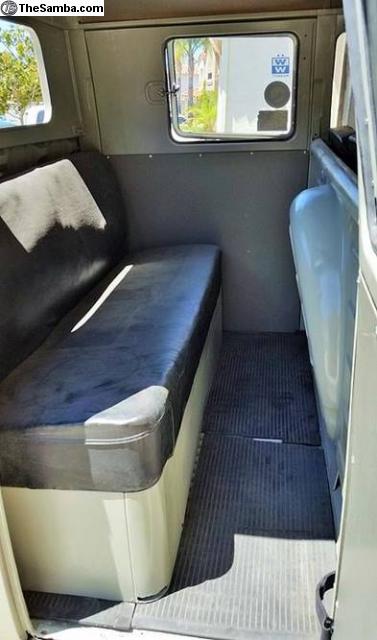

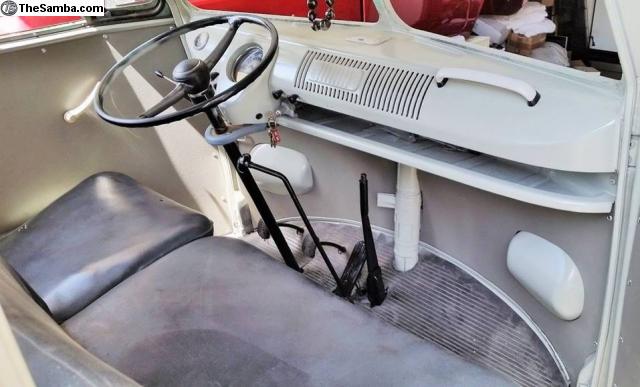

Kris' DC
Kris' DC

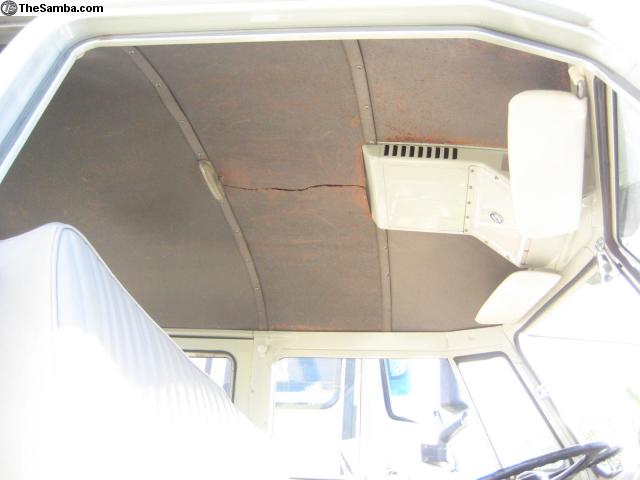

original

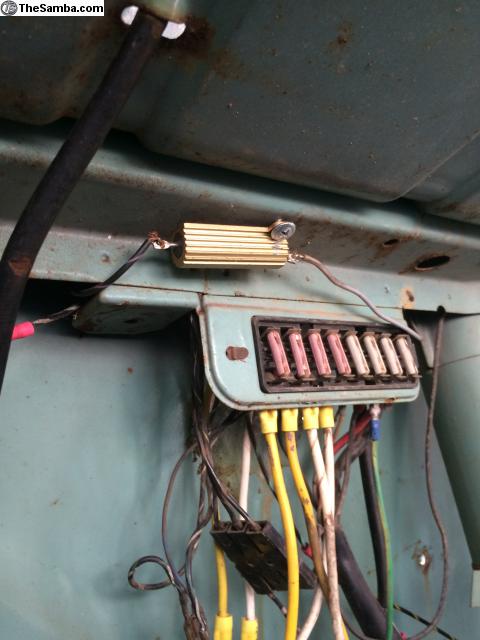

8 fuses screw end wires - og kick

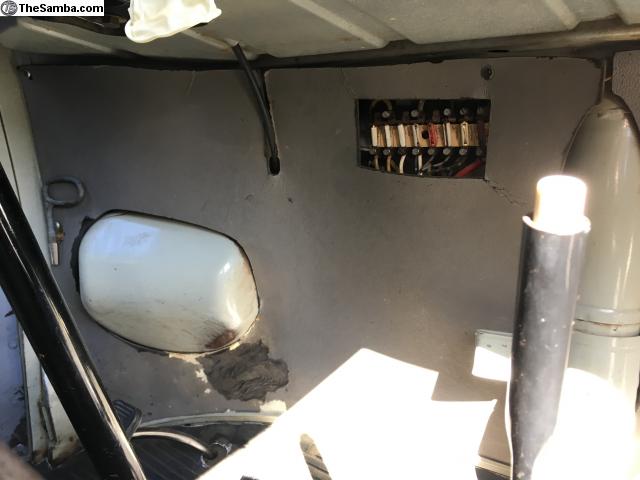

8 fuses, spade end wires -
Crew / Double Cab Truck Interior Panel Set   Price: $450
New Reproduction Interior Panels for your VW Crew Cab.

$450 for a Grey 15 piece interior panel set for a split DC truck

estimated shipping as of Dec 2019:
to California is ~$85.
to Florida is ~$125
Please let me know your zip code, to help me find the shipping cost.

---------------------------------------------------------------

A 15-Piece Double Cab Truck Set is

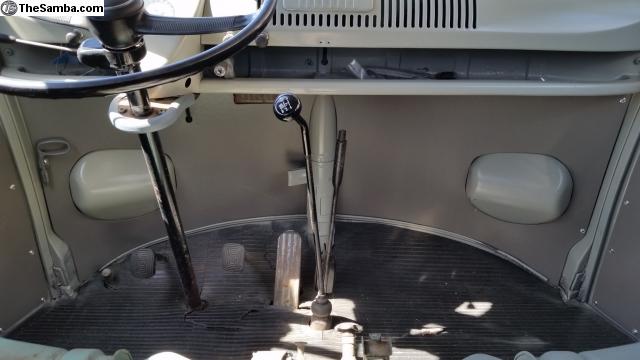

- kick panels, pair (specify style)

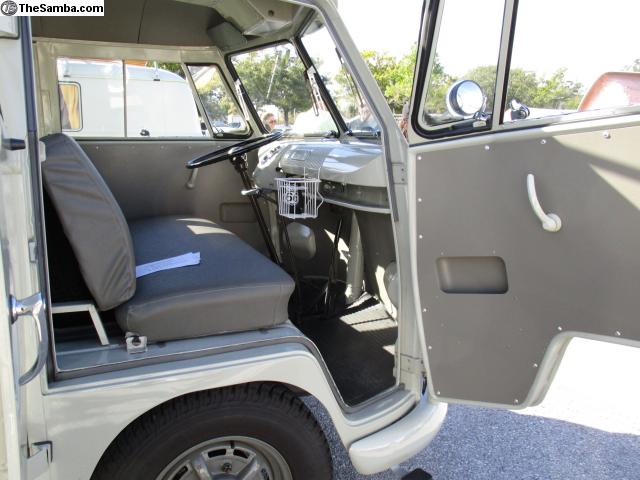

- cab door panels, pair (regular) (You can get pockets and/or pre-drilled for 64-67 snaps for an extra fee)
- wall panel in back on drivers side

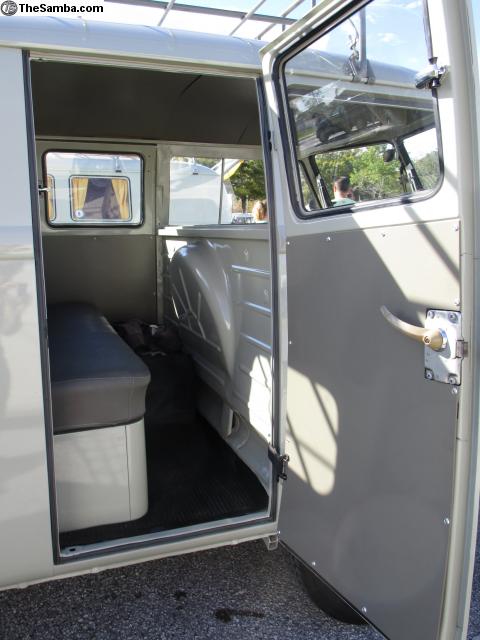

- third door panel
- narrow wall panel next to 3rd door

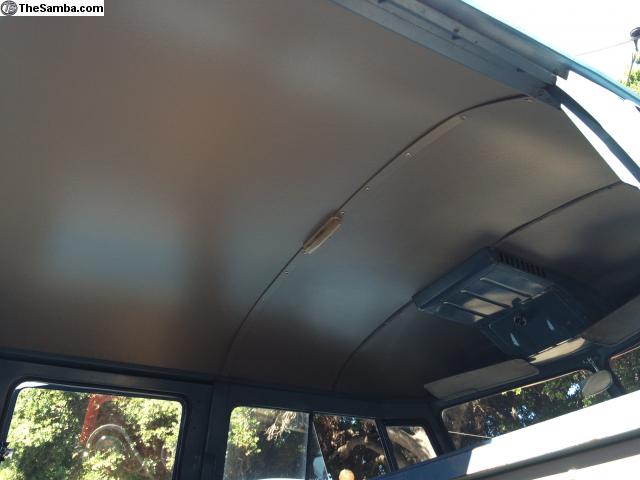

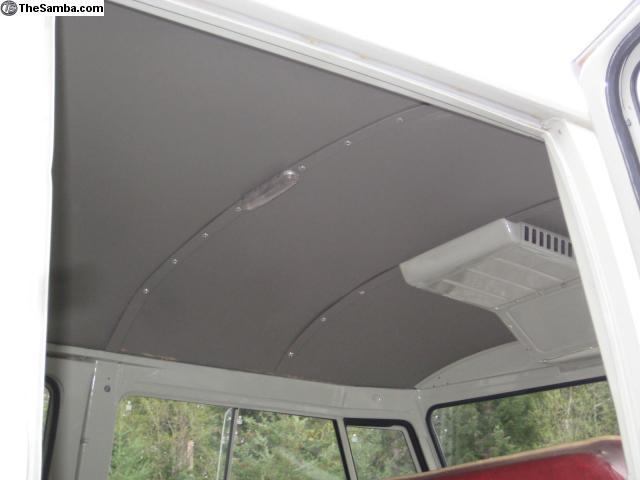

- DC back roof panel
- middle roof panel
- pair front roof panels
- 4 roof trim strips

$450 for a grey 15 piece set with regular door panels (no pockets or clip holes).
$470 for a grey 15 piece set with clip hole door panels for 12/63-67 truck with push button front door handles.
$590 for a grey 15 piece set with pockets on the front door panels, and vapour barrier installed. They came with pockets on all buses through April 1961, but can be used later.
$610 for a grey 15 piece set with clip holes and pockets on the front door panels for 12/63-67, and vapour barrier installed
$370 for a bare 15 piece set with regular door panels.

You can use the regular door panels on all year buses through 67.
They were stock for May 1961 through mid December 1963

Kick panel style changed over the years:
- Kick panels 3/55 through 2/1960 (earlier headlight bucket, screw terminal 6 fuse fuse-box)
- Kick panels late 1960 only, (earlier headlight bucket, screw terminal 8 fuse fuse-box)
- Kick panels 1961-12/62, (earlier octagonalish headlight bucket, push terminal 8 fuse fuse-box)
- Kick panels 12/62-4/64, (later egg-shaped headlight bucket, push terminal 8 fuse fuse-box)
- Kick panels 4/64-67 style (later headlight bucket, with holes for foot heat vent grills, push terminal 8 fuse fuse-box)

Please note that your 1960 DC could have any of THREE different fuse box styles, so let me know what it takes.
1963 and 1964 were also split years for the kick panels. Thanks!

RHD available as special order

I can do a partial DC set if that is all you need.
$120 - for a grey 3 piece set for the back
- wall panel in back on drivers side
- third door panel
- narrow wall panel next to 3rd door
$210 for a grey 8 piece roof set

$90 - for a bare 3 piece set for the back of the truck
$170 - for a bare 8 piece roof set

From VW there was no panel on the bulkhead, so it is not part of the 15 piece DC panel set.
However, you can add one, which would cut down on noise.

63-67 pair of bulkhead panels is $80

An M502 DC set with wood trim strips on the panels by the back seats is available. please see my other ads.
-----------------------------------------------

This ships in two boxes, which costs less than shipping in one box.
These are the estimated weights and measures:
Box 1 - 24 lbs - 56" x 35" x 2" (8 piece roof panel set)
Box 2 - 25 lbs - 42" x 32" x 3" (lower seven panels)

-----------------------------------------------
Follow the link below to some installation tips with pics... scroll down to the ones that apply to your VW. There is more than one page.
Installing truck roof panels takes more than one person, and there is a trick to it.

Thanks!

_________________
- - - - - - - -
Here is a link to pictures with installation tips:
http://goo.gl/WX1Y6
