M502 Uber-Kombi rear interior panels w/wood strips Turn on always show all large photos     Ad id: 1238904
Additional Photos
Click to load image
L & R arrow keys scroll through photos
Photo Photo

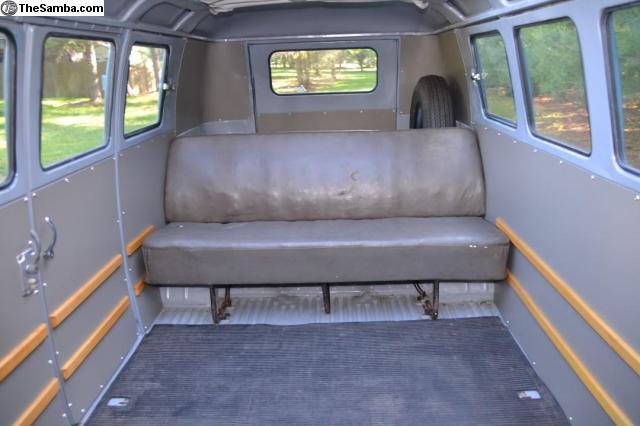

M504 and M502 in sunroof kombi
Photo taken from Coachwork Variations

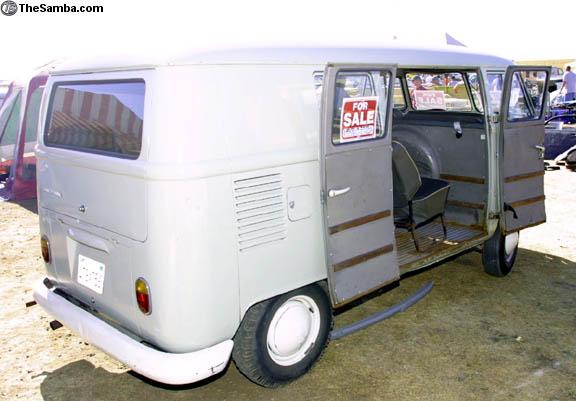

original seen at Sacramento 2001

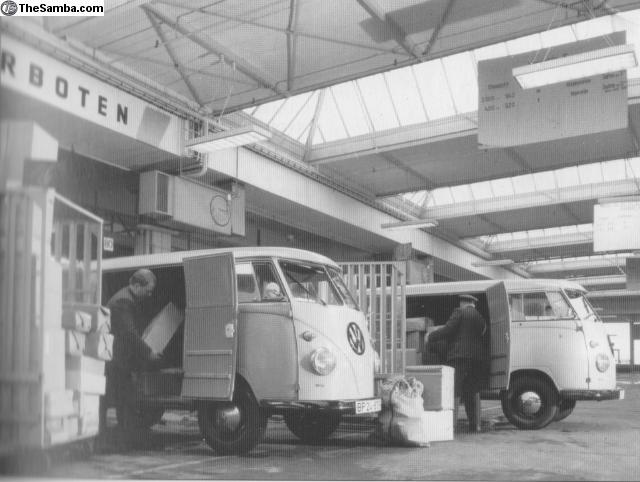

vintage picture

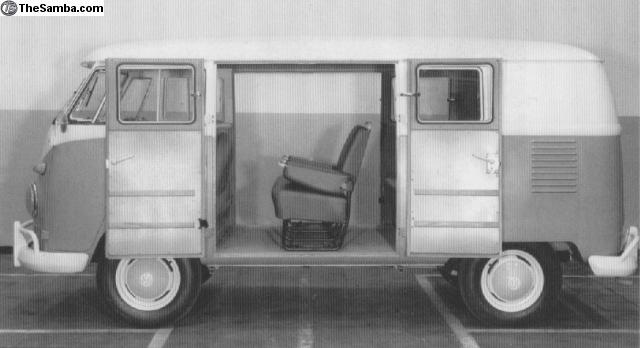

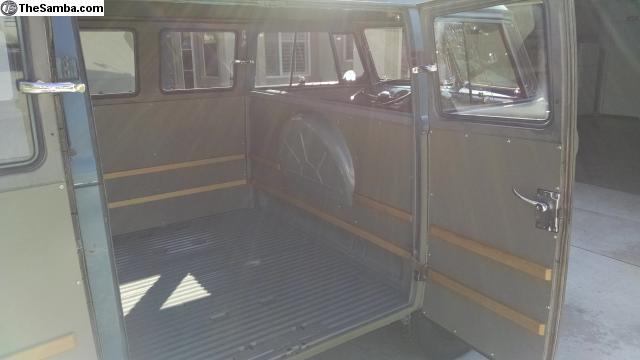

doubledoor kombi with M502

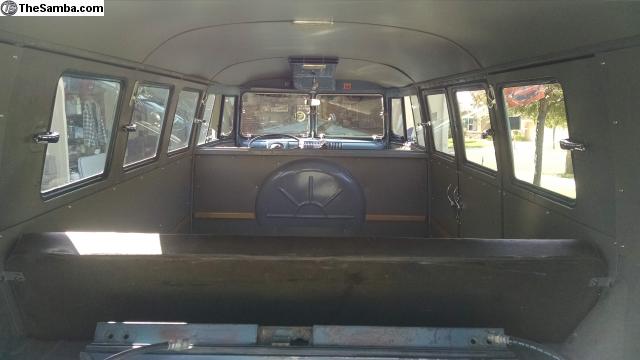

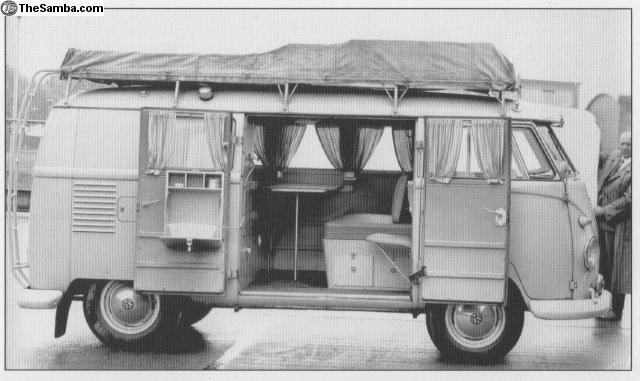

M502 in Vintage Camper

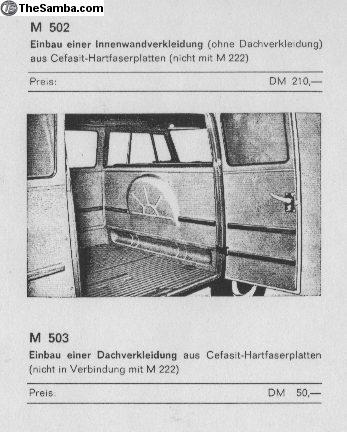

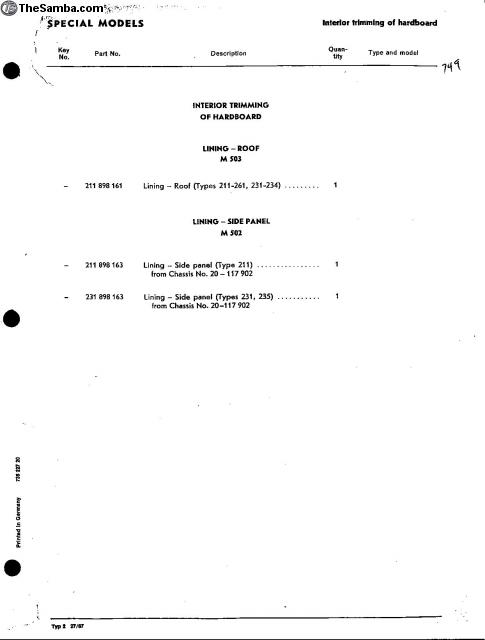

from the online parts list

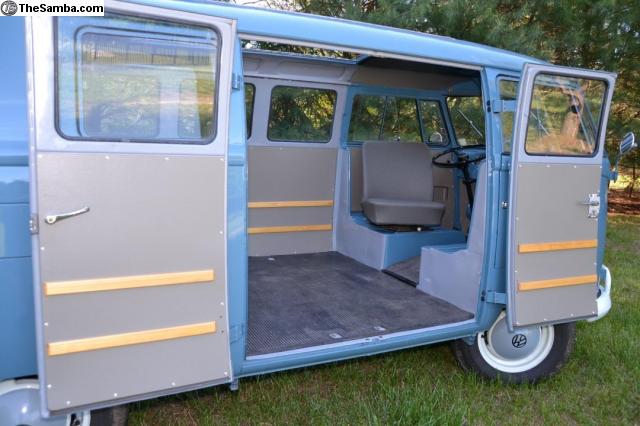

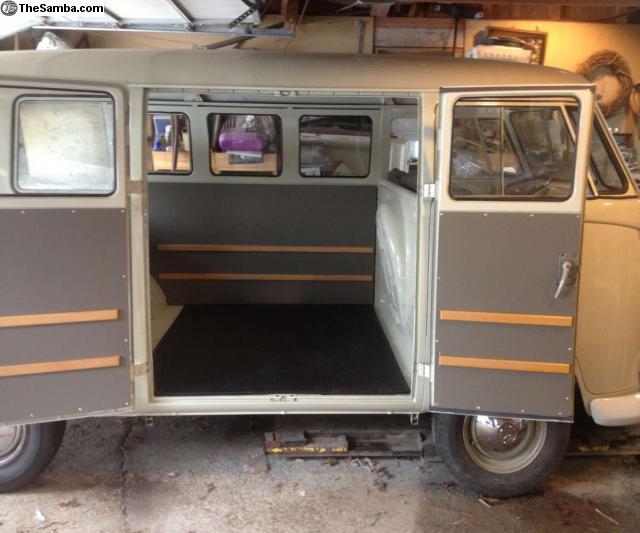

freshly installed
Photo Photo Photo
vintage picture
corner panel
Photo Photo
M502 Uber-Kombi rear interior panels w/wood strips   Price: $550
This ad is for the grey "uber-kombi" interior panels which feature the wood trim strips.

The M-502 kombi perimeter set runs $550 and consists of:

- Pair of cargo door panels
- right side rear 1/4 panel
- long panel on driver's side
- pair of upper rear corner panels
- rear hatch panel

These come pre-painted grey and the lower wall panels come with varnished wood trim strips installed.

Add $10 to have the 64-67 rear hatch panel pre-drilled for clips.
Originally this kit included a grey rear luggage shelf panel. I offer it separately.
The grey rear luggage shelf panel is available with this package for an additional $50.
Here is a link to my rear luggage panel ad, which has pictures:
http://www.thesamba.com/vw/classifieds/detail.php?id=1100427
Clips and screws are available, but are not included.
___________________________________________________________________________________________________________

A bit about these panels.

There are various factory option codes to describe this package. You will see them outlined in the coachwork variations book listed under M 502, M 503, M 504, and M 505. It is very unlikely that your bus was equipped with these new from the factory, but they could have easily been ordered by a dealer from Volkswagen and installed at a later date.

This is a list of the factory M-codes:

M 502 - Installation of an inside wall lining (without roof lining) made from Cefasit - hard fiber boards (not in connection with M 222 Highroof models)

M 503 - Installation of a roof lining made from Cefasit - hard fiber boards (not in connection with M 222 highroof models)

M 504 - Installation of a bench-seat bulkhead lining made from Cefasit - hard fiber boards

M 505 - Installation of a walk-through bulkhead lining made from Cefasit - hard fiber boards


This was a very rare factory option which not only looks cool, but is fairly functional as well.

A set of these panels will:
1) Make the rear seating area more comfortable for your passengers
2) Improve the look of your loading area
3) Cover up any unsightly welding areas or damage
4) Help protect the inside of your bus
5) Help insulate your bus making it more comfortable in the heat and cold.
___________________________________________________________________________________________________________
These panels are made of tempered hardboard and are patterned off of original panels. I have been making these for over 15 years, and have fitted these in countless busses over the years. The panels are painted with two coats of grey paint, and are sanded inbetween each coat. The wood trim strips are made of hardwood, and are custom sized and shaped to resemble the original pieces. They are coated with two coats of varnish and are sanded before each coat. The wood trip strips come pre-attached to the panels.
___________________________________________________________________________________________________________


Please email me with any questions. These panels can be packed up and shipped worldwide, or they can be delivered to a show with prepayment.

* All M-502 sets are made to order, not kept in stock. *
Please keep this in mind if you are thinking of ordering these, don't leave it to the last minute! Allow a minimum of 4 weeks + transit time.

Please see my other ads for roof panels and bulkhead panels.
I also make cab panel sets, please see my other ads for details or email me with your needs.

I also offer partial sets as well, please email me with your needs.

Thanks!
Clara

_________________
- - - - - - - -
Here is a link to pictures with installation tips:
http://goo.gl/WX1Y6
