 Posted: Thu Apr 02, 2015 12:23 pm Post subject: Early Emergency Hazard Switch & Knob |
 |
|
I'm working on an October 1962 Double Cab truck. I'm trying to learn what was authentic for the emergency hazard switch & knob. My truck came with the switch (and it works) but the knob is solid black, matching the other dash knobs. I read the previous threads and learned a lot about the 1966 & 1967 switches/knobs, but did not learn about the early models.
When was the first emergency hazard switch introduced into Buses?
The emergency switch has four tabs on the backside that connect to the four turn signal wires in any order. The knob is where I'm confused. Is the knob black (commercial) or ivory (deluxes) or is it red? I've seen parts for sale that show both a black knob, ivory knob, and a red knob. Here's a pic collage of the red knob version which I believe was used from 1962-65.
|
|
| Back to top |
|
 |
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25904
Location: Olympia Wash Rinse & Repeat
|
| Posted: Thu Apr 02, 2015 12:52 pm Post subject: |
|
|
Black, same as used on our 1963 model DEC62 built SC that have had since 1985.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
coolerthanelvis
Samba Member
Joined: June 30, 2003
Posts: 924
Location: San Diego, CA
|
| Posted: Thu Apr 02, 2015 3:48 pm Post subject: |
|
|
My FEB65 SC has the red knob like the one pictured.
_________________
Shawn
SV2s member #420
'68 Westy
"Do or do not, there is no try."
-Silent Bob |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71497
Location: Phoenix 602
|
|
| Back to top |
|
|
Lee Hedges
Samba Member
Joined: November 09, 2000
Posts: 813
Location: San Diego
|
| Posted: Thu Apr 02, 2015 4:42 pm Post subject: |
|
|
So when did emergency hazard lights get introduced?
And when did the red knob get introduced?
Thanks for the clarification! I prefer the solid black knobs. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71497
Location: Phoenix 602
|
| Posted: Thu Apr 02, 2015 4:51 pm Post subject: |
|
|
Hazards started in late 62 sometime, I'm not sure of the exact date.
The light was added to the dash at the end of November, 1962.
(From progressive Refinements)
The red knob started in 1964 but I'm not sure when.
The red knob changed to have a light inside that flashed in 1966.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Lee Hedges
Samba Member
Joined: November 09, 2000
Posts: 813
Location: San Diego
|
| Posted: Thu Apr 02, 2015 5:15 pm Post subject: |
|
|
| Perfect info! Thanks Everett! |
|
| Back to top |
|
|
wrenchnride247
Samba Member
Joined: August 17, 2010
Posts: 251
Location: Cleveland, TN
|
| Posted: Thu Apr 02, 2015 7:09 pm Post subject: |
|
|
My March 19 1962 SC has hazard with black knob, like wiper and head light switch.
_________________
SPL
'62 SC 69x90.5 SP TI
'70 T1 84x105 DP T4 |
|
| Back to top |
|
|
edgood1
Samba Member
Joined: September 30, 2004
Posts: 2116
Location: Plymouth, MA
|
| Posted: Sun May 21, 2023 4:17 pm Post subject: Re: Early Emergency Hazard Switch & Knob |
|
|
I was doing some research on this to see what is correct for a '63 deluxe and found this thread. My Oct '62 panel van came to me with a red emergency flasher knob and I also have an Oct '61 bus which also has the same emergency flasher switch with a red knob. Do both buses have the wrong switch/knob or is possible the solid red knobs appeared earlier?

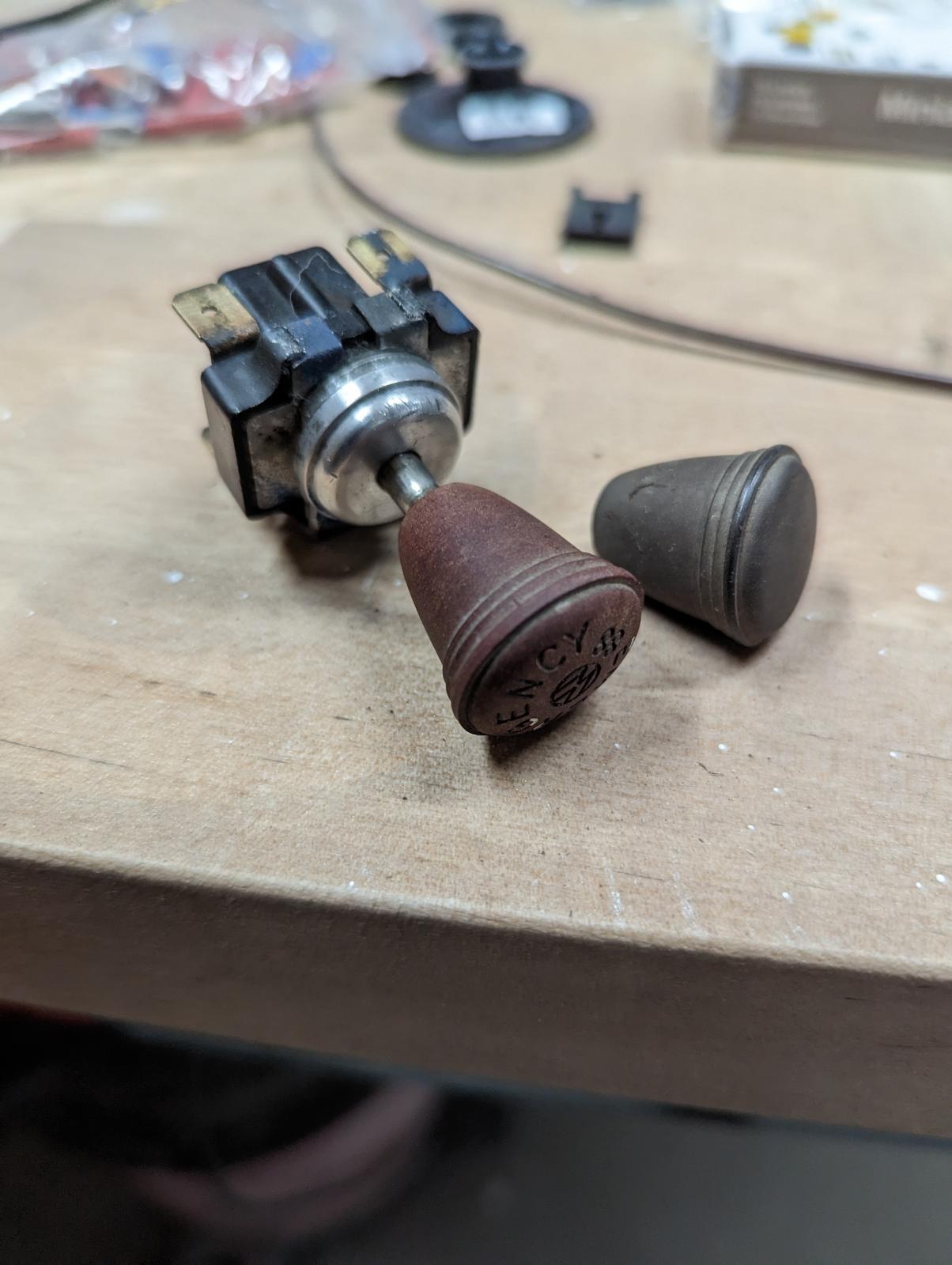

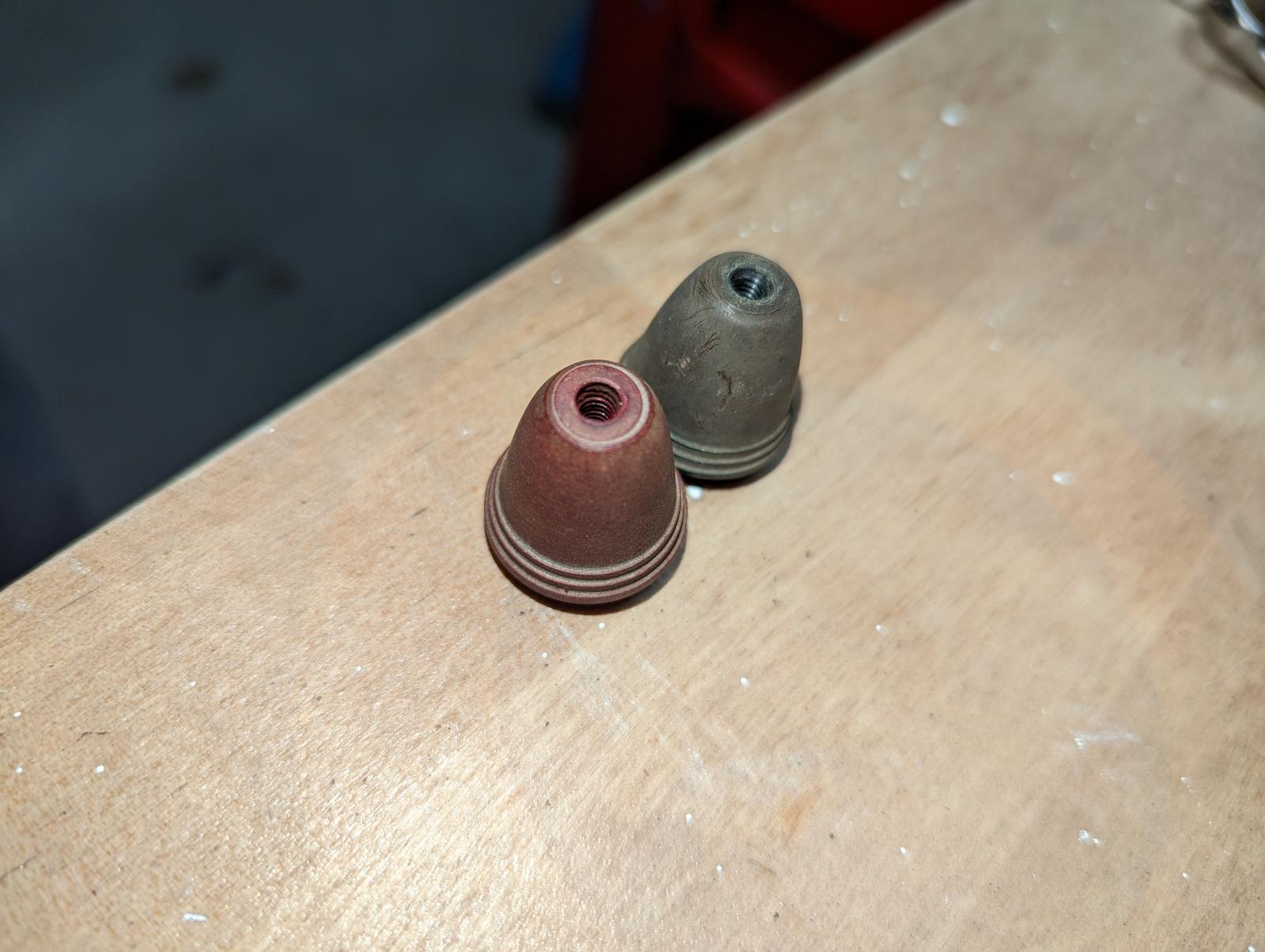

Here's some pics of the red knob switch compared to a black knob.
_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
'65 Westfalia |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71497
Location: Phoenix 602
|
| Posted: Sun May 21, 2023 10:17 pm Post subject: Re: Early Emergency Hazard Switch & Knob |
|
|
I believe someone installed a later knob in those Buses.
You say your 10/61 Bus has a switch?
I believe someone added the whole emergency light system to that Bus as it wasn't standard yet AFAIK.
Since you say '63 Deluxe:
My mostly original '63 Deluxe has a white knob to match the other dash knobs.
I am 100% sure this is correct.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25904
Location: Olympia Wash Rinse & Repeat
|
| Posted: Mon May 22, 2023 8:43 am Post subject: Re: Early Emergency Hazard Switch & Knob |
|
|
| EverettB wrote: |
You say your 10/61 Bus has a switch?
I believe someone added the whole emergency light system to that Bus as it wasn't standard yet AFAIK. |
There was an optional earlier version that was a dealer installed item, much like the early bus accessory windshield washer kit. Years ago found the VW accessory part numbered box for one with instructions in German. Unfortunately the kit was used and only the NOS wiring of the kit remained. I kept it out in hopes of sometime having the instructions translated, but Barb did not like having it out on display. So she put it somewhere safe and have not seen it in the last two or so decades....
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
edgood1
Samba Member
Joined: September 30, 2004
Posts: 2116
Location: Plymouth, MA
|
| Posted: Mon May 22, 2023 8:52 am Post subject: Re: Early Emergency Hazard Switch & Knob |
|
|
| EverettB wrote: |
I believe someone installed a later knob in those Buses.
You say your 10/61 Bus has a switch?
I believe someone added the whole emergency light system to that Bus as it wasn't standard yet AFAIK.
Since you say '63 Deluxe:
My mostly original '63 Deluxe has a white knob to match the other dash knobs.
I am 100% sure this is correct. |
Thanks Everett,
The two buses look to have the exact same setup. Same two relays and clips in the same spots, same wiring, same switches and knobs. That's not to say one or both had them added after the fact.
_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
'65 Westfalia |
|
| Back to top |
|
|
edgood1
Samba Member
Joined: September 30, 2004
Posts: 2116
Location: Plymouth, MA
|
| Posted: Mon May 22, 2023 9:57 am Post subject: Re: Early Emergency Hazard Switch & Knob |
|
|
| Eric&Barb wrote: |
There was an optional earlier version that was a dealer installed item, much like the early bus accessory windshield washer kit. |
This would make perfect sense. Thanks!
