'63 Panel Camper to Deluxe conversion project
Page: 1, 2, 3 ... 23, 24, 25  Next
Jump to:
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Sun Sep 19, 2010 11:30 am    Post subject: '63 Panel Camper to Deluxe conversion project Reply with quote

I've been sitting on this bus for 4 years. I have finally completed all the other bus and vanagon projects ahead of it and can start the restoration.

It was a factory '63 walk through panel. When I got it there were a few hacked up pieces of a sundial interior that was used to make a work bench and storage inside it. I don't know if this van was one of the sundial conversions or not, the window holes look kinda hackish, but I still refer to it as a sundial conversion.

When I first bought it 4 years ago I cut off some of the rusted panels. This thing is SOLID, especially for New England. The only rust was the nose, the lower part of the drivers door, which I cut off and welded, and small holes on both rockers. Battery tray has a small 1" hole. All floors are solid, wheel wells are solid. The most work will be fixing the hacks, the wheel wells have been cut.... one side vent (??), a hole i the roof, and little holes all around. It has been in a garage tent at my parents house for 3 years.

The bus was delivered new to Los Angeles and I found several receipts inside it from Arizona. It was repainted to metallic blue in the 70's. It changed hands a few times in Massachusetts in the 90's before I got it.

I've been collecting parts over the past 4 years and I think I have just about everything I need to finish it. well over $5000 in parts waiting Shocked I plan to restore it to mostly stock, but keeping the sundial-esque cut-in windows and a camper interior. It will get repainted the original dove blue. It should be a pretty easy resto considering how solid it is. Hands down the most solid original split window bus I've ever seen in all New England and I've been looking for them a long time.

The engine is a 1500cc from the looks of it... will verify when I open it up. definitely not original though, its really clean.

there are lots of neat little things about it. On the inside of the engine door there are compression test numbers and mileage penciled in for a five year span of 1979-1984. It says 30,000 miles in 1980 but who knows what that means.

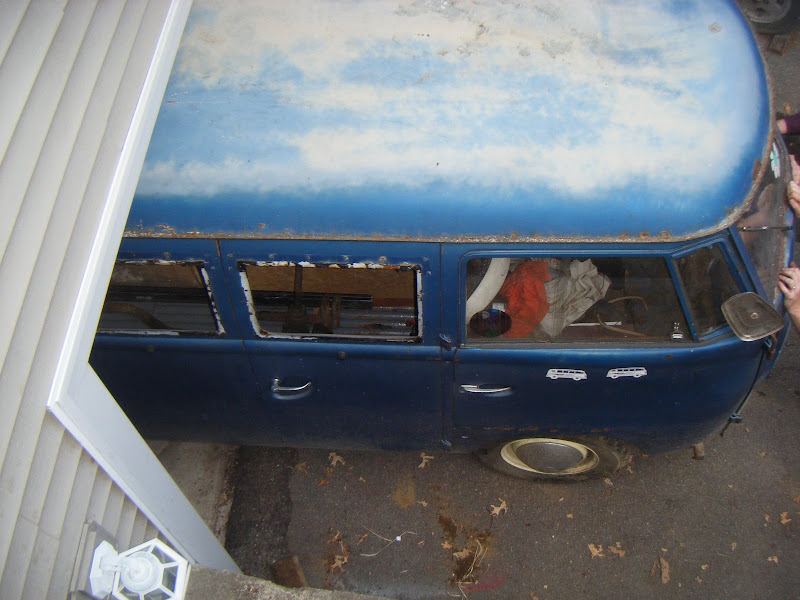

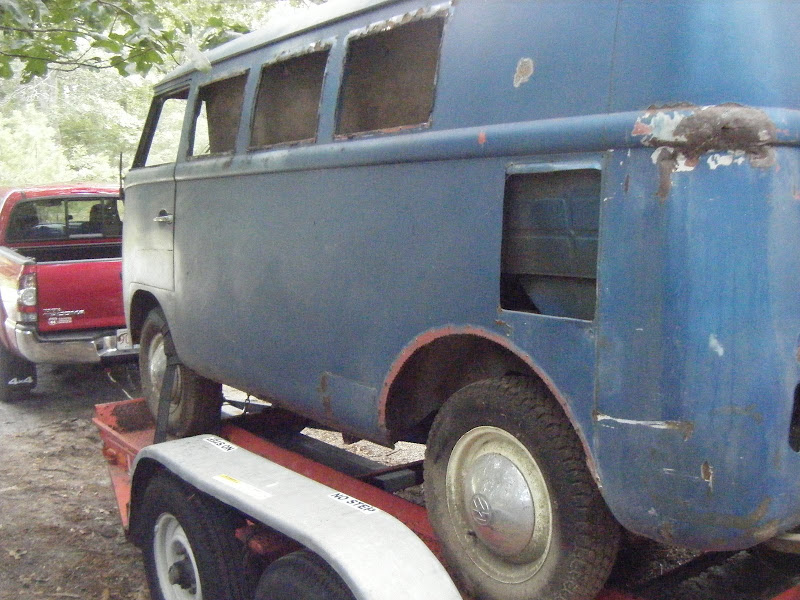

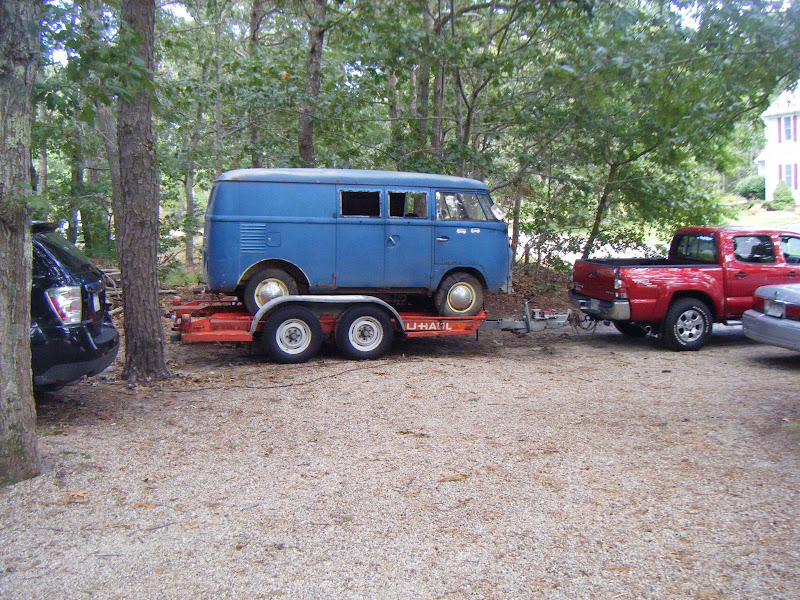

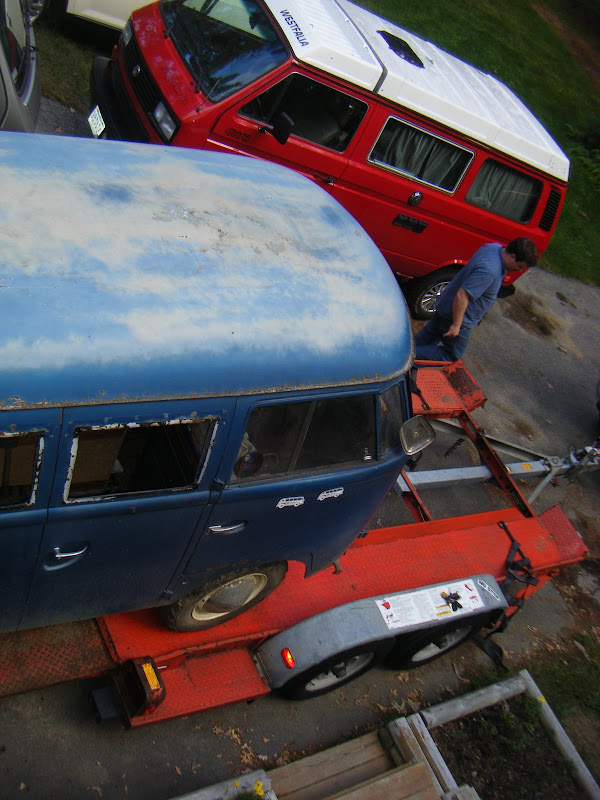

I hauled it to my garage yesterday. Heres some pics of the adventure:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I'll add photos to my picasa album as I go:
http://picasaweb.google.com/eddiegood/1963Bus?feat=directlink
_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
williamblanda
Don't Disgrace The Eddy!


Joined: September 09, 2008
Posts: 1371
Location: High At The Wheel Of A Bull Black Nova
williamblanda is offline

PostPosted: Sun Sep 19, 2010 7:10 pm    Post subject: Reply with quote

Cool project! I have a panel camper that used to be a metallic green.
_________________
Stop Fracking

www.DasVolks.com

John Muir's Engine Sounds
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Campy
Samba Member


Joined: January 10, 2005
Posts: 4933
Location: Chico, CA
Campy is offline

PostPosted: Sun Sep 19, 2010 8:07 pm    Post subject: Reply with quote

I bought a 1963 walk-thru camper with the camper windows and a newly rebuilt 1967 transaxle for $400 some eight years ago, and spent over one year fully restoring it (new inner and outer rockers on each side, outer cargo floor section, and front floor sections). It was white but I painted the interior and exterior my favorite color: dove blue. I painted the underbody and wheel wells grey. It has a single port "H" engine with a dog house setup and an alternator. I put a camper unit from a 1979 Westy in it that I picked up for $15. It has been great to drive a bus that I restored.
Good luck restoring your bus. It takes a lot of grunt work but, boy, what a feeling when it is finished.
_________________
Don't worry; be happy. (Baba)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GLHTurbo
Samba Member


Joined: March 30, 2009
Posts: 1369
Location: New Jersey
GLHTurbo is offline

PostPosted: Mon Sep 20, 2010 9:41 am    Post subject: Reply with quote

sweet... I have a '67 walk through camper conversion using late Bay furniture...

What style windows are you using?
_________________
1957 Beetle
1966 Bus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Campy
Samba Member


Joined: January 10, 2005
Posts: 4933
Location: Chico, CA
Campy is offline

PostPosted: Mon Sep 20, 2010 10:52 am    Post subject: Reply with quote

It was a panel that had holes cut in it at some company for the aluminum-sided windows (not louvered). My 1958 walk-thru camper has the same windows, only they are not as tall.
_________________
Don't worry; be happy. (Baba)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Mon Sep 20, 2010 11:01 am    Post subject: Reply with quote

The windows that were in it when I got it were the Sundial/EZ-Camper style windows that have the sharp corners. They're in tough shape and need lots of glass panels replaced. I have all the trim with them.

They look just like these ones:
Image may have been reduced in size. Click image to view fullscreen.


I also have a set of pristine westfalia louvered windows with all the trim and hardware. They would not fit the current holes as they are taller and more narrow. They are really designed to be put in the place of kombi windows and would look a little weird if I just cut holes and put them in. Plus I'd have to weld patches on to make them fit and If I'm gonna do that I ought to just make it back into a panel.

The sundial/ez-camper windows are similar in style. I may sell the westy windows (unbelievable what they go for in the classifieds) and restore the sundial "cut-in" windows.
_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
GLHTurbo
Samba Member


Joined: March 30, 2009
Posts: 1369
Location: New Jersey
GLHTurbo is offline

PostPosted: Mon Sep 20, 2010 11:41 am    Post subject: Reply with quote

mine has the 4 sharp corners as well. Was debating putting the "gutters" over the top of them, it never had them. My glass is pretty beat too...think I'll yank a pane out and bring it to a glass shop.

and I brought mine home on a uhaul trailer too!

Image may have been reduced in size. Click image to view fullscreen.

_________________
1957 Beetle
1966 Bus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bus guy
Samba Member


Joined: November 13, 2002
Posts: 739
Location: Southsea, UK South Coast
bus guy is offline

PostPosted: Mon Sep 20, 2010 2:46 pm    Post subject: Reply with quote

Cool Project. Take as many pics as you can as you go along.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Mon Sep 20, 2010 5:08 pm    Post subject: Reply with quote

GLHTurbo wrote:
mine has the 4 sharp corners as well. Was debating putting the "gutters" over the top of them, it never had them. My glass is pretty beat too...think I'll yank a pane out and bring it to a glass shop.

and I brought mine home on a uhaul trailer too!



Looks like the uhaul car trailers are much nicer in NJ. The one I got was more rusty than the bus!

Don't worry, I'll take tons of pics. I've got sambanitis when it comes to that stuff, check out some of my other projects.

http://picasaweb.google.com/eddiegood/85Westy?feat=directlink
http://picasaweb.google.com/eddiegood/Westy_conversion_part2?feat=directlink
http://picasaweb.google.com/eddiegood/1974WestfaliaBus02?feat=directlink
_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Tue Dec 28, 2010 4:13 pm    Post subject: Reply with quote

Finally got around to working on the '63 this week. I've been doing house upgrades over the past few months, getting ready for the baby who is due next month. A little time off from VWs was probably good for me.

Cleaned everything up inside, sorted through all the parts. Pulled the engine yesterday morning:

Image may have been reduced in size. Click image to view fullscreen.


Got a late Christmas present:

Image may have been reduced in size. Click image to view fullscreen.


Looks like a freshly rebuilt transmission. Hopefully whoever put it in was smart and built it up right. I never took the time to look at it, but the whole thing is painted black and the paint looks fresh, and its been in storage for at least 6 years. The bellhousing is stock 12V. The reduction boxes are still small nut so who knows.

Although still set up for 6V the clutch, pressure plate and throwout bearing look brand new.

Image may have been reduced in size. Click image to view fullscreen.



I'm going to convert the motor over to 12V, and upgrade it to a dual port 1641 with some new parts I had laying around:

Image may have been reduced in size. Click image to view fullscreen.

_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Campy
Samba Member


Joined: January 10, 2005
Posts: 4933
Location: Chico, CA
Campy is offline

PostPosted: Tue Dec 28, 2010 4:46 pm    Post subject: Reply with quote

Think about keeping the engine at 1600 cc. In my opinion, the thinner cylinder walls and extra heat in the 1641 cc engine is not worth it for a little bit of extra power.
_________________
Don't worry; be happy. (Baba)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Tue Dec 28, 2010 5:19 pm    Post subject: Reply with quote

Campy wrote:
Think about keeping the engine at 1600 cc. In my opinion, the thinner cylinder walls and extra heat in the 1641 cc engine is not worth it for a little bit of extra power.


I'm kinda torn on that. I know these cyls have the thinner wall. I think I'm gonna throw them on to this engine (1500 now) and run with it for the time being. I'd rather them be running on something that sitting on the shelf like they have been doing for a few years. The same with the heads. I can always change them (or the engine) later.

I built a few 1641s a while back and they lasted a lot of miles without any major issues, but I know they aren't optimal for cooling.
_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
i_am_cool_fred
Samba Member


Joined: June 26, 2004
Posts: 1738
Location: Benton, AR
i_am_cool_fred is offline

PostPosted: Wed Dec 29, 2010 9:17 am    Post subject: Reply with quote

Campy wrote:
Think about keeping the engine at 1600 cc. In my opinion, the thinner cylinder walls and extra heat in the 1641 cc engine is not worth it for a little bit of extra power.


1000 miles before i had a seized bearing, i just did a top end on the motor (i know, i know) and this is what the 87 pistons looked like after that short time:

Image may have been reduced in size. Click image to view fullscreen.


whether it was cause they were 87's or something else i dunno, but i've never had that with 85.5's so i'll stick with those Wink
_________________
59 mignonette "Lola" see it's build thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=495899



Brian Denning, as seen on Gearz TV
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Wed Dec 29, 2010 5:36 pm    Post subject: Reply with quote

Today I pulled the gas tank out and spent the rest of the day sanding the interior...man what a pain. Someone had glued carpet all over the interior at some point and that glue has dried and is nasty stuff... what a ton of work.

The gas tank was an enigma. I drained it and it was just slowly dripping out of the spigot, but the tank weighed a ton. It felt like it was full of concrete. When I pulled it out i could hear a lot of gas sloshing in there, but there is something really heavy in it...blocking? the gas. No idea what it could be, but whatever is in there it weighs a LOT. I have a few good tanks to put in...I might even put a later tank in there. I might cut this one open just to see what the hell it is....not sure if I really want to know...

Image may have been reduced in size. Click image to view fullscreen.



Battery tray will be replaced. This is the only in tact bracket bolt and latch I've ever seen.
Image may have been reduced in size. Click image to view fullscreen.


Other side is good:
Image may have been reduced in size. Click image to view fullscreen.

_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Campy
Samba Member


Joined: January 10, 2005
Posts: 4933
Location: Chico, CA
Campy is offline

PostPosted: Wed Dec 29, 2010 6:25 pm    Post subject: Reply with quote

Don't trash the fuel tank; remove the sending unit and look inside with a flashlight. There s a baffle near each end of the tank.
_________________
Don't worry; be happy. (Baba)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Fri Jan 21, 2011 8:04 pm    Post subject: Reply with quote

cut out the battery tray and trashed corner piece today... should have new metal welded in soon.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Andy P
Samba Member


Joined: February 04, 2001
Posts: 1166
Location: NSW, Australia.
Andy P is offline

PostPosted: Fri Jan 21, 2011 10:05 pm    Post subject: Reply with quote

Nice project, Ed.
I wish the '62 Panel I picked up had been converted nicely.
It has 1-piece glass in the hacked windows, albeit Aussie safety glass, but not nearly as cool as louvre windows.
Like yours the rust in minimal.
The difference is I'm a welding amateur.
I'll watch this with interest.
Nice band, btw.
_________________
Cheers & God Bless

'62 Beetle

Jägdwagen
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Wed Feb 01, 2012 3:12 pm    Post subject: Reply with quote

its been a while since I've worked on this. Too many vanagon projects..

anyways, after a baby, two moves and several other vanagon projects the '63 is now my focus so heres an update.

Replaced the battery tray.:

Image may have been reduced in size. Click image to view fullscreen.


Pulled the tranny. The gears look like a 4.375 R+P with a .89 4th.
I think I'm going to replace the center section with a 3.88 (or maybe 3.44) and an .82 4th gear, keeping the small nut RGBs. This one is geared too low for me.
Image may have been reduced in size. Click image to view fullscreen.


Lots of crap:
Image may have been reduced in size. Click image to view fullscreen.


Cleaned. The horns and everything in between is factory paint preserved from 50 years of grease and road grime:
Image may have been reduced in size. Click image to view fullscreen.


Up next is more cleaning of the trans bay. then prepping and painting the trans and engine bays.
_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Thu Feb 02, 2012 5:08 am    Post subject: Reply with quote

GLHTurbo wrote:
mine has the 4 sharp corners as well. Was debating putting the "gutters" over the top of them, it never had them. My glass is pretty beat too...think I'll yank a pane out and bring it to a glass shop.

and I brought mine home on a uhaul trailer too!

Image may have been reduced in size. Click image to view fullscreen.

may want to replace glass with lexan. surprise you how heavy the glass is.
_________________
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
edgood1
Samba Member


Joined: September 30, 2004
Posts: 1853
Location: Plymouth, MA
edgood1 is offline

PostPosted: Tue Feb 28, 2012 6:22 pm    Post subject: Reply with quote

I finished cleaning and painting the transaxle bay. I'm on to degreasing the engine bay...really painstaking slow work.

I test fitted a gas tank from a '74 bay. Really nice fit:

Image may have been reduced in size. Click image to view fullscreen.


..just gotta figure out a solution to stabilize the late model sender with the split gauge...have some ideas to test.
_________________
1987 Syncro Westfalia powered by Subaru
1963 Panel to Deluxe Bus project :::: (photo album)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 23, 24, 25  Next
Jump to:
Page 1 of 25


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
