 Posted: Wed Nov 24, 2021 6:04 am Post subject: Re: Ghia Bumper Differences |
 |
|
Tom, the bracket covers you have pictured are for the front bumper. The holes are for the stabilizer(?) arm that goes through then attaches to the bracket. Rear bumper covers are as Marc has pictured. I don't remember what year you have, but the blue set in the pic look like what fit my 71.
Jeff
_________________
1971 Ghia convertible (Body off rebuild)
2019 VW Atlas 4Motion
2012 Passat-Sold
See my build on The Samba at:
Jeff's 71 Vert Restoration/Reassembly http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight= |
|
| Back to top |
|
 |
Tom K.
Samba Member
Joined: March 10, 2005
Posts: 1692
Location: Central Pennsylvania
|
|
| Back to top |
|
|
Tom K.
Samba Member
Joined: March 10, 2005
Posts: 1692
Location: Central Pennsylvania
|
|
| Back to top |
|
|
rbsurfguy
Samba Member
Joined: August 10, 2008
Posts: 1780
Location: Fairfax, Northern Virginia Formerly Huntington Beach, SoCal
|
| Posted: Wed Nov 24, 2021 9:00 am Post subject: Re: Ghia Bumper Differences |
|
|
Yes, the pic looks like the others are smaller than the blue set. My fronts and rears appear to be the same size and look similar to the blue set and are opposing. Those shown are for the fronts, the rears do not have holes in the tops.
Jeff
_________________
1971 Ghia convertible (Body off rebuild)
2019 VW Atlas 4Motion
2012 Passat-Sold
See my build on The Samba at:
Jeff's 71 Vert Restoration/Reassembly http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight= |
|
| Back to top |
|
|
Marcdeb
Samba Member
Joined: May 22, 2019
Posts: 3255
Location: Vermont
|
| Posted: Wed Nov 24, 2021 10:00 am Post subject: Re: Ghia Bumper Differences |
|
|
| Tom K. wrote: |

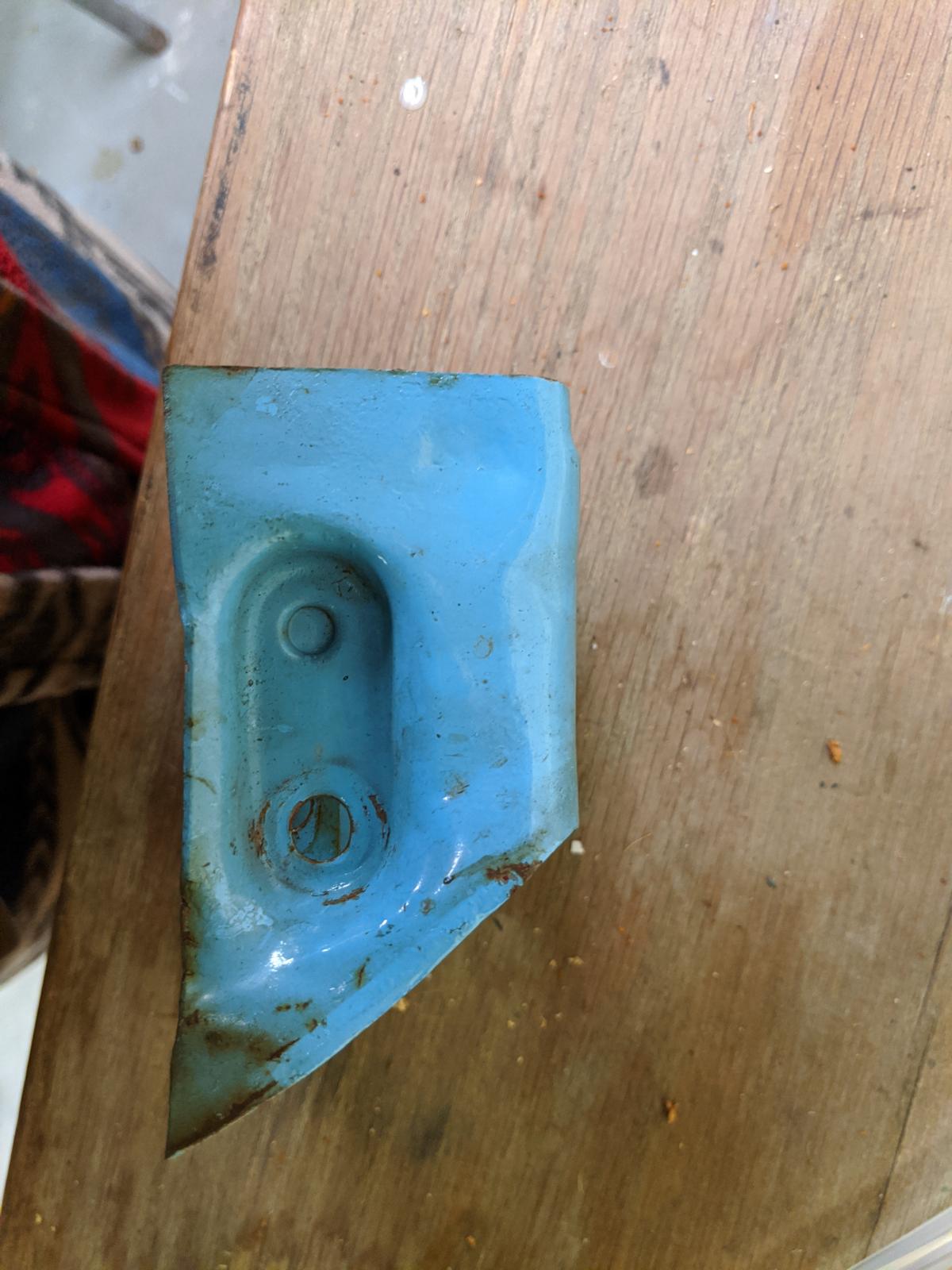

I have two of these (the other is symmetrically reversed):
|
Like Jeff said, these are for the front bumper, AND they are for 70/71. The side that goes up against your front apron will not match up very well if you were to try to use them on a 65. For a 65, you want there to be two mounting holes on the side, not the single hole. same for the rears, you want two mounting holes on the side of the rear covers.
All of the pictures you've posted are of front covers. The picture of the 5 together in the same picture look to all be pre 70 front covers. Some look smaller in the picture, but I think it's only the way the picture was taken. They all look to be the same parts.
_________________
Marc
68 Karmann Ghia Cabrio Autostick
71 Karmann Ghia Cabrio
Previously Owned:
2011 VW EOS Hard Top Conv
2008 Saab 9-3 2.0T Conv
2003 Saab 9-3 SE Conv
2001 Saab 9-3 Conv
1998 BMW 3 Series Conv
1997 Saab 900 Conv
1997 Mazda Miata
68 Ghia Vert Survivor with 22,350 miles: https://www.thesamba.com/vw/forum/viewtopic.php?t=768107&highlight=
71 Ghia Vert Restoration: https://www.thesamba.com/vw/forum/viewtopic.php?t=726710&postorder=asc |
|
| Back to top |
|
|
Tom K.
Samba Member
Joined: March 10, 2005
Posts: 1692
Location: Central Pennsylvania
|
| Posted: Mon Mar 07, 2022 3:31 pm Post subject: Re: Ghia Bumper Differences |
|
|
I'm still assembling the various pieces. Maybe I found another difference between early and later bumpers. The support bracket that matches the bracket cover with one screw hole for later models (see above) has a very different shape from the support bracket with two holes.
Here is the old and new side by side (blue is new, i e, later model) and with the covers on:
You can't tell much of a difference. But if you remove the covers, you see the difference:
The older bracket has a very different curvature than the newer. The new bracket is straight. The old one is curvy. I'm guessing this difference will matter during assembly if one used the wrong support bracket.
But what is the reason for this difference? Is the center towel bar of the early model a different length? Or are the main bumper brackets closer or further apart when mounted to the chassis on earlier models?
_________________
'91 Vanagon Westfalia
'70 Beetle Convertible
'71 Super Beetle Semi-Automatic: https://www.thesamba.com/vw/forum/viewtopic.php?t=714131&highlight=
'65 Ghia: https://www.thesamba.com/vw/forum/viewtopic.php?t=762478&highlight= |
|
| Back to top |
|
|
Mrfun2fly
Samba Member
Joined: November 29, 2015
Posts: 570
Location: New Mexico
|
| Posted: Thu May 01, 2025 4:20 pm Post subject: Re: Ghia Bumper Differences |
|
|
Hey guys I have a we are predicament. I'm working on a 63 and this rear bumper bracket that I supposedly is the rear super short.
It's not the front bracket, I already checked.
|
|
| Back to top |
|
|
sputnick60
Samba Moderator
Joined: July 22, 2007
Posts: 4131
Location: In Molinya Orbit
|
|
| Back to top |
|
|
Mrfun2fly
Samba Member
Joined: November 29, 2015
Posts: 570
Location: New Mexico
|
| Posted: Fri May 02, 2025 6:57 pm Post subject: Re: Ghia Bumper Differences |
|
|
| sputnick60 wrote: |
The bracket attachments should be more widely spaced. What you have is not the correct part.
This my ‘66 which should be the same as your ‘63.
Nicholas |
Agreed!! hahaha funny thing is, the guy I got these brackets from says they came off a ghia but obvously there's something fishy going on here.
I have another 63 I looked at today and the bumpers I have are correct.
Guess I'm just gonna have to order a set from Airhead Parts and call it.
Thank you Nicholas!!
Lee |
|
