PostPosted: Wed Apr 09, 2025 10:49 am    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
Every time I am amazed..wow!!!
_________________
Antoine
My 62 ragtop daily driver:
https://www.thesamba.com/vw/forum/viewtopic.php?t=728873
My 914 restoration&lightweight project :
https://www.thesamba.com/vw/forum/viewtopic.php?p=9698432#9698432
Resurrecting a 60 ghia : https://www.thesamba.com/vw/forum/viewtopic.php?t=713906
My 52 Standard Zwitter :
https://www.thesamba.com/vw/forum/viewtopic.php?p=10086685#10086685
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vince1
Samba Member


Joined: December 14, 2003
Posts: 842
Location: Burgundy, France
vince1 is offline
PostPosted: Wed Apr 09, 2025 11:01 am    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
Shocked Cool

As a machining teacher, this must please me !
_________________
my French blog https://vwpanelvan.wordpress.com/

Click here for my full pix detailed 2165 engine build with beehive valvetrain.

Sorry for my poor English, I'm a French guy ... Wink
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Wed Apr 09, 2025 10:00 pm    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
Thank you guys!
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Fri May 09, 2025 4:58 am    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
Image may have been reduced in size. Click image to view fullscreen.


New hub is back from plating. Pretty good color match with the purchased pulley. Fan is out for powder coating, hopefully back next week.

I still have to modify the glassfibre cooling hood for the oxyboxer and the comp Elis. I really hate that sh...t. Any suggestions on how to make the least amount of dirt and how to not! cut wrong??? Rolling Eyes Laughing
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Wed May 21, 2025 12:53 pm    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote

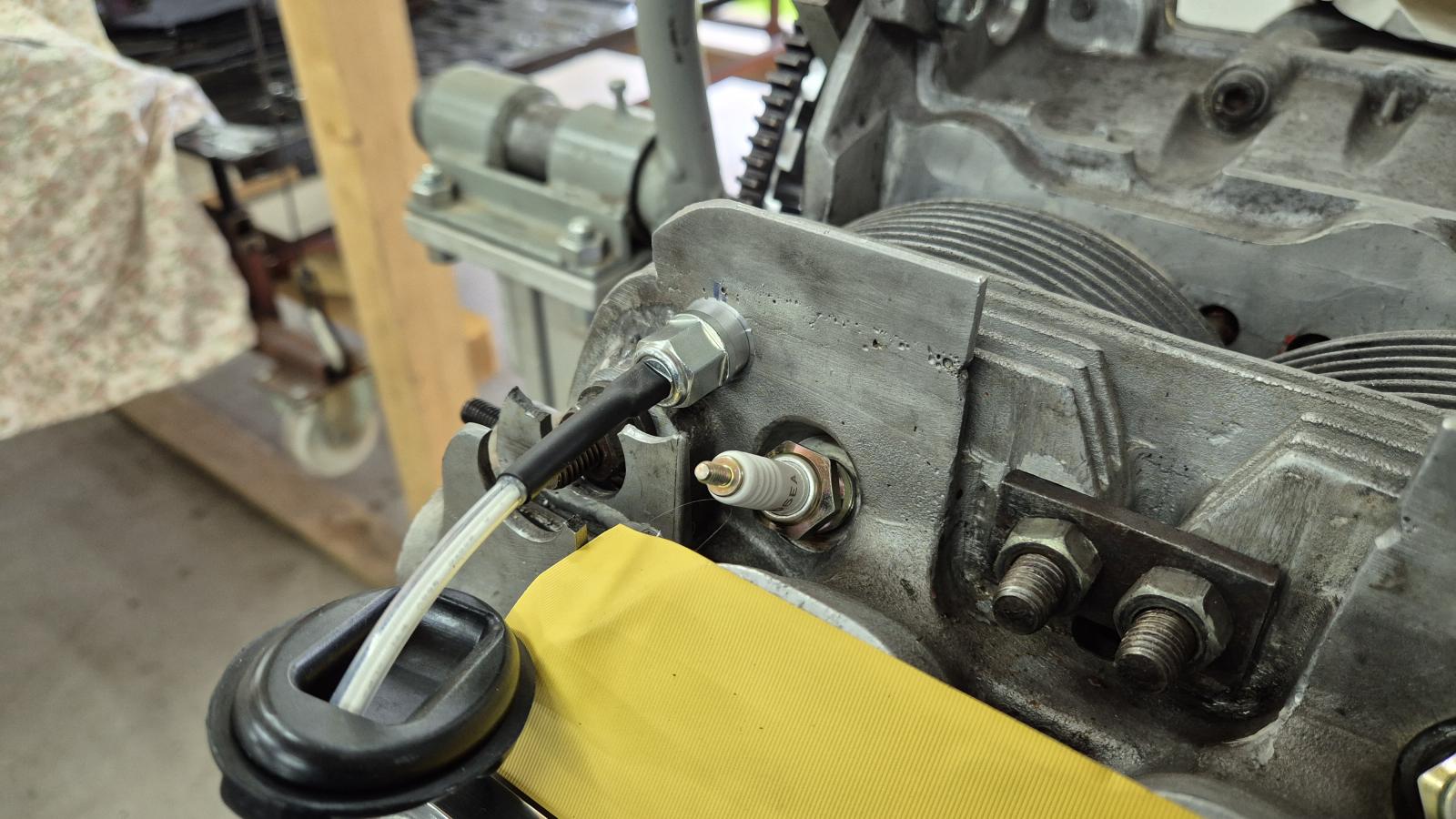

Added a cylinder head temperature sensor to control the warm up with my EFI Ecu

Image may have been reduced in size. Click image to view fullscreen.

_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Sat May 31, 2025 10:43 am    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote

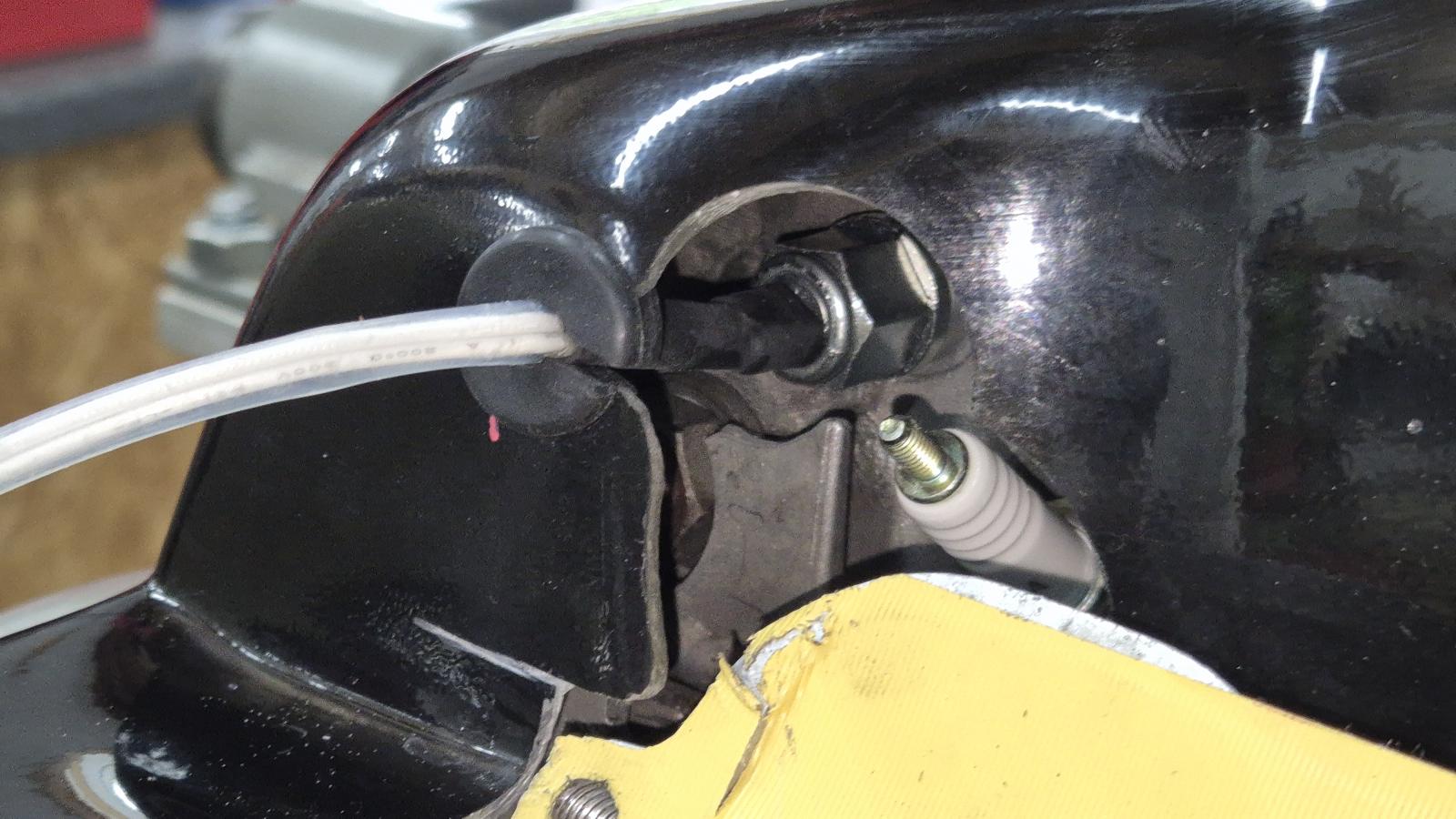

Lot's of modifying and fitting on the Oxyboxer. Nothing fits out of the box. It's similar but just not the same as type 1. Keep this in mind before you start one Laughing

Fitting the hood took me a whole working day. Even the base for the crankbell gas linkage needed work.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Thu Jun 05, 2025 12:33 pm    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
Shroud und and engine tin work continued...
So many details, cost a lot of time
Image may have been reduced in size. Click image to view fullscreen.

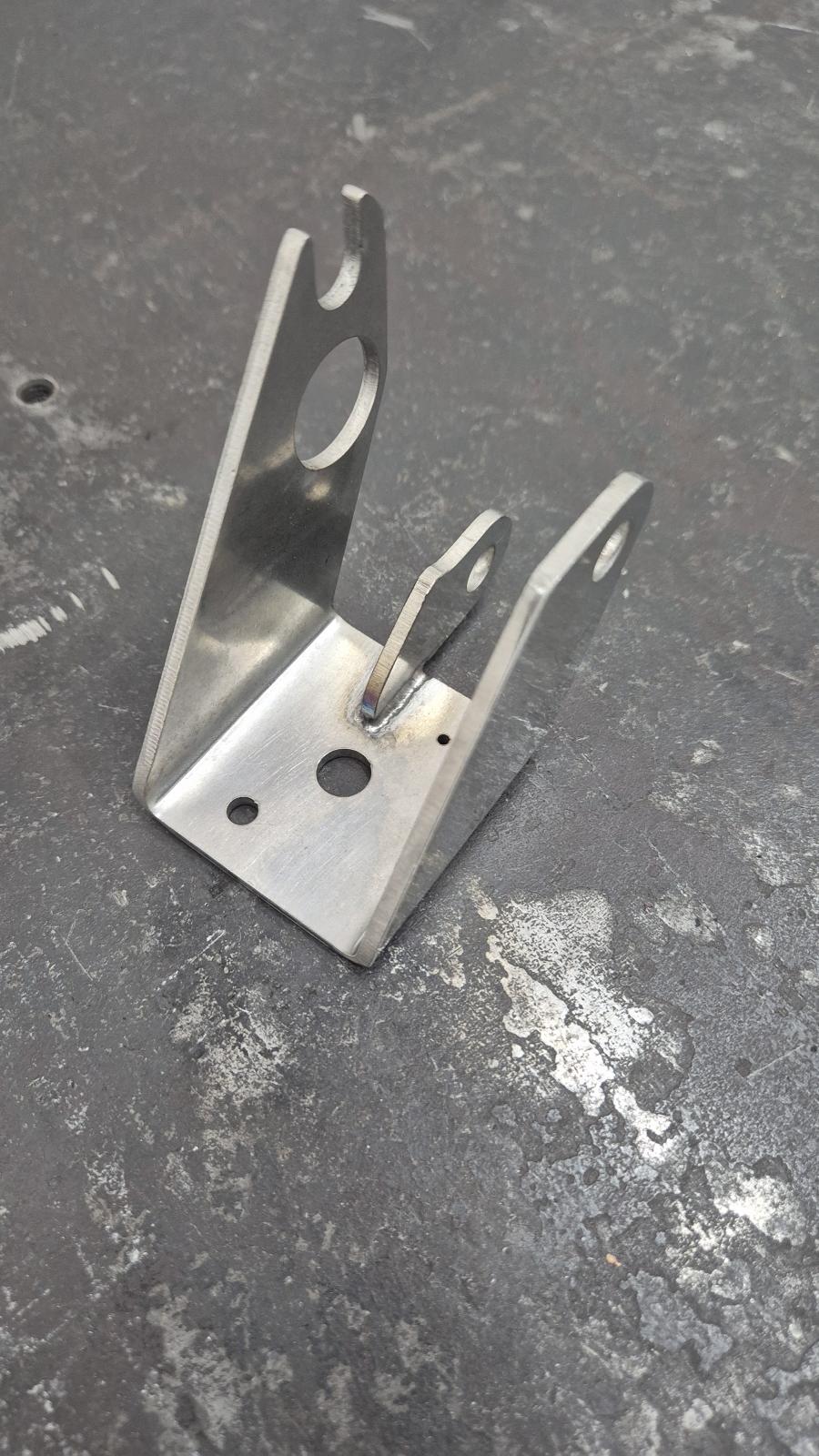

Extra brackets to fit onto Oxy
Image may have been reduced in size. Click image to view fullscreen.

Clearance for the Porsche muffler
Image may have been reduced in size. Click image to view fullscreen.

And dry sump pump
Image may have been reduced in size. Click image to view fullscreen.

Fits!
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

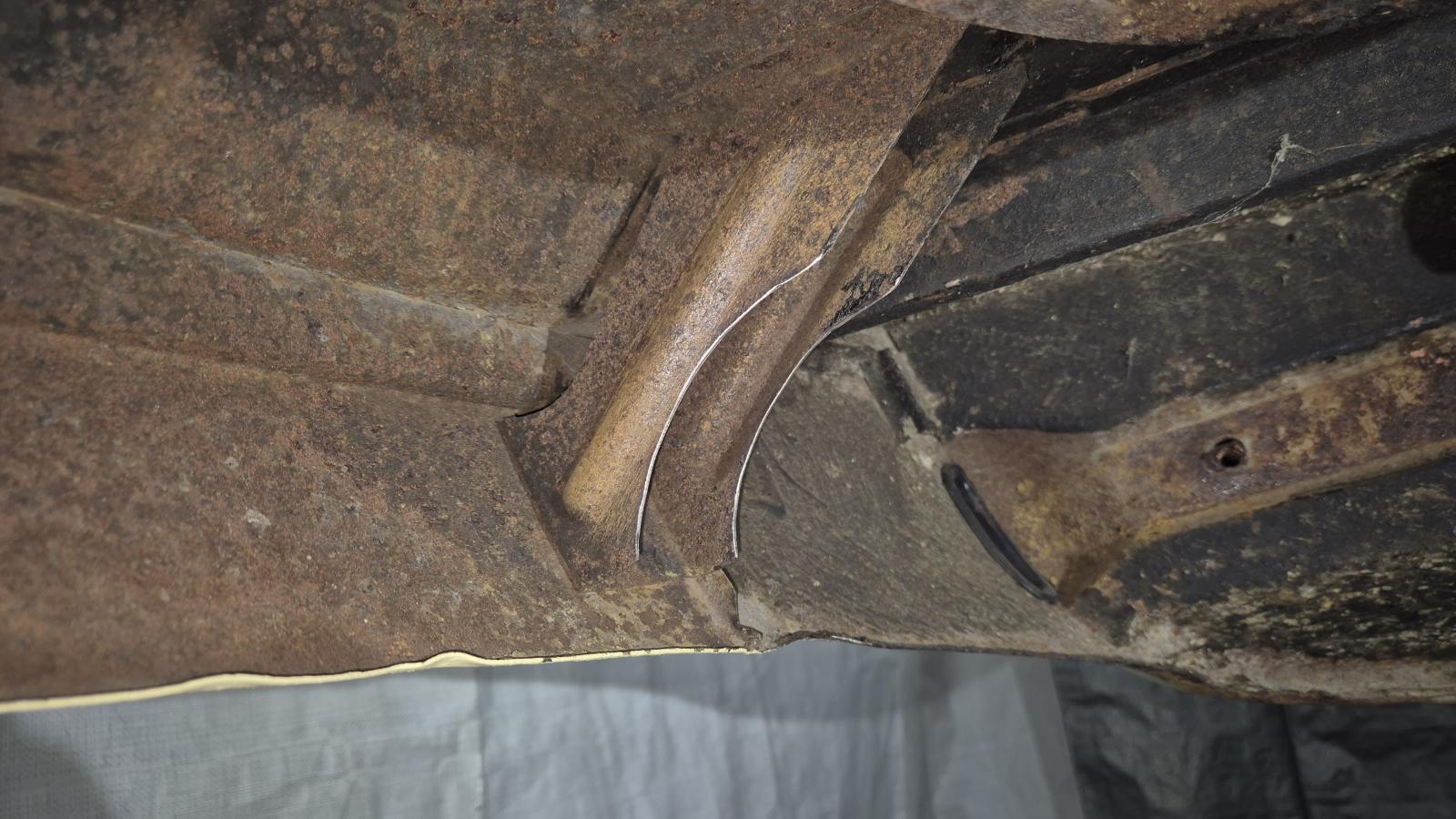

Well... it did hurt but I was afraid of the muffler touching on de-cel so did some clearancing
Image may have been reduced in size. Click image to view fullscreen.

_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Sun Aug 31, 2025 6:55 am    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
The fan has come back from powder coating. I used titanium bolts to assemble the new hub to the fan. Finally I had everything balanced.

The old school Porsche 5 blade can now be run in a modern aftermarket housing with a Volkswagen generator and plenty of directional vanes in it: https://youtu.be/QWYDsOCUUs8si=4q5n7n96Qyihl6rO

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Victor H
Samba Member


Joined: November 28, 2004
Posts: 131
Location: Lexington, South Carolina
Victor H is offline
PostPosted: Sun Aug 31, 2025 9:16 am    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
What a fantastic build! Love the fabrication. Yes, nothing fits, everything pretty much requires modification.
Once it's running you'll find you drive it for a while, then take it off the road to modify something else. Then repeat, over and over.
Best wishes, super nice project and your documentation is really interesting.
Over here the Porsche style cooling systems are not popular at all and what's available here evidently doesn't cool very efficiently. I have a BAS/Ahnendorp system with 260 mm fan waiting for another motor to be completed.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ArnoudH
Samba Member


Joined: December 30, 2008
Posts: 184
Location: The Lowlands
ArnoudH is offline
PostPosted: Tue Sep 02, 2025 12:08 pm    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
Hi Halbug!

Could you share some more details of the modified "banana"exhaust?
Looks really well made!

Cheers,Arnoud
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Wed Sep 03, 2025 11:32 am    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
Victor H wrote:
What a fantastic build! Love the fabrication. Yes, nothing fits, everything pretty much requires modification.
Once it's running you'll find you drive it for a while, then take it off the road to modify something else. Then repeat, over and over.
Best wishes, super nice project and your documentation is really interesting.
Over here the Porsche style cooling systems are not popular at all and what's available here evidently doesn't cool very efficiently. I have a BAS/Ahnendorp system with 260 mm fan waiting for another motor to be completed.


Hi Victor, thanks for your nice comment! Yes, the oxy needs a lot of adaptation and fabrication... The over all project was well planned, so I hope to keep the re-engineering to a minimum. I know exactly what you described and I have done it numerous times in the past.

I know I want to exchange this used engine with my own planned 2.8 at some time. Otherwise I hope to keep everything technically as is. Let's see LOL
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Wed Sep 03, 2025 11:37 am    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
ArnoudH wrote:
Hi Halbug!

Could you share some more details of the modified "banana"exhaust?
Looks really well made!

Cheers,Arnoud


Hi Arnoud, there are more details over here: https://www.thesamba.com/vw/forum/viewtopic.php?t=596477&start=580

Let me know if you have any other questions.

Cheers
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 579
Location: Germany
halbug is offline
PostPosted: Thu Sep 04, 2025 9:52 pm    Post subject: Re: Oxyboxer (s) for my Ghia project Reply with quote
Additional note, this is the web page.
https://www.cargraphic.de/en/your-vehicle/for-pors...rp11gtkit/

They have sooo many different options that you may want to talk to Thomas Schnarr. He is really willing to help and great to work with.
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
