| Author |
Message |
Derminator
Samba Member
Joined: April 04, 2012
Posts: 5
Location: San Diego, CA
|
 Posted: Thu Sep 05, 2024 9:37 am Post subject: 71 Squareback Stereo Builds |
 |
|
Hello Gents,
I am looking to upgrade my Squarebacks stereo setup I currently have a modern head unit mounted under the dash (which I will be replacing with an even more modern unit) I also have the typical two door speakers. I recently salvaged my custom stereo speakers from my truck long story. Needless to say, I have 2 polk 5 1/4 db5250 speakers and tweeters (separate from the speaker) one crossover still need to get a second or a new pair and 2 alpine 5x7 sps-570A. I am thinking of putting the polk speakers in the doors like what was there before. I am trying to figure out where to put the alpines for the rear speakers, to have a clean look that also sounds good. I do not intend to put a sub in the car at all as I really don't think it needs one. So if anyone has any pictures of their builds or ideas or tips I would greatly appreciate it. Thanks |
|
| Back to top |
|
 |
Tram
Samba Socialist
Joined: May 02, 2003
Posts: 23034
Location: Northwest of Normal
|
| Posted: Thu Sep 05, 2024 11:03 am Post subject: Re: 71 Squareback Stereo Builds |
|
|
We like photos.
_________________
Немає виправдання для війни! Я з Україною.
| Bryan67 wrote: |
| Just my hands. And a little lube. No tools. |
Those who can- do.
Those who can't? Subaru. |
|
| Back to top |
|
|
Tram
Samba Socialist
Joined: May 02, 2003
Posts: 23034
Location: Northwest of Normal
|
| Posted: Thu Sep 05, 2024 11:04 am Post subject: Re: 71 Squareback Stereo Builds |
|
|
Also look into these:
https://www.walmart.com/ip/Infinity-Kappa-64CFX-36.../629736829
_________________
Немає виправдання для війни! Я з Україною.
| Bryan67 wrote: |
| Just my hands. And a little lube. No tools. |
Those who can- do.
Those who can't? Subaru. |
|
| Back to top |
|
|
W1K1
Samba Member
Joined: March 04, 2004
Posts: 5288
Location: Southern AB
|
| Posted: Sat Sep 07, 2024 6:48 am Post subject: Re: 71 Squareback Stereo Builds |
|
|

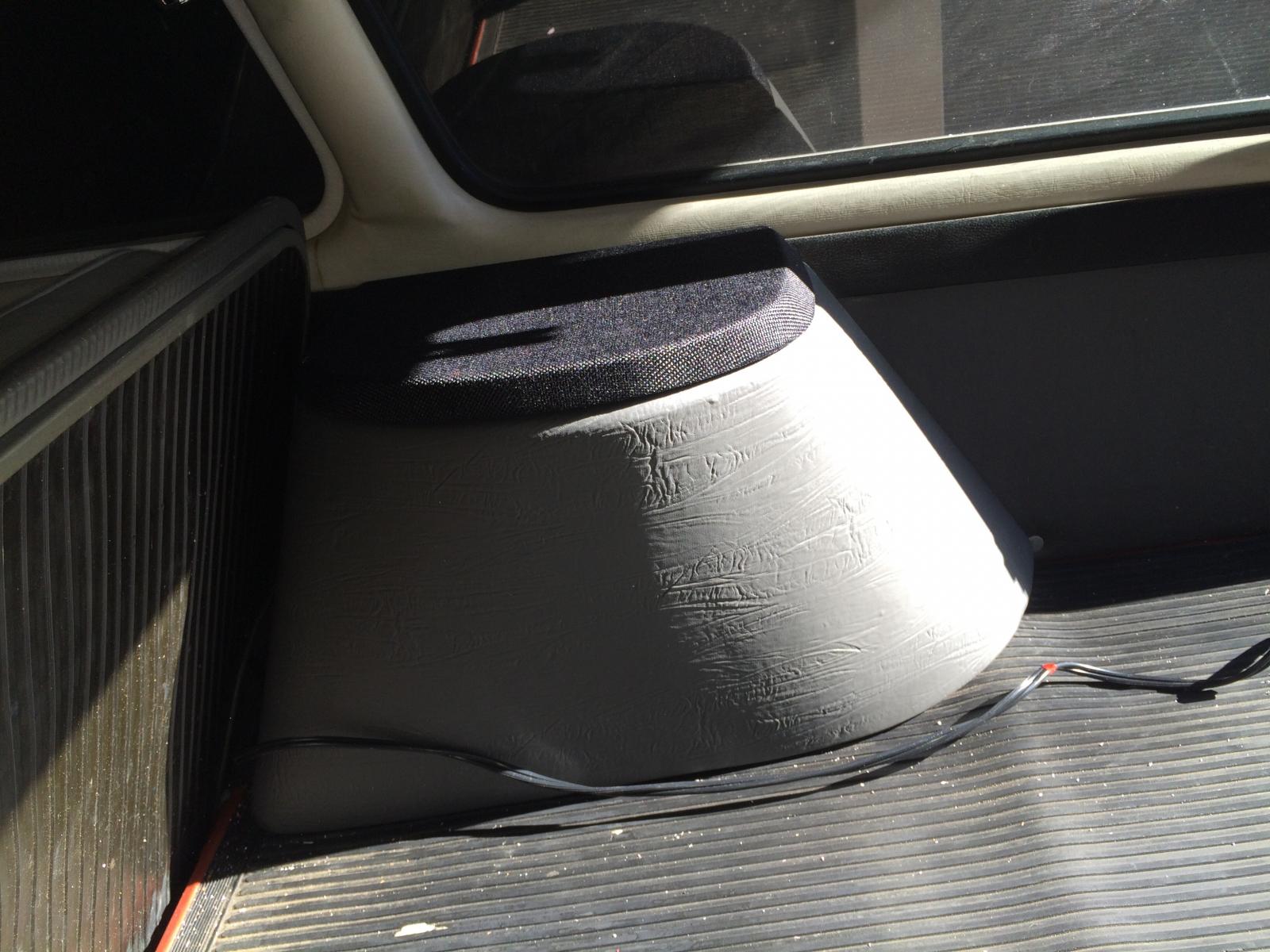

I built speaker pods for the wheel humps so I didn’t lose any cargo space
Before that I had speakers in upholstered sono tubes that looked like roll pillows, they just sat on the rear seat, and were held in place with some elastic and snaps, that way I could drop them on the floor behind the seat if I needed to fold the seat down
_________________
http://www.thesamba.com/vw/archives/manuals/jim_martin_engine_build.php
1973 super
1965 squareback 1500E
1971 bay window westy- subi swap |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23361
Location: Kimball, Mi
|
| Posted: Sat Sep 07, 2024 12:26 pm Post subject: Re: 71 Squareback Stereo Builds |
|
|
| W1K1 wrote: |
| I built speaker pods for the wheel humps so I didn’t lose any cargo space |
I've always thought that set up was pretty slick, and if I ever get another Square again that I'd do something like that. I've had box speakers behind the rear seat before, but they would slide around too, and need to be moved when using the load floor. I always worried about getting hit by them being loose back there.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Wilson
Samba Member
Joined: October 31, 2003
Posts: 102
Location: St.Paul,MN
|
| Posted: Sun Jun 08, 2025 6:04 pm Post subject: Re: 71 Squareback Stereo Builds |
|
|
Great idea, how did you build them??
-W
69’ 2.0 SB |
|
| Back to top |
|
|
W1K1
Samba Member
Joined: March 04, 2004
Posts: 5288
Location: Southern AB
|
| Posted: Sun Jun 08, 2025 8:33 pm Post subject: Re: 71 Squareback Stereo Builds |
|
|
I’m sure there is a thread somewhere on this already

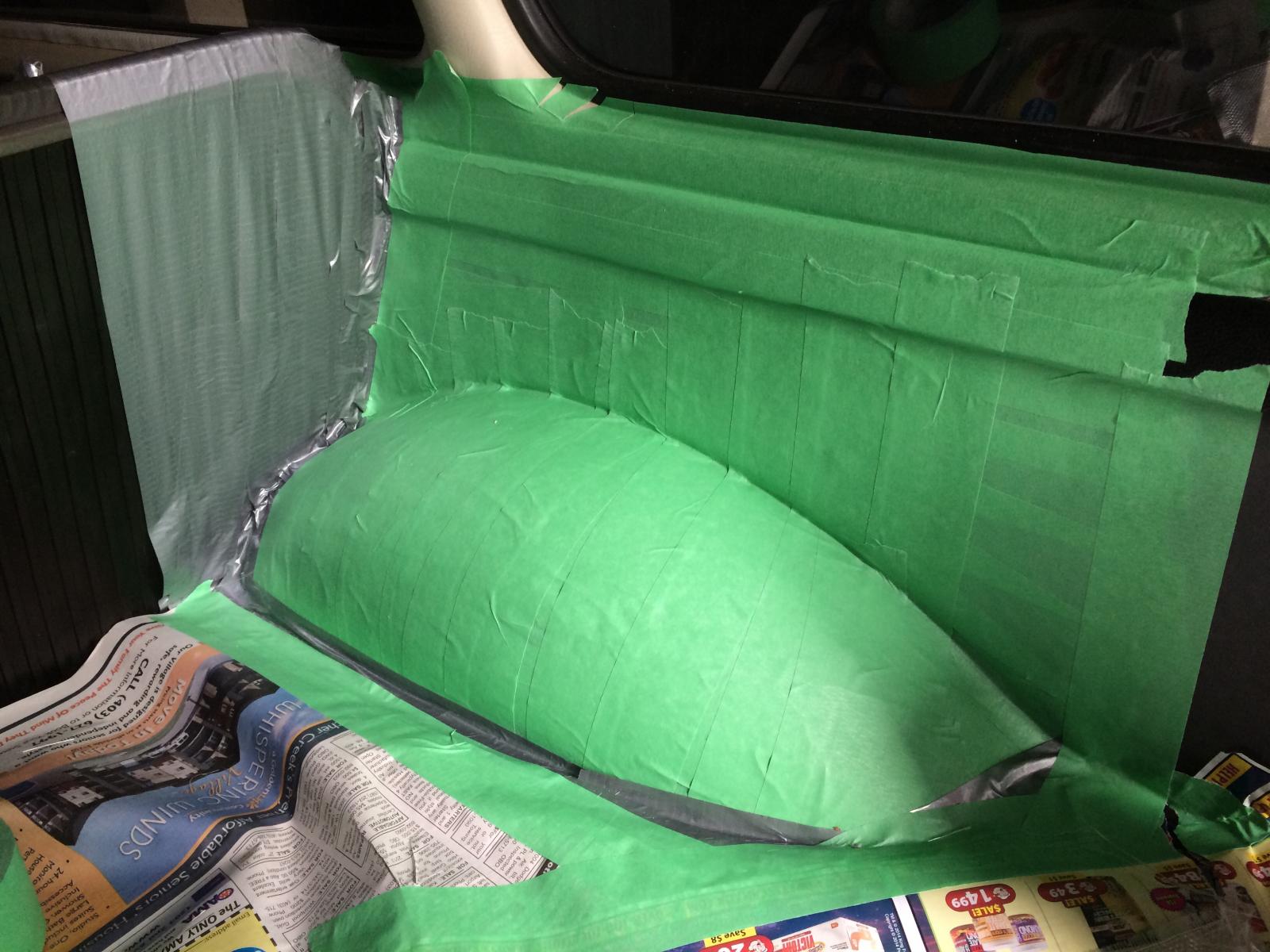

But, it is simply tape off the inside of the car, you are applying epoxy on top, no gaps. PVA would have been good too but this was my first attempt at laying up,epoxy

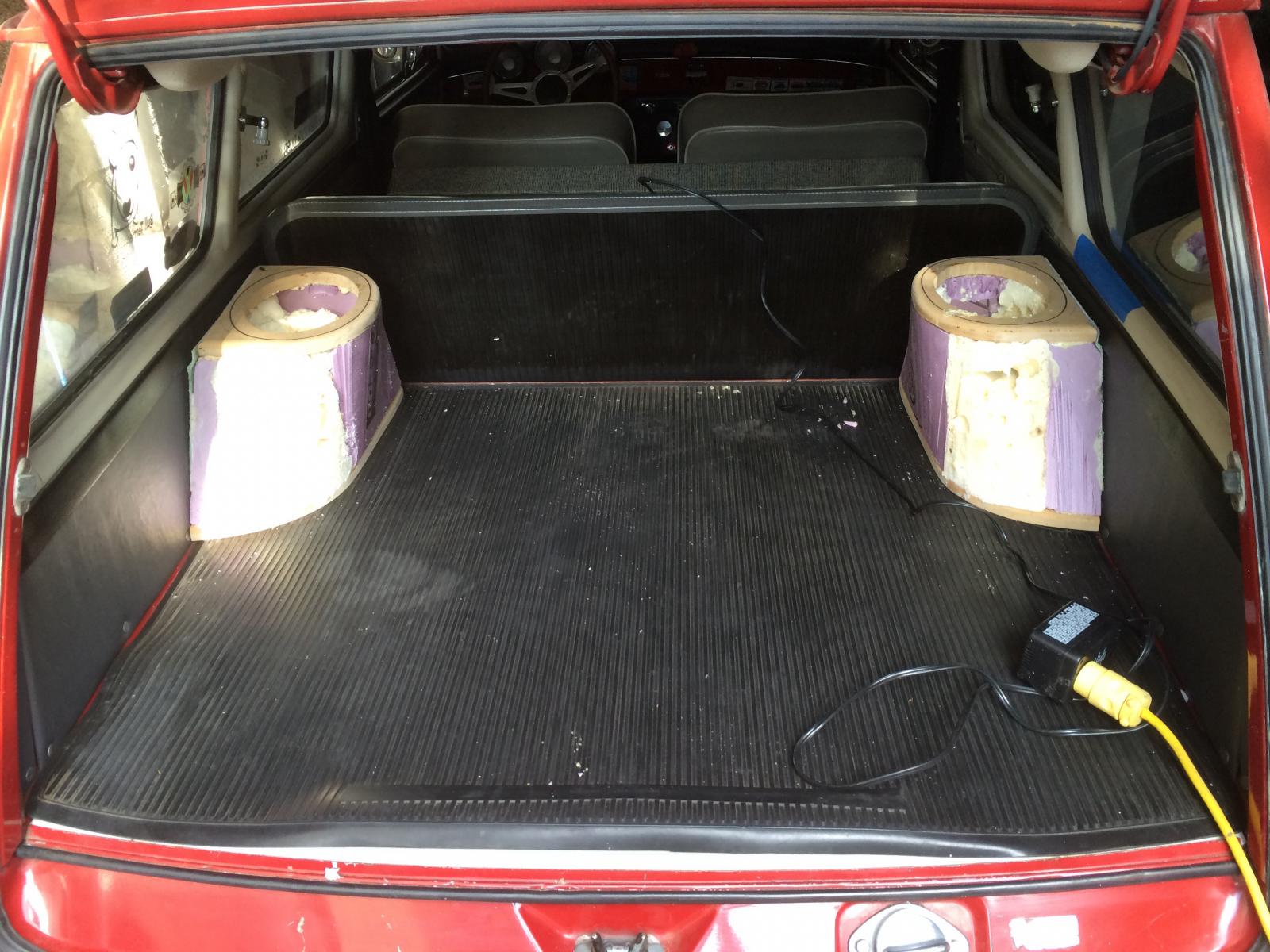

Epoxy and fibreglass for the wall shape
Wood top and bottom, fill in with styrofoam blocks and shape it however you like
Cover with fiberglass/epoxy layers
I covered mine with vinyl, and made a grill for the top, it attaches with magnets.
_________________
http://www.thesamba.com/vw/archives/manuals/jim_martin_engine_build.php
1973 super
1965 squareback 1500E
1971 bay window westy- subi swap |
|
| Back to top |
|
|
Scotty D
Samba Member
Joined: February 08, 2020
Posts: 276
Location: Claremont CA
|
| Posted: Sun Jun 08, 2025 9:46 pm Post subject: Re: 71 Squareback Stereo Builds |
|
|
| Those are too cool. Well done. |
|
| Back to top |
|
|
|
