Another 1951 Hoffman Standard, Dick Christensen's First Splt
Page: Previous  1, 2
Forum Index -> Beetle - Split-Window/1938-53 VWs Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
DSweinhagen
Samba Member


Joined: July 30, 2002
Posts: 410
Location: Phoenix, AZ
DSweinhagen is offline

PostPosted: Fri Jun 20, 2025 9:08 am    Post subject: Re: Another 1951 Hoffman Standard, Dick Christensen's First Splt Reply with quote

Two Glove Boxes wrote:
This picture is so amazing as I have a couple of pictures during my build phase with my kids that are now teenagers.

Awesome metal work! Applause Applause Applause Applause

Between Wolf and Mika they do a badass job on those aftermarket parts they almost should be considered NOS because they are that good.

Thanks! It's funny how the kids get older and we stay the same. Wink
And yes, so awesome to have those guys making great replacement metal.

50Splitman wrote:

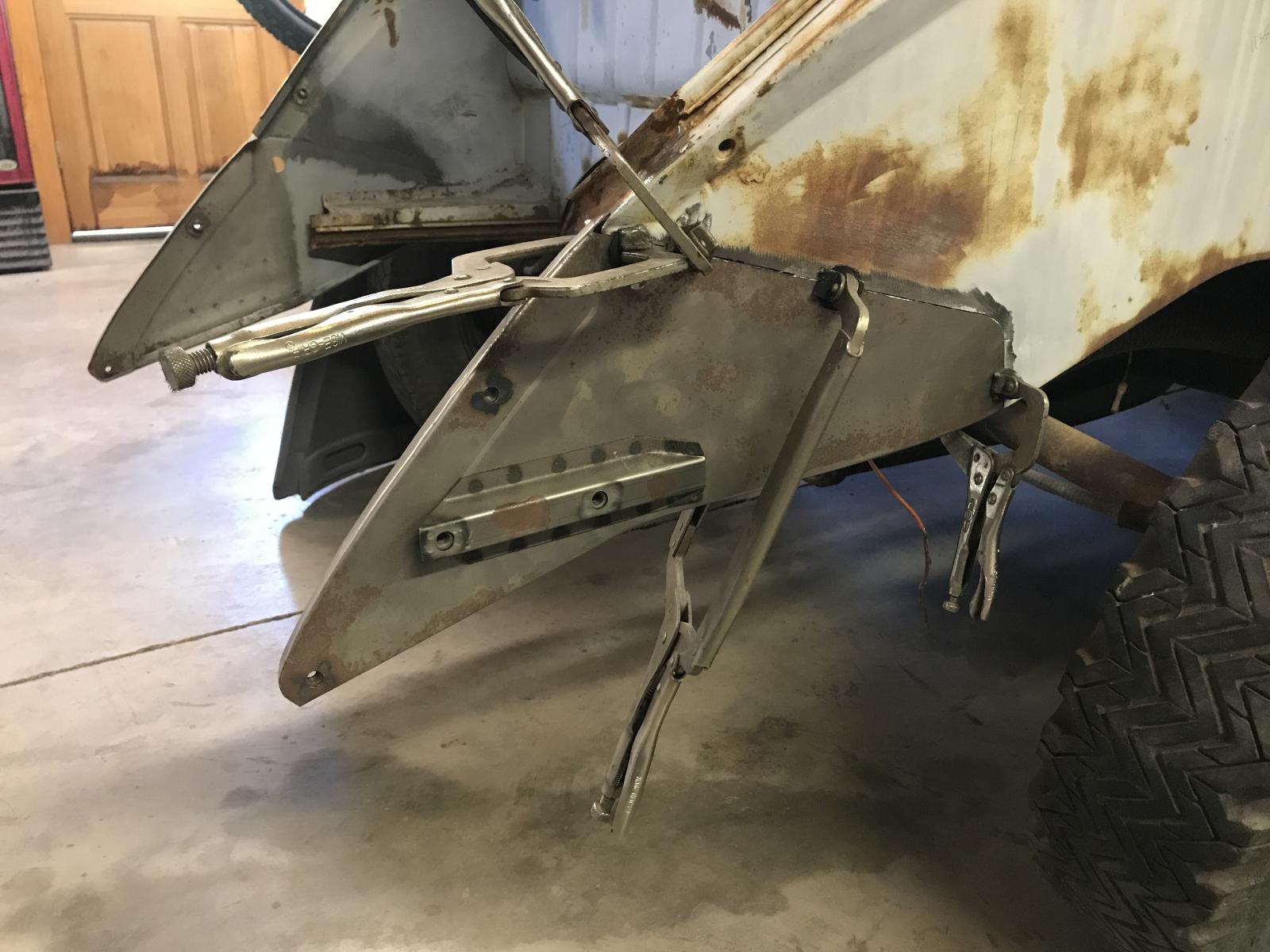

Did you MIG or TIG the rear bumper mount panel in?

MIG

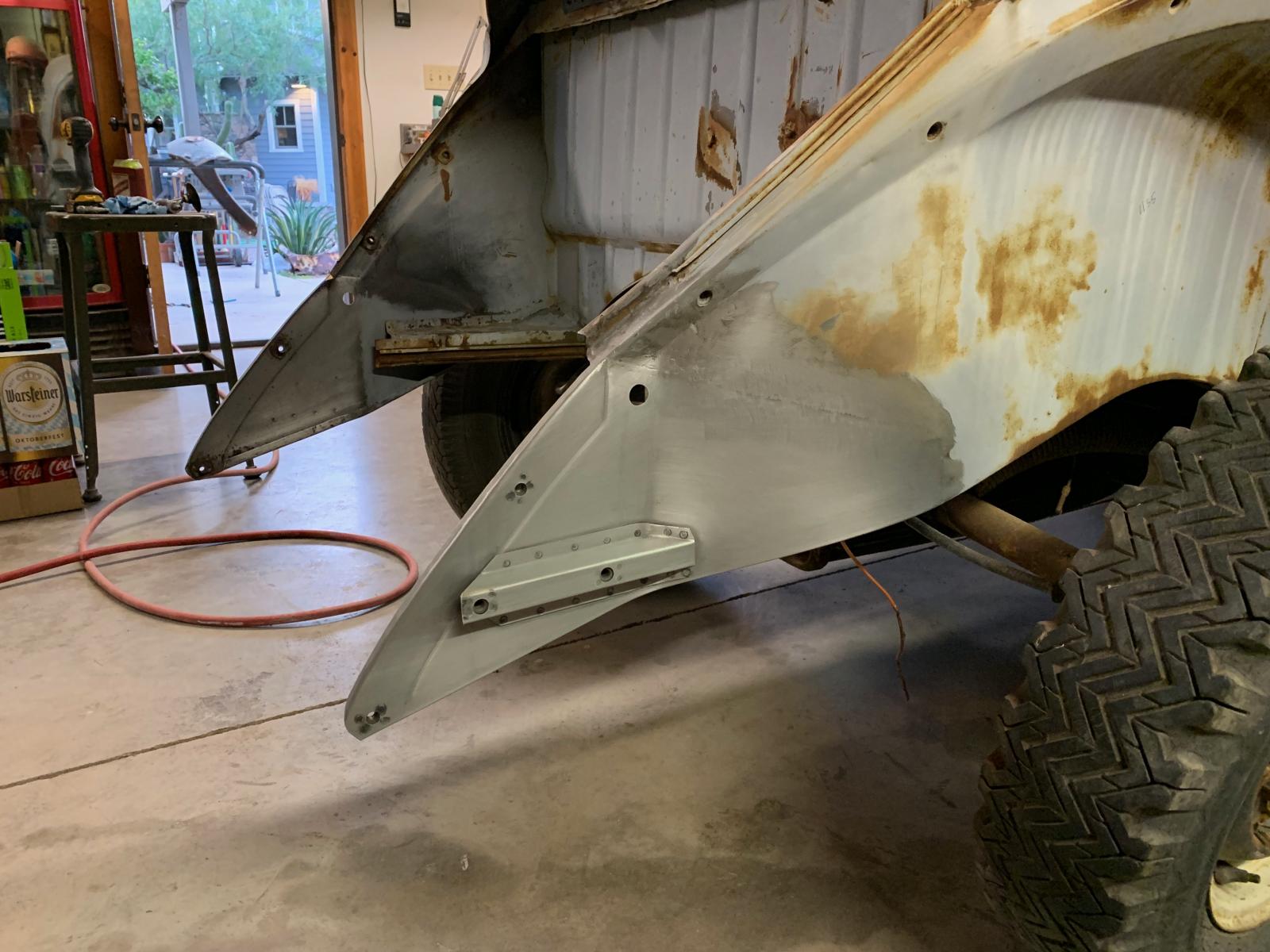

Here's the other side...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

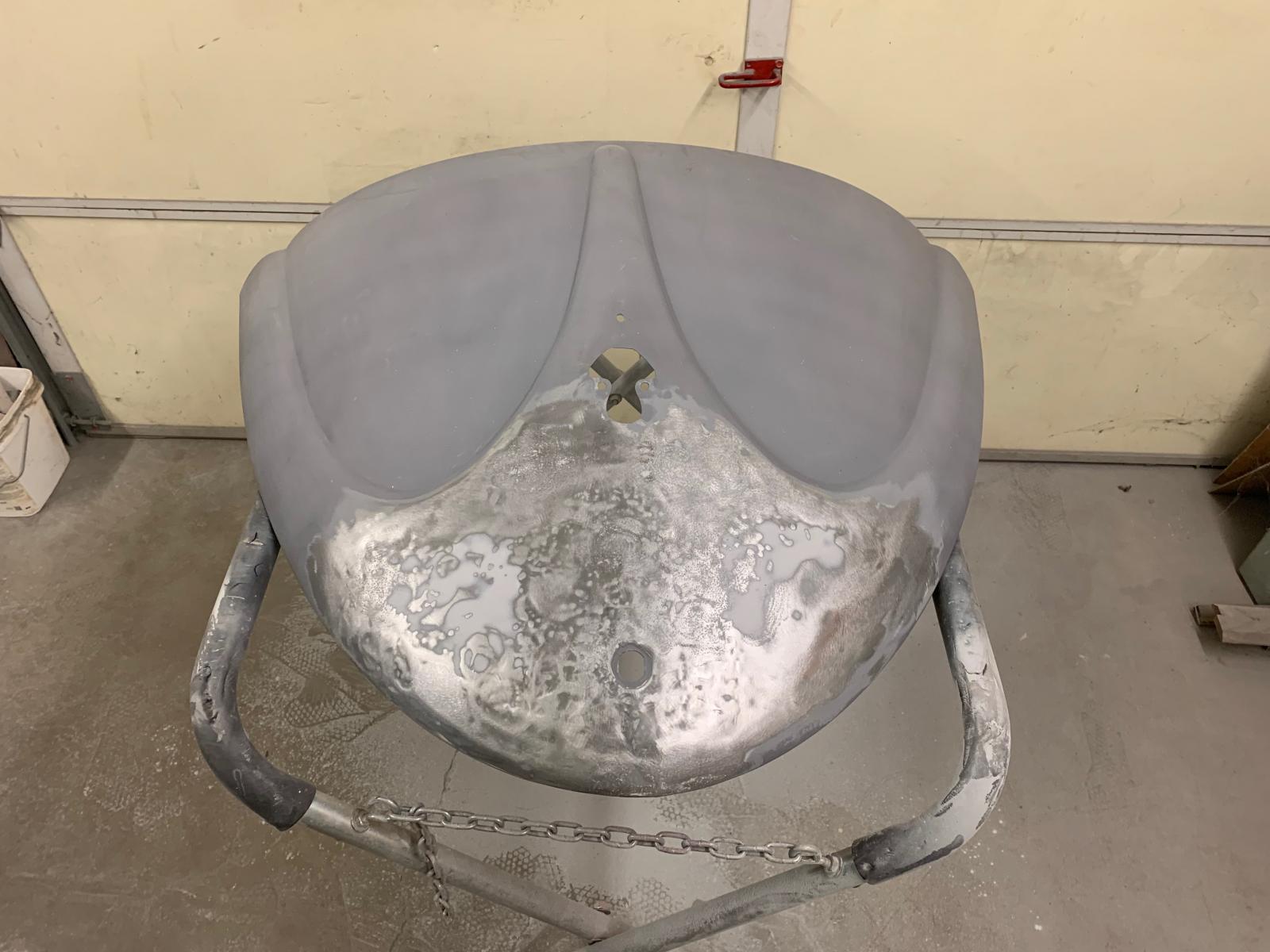

The decklid I got was hit hard and I had started on it years ago. I spent a little more time straightening it out and installed a NOS inner piece...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

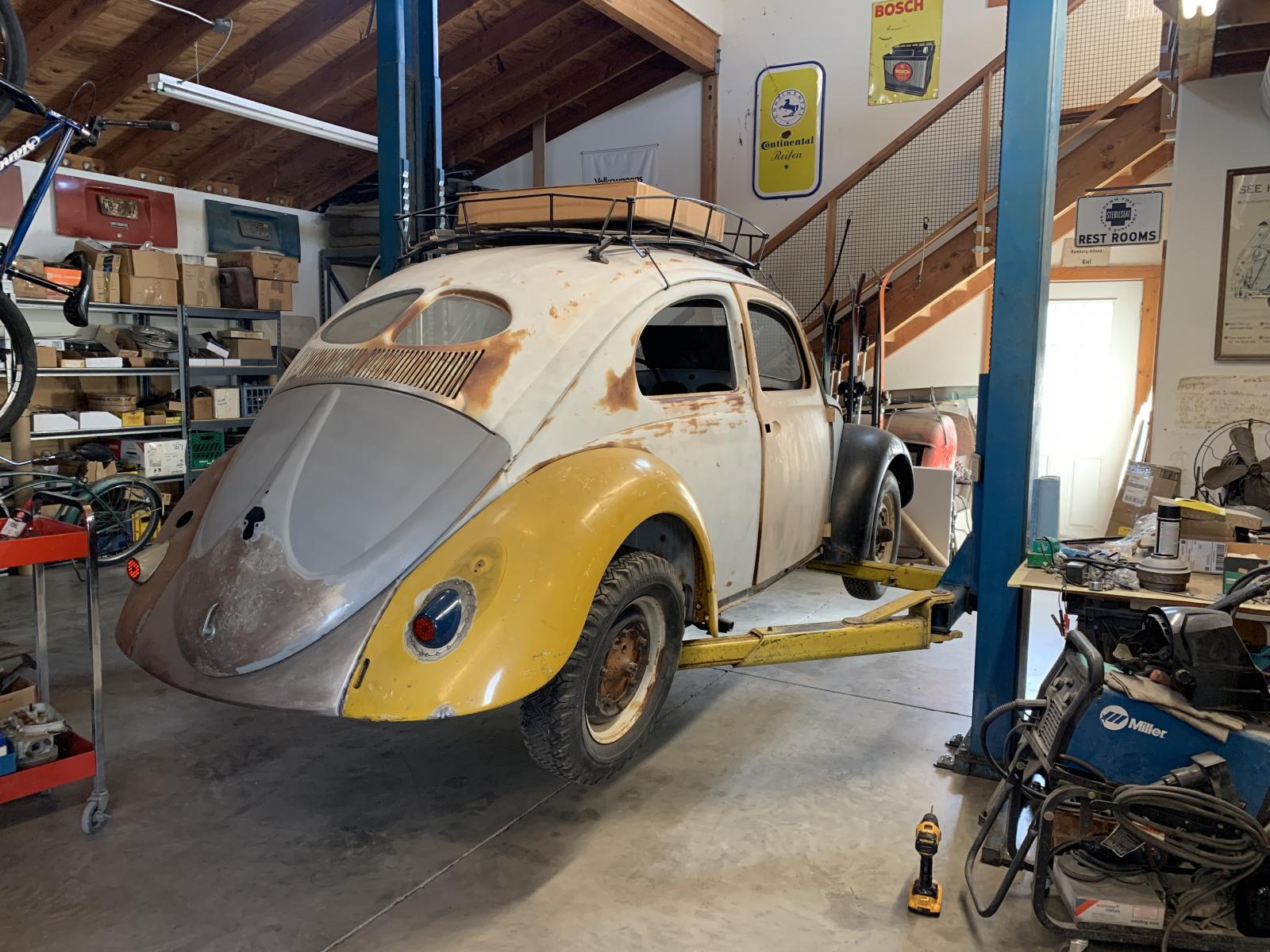

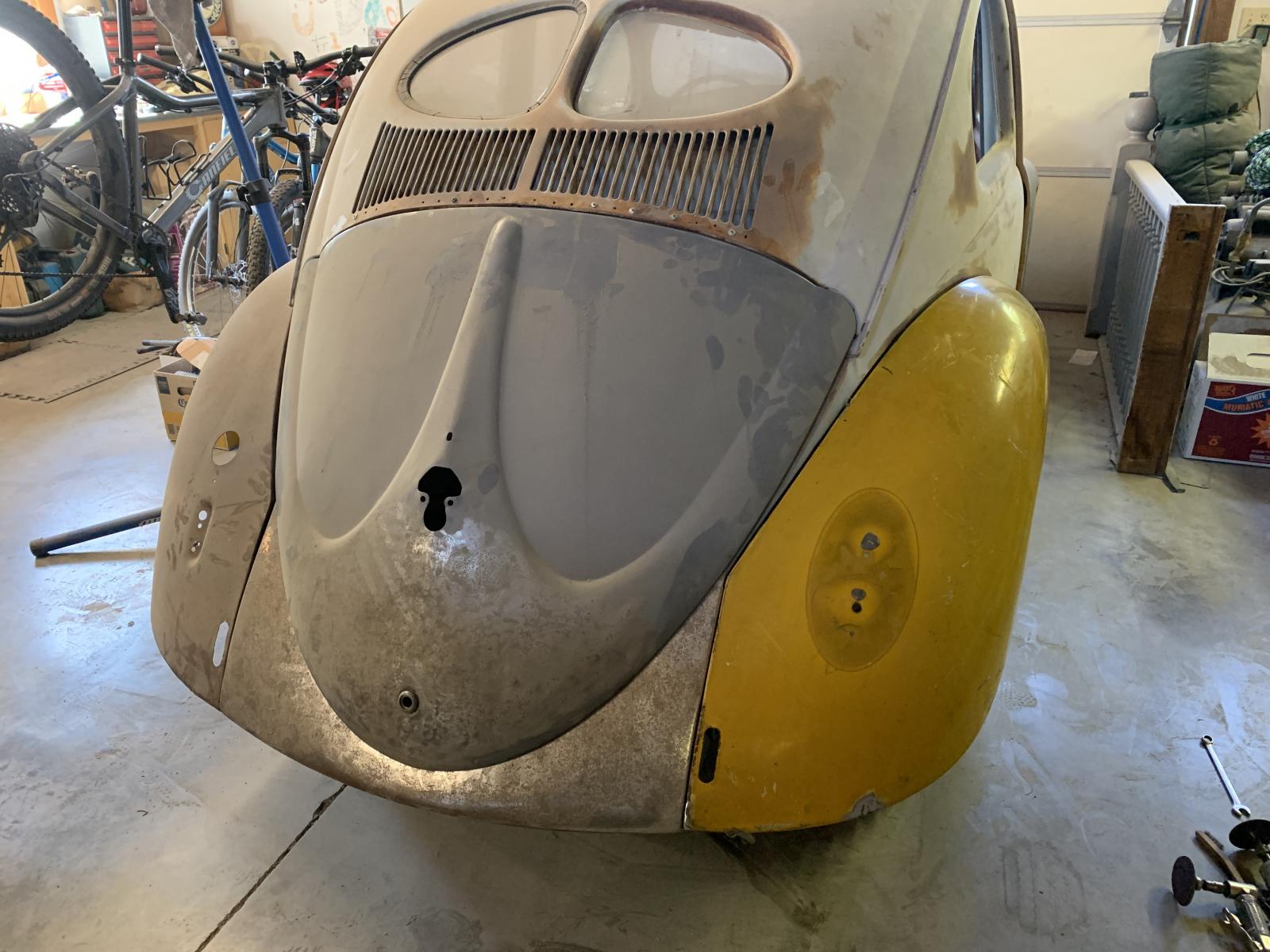

This goes back a couple years and at this point I wasn't happy with how things were fitting together and the work stalled out for a bit. The decklid wasn't fitting well, things weren't lining up and I decided the right fender I had was too rough to use to figure it out. So I was on the lookout for a better right side ribbed fender. We were in Hessisch Oldendorf for the show and while walking the swap I looked down to see a nice rear right fender at a reasonable price. I start talking to the guy and it's Jan(originalo here). It's always cool meeting people in person you've only talked with over the internet. I had a friend bringing some stuff back, he offered to get it back and I was back on track...

Image may have been reduced in size. Click image to view fullscreen.

_________________
David S


Last edited by DSweinhagen on Thu Jun 26, 2025 8:20 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
T2
Samba Member


Joined: February 15, 2003
Posts: 194
Location: Yachats, Oregon
T2 is offline

PostPosted: Tue Jun 24, 2025 8:00 pm    Post subject: Re: Another 1951 Hoffman Standard, Dick Christensen's First Splt Reply with quote

I am so glad to see you finally working on it. Looking forward to seeing the progress.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DSweinhagen
Samba Member


Joined: July 30, 2002
Posts: 410
Location: Phoenix, AZ
DSweinhagen is offline

PostPosted: Thu Jun 26, 2025 8:03 am    Post subject: Re: Another 1951 Hoffman Standard, Dick Christensen's First Splt Reply with quote

T2 wrote:
I am so glad to see you finally working on it. Looking forward to seeing the progress.


Thanks Scott. Great to hear from you!

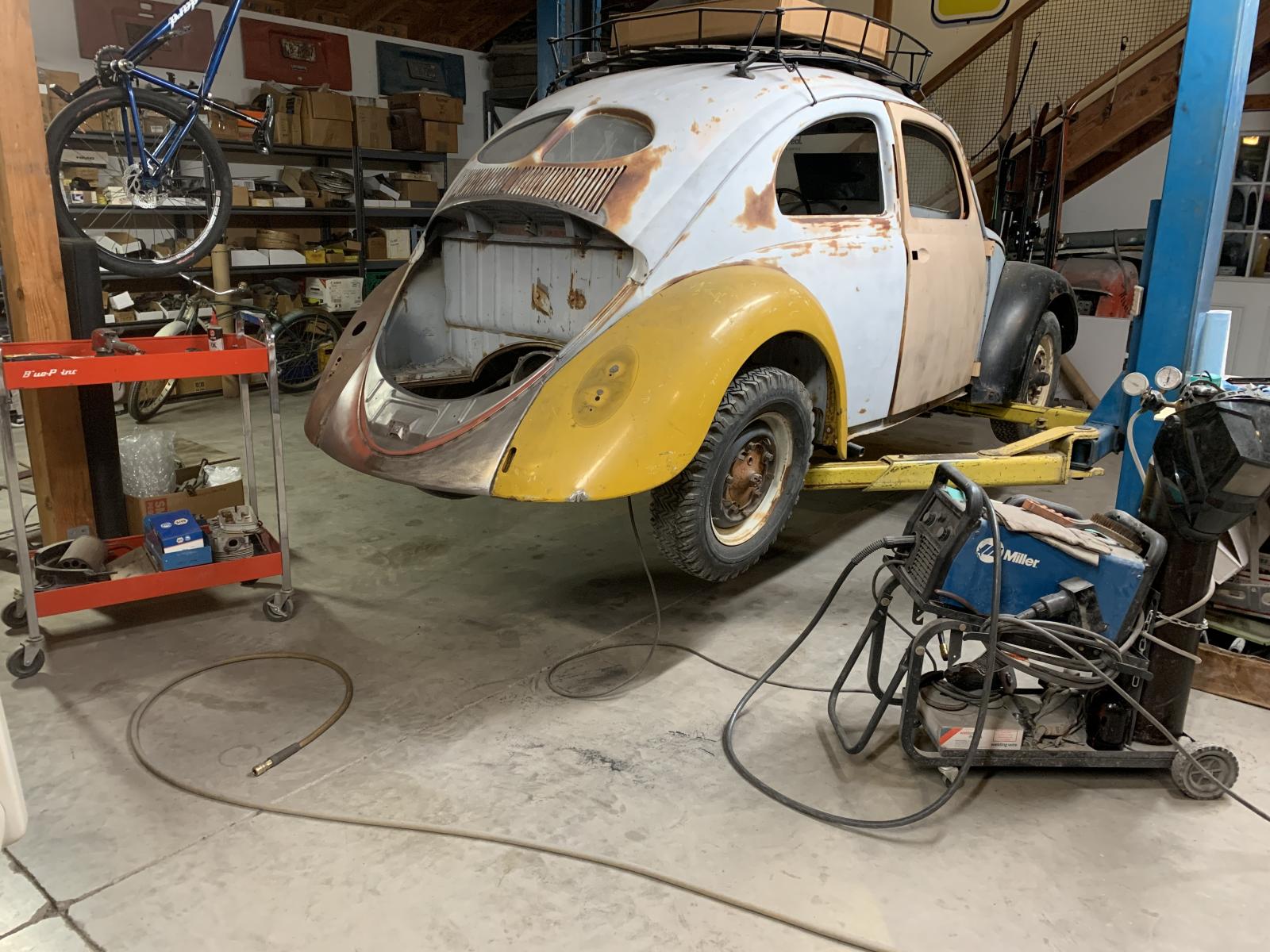

With the quarters all welded up and everything fitting well, it was time to weld the rear apron. I installed the seal channel and inner apron piece. I know there's a repro available now but I had heard mixed results so I just used the original one off the old apron. It's a kind of beat up but will be fine with a little more work. I also primed the quarters in and out before installing the apron...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

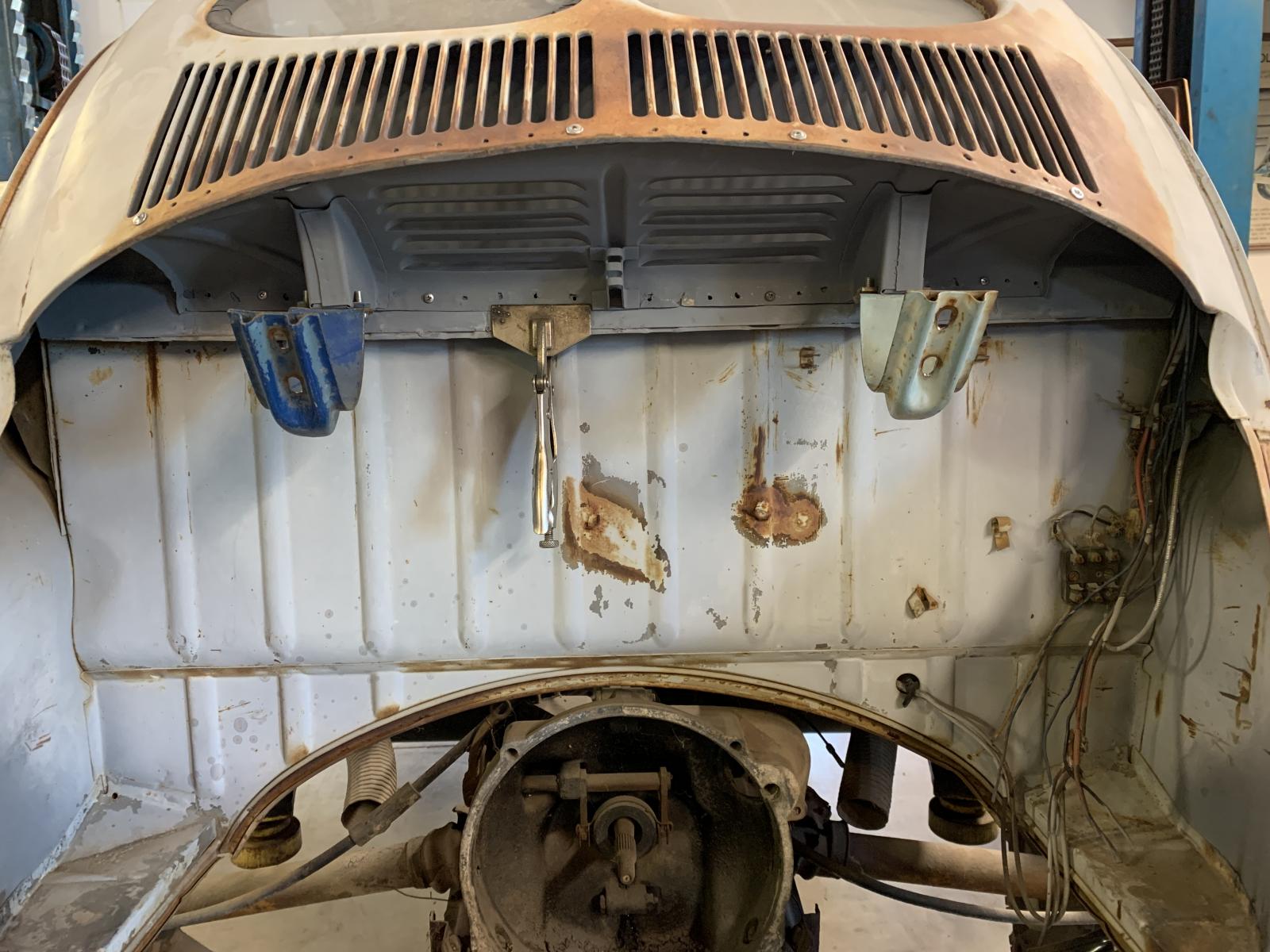

I really didn't see a way to leave this hinge carrier off any longer. The metal was damaged and stretched where it met the decklid and I needed to sort this out now. So I had the piece blasted and I cleaned up the inside as best I could, primed everything and welded it up...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Finally, the welding on the rear clip is just about done...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
David S
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
52HoffmanSplit
Samba Member


Joined: April 07, 2006
Posts: 1276
Location: Lamorinda CA
52HoffmanSplit is offline

PostPosted: Thu Jun 26, 2025 4:28 pm    Post subject: Re: Another 1951 Hoffman Standard, Dick Christensen's First Splt Reply with quote

Man Dave, That rear fender/apron curve without exhaust holes gets me every time. Just some serious old world design greatness there.. and you do it justice. A true artisan.

You know I probably owe you some cash because when I sold my split I LIBERALLY splashed all over the ads "Paint Matching by Dave Sweinhagen".

Thanks for the inspiration to get working on projects. Smile
_________________
DB

11/1966 Porsche 912
7/1968 Type 265 Double Cab
4/1955 Type 117 - 3 Fold
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Two Glove Boxes
Samba Member


Joined: March 03, 2005
Posts: 976
Location: Texas
Two Glove Boxes is offline

PostPosted: Mon Jun 30, 2025 5:49 am    Post subject: Re: Another 1951 Hoffman Standard, Dick Christensen's First Splt Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Killing it! Keep knocking stuff off the list and it will be ready to go. Plus those carrier sections are a pain, but looks like yours turned out great. Applause Applause Applause
_________________
1950 Deluxe Sedan Build

1951 Split Standard Hoffman Build

1960 Dove Blue Double Cab Patina Build

Two Glove Boxes IG
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
DSweinhagen
Samba Member


Joined: July 30, 2002
Posts: 410
Location: Phoenix, AZ
DSweinhagen is offline

PostPosted: Wed Jul 02, 2025 9:29 am    Post subject: Re: Another 1951 Hoffman Standard, Dick Christensen's First Splt Reply with quote

Thanks again guys! This rear clip felt like it was never going to end.

With the welding finished on the clip, I moved to the fenders, fit the taillights and finished any misc welding they needed.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

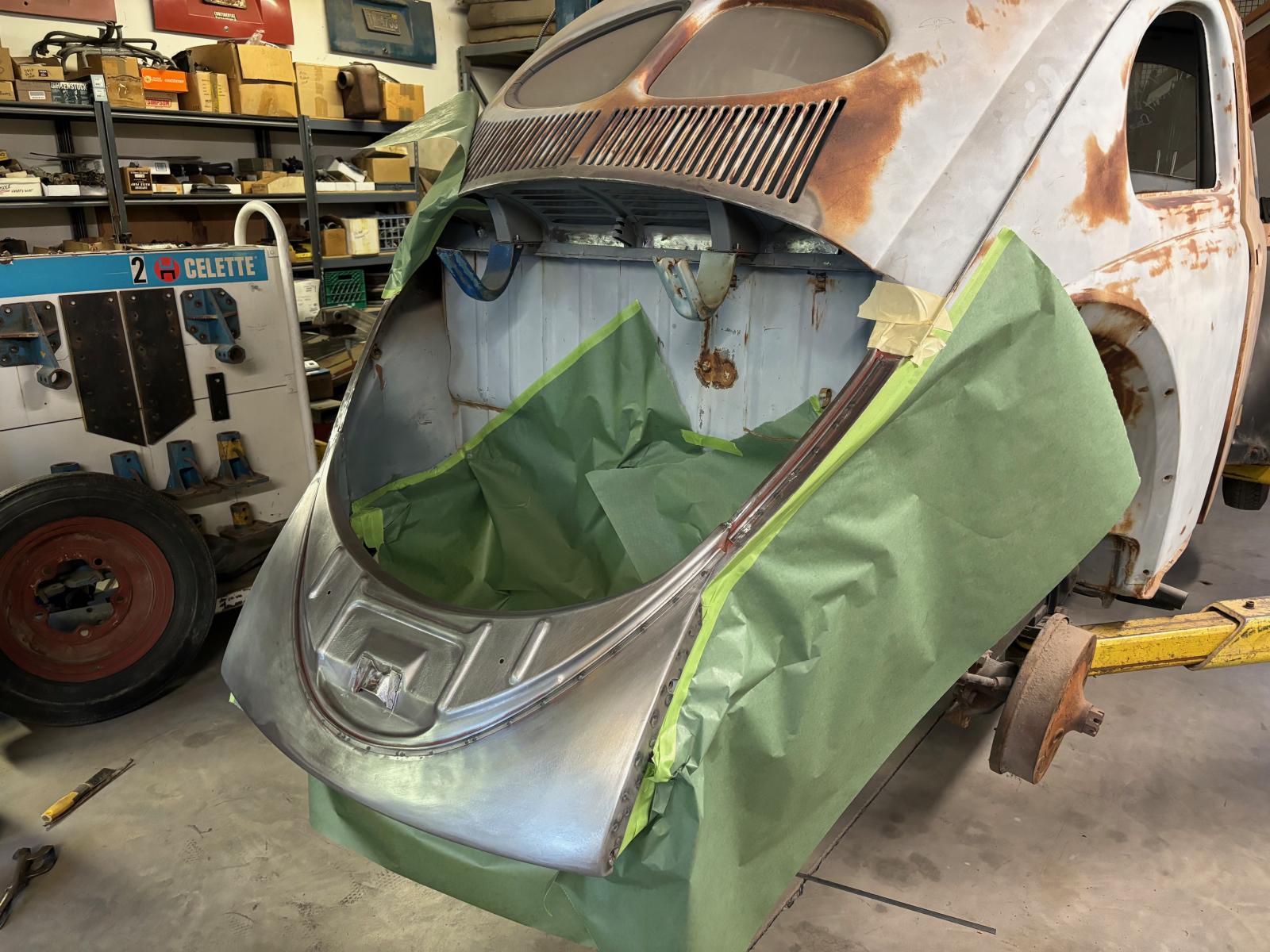

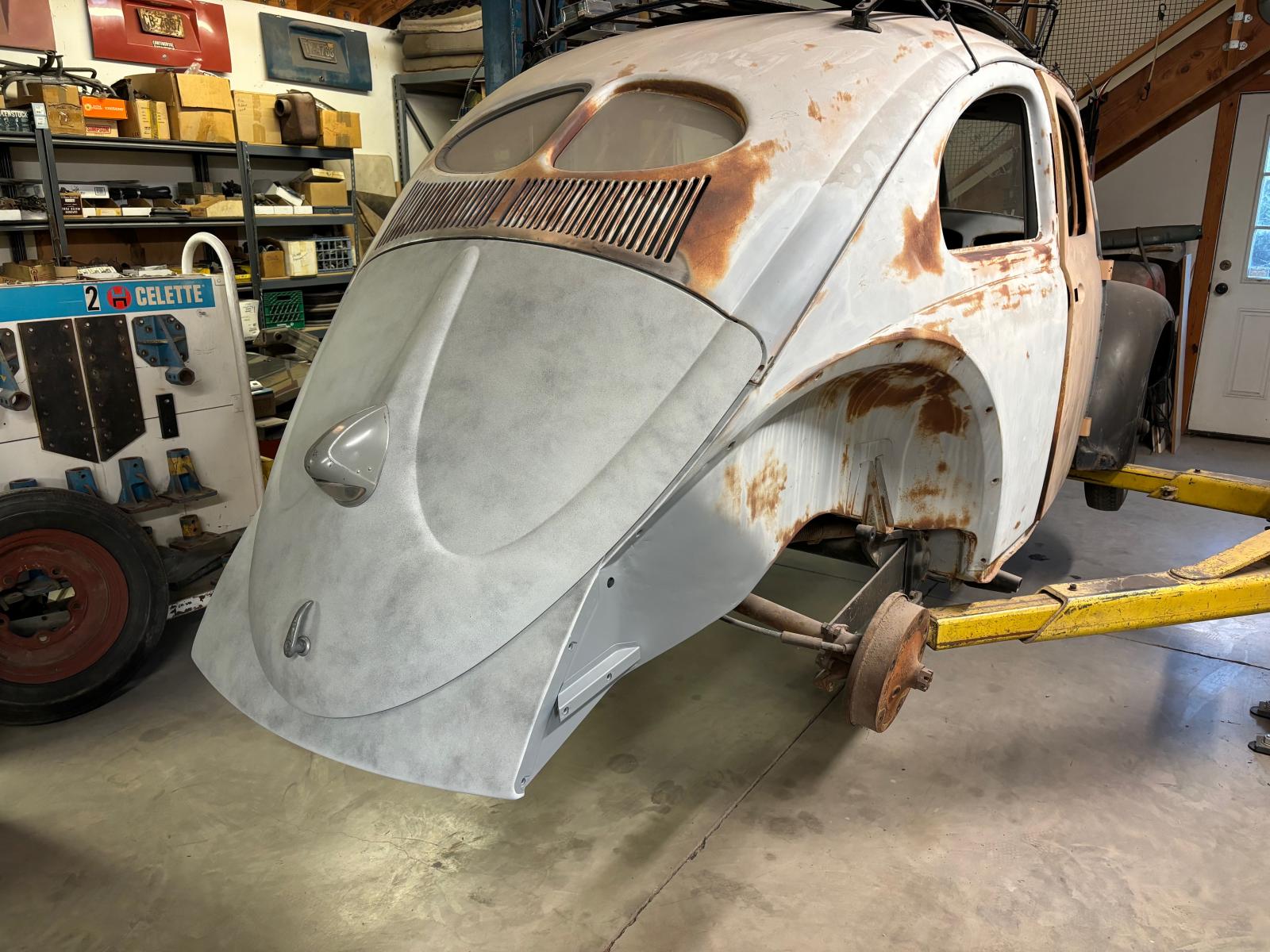

Then I went to body work and primer on the decklid and rear clip. Just keeping things small and manageable as I go. I'm using PPG DP50 on the bare metal then Evercoat G2 on the high build areas...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
David S
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
