| Author |
Message |
Nate_Bro
Samba Member
Joined: September 26, 2011
Posts: 256
Location: Dallas, TX
|
 Posted: Tue Sep 27, 2011 2:43 pm Post subject: |
 |
|
wow, thats a great build!
I wish I had a little more time/money to get mine done 100%, no corner cutting here!
Last edited by Nate_Bro on Tue Sep 27, 2011 6:31 pm; edited 1 time in total |
|
| Back to top |
|
 |
god_grinder
Samba Member
Joined: August 13, 2011
Posts: 93
Location: SoCal
|
| Posted: Tue Sep 27, 2011 4:39 pm Post subject: |
|
|
I have to agree with everybody. All i can say is WoW! My jaw hit the floor when i saw the jig you made for doing the bulkhead. I am going to need to do it on my 71 im building as my dd and would love to borrow that!  or at least get all your foot notes on it. Looks like it made it way easier.
keep up the great work!!! |
|
| Back to top |
|
|
T8kitease
Samba Member
Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
|
| Posted: Tue Sep 27, 2011 7:05 pm Post subject: |
|
|
Thank u guys for the great words!!! God, if you want to borrow it just have to make the 3000 mile trek! Nah if you need any info on building one just shoot me a PM and I'll gladly help. Definetly located it exactly were the stock framehead was. Just be careful cutting the old one off and to seperate the under steel to slide into the new piece. Fun stuff!
_________________
Matt
70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346 |
|
| Back to top |
|
|
hcso617
Samba Member
Joined: August 30, 2011
Posts: 16
Location: Paris, N
|
| Posted: Tue Sep 27, 2011 7:23 pm Post subject: |
|
|
Matt, Great work. I new to the VW game, I've learned from your posts. I was born in Patchogue, and grew up in Port Jeff. If I still lived there I'd come over and buy you a beer. Keep the posts and pics coming.
Matt L. |
|
| Back to top |
|
|
T8kitease
Samba Member
Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
|
| Posted: Tue Sep 27, 2011 7:46 pm Post subject: |
|
|
Thanks Matt! Wow, what a small world! Glad I could help you in your vw addiction!! I need my garage time! Its long over due!! This weekend I'm in there!
_________________
Matt
70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346 |
|
| Back to top |
|
|
god_grinder
Samba Member
Joined: August 13, 2011
Posts: 93
Location: SoCal
|
| Posted: Tue Sep 27, 2011 7:56 pm Post subject: |
|
|
right on. The worst part is I'm originally from Connecticut! oh well, i will hit you up for info on making one for sure.
Thanks |
|
| Back to top |
|
|
Motomazzo
Samba Member
Joined: June 02, 2009
Posts: 792
Location: Texas
|
| Posted: Wed Sep 28, 2011 3:58 am Post subject: |
|
|
Matt,
I just got a chance to check out your thread. Damn, dude. V-E-R-Y nice work indeed. Don't let the NY winter slow you down!!! You've got to keep going on this one. I'm going to be watching this.
Moto
_________________
Be Plant-Strong!! Watch "Forks Over Knives" on Netflix
'66 Sedan Project - http://www.thesamba.com/vw/forum/viewtopic.php?t=410718
R.I.P. - Mikayla. I miss you Baby girl. |
|
| Back to top |
|
|
T8kitease
Samba Member
Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
|
|
| Back to top |
|
|
T8kitease
Samba Member
Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
|
| Posted: Thu Sep 29, 2011 4:44 pm Post subject: |
|
|
Decided to upload some more pics to get up to speed, Area under rear window thats in need of some TLC!!! The spot welds that attach the back side of the luggage panel are visible with help of a 3M roloc disc.
Spot welds drilled out
Spot welds drilled out along the bottom section where luggage panel sits on top of rear crossmember
Scraps leftover
Garage space is getting a little cramped
_________________
Matt
70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346 |
|
| Back to top |
|
|
T8kitease
Samba Member
Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
|
| Posted: Thu Sep 29, 2011 5:16 pm Post subject: |
|
|
Heres a couple shots of where the rear crossmember terminates the outer quarter. You can see the spot welds on the outer vertical egde and the upper into the crossmember.
On the inside the same spot where crossmember meets the quarter. Rough cut and you can see the various spot welds there. Mine had some rust areas so I cut the whole thing out to make more work for myself! YES!
Dropped to the floor

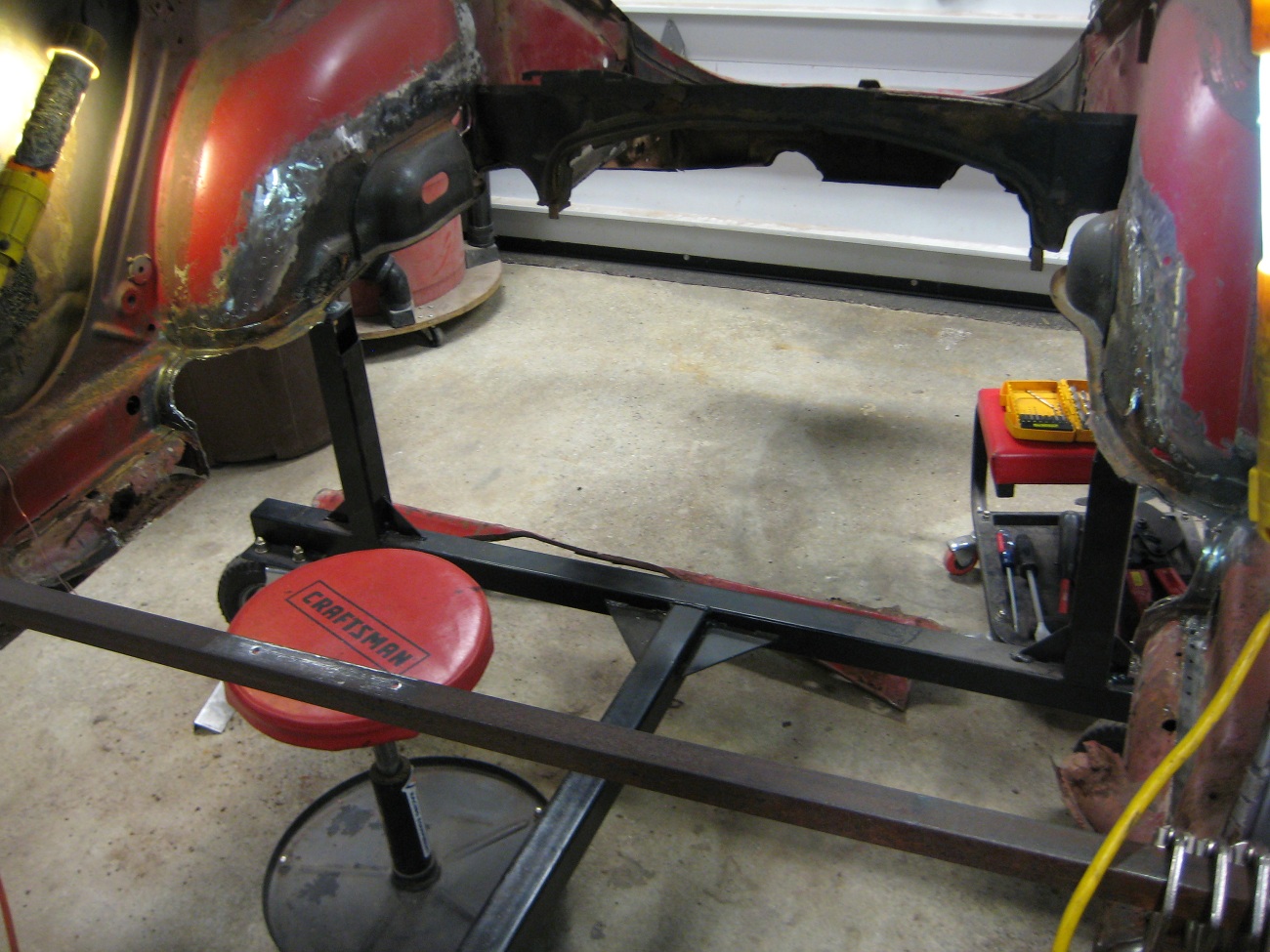

I actually made a simple locating jig that bolts from body mounts to the temporary angle iron cross brace. You can see the 2 holes right above the craftsman seat. Cant find the pic though.
Shot of the pass side quarter looking into the heater channel end toward front. Spot welds all over the place! Crossmember came out pretty easily though.
_________________
Matt
70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346 |
|
| Back to top |
|
|
T8kitease
Samba Member
Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
|
| Posted: Thu Sep 29, 2011 5:27 pm Post subject: |
|
|
Heres all the tools ive been using scattered around the table.
Picked up some goods at the local Greyhound
Total passenger side quarter, nice california condition!!! Is it too late to relocate????
Started cutting out the rust in the rear section. Gonna be a pain in the ass!!!!
I have a donor piece that is in so so condition along with some new bent sheetmetal. This is where I'm at and going to be trying to make some headway this weekend. Thanks for looking!
_________________
Matt
70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346 |
|
| Back to top |
|
|
Nate_Bro
Samba Member
Joined: September 26, 2011
Posts: 256
Location: Dallas, TX
|
| Posted: Thu Sep 29, 2011 7:05 pm Post subject: |
|
|
haha looks good!
and you can't beat that california condition!
my 71' was never taken out of California, and I thought I had a bad time since it had a 5"x3" rust hole under the battery that I had to cut/weld...
I have to hand it too you, if mine was like that, I would not have known where to start!
also, another reason I'm not gunna drive it in the winter, you know they put salt on the roads here!?!?!??! cars + salt = dumb, and a rust bucket...
and they said I can't use chains here.....
_________________
1971 Super Bug |
|
| Back to top |
|
|
Bob Kaufman
Samba Member
Joined: September 30, 2011
Posts: 3
Location: pittsburgh,pa
|
| Posted: Tue Oct 04, 2011 3:03 pm Post subject: Offer of help |
|
|
Matt:
We will be out of town for a few days and will get back to you upon our return. i did attempt to e-mail you with questions re the Jig dimensions and list of materials. Also whether I was interpreting your photo re cutting in front of the old Nap hat on the frame head and addition of material prior to welding the new Nap hat/frame head? Aside from vertical & horizontal what were your key reference points since removal of your body?
Keep up the great work!
Bob |
|
| Back to top |
|
|
dudeface
Samba Member
Joined: April 02, 2010
Posts: 32
Location: ARIZONA
|
| Posted: Wed Oct 05, 2011 4:05 pm Post subject: |
|
|
| NICE choice on the corbeau seats. i put those exact seats in my 70. just watch out on the driver left hump. after a little bit of time it will collapse. i need to replace the foam. when mine was under construction, i wish i coulda gone that far into it. but hey there is always tomorrow. people tell me it looks awesome, but i will always know wut corners i cut. nice job keep up the good work. |
|
| Back to top |
|
|
T8kitease
Samba Member
Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
|
| Posted: Wed Oct 05, 2011 5:05 pm Post subject: |
|
|
Thanks for the heads up dude. I'll have to keep my eye on it or my ass off that part of the seat. Its a long way away from seat install!
_________________
Matt
70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346 |
|
| Back to top |
|
|
J-Swiph
Samba Member
Joined: April 09, 2008
Posts: 115
Location: Lubbock, TX
|
| Posted: Fri Jan 06, 2012 9:46 am Post subject: wow! |
|
|
And i thought MY '70 was messed up! you are doing fantastic work my friend! i cant wait to see this finished! you can see my entire build on my link in my sig. nice work man!
_________________
Sticking feathers up your butt, does not make you a chicken!
Check out my VW build: http://www.thesamba.com/vw/forum/viewtopic.php?t=467770 |
|
| Back to top |
|
|
19-VW-74
Samba Member
Joined: June 28, 2009
Posts: 847
Location: Utah
|
| Posted: Sat Jan 07, 2012 2:53 am Post subject: |
|
|
| T8kitease wrote: |
Passenger side quarter, some accident damage was repaired with a dent puller and covered with a 1/2 inch of bondo. Chipped it right out
|
 I had replace that quarter too!
The damage looked identical, actually... only mine was the driver's side.
(TOTAL PITA)
You can check out what I did in my build thread in my sig if you want... Though you'll probably put my work to shame...
KICKASS BUILD, btw.
_________________
-Austin
My 1974 Standard Beetle Build:
http://www.thesamba.com/vw/forum/viewtopic.php?t=492617 |
|
| Back to top |
|
|
'69Custom
Samba Member
Joined: September 16, 2008
Posts: 2497
Location: Ventura, California
|
| Posted: Sat Jan 07, 2012 8:21 pm Post subject: |
|
|
| T8kitease wrote: |
Decided to upload some more pics to get up to speed, Area under rear window thats in need of some TLC!!! The spot welds that attach the back side of the luggage panel are visible with help of a 3M roloc disc.
Spot welds drilled out
Spot welds drilled out along the bottom section where luggage panel sits on top of rear crossmember
Scraps leftover
Garage space is getting a little cramped
|
We seem to be missing some of your most recent pics here. Liking your work and a luggage tray replacement is on my future.
_________________
-Tim
1969 Frankenbug
1965 Ford Mustang
:2gunfire: F-U-M-P!
~"I thought I was wrong once, but I was mistaken." ~The Boss
Please excuse any typos as my iPhone doesn't speak English very well.
| tham64 wrote: |
| Why tune a big round again and again????? For me.... 1 hour will solve the case |
www.endlesscustomz.com |
|
| Back to top |
|
|
swhitcomb
Samba Member
Joined: November 05, 2003
Posts: 5758
Location: Inwood WV
|
| Posted: Sun Oct 14, 2012 5:27 pm Post subject: |
|
|
Great build thread you have here. We seem to have some of the same issues with our cars. Great idea on the frame head jig. Think I might use it myself.
_________________
My 71 Ghia Been in my family since 1980
My Patina 66
My 74 Ghia
07 Boxster |
|
| Back to top |
|
|
T8kitease
Samba Member
Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
|
| Posted: Sun Oct 14, 2012 6:36 pm Post subject: |
|
|
Thanks!!
I've been neglecting this build thread ( without responding to others, sorry guys ) and havent had time to work on my project lately. Its almost been a year  . My goal is to be back on it this fall because its perfect weather to be in the garage around here!
If you need any measurments on the jig I'd gladely help you out. Worked like a charm.
Thanks for looking and good luck on your project!
_________________
Matt
70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346 |
|
