Ian Samba Moderator
Joined: August 28, 2002 Posts: 4932 Location: 713
|
Posted: Sat May 04, 2013 4:22 pm Post subject: |
|
|
I remember havin to pay the piper on those bearings. Looks like they are stocking FEBI brand now..
Late model Outer (71-79):
FEBI Part Number: ATM 211501283D $43.20 /ea
Looks like they have KOYO or NAPA brand as for the inners. I did this about a year and a half ago and was able to get whatever my local NAPA had on hand, which at the time was either another FEBI or an SKF/FAG bearing. I would purchase the NAPA brand without hesitation.
KOYO ATM 211501287 $18.36/ea
NAPA Part Number: BRG 6207J $28.35/ea
Grease seal:
ELRING Part Number: ATM 211501317 $3.33/ea _________________ All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012
**ACHTUNG DO NOT USE AA BRAND PRODUCTS OR BUY ANYTHING FROM PACIFIC PARTS INTERNATIONAL IN CALIFORNIA** |
|
Back to top |
|
|
notchboy Samba Member
Joined: April 27, 2002 Posts: 22463 Location: Escondido CA
|
Posted: Sun May 05, 2013 10:16 am Post subject: |
|
|

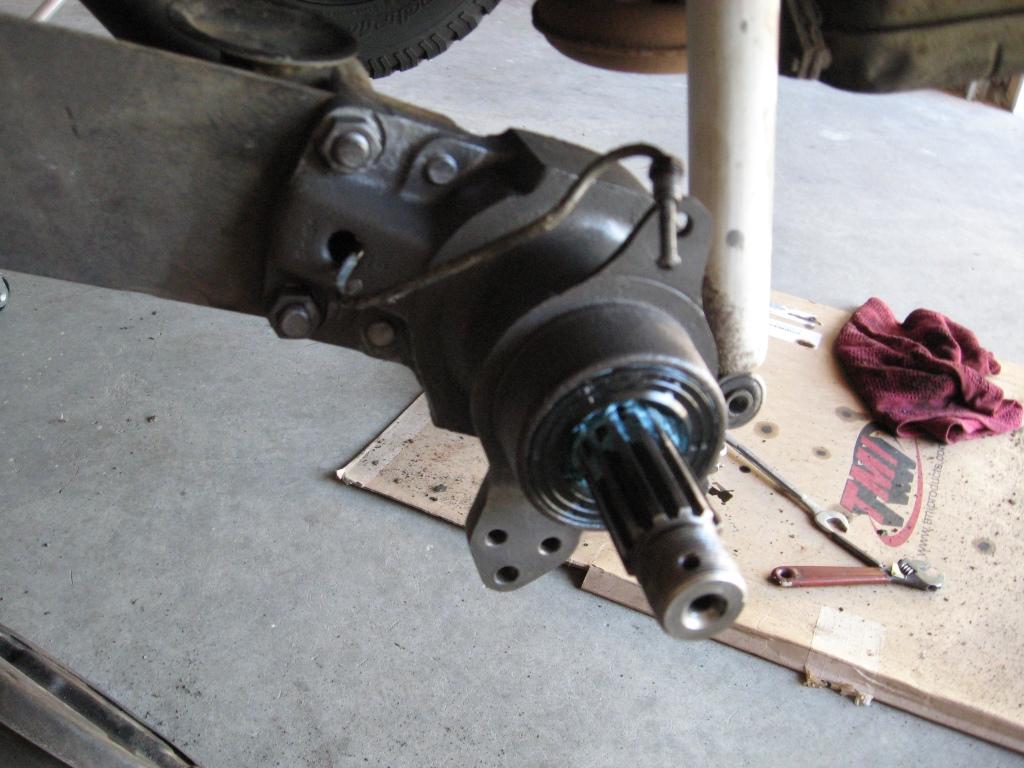

I did the driver side yesterday. The outer was toast. I ended up pulling the assembly off and using a press to do all the work. When I get to the pass side- it will go super fast.
_________________
t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
Back to top |
|
|
old DKP driver Samba Member
Joined: March 30, 2005 Posts: 4145 Location: Los Gatos,Ca.
|
Posted: Sun May 05, 2013 5:56 pm Post subject: axle bearings |
|
|
Nice job Jason
When I replaced the rear trailing arm bushings on my bus a while back
I thought for sure I would need to do bearings as well but, they just needed a good cleaning & repack.
One thing I over looked was the brake line grommets that fit in the bearing housing.
I searched and finally found them in Canada.
Here is the part# if yours are bad
211-611-743 _________________ V.W.owner since 1967 |
|
Back to top |
|
|
chrisd1891 Samba Member
Joined: April 30, 2009 Posts: 252 Location: Seattle, WA
|
Posted: Sun May 05, 2013 9:54 pm Post subject: |
|
|
notchboy wrote: |
I did the driver side yesterday. The outer was toast. I ended up pulling the assembly off and using a press to do all the work. When I get to the pass side- it will go super fast.
|
Did you need use a press to just get the bearing into the housing, or did you use one to get the race into the outer bearing?
I'm picking up my new outer bearing tomorrow morning...hopefully that will fix the issue as SGKent described. _________________ 74 Bay + 93 Corrado SLC + 2015 TDI Wagon
Admin at Aircooled Rescue. Register to help out your fellow VW folks. |
|
Back to top |
|
|
notchboy Samba Member
Joined: April 27, 2002 Posts: 22463 Location: Escondido CA
|
Posted: Sun May 05, 2013 10:23 pm Post subject: |
|
|
At first I bought a generic clamp puller from NAPA to push the spline out. That sucked ass! When I came to my sences, I realized that the press was my savior. I used it for everything. Pushing the spline out, pushing bearings out, pushing new ones in and finaly pushing the outer collar on - the one in which this thread was started for....on. But I had to go to Home Depot to get a pipe piece that would go around the spline be more than 4in long to push that prick on.
In the end I got it about 70% on. Ill need to hone the inside of the pipe out to get to 100% press a bilaty. But it didnt matter because when you put the hub back on it will press it on the rest of the way when you torque the big nut on the outside! Stopping on the spacer and inner bearing.
When I do the pass side, Ill lay out a step by step. Its hard to give nuggets of info to the average shade tree mechanic in us when Im privy to a wide range of cool shit in my cousins large ass covered garage that makes my wrenching life easier. But the press is a harbor freight deal that came in handy in this case. _________________
t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
Back to top |
|
|
SGKent Samba Member
Joined: October 30, 2007 Posts: 41031 Location: Citrus Heights CA (Near Sacramento)
|
Posted: Mon May 06, 2013 7:38 am Post subject: |
|
|
the inner race should slide on, sometimes just finger tight. If it is too tight it may mean the outer bearing is oval in shape. That is what I ran into on the KMM bearings. Light taps is the most it should take to slide it in. _________________ “Most people don’t know what they’re doing, and a lot of them are really good at it.” - George Carlin |
|
Back to top |
|
|
chrisd1891 Samba Member
Joined: April 30, 2009 Posts: 252 Location: Seattle, WA
|
Posted: Mon May 06, 2013 10:11 pm Post subject: |
|
|
Well...got the FAG bearing and installed it. It definitely went in easier than the PEX one. Got everything back together and still hear that growling noise. Ugh...I'll do the other side now which will go a lot quicker....I'm just hoping this noise really is wheel bearings and not some stupid trivial thing. I have new CVs as well.
Anyway, thanks for all the advice. It helped a lot. _________________ 74 Bay + 93 Corrado SLC + 2015 TDI Wagon
Admin at Aircooled Rescue. Register to help out your fellow VW folks. |
|
Back to top |
|
|
Amskeptic Samba Member
Joined: October 18, 2002 Posts: 8568 Location: All Across The Country
|
Posted: Tue May 07, 2013 6:43 am Post subject: |
|
|
chrisd1891 wrote: |
Well...got the FAG bearing and installed it. It definitely went in easier than the PEX one. Got everything back together and still hear that growling noise. Ugh...I'll do the other side now which will go a lot quicker....I'm just hoping this noise really is wheel bearings and not some stupid trivial thing. I have new CVs as well.
Anyway, thanks for all the advice. It helped a lot. |
If you hear a growl, you should be able to feel the growl, a very subtle "stripe"y rotational resistance/let-go/resistance/let-go.
I hope the other side is the culprit.
Colin _________________ www.itinerant-air-cooled.com |
|
Back to top |
|
|
chrisd1891 Samba Member
Joined: April 30, 2009 Posts: 252 Location: Seattle, WA
|
Posted: Tue May 07, 2013 11:55 am Post subject: |
|
|
Amskeptic wrote: |
chrisd1891 wrote: |
Well...got the FAG bearing and installed it. It definitely went in easier than the PEX one. Got everything back together and still hear that growling noise. Ugh...I'll do the other side now which will go a lot quicker....I'm just hoping this noise really is wheel bearings and not some stupid trivial thing. I have new CVs as well.
Anyway, thanks for all the advice. It helped a lot. |
If you hear a growl, you should be able to feel the growl, a very subtle "stripe"y rotational resistance/let-go/resistance/let-go.
I hope the other side is the culprit.
Colin |
I can't feel it...when I brake, there's no pulsing or anything, its very smooth. And as far as resistance goes, there doesn't seem to be much at all, the bus is very easy to push. The noise only happens at about 35mph and above. And turning the wheels by hand is smooth and silent, though I did notice a bit of axial play in the passenger side rear wheel...not sure if its beyond the spec though. _________________ 74 Bay + 93 Corrado SLC + 2015 TDI Wagon
Admin at Aircooled Rescue. Register to help out your fellow VW folks. |
|
Back to top |
|
|
busdaddy Samba Member
Joined: February 12, 2004 Posts: 51153 Location: Surrey B.C. Canada, but thinking of Ukraine
|
Posted: Tue May 07, 2013 3:00 pm Post subject: |
|
|
chrisd1891 wrote: |
Amskeptic wrote: |
chrisd1891 wrote: |
Well...got the FAG bearing and installed it. It definitely went in easier than the PEX one. Got everything back together and still hear that growling noise. Ugh...I'll do the other side now which will go a lot quicker....I'm just hoping this noise really is wheel bearings and not some stupid trivial thing. I have new CVs as well.
Anyway, thanks for all the advice. It helped a lot. |
If you hear a growl, you should be able to feel the growl, a very subtle "stripe"y rotational resistance/let-go/resistance/let-go.
I hope the other side is the culprit.
Colin |
I can't feel it...when I brake, there's no pulsing or anything, its very smooth. And as far as resistance goes, there doesn't seem to be much at all, the bus is very easy to push. The noise only happens at about 35mph and above. And turning the wheels by hand is smooth and silent, though I did notice a bit of axial play in the passenger side rear wheel...not sure if its beyond the spec though. |
Try swapping a tire front to back just for kicks. _________________ Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
Back to top |
|
|
Amskeptic Samba Member
Joined: October 18, 2002 Posts: 8568 Location: All Across The Country
|
Posted: Tue May 07, 2013 3:06 pm Post subject: |
|
|
The feel I speak of is rotating the axle flange with no brake hardware or CV installed. You are a bit past where I thought you were. _________________ www.itinerant-air-cooled.com |
|
Back to top |
|
|
Petervw Samba Member
Joined: July 04, 2005 Posts: 1020 Location: Sarnia Ont. Canada
|
Posted: Fri May 17, 2013 6:21 am Post subject: |
|
|
chrisd1891 wrote: |
Well...got the FAG bearing and installed it. It definitely went in easier than the PEX one. Got everything back together and still hear that growling noise. Ugh...I'll do the other side now which will go a lot quicker....I'm just hoping this noise really is wheel bearings and not some stupid trivial thing. I have new CVs as well.
Anyway, thanks for all the advice. It helped a lot. |
..did you ever get around in doing the other side, and if so, did the growling noise disappear..how much play do you have at the 12 and 6 o'clock position?.. |
|
Back to top |
|
|
chrisd1891 Samba Member
Joined: April 30, 2009 Posts: 252 Location: Seattle, WA
|
Posted: Tue Jun 04, 2013 6:43 pm Post subject: |
|
|
Oops, yea, sorry I didn't update.
Did the other side with a FAG outer bearing and a PEX inner, and the noise disappeared.
As for play, I don't have any way to measure it, but there is supposed to be some, but not much. I honestly couldn't tell a difference in terms a play in new vs. old, but the old bearing definitely felt stiff and draggy when I took it out. When I put the new one in, that draggy-ness was gone completely. And the noise is definitely gone. _________________ 74 Bay + 93 Corrado SLC + 2015 TDI Wagon
Admin at Aircooled Rescue. Register to help out your fellow VW folks. |
|
Back to top |
|
|
Hoody Samba Member
Joined: November 28, 2007 Posts: 1948
|
Posted: Wed Jun 05, 2013 11:04 pm Post subject: |
|
|
As far as bearings go...there are only two choices. And for that matter pretty much every part that goes into any vehicle. Having owned a 37 year old Japanese car and seeing the chump vendors that try to pawn off Chinese garbage for many years...the Germans and the Japanese take a HUGE amount of pride in their products. Aisin who is the OE manufacturer for many of the critical parts for my FJ40 still makes the parts in Japan. The Germans are the only other group of producers that still will not compromise quality. I am speaking of companies like Porsche. Even Mercedes has gone through numerous changes over the years. Daimler Chrysler almost sunk them. My point is the Japs have always had extreme quality controls in place. Perhaps I am mistaken. 30 years ago when I was a skate rat the only bearings to use were KOYO. There is a reason that Scott at German Supply has a mixed bag for his bearing kits. Years ago there was a shite load of boot leg SKF bearings that flooded the market. FAG has always stayed consistent. Mine were made in South Korea and I know they will be spot on. Homework goes a long way. |
|
Back to top |
|
|
Petervw Samba Member
Joined: July 04, 2005 Posts: 1020 Location: Sarnia Ont. Canada
|
Posted: Thu Jun 06, 2013 5:45 am Post subject: |
|
|
chrisd1891 wrote: |
Oops, yea, sorry I didn't update.
Did the other side with a FAG outer bearing and a PEX inner, and the noise disappeared.
As for play, I don't have any way to measure it, but there is supposed to be some, but not much. I honestly couldn't tell a difference in terms a play in new vs. old, but the old bearing definitely felt stiff and draggy when I took it out. When I put the new one in, that draggy-ness was gone completely. And the noise is definitely gone. |
..keep a close watch on those bearings..if you haven't already reads this, heres why ... http://www.thesamba.com/vw/forum/viewtopic.php?t=557614&postdays=0&postorder=asc&start=0 |
|
Back to top |
|
|
c'estlavw Samba Member
Joined: May 24, 2013 Posts: 1
|
Posted: Thu Jun 06, 2013 1:39 pm Post subject: rear bearings, seeking info. |
|
|
First time post-er! So glad something like this exists it has helped me countless times! This is the first time I haven't been able to find the information already in the forums and this seemed like the appropriate conversation to post it in...
I have a 74 bus (1.8 L) and I have removed my rear wheel bearings and just began the installation process. I got the FAG bearings (so glad I didn't have to find that out the hard way) and have the outer bearing tapped in. It is currently flush with the outside of the housing (i.e. what you can see from the outside of the car-the part that is closest to the castellated nut--sorry if this is redundant just trying to be specific)--and I'm reasonably sure this is where it goes.. I know I should have taken a picture before we took it all apart but unfortunately.. Anyways, I'm just looking for confirmation before I continue assembly that you want the outer bearing flush with the outside part of the housing.
Thanks in advance for any input. |
|
Back to top |
|
|
SGKent Samba Member
Joined: October 30, 2007 Posts: 41031 Location: Citrus Heights CA (Near Sacramento)
|
Posted: Thu Jun 06, 2013 1:58 pm Post subject: |
|
|
Quote: |
It is currently flush with the outside of the housing
|
the bearing outer part sits flush with the ledge cut for the seal. You have to leave room for the seal. _________________ “Most people don’t know what they’re doing, and a lot of them are really good at it.” - George Carlin |
|
Back to top |
|
|
richparker Samba Member
Joined: November 24, 2011 Posts: 6983 Location: Durango, CO
|
Posted: Mon Mar 31, 2014 8:21 am Post subject: |
|
|
Did I miss the post that said freeze the bearings and heat the housing? This worked great in my install, the bearings slid right in with no press. Another way is a Park bottom bracket (a bike tool) press. My buddy used one on his bug. _________________ __________
’71 Westy build
Adventure thread
’65 Deluxe Build
’63 Deluxe Build |
|
Back to top |
|
|
Tcash Samba Member
Joined: July 20, 2011 Posts: 12844 Location: San Jose, California, USA
|
Posted: Wed Mar 18, 2015 8:13 pm Post subject: Rear Wheel Bearings |
|
|
68-79 inner rear wheel bearing.
Prt# 211 501 287
6207-J
207
ID 35mm
OD 72mm
WD 17mm
68-70 outer rear bearing.
Prt# 211 501 283
1208S
ID 40mm
OD 80mm
WD 18mm
71-79 outer rear wheel bearing.
Prt# 211 501 283D
GRW111
ID 35mm
OD 62mm
WD 19mm
kreemoweet wrote: |
Lockring (circlip-C-lip) spec 2.5 mm. |
Last edited by Tcash on Sun Aug 23, 2015 1:37 pm; edited 3 times in total |
|
Back to top |
|
|
kreemoweet Samba Member
Joined: March 13, 2008 Posts: 3899 Location: Seattle, WA
|
Posted: Wed Mar 18, 2015 9:02 pm Post subject: |
|
|
Hey, Tcash! Better check yer notes, my '71 bus outer bearings are 62 mm OD, outer race is 16.7-18 mm wide (varies with brand), inner race is 18.95 mm wide.
The figures you posted might be for the old-style outer bearings (part #? I dunno, maybe 211-501-283B). _________________ '67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities
Stop dead photo links! Post your photos to The Samba Gallery! |
|
