Slight damage on harness wires in engine compartment
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
86VaNa60N
Samba Member


Joined: March 22, 2014
Posts: 53
Location: Ventura
86VaNa60N is offline

PostPosted: Thu Oct 18, 2018 10:12 pm    Post subject: Slight damage on harness wires in engine compartment Reply with quote

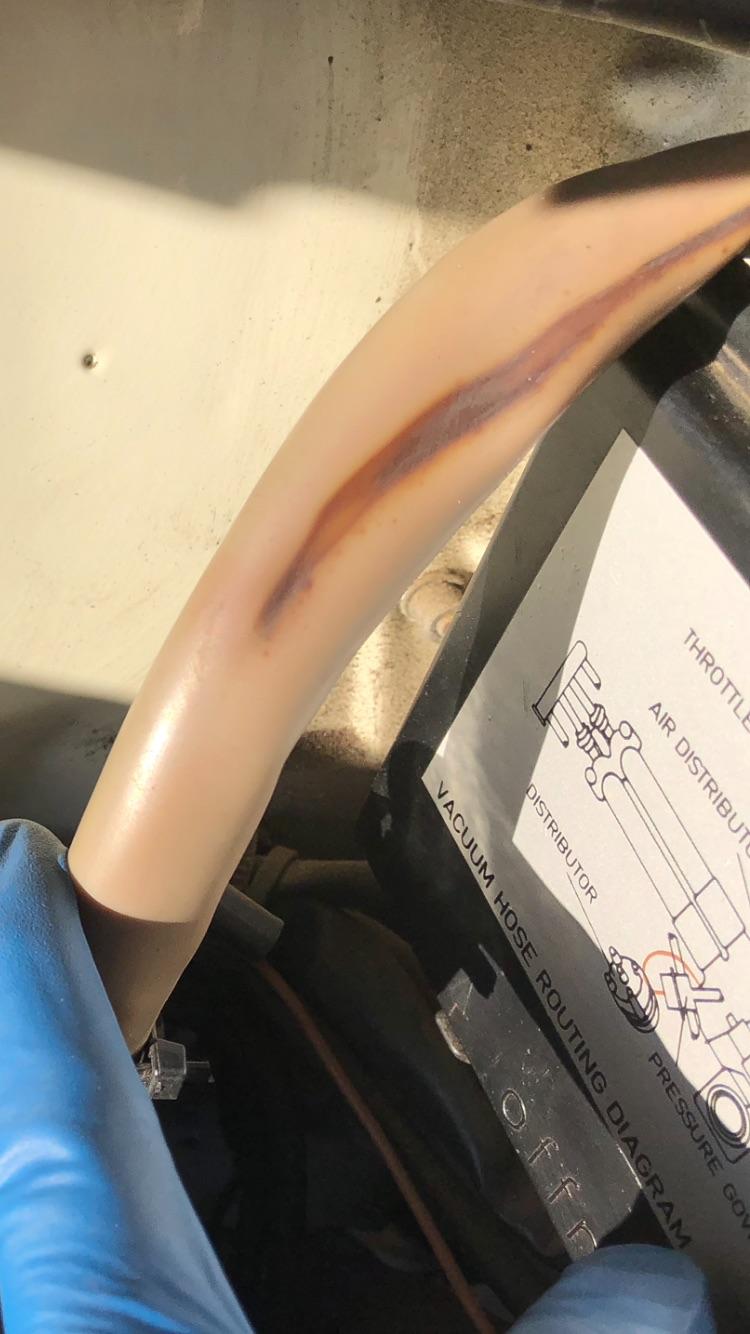

Well my electrical saga continues. I just keep finding one thing after another. In searching for electrical issues in my 86 Westy, I came across a burnt line on a the harness in the left upper aspect of the engine compartment. Today, I opened it up and noticed there were a few slight damaged wires with brown markings on the insulation and one wire that had cracked open. As far as I can tell, the wire looks intact. From the looks of this, I'm not sure if the wires should bed repaired or left alone. What do the experts think? Thanks for your input
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 40376

Wildthings is offline

PostPosted: Fri Oct 19, 2018 1:29 am    Post subject: Re: Slight damage on harness wires in engine compartment Reply with quote

You can leave most of them alone and just tape over the split one.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23258
Location: North West New Jersey
djkeev is offline

PostPosted: Fri Oct 19, 2018 3:49 am    Post subject: Re: Slight damage on harness wires in engine compartment Reply with quote

The fuel injection system is UNFUSED.

When something shorts out....... lots of exciting things happen!

Read this thread........

https://www.thesamba.com/vw/forum/viewtopic.php?t=663228

And then I bet you will be rushing out to your friendly local auto parts store (FLAPS) to buy an inline fuse and two insulated 90 male wire connectors. lol:


Dave
_________________
Stop Dead Photo Links

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
86VaNa60N
Samba Member


Joined: March 22, 2014
Posts: 53
Location: Ventura
86VaNa60N is offline

PostPosted: Fri Oct 19, 2018 7:08 am    Post subject: Re: Slight damage on harness wires in engine compartment Reply with quote

Wildthing: thats great news Very Happy I was worried about harness repair, which I've ever attempted.
Dave: I read that interesting thread, fortunately my van isn't doing anything crazy at this point, except for the turn signals sticking when the headlights are on, but I'm reading up on other threads about that Cool

Now a new subject for my Samba research: unfused fuel injection system

Thanks you guys,
greatly appreciate your advice
Cheers,
Noah
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23258
Location: North West New Jersey
djkeev is offline

PostPosted: Fri Oct 19, 2018 7:45 am    Post subject: Re: Slight damage on harness wires in engine compartment Reply with quote

Just an FYI ...... fuse it BEFORE the exciting things happen.

Dave
_________________
Stop Dead Photo Links

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
