Westfalia interior gray paint - which is it?
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic

Gray paint for metal parts of the Westy interior - which is it?
Dove Gray
20%
 20%  [ 1 ]
Stone Gray
60%
 60%  [ 3 ]
Smoke Gray
20%
 20%  [ 1 ]
Granite
0%
 0%  [ 0 ]
Dark Machine Gray
0%
 0%  [ 0 ]
Total Votes : 5

Author Message
VicVan
Samba Member


Joined: July 01, 2015
Posts: 1076
Location: Vancouver Island, BC
VicVan is offline

PostPosted: Fri Apr 30, 2021 11:39 am    Post subject: Westfalia interior gray paint - which is it? Reply with quote

Hi,

I've been browsing the forum for tips on repainting some metal in my Westy (1990, so gray): grille under the fridge, front table leg, etc. I've found several paint tones. So... which is it?
I understand none won't be a perfect match. But if you've used one of these, what's your experience? How does the colour compare to the stock Westfalia grey?

1/ DOVE GREY
Brands and references mentioned:
Krylon 1605,
Valspar 165816,
Plasti-kote 364
https://www.grainger.ca/en/product/PAINT-AEROSOL-DOVE-GREY-15OZ/p/RLMV2184-838

2/ STONE GREY - SATIN
Rustoleum Painter's Touch
https://www.rustoleum.com/product-catalog/consumer...one%20Gray

3/ SMOKE GREY - SATIN - result: sometimes darker, sometimes lighter than stock
Rustoleum 7786
(Apparently hard to find in spray cans)
https://www.amazon.com/Rust-Oleum-K7786-402-RUST-OLEUM-K7786402-Enamel/dp/B001CESK8C

4/ GRANITE - SATIN
Rustoleum Painter's Touch 249855
https://www.homedepot.ca/product/rust-oleum-painte...1000777568
https://www.rustoleum.com/product-catalog/consumer...one%20Gray

5/ DARK MACHINE GRAY - ENAMEL - result: darker than stock
Rustoleum
https://www.grainger.ca/en/product/PAINT-AEROSOL-DK-MACHINE-GREY-15OZ/p/RLMV2187-838

6/ WARM GRAY
SEM 15183
https://www.amazon.com/gp/product/B000PKX0GG

Reference posts or threads:
https://www.thesamba.com/vw/forum/viewtopic.php?t=257439
https://www.thesamba.com/vw/forum/viewtopic.php?t=528786
https://www.thesamba.com/vw/forum/viewtopic.php?p=9627239#9627239

_________________
'90 Westiti, 2.1 auto


Last edited by VicVan on Fri Apr 30, 2021 9:53 pm; edited 5 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
space
Samba Member


Joined: November 19, 2017
Posts: 293

space is offline

PostPosted: Fri Apr 30, 2021 12:00 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

Stone Gray to my eye
_________________
67 datsun
04 350z
08 xterra
82 westy
00 frontier
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dabaron
Samba Member


Joined: June 21, 2018
Posts: 1985
Location: Philly, mang
dabaron is offline

PostPosted: Fri Apr 30, 2021 12:18 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

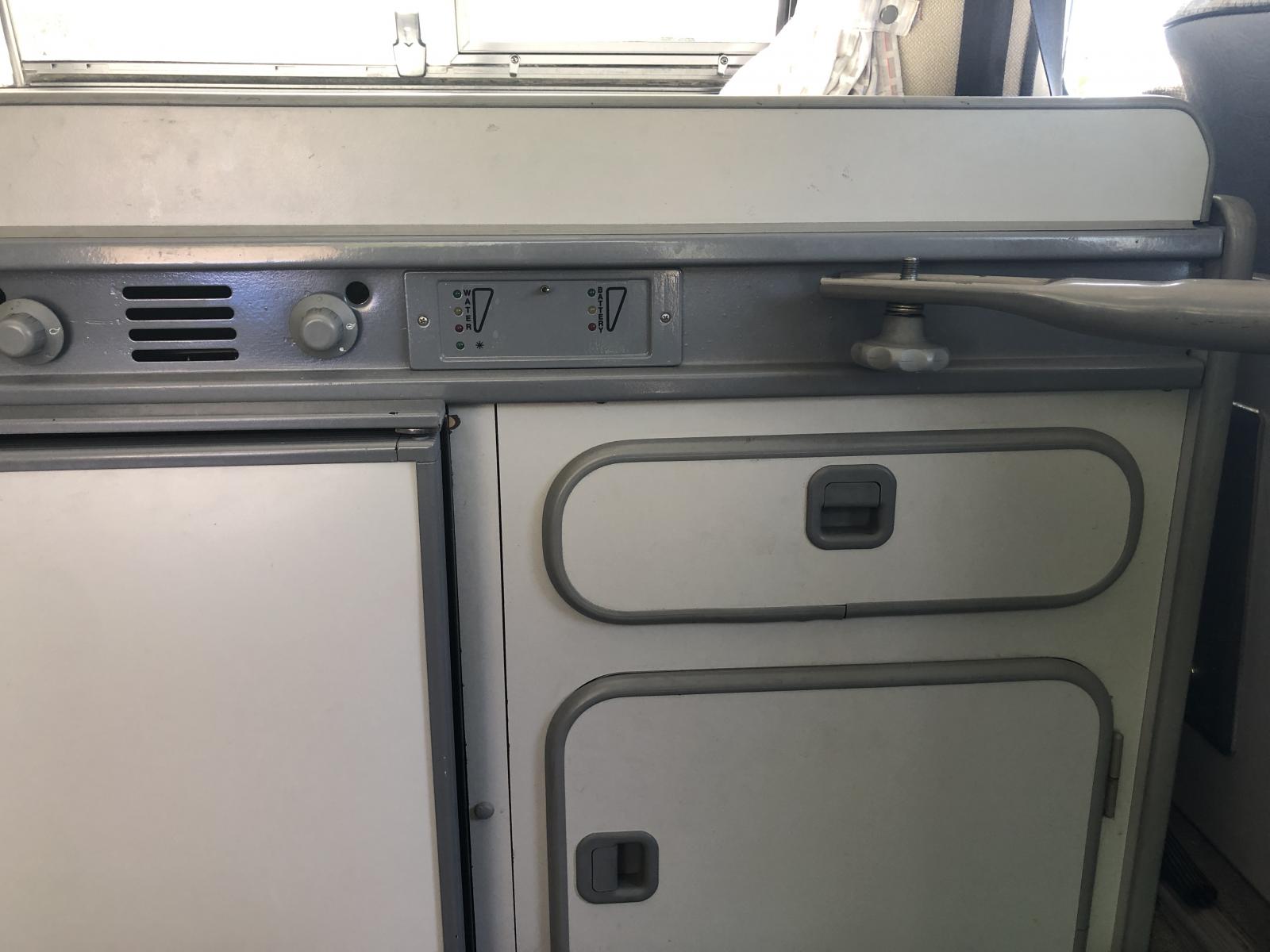

not #5 - i went with that and it is much darker...

Image may have been reduced in size. Click image to view fullscreen.

_________________
1991 Vanagon GL Camper
1968 Beetle *pending*
i had no idea i wanted to be a mechanic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 13628
Location: Brookeville, MD
dobryan is offline

PostPosted: Fri Apr 30, 2021 12:26 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

Rustoleum Granite Satin has been my go to for years. YMMV.
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The West Coast Westy
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7091
Location: Arizona
kamzcab86 is offline

PostPosted: Fri Apr 30, 2021 12:40 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

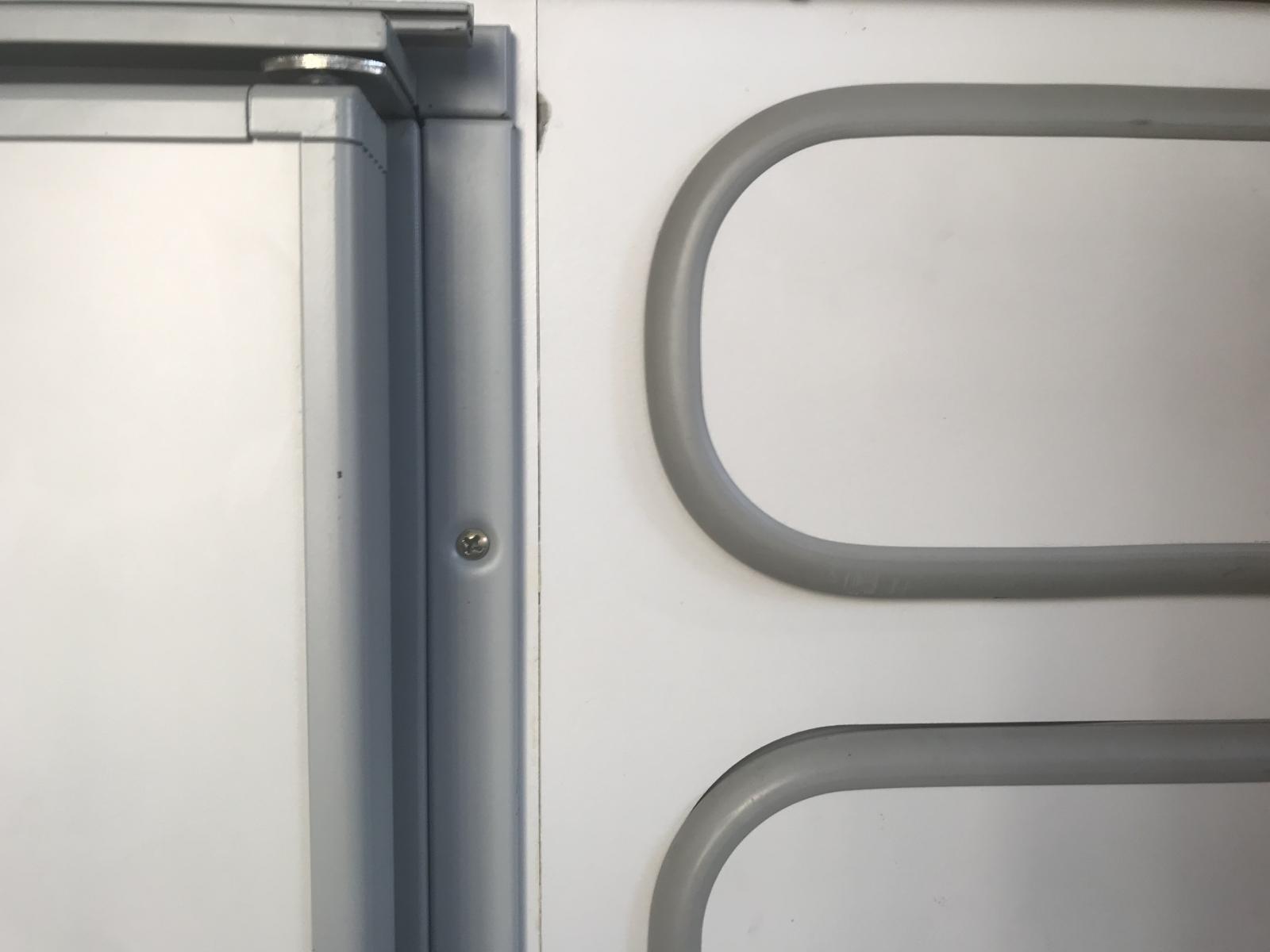

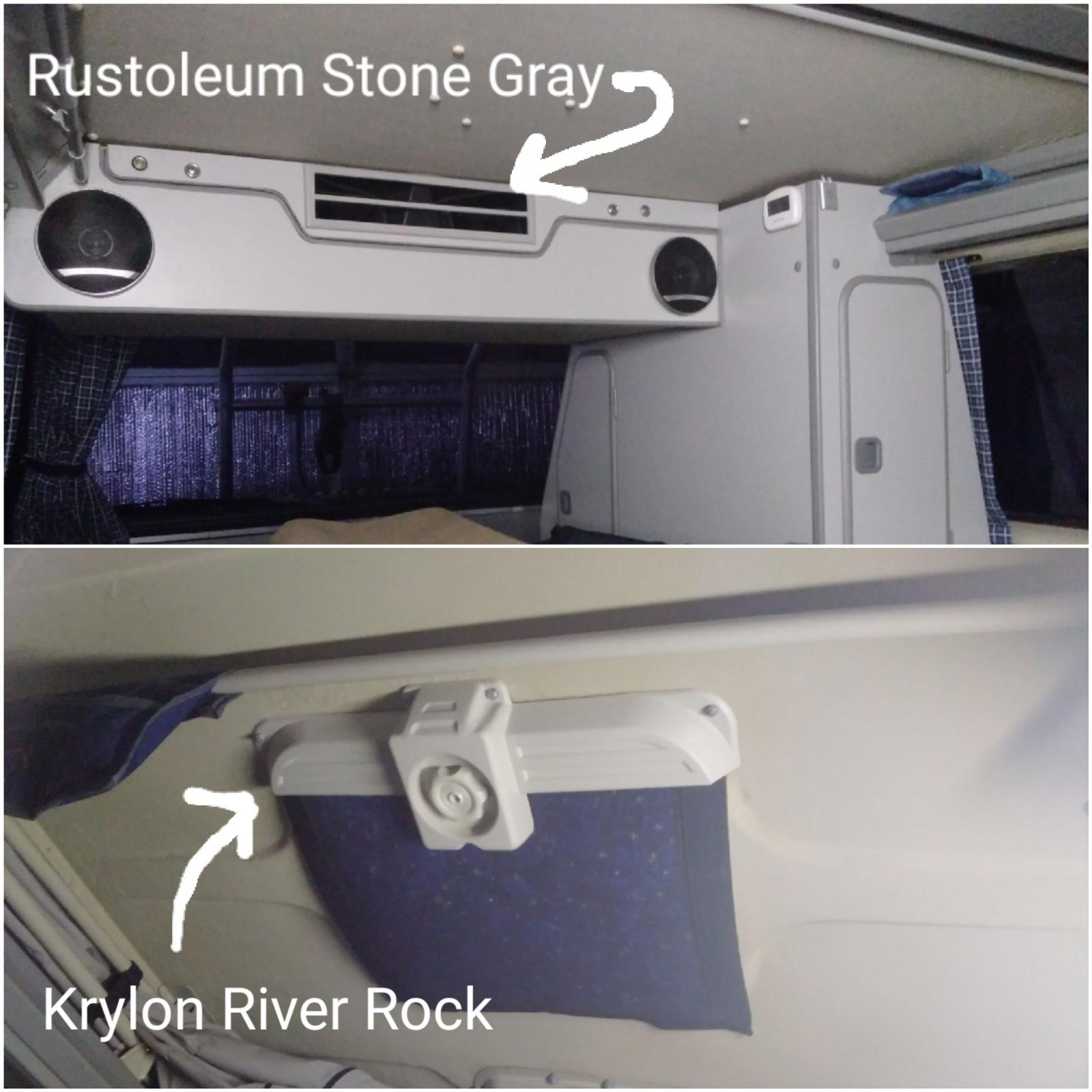

Smoke Stone Gray is too light to be a match for the metal components, which are about the color of the rubber trim:

Image may have been reduced in size. Click image to view fullscreen.


I used Krylon's River Rock on the skylight plastic, which is a good match for the poptop components, but is a touch grayer than the original color.
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"I fear the day that technology will surpass our human interaction; the world will have a generation of idiots." ~Albert Einstein


Last edited by kamzcab86 on Sat May 01, 2021 10:38 am; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
DeLvxe
Samba Member


Joined: January 08, 2019
Posts: 66
Location: Seattle
DeLvxe is offline

PostPosted: Fri Apr 30, 2021 1:00 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

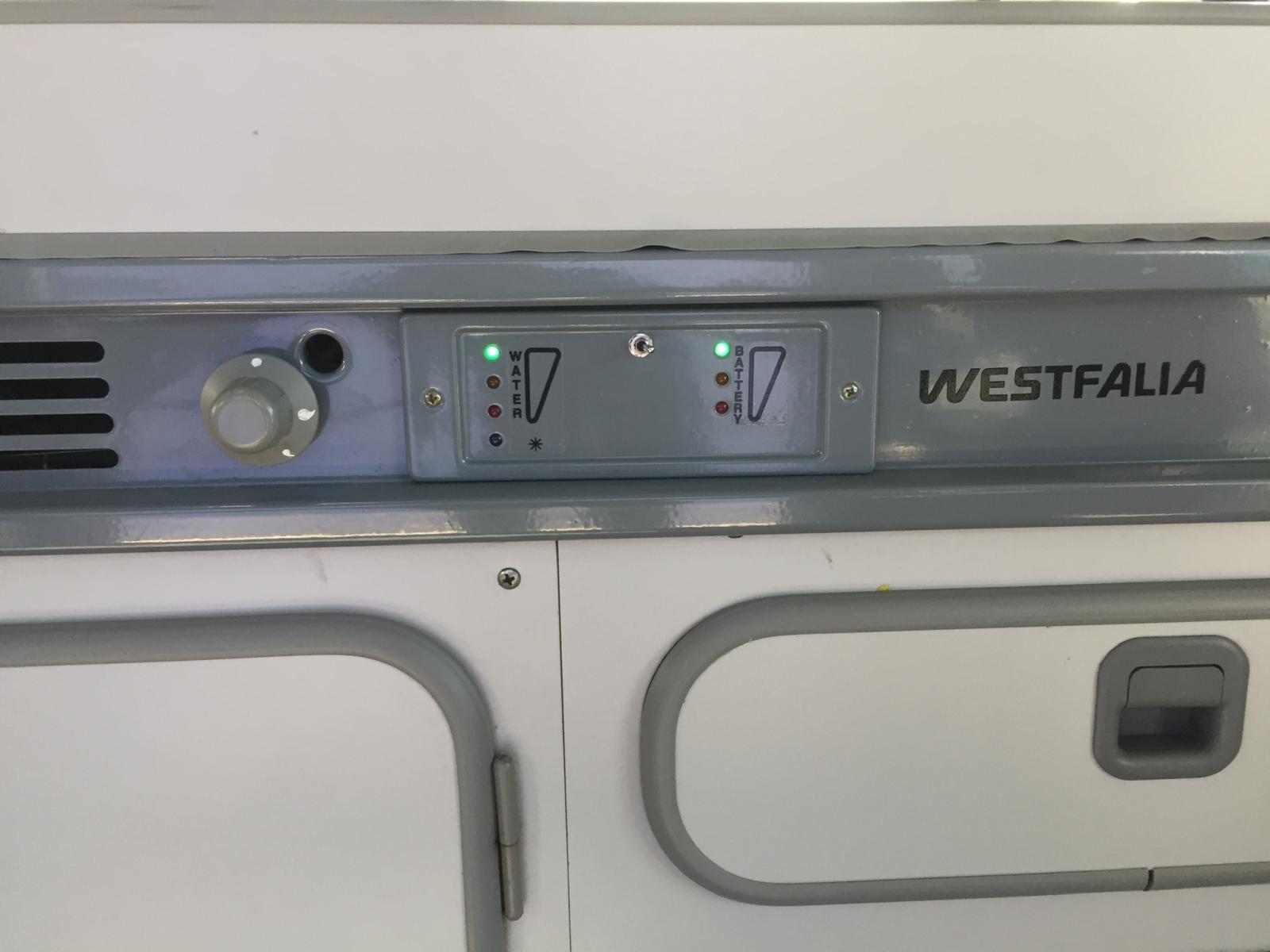

I used the Dark Machine Gray for the stove front and trim on my truckfridge. It looks good to my eye, but darker than the gray used on the table legs. The OEM stove front color always looked kind of dingy to me, so pleased with the new color.
Image may have been reduced in size. Click image to view fullscreen.

_________________
1991 Full Camper with EJ25
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kourt
Samba Member


Joined: August 13, 2013
Posts: 1502
Location: Austin, TX
kourt is offline

PostPosted: Fri Apr 30, 2021 2:25 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

I have used this combination for all my Westy projects:

Preparation: SEM 38353 Plastic / Leather Prep Aerosol Spray

Paint: SEM 15183 Warm Gray Color Coat

Clear Coat: SEM 13023 Color Coat - Low Luster Clear Aerosol

The Isotherm fridge controller bezel and the Truckfridge frame pictured below are both painted in this method.

kourt

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VicVan
Samba Member


Joined: July 01, 2015
Posts: 1076
Location: Vancouver Island, BC
VicVan is offline

PostPosted: Fri Apr 30, 2021 3:11 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

Kourt, you're not supposed to add to the confusion by throwing in yet another color... Surprised
I'll update the list!

I like the dark machine grey, even though it's a bit darker. Is the enamel going to be more scratch-resistant than usual spray paint?
_________________
'90 Westiti, 2.1 auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 5569
Location: Seattle
jimf909 is offline

PostPosted: Fri Apr 30, 2021 5:16 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

Rustoleum Gloss Smoke Grey but it looks darker to me, not lighter than stock. Regardless, I like it a lot.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Abscate wrote:

Do not get killed, do not kill others.


Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SyncroHead
Samba Member


Joined: May 23, 2005
Posts: 893
Location: Southern California
SyncroHead is offline

PostPosted: Fri Apr 30, 2021 8:23 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

I've noticed several different gray colors in Westies, so it depends on which gray one is trying to match. Personally, I've been using the Rust-Oleum Painter's Touch 2X Ultra Cover Stone Gray Satin for at least a couple years now. (They may win the award for longest paint name!)

I've also noticed what seems to be color-changing paint in Westies. Particularly the stove front (where the knobs are) and the table legs look almost olive-green under the right light or at least have a touch of green apparent. I really don't care for that gray hue and have used the Stone Gray Satin on the table legs, the skylight cover and other things. Eventually the stove front too...

Jim Davis
_________________
"A Vanagon? It's not a car or a van. It's a hobby!"

Check out www.SyncroSafari.org and www.Vanagons.org

sphet wrote:
I have *no* idea what the previous owner carried in his Westy... angry donkeys?
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 5569
Location: Seattle
jimf909 is offline

PostPosted: Fri Apr 30, 2021 9:40 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

kamzcab86 wrote:
Smoke Gray is too light to be a match for the metal components, which are about the color of the rubber trim:

Image may have been reduced in size. Click image to view fullscreen.




kamz, you say Smoke Grey is too light but your annotated photo shows a light gray that is named Stone Gray. I only point this out because I found Smoke Grey to be relatively dark.

jimf909 wrote:
Rustoleum Gloss Smoke Grey but it looks darker to me, not lighter than stock. Regardless, I like it a lot.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I'm afraid the only answer may be in our pitching in $ to buy six cans of spray paint to see what's what.
_________________
Abscate wrote:

Do not get killed, do not kill others.


Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VicVan
Samba Member


Joined: July 01, 2015
Posts: 1076
Location: Vancouver Island, BC
VicVan is offline

PostPosted: Fri Apr 30, 2021 9:59 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

SyncroHead wrote:
I've noticed several different gray colors in Westies, so it depends on which gray one is trying to match.

I hadn't noticed that... For now, it's the grille under the fridge, and the small grille on the upper left side of the fridge cabinet.

SyncroHead wrote:
Personally, I've been using the Rust-Oleum Painter's Touch 2X Ultra Cover Stone Gray Satin for at least a couple years now. (They may win the award for longest paint name!)

Can you describe how it compares to the stock color (say the table leg or the stove front?)

jimf909 wrote:

I'm afraid the only answer may be in our pitching in $ to buy six cans of spray paint to see what's what.


Yup.... It looks like the end result depends on the lighting, and 45 other variables. If I accept that I can't have the stock color, I'll just buy the first one I find on my next trip to the grocery store, and call it!
_________________
'90 Westiti, 2.1 auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 5569
Location: Seattle
jimf909 is offline

PostPosted: Fri Apr 30, 2021 10:13 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

VicVan wrote:


Yup.... It looks like the end result depends on the lighting, and 45 other variables. If I accept that I can't have the stock color, I'll just buy the first one I find on my next trip to the grocery store, and call it!


That sounds familiar. These are my notes from probably 3-5 or more years ago. It looks like I copied Kourt's recs exactly as he noted above. When it came time to paint, I didn't want to order paint and the local Ace had Rustoleum 7786(830), and I went with it.

Quote:
Resources
- Gray paint: Rustoleum7786 Smoke Grey . . . got it at Lowe's
- SEM 15183 matches the factory grey trim color almost perfectly.
- SEM 13023 is a low luster clear that will make the grey the same sheen as factory
- SEM 38353 is a cleaner that you use to clean/prep the plastic before painting.

_________________
Abscate wrote:

Do not get killed, do not kill others.


Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ZsZ
Samba Member


Joined: December 11, 2010
Posts: 1086
Location: Budapest Hungary, Europe
ZsZ is offline

PostPosted: Sat May 01, 2021 1:36 am    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

Is there a RAL or other standardized equivalent?
_________________
Zoltan
1.9 MTdi 2wd Multivan (ex Caravelle)
Van since 2006, engine since 2008
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7091
Location: Arizona
kamzcab86 is offline

PostPosted: Sat May 01, 2021 10:40 am    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

jimf909 wrote:
kamz, you say Smoke Grey is too light but your annotated photo shows a light gray that is named Stone Gray. I only point this out because I found Smoke Grey to be relatively dark.


Proofreading fail!🤦🏻‍♀️

It is Stone Gray.

ZsZ wrote:
Is there a RAL or other standardized equivalent?


Brown = RAL 8028
Gray = RAL 7037
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"I fear the day that technology will surpass our human interaction; the world will have a generation of idiots." ~Albert Einstein
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Californio
Samba Member


Joined: May 17, 2007
Posts: 991

Californio is offline

PostPosted: Sat May 01, 2021 1:47 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

Dove Gray has some yellow in it that looks right to my eye. Some of the others are bluish or "battleship". It may be that with time and use the interior yellows a bit, so the blue-grays look too blue.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeLvxe
Samba Member


Joined: January 08, 2019
Posts: 66
Location: Seattle
DeLvxe is offline

PostPosted: Sat May 01, 2021 10:15 pm    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

VicVan wrote:

I like the dark machine grey, even though it's a bit darker. Is the enamel going to be more scratch-resistant than usual spray paint?


The enamel has held up pretty well on the metal stove face. I wish I took the time to do a better job stripping the original paint and prepping the surface. I can see some flecks under the surface and a few bubbles. Pretty sure I used the same enamel on the plastic truckgridge trim and there are a few small chips in it.
_________________
1991 Full Camper with EJ25
Back to top
View user's profile Send private message Gallery Classifieds Feedback
designer
Samba Member


Joined: November 05, 2009
Posts: 392
Location: Idaho-but just the tip
designer is offline

PostPosted: Sun May 02, 2021 8:44 am    Post subject: Re: Westfalia interior gray paint - which is it? Reply with quote

Here’s what I used for my fridge project. A bit lighter than the plastic beading but looks great imho.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
__________
87 Syncro Westy

"It is that annoying, accelerating downhill so I can make it up the next hill in the same gear. Foot to floor hoping I can get out of the way of other cars getting onto the highway." - somebody on here around 2013.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
