towing a light trailer w/sand rail

[Axitech]

Do any of you tow a very light trailer with your rail? I like to camp, by myself because it's peaceful, and the wife HATES camping. Since the rail should be street legal here in a couple weeks, I'm looking for my next project. Thinking about building a very lightweight trailer to fill a couple of roles. One, to haul my cooler and guns and tent. Two, I am thinking I can put an 'expandable bed platform' on it that will fold out and allow me to set my tent up on. A lot of my camping is during heavy rains, and I do not want to find myself in the middle of a newly formed river-ette AGAIN. Edit to add: I may even try to build a 'pop-up' sleeping 'box' for it. That would allow me to put a small heater inside. I've seen the 'teardrop' campers. I'd love one of those, but I ain't rich. That may change because I told the lady at the ticket counter to give me two "winning tickets. no losers!" $400 million dollars babeeee!

So, do any of you tow a trailer with your rail? Can you post me some pics of your hitch setup? Mine is a Berrien Warrior and ( this info regards the weight) has the full front brake setup, but the battery box is behind the passenger seat but forward of the rear axle. It can be moved forward to gain more front-bias if needed. Thanks, Bob
_________________
He said to them, “But now if you have a purse, take it, and also a bag; and if you don’t have a sword, sell your cloak and buy one. Luke 22:36


The strongest reason for the people to retain the right to keep and bear arms is, as a last resort, to protect themselves against tyranny in government.-Thomas Jefferson

[77charger]

never have towed with my rail but to be honest if i had to do it i would not stress on a small one say like a 4x8 and under 1000 pounds total.

The trailer can be a lightweight single axle and should be plenty for the job.
_________________
Click to view image
Bugpack 4 seater rail
2275 built by me
Auto linea alm case,82 dpr crank wedgemated by DK machine
cb 5.4 h beams,12 pound DPR f/w,Slr xv294cam,cb straight cuts,hpmx 44s,40x35 heads ported by brothers machine

[Axitech]

Yeah, that's what I had planned. A little Harbor Freight unit, with a deck and maybe a small storage box. Very light weight too, under 500 pounds. Just wondering how it will handle behind such a lightweight vehicle.
_________________
He said to them, “But now if you have a purse, take it, and also a bag; and if you don’t have a sword, sell your cloak and buy one. Luke 22:36


The strongest reason for the people to retain the right to keep and bear arms is, as a last resort, to protect themselves against tyranny in government.-Thomas Jefferson

[DHale_510]

I used to tow the trailer [single axle, no springs, maybe 500#] for my Buggy at Pismo after I unloaded the buggy. That way I could just back the truck/camper up from the water until it stuck for the weekend and drive down and out to leave. The buggy towed the trailer around easily enough, but the paddles sort of turned it into a weight sled.... The hitch is a ball on an old 3/4 x 2 x 6 " mount welded to the skid assembly under the motor and behind it, which also mounts the bumper. This all sits under and back from the transmission horns.
There was pretty much zero steering with the trailer attached, needed the steering brakes, of course it was all soft sand.
The first rule of trailers is for it to weigh less than the tow vehicle. This means less than 900# or so. Not much of a trailer, not much camping gear especially tents and such, after the trailer is built.
Maybe you could mount a rooftop folding tent setup like the jeeps are using on the buggy and sort of extend the cage to make it all a bit like a SUV instead of a slope tail buggy....
Dennis

[red caddy]

When I rebuilt my streeter sand rail (see the build thread in my signature) I made provisions for towing a small trailer, I even pulled a spare blue wire for electric brakes. Adding the hitch to the rear cage was a no brainer. I have 4 wheel disc brakes so, even with the "big 'N littles" it stops real well. (well, OK, as well as a less than 900 pound, speed skater can, on wet, blow sand covered asphalt, in the rain.)

So far the only thing I have towed with it was a Harbor Freight 4 X 8 fold up trailer with 2 V-8 bare blocks tied down on it, likely well under 500 lbs total weight. No problems. With my lard butt (yea, I'm a knuckle dragger)and a similar sized passenger, we had all the weight forward we needed to steer.

I set the hitch up with the top of the ball at 14 inches off the street, it was a bit low for the folding trailer hitch. I scored a 3 in. lift/lower ball mount, at a yard sale, (it's a 1.250" shank) and it was close enough for the girls that'll go with me, lol.

The original plan was to build an aluminum 4 X 6 trailer, sized to fit a small pickup truck sized topper, hinged at the front, with a pull out floor to give me an 8 foot long sleeper / kitchen /cook box shelf, with a snap on tent to keep the bug's at bay, in the rare event I find myself overnighting in the swamp. (Bug free is a big deal here in the swamp, 'specially if you want to sleep) Gun boxes on the inside, dog boxes on the outside. (Sure would make a great foraging vehicle in a teotwawki scenario)

Last week, I ran across an enclosed 4 X 6 insulated trailer, with barn doors AND a ramp. (The guy was using it to haul and store a ZTR mower.) It's a bit heavier than what I could build, but lots easier to make/keep water tite and bug free. Might even have room for a roof air and a small generator. A "bug out" palace, for two, to be sure. As usual, it all comes down to money...And the beat goes on...
Paul
_________________
If it turns $$$ into smoke and noise, I'm there.

My last build thread. http://www.thesamba.com/vw/forum/viewtopic.php?t=466571

[Q-Dog]

[DHale_510]

Big rigs are much different than a buggy, or anything we are likely to be talking about. They are actually almost unstable without the trailer. Apples and oranges. Tell us all about how your towing experiences have gone, I have confirmed for myself several times that heavier than the tow vehicle is very bad rule works for me.
Dennis

[Dale M.]

This situation with rear end heavy rail being tow vehicle just screams for some sort of load equalizing hitch....

Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...

[Axitech]

I was going to point out that you are correct in your point that the heavier the tow vehicle in comparison to the towed vehicle the better. That is true in all but one case: The designated tow vehicle! In other words, a vehicle whose ONLY use is towing another vehicle. And tractor trailers are not accurately defined as "tow" vehicles ordinarily. It all depends on HOW the hookup is made. Pintle hook? yes that is a TOW vehicle. Fifth wheel? That is a load-carrying and pulling vehicle, and you are absolutely correct that they are VERY unstable without a towed vehicle behind them.

Since we are on a forum that sort of leans toward very light vehicles, I think we can say for certain that my questions were NOT leading up to a discussion of which is better, the Allison transmission or the Eaton transmission, and turbo or supercharging and how much fuel conditioner should I use when traveling through the Wolf Creek Pass in December. (Bonus points to the first person who knows who was driving the truck on Wolf Creek Pass that fateful day!)
_________________
He said to them, “But now if you have a purse, take it, and also a bag; and if you don’t have a sword, sell your cloak and buy one. Luke 22:36


The strongest reason for the people to retain the right to keep and bear arms is, as a last resort, to protect themselves against tyranny in government.-Thomas Jefferson

[2RL]

Earl.

[Axitech]

We have a winner!
_________________
He said to them, “But now if you have a purse, take it, and also a bag; and if you don’t have a sword, sell your cloak and buy one. Luke 22:36


The strongest reason for the people to retain the right to keep and bear arms is, as a last resort, to protect themselves against tyranny in government.-Thomas Jefferson

[Q-Dog]

[The Phil]

My dad had his class 5 baja set up for doing a trailer.
At the time he was living out of his bug so he had tent supplies and what not.
With his set up, trailer and load, he could tow 1 350cc class atv's and that was it. He did that for about 3 years daily.
_________________
"In case I don't see you, good afternoon , good evening, and goodnight."

My '66 Baja Build Page http://www.thesamba.com/vw/forum/viewtopic.php?t=456365

Free from the evils of facebook Dec 2012. No other Social Media.

[GA_Boy]

Hypothetical but suppose the trailer ball is 2 ft. behind the axle and the front bumper is 8 ft. ahead of the axle. That gives a 4:1 ratio so just adding 100 pounds to the front will allow for 400 additional pounds tongue weight.
You will have to do your own math. Just remember they are harder to stop than they are to get going.
Marvin

[Axitech]

I'm guesstimating trailer total weight at around 4-500 pounds maximum, probably closer to 350-400.
_________________
He said to them, “But now if you have a purse, take it, and also a bag; and if you don’t have a sword, sell your cloak and buy one. Luke 22:36


The strongest reason for the people to retain the right to keep and bear arms is, as a last resort, to protect themselves against tyranny in government.-Thomas Jefferson

[BFB]

Bump for interest and something to discuss
_________________
"how am i supposed to torque the rear wheel nut to 250 ft lbs??? " - clonebug
An interesting thing happens in forums where everyone starts parroting the same thing and "common knowledge" takes over.
Most experts aren't.

[Stinky123]

Not exactly what you are talking about, but my last rail had a hitch/ball on it. I towed the rail's trailer 2-3 times....once on the beach, twice when we started camping away from everybody at the dunes. The rail could tow it effortlessly, but my truck, not so much.

[oprn]

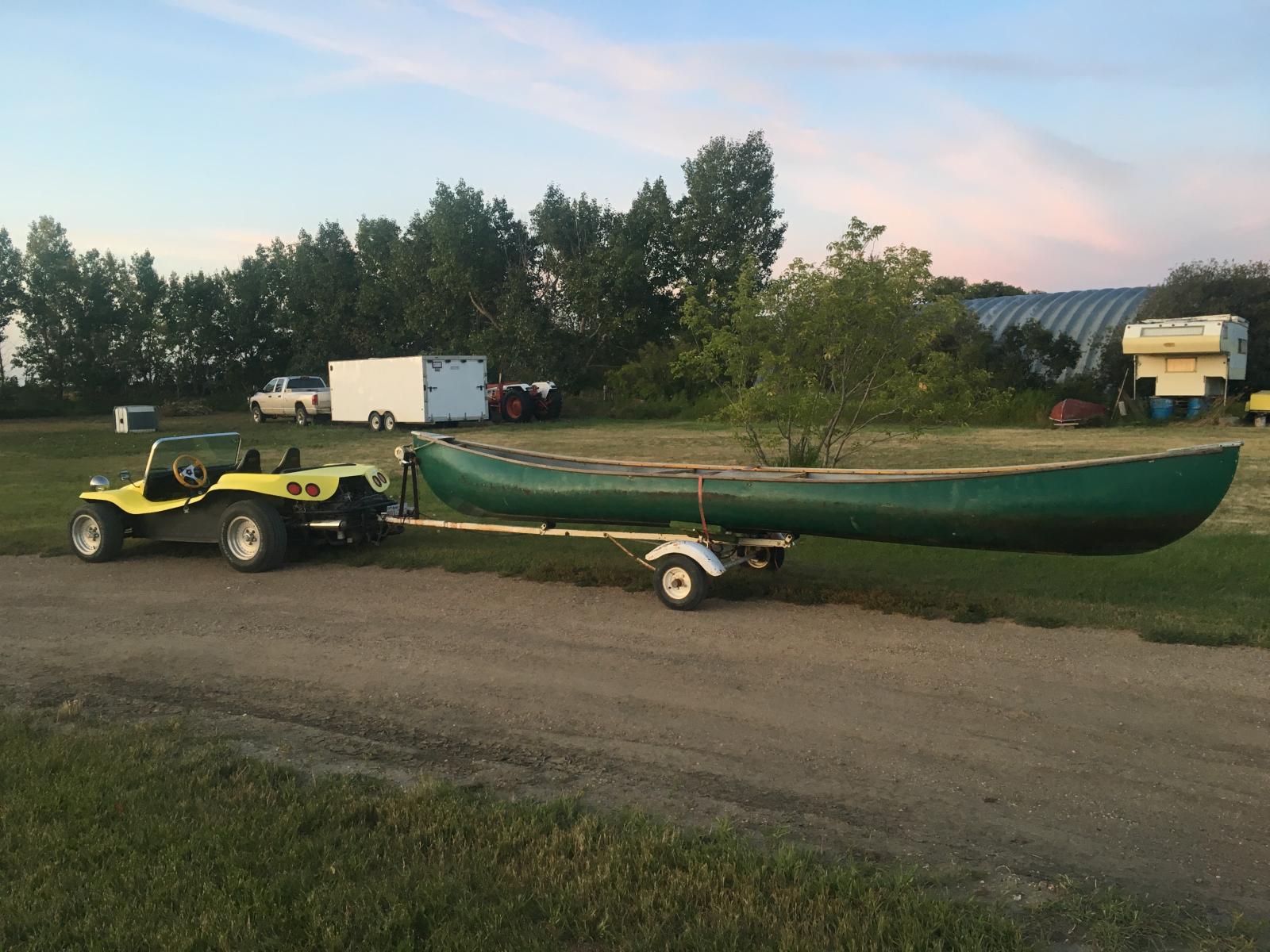

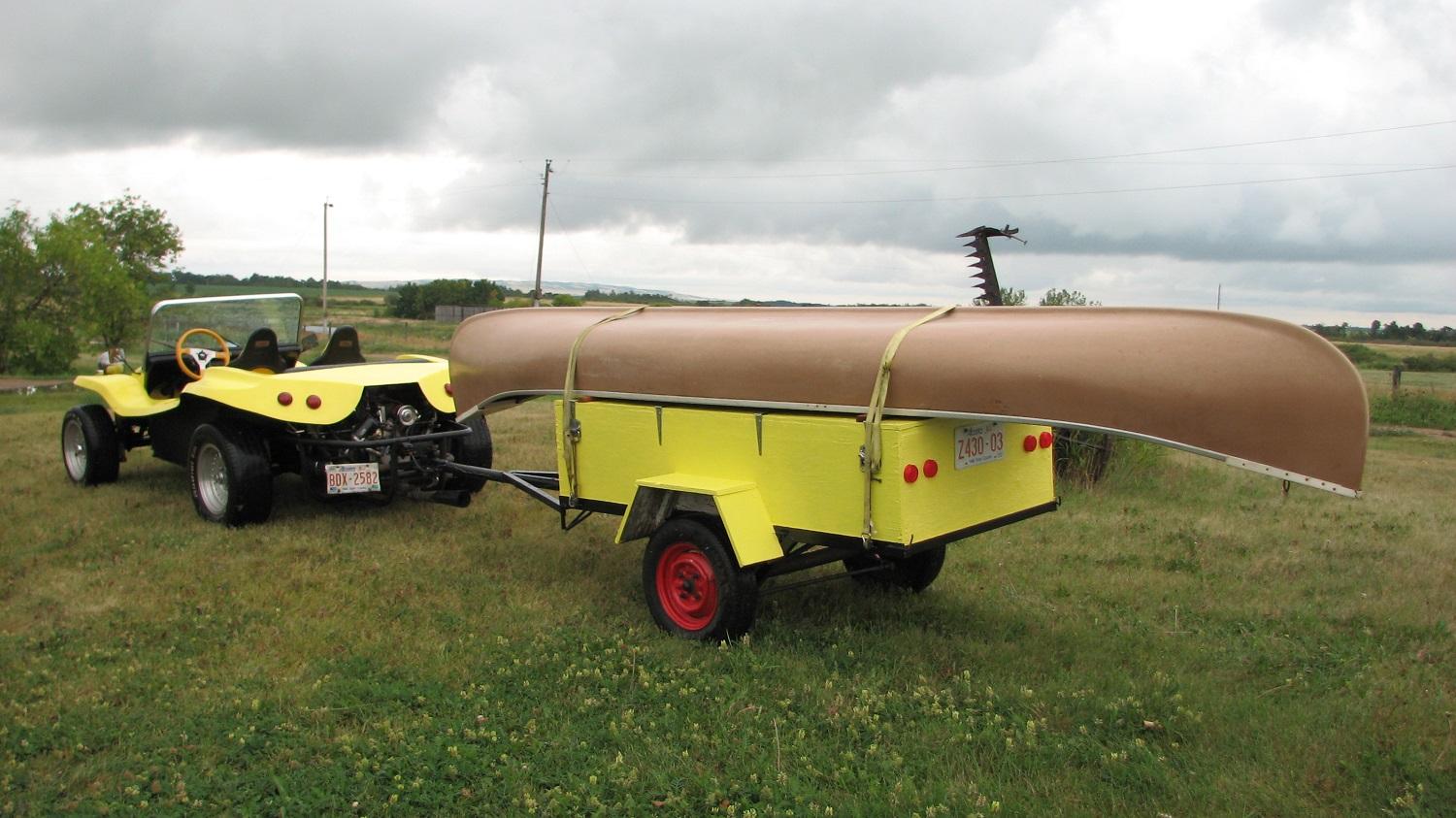

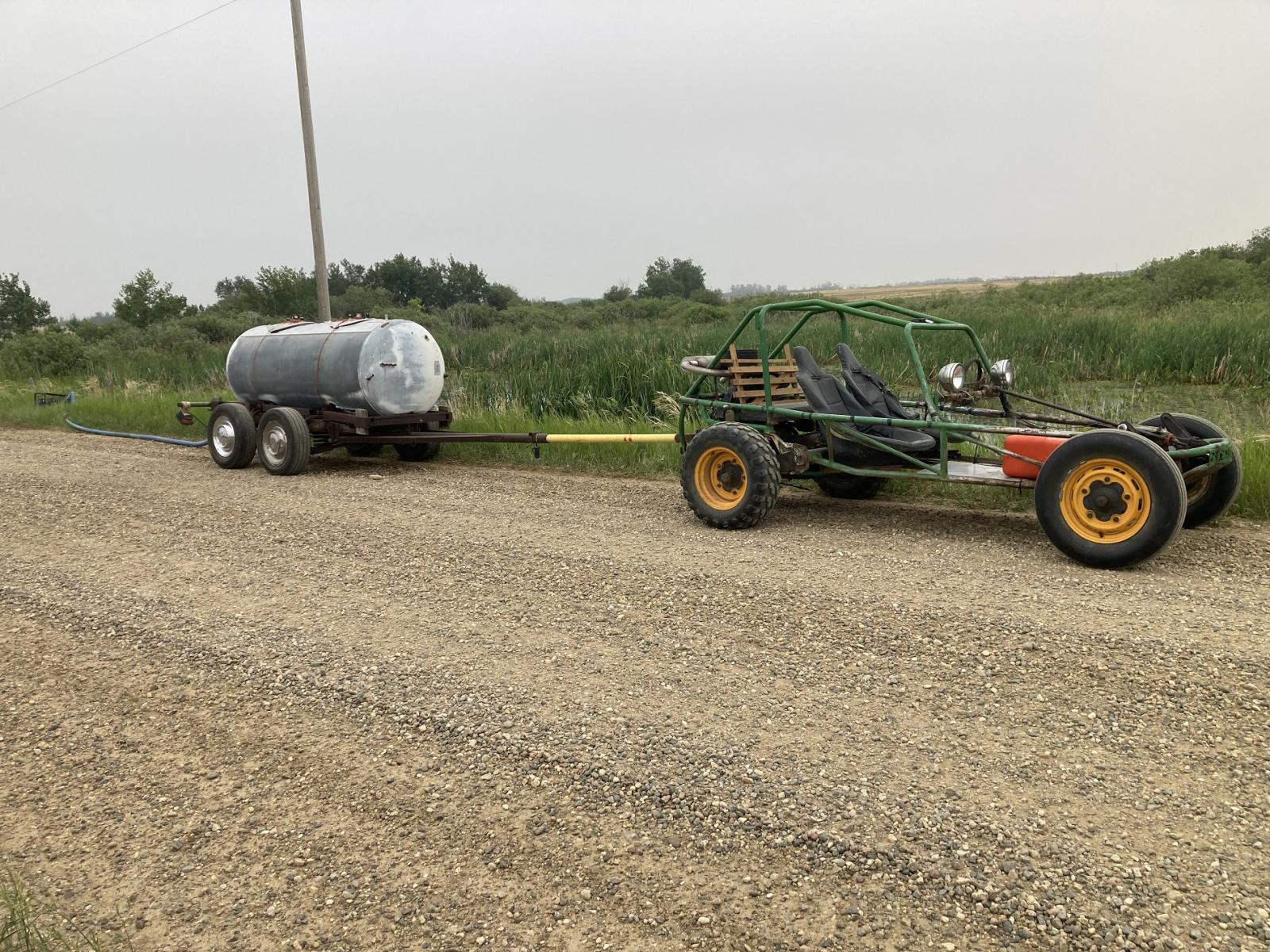

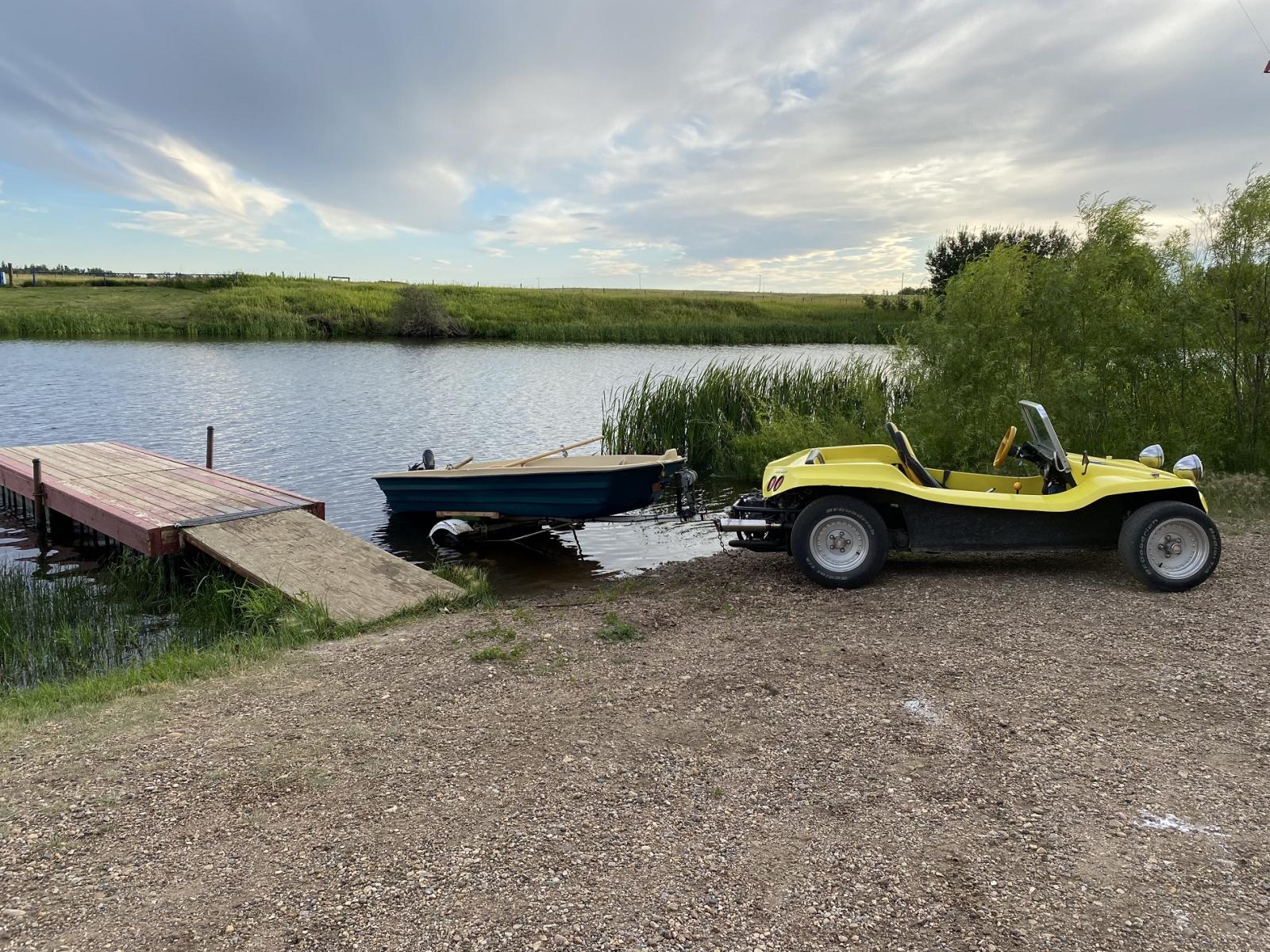

Here ya go! Discuss away to your heart's content. My usual practice is to put a trailer hitch on everything I own. I can tow the rail behind the Manx copy or the other way around if it suits me. I can tow either Buggy with the Jetta or the truck too as well as any trailer or implement in the yard. I can tow either Buggy out to the field with the tractor.

The 18' car trailer and the 20' cargo trailer in picture #4 however only go behind the truck if they leave the yard.
_________________
Our cars get old, we get old but driving an old VW never gets old!

[indianpeaksjoe]

Can I just say, I love those pics and how you use your buggies.

-Joe
_________________
Adventures in owning a 66 beetle

[oprn]

Thanks! All I will say is that I use them!
