 Posted: Fri Sep 12, 2025 3:18 am Post subject: Re: Jalousie (louvered) windows in a Vanagon |
 |
|
Here's mine.
This first pic was taken before installing the Westfalia style gasket.
It came out looking exactly like a factory Westfalia T2 Bus (both inside & outside) once it was finished, direct fit...
I should be able to take some better pics once it's all back together and finally cleaned up.... |
|
| Back to top |
|
 |
rowan
Samba Member
Joined: March 18, 2007
Posts: 136
Location: Knoxville, Tennessee, USA
|
| Posted: Wed Feb 12, 2025 5:10 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
| Samaleshi wrote: |
| Butyl tape and button head screws/nylock nuts. On the slider you have to drill through the original sheetmetal flange and do a slight amount of trimming so the window will fit. The butyl is kinda nasty to clean up, but so far so good. Don't have a link, it's pretty easy to find. We finished it last summer and it's been great. I can have some of the plates made if there's any interest. |
I would need to know the more-or-less, general range, etc. of price to know if I was interested.
_________________
Rowan
89 Syncro - Juniper Mackenzie
09 Honda Fit - Finnie
17 Ram ProMaster - John Hordle |
|
| Back to top |
|
|
Samaleshi
Samba Member
Joined: April 25, 2014
Posts: 53
Location: PNW
|
| Posted: Wed Feb 12, 2025 2:52 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
Butyl tape and button head screws/nylock nuts. On the slider you have to drill through the original sheetmetal flange and do a slight amount of trimming so the window will fit. The butyl is kinda nasty to clean up, but so far so good. Don't have a link, it's pretty easy to find. We finished it last summer and it's been great. I can have some of the plates made if there's any interest.
_________________
Yeah, well, like, that’s just your opinion..., man
1987 Vanagon CoastMountain Hightop
1991 Jeep Comanche 4x4
1980 Volvo 242 GT 5.3LS |
|
| Back to top |
|
|
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8508
Location: NE MN (tinyurl.com/dhaaverslocation)
|
| Posted: Wed Feb 12, 2025 1:43 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
Looks great, you’re gonna love it!
- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
<EDITED TO PROTECT INNOCENT PIXELS> |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17289
Location: Brookeville, MD
|
|
| Back to top |
|
|
Samaleshi
Samba Member
Joined: April 25, 2014
Posts: 53
Location: PNW
|
| Posted: Wed Feb 12, 2025 1:29 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|

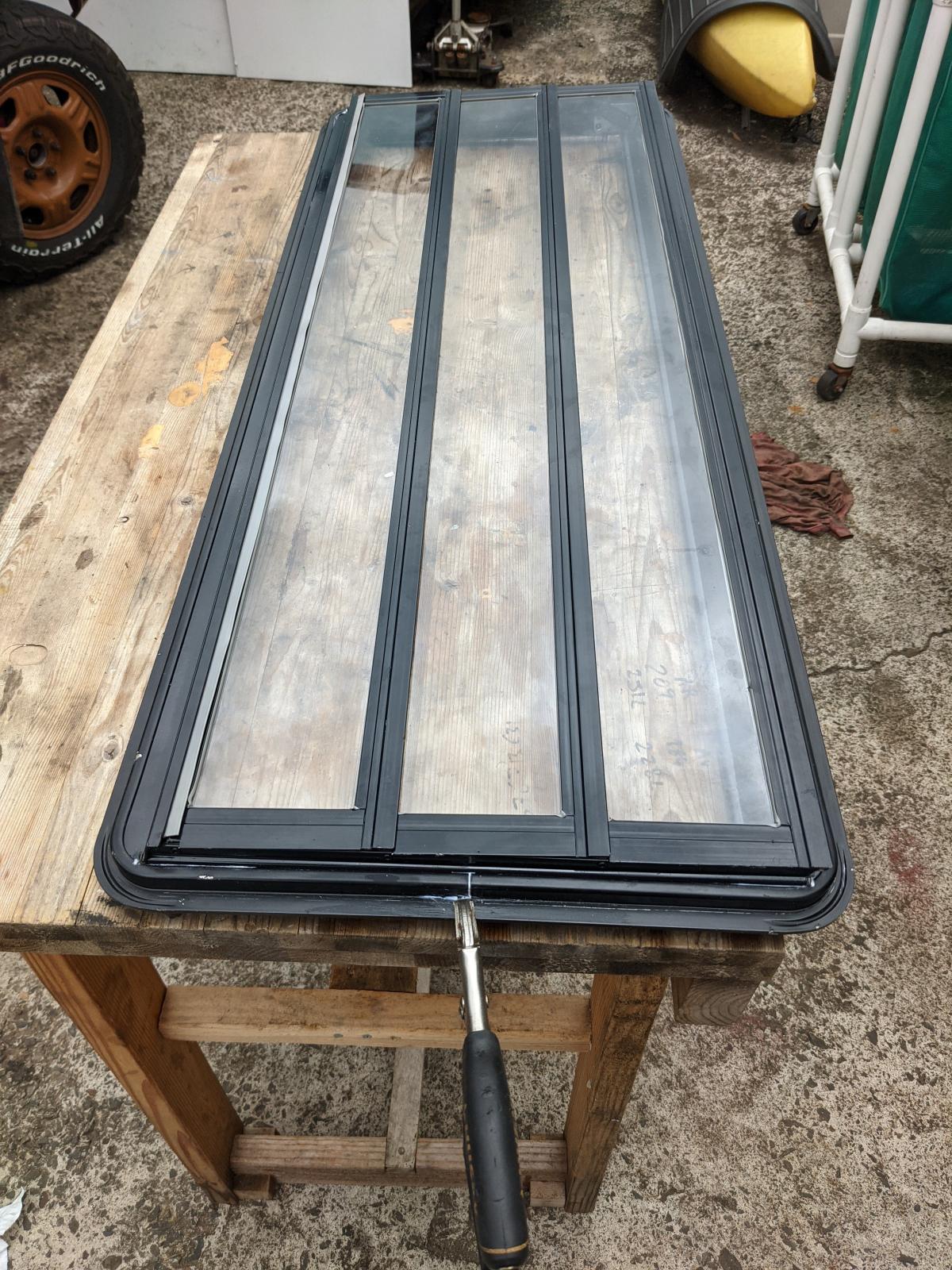

Hey all, giving this thread a little jump start with our Jalousie window retrofit. We managed to fit full size T2 Jalousie in both sides utilizing a sandwich method and some butyl tape. Works great!
Finished Product
Process Shot
_________________
Yeah, well, like, that’s just your opinion..., man
1987 Vanagon CoastMountain Hightop
1991 Jeep Comanche 4x4
1980 Volvo 242 GT 5.3LS |
|
| Back to top |
|
|
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7300
Location: Honolulu,Hawaii and France
|
| Posted: Wed Oct 16, 2024 11:03 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
| Smurf wrote: |
| ALIKA T3 wrote: |
| The slider frame is closed around the jalousie window, it can't go anywhere, it's replicating the glass dimensions. Look at the pics I posted. |
You put the frame in the smaller channel instead of the slider channel with the felt? Doesn’t that flip the window frame from outside to inside with the drainage holes on the inside? Sorry just trying to wrap my head around this. I have a set of jealousies and I’d love to do this! Thanks

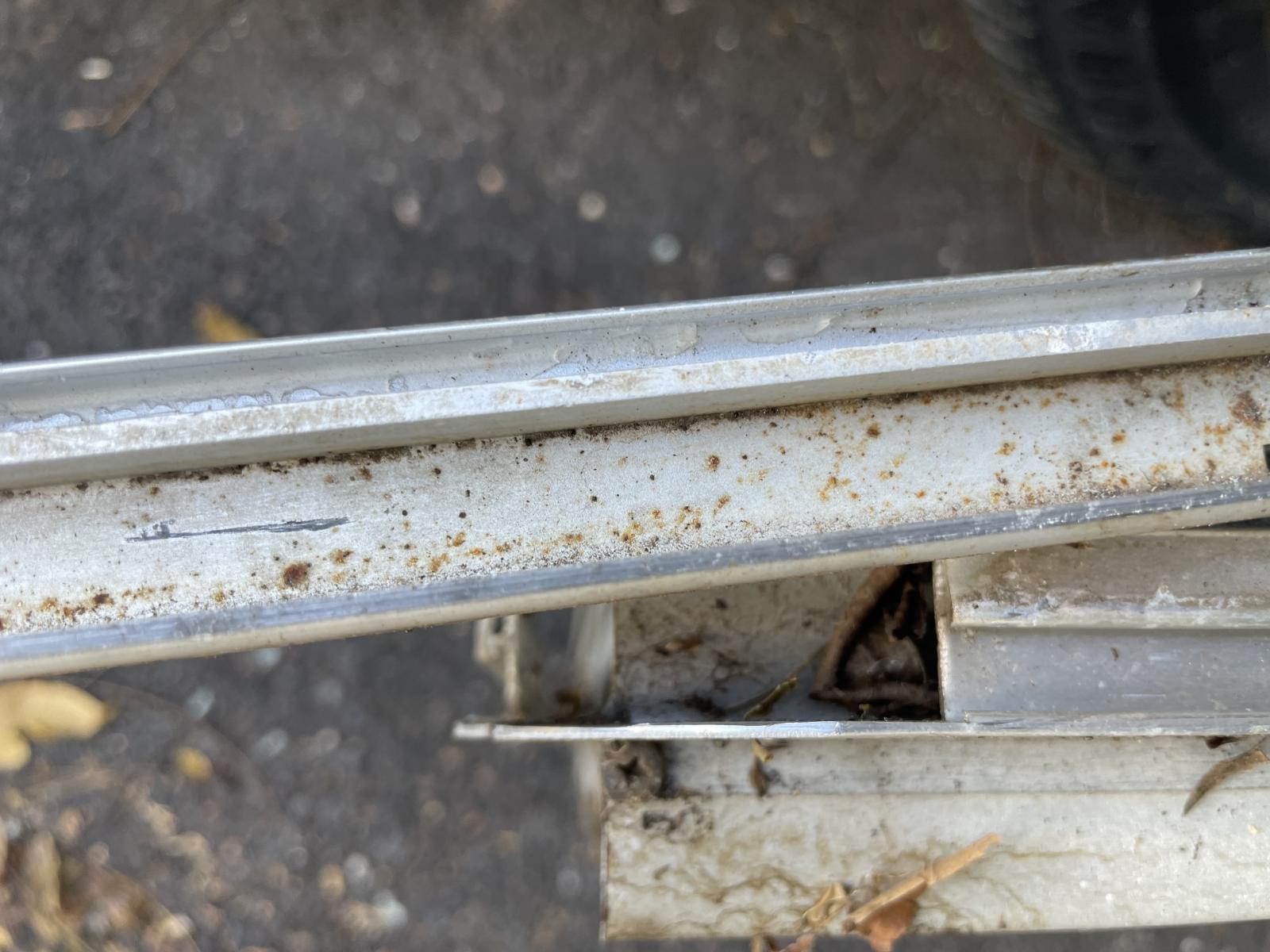

This shows the thing jalousie frame vs the wider window channel from the slider. So you flip the frame from inside out to use the smaller channel? |
I guess you must have missed that indeed the frame is then installed inside out.

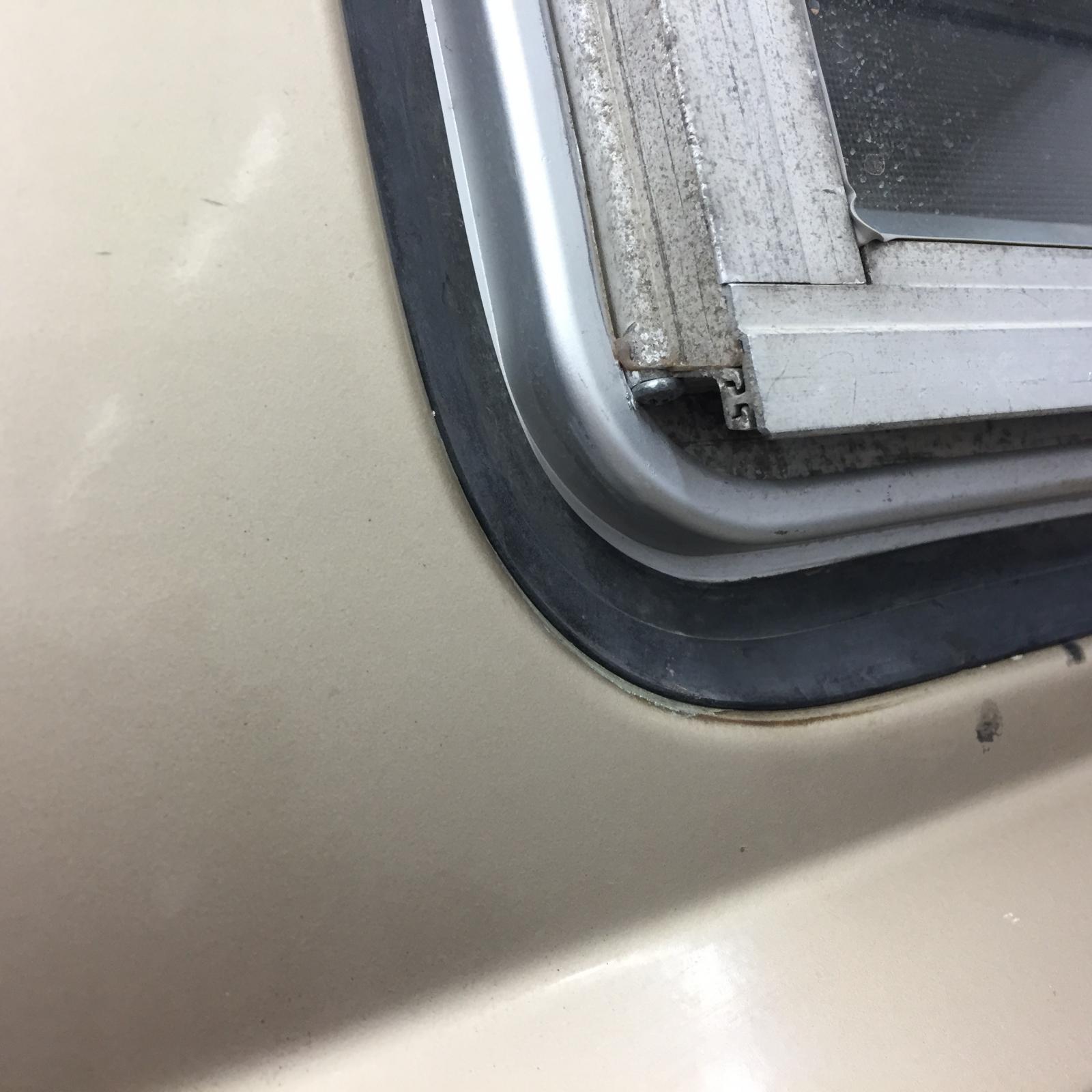

See this pic showing the channel used (the original inner channel, becomes the most outer once flipped for installation). You don't want it collecting sh!t...
The difference in thickness is theoricially big, in real life, it couldn't be any smaller, definitely a perfect fit with a bead of silicone.
I still gotta do the job for a 2nd gen sliding door and I'm NOT looking forward to it, everything needs to be shortened and re-trimmed/sculpted/carved for re-assembly
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 19048
Location: Retired South Florida
|
| Posted: Wed Oct 16, 2024 4:13 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
The Vanagon windows intact have their own value. Oddly bus owners like them. It’s interesting how they are grafting the Vanagon frame and the jalousie assembly. I imagine you need to fatten the jalousie frame even in the Vanagon frame to get it right.
I feel I got a clean result adding aluminum to the jalousie frame to fit the Vanagon window seal directly. I’ve since sold 2 Vanagon slider assemblies. |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17289
Location: Brookeville, MD
|
| Posted: Wed Oct 16, 2024 4:04 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
| Smurf wrote: |
| dobryan wrote: |
I am not sure what you are asking? |
Im trying to wrap my head around the idea of fitting it into the existing slider window frame like others have done instead of adding metal. The OG slider frame has two channels. One thicker channel where the felt goes into on the slider and the other for stationary glass in the OG slider. |
Ah. Now I get it.
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD
"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson
MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646
Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794 |
|
| Back to top |
|
|
Smurf
Samba Member
Joined: January 20, 2004
Posts: 918
Location: Colmar, PA
|
| Posted: Wed Oct 16, 2024 4:02 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
| dobryan wrote: |
I am not sure what you are asking? |
Im trying to wrap my head around the idea of fitting it into the existing slider window frame like others have done instead of adding metal. The OG slider frame has two channels. One thicker channel where the felt goes into on the slider and the other for stationary glass in the OG slider.
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17289
Location: Brookeville, MD
|
| Posted: Wed Oct 16, 2024 3:45 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
| Smurf wrote: |
| ALIKA T3 wrote: |
| The slider frame is closed around the jalousie window, it can't go anywhere, it's replicating the glass dimensions. Look at the pics I posted. |
You put the frame in the smaller channel instead of the slider channel with the felt? Doesn’t that flip the window frame from outside to inside with the drainage holes on the inside? Sorry just trying to wrap my head around this. I have a set of jealousies and I’d love to do this! Thanks
This shows the thing jalousie frame vs the wider window channel from the slider. So you flip the frame from inside out to use the smaller channel? |
I am not sure what you are asking?
The method shows removing parts of the original jalousie frame and adding aluminum strips to it to simulate the Vanagon window size so it can use the Vanagon window gasket.
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD
"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson
MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646
Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794 |
|
| Back to top |
|
|
Smurf
Samba Member
Joined: January 20, 2004
Posts: 918
Location: Colmar, PA
|
| Posted: Wed Oct 16, 2024 3:29 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
| ALIKA T3 wrote: |
| The slider frame is closed around the jalousie window, it can't go anywhere, it's replicating the glass dimensions. Look at the pics I posted. |
You put the frame in the smaller channel instead of the slider channel with the felt? Doesn’t that flip the window frame from outside to inside with the drainage holes on the inside? Sorry just trying to wrap my head around this. I have a set of jealousies and I’d love to do this! Thanks
This shows the thing jalousie frame vs the wider window channel from the slider. So you flip the frame from inside out to use the smaller channel?
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
|
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7300
Location: Honolulu,Hawaii and France
|
|
| Back to top |
|
|
Smurf
Samba Member
Joined: January 20, 2004
Posts: 918
Location: Colmar, PA
|
| Posted: Tue Oct 15, 2024 1:49 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
I know this is from a ways back but I have some questions…
What are you fitting on the other side of this frame to fit into the slider? The opening for the window in the original frame is much thicker (for sliders) than the thin aluminum frame of the jalousie. People mention they silicone the jalousie in but that means I could forcibly push on your jalousie window frame and it would collapse inward? I just don’t see how this could work without adding materials to the inner part of the OG frame. Please help me understand. Thanks
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17289
Location: Brookeville, MD
|
|
| Back to top |
|
|
mtnhome
Samba Member
Joined: July 17, 2010
Posts: 626
Location: Summit County, CO
|
| Posted: Fri Mar 22, 2024 8:31 am Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
After talking with dobryan,the OG of jalousie windows in a Vanagon, I proceeded to get the first window assembled and installed.

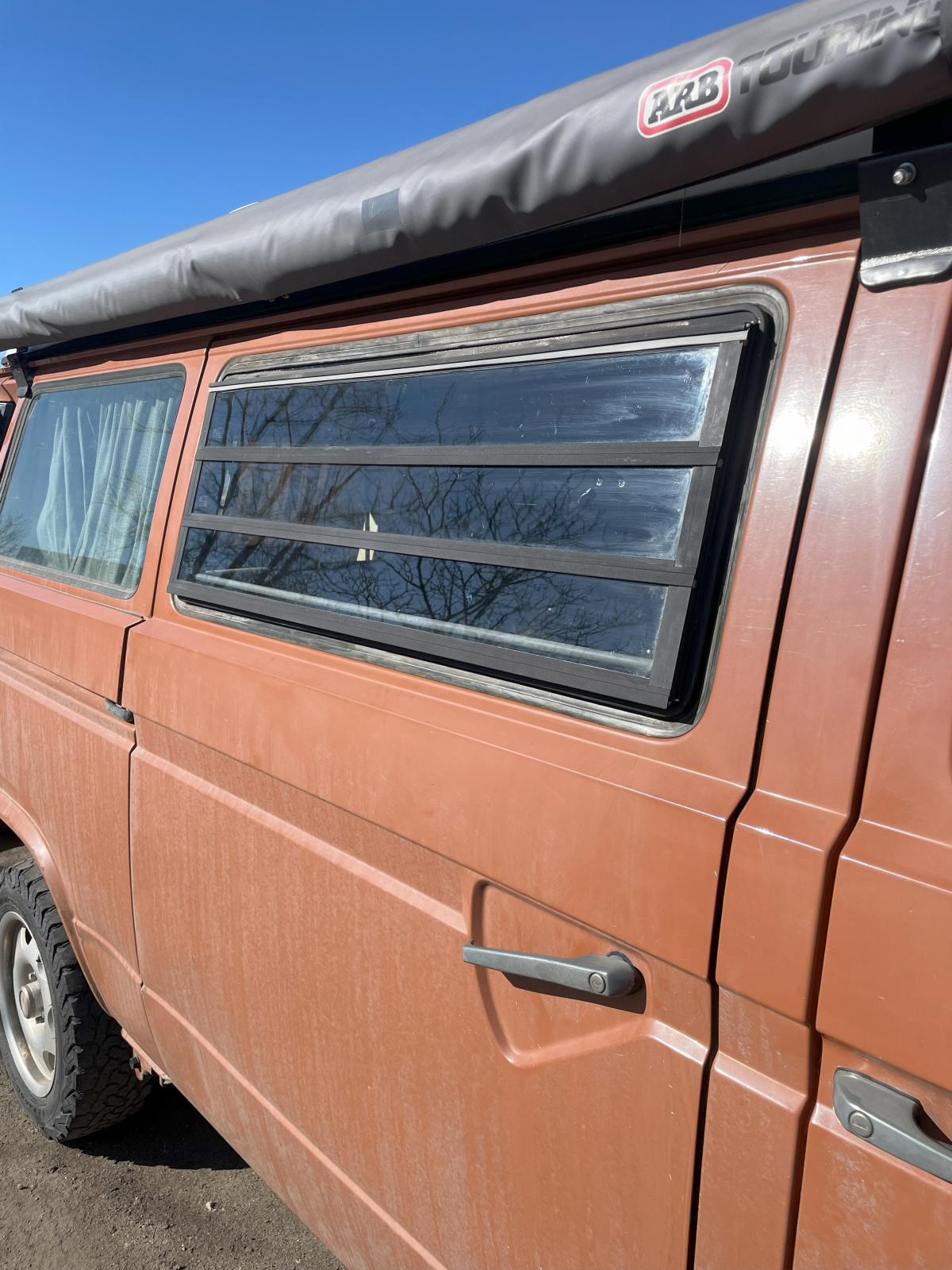

I used the Ryan Keating method and used the slider frame to mount the windw. Since I have an "84, both middle windows are the same size.
I did do a couple of things a little differently.

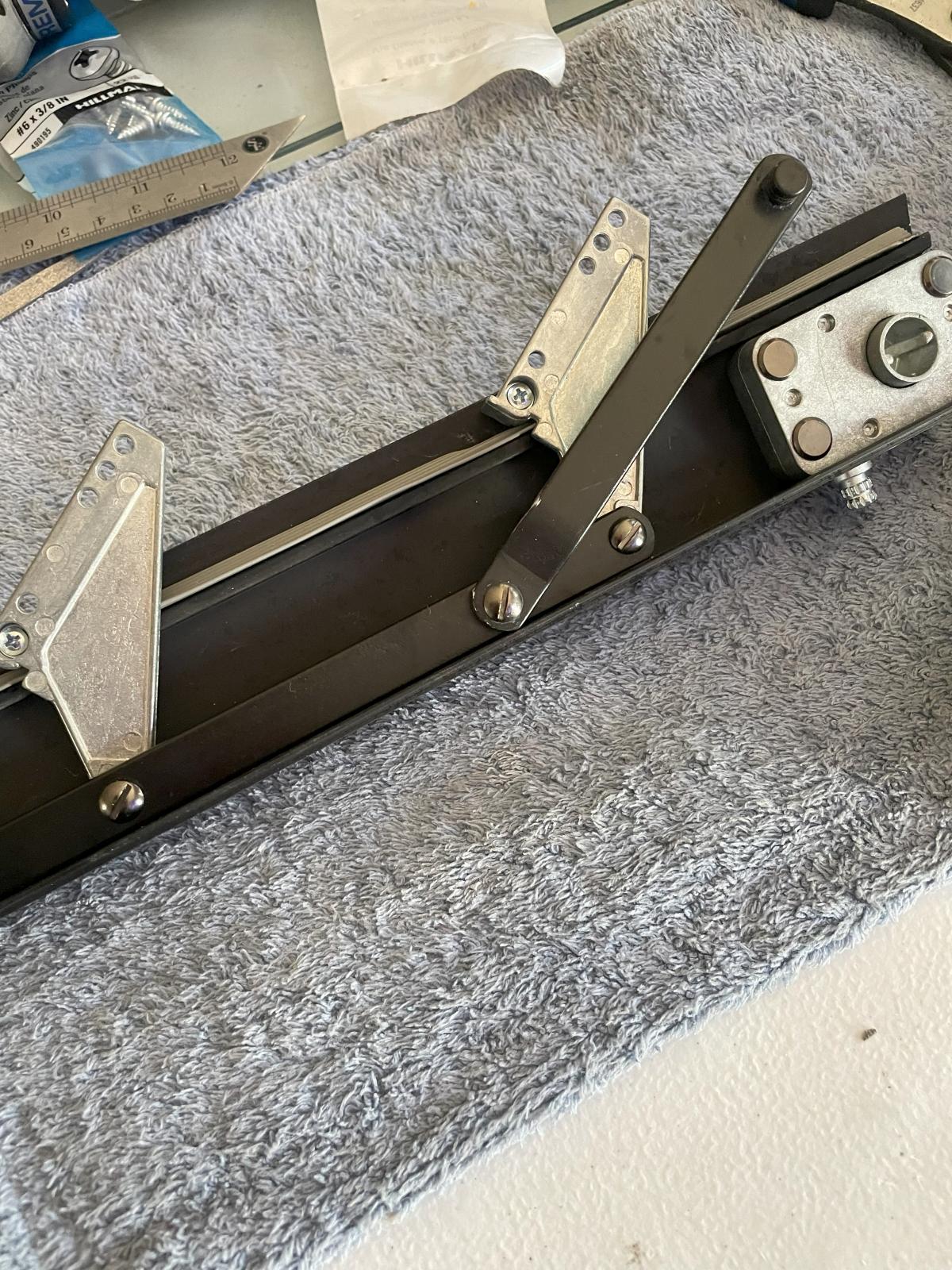

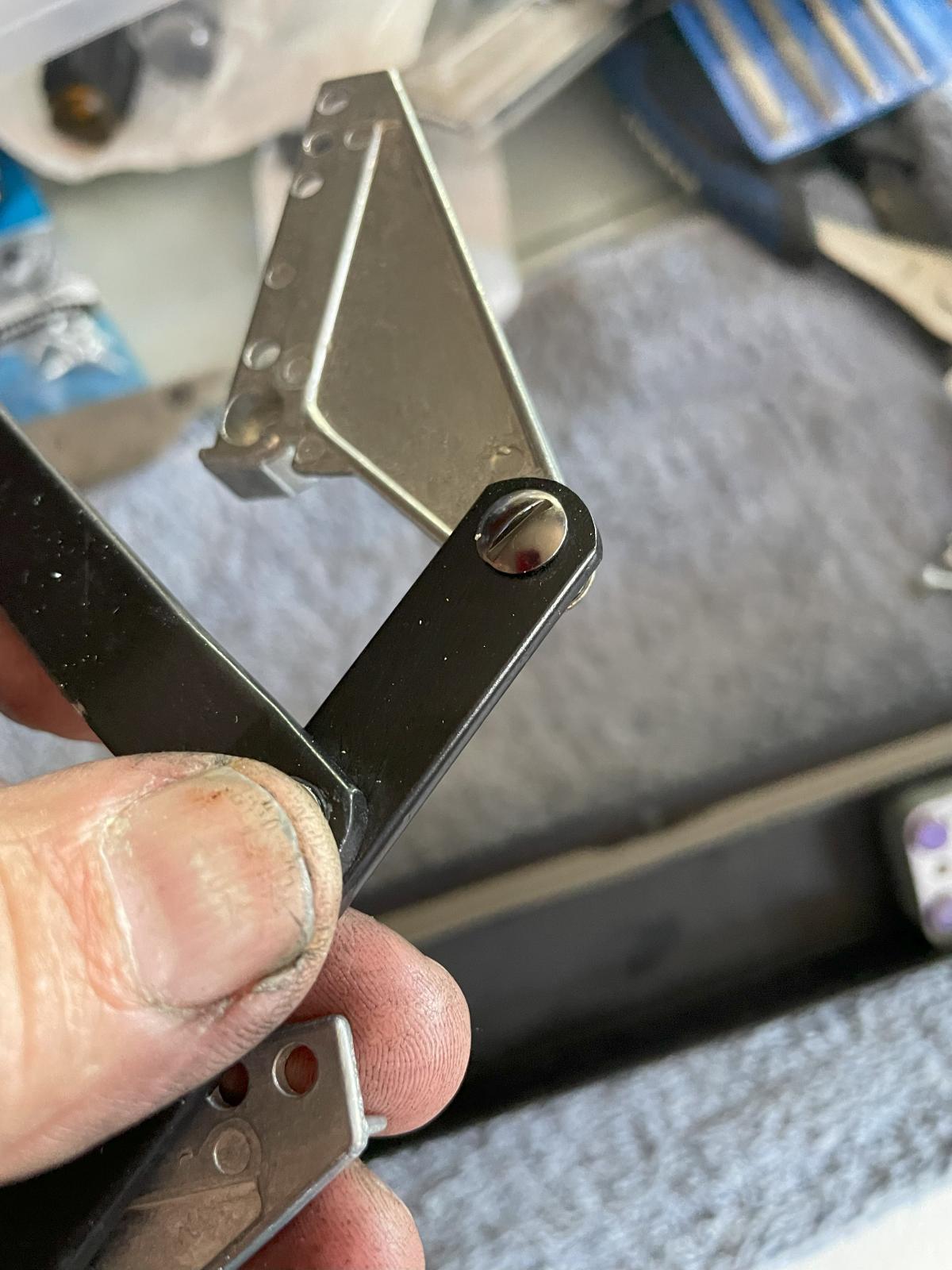

Instead of using rivits for the operators and crank mechanism, I bought some Chicago Screws and used Loctite when assembling. This allowed me to tighten them just right, then let the Loctite set.
https://www.amazon.com/gp/product/B076J9SKC3/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
https://www.amazon.com/gp/product/B07DNM7KXG/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

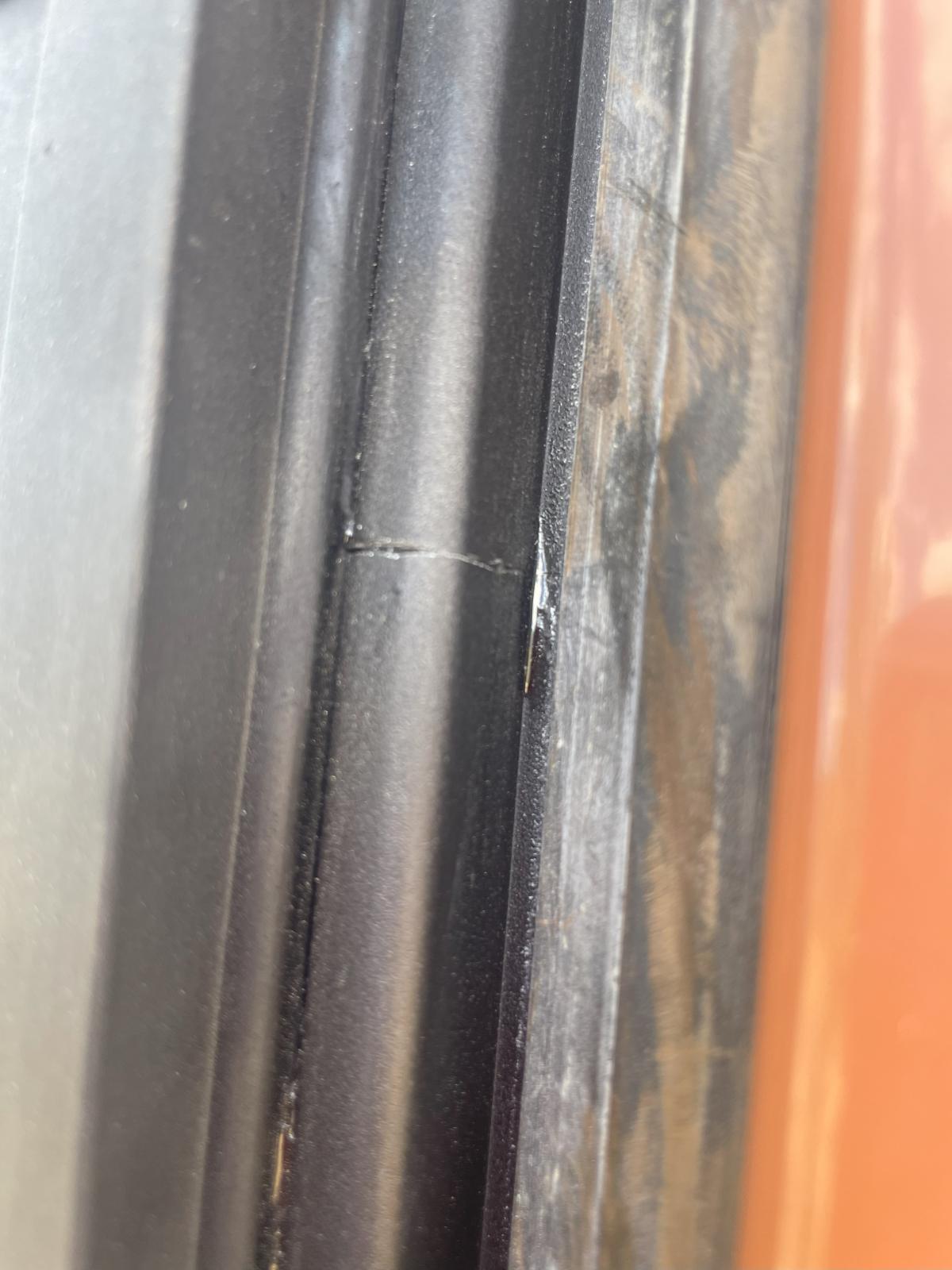

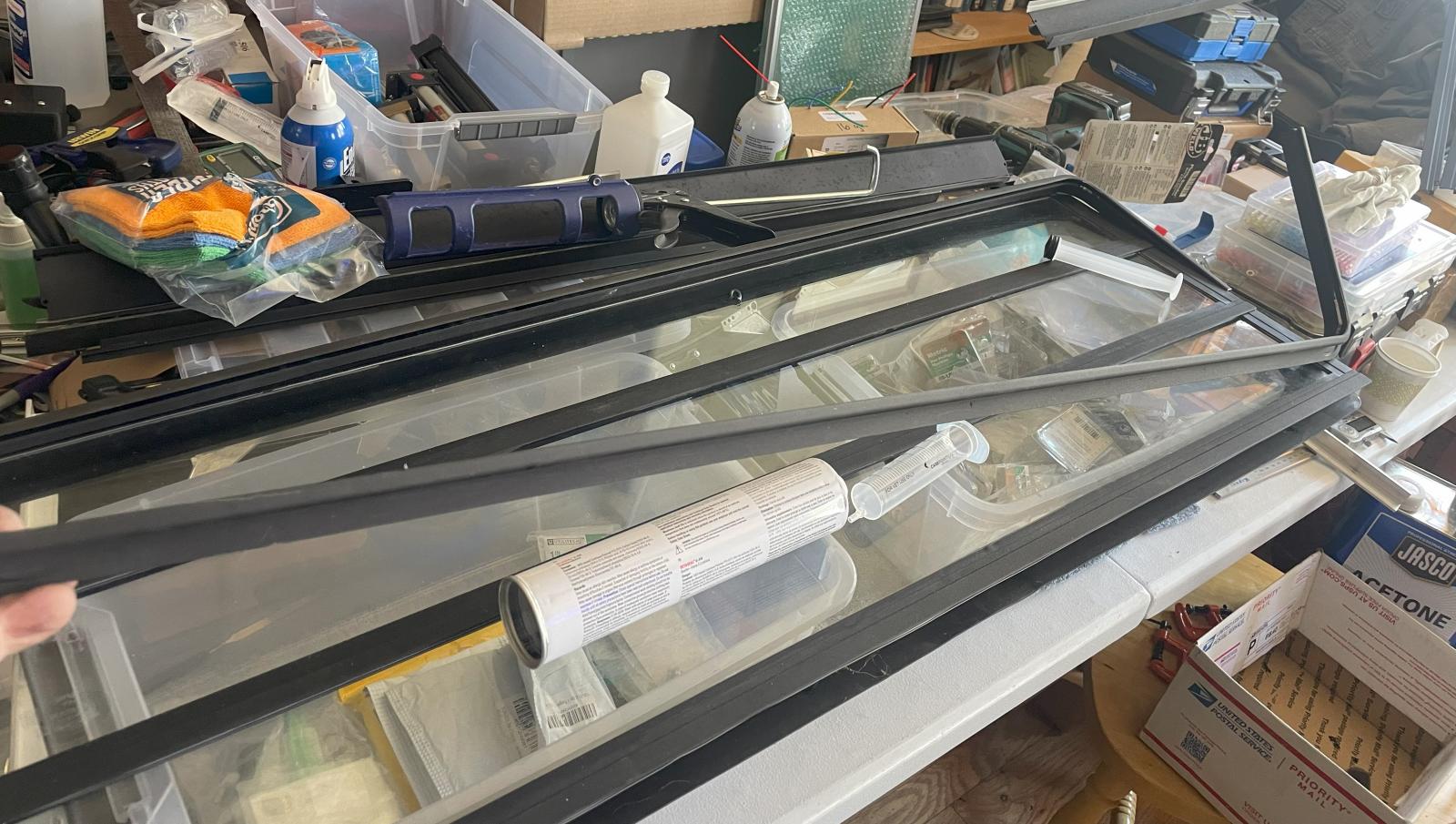

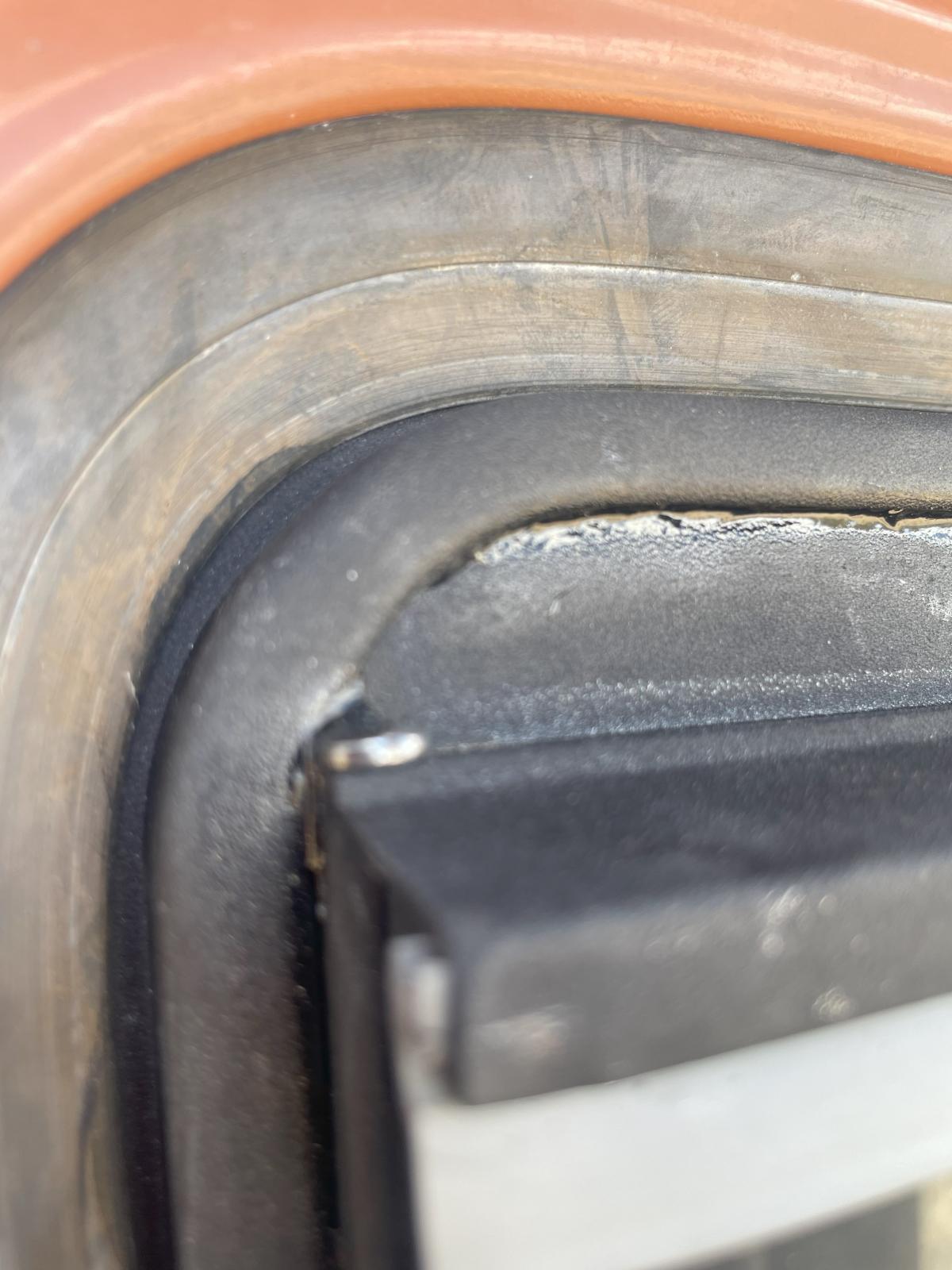

When I was looking at fitting the assembled window into the slider frame, I decided it was a hassle to get it around the window on each attempt, so I just cut the frame in two opposite the original joint. Now it was easy to slide the top and bottom part on and off to check fit. I had to file a bit in the corners to clear the window frame and corner screws. I assembled the frame and window with fast curing urethane auto window adhesive/sealant. I used a bit of epoxy on the joints.
Super happy with how this turned out. Apprecitae all the inspiration and info shared on the Samba.
_________________
'84 Westy, '93 Subaru ej22 and Subarugears 5speed
Build thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=763098&highlight= |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17289
Location: Brookeville, MD
|
| Posted: Wed Mar 13, 2024 5:45 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
| MarkWard wrote: |
When I did ours, I purchased the seal kit from GW. There was no way I was going to get the glass and new seal into the pane frame. I actually broke a piece of glass. I’m am usually very careful, but that old glass broke just looking at it funny.
Fortunately I had purchased an extra assembly at the time. I don’t have the part you seek. We moved and I just kept a few assembled window panes. Also, I had only disassembled on pane. I surrendered. My refurbished assemblies have all the original glass seals and it has not been a problem.
It sounds like all of yours are apart for annodize. The offer of help from a member would be hard to pass on. I think you could get a decent result using clear silicone instead of a seal. You could tape the glass and frame to avoid making a big mess. |
I have done 5 sets of these with new seals. All went together with effort but got done. NO broken glass. Dang that tempered glass is strong, I cannot imagine breaking it by hand. (Don't ask me what happened the time when I tried to carefully cut it shorter with a cut off disc....  )
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD
"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson
MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646
Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794 |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 19048
Location: Retired South Florida
|
| Posted: Wed Mar 13, 2024 12:57 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
When I did ours, I purchased the seal kit from GW. There was no way I was going to get the glass and new seal into the pane frame. I actually broke a piece of glass. I’m am usually very careful, but that old glass broke just looking at it funny.
Fortunately I had purchased an extra assembly at the time. I don’t have the part you seek. We moved and I just kept a few assembled window panes. Also, I had only disassembled on pane. I surrendered. My refurbished assemblies have all the original glass seals and it has not been a problem.
It sounds like all of yours are apart for annodize. The offer of help from a member would be hard to pass on. I think you could get a decent result using clear silicone instead of a seal. You could tape the glass and frame to avoid making a big mess. |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17289
Location: Brookeville, MD
|
|
| Back to top |
|
|
mtnhome
Samba Member
Joined: July 17, 2010
Posts: 626
Location: Summit County, CO
|
| Posted: Tue Mar 12, 2024 6:02 pm Post subject: Re: Jalousie (louvered) windows in a Vanagon |
|
|
I finally got around to trying to assemble the two jalousie windows I have. Over time, I completely disassembled them since they were in pretty rough shape, bead blasted all the parts and had them anodized black.
So far I have been unable to get anywhere installing the glass into the frame parts. I've tried silicone grease, rubbing alcohol, and petroleum jelly to lubricate both the seal and the frame. Nothing has worked. Makes me wonder how the factory assembled these. It almost seems the seals are just a bit too thick. The seals are West Coast Metric.
I've read every thread/article and watched every video I can find.
Has anyone had extreme difficulty assembling these and found a solution?
On top of this, I never unwrapped all of the neatly wrapped parts when I picked them up from the anodizing outfit and now discover I'm missing one of the long top frame parts for the glass frames. So if anyone has a trashed or parts jalousie window, I'd love to get this piece from you.
