My 67 - 1500 (Help!)

ocdbeetle · Posted: Tue Jun 10, 2008 7:51 am Post subject:

Oh for God's sake... Laughing

_________________
1967 Lotus White Beetle

bill may · Posted: Tue Jun 10, 2008 7:00 am Post subject:

67 Florida Deluxe · Posted: Tue Jun 10, 2008 5:57 am Post subject:

I noticed you updated your sig line, Mr. May Cool

_________________
-Kent (BaT "daleallen")

OG member of the '67 Posse

A few of my toys, past and present
'56 Oval, '66 KG Conv't, '67 21-Window, '67 Bug, '79 SuperVert, '55 Pre-A Continental

bill may · Posted: Mon Jun 09, 2008 11:03 pm Post subject:

check with bill may. he has all the 67 engine tin.
_________________
Admin note: Bill Passed away - July, 2017

1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617

ocdbeetle · Posted: Mon Jun 09, 2008 5:56 pm Post subject:

Rhunes29 · Posted: Mon Jun 09, 2008 3:02 pm Post subject:

OCD is right Shocked

That is a clean engine compartment!!! I should have the pieces you sent tomorrow, I can't wait to install them and update pics. I really owe you!!!!!!!!!!!! I really miss my '67, it was by far my favorite VW. I'll have to wait to see if my new one can take that title some day.

ocdbeetle · Posted: Mon Jun 09, 2008 11:55 am Post subject:

Thanks - Just wanted to make sure before I contacted the seller...I thought your picture was Straight but wanted to double check before I contacted the seller and get my duckies back (or the correct filler)...
_________________
1967 Lotus White Beetle

aircooled · Posted: Mon Jun 09, 2008 11:33 am Post subject:

The tube is straight like in the picture I sent, no elbow. The picture I sent is what you need in order for the tin fit right. It is hard to find the right stuff sometimes but it will pay off with you having the peace of mind that is correct. When you start looking for the 67 only stuff you will have even more fun. Hang in there. Wink

ocdbeetle · Posted: Mon Jun 09, 2008 10:58 am Post subject:

I just received the "correct" oil filler tube from a Samba member - We agreed it was a 67 bug 1500 oil filler...The problem is it looks just like the one i need to replace (elbow at bottom)...(not like the one in the ad that I thought i was buying - straight tube)

So - before i pull my hair out - Should my road draft tube have an elbow at the bottom or be straight? I have the elbow tube(hitting the tin) and thought I was buying the straight tube type..
_________________
1967 Lotus White Beetle

ocdbeetle · Posted: Wed Jun 04, 2008 8:24 am Post subject:

thank you thank you - thank you
_________________
1967 Lotus White Beetle

bill may · Posted: Wed Jun 04, 2008 8:22 am Post subject:

aircooled · Posted: Wed Jun 04, 2008 8:15 am Post subject:

Yes, there is a rubber seal where the tube goes through the tin.

ocdbeetle · Posted: Wed Jun 04, 2008 7:41 am Post subject:

thank you...it seems the PO was "stuck" in 68...the engine is a 67 for sure though...I've got all the correct tins now so I guess I'll find a correct oil filler...
I was pulling my hair out trying to find an oil leak and the "elbowed" road draft tube was dripping oil on the bottom head tin and dripping it out toward the front (front is front) of the engine... Rolling Eyes

Is that a rubber seal where the tube goes through the tin?
_________________
1967 Lotus White Beetle

aircooled · Posted: Wed Jun 04, 2008 7:34 am Post subject:

These pictures will give you and idea of the breather pipe arrangement to the tin. The correct pipe will go straight down and not have the bend on the lower portion of the pipe.

Image may have been reduced in size. Click image to view fullscreen.

ocdbeetle · Posted: Wed Jun 04, 2008 6:46 am Post subject:

Seems like the only problem (Other than it being clogged) is the crack along the back...Nothing else seems seperated - no welds broken that i can see...
_________________
1967 Lotus White Beetle

bill may · Posted: Wed Jun 04, 2008 6:43 am Post subject:

bill may · Posted: Wed Jun 04, 2008 6:39 am Post subject:

1966 and 1967 only trim rings. Kent knows this as does air cooled (richard m.)
_________________
Admin note: Bill Passed away - July, 2017

1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617

ocdbeetle · Posted: Wed Jun 04, 2008 6:10 am Post subject:

EverettB · Posted: Tue Jun 03, 2008 10:32 pm Post subject:

This means you have the wrong oil breather/filler setup to use with those small lower tin pieces.

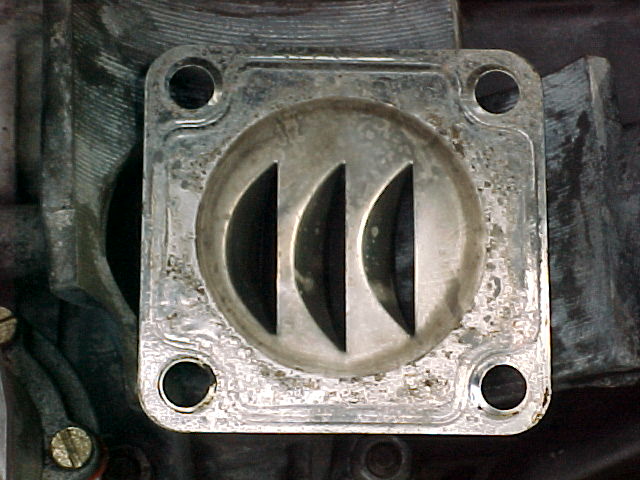

Generator stand gasket info
http://www.thesamba.com/vw/forum/viewtopic.php?t=240438
From that thread

ocdbeetle · Posted: Tue Jun 03, 2008 1:23 pm Post subject:

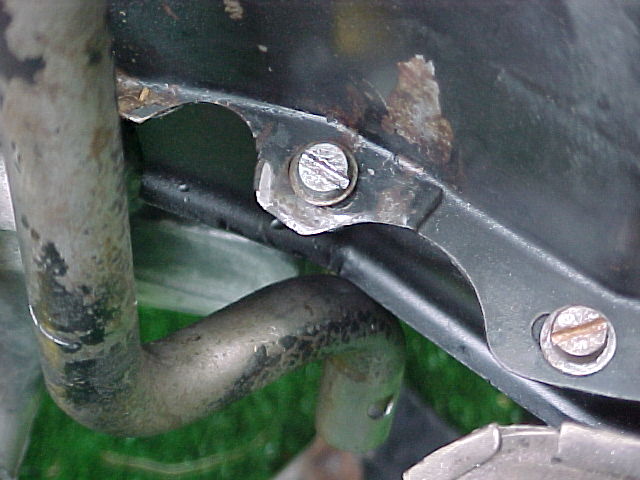

Help! the road draft tube is hitting the lower tin and wont go where it belongs...I put the 2 screws in just to hold the lower tin while I put the gen stand back on...Also is the gen stand gasket oriented correctly?

_________________
1967 Lotus White Beetle
