Type-3 breather disassembly?
Page: 1, 2, 3  Next
Forum Index -> Type 3 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 23303
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Sat May 10, 2025 2:06 pm    Post subject: Re: Type-3 breather disassembly? Reply with quote

Your arrow is pointing to the "special washer" (looks like a thimble or a tube with a thru hole in it). That you might try using a large tap to pull it out. Once it's out, then you can use the socket that most VW places sell, or a 1 inch internal pipe wrench to get the "breather gland nut" out.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
enol_ast
Samba Member


Joined: May 10, 2011
Posts: 1
Location: Asturias
enol_ast is offline

PostPosted: Fri May 09, 2025 7:06 am    Post subject: Re: Type-3 breather disassembly? Reply with quote

Reboot this post to ask for help.

How can I remove this cylinder to access the nut?I have tried and have not been able to in any way

Image may have been reduced in size. Click image to view fullscreen.


Thanks so much friends
Back to top
View user's profile Send private message Classifieds Feedback
TommyBoyGomes
Samba Member


Joined: May 28, 2005
Posts: 1535
Location: L.A./Dublin, Irl
TommyBoyGomes is offline

PostPosted: Tue May 11, 2010 4:35 pm    Post subject: Reply with quote

awesome, thanks.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Tue May 11, 2010 4:23 pm    Post subject: Reply with quote

It does not get that hot there. Probably not over 100-120* at the breather.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TommyBoyGomes
Samba Member


Joined: May 28, 2005
Posts: 1535
Location: L.A./Dublin, Irl
TommyBoyGomes is offline

PostPosted: Tue May 11, 2010 4:22 pm    Post subject: Reply with quote

you mean a loofah? (sp?) Smile Most of those are some type of polymer or nylon I thought... Wouldn't want that to melt. Or do you mean more of a sponge material?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Tue May 11, 2010 4:20 pm    Post subject: Reply with quote

Do you know those body washing things your girl friend/wife uses?
I have used a piece of one of those before. Do not pack it too tight, or it will cause back pressure.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TommyBoyGomes
Samba Member


Joined: May 28, 2005
Posts: 1535
Location: L.A./Dublin, Irl
TommyBoyGomes is offline

PostPosted: Tue May 11, 2010 4:17 pm    Post subject: Reply with quote

Russ, what have you used in the past as a substitute for the oile filter/nest/brillo pad looking thing? I'm hesitant to use thick steel wool and risk some of the steel falling into the engine. I'd sure like the oil to condense on something rather than the air filter I'm putting on the end of the breather. Anything you'd recommend? Thanks!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Tue May 11, 2010 3:28 pm    Post subject: Reply with quote

RAIDER SS wrote:
What is that brillo pad? I do not have one in my '72....should I?
I have a light tension spring between the plastic cap and the lower washer.....is that correct for the '72 breather box assy?


That scrubby is an oil seperator.
It is something for the oil to condense on.
When they went to the closed vent system, and not the road draft tube, VW did away with the scrubby. Figured they did not need to worry about it dripping on the ground, or your garage floor.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TommyBoyGomes
Samba Member


Joined: May 28, 2005
Posts: 1535
Location: L.A./Dublin, Irl
TommyBoyGomes is offline

PostPosted: Tue May 11, 2010 3:04 pm    Post subject: Reply with quote

Ah, got it Russ. Good thing I just finished some frosted mini wheats!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RAIDER SS
Samba Member


Joined: November 21, 2003
Posts: 270
Location: Fairport, New York
RAIDER SS is offline

PostPosted: Tue May 11, 2010 9:50 am    Post subject: Reply with quote

What is that brillo pad? I do not have one in my '72....should I?
I have a light tension spring between the plastic cap and the lower washer.....is that correct for the '72 breather box assy?
_________________
1972 SquareBack.....recycled back to life......
"Elwood"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Tue May 11, 2010 9:50 am    Post subject: Reply with quote

That gasket does not come in the gasket set.
You will have to make one.
Finish off that box of Wheaties, and get your scissors out.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TommyBoyGomes
Samba Member


Joined: May 28, 2005
Posts: 1535
Location: L.A./Dublin, Irl
TommyBoyGomes is offline

PostPosted: Mon May 10, 2010 11:58 pm    Post subject: Reply with quote

Hey Max,

I've dissassembled and painted my breather assembly as well (btw, thanks for stealing my silver-and-black painting scheme Smile ) and had a question. What gasket did you use between the stand and the breather? I see on ispwest's website that there's a gasket that goes between the two, but in my elring set, I only see a metal washer (similar in style to the one on the oil relief valve) that could fit the diameter of the stand throat. Is this metal one the right gasket to use underneath the breather? If not, where'd you get the right one? Did you permatex it? Thanks!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Notched
Samba Member


Joined: January 19, 2003
Posts: 2365
Location: Pacific Northwest
Notched is offline

PostPosted: Sat Apr 24, 2010 10:08 am    Post subject: Reply with quote

I've never seen this sleeve on the engines that I've pulled apart. I swear, I always learn something new in this forum that I didn't know before.

Image may have been reduced in size. Click image to view fullscreen.


I do have quite a few engines that are completely original, that I've never pulled apart at least. Will be interesting to see if the sleeve is inside.
_________________
Phillip Bradfield

Current stock: '57 Panel Bus, '63 Rat Notch, '64 Baja, '66 Variant, '67 Convertible Ghia, '68 Squareback, '69 Squareback, '69 Fastback

Southern Oregon VW Club -- http://www.sovw.org

Oregon VW Forum -- http://www.oregonvw.org
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
Air_Cooled_Nut
Samba Member


Joined: March 27, 2004
Posts: 3068
Location: Portland, Oregon
Air_Cooled_Nut is offline

PostPosted: Sat Apr 24, 2010 7:49 am    Post subject: Reply with quote

http://www.aircoolednut.com/cmgallery/thumbnails.php?album=35
_________________
Toby http://www.aircoolednut.com/
Did I mention that I'm an original Darksider?
'72 VW Squareback, 2007cc, GB 5-speed, rag top; '76 VW Riviera Penthouse Sundowner 2.0L; 2015 Audi S5 Cabby w/Stage II APR; '06 Ducati Sport Classic 1000; '14 Ducati Diavel Strada
The First Invasion
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71368
Location: Phoenix 602
EverettB is offline

PostPosted: Fri Apr 23, 2010 9:50 am    Post subject: Reply with quote

TommyBoyGomes wrote:
hm, an internal 1" pipe wrench like this??

http://www.generaltools.com/products/professional-internal-pipe-wrench-(1)__139d.aspx

Doesn't look similar to what was pictured above...

This is what I have and have used.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
FASTBACKDON
The other insensitive jerk like Neil


Joined: October 08, 2004
Posts: 3592
Location: TORRANCE CALIF
FASTBACKDON is offline

PostPosted: Fri Apr 23, 2010 6:52 am    Post subject: Reply with quote

TommyBoyGomes wrote:
hm, an internal 1" pipe wrench like this??

http://www.generaltools.com/products/professional-internal-pipe-wrench-(1)__139d.aspx

Doesn't look similar to what was pictured above...

Tommy I already have the correct tool to remove the breather just come over and get it.
_________________
FUCK CANCER FUCK CANCER FUCK CANCER!!
Mom 25 months of standing up to Cancer R.I.P I miss you so much.

Buy my best friends stuff
http://www.thesamba.com/vw/classifieds/search.php?username=56TIMOTEO

(21:10:42) Jennepher: Russell is our proudest achievment. I feel like Samba created him from a little nugget of crap into a full blown adult.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TommyBoyGomes
Samba Member


Joined: May 28, 2005
Posts: 1535
Location: L.A./Dublin, Irl
TommyBoyGomes is offline

PostPosted: Thu Apr 22, 2010 11:41 pm    Post subject: Reply with quote

hm, an internal 1" pipe wrench like this??

http://www.generaltools.com/products/professional-internal-pipe-wrench-(1)__139d.aspx

Doesn't look similar to what was pictured above...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10992
Location: Black Forest, CO
Max Welton is offline

PostPosted: Wed Mar 10, 2010 9:46 pm    Post subject: Reply with quote

FASTBACKDON wrote:
I know where to send mine to get restored

I'd be more than happy to do yours, Don!

I now know how to get it apart. Laughing

Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
FASTBACKDON
The other insensitive jerk like Neil


Joined: October 08, 2004
Posts: 3592
Location: TORRANCE CALIF
FASTBACKDON is offline

PostPosted: Wed Mar 10, 2010 9:34 pm    Post subject: Reply with quote

Max that breather is incredible. I know where to send mine to get restored Damn. I am just glad the tool worked. If the breather is any indication of what the rest of your engine will look like wow is all I can say.
Don
_________________
FUCK CANCER FUCK CANCER FUCK CANCER!!
Mom 25 months of standing up to Cancer R.I.P I miss you so much.

Buy my best friends stuff
http://www.thesamba.com/vw/classifieds/search.php?username=56TIMOTEO

(21:10:42) Jennepher: Russell is our proudest achievment. I feel like Samba created him from a little nugget of crap into a full blown adult.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10992
Location: Black Forest, CO
Max Welton is offline

PostPosted: Wed Mar 10, 2010 9:06 pm    Post subject: Reply with quote

The carb cleaner did the trick!

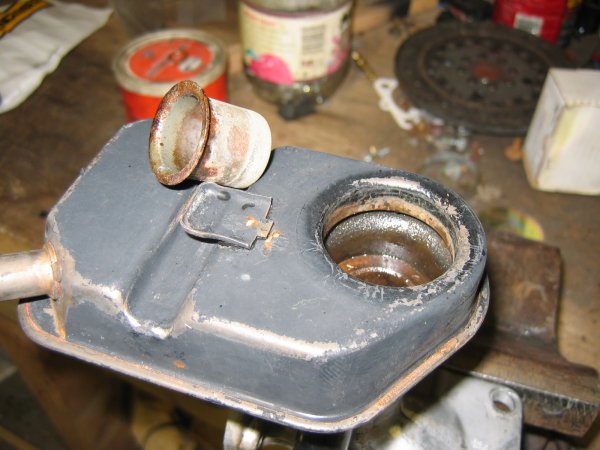

Breather apart:

Image may have been reduced in size. Click image to view fullscreen.


Bead blasted:
Image may have been reduced in size. Click image to view fullscreen.


Painted and reassembled:
Image may have been reduced in size. Click image to view fullscreen.

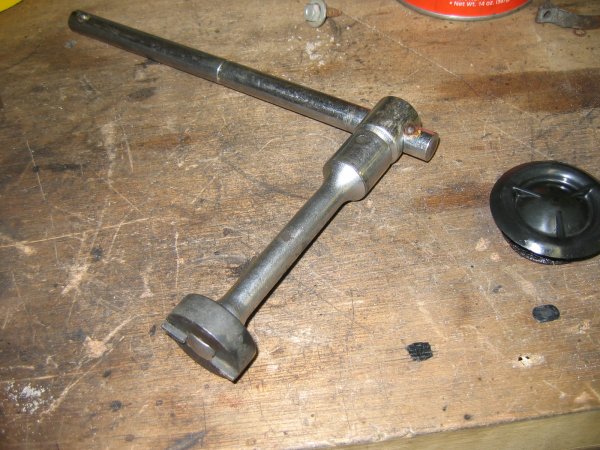

Special thanks to FASTBACKDON, who loaned me his breather tool!

Image may have been reduced in size. Click image to view fullscreen.


Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
