Beetle Air Cleaners - picture reference thread

[feynmanfan]

Great, thanks!

[Bobs67vwagen]

If you look in the samba classifieds there is an individual in Boone North Carolina who probably has one that your looking for.

[feynmanfan]

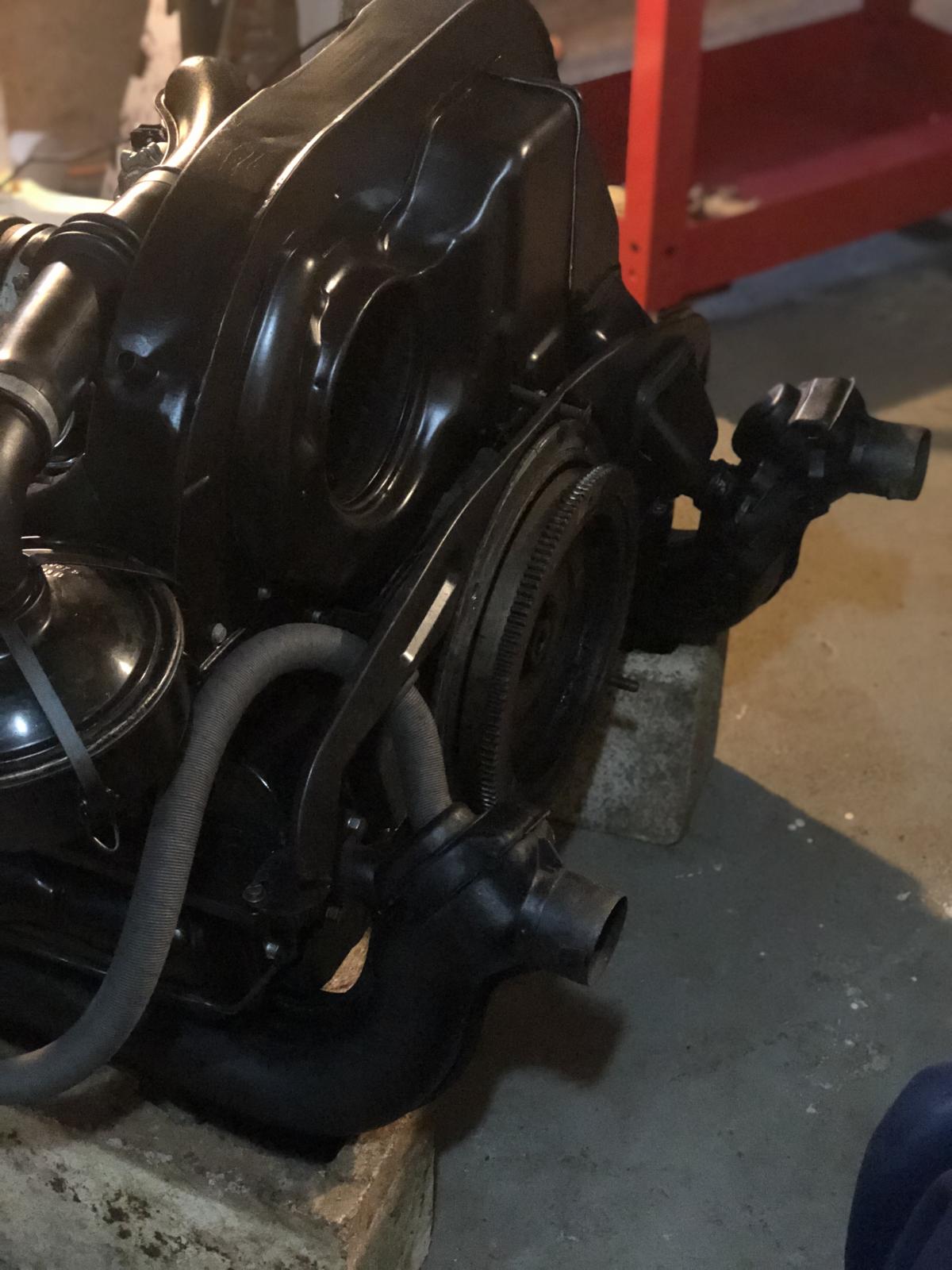

I bought a 64 bug a month ago with a 1600cc dual port and single Solex. It came with a round paper filter and no pre-heat to the carb. I found an early Mann filter and put together a pre-heat approach to feed the air cleaner with the 25mm hose. As you can see from the pics, I'm missing the flap assy. I saw the drawing someone shared for the bushings but have nothing on the wire form or weight. Ideally I would love to find an assembly but will make something from scratch. If anyone wants to sell me any of the parts, great! Otherwise and dimensions of the weight and a sketch of the wire form or flap, also great! thanks steve

[mskhan]

[glutamodo]

VW changed model years at their plants after the summer break, which was the end of July. Model year 1969 began in August 1968.

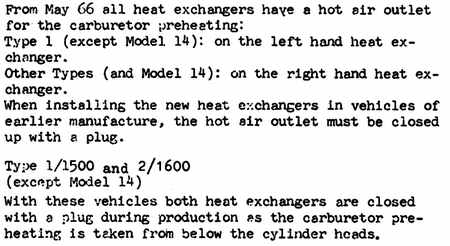

As for the carburetor preheat, a service note:

I've seen quite a few used heat exchangers over the years with the 25mm preheat fitting on them with the metal plug on it mentioned above.

_________________
Andy T.

"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!"

[mskhan]

[viiking]

OK. So you have a low compression 37BHP Non USA M240 code, not the higher compression motor with F0,F1,F2 engine number.

Interesting that yours is very close to my RHD 1500. Feb 68 118570727.
_________________
1968 1500 RHD Lotus White Beetle since birth. In the hospital for major surgery
1966 Lancia Flavia Pininfarina Coupe - in the waiting room
Discharged: 1983 Vanagon, 1974 1800 Microbus,1968 Low Light,1968 Type 3

[mskhan]

[quote="viiking"]

[viiking]

[quote="cdennisg"]

[mskhan]

[cdennisg]

[mskhan]

cdennisg ... thank you for your quick reply and the picture. I'll have to find the correct heat exchanger for my car.

MSK

[cdennisg]

[mskhan]

I have a '68 1300 Deluxe Beetle (European model). My question is regarding the hot air hose connection - specifically towards the front end of the engine. On my car, it goes around the fan shroud, through the hole in the front engine tin and then .... just hangs there? It comes out right in front of the left side heat exchanger box (passenger side on my car, since mine is a RHD car that I have imported here). On my car, the heat exchanger has a blocked off plate but I've seen heat exchanger with a small connector which is exactly in the correct place for this hose. Is the hot air hose supposed to be connected to the left side heat exchanger or just left hanging there?

Thank you.
MSK

[OldSchoolVW's]

[esde]

[Berf]

1961 Knecht air cleaner:

1964 Knecht air cleaner:

Drawing of the flap bearing:

Here are some pictures of my two 40 hp Beetle Knecht air cleaners. The one for the 1964 engine has a date stamped in the flap, while the one for the 1961 doesn't appear to have a date stamp. Also here is a drawing of the elusive flap bearing. I plan on having my son 3D print it using nylon material for a test. I'm not sure about the 6mm hub diameter; the other dimensions are pretty close. Now to find a flap assembly that actually needs a new bearing for a test fit. I actually had very good luck 3D printing a new horn ring insulator for my 1961, but it took a couple tries to get it perfect.

[bnam]

[EverettB]

Thank you, I will add that information to the first post in this thread.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!

[cdennisg]

Been digging around a researching some parts for a 66 beetle I am getting revived. Car has not seen the road since the mid 80's. Not the original engine or anything, but I figured I might as well make it look somewhat correct.

Car came with the later air cleaner pictured, and a neighbor gave me the other one. Production dates are less than a year apart, and the only difference I can find is the sticker placement of the later one.

This one has the decal located on top of the snout...

And this one (earlier production) has the decal located on the base of the cleaner itself.

Neither are correct for a mid-year production 66 export beetle, but I figured they might as well fit into the documentation in this thread. In fact, I had no clue what the 66 bug actually used, until I found it in here. The Samba is the greatest research tool for a VW hobbyist.

I'll run the later one for now, and seek out a functional "correct" version in due time. I might even have one in the junk pile, but it is buried deep under snow currently.
_________________
Confusious say it takes it takes two wipes to know you need three, but it takes three wipes to know it only needed two.
