The '71 Deluxe

[dumptuck]

[richparker]

There it is! I thought I remembered doing that.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build

[W1K1]

[richparker]

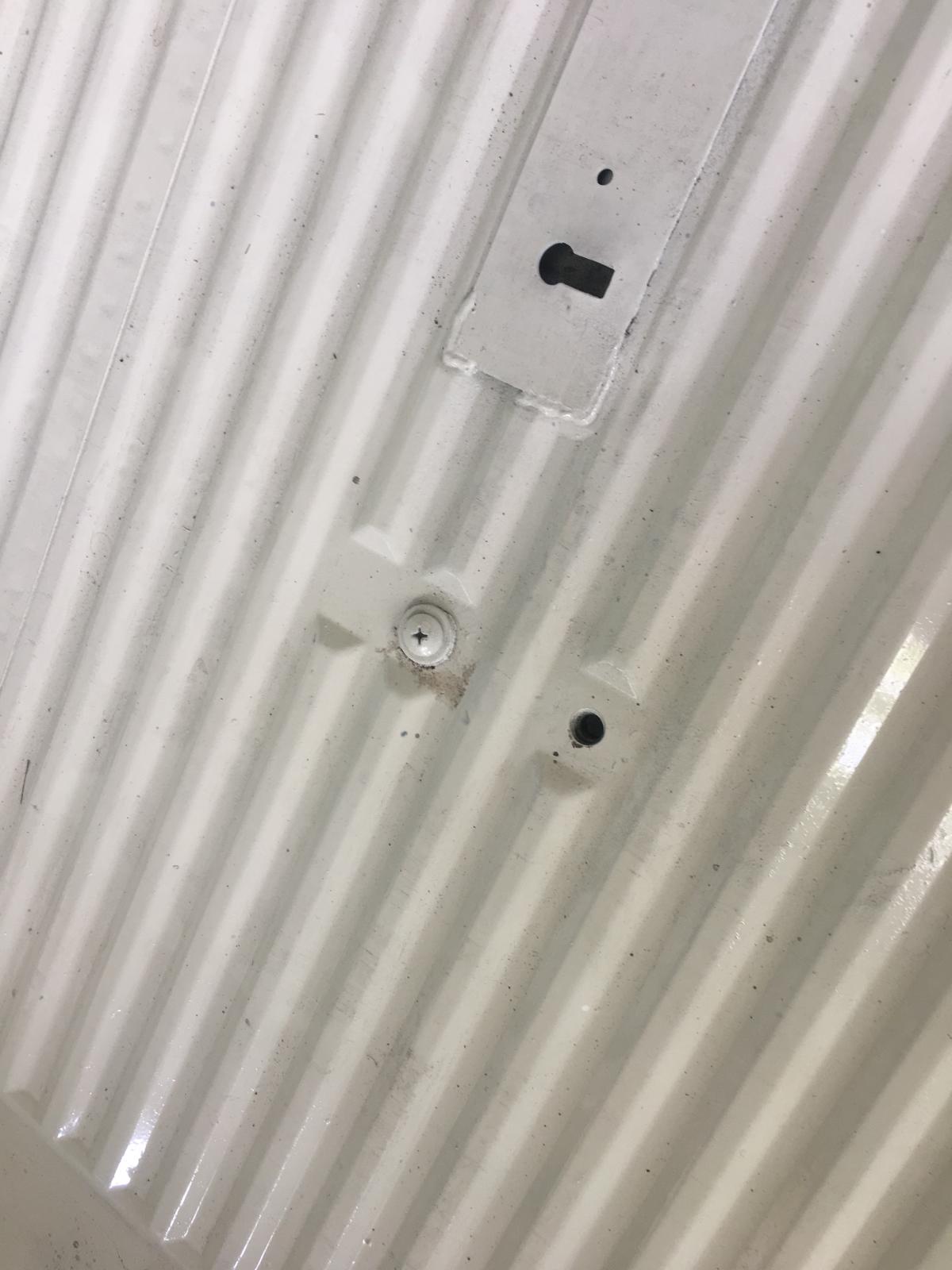

You gotta cut holes in the subfloor for the seat mounts or the subfloor will not lay flat. Square holes if I remember correctly.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build

[dumptuck]

[richparker]

I used that carpeting in my old ‘68 bus and I also used it in my current ‘65 Beetle build. It’ll last a good amount of time, it doesn’t like the sun tho.


https://www.thesamba.com/vw/gallery/pix/2561613.jpg
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build

[dumptuck]

Added the temporary floor, but it turned out so nice I may just leave it that way for a while. We found a roll of this old carpet material above the paint booth at work, was just barely enough for the bus! I stuck it to the original rubber mat with some spray adhesive and called it good for now. Will probably still upgrade later but pretty happy with this.

Also worked on the rear bench, used 3/4" birch for the seat base and back. Still have to install the L shaped supports, and drill into the rear deck for some rivnuts. Very happy so far though. Plywood has gotten really expensive however

That's probably it for this weekend. Going to the Great Canadian Volkswagen Show tomorrow which should be fun! Leaving the bus at home however as my parts keep getting delayed in shipping. Oh well, not much a show bus anyhow.
_________________
Erik

[dumptuck]

Some photos from the trip home, organized my parts and put my curtains back in. The fabric has faded a lot but I sorta like them that way. Roof rack is back on too.

Sealed up over top of the manifold boots with some dirtbike innertubes for the trip home. Made it despite having no idle. The bus will now rest while I wait on parts...

Sometimes we get free halon fire extinguishers at work so I put one in the cab. Gotta figure out some sort of mount for it though. Maybe a clamp on the central duct under the dash? (I realize that Halon is dangerous in confined areas, but its effectiveness gives me peace of mind).
_________________
Erik

[dumptuck]

More photos cause that's the best part of any thread. Also just happy to have my bus out in the sun again

Happened to be at the recycling station dropping off oil and found this little toolbox upside in the scrap metal pile. Some good stuff in there - mostly old Canadian-made tools. Will make for a good bus box, although I'll need to add some items. Been collecting parts and tools over time regardless for this purpose.

Kinda neat!
_________________
Erik

[dumptuck]

Agreed, I'd like to do it correctly as well. I'm ordering some silicone ones to install when I get home. The split ones would just be to get me to there.

I've heard some varying information on how much needs to be removed to access them - if I remove the 2 fasteners at the outboard end of the manifold and loosen the center mount, does that allow enough movement of the outboard sections to get boots on?

Thanks in advance
_________________
Erik

[SGKent]

the red silicone ones last longer than black rubber. No idea who has them but they should be out there.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin

[richparker]

I’d pull it all apart and fix it correctly.

https://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=113129729

Not really following along, but I’d but the intake manifold seal too. Here’s the dual port one.
https://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=113129717
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build

[dumptuck]

Well... after some messing around, I got a hunch its my manifold boots leaking. They're all cracked and actually seem to peel away when I poke at them, notice the slightly damp spot right underneath too... sketchy.

That sorta messes up my hope of taking my bus home this weekend, I hear these can take some time to replace unless you go for the split boots. Anyone in the lower mainland BC area have a set of split boots around? Long shot I know.
_________________
Erik

[dumptuck]

First drive in quite a few years
Won't idle unfortunately, feathering the gas at the stop lights
Pulled the idle jets and poked them out with a wire and some carb cleaner but no luck so far
Seems to run well otherwise. It was a beautiful day
Any tips?
_________________
Erik

[dumptuck]

Here are the bed cushions made up. Something to note - I accidentally put the "egg carton" texture of the foam facing downwards, but found that the fabric looks much neater on the top now as a result. The underside looks a bit lumpy.

Installed windows back in the left side, accidentally tore the seal on the inner side of sliding window due to impatience should stil seal though. The other window went in like butter however. Hoping that I don't get any more leak issues.

Also installed vapor barrier on my front doors, used some leftover material from a reno. I bought rivnuts to put in the original clip holes in the door, for when I install wood panels in there.

Also been figuring out my starting issue, drained the old bad gas out and put some fresh stuff in with a bottle of cleaner additive. Popped the top off my 34pict3 and did some light cleaning. After some persuasion it starts now, but will only idle if I hold the gas pedal down. Will be pulling my idle/power jet to blow some air through it when I come back in a few weeks. Been working up in the Yukon and Northwest Territories so progress is slow but happy to get anything done really.
_________________
Erik

[dumptuck]

Had a good weekend of bus work. Been trying to get it ready to bring over to my new home since I'll have a parking spot now. Messed around with leaky brakes, replaced my fuel lines again, cut out my foam for the bed/bench, and started the process of replacing my left-side vent wing windows with a solid rear window and a slider in the middle. When I pulled the leaky vent wings I found some light rust bubbling underneath so spent today treating it and painting.

For my cushions I got 2 ikea twin size mattresses on sale to cut up. If you follow my footsteps here, know that Ikea lies on the packaging - the mattress is only 37" so barely too short for making both bench cushions out of one mattress. Oh well, I'll have to make do with an inch shorter bed The foam cut great with this rockwool knife, which is basically a breadknife.

I decided I'll put my spare tire up on the roofrack so I made the cushion the full width of the rear deck. Also decided I'll velcro the bench cushions on rather than staple the fabric to the wood. Probably some more photos in a couple weeks when covers are all sewn up and I've bolted the bed down.
_________________
Erik

[dumptuck]

[Shonandb]

[dumptuck]

Repainted my emblem again to better match the deluxe trim

Before

After

_________________
Erik

[dumptuck]

Here it is completed. Likely won't install it in the bus until April

When I was buying the aluminum trim, I saw these beaded seat covers 40% off at Canadian Tire... was hard to resist them
