vwtragic62
Samba Member
Joined: January 22, 2023
Posts: 14
Location: Australia
|
 Posted: Sat Feb 18, 2023 11:06 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
 |
|
Feb 2023 and I just discovered that the Euro overriders have their location stamped on them.
Solved my query, thanks to this very detailed thread of course. Big Thanks to the OP. |
|
| Back to top |
|
 |
hsosa1
Samba Member
Joined: January 17, 2005
Posts: 1924
Location: Fontana
|
| Posted: Tue Sep 07, 2021 2:37 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
| sputnick60 wrote: |
| hsosa1 wrote: |
| mcdonaldneal wrote: |
| Ellison wrote: |
| Im so happy that You posted such a detailed post about these. I actually really enjoyed putting it together. Just wanted to say thank you!! |
You’re very welcome! This is one of my most useful threads, glad I did it! |
dumb question does the euro version use those square boxes on the bumper brackets as well. |
Yes. The rear pair are the same and the front pair don’t have the large hole on the top since there is no reinforcement to pass through them.
You can get them from Airhead for not a lot of money…
https://airheadparts.com/vw-part/bumper-bracket-cover-euro-141-707-138-beu/
here’s the US version so you can see the difference
https://airheadparts.com/vw-part/bumper-bracket-cover-141-707-138-b/
Nicholas |
. thank you
_________________
Just Cruzin Sur Califas VW Car Club est♤1998 |
|
| Back to top |
|
|
sputnick60
Samba Moderator
Joined: July 22, 2007
Posts: 4119
Location: In Molinya Orbit
|
|
| Back to top |
|
|
hsosa1
Samba Member
Joined: January 17, 2005
Posts: 1924
Location: Fontana
|
| Posted: Mon Sep 06, 2021 5:47 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
| mcdonaldneal wrote: |
| Ellison wrote: |
| Im so happy that You posted such a detailed post about these. I actually really enjoyed putting it together. Just wanted to say thank you!! |
You’re very welcome! This is one of my most useful threads, glad I did it! |
dumb question does the euro version use those square boxes on the bumper brackets as well.
_________________
Just Cruzin Sur Califas VW Car Club est♤1998 |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
| Back to top |
|
|
Ellison
Samba Member
Joined: October 16, 2006
Posts: 212
Location: Spokane, WA.
|
| Posted: Wed Aug 12, 2020 3:35 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
Im so happy that You posted such a detailed post about these. I actually really enjoyed putting it together. Just wanted to say thank you!!
_________________
Praise the lowered. |
|
| Back to top |
|
|
chaas67
Samba Member
Joined: August 11, 2012
Posts: 52
|
| Posted: Sat May 23, 2020 12:10 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
Thought I would post an AAR and announce that the bumpers are on and make the car look a lot better than those T bumpers.
Really happy with the look and I think they line up really well.
Thank you everyone for your responses and hopefully others find this thread as useful as I did. |
|
| Back to top |
|
|
chaas67
Samba Member
Joined: August 11, 2012
Posts: 52
|
| Posted: Sun May 03, 2020 4:23 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
@Legacy,
Appreciate the input and your tip on drilling into paint is a great idea. Looks like I’ll be poking around under the Ghia and get those holes re-opened. I do see the brackets you mentioned so that’s a bit of good news. |
|
| Back to top |
|
|
Legacy
Samba Member
Joined: October 26, 2008
Posts: 231
Location: Charlotte Hall, MD
|
| Posted: Sun May 03, 2020 3:21 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
| chaas67 wrote: |
| Legacy wrote: |
| chaas67 wrote: |
Thanks guys that what I’m looking for. The PO filled them in and painted over them When they installed the bumperettes, which I’m getting rid of.
So the question is how critical is it to have the Rear override supports installed? Hate to go digging in on bodywork and cause paint issues but if it must be done than so be it.
Thanks all |
I'm not sure I understand your question. You say you are getting rid of the bumperetts, which I assume you mean the overriders/bumper guards. If that is what you intend to do than as far as I can tell there is no purpose for the support, plus without the overrider in place there wouldn't be a housing (inside of overrider) for the top of the support to sit within. Maybe I'm just missing something in your question |
I might be using the wrong terms
Checking out the JBugs online catalog they are called T bar bumpers;
I’m removing the T bar bumpers and replacing them with the US style bumpers. Hope that makes more sense now. |
OK, now I understand.
With regard to your question "how critical is it to have the Rear override supports installed?" the answer depends on whether you are also planning to install the towel bars or not.
If you are planning to just install the bumper blades without overriders and towel bars than I can't think of a reason you would need to install the supports.
if you are planning to install the overriders without the towel bars you probably don't need to install the supports. Just keep in mind that the towel bar holes in the overrider would be showing unless you come up with a way to fill them in with some kind of chrome cap or whatever.
If you are planning to install the overriders with the towel bars than if it were me I would install the supports. Otherwise you will need to come up with a solution for holding the towel bars in place inside the overrider housing (one way would be to cut the top of the support off and use it to hold the towel bars in place). Plus I would be concerned that without the support the overriders plus towel bars could cause the bumper blades to flex when underway due to movement of the top of the overrider/towel bars.
Before deciding what to do you might check if the brace for the support bar located on the back side of the apron is there. if the brace is there it should be fairly easy to locate the original hole in the apron and drill it back out. One hint for drilling a painted surface is to cover the painted surface with painting tape to help minimize chipping in the paint.
If you need a picture of the brace on the backside of the apron let me know and I can take a picture of the brace on my wife's 69 KG tomorrow and post if for you to see. |
|
| Back to top |
|
|
chaas67
Samba Member
Joined: August 11, 2012
Posts: 52
|
| Posted: Sun May 03, 2020 2:16 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
| Legacy wrote: |
| chaas67 wrote: |
Thanks guys that what I’m looking for. The PO filled them in and painted over them When they installed the bumperettes, which I’m getting rid of.
So the question is how critical is it to have the Rear override supports installed? Hate to go digging in on bodywork and cause paint issues but if it must be done than so be it.
Thanks all |
I'm not sure I understand your question. You say you are getting rid of the bumperetts, which I assume you mean the overriders/bumper guards. If that is what you intend to do than as far as I can tell there is no purpose for the support, plus without the overrider in place there wouldn't be a housing (inside of overrider) for the top of the support to sit within. Maybe I'm just missing something in your question |
I might be using the wrong terms
Checking out the JBugs online catalog they are called T bar bumpers;
I’m removing the T bar bumpers and replacing them with the US style bumpers. Hope that makes more sense now. |
|
| Back to top |
|
|
Legacy
Samba Member
Joined: October 26, 2008
Posts: 231
Location: Charlotte Hall, MD
|
| Posted: Sun May 03, 2020 1:13 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
| chaas67 wrote: |
Thanks guys that what I’m looking for. The PO filled them in and painted over them When they installed the bumperettes, which I’m getting rid of.
So the question is how critical is it to have the Rear override supports installed? Hate to go digging in on bodywork and cause paint issues but if it must be done than so be it.
Thanks all |
I'm not sure I understand your question. You say you are getting rid of the bumperetts, which I assume you mean the overriders/bumper guards. If that is what you intend to do than as far as I can tell there is no purpose for the support, plus without the overrider in place there wouldn't be a housing (inside of overrider) for the top of the support to sit within. Maybe I'm just missing something in your question |
|
| Back to top |
|
|
chaas67
Samba Member
Joined: August 11, 2012
Posts: 52
|
| Posted: Sun May 03, 2020 12:03 pm Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
Thanks guys that what I’m looking for. The PO filled them in and painted over them When they installed the bumperettes, which I’m getting rid of.
So the question is how critical is it to have the Rear override supports installed? Hate to go digging in on bodywork and cause paint issues but if it must be done than so be it.
Thanks all |
|
| Back to top |
|
|
Legacy
Samba Member
Joined: October 26, 2008
Posts: 231
Location: Charlotte Hall, MD
|
| Posted: Sun May 03, 2020 11:23 am Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|

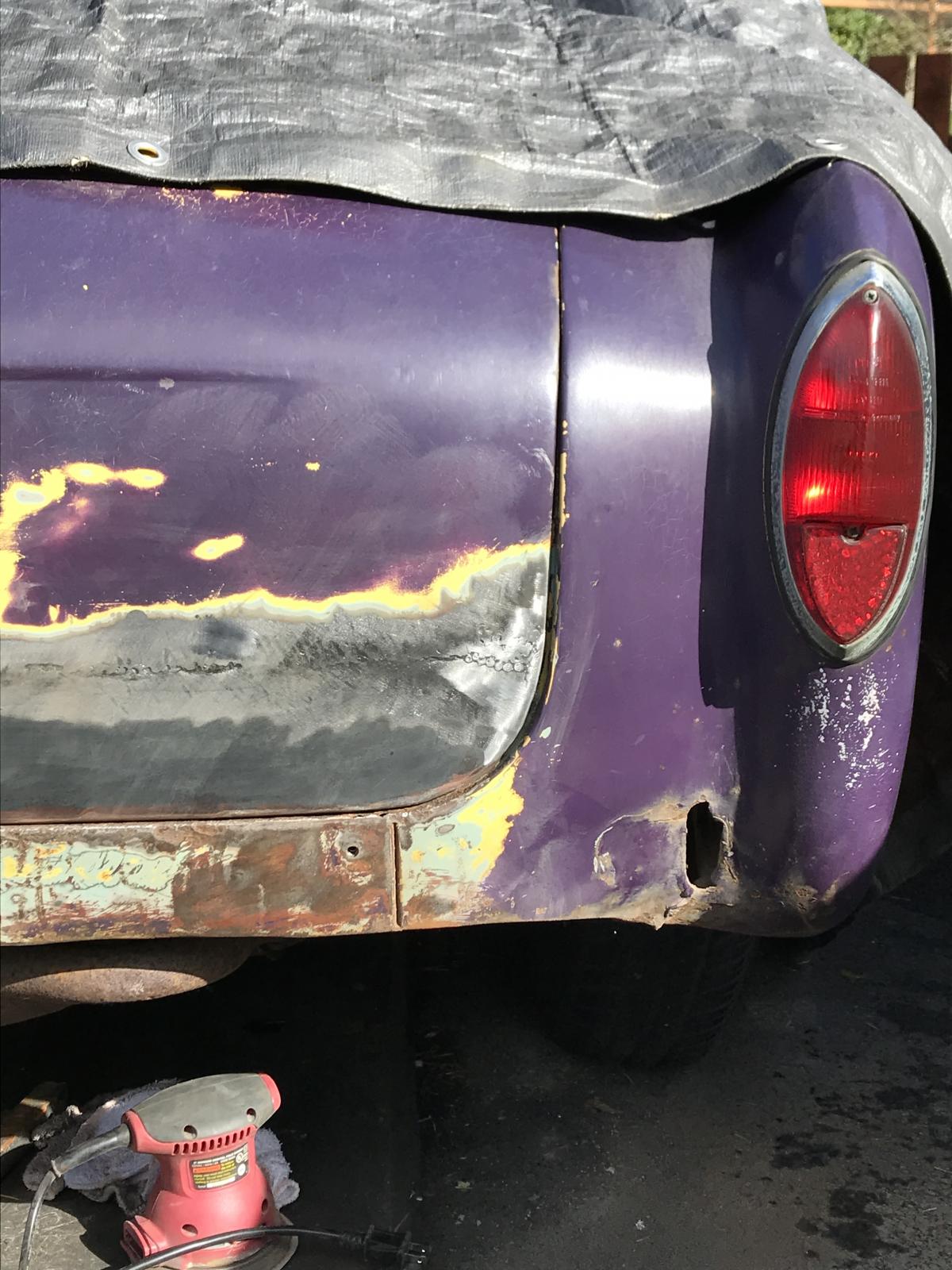

My wife's 69 has holes in the back apron and braces attached to the underside of the apron.
May be a little hard to see in the pictures below but believe me the holes are there.
|
|
| Back to top |
|
|
dc
Samba Member
Joined: April 03, 2004
Posts: 1426
Location: Kitsap Peninsula
|
| Posted: Sun May 03, 2020 11:04 am Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
You mean where it mounts to the body?
Look carefully at the picture of my '63 -
Here's the hole on the passenger side:
_________________
1963 Karmann Ghia |
|
| Back to top |
|
|
chaas67
Samba Member
Joined: August 11, 2012
Posts: 52
|
| Posted: Sun May 03, 2020 10:55 am Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
| Legacy wrote: |
One option would be to use a rivet nut. If you are not familiar with them here is a link that shows what they look like and how to install one without the "special installation tool". https://www.youtube.com/watch?v=qhzVDvnN_yM
I've used these extensively on car projects and they have worked fine. Only thing is that I don't know if you can find them with a metric thread. |
@Legacy - thanks for that tip, I went out to Amazon and have a tool and rivnut headed my way now. So my goal of having bumpers on the Ghia for the weekend won’t happen.. oh well
Another question I have, on the rear bumper where do the override supports attach to? Obviously the tube end is a no brainer but hell if I can figure out what the other end bolts to. Perhaps I’m missing a couple pieces but looking at the various diagrams online and in my various books I can’t see it.
Thanks all |
|
| Back to top |
|
|
Legacy
Samba Member
Joined: October 26, 2008
Posts: 231
Location: Charlotte Hall, MD
|
| Posted: Sun May 03, 2020 8:26 am Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
One option would be to use a rivet nut. If you are not familiar with them here is a link that shows what they look like and how to install one without the "special installation tool". https://www.youtube.com/watch?v=qhzVDvnN_yM
I've used these extensively on car projects and they have worked fine. Only thing is that I don't know if you can find them with a metric thread. |
|
| Back to top |
|
|
chaas67
Samba Member
Joined: August 11, 2012
Posts: 52
|
| Posted: Sun May 03, 2020 7:22 am Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
Been working on the front and rear bumpers and am at the stage of putting them all together and as fate would have it, ran into a snag.
I was in the process of chasing the threads on all the pieces and realized that the rear bumper pieces did not have nut welded to the brackets at the end of ‘tail’.
Looking at the pictures above it sure appears that there should be a nut welded to the bracket. So the question is has anyone else ran into this and thoughts on how to fix?
I don’t weld, yet, but could JB weld it if that’s the solution.
Thanks everyone |
|
| Back to top |
|
|
chaas67
Samba Member
Joined: August 11, 2012
Posts: 52
|
| Posted: Sun Apr 26, 2020 8:24 am Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
| YellowSplittie wrote: |
Here is a handy reference that I've used in the past. It helps if you are trying to find the correct corner section for your rear bumper.
|
That’s what I’m looking for! Appears I have the correct corner pieces for my 71.
Good thing as I doubt the seller had a 7 year return policy..
Looks like I’ll be knocking some rust of the various supports and give a quick shot of color to protect them. In a few years my plan is to restore the beast, good or bad, but for now I want to drive her and get to learn about the Ghia’s.
Thanks all |
|
| Back to top |
|
|
YellowSplittie
Samba Member
Joined: September 30, 2003
Posts: 1170
|
| Posted: Sun Apr 26, 2020 7:36 am Post subject: Re: US style towel rail bumper installation *pic heavy! |
|
|
Here is a handy reference that I've used in the past. It helps if you are trying to find the correct corner section for your rear bumper.
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
