Show off your Crank Triggers!!

[KROC]

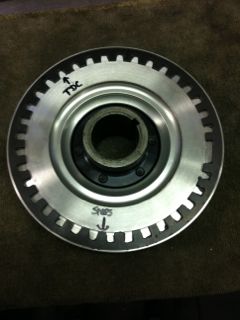

Dub Shop goodies, wasted spark.

[Chickensoup]

[Chickensoup]

[Steve Arndt]

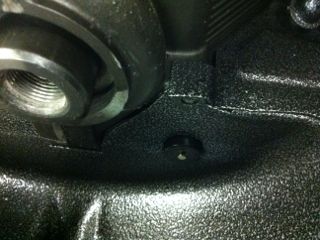

I used a BMW VR sensor. It is mounted at an angle behind.
_________________
Steve
Steve's 87 Syncro project

[liquidrush]

Like this? It is a crank trigger.

[mark tucker]

oh I see now, those kinds of crank triggers..... Im glad I saw the car parts before I posted a pair of "crank trigger's"

[DeathBySnuSnu]

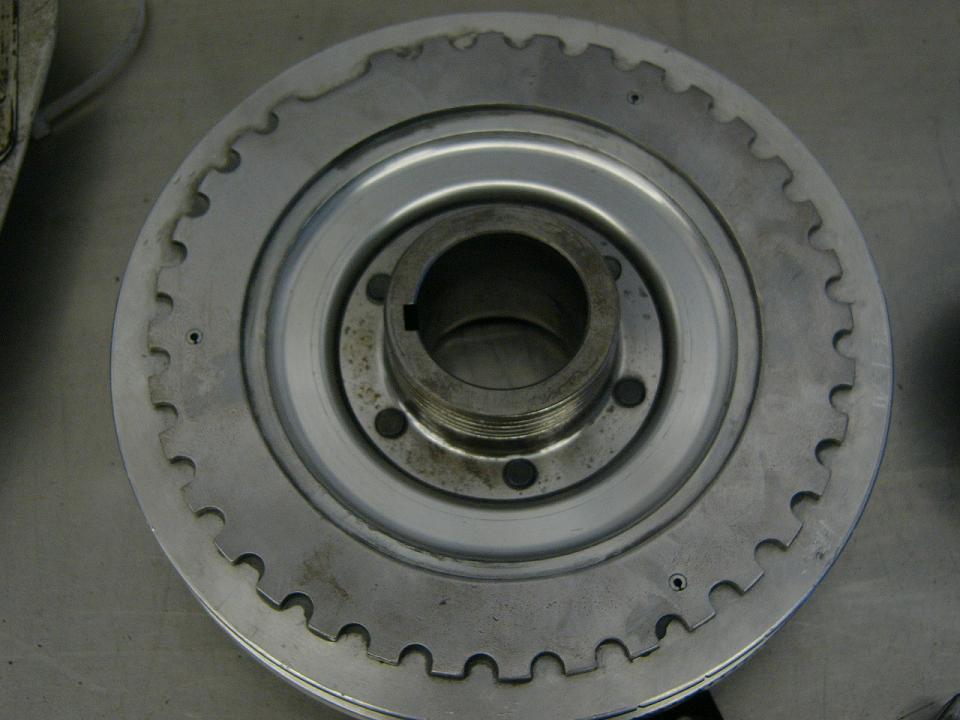

I got mine off ebay.....was advertised as for an escort.

I made the custom pulley and hub.

_________________

[Chickensoup]

I’m reviving my thread instead of making a new one to help keep things neat here. So, I’m looking into the ford 4.6 trigger wheels and cant find any for sale that look like the ones mentioned previously here. Can someone please point me in the right direction?

Thank you
_________________
-'85 c10 5.3 LS, cam, heads, long tubes, x pipe, 3 inch spin tech's
-'01 e46 325ci *tree modded
-'05 B5.5 TDI Wagon 17in sport rims ;EGR + BSM + ASV Delete, Stage-2 Tune, straight pipe
'65 Tourist Delivery Build
'66 RIP

[Chickensoup]

[Dale M.]

Make it easy on yourself...

https://www.cbperformance.com/product-p/2092.htm

Or..

https://www.cbperformance.com/product-p/2093.htm

And move on to ECU...

Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...

[tzepesh]

Guilty as charged. That will change in the next iteration, because the Bug is now under re-construction. I say ugly install because I complicated things too much: initially I had TPS (although the bracket was not too nice, at least not visible), then I changed to MAP and this involved adding pipes from each manifold to the vacuum chamber on top of the shroud, then going to the MJ. I first tried urethane pipes but they were not good for heat and vacuum, so I changed to copper pipes as a quick and dirty fix.
But as I am building my type4 with MS2 Extra, I can transplant everything to this 1.6 engine if needed, and I will keep it nice and clean. I also tidied the wiring.
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, under restoration

[Chickensoup]

[UK Luke 72]

I think this is about the best solution I've found from VW Speedshop in the UK.

https://vwspeedshop.com/product.php?productid=16774&cat=507&page=1

The pulley can be changed from std vee, to power pulley or serpentine belt pulley leaving the trigger wheel and hub untouched.

_________________
2276 Beetle build https://www.thesamba.com/vw/forum/viewtopic.php?t=670744&highlight=2276+beetle+daily
2276 EFI Conversion https://www.thesamba.com/vw/forum/viewtopic.php?t=689172

[tzepesh]

Here is mine. Trigger wheel from a Ford Escort, combined with EDIS4 and Megajolt. Ugly install, but I will replace it with a set from Mario @thebubshop. On the type4 I have another set from Mario, great design, nicely hidden.

_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, under restoration

[Krochus]

One one I used the 4.6 wheel and on the other I used the cheap stamped ford wheel

_________________
1970 Turbo Baja Bug Turbaja 2165 t3/t4 Speeduino sequential EFI LS3 coil on plug ignition

1965 Chevy c30, Microsquirt turbo aluminum 5.3/nv4500

[kadub]

The Dub Shop is definitely the place to go for all things crank trigger. Mario machined the back of my CB dry sump pulley and installed a "hidden" trigger wheel for me. Easy install, zero problems.

_________________
Karl

aka Turbobaja

[oprn]

I had plans to use a bicycle sprocket with the right number of teeth, drill and mount it on my type 4 engine, make a bracket to mount the sensor... then I priced the parts from the Dub Shop... bolt on and at a price that just erased the home grown idea out of my mind. All the hard work done and proven, works flawlessly!

[Onceler]

Here’s a wheel off a 4.6 Ford I think. I was going to use it to replace the generic one I had but never got around to it. The one I did use I just scribed a x pattern, measured as best I could, then drilled. Then mounted an indicator and tapped it around until it was centered, before tightening down. Then fabbed up a mount for the sensor. Sorry no pic.’s of finished assembly. Kinda hillbilly but it ran great.

_________________
1972 Karmann Ghia

[Stripped66]

[Chickensoup]
