 Posted: Sat Mar 26, 2016 6:26 am Post subject: Re: Splitcase Gearbox help... |
 |
|
Thank you - EverettB for the late-1957 -information
The leading N seems to stay a mystery..... |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71324
Location: Phoenix 602
|
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1328
Location: Austria
|
|
| Back to top |
|
|
djfordmanjack
Samba Member
Joined: June 15, 2009
Posts: 2362
Location: Graz, Austria, Europe
|
| Posted: Tue Mar 27, 2018 12:52 pm Post subject: Re: Splitcase Gearbox help... |
|
|

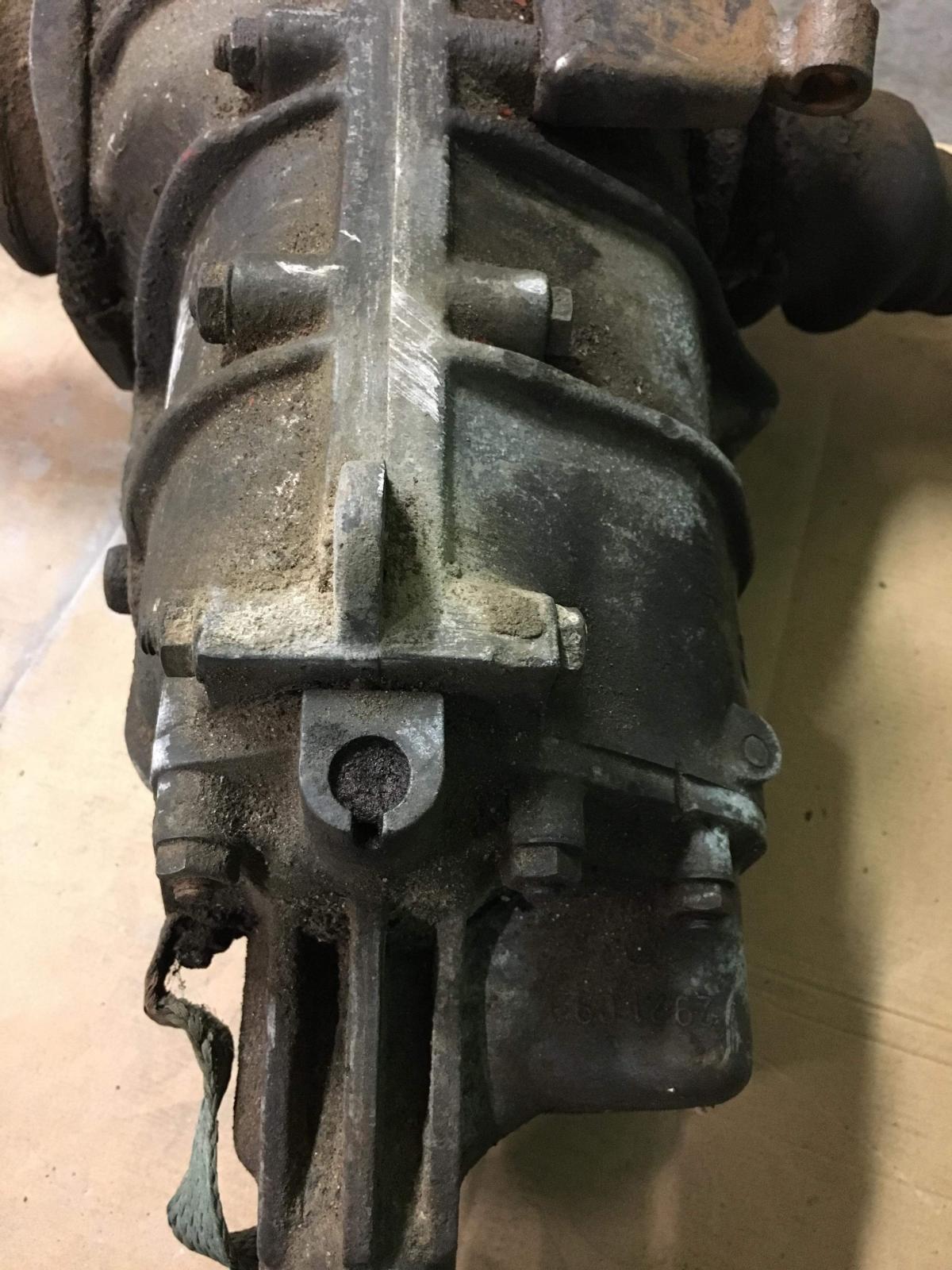

Does it have reduction gear boxes on the axles, Christian ?

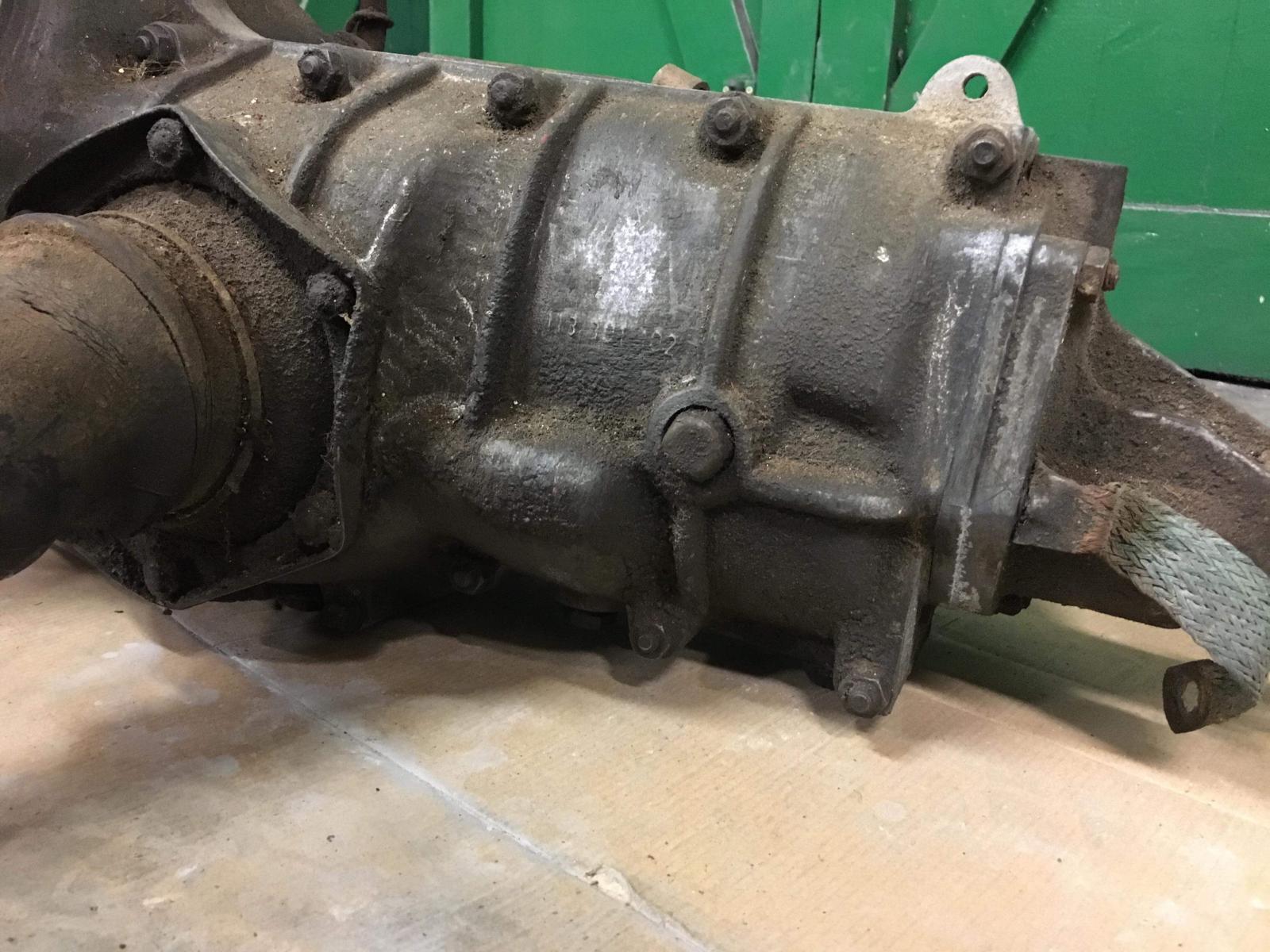

if the tri rib '29#' shift cover with the low shift rod input is original to the gear case it means that it is a 1953 to 1955 synchromesh ( except first gear) genuine Barndoor unit.
also this front (nose) cover will not fit on an early (non synchro) split bug without heavy modifications. so chances are good that the whole transmission is late BD. oil filler plug says so as well.

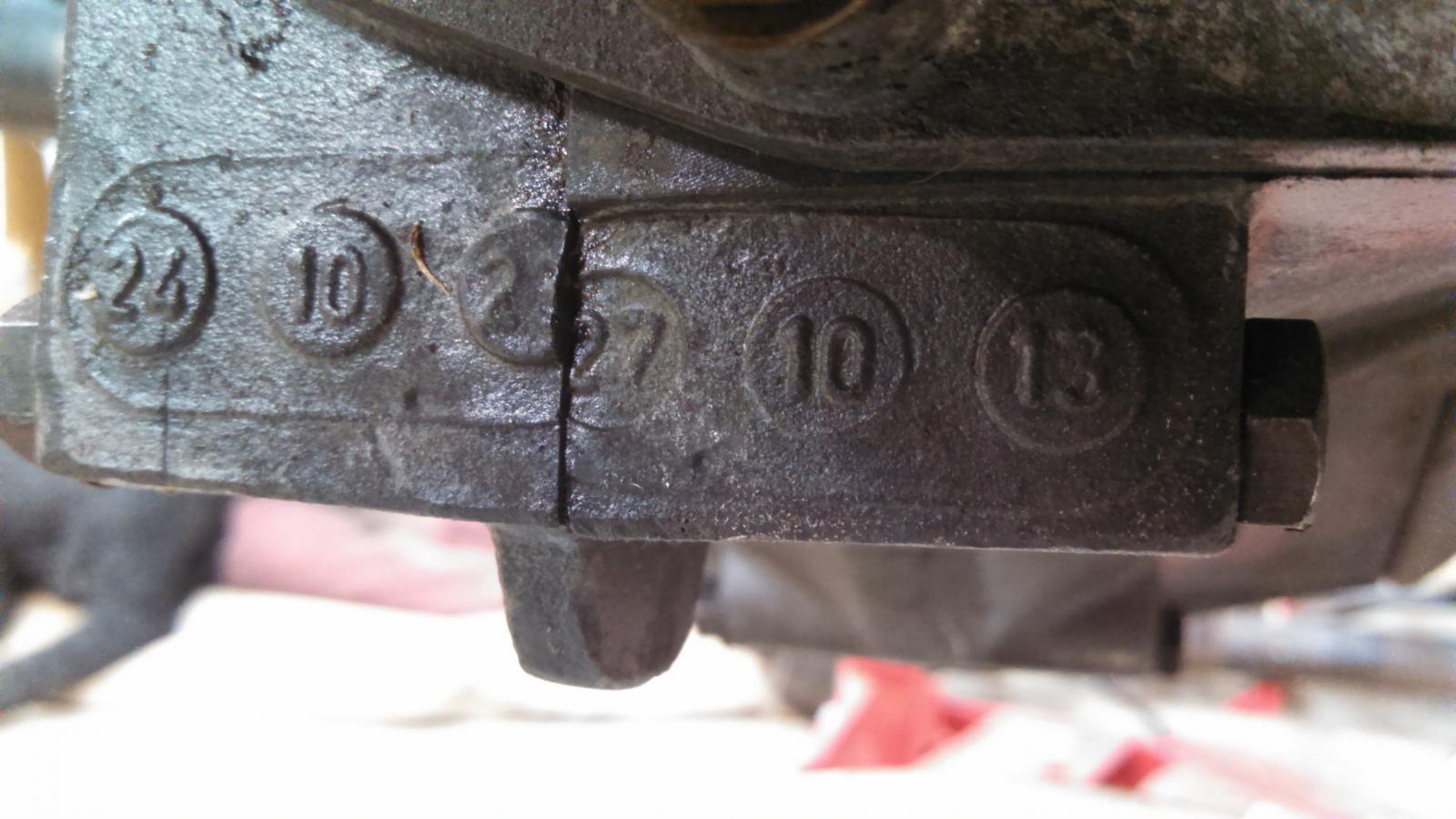

the date code 7 6 25 makes it a June 7th of 2nd workshift 1955. which of course is not a Barndoor anymore. but its still an early Wolfsburg ( post BD) date, and these 1955 buses still had the old axle and transmission cradle like a BD.
so most probably this transmission is a straight fit for your 54BD, but originally came in a very early non BD 1955 Wolfsburg bus.
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, custom color Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior |
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1328
Location: Austria
|
|
| Back to top |
|
|
Justin Horgan
Samba Member
Joined: August 29, 2020
Posts: 5
Location: Ireland
|
| Posted: Tue Jan 26, 2021 5:17 pm Post subject: Re: Splitcase Gearbox help... |
|
|
| On my split box casing it has the following stamps , 111.301.101A with the VW logo. Any idea which year this gearbox is from ? Thanks |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71324
Location: Phoenix 602
|
| Posted: Tue Jan 26, 2021 6:11 pm Post subject: Re: Splitcase Gearbox help... |
|
|
| Justin Horgan wrote: |
| On my split box casing it has the following stamps , 111.301.101A with the VW logo. Any idea which year this gearbox is from ? Thanks |
This is the part # of the casing.

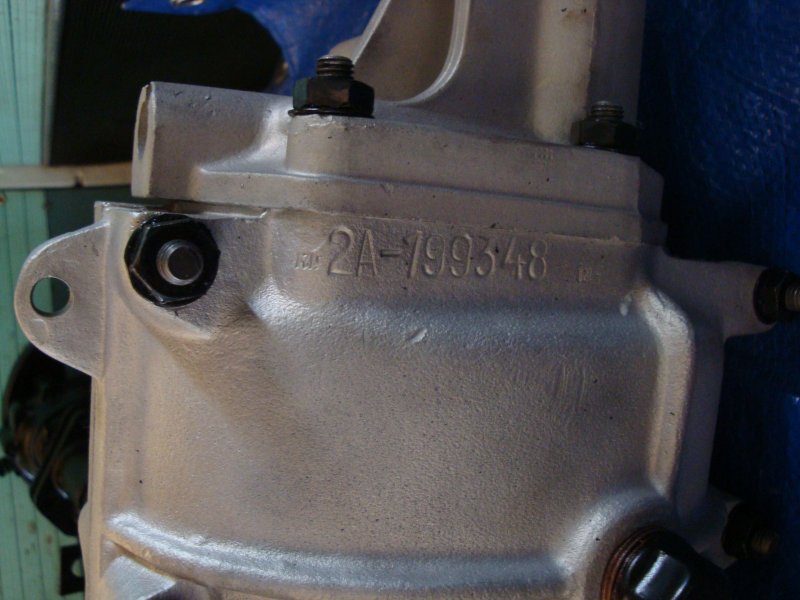

Looks for a "2A-" serial number on the side, either near the nose cone or on a raised area a little behind the nose cone but on the side.
Example from earlier in this thread:
_________________
How to Post Photos
Everett Barnes - everettb@thesamba.com | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Justin Horgan
Samba Member
Joined: August 29, 2020
Posts: 5
Location: Ireland
|
| Posted: Thu Jan 28, 2021 4:41 am Post subject: Re: Splitcase Gearbox help... |
|
|
| Is the 2A stamping on the nose cone or on the gearbox casing ? I have found the following stamps on the nose cone 21.09.2 , I assume this is a part number, thanks |
|
| Back to top |
|
|
djfordmanjack
Samba Member
Joined: June 15, 2009
Posts: 2362
Location: Graz, Austria, Europe
|
| Posted: Thu Jan 28, 2021 6:22 am Post subject: Re: Splitcase Gearbox help... |
|
|
the 21.*** is the cast part number on the nose cone.

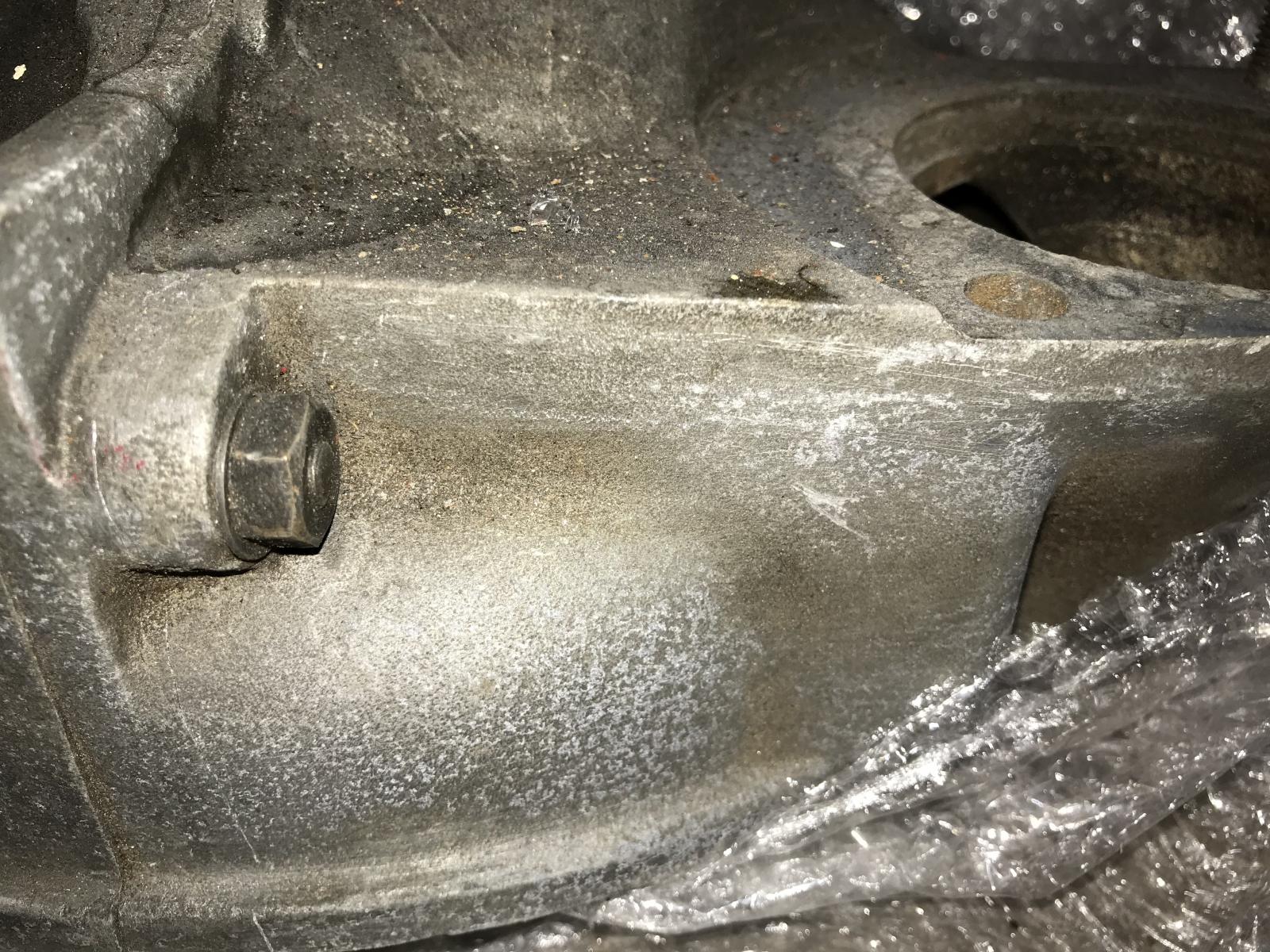

you want to look for a stamped number on the case behind the nose cone .
| Justin Horgan wrote: |
| Is the 2A stamping on the nose cone or on the gearbox casing ? I have found the following stamps on the nose cone 21.09.2 , I assume this is a part number, thanks |
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, custom color Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71324
Location: Phoenix 602
|
| Posted: Thu Jan 28, 2021 11:18 am Post subject: Re: Splitcase Gearbox help... |
|
|
| Justin Horgan wrote: |
| Is the 2A stamping on the nose cone or on the gearbox casing ? I have found the following stamps on the nose cone 21.09.2 , I assume this is a part number, thanks |
On the side of the casing.
Maybe this is a better pic, also from page 1 of this thread:
Nosecone at the top of the photo above
_________________
How to Post Photos
Everett Barnes - everettb@thesamba.com | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Justin Horgan
Samba Member
Joined: August 29, 2020
Posts: 5
Location: Ireland
|
| Posted: Thu Jan 28, 2021 5:31 pm Post subject: Re: Splitcase Gearbox help... |
|
|
| Thanks for your help gentlemen. I will try and post photos tomorrow of my gearbox . I don’t see any 2A stamping on the gearbox casing. It does come complete with its reduction boxes. |
|
| Back to top |
|
|
ron miche
Samba Member
Joined: September 27, 2014
Posts: 43
Location: Peer (Belgium)
|
| Posted: Mon Nov 11, 2024 12:38 pm Post subject: Re: Splitcase Gearbox help... |
|
|
| ulme2004 wrote: |
Hallo, I need help in determination the model-year relation
of my barn find splitcase gearbox.
It seems to fit to a 58 T2 kombi
But is it an earlier gearbox? Which model year exactly?
The number is N 2A 1458901
what means N?
Regards Andreas
|
I also have a 57 gearbox with the N2 number
I also wondering what it means.
|
|
| Back to top |
|
|
fmulon
Samba Member
Joined: August 22, 2007
Posts: 26
Location: Montpellier france
|
| Posted: Wed Mar 19, 2025 11:53 am Post subject: Re: Splitcase Gearbox help... |
|
|
hi i have a gears box BD (for sale )number 2A-3822207 someone could confirm me its january 1955 please?
many thanks |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71324
Location: Phoenix 602
|
| Posted: Wed Mar 19, 2025 4:31 pm Post subject: Re: Splitcase Gearbox help... |
|
|
| fmulon wrote: |
hi i have a gears box BD (for sale )number 2A-3822207 someone could confirm me its january 1955 please?
many thanks |
On the VIN charts on the site, the last transmission # for 12/1954 is:
2A-380 323
So I think your transmission is from 1/1955 if it has 1 less digit, maybe its:
2A-382 207
_________________
How to Post Photos
Everett Barnes - everettb@thesamba.com | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4197
Location: England
|
| Posted: Thu Mar 20, 2025 6:59 am Post subject: Re: Splitcase Gearbox help... |
|
|
_________________
-StockRocks- |
|
