PostPosted: Mon Mar 28, 2005 8:16 pm    Post subject: Reply with quote

Hey Rusty, how did the install go, hope you didnt have any problems... looking forward to the pic's
Back to top
View user's profile Send private message Classifieds Feedback
rusty57
Samba Member


Joined: October 21, 2003
Posts: 2089
Location: Bakersfield,CA.
rusty57 is offline

PostPosted: Mon Mar 28, 2005 10:10 pm    Post subject: Reply with quote

Sorry, I did not get it all done this weekend. I gave myself a cut off time of 6:30 p.m Saturday night. By that time, i had about 75% of the motor built-up. If i don't set a time to stop working on my car, i'll spend 12 hours or more in the garage. I have three little kids and a wife that look forward to spending time on the weekends with me.
So, i'll finish the built up either tomorrow or the next day, and do the bellhousing grind then too. As promised, i'll post pics. The pics i have right now are from the new engine seal/tar boards, etc... I Painted the shroud to match the car too. I'm having a little trouble with the two small pieces of tin that go below and behind the large pulley tin. The exhaust seems to be in the way. I'll post pics tomorrow or the next day. Stay tuned.
_________________
67 Ghia coupe, Retired military.
www.TagDefender.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
v8Hunter
Samba Member


Joined: March 22, 2005
Posts: 26

v8Hunter is offline

PostPosted: Tue Mar 29, 2005 3:45 am    Post subject: Reply with quote

yea need to spend time with the family or youll have to hear the shit i had to with the EX wife you spend to much time on the car blah blah blah, but she sure loved driving it. later
Back to top
View user's profile Send private message Classifieds Feedback
rusty57
Samba Member


Joined: October 21, 2003
Posts: 2089
Location: Bakersfield,CA.
rusty57 is offline

PostPosted: Sat Apr 02, 2005 5:26 pm    Post subject: Reply with quote

Well, I put in a couple hours today on the wife's car. I'm about 90% done with the engine built. I only have a few things left over after the motor is in. I also got the bell house clearancing done. I'll explain as I go.

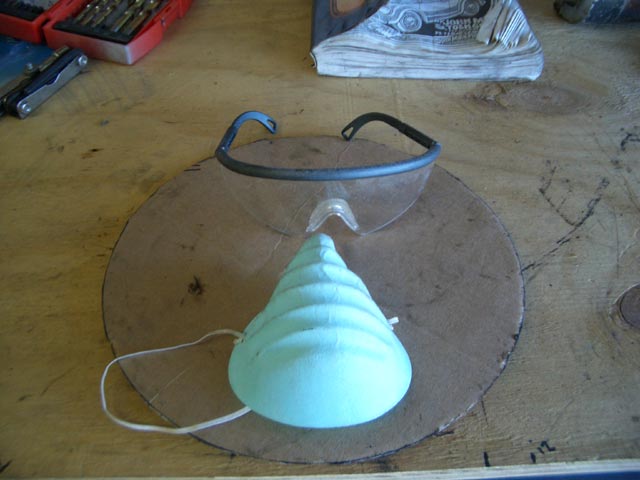

First, get yourself some eye protection and something to prevent you from inhaling the dust you're gona create during the grinding. I used these two.

Image may have been reduced in size. Click image to view fullscreen.


Next, get some sort of tool to facilitate the grinding. Sanding would take you too long, so power tools are a good idea. I like the air cut off tool the best. It makes short work of the project. Although, if you're careful, you can use the grinder. Or better yet, if you have all the time and patience in the world, use a dremel or something similar like the one pictured in the middle.

Image may have been reduced in size. Click image to view fullscreen.

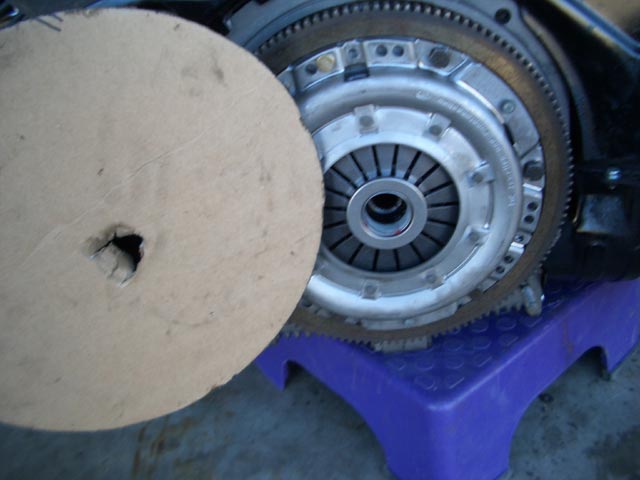

I made a template of the 12 Volt flywheel out of cardboard. This makes it a lot easier than having to keep removing the engine and taking off a little bit more at a time.

Image may have been reduced in size. Click image to view fullscreen.


This is what i do with the templete to check clearence.

Image may have been reduced in size. Click image to view fullscreen.

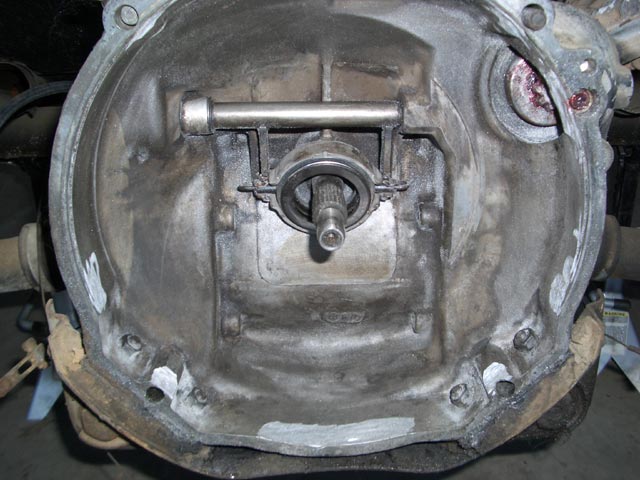

You have to grind the area around the mounting bolts, but be careful not to cut into the bolt tunnel.

Image may have been reduced in size. Click image to view fullscreen.

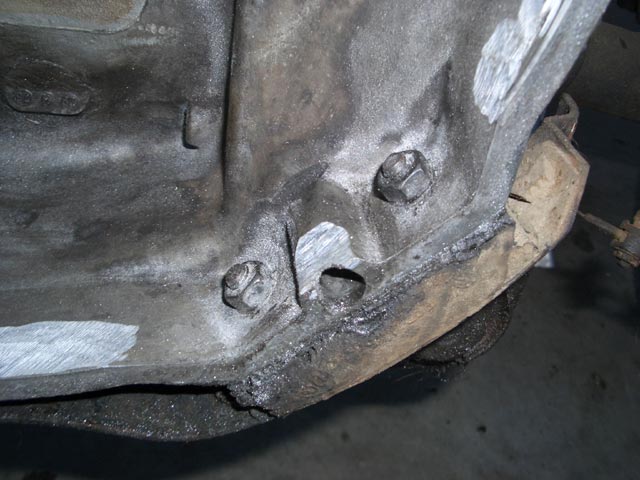

There are a few other areas to grind down besides the bolt areas. Here are a few, but check with your particular flywheel or templete.

Image may have been reduced in size. Click image to view fullscreen.


There will be a lot of dust, so remember to clean the area off. And change the throw out bearing while in there.

Image may have been reduced in size. Click image to view fullscreen.


This is as far as i got today. I forgot to install the new tar paper on the firewall, so that will be done tomorrow. I had no help today, so getting the engine in there and into the tranny shaft was a pain. Get a friend to help out with that part. I just wanted to prove to myself that i can do all of it myself. At least this time around anyway.

Image may have been reduced in size. Click image to view fullscreen.


Hope this helps. Let me know if you need any other pics or explanations. Good luck.
_________________
67 Ghia coupe, Retired military.
www.TagDefender.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Sat Apr 02, 2005 9:20 pm    Post subject: Reply with quote

grind deeper Wink
_________________
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
RIGHTHAND62
Samba Member


Joined: February 19, 2005
Posts: 37
Location: Germany
RIGHTHAND62 is offline

PostPosted: Sat Apr 02, 2005 9:52 pm    Post subject: Reply with quote

Thanks Rusty im sure that will help.
Bill why grind deeper?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rusty57
Samba Member


Joined: October 21, 2003
Posts: 2089
Location: Bakersfield,CA.
rusty57 is offline

PostPosted: Sun Apr 03, 2005 11:11 am    Post subject: Reply with quote

I did, i took another measurement of the flywheel and engine. I had to go in about 1 1/2 inch at least. The pictures are just to point out some of the places the grinding will be performed at. I wonder if the transmission mount bolts will rub the flywheel. Any idea? I'd hate to chew up a flywheel on those bolts.
_________________
67 Ghia coupe, Retired military.
www.TagDefender.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
v8Hunter
Samba Member


Joined: March 22, 2005
Posts: 26

v8Hunter is offline

PostPosted: Sun Apr 03, 2005 7:10 pm    Post subject: Reply with quote

Thanks Rusty, I dont know if those bolts will be in the way alot of folks are saying you just have to clearance the bell housing and they never mentioned any thing about the tranny mount bolts??? hopefully they are far enough back they arent in the way.
Back to top
View user's profile Send private message Classifieds Feedback
LAYGO
Samba Member


Joined: December 24, 2006
Posts: 142
Location: Cross Roads, TX (Denton)
LAYGO is offline

PostPosted: Thu Jan 25, 2007 3:09 pm    Post subject: Reply with quote

rusty57 wrote:
I had no help today, so getting the engine in there and into the tranny shaft was a pain. Get a friend to help out with that part. I just wanted to prove to myself that i can do all of it myself. At least this time around anyway.


Wow? Really? I was able to do this at 18yo (16 years ago!) by myself. I was able to drop the motor, tighten the gland nut, back up & in there with time to eat lunch without rushing. Wink Keep practicing then! Smile

Thanks for the tutorial on the grinding. I believe I'm going to have to do that soon as well.
_________________
'65 Bug (Project: purchased 01/06/07)
'67 Ghia (purchased 01/07/07)
---------------------------------------
'66 Bug (sold somtime in '93-'94)
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger Classifieds Feedback
Lee.
Samba Animal Controller


Joined: December 22, 2003
Posts: 3079
Location: Denver, CO
Lee. is offline

PostPosted: Thu Jan 25, 2007 9:18 pm    Post subject: Reply with quote

Will a 12v starter work with 180mm ring gear in a 63 swingaxle?
_________________
www.DenverWildlifeControl.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
glandnut
40 horses of Fury


Joined: February 26, 2003
Posts: 1428
Location: J-ville, FL
glandnut is offline

PostPosted: Fri Jan 26, 2007 7:51 am    Post subject: Reply with quote

Lee. wrote:
Will a 12v starter work with 180mm ring gear in a 63 swingaxle?


No, the ring gear on a 6V 180mm flywheel will not index with the gear on a 12V starter.
_________________
Looking for aluminum single port Kadron manifolds.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glandnut
40 horses of Fury


Joined: February 26, 2003
Posts: 1428
Location: J-ville, FL
glandnut is offline

PostPosted: Fri Jan 26, 2007 8:29 am    Post subject: Reply with quote

We should all post up helpful links for the 6V to 12V conversion so we can get a sticky made for this often discussed subject. Here's one

http://www.nls.net/mp/volks/htm/6v_12v.htm

http://www.1800vw.com has some helpful electrical tips as well.
_________________
Looking for aluminum single port Kadron manifolds.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rloaircool
Samba Member


Joined: January 21, 2004
Posts: 304
Location: Idaho Falls, Idaho
rloaircool is offline

PostPosted: Sat Mar 10, 2007 2:09 pm    Post subject: Reply with quote

I know this topic has been beaten to death but I have a couple more questions that I did not see covered. Yes I did search for about an hour.

I am switching my generator out for an alternator on my 1500SP.
As far as the engine itself goes, I know I have to change the generator stand. But I see the kits, and they have different backing plates and spacers. Are those needed? Also I have seen different fuel pumps for cars with alternators. My fuel pump has one fitting to the side, one going out the top, but it doesnt look like it will interfere with the alternator, its a few inches away. Do I need the special fuel pump, and alternator backing plate? Or can I just use the ones I already have? I have done this conversion before but its been almost 10 years. TIA.
_________________
59 ragtop beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rusty57
Samba Member


Joined: October 21, 2003
Posts: 2089
Location: Bakersfield,CA.
rusty57 is offline

PostPosted: Sat Mar 10, 2007 9:12 pm    Post subject: Reply with quote

Your old generator backing plate will need to be replaced. The alternator kit should come with the new one. I just did my 62 and did not change the fuel pump at all. You have to try the shims on the new alternator pulley to see how many you will need.
_________________
67 Ghia coupe, Retired military.
www.TagDefender.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
61bug
Samba Member


Joined: September 14, 2006
Posts: 109
Location: Lacey, Wa
61bug is offline

PostPosted: Sat Mar 10, 2007 10:35 pm    Post subject: Reply with quote

Has anyone tried to bolt up the motor and spin it free hand to make the flywheel fit? then take it out and clean it up.... I was told this is a good way as well??? Any thoughts?
_________________
"Evil will always prevail, because good is dumb." -- Spaceballs
Back to top
View user's profile Send private message Send e-mail AIM Address MSN Messenger Classifieds Feedback
Lee.
Samba Animal Controller


Joined: December 22, 2003
Posts: 3079
Location: Denver, CO
Lee. is offline

PostPosted: Sat Mar 10, 2007 10:45 pm    Post subject: Reply with quote

61bug wrote:
Has anyone tried to bolt up the motor and spin it free hand to make the flywheel fit? then take it out and clean it up.... I was told this is a good way as well??? Any thoughts?


You won't be able to bolt it in. It has to be ground out first.
_________________
www.DenverWildlifeControl.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
JDGas
Samba Member


Joined: June 23, 2004
Posts: 1232
Location: Escondido
JDGas is offline

PostPosted: Wed Nov 28, 2007 11:58 pm    Post subject: Reply with quote

Lee. wrote:
61bug wrote:
Has anyone tried to bolt up the motor and spin it free hand to make the flywheel fit? then take it out and clean it up.... I was told this is a good way as well??? Any thoughts?


You won't be able to bolt it in. It has to be ground out first.


He's right it won't work, even with a small amount of grinding to let the flywheel sit on the input shaft. I did that and slid a flywheel onto the shaft. I thought I could push the car back and fort in gear and use the flywheel to cut away the bell housing. The car would barely move, it locked up more often than roll free. I basically it just skid across the driveway. I'm sure if you had a couple of buddies that could rock the car back and forth, it might cut away the metal. My was only a rolling shell, too.
_________________
1959 Ragtop Beetle - sold
1958 Danish Beetle
1967 SO-42 West. - sold
1961 Sunroof Beetle - sold
1969 Sunroof Beetle
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
kevinh94
Samba Member


Joined: January 04, 2007
Posts: 268
Location: Nolanville, TX 76559
kevinh94 is offline

PostPosted: Thu Nov 29, 2007 9:12 am    Post subject: Reply with quote

rusty57 wrote:
Your old generator backing plate will need to be replaced. The alternator kit should come with the new one. I just did my 62 and did not change the fuel pump at all. You have to try the shims on the new alternator pulley to see how many you will need.


Well if you buy an alternator can you still use the squirrel cage. Of course for example my 02 Ram the alternator on it only has the shaft out the front not the rear like the generator.

So how exactly does the alternator work? Will you not be able to generate any heat? Also are you almost better off buying a conversion kit for your 6 volt generator to convert it to 12 volt? Cheaper I mean?
_________________
Low and Slow is the only way to go!!!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Lee.
Samba Animal Controller


Joined: December 22, 2003
Posts: 3079
Location: Denver, CO
Lee. is offline

PostPosted: Thu Nov 29, 2007 11:20 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Does this look to be enough?
_________________
www.DenverWildlifeControl.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
jaysen72
Samba Member


Joined: January 11, 2009
Posts: 10
Location: Twentynine Palms, CA
jaysen72 is offline

PostPosted: Mon Jan 12, 2009 8:53 pm    Post subject: Reply with quote

Wow, great article. I like the added touch of Muir's idiot guide on the shelf, much used. Did you trace out the card board from the edge of the flywheel teeth or the lip on the engine itself?
