| best place |
| under the car next to the transder the nose of the car |
|
45% |
[ 5 ] |
| under the nose of the car |
|
9% |
[ 1 ] |
| somewhere else |
|
36% |
[ 4 ] |
| behind the kamei |
|
9% |
[ 1 ] |
|
| Total Votes : 11 |
|
| Author |
Message |
MitchS046
Samba Member
Joined: March 02, 2020
Posts: 114
Location: Holland
|
 Posted: Thu Apr 30, 2020 6:59 am Post subject: best place for an remote mounted oil cooler |
 |
|
| I recently came in possession of a Gol cooling kit that I want to mount on an 1915 engine I'm going to build somewhere next year. I know they have a really tiny oil cooer but as I don't have it I want to go remote mounted. I don't really know where the best place is to put it. under the car next to the trans? behind my kamei frond lip? somewhere under the nose of the car? the car is a euro spec 1973 1303 known in the use as super beetle's. |
|
| Back to top |
|
 |
kangaboy
Samba Member
Joined: August 28, 2010
Posts: 1064
Location: St. Louis, Mo
|
| Posted: Thu Apr 30, 2020 8:42 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
Keep it in the back. You don't want all that oil line going to the front of the car and back. Placing the cooler over or next to the transaxle will do fine, if you even need it. IDK where you are located, but under normal driving conditions, a stock doghouse oil cooler will be adequate for a 1915.
_________________
-74 Standard - "CaliBug" 2084T, MS3X w/FI and Crank Fire
-76 Westy - "Gandalf"
-18 GTI SE
| skills@eurocarsplus wrote: |
that fucking thing looks like it drove through a J.C. Whitney catalogue and hit everything on the way out  |
|
|
| Back to top |
|
|
fl59bug
Samba Member
Joined: November 23, 2005
Posts: 2065
Location: North Carolina
|
| Posted: Thu Apr 30, 2020 8:43 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
| Under the package tray, above the transaxle |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79428
Location: Sneaking up behind you
|
| Posted: Thu Apr 30, 2020 8:45 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
| MitchS046 wrote: |
| I recently came in possession of a Gol cooling kit |
Don't use it, its designed for a forward facing front engine and they have been proven not to cool adequately in a rear engine car.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
MitchS046
Samba Member
Joined: March 02, 2020
Posts: 114
Location: Holland
|
| Posted: Thu Apr 30, 2020 8:46 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
| kangaboy wrote: |
| a stock doghouse oil cooler will be adequate for a 1915. |
i want to use the gol cooler just for the looks and thought to keep the temps down to go with the remote mounted cooler
_________________
Slow is smooth, smooth is fast,
~ mark divine |
|
| Back to top |
|
|
King_vw61
Samba Member
Joined: February 03, 2018
Posts: 1386
Location: Southern California
|
| Posted: Thu Apr 30, 2020 8:51 am Post subject: Re: best place for an remote mounted oil cooler |
|
|

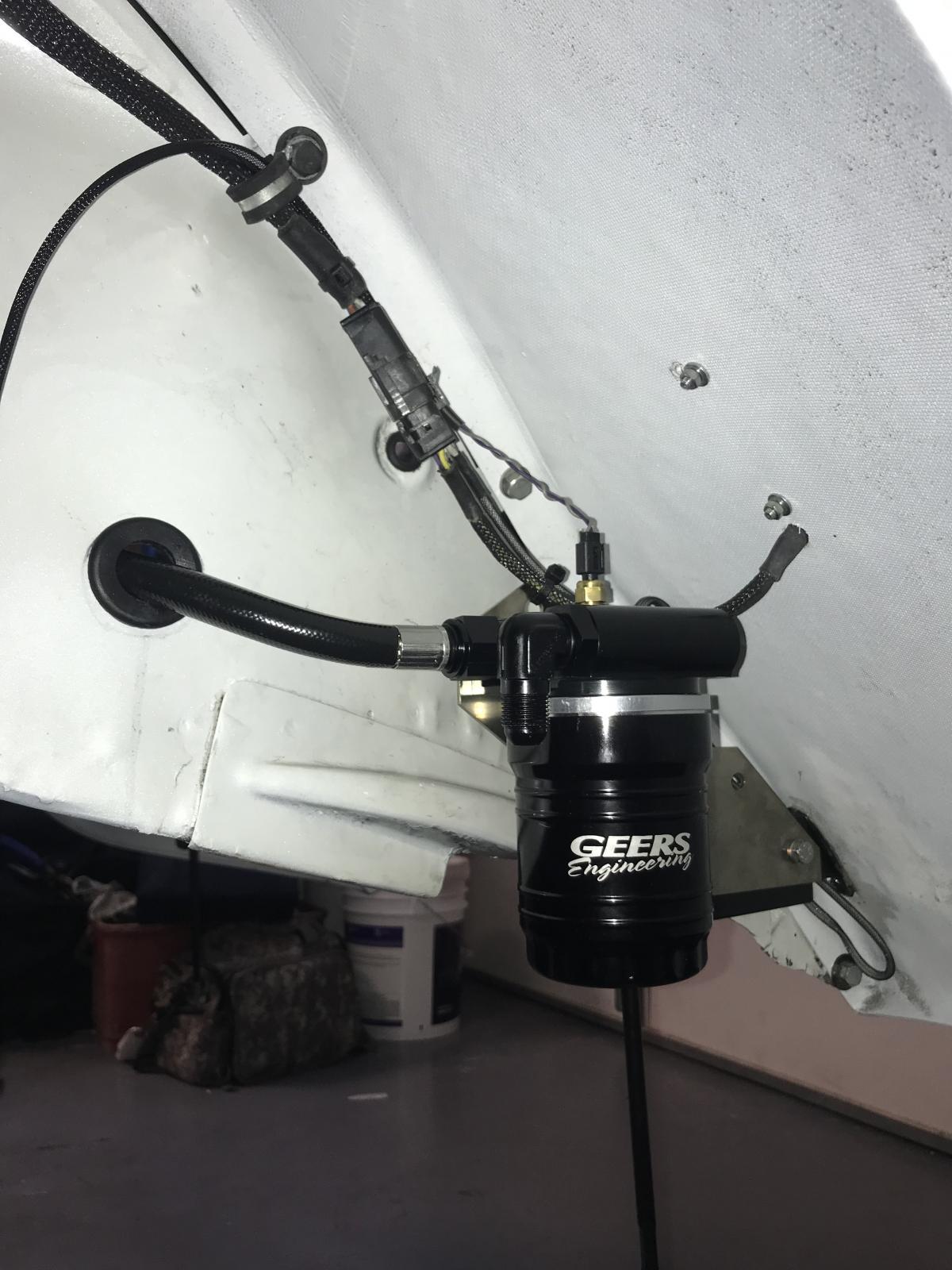

They work if you buy the right one and keep the lines short. I put mine drivers side under package tray. Filter under driver fender. Look up CBR dual pass cooler.
_________________
1961 Ragtop, Autocraft 2783cc for street/strip 10k miles and counting...230.84 HP to the wheels thru Muffler 13.4 to 1 on E85
https://www.instagram.com/king_vw61/?hl=en |
|
| Back to top |
|
|
MitchS046
Samba Member
Joined: March 02, 2020
Posts: 114
Location: Holland
|
| Posted: Thu Apr 30, 2020 9:52 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
| ivkings4 wrote: |
They work if you buy the right one and keep the lines short. I put mine drivers side under package tray. Filter under driver fender. Look up CBR dual pass cooler.
|
did you do all plumbing in AN lines? isn't that a bit overkill and expensive?
_________________
Slow is smooth, smooth is fast,
~ mark divine
Last edited by MitchS046 on Thu Apr 30, 2020 10:08 am; edited 1 time in total |
|
| Back to top |
|
|
vandenabeele andries
Samba Member
Joined: June 02, 2008
Posts: 105
Location: Belgium
|
| Posted: Thu Apr 30, 2020 10:07 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
Above the tranny. The shorter your lines the better.
Best regards |
|
| Back to top |
|
|
MitchS046
Samba Member
Joined: March 02, 2020
Posts: 114
Location: Holland
|
| Posted: Thu Apr 30, 2020 10:09 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
| vandenabeele andries wrote: |
Above the tranny. The shorter your lines the better.
Best regards |
hey Andries hoe bedoel je boven de versnellingsbak? is daar überhaupt plek voor?
_________________
Slow is smooth, smooth is fast,
~ mark divine |
|
| Back to top |
|
|
rens040
Samba Member
Joined: August 10, 2015
Posts: 80
Location: Netherlands
|
| Posted: Thu Apr 30, 2020 10:32 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
Does it get enough cool air above the transmission?
What is the downside of longer lines but more cool air on let’s say a front mounted oil cooler? |
|
| Back to top |
|
|
MitchS046
Samba Member
Joined: March 02, 2020
Posts: 114
Location: Holland
|
| Posted: Thu Apr 30, 2020 10:35 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
| rens040 wrote: |
Does it get enough cool air above the transmission?
What is the downside of longer lines but more cool air on let’s say a front mounted oil cooler? |
that is what I also was wondering as the 911 from that era also had their oil coolers up frond also you have a lot more oil in your system
_________________
Slow is smooth, smooth is fast,
~ mark divine |
|
| Back to top |
|
|
King_vw61
Samba Member
Joined: February 03, 2018
Posts: 1386
Location: Southern California
|
| Posted: Thu Apr 30, 2020 11:23 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
Long lines = dry starts. The lines are about 40 each. Well worth the piece of mind. How much is a new engine when your oil line bursts??
_________________
1961 Ragtop, Autocraft 2783cc for street/strip 10k miles and counting...230.84 HP to the wheels thru Muffler 13.4 to 1 on E85
https://www.instagram.com/king_vw61/?hl=en |
|
| Back to top |
|
|
MitchS046
Samba Member
Joined: March 02, 2020
Posts: 114
Location: Holland
|
| Posted: Thu Apr 30, 2020 11:25 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
| ivkings4 wrote: |
| Long lines = dry starts. |
but why did almost all rear engined cars from that era have oil coolers in the frond? and couldn't that be fixed with an electric oil pump that primes the oil system just before you start the engine like an electric fuel pump?
_________________
Slow is smooth, smooth is fast,
~ mark divine |
|
| Back to top |
|
|
rens040
Samba Member
Joined: August 10, 2015
Posts: 80
Location: Netherlands
|
| Posted: Thu Apr 30, 2020 11:47 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
Dont see the dry start either.
The thermostate and filter can be located close to the engine.
So When cold you have a short circuit.
Only when warmed up oil will flow to the cooler.
Well not entirely as most thermostats let some flow to the cooler even when cold... |
|
| Back to top |
|
|
TinCanFab
Samba Member
Joined: April 04, 2006
Posts: 2743
Location: Waterford, California
|
| Posted: Thu Apr 30, 2020 11:47 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
| MitchS046 wrote: |
| ivkings4 wrote: |
They work if you buy the right one and keep the lines short. I put mine drivers side under package tray. Filter under driver fender. Look up CBR dual pass cooler.
|
did you do all plumbing in AN lines? isn't that a bit overkill and expensive? |
AN fittings have advantages and dont always have to be expensive. You can use cheap brass pushlock fittings w/rubber hose, anodized aluminum pushlock, braided hose with screw together aluminum fittings, or fully crimped Teflon hose like in his pics. Viking is running one of the most expensive type 1 NA race motors you can build that will fit into a street car. In his case, the cost is justified.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood
They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092 |
|
| Back to top |
|
|
slalombuggy
Samba Member
Joined: July 17, 2010
Posts: 9329
Location: Canada
|
| Posted: Thu Apr 30, 2020 1:17 pm Post subject: Re: best place for an remote mounted oil cooler |
|
|
You guys referencing 911s fail to take into account that system was a drysump system that held 11-14 liters of oil.
I spent over $500 on AN fittings on my turbo engine. Cheap insurance. |
|
| Back to top |
|
|
Nightshift
Samba Member
Joined: December 31, 2019
Posts: 222
|
| Posted: Thu Apr 30, 2020 1:28 pm Post subject: Re: best place for an remote mounted oil cooler |
|
|
| MitchS046 wrote: |
| I recently came in possession of a Gol cooling kit that I want to mount on an 1915 engine I'm going to build somewhere next year. I know they have a really tiny oil cooer but as I don't have it I want to go remote mounted. I don't really know where the best place is to put it. under the car next to the trans? behind my kamei frond lip? somewhere under the nose of the car? the car is a euro spec 1973 1303 known in the use as super beetle's. |
It is just not needed in your climate or with your engine. Just because you have it does not mean you need to use it. I actually removed my remote cooler. |
|
| Back to top |
|
|
Vioflita1286
Samba Member
Joined: April 20, 2020
Posts: 6
Location: Lima Peru
|
| Posted: Thu Apr 30, 2020 9:40 pm Post subject: Re: best place for an remote mounted oil cooler |
|
|
| MitchS046 wrote: |
| I recently came in possession of a Gol cooling kit that I want to mount on an 1915 engine I'm going to build somewhere next year. I know they have a really tiny oil cooer but as I don't have it I want to go remote mounted. I don't really know where the best place is to put it. under the car next to the trans? behind my kamei frond lip? somewhere under the nose of the car? the car is a euro spec 1973 1303 known in the use as super beetle's. |
This is where I put it. What do you think? |
|
| Back to top |
|
|
wheel607
Samba Member
Joined: May 30, 2004
Posts: 1878
|
| Posted: Fri May 01, 2020 1:48 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
[quote="slalombuggy"]You guys referencing 911s fail to take into account that system was a drysump system that held 11-14 liters of oil.
I spent over $500 on AN fittings on my turbo engine. Cheap insurance.[/quote
They have no idea that they are talking about a dry sump system that holds 12 quarts of oil. Apples and oranges. |
|
| Back to top |
|
|
King_vw61
Samba Member
Joined: February 03, 2018
Posts: 1386
Location: Southern California
|
| Posted: Fri May 01, 2020 4:40 am Post subject: Re: best place for an remote mounted oil cooler |
|
|
That is a remote filter... where is the cooler? Or am I missing something? Why the extra loop in the lines?
_________________
1961 Ragtop, Autocraft 2783cc for street/strip 10k miles and counting...230.84 HP to the wheels thru Muffler 13.4 to 1 on E85
https://www.instagram.com/king_vw61/?hl=en |
|
| Back to top |
|
|
|
