Type-3 breather disassembly?
Page: 1, 2, 3  Next
Forum Index -> Type 3 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10971
Location: Black Forest, CO
Max Welton is offline

PostPosted: Thu Feb 25, 2010 8:11 pm    Post subject: Type-3 breather disassembly? Reply with quote

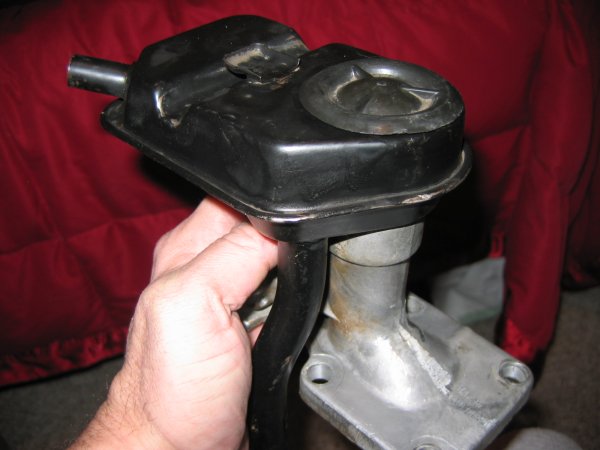

I am blasting and painting all the tin going onto my engine before assembly.

How do I take this apart? I really don't want to break or damage that round plastic cap looking thing.

Image may have been reduced in size. Click image to view fullscreen.


Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
FASTBACKDON
The other insensitive jerk like Neil


Joined: October 08, 2004
Posts: 3592
Location: TORRANCE CALIF
FASTBACKDON is offline

PostPosted: Thu Feb 25, 2010 8:52 pm    Post subject: Reply with quote

Pull the plastic cap off then remove the screen/mesh then send me your address I will loan you the tool that you will need to unscrew the top from the stand. PM me
_________________
FUCK CANCER FUCK CANCER FUCK CANCER!!
Mom 25 months of standing up to Cancer R.I.P I miss you so much.

Buy my best friends stuff
http://www.thesamba.com/vw/classifieds/search.php?username=56TIMOTEO

(21:10:42) Jennepher: Russell is our proudest achievment. I feel like Samba created him from a little nugget of crap into a full blown adult.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10971
Location: Black Forest, CO
Max Welton is offline

PostPosted: Thu Feb 25, 2010 9:05 pm    Post subject: Reply with quote

Wow, thanks Don!

Does the cap come straight off or does it need to turn? I tried prying lightly with a screw-driver, but I didn't want to break the cap.

Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
FASTBACKDON
The other insensitive jerk like Neil


Joined: October 08, 2004
Posts: 3592
Location: TORRANCE CALIF
FASTBACKDON is offline

PostPosted: Thu Feb 25, 2010 9:08 pm    Post subject: Reply with quote

Max Welton wrote:
Wow, thanks Don!

Does the cap come straight off or does it need to turn? I tried prying lightly with a screw-driver, but I didn't want to break the cap.

Max

You have a pm
_________________
FUCK CANCER FUCK CANCER FUCK CANCER!!
Mom 25 months of standing up to Cancer R.I.P I miss you so much.

Buy my best friends stuff
http://www.thesamba.com/vw/classifieds/search.php?username=56TIMOTEO

(21:10:42) Jennepher: Russell is our proudest achievment. I feel like Samba created him from a little nugget of crap into a full blown adult.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TommyBoyGomes
Samba Member


Joined: May 28, 2005
Posts: 1535
Location: L.A./Dublin, Irl
TommyBoyGomes is offline

PostPosted: Fri Feb 26, 2010 2:45 pm    Post subject: Reply with quote

I'd actually like to know the answer to this too cuz I'm almost at that point in my rebuild too.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 23281
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Fri Feb 26, 2010 2:55 pm    Post subject: Reply with quote

TommyBoyGomes wrote:
I'd actually like to know the answer to this too cuz I'm almost at that point in my rebuild too.


A 1 inch internal pipe wrench.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
alex608
Fat Chick T3s Rule


Joined: April 04, 2004
Posts: 291
Location: Santa Rosa, Kalifornien
alex608 is offline

PostPosted: Fri Feb 26, 2010 6:25 pm    Post subject: Reply with quote

i just use a piece of 12g sheet metal sheared to the right width about 4"long. tighten a cresent to it and go to town.
_________________
Alex Sundberg

'71 FI square...The daily driver


" At times It is better for one to keep his mouth shut and be thought of as a fool...

Than to open his mouth and erase all doubts..."
Back to top
View user's profile Send private message Gallery Classifieds Feedback
FASTBACKDON
The other insensitive jerk like Neil


Joined: October 08, 2004
Posts: 3592
Location: TORRANCE CALIF
FASTBACKDON is offline

PostPosted: Fri Feb 26, 2010 6:45 pm    Post subject: Reply with quote

TommyBoyGomes wrote:
I'd actually like to know the answer to this too cuz I'm almost at that point in my rebuild too.

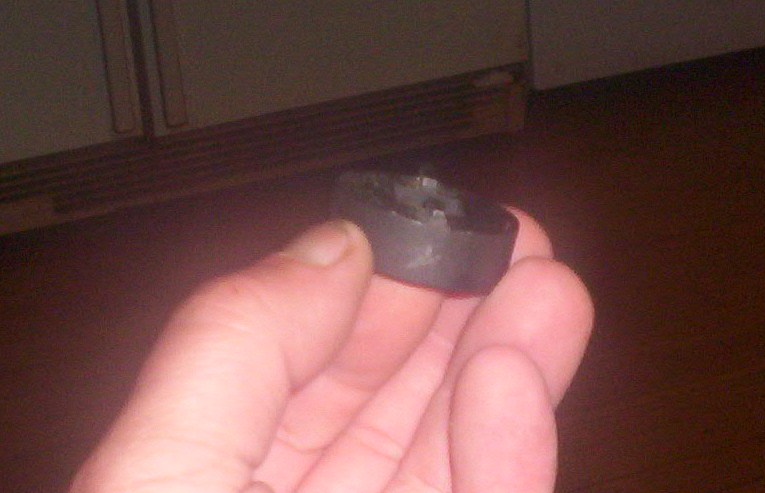

Here it is
Image may have been reduced in size. Click image to view fullscreen.

_________________
FUCK CANCER FUCK CANCER FUCK CANCER!!
Mom 25 months of standing up to Cancer R.I.P I miss you so much.

Buy my best friends stuff
http://www.thesamba.com/vw/classifieds/search.php?username=56TIMOTEO

(21:10:42) Jennepher: Russell is our proudest achievment. I feel like Samba created him from a little nugget of crap into a full blown adult.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Fri Feb 26, 2010 7:08 pm    Post subject: Reply with quote

I have a 1" pipe easy out that I use to get them apart.
Putting them back together is another thing.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10971
Location: Black Forest, CO
Max Welton is offline

PostPosted: Fri Feb 26, 2010 7:42 pm    Post subject: Reply with quote

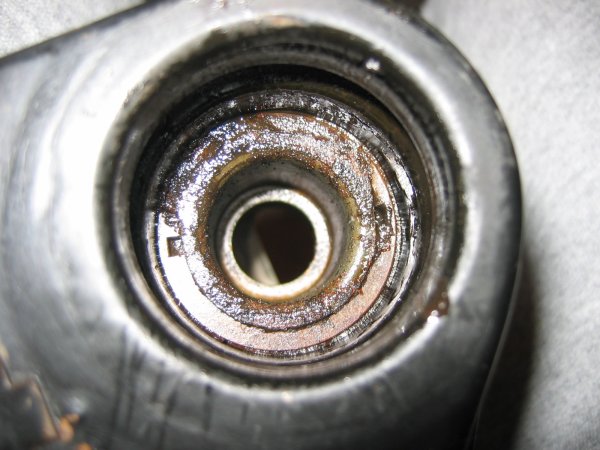

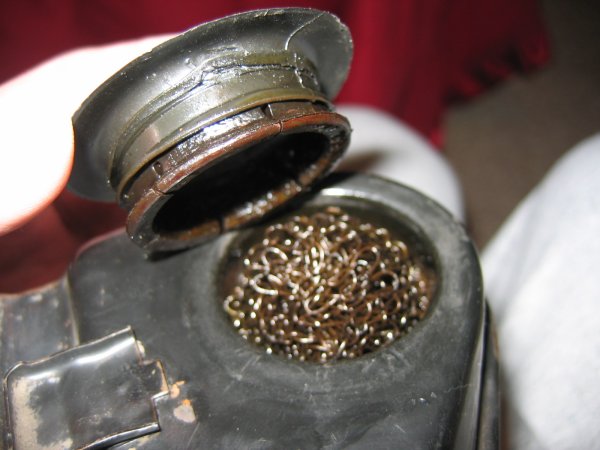

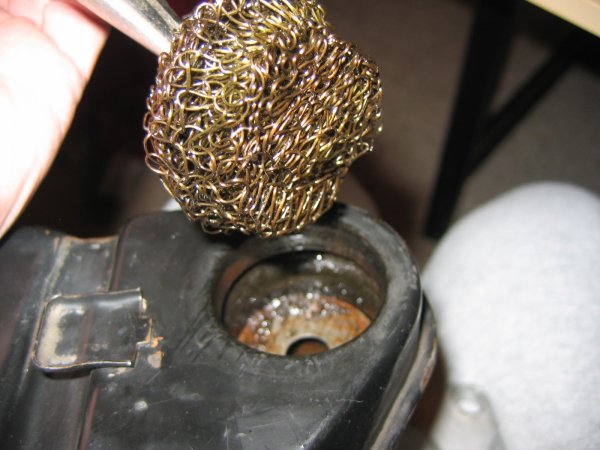

Ok, a little prying with a small screwdriver and the cap came up.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Fri Feb 26, 2010 7:47 pm    Post subject: Reply with quote

Max Welton wrote:
Ok, a little prying with a small screwdriver and the cap came up.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Max


You still have a center sleeve to take out.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
FASTBACKDON
The other insensitive jerk like Neil


Joined: October 08, 2004
Posts: 3592
Location: TORRANCE CALIF
FASTBACKDON is offline

PostPosted: Fri Feb 26, 2010 7:51 pm    Post subject: Reply with quote

Russ Wolfe wrote:
Max Welton wrote:
Ok, a little prying with a small screwdriver and the cap came up.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Max


You still have a center sleeve to take out.

And the tool to remove that was sent today. Should be there Monday I hope.
_________________
FUCK CANCER FUCK CANCER FUCK CANCER!!
Mom 25 months of standing up to Cancer R.I.P I miss you so much.

Buy my best friends stuff
http://www.thesamba.com/vw/classifieds/search.php?username=56TIMOTEO

(21:10:42) Jennepher: Russell is our proudest achievment. I feel like Samba created him from a little nugget of crap into a full blown adult.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10971
Location: Black Forest, CO
Max Welton is offline

PostPosted: Fri Feb 26, 2010 8:13 pm    Post subject: Reply with quote

That sleeve is in there pretty good. Needle-nose pliers aren't moving it.

Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71341
Location: Phoenix 602
EverettB is offline

PostPosted: Fri Feb 26, 2010 11:39 pm    Post subject: Reply with quote

Russ Wolfe wrote:
I have a 1" pipe easy out that I use to get them apart.
Putting them back together is another thing.

Internal pipe wrench is all I use.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Sat Feb 27, 2010 11:10 am    Post subject: Reply with quote

I am sniping an internal pipe wrench right now.
Seems everyone that has them for sale wants to sell a full set, and they want big bucks.
Sears gets like $23 for a single 1", and then another $9 shipping. My local Sears store does not sell them.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
MOCHABILL
Samba Member


Joined: June 12, 2008
Posts: 584
Location: BY THE BAY
MOCHABILL is offline

PostPosted: Sat Feb 27, 2010 11:23 am    Post subject: Reply with quote

I've seen them in the plumbing section at a local Loews,didn't check the price. Probably available at Ace or Home depot as well.

Looking for Spring weather!
_________________
'71 Squareback FI

'07 Passat wagon 2.0

'03 Ranger 4door 4.0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71341
Location: Phoenix 602
EverettB is offline

PostPosted: Sat Feb 27, 2010 11:45 am    Post subject: Reply with quote

Crap, I didn't realize they were that much.

I bought one from another VW guy at a swap meet for $1.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Sat Feb 27, 2010 5:09 pm    Post subject: Reply with quote

EverettB wrote:
Crap, I didn't realize they were that much.

I bought one from another VW guy at a swap meet for $1.


I will give you $5 and pay the shipping.

That is a better return than you get at a bank.
Rolling Eyes Twisted Evil
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10971
Location: Black Forest, CO
Max Welton is offline

PostPosted: Tue Mar 09, 2010 3:59 pm    Post subject: Reply with quote

OK, is there some trick to getting that sleeve out? I can get on it with needle-nose pliers, but it ain't a-movin'.

Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Tue Mar 09, 2010 4:02 pm    Post subject: Reply with quote

Same type of snap ring pliers that you take the snap ring off the crankshaft.
Duckbills are what some people call them.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
