 Posted: Tue Nov 10, 2020 2:04 am Post subject: Correct parts for April 1958 split bus |
 |
|
Hello,
I have a 234 VW Kombi built in April 1958.
I am looking to buy the following parts but I'm not sure for their codes/serial numbers. A lot of different info found on internet. That's why I'm asking you guys to help. Thanks in advance!
- complete taillights;
- complete front lights;
- 3rd bench/ 3rd row of seats.
Thank you!
Matei |
|
| Back to top |
|
 |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71866
Location: Phoenix 602
|
| Posted: Tue Nov 10, 2020 9:56 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
| Quote: |
| - complete taillights; |
The taillights should be screw-terminal buckets in the rear.
Information on the Lenses can be found in this thread:
https://www.thesamba.com/vw/forum/viewtopic.php?t=200834
If you want the exact correct lenses, they should say K3235 on them.
| Quote: |
| - complete front lights; |
This is a European Bus, correct?
I don't know myself
| Quote: |
| - 3rd bench/ 3rd row of seats. |
The rear seat frame is the same from 1958-1963 but 1964-66 will fit and look correct too and it's very difficult to see any difference.
The original upholstery color for all the seats would be Black
Middle and rear for another '58 Kombi
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
mdege
Samba Member
Joined: January 16, 2018
Posts: 1102
Location: Niederkruechten, Germany
|
|
| Back to top |
|
|
EmpiGT
Samba Member
Joined: January 27, 2005
Posts: 2597
|
| Posted: Tue Nov 10, 2020 2:38 pm Post subject: Re: Correct parts for April 1958 split bus |
|
|
| Being a semaphore bus 1958 shouldn't it still have a brake light engine lid and the euro flat single filament tail lights? Not the half dollars like those posted above. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71866
Location: Phoenix 602
|
| Posted: Tue Nov 10, 2020 6:10 pm Post subject: Re: Correct parts for April 1958 split bus |
|
|
| EmpiGT wrote: |
| Being a semaphore bus 1958 shouldn't it still have a brake light engine lid and the euro flat single filament tail lights? Not the half dollars like those posted above. |
Ooops, that is a good point.
Euro Buses had center brake lights through April, 1958.
I'm not sure exaqctly when it changed though.
matei - What's your VIN #?
Example of a '57 Truck:
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
matei
Samba Member
Joined: August 24, 2016
Posts: 56
Location: Romania
|
| Posted: Wed Nov 11, 2020 4:57 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
| EverettB wrote: |
| EmpiGT wrote: |
| Being a semaphore bus 1958 shouldn't it still have a brake light engine lid and the euro flat single filament tail lights? Not the half dollars like those posted above. |
Ooops, that is a good point.
Euro Buses had center brake lights through April, 1958.
I'm not sure exaqctly when it changed though.
matei - What's your VIN #?
Example of a '57 Truck:
|
Hello! It is built on 11 April 1958. |
|
| Back to top |
|
|
Okie Adam
Samba Member
Joined: November 07, 2003
Posts: 1348
Location: OOOOOOOOOOOOOOOOOklahoma
|
| Posted: Wed Nov 11, 2020 5:56 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
Couldn't it also be silver dollar tail lights with a flat deck lid and semaphores with the tail lights working as marker lights and brake light and the semaphores for the turn signal? I thought the after the early seamphore tail light the later 58 through end of semaphores on buses were set up like that.
_________________
Oil Capital Air Cooled
55 Wolfsburg Kombi
60 Walkthrough Kombi
62 Single Cab
66 21window
67 so42
76 Westy
64 Karmann Ghia |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71866
Location: Phoenix 602
|
| Posted: Wed Nov 11, 2020 9:44 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
| matei wrote: |
| Hello! It is built on 11 April 1958. |
I believe the change was near the end of April but I am not sure.
Anyone?
Does your Kombi have a center brake light decklid?
If Yes, you would have the European single filament taillights and a center brake light decklid like the truck above.

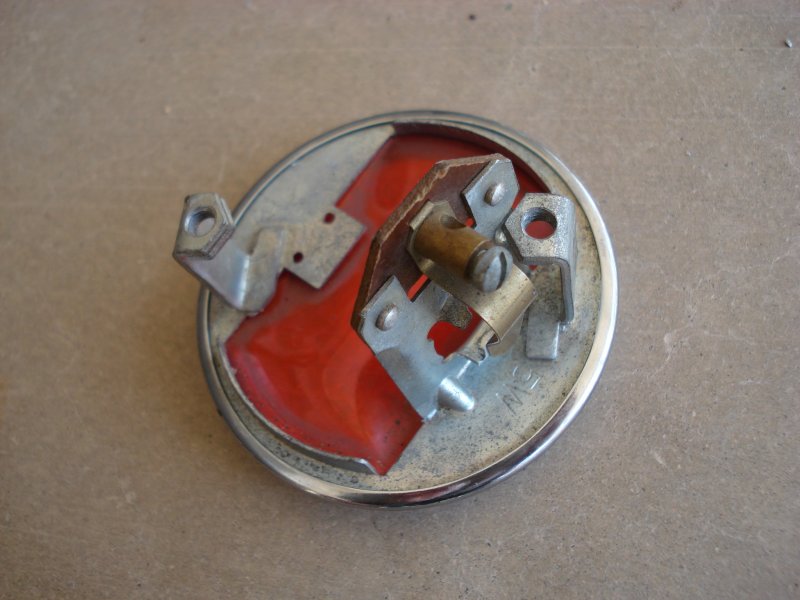

These taillights
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
matei
Samba Member
Joined: August 24, 2016
Posts: 56
Location: Romania
|
| Posted: Thu Nov 12, 2020 12:35 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
So many information and details! That's a real hunt for finding the truth.  |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71866
Location: Phoenix 602
|
| Posted: Thu Nov 12, 2020 10:18 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
You can also look at the holes for your taillights, if they are not hacked up.
A plain hole would be the European flat taillights.
The later "dollar" taillights have either screw holes or slots for the top and bottom chrome trim screws to pass through the metal corners.
Examples:

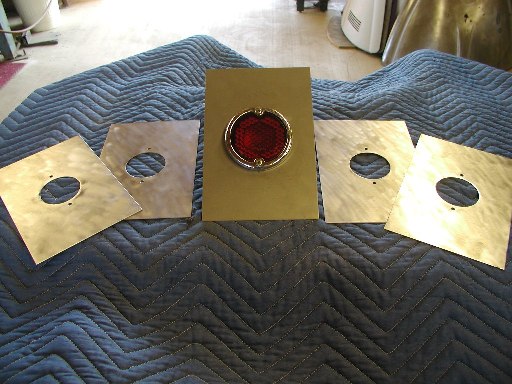

Replacement holes with screw holes, used on the Buses with the "dollar" taillights first:
Later Buses with dollar taillights had slots:
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
matei
Samba Member
Joined: August 24, 2016
Posts: 56
Location: Romania
|
| Posted: Tue Dec 08, 2020 8:22 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
| EverettB wrote: |
| matei wrote: |
| Hello! It is built on 11 April 1958. |
I believe the change was near the end of April but I am not sure.
Anyone?
Does your Kombi have a center brake light decklid?
If Yes, you would have the European single filament taillights and a center brake light decklid like the truck above.
These taillights
|
So this model could be the correct one giving the production date (11.04.1958)? Thanks! |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71866
Location: Phoenix 602
|
|
| Back to top |
|
|
mandraks
Samba Member
Joined: November 28, 2004
Posts: 7124
Location: Lawrenceville, Ga
|
| Posted: Tue Dec 08, 2020 1:47 pm Post subject: Re: Correct parts for April 1958 split bus |
|
|
| EverettB wrote: |
| Does your Bus have a center brake light decklid? |
as in: does your decklid look like this?
with cutout for center brake light
or like that:
without the cutout for the center brake light?
_________________
regards
Uli
----------------------------------------
'53 3-Fold Oval, L35 Metallic Blue, looking for a narrow hatch panel |
|
| Back to top |
|
|
matei
Samba Member
Joined: August 24, 2016
Posts: 56
Location: Romania
|
| Posted: Wed Jan 06, 2021 2:25 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
| mandraks wrote: |
| EverettB wrote: |
| Does your Bus have a center brake light decklid? |
as in: does your decklid look like this?
with cutout for center brake light
or like that:
without the cutout for the center brake light? |
Hello! Happy New Year! The second one. It has only one cut. |
|
| Back to top |
|
|
earlywesty
Samba Member
Joined: May 03, 2004
Posts: 2381
Location: In the woods, Ontario
|
| Posted: Wed Jan 06, 2021 5:18 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
| Sounds like the larger dollar taillights. You should be able to tell by the wiring as well. If early lights, you will have only one wire to each taillight and 2 to the decklid, one for brake light and one for licence light. |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12658
|
| Posted: Wed Jan 06, 2021 9:22 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
| buseric wrote: |
| Sounds like the larger dollar taillights. You should be able to tell by the wiring as well. If early lights, you will have only one wire to each taillight and 2 to the decklid, one for brake light and one for licence light. |
x2
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
matei
Samba Member
Joined: August 24, 2016
Posts: 56
Location: Romania
|
| Posted: Fri Feb 26, 2021 5:03 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
Hello! I have no wiring system. It was removed completely by the former owner. My car is made on 11 of April 1958 and I cannot yet tell what are the correct taillights for it.  |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71866
Location: Phoenix 602
|
|
| Back to top |
|
|
Okie Adam
Samba Member
Joined: November 07, 2003
Posts: 1348
Location: OOOOOOOOOOOOOOOOOklahoma
|
| Posted: Fri Feb 26, 2021 10:54 am Post subject: Re: Correct parts for April 1958 split bus |
|
|
some pictures of your bus would really help people answer your questions
_________________
Oil Capital Air Cooled
55 Wolfsburg Kombi
60 Walkthrough Kombi
62 Single Cab
66 21window
67 so42
76 Westy
64 Karmann Ghia |
|
| Back to top |
|
|
otahuhu
Samba Member
Joined: July 15, 2007
Posts: 565
|
| Posted: Fri Feb 26, 2021 5:59 pm Post subject: Re: Correct parts for April 1958 split bus |
|
|
If its the 58 bus in your gallery pics? It looks as though the engine lid has been changed, blinkers added up front and rear lights hacked. You can see were your semaphore slots have been covered. According to the 63 VW parts manual the stop light and the taillight changed at chassis number 351735 They were replaced with the combination tail/stop light. Originally your indicator switch on the steering column would have only had 3 wires for semaphores.
Looking at the pics you need the Euro style taillight, that attaches from inside the engine bay (see Everetts post above^^^) A Center brake light and correct Decklid, Semaphore indicators and correct switch.
You should be able to find all those parts pretty easily in Europe. |
|
