 Posted: Thu Dec 15, 2011 3:28 pm Post subject: 1971 VW Bus Turn Signals |
 |
|
Hi All,
My 1971 Transporter turn signals are not working. The light on the dash comes on green when either side is turned on but none of the lights work and it does not flash. Since NONE of them ( L,R, Front or Rear ) are working I am not inclined to think its a bulb situation. But what do I know ? I am a newbie. Where should I start ? Help before I get sideswiped. LOL. Oh yrah and they were working so this is new.
Ken
Portland |
|
| Back to top |
|
 |
Amskeptic
Samba Member
Joined: October 18, 2002
Posts: 8586
Location: All Across The Country
|
| Posted: Thu Dec 15, 2011 3:31 pm Post subject: Re: 1971 VW Bus Turn Signals |
|
|
| vairken wrote: |
Hi All,
My 1971 Transporter turn signals are not working. The light on the dash comes on green when either side is turned on but none of the lights work and it does not flash. Since NONE of them ( L,R, Front or Rear ) are working I am not inclined to think its a bulb situation. But what do I know ? I am a newbie. Where should I start ? Help before I get sideswiped. LOL. Oh yrah and they were working so this is new.
Ken
Portland |
Do your hazard flashers work?
Colin
_________________
www.itinerant-air-cooled.com
www.facebook.com/groups/324780910972038/ |
|
| Back to top |
|
|
vairken
Samba Member
Joined: December 03, 2008
Posts: 79
Location: Portland, Oregon
|
| Posted: Thu Dec 15, 2011 3:41 pm Post subject: |
|
|
| Thanks Colin. Just checked and no they do not work . Pull out the knob and nothing |
|
| Back to top |
|
|
Amskeptic
Samba Member
Joined: October 18, 2002
Posts: 8586
Location: All Across The Country
|
| Posted: Thu Dec 15, 2011 3:46 pm Post subject: |
|
|
| vairken wrote: |
| Thanks Colin. Just checked and no they do not work . Pull out the knob and nothing |
Then let's go straight to the flasher relay. That should give you both turn indicators and hazards.
Homework: Find flasher relay location.
Colin
_________________
www.itinerant-air-cooled.com
www.facebook.com/groups/324780910972038/ |
|
| Back to top |
|
|
vairken
Samba Member
Joined: December 03, 2008
Posts: 79
Location: Portland, Oregon
|
| Posted: Thu Dec 15, 2011 4:00 pm Post subject: |
|
|
| Will do. Is a flasher relay something I can get at auto parts store or will I have to get it online from a dub supplier. And again thanks for your wisdom. Im learning. |
|
| Back to top |
|
|
Amskeptic
Samba Member
Joined: October 18, 2002
Posts: 8586
Location: All Across The Country
|
| Posted: Thu Dec 15, 2011 4:26 pm Post subject: |
|
|
| vairken wrote: |
| Will do. Is a flasher relay something I can get at auto parts store or will I have to get it online from a dub supplier. And again thanks for your wisdom. Im learning. |
Universal flasher relays are available, but check online VW catalogues for part #s that may help you cross-reference. Bosch is the original brand.
It should be a three prong relay. But you need to see:
A) if you have one
B) if it is water-damaged
_________________
www.itinerant-air-cooled.com
www.facebook.com/groups/324780910972038/ |
|
| Back to top |
|
|
bigbore
Samba Member
Joined: December 19, 2003
Posts: 3297
Location: Wasilla Alaska
|
| Posted: Fri Dec 16, 2011 12:14 am Post subject: |
|
|
your just going to love it when you find out where it is.  I suggest unhooking the battery to be safe.
_________________
where its cold and snowy |
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
75bus4/me
Samba Member
Joined: November 10, 2011
Posts: 414
Location: Arizona
|
| Posted: Fri Dec 16, 2011 10:28 am Post subject: |
|
|
I found mine only after I took it out not knowing what it was cleaned all the connection and checking wires put it back in trying to get my brake lights and turn signal to work. Now I know what it is because it makes a clicking sound with the signals.
_________________
1975 Bay Window {Big Red} |
|
| Back to top |
|
|
bigbore
Samba Member
Joined: December 19, 2003
Posts: 3297
Location: Wasilla Alaska
|
| Posted: Fri Dec 16, 2011 12:51 pm Post subject: |
|
|
| grandpa pete wrote: |
Is it in the same place as a 69???  i know where that is  |
No pete yours is in a way easy place to get to compared to the 71. I will give you a hint it sucks as bad ---no worse as getting to the fuse's
_________________
where its cold and snowy |
|
| Back to top |
|
|
vairken
Samba Member
Joined: December 03, 2008
Posts: 79
Location: Portland, Oregon
|
| Posted: Fri Dec 16, 2011 2:19 pm Post subject: |
|
|
| It looks like it might be under the dash just behind the flasher knob. Have to remove my parcel tray to see closer. Am I in the right place? Feels like a little box behind the flasher knob. Hmmm. |
|
| Back to top |
|
|
vairken
Samba Member
Joined: December 03, 2008
Posts: 79
Location: Portland, Oregon
|
| Posted: Fri Dec 16, 2011 2:26 pm Post subject: |
|
|
| It looks like it might be under the dash just behind the flasher knob. Have to remove my parcel tray to see closer. Am I in the right place? Feels like a little box behind the flasher knob. Hmmm. |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53207
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Dec 16, 2011 2:33 pm Post subject: |
|
|
You're cold, you need to move forward and to the left more
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
justcruzin
Samba Member
Joined: July 31, 2005
Posts: 1493
Location: United States
|
|
| Back to top |
|
|
vairken
Samba Member
Joined: December 03, 2008
Posts: 79
Location: Portland, Oregon
|
| Posted: Fri Dec 16, 2011 3:38 pm Post subject: |
|
|
Thanks. I will definitely unhook the battery. If not I may be the idiot that fries the wiring trying to locate and change the flasher. Oh man please tell me its not on top the black plate covering the underside of the steering column. Ill find it eventually lol. Thanks for the hints guys.
Newbie who loves his Bus Gus |
|
| Back to top |
|
|
Amskeptic
Samba Member
Joined: October 18, 2002
Posts: 8586
Location: All Across The Country
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53207
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Dec 16, 2011 3:52 pm Post subject: |
|
|
| vairken wrote: |
| Oh man please tell me its not on top the black plate covering the underside of the steering column. |
Still cold
Hint: If your headlights will change beam listen for where the click comes from when they do, both relays are neighbors.
| Amskeptic wrote: |
As a crime against originality, I might get a 1973 bus fuse/relay box and use it on my 1970. I'll keep the wiring colors all OEM.
Colin |
That's crossed my mind too on more than one occasion, can't have too many fuses, but how would you mount it? In the stock location or where the 73 mounts?
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
bigbore
Samba Member
Joined: December 19, 2003
Posts: 3297
Location: Wasilla Alaska
|
| Posted: Fri Dec 16, 2011 3:57 pm Post subject: |
|
|

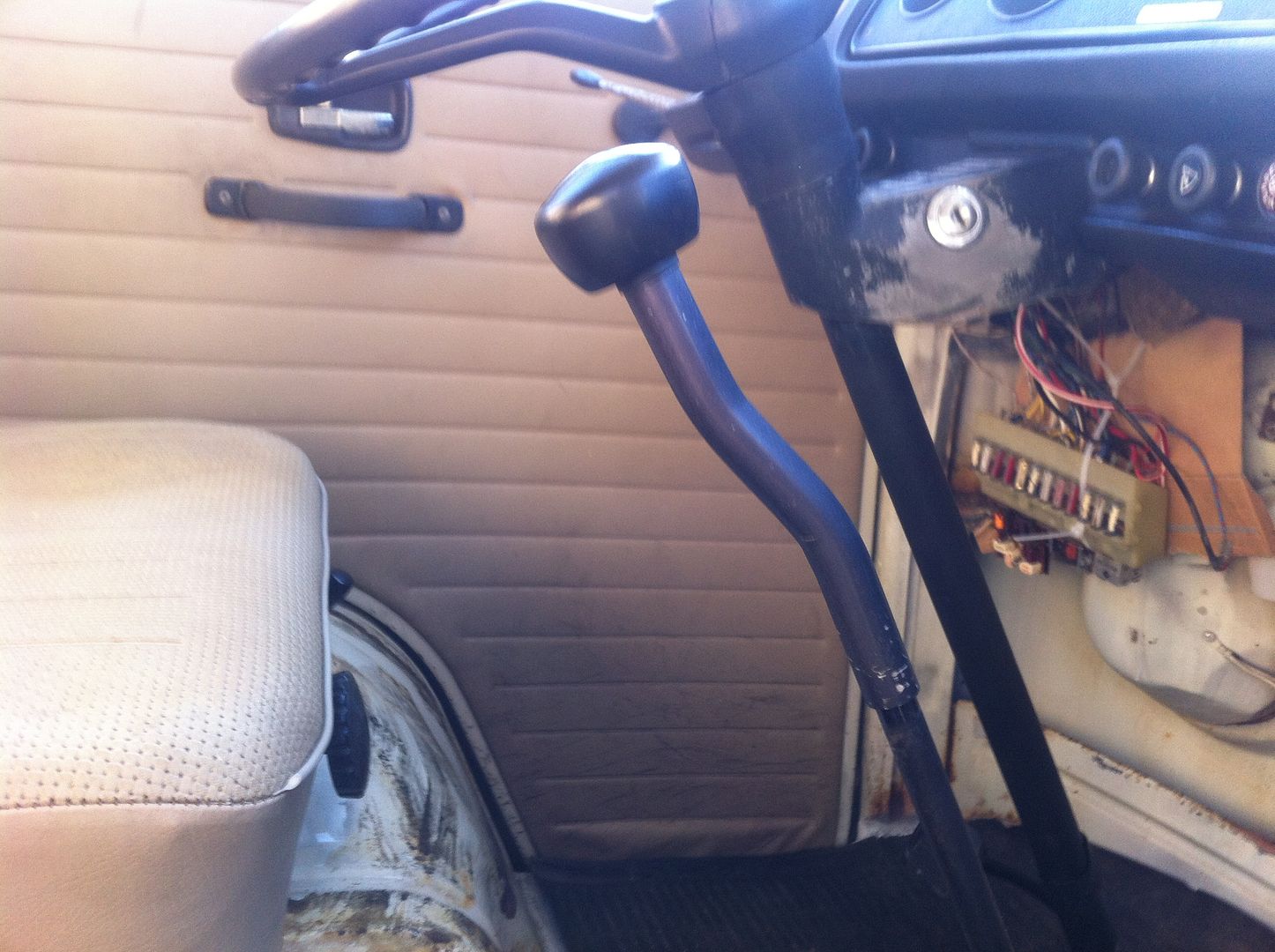

ok I will let the cat out of the bag I just happen to be working in the same spot on a 72 today. you have to lift the fuse panel CAREFULLY up and out this is why I say unhook the battery just incase you touch steel hell I do and I have been doing it for years you will see it hanging like a bat its the one in the middle.
_________________
where its cold and snowy |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53207
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Dec 16, 2011 5:21 pm Post subject: |
|
|
| bigbore wrote: |
| ok I will let the cat out of the bag |
Way to go BB  , we could have played this for quite a while more and Variken would have learned all sorts of things about his bus in the process, no one even got a chance to bring up the unmentionable B word yet
