| Author |
Message |
Dirtsniffer
Samba Member
Joined: October 31, 2010
Posts: 40
Location: Bend
|
 Posted: Tue Sep 24, 2013 10:28 pm Post subject: Master cylinder vs. Tie Rod issue ... again |
 |
|
I have a Master cylinder vs. Tie Rod issue with a new dual MC. It seams the MC needs a 90 instead of a 45 near the tie rod. Does any one know where I can get one? The old MC is gone.
Sorry to post this but I can not find a post that deals with this. I am about to pull out my pex tools and make one. |
|
| Back to top |
|
 |
HenrikL
Samba Member
Joined: October 31, 2005
Posts: 321
Location: Sweden
|
| Posted: Wed Sep 25, 2013 3:32 am Post subject: |
|
|
| What year car is it? I have a 1964 with a dual circuit master cylinder without any problems. |
|
| Back to top |
|
|
Dirtsniffer
Samba Member
Joined: October 31, 2010
Posts: 40
Location: Bend
|
| Posted: Wed Sep 25, 2013 8:22 am Post subject: |
|
|
| I have a 1963 top on a 67 pan. |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 36356
Location: Conejo Valley, CA
|
| Posted: Wed Sep 25, 2013 9:40 am Post subject: |
|
|

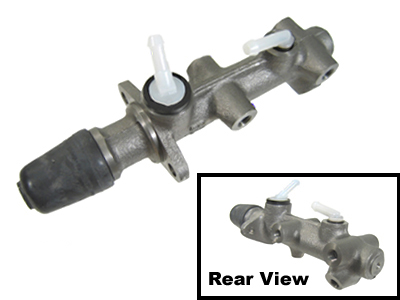

Most (all?) Type 3 masters come with a (near-) 90° nipple:
Did you use a Bug unit?
Sorry, I don't know where to get just a 90° nipple. |
|
| Back to top |
|
|
Dirtsniffer
Samba Member
Joined: October 31, 2010
Posts: 40
Location: Bend
|
| Posted: Wed Sep 25, 2013 10:22 am Post subject: |
|
|
| yep, I must have. Someone told me they were the same and I bought one for $25. I didn't want to pay $100. NOW I KNOW.... All my lines reach I just need a 90 and a longer push rod and I should be good. |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 36356
Location: Conejo Valley, CA
|
| Posted: Wed Sep 25, 2013 10:38 am Post subject: |
|
|
Another difference in Bug units is the threading (or lack of same) of the two mounting holes. IIRC, the Bug MCs are threaded, so you drill out the threads to use it on a T3.
Here's another pic of the correct nipples:
|
|
| Back to top |
|
|
Dirtsniffer
Samba Member
Joined: October 31, 2010
Posts: 40
Location: Bend
|
| Posted: Wed Sep 25, 2013 11:09 am Post subject: |
|
|
| That was the first issue I found and then started drilling the threads out. |
|
| Back to top |
|
|
Dirtsniffer
Samba Member
Joined: October 31, 2010
Posts: 40
Location: Bend
|
| Posted: Wed Sep 25, 2013 9:17 pm Post subject: |
|
|
I give up... I 'm going to just pay 150.00 for a type 3 ATE MC instead of a $25 type 1 It can be done but the issues are
1-You will need to drill out the bolt down threads on the MC
2-You will need to re-bend the brake lines and good luck getting them to reach to the other side of the MC
3-The brake fluid "intake pipe" near the tie rod needs to be at a 90 not a 45 angle or else it hits the tie rod. I tried to heat the 45 and bend it. it was working until I over heated it and now I have nothing.
4- you will need a longer push rod 153mm more than the stock rod. you need 153mm or more.
Thanks |
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18052
Location: Eugene, OR
|
| Posted: Wed Sep 25, 2013 10:00 pm Post subject: |
|
|
You can take your pick of my master cylinders here near Harrisburg for $50.
_________________
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23577
Location: Kimball, Mi
|
| Posted: Thu Sep 26, 2013 5:16 am Post subject: |
|
|
| Dirtsniffer wrote: |
I give up... I 'm going to just pay 150.00 for a type 3 ATE MC instead of a $25 type 1 It can be done but the issues are
1-You will need to drill out the bolt down threads on the MC
2-You will need to re-bend the brake lines and good luck getting them to reach to the other side of the MC
3-The brake fluid "intake pipe" near the tie rod needs to be at a 90 not a 45 angle or else it hits the tie rod. I tried to heat the 45 and bend it. it was working until I over heated it and now I have nothing.
4- you will need a longer push rod 153mm more than the stock rod. you need 153mm or more.
Thanks |
According to Sharkskinman, you're supposed to only use the guts of the type 1 master cylinder to rebuild a type 3 master cylinder. That's all. I've always either bought a rebuilt one from Car Quest (when I needed 1 now), or I've have Jim Adney rebuild them. He does a great job rebuilding them.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 36356
Location: Conejo Valley, CA
|
|
| Back to top |
|
|
Tram
Samba Socialist
Joined: May 02, 2003
Posts: 23022
Location: Northwest of Normal
|
| Posted: Thu Sep 26, 2013 11:41 am Post subject: |
|
|
| Dirtsniffer wrote: |
I give up... I 'm going to just pay 150.00 for a type 3 ATE MC instead of a $25 type 1 It can be done but the issues are
1-You will need to drill out the bolt down threads on the MC
2-You will need to re-bend the brake lines and good luck getting them to reach to the other side of the MC
3-The brake fluid "intake pipe" near the tie rod needs to be at a 90 not a 45 angle or else it hits the tie rod. I tried to heat the 45 and bend it. it was working until I over heated it and now I have nothing.
4- you will need a longer push rod 153mm more than the stock rod. you need 153mm or more.
Thanks |
Look- you've got a Type 3. You need to adjust your attitude and pocketbook using the following parameters:
First: get used to the fact that cheap Beetle parts won't work. News flash: It's not a Beetle! Buy the right stuff, do it once, and do it right. You'll be glad you did.
Second: Yeah, the right stuff is "expensive". BUT- Be happy that you're not in love with a classic Porsche or Mercedes!
_________________
Немає виправдання для війни! Я з Україною.
| Bryan67 wrote: |
| Just my hands. And a little lube. No tools. |
Those who can- do.
Those who can't? Subaru. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23577
Location: Kimball, Mi
|
| Posted: Thu Sep 26, 2013 7:40 pm Post subject: |
|
|
| Tram wrote: |
| Dirtsniffer wrote: |
I give up... I 'm going to just pay 150.00 for a type 3 ATE MC instead of a $25 type 1 It can be done but the issues are
1-You will need to drill out the bolt down threads on the MC
2-You will need to re-bend the brake lines and good luck getting them to reach to the other side of the MC
3-The brake fluid "intake pipe" near the tie rod needs to be at a 90 not a 45 angle or else it hits the tie rod. I tried to heat the 45 and bend it. it was working until I over heated it and now I have nothing.
4- you will need a longer push rod 153mm more than the stock rod. you need 153mm or more.
Thanks |
Look- you've got a Type 3. You need to adjust your attitude and pocketbook using the following parameters:
First: get used to the fact that cheap Beetle parts won't work. News flash: It's not a Beetle! Buy the right stuff, do it once, and do it right. You'll be glad you did.
Second: Yeah, the right stuff is "expensive". BUT- Be happy that you're not in love with a classic Porsche or Mercedes! |
Or own a T-34 Ghia.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
vlad01
Samba Member
Joined: October 27, 2010
Posts: 3064
Location: Australia
|
| Posted: Thu Sep 26, 2013 8:46 pm Post subject: |
|
|
| I'd be happier with a old Porsche, how could you be less happy with one? |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23577
Location: Kimball, Mi
|
| Posted: Fri Sep 27, 2013 6:28 am Post subject: |
|
|
| vlad01 wrote: |
| I'd be happier with a old Porsche, how could you be less happy with one? |
Having to insure it, or buy parts for it. Both are really expensive.
