'78 Bay seat track repair (Horrific)
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Doug Brown
Samba Member


Joined: December 03, 2013
Posts: 23
Location: Everett,WA
Doug Brown is offline

PostPosted: Tue Dec 03, 2013 11:42 am    Post subject: '78 Bay seat track repair (Horrific) Reply with quote

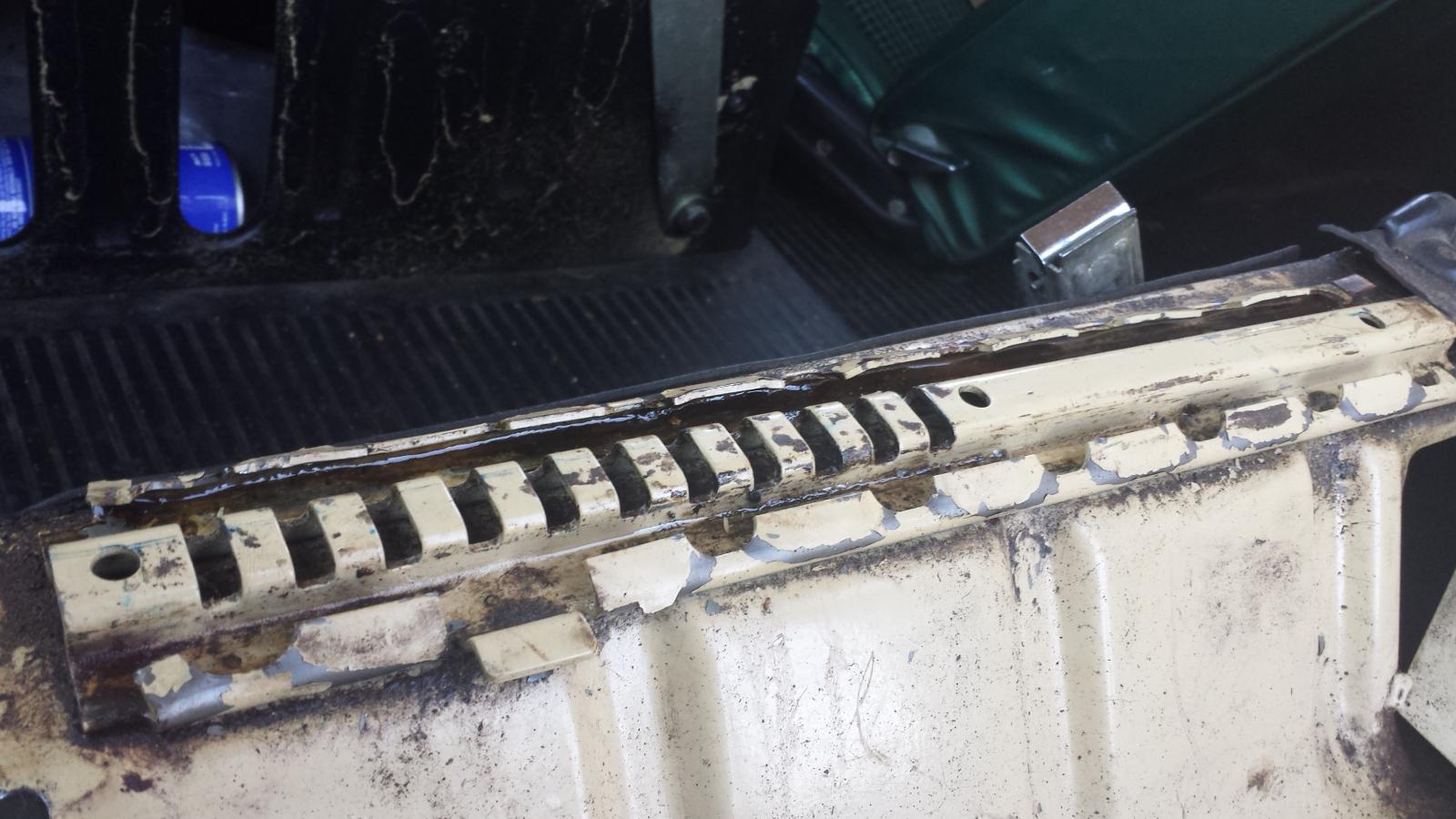

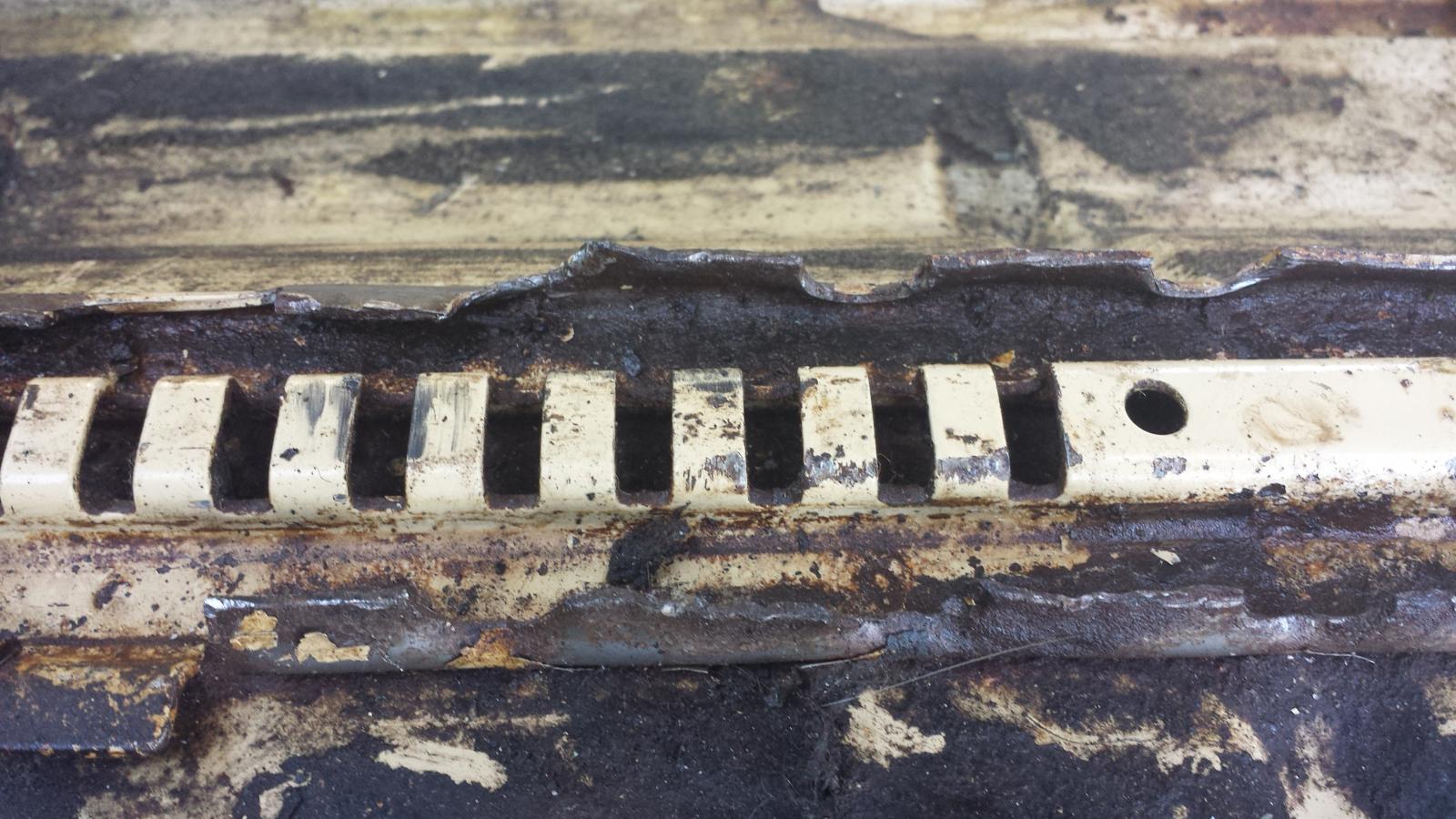

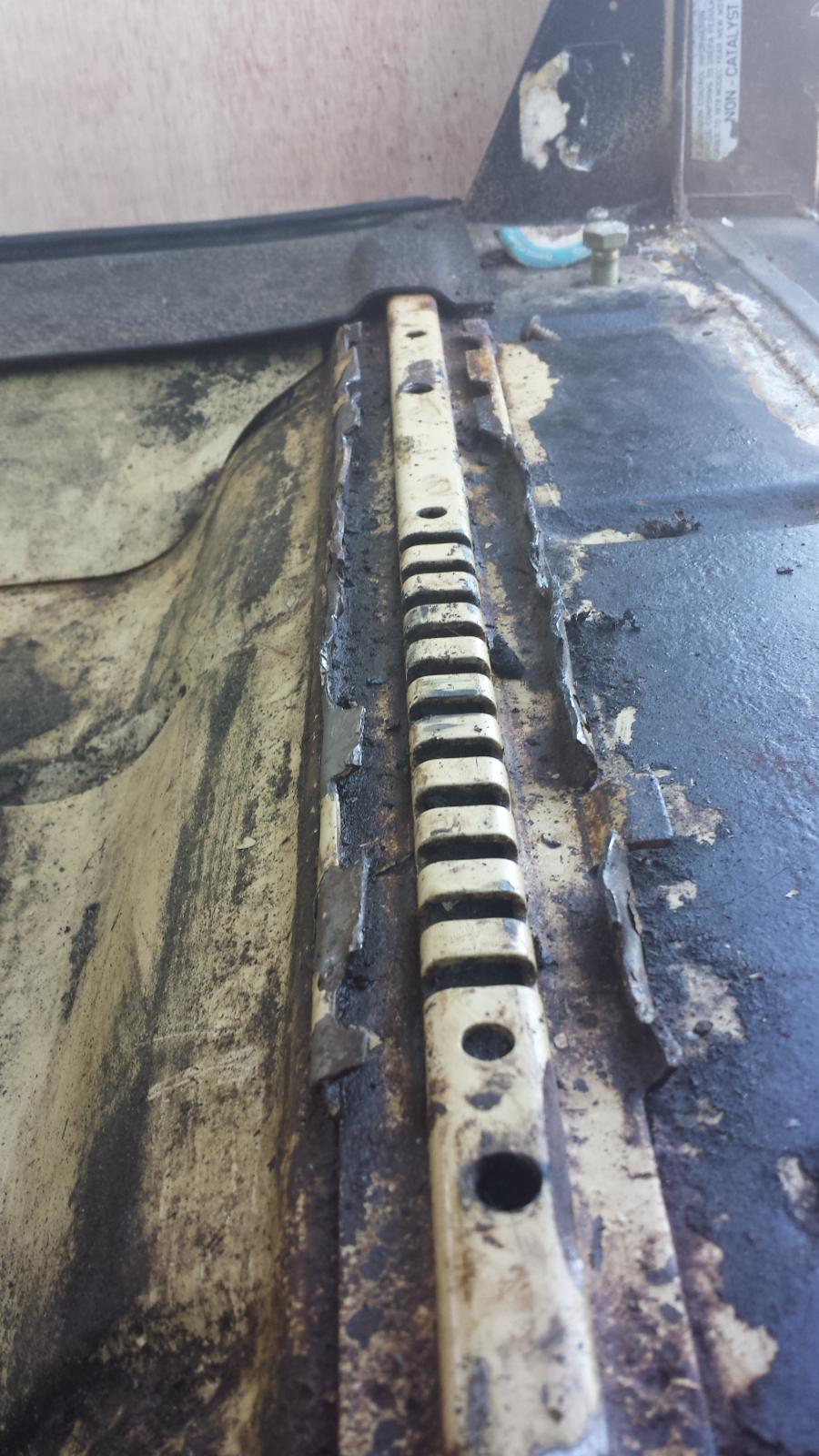

Wanted to show off/complain-about how FUBAR the previous owner left the dirver's side seat tracks. It looks like an ape and a crowbar took out the original seats.


I'm open to suggestions on how to fix these, just picked up a pair of mint vanagon seats to replace the junkyard seat that had been bolted into the driver's spot. My current plan is to take a wide center punch and try to bend these back... Suggestions? I don't have access to a welder or Oxy setup.



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Shocked
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
kkjellquist
Samba Member


Joined: June 04, 2013
Posts: 752
Location: Asheville, NC
kkjellquist is offline

PostPosted: Tue Dec 03, 2013 11:58 am    Post subject: Reply with quote

That is simply amazing...imagine all the blood, sweat, cursing, hammering, prying that all happened because he didn't know about the tab to slide the seats out!
_________________
1977 Sage Green Deluxe Campmobile - "Turtel"
(1978 2L FI, Pertronix, Hydraulic Lifters)

Turtel - http://www.thesamba.com/vw/forum/viewtopic.php?t=561195

Pisgah Bus Rally - New Year's Day
http://pisgahbusrally.blogspot.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
aerosurfer
Samba Member


Joined: March 25, 2012
Posts: 1597
Location: Indianapolis, IN
aerosurfer is offline

PostPosted: Tue Dec 03, 2013 12:10 pm    Post subject: Reply with quote

my outter driver seat tracks are totally rusted in place from poor seals and standing water on the metal. I'll have to take a cutter to that track to remove the seat.

I already sourced a new set with a WTB ad in the classifieds for reasonable cost, had a few offers real quick. But instead of recon with your safety your best be would be to cut those mangled ones out and secure new ones
_________________
Rebuild your own FI Harness..My Harness

77 Westy 2.0L Rockin and Rolling Resto!

72 Sportsmobile (sold)
79 Tran$porter... Parts car money machine (gone)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Doug Brown
Samba Member


Joined: December 03, 2013
Posts: 23
Location: Everett,WA
Doug Brown is offline

PostPosted: Tue Dec 03, 2013 12:20 pm    Post subject: Reply with quote

kkjellquist wrote:
That is simply amazing...imagine all the blood, sweat, cursing, hammering, prying that all happened because he didn't know about the tab to slide the seats out!


No Kidding. Makes me shudder at the thought of what this neanderthal did with the rest of the bus. Shocked



There is a decent set in a late-'76 in a local junk yard... Are they just tack-welded in? (I haven't looked too closely yet)
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
aerosurfer
Samba Member


Joined: March 25, 2012
Posts: 1597
Location: Indianapolis, IN
aerosurfer is offline

PostPosted: Tue Dec 03, 2013 12:47 pm    Post subject: Reply with quote

They are spot welded on.
_________________
Rebuild your own FI Harness..My Harness

77 Westy 2.0L Rockin and Rolling Resto!

72 Sportsmobile (sold)
79 Tran$porter... Parts car money machine (gone)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4785
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Tue Dec 03, 2013 1:01 pm    Post subject: Reply with quote

Man, I liked Everett! Cool Wish I'd stayed. Anyway, welcome to the Samba! You may find it very useful to get invested in some steel-working tooling...a small wire-feed welder and a grinder with both cut off wheels and grinding wheels, also a cup brush for the grinder would be a good start. Milwaukee tools makes a nice one for that, and you can get a flux-core wire feed welder that uses household current from Lincoln Electric. Try to get a welder that can have a gas kit installed later when money permits.

I know you state you don't have access to those tools, but I would not recommend doing the track replacement without them.

I cannot think of any practical way to remove those tracks...and install your new seats...without those tools. Those tracks are obviously garbage Shocked and will need serious repair or even better, replacement, and are welded in place at the factory. Keeping in mind the needed crash worthiness of your new seat installation, I would strongly recommend welding in your new tracks Exclamation
_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Doug Brown
Samba Member


Joined: December 03, 2013
Posts: 23
Location: Everett,WA
Doug Brown is offline

PostPosted: Tue Dec 03, 2013 1:53 pm    Post subject: Reply with quote

Wasted youth/adulthood, you must just miss the rain!

You guys think just drilling out the spot welds on the brackets in the junk yard a good idea or would that affect the seats sliding too much?
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
mojogoat
Samba Member


Joined: February 25, 2013
Posts: 440
Location: Norcal
mojogoat is offline

PostPosted: Tue Dec 03, 2013 2:06 pm    Post subject: Reply with quote

Install a swivel seat base with the new tracks already on them.
_________________
77 Riviera
78 CEII Westfalia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Doug Brown
Samba Member


Joined: December 03, 2013
Posts: 23
Location: Everett,WA
Doug Brown is offline

PostPosted: Tue Dec 03, 2013 2:19 pm    Post subject: Reply with quote

mojogoat wrote:
Install a swivel seat base with the new tracks already on them.


Hadn't thought of that (new to the Bus world)...

This?
http://www.thesamba.com/vw/classifieds/detail.php?id=838963

Pricey, but that saves alot of labor...
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 43066
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Tue Dec 03, 2013 2:24 pm    Post subject: Reply with quote

Wow, I'm not sure you could ever straighten that to a point where it'd be useable but it's worth a few minutes of trying, you'd have to notch the side of the end of a piece of ~1/2" bar with a cutoff wheel (anything will work, round, square or even the handle end of a cold chisel or cheap ratchet), make the notch the thickness of the seat track steel and situate the slot ~ 3/16" up from the end. By placing the slot over the damaged section you'll be able to pry it back inwards, don't try to get it all the way first try, work a large area a little at a time.

There's a spot weld at the bottom of each of those rounded cutouts, drilling it off may not be too bad but getting in there to weld back on will be challenging, the cutouts were for the spotwelder's electrode to have access.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12553
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Tue Dec 03, 2013 2:24 pm    Post subject: Reply with quote

the early (93-95) eurovan front seat tracks unbolt.
if you have any in your local Upull or post out a WTB here & Craigslist.
vanagon seats and stock bay seat should fit into the EV tracks.
I can post up a image tomorrow of what they'd look like for you if needed.

*edit

you can see that the EV seat rails bolt on here in this image (of a swivel unit)
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
mojogoat
Samba Member


Joined: February 25, 2013
Posts: 440
Location: Norcal
mojogoat is offline

PostPosted: Tue Dec 03, 2013 3:54 pm    Post subject: Reply with quote

Doug Brown wrote:
mojogoat wrote:
Install a swivel seat base with the new tracks already on them.


Hadn't thought of that (new to the Bus world)...

This?
http://www.thesamba.com/vw/classifieds/detail.php?id=838963

Pricey, but that saves alot of labor...

They go for around $100 used, craigslist had a set for $125 over here a while ago.
_________________
77 Riviera
78 CEII Westfalia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14655
Location: Arizona
Desertbusman is offline

PostPosted: Tue Dec 03, 2013 5:59 pm    Post subject: Reply with quote

kkjellquist wrote:
That is simply amazing...imagine all the blood, sweat, cursing, hammering, prying that all happened because he didn't know about the tab to slide the seats out!
Laughing Laughing Laughing

That and all the other trinkets of important info that are in our owners manual. Free to anyone that downloads it from the technical Section and actually takes the time to read it.
_________________
71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1967250s
Samba Member


Joined: May 02, 2007
Posts: 2137

1967250s is offline

PostPosted: Tue Dec 03, 2013 6:24 pm    Post subject: Reply with quote

maybe someone here on TS and in your area can help?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Doug Brown
Samba Member


Joined: December 03, 2013
Posts: 23
Location: Everett,WA
Doug Brown is offline

PostPosted: Wed Dec 04, 2013 9:32 am    Post subject: Reply with quote

Fixed.
Fabbed a piece of steel the thickness of the seat rail to ensure I didnt over "adjust" the bracket down. Other than that, used a square punch and a peen hammer. I was shocked it worked as well as it did.




Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Last edited by Doug Brown on Wed Dec 04, 2013 9:37 am; edited 1 time in total
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4785
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Wed Dec 04, 2013 9:35 am    Post subject: Reply with quote

Hey, nice save! Razz
_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 43066
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Wed Dec 04, 2013 9:55 am    Post subject: Reply with quote

Impressive, nice job!
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jeff Geisen
Samba Chaplain


Joined: December 21, 2004
Posts: 1589
Location: N.W. Georgia
Jeff Geisen is offline

PostPosted: Wed Dec 04, 2013 10:09 am    Post subject: Reply with quote

Nice work, Doug.

Hey, for a software guy you are certainly handy with heavy tools.

You should feel proud of what you accomplished there!
_________________
I Corinthians 4:3

Pictures from my cross-country road trips are at: http://instagram.com/jeff.pop.geisen

I actually drive my bus, and I maintain it myself, it runs fine. I don't merely own a bus.
I travel all over in it. Really, check my instagram link.

71 Westy rag top, 69 single cab
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Doug Brown
Samba Member


Joined: December 03, 2013
Posts: 23
Location: Everett,WA
Doug Brown is offline

PostPosted: Wed Dec 04, 2013 2:43 pm    Post subject: Reply with quote

Thanks guys. Now if only i could do the body work...
_________________
'78 Bus - My Flickr

Recently acquired '70 Beetle

My Bus Restoration Blog
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
eche_bus
Samba Member


Joined: October 07, 2007
Posts: 1318
Location: Bloomington, MN
eche_bus is offline

PostPosted: Wed Dec 04, 2013 10:44 pm    Post subject: Reply with quote

Wow! From the earlier photos it didn't look salvageable. You got real lucky this time!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
