 Posted: Mon Jan 06, 2014 11:01 am Post subject: How to fix a sticky starter FAQ |
 |
|
To link to this thread
| Code: |
| [url=http://www.thesamba.com/vw/forum/viewtopic.php?t=581254&start=0&postdays=0&postorder=asc&highlight=]How to fix a sticky starter FAQ[/url] |
How many threads exist here where the starter has failed? We often see several a day. This post is to help those of you who are struggling to fix yours.
The problems with bad starters in VW buses in my experience fall into 3 categories (A) bad or low battery (B) bad ignition switch (C) sticky solenoid.
I've posted this photo many times trying to help but it doesn't appear to be enough. The starter in the photo is one I rebuilt. :
starter test with basic tools:
So let's explore. The battery provides 12V +/- to the starter. To test use a volt meter when the key is turned to start to be sure the voltage is good or take the battery in to be tested with one of these. You can get them fairly cheap used or I believe HF has them too.
photo from popularmechanics
12V + is provided on the plus side by the heavy cable running from the battery to the starter. Those go bad too internally sometimes from battery acid or arcing. The ground side goes into the bus frame and then from the frame to the engine through the ground strap on the nose of the trans. Those straps get corrosion where they attach and that can cause a clutch cable to stretch and break as it becomes the replacement ground strap as far as the electrons are concerned. Since it wasn't built to handle heavy electricity it gets hot and stretches.

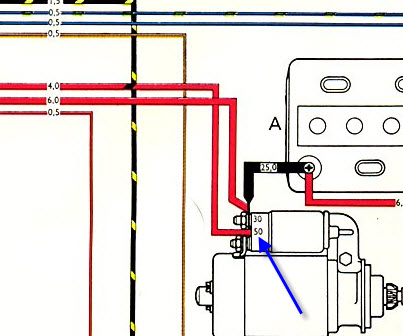

Here is a wiring schematic. You'll see the battery cable attach to the solenoid then run forward. The other red wire coming back to pin 50 is from the ignition switch.
starter wiring:
When the key is turned it provides power to the solenoid which causes it to pull in. When it does so it pulls the starter teeth into the flywheel and also pushes a copper bar into the studs the wires attach to, completeing the circuit for the electricity to the starter motor to which it is attached. Here is a photo from online (bmwmotorcycletech) of a similar solenoid taken apart. You can see the copper bar and studs. Notice that it is peened on and not designed to be further disassembled. Some older ones had a nut here but the later ones are peened on permanently.
This is what a NOS one and/or replacement look like
This is what they look like when they have been used for awhile. Even with protection, dirt and dust get inside where the plunger rides. Heat from the exhaust and engine also cook the grease inside causing the plunger to stick and gall. Moisture causes rust. I've drawn an arrow where they need to be cleaned - all the way around and inside - but you can't get inside although a cleaner like WD-40 or electronic tuner cleaner can.
Here is a picture of one that failed and came apart - from Samba gallery. NOTE: some solenoids are designed to fall apart this way. The ring at the end tells me this may not be the correct solenoid for a Bosch starter. Further investigation would be warranted in this case. :
How to fix:
Remove the battery cables. Use this opportunity to clean them.
Remove the starter. Mark where the wires go or take a picture
Remove the two screws on the end holding the solenoid on. If you have a new solenoid use it. If not clean the old solenoid.
drawing from Autozone online:
To clean, run WD 40 or electronic tuner cleaner into the area where the plunger goes into the well / plunger tube. Wash out and wipe down as much of the dirt as you can. WARNING: WHEN YOU SPRAY THE PLUNGER HOLD IT DOWNWARDS SO THE CLEANER FLUID RUNS OUT AND SO YOU DON'T FILL THE CAP WITH A FLAMMABLE CLEANER.
If you want to be brave, unsolder the cap and clean the copper bar, if not just leave alone as this area is not normally the problem until the solenoid is worn out and the bar eaten away which if so you need a new solenoid. If you pull the cap off use white cloth tape to seal it again. IF YOU PULL THE CAP OFF OR THE STARTER APART any further, be sure to mark the parts so you can put them back in the same position. I use an electric carbide tipped engraving gun to mark everything I take apart so I can clock the parts the same as they were.
Use white lithium grease spray on the plunger and work it a few times by hand to get grease into it.
Reassemble. Figure you'll do it again in 2 to 4 years depending upon how much you drive the bus and how much dirt gets into it.
NOTE: IF YOU HAVE AN AUTOMATIC transmission, be sure the neutral switch in the shifter is good or it can cause intermittent starting issues. NAPA has a replacement. Ask for ECH NS6827 - be sure to compare it to your old one.
Last edited by SGKent on Tue Jan 07, 2014 9:36 am; edited 7 times in total |
|
| Back to top |
|
 |
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17659
Location: San Diego, California
|
| Posted: Mon Jan 06, 2014 11:39 am Post subject: |
|
|
Good job
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
Red Fau Veh
Samba Member
Joined: September 07, 2012
Posts: 3037
Location: Prescott Az.
|
| Posted: Mon Jan 06, 2014 12:21 pm Post subject: |
|
|
I'll add that when you put the cap back on the end of the solenoid, it is possible to put it on reversed. Single wire and paired wires need to stay in the correct orientation on reassembly.
_________________
1971 Deluxe Sunroof Bay 1905 stroker, dual idf40's, 74mm Scat forged crank, engle 110 cam. CB 044 heads, AutoCraft rockers, chromoly push rods
1973 Orange transporter stock type 4 with dual 40 Dellortos and Empi single quiet pack
1969 Adventurewagen blue whale Gene Berg 1776 built by Dave Kawell dual 36 DRLA's, Vintage Speed exhaust, Bosch 019 screamer
1961 Swivel Seat camper, L345 grey
| Touch Nicks Thing wrote: |
Swivel Seat panels are for people with no friends  |
|
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52429
|
| Posted: Mon Jan 06, 2014 1:16 pm Post subject: |
|
|
| In my opinion taping the joint in the solenoid helps prolong its life as well. I relubed my solenoid back 20+ years ago when I had the typical hot start problem. Don't remember what grease I used but I have not had a hot start issue again over the ensuing 200K miles, same starter and solenoid, just a couple of sets of replacement brushes IIRC. |
|
| Back to top |
|
|
williamM
Samba Member
Joined: August 07, 2008
Posts: 4342
Location: southwest Arizona
|
| Posted: Mon Jan 06, 2014 1:22 pm Post subject: |
|
|
As Mr Frost - of Frost Marine - would say- "(referring to soggy brake lining)- you should wash them out with new parts"
_________________
some days I get up and just sit and think. Some days I just sit.
opinion untempered by fact is ignorance.
Don't step in any! |
|
| Back to top |
|
|
Danwvw
Samba Member
Joined: July 31, 2012
Posts: 8895
Location: Oregon Coast
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42706
Location: at the beach
|
| Posted: Mon Jan 06, 2014 1:38 pm Post subject: |
|
|
| Wildthings wrote: |
| In my opinion taping the joint in the solenoid helps prolong its life as well. I relubed my solenoid back 20+ years ago when I had the typical hot start problem. Don't remember what grease I used but I have not had a hot start issue again over the ensuing 200K miles, same starter and solenoid, just a couple of sets of replacement brushes IIRC. |
Mike - I wish I knew what grease you used. I've tried moly, wheel greases, CV joint, silicone based, blue for boats trailer bearings etc. I've found the white spray works well cause it gets into everything then dries like on a door lock. If you remember, post it. It would be nice to get 200,000 miles out of a solenoid without having to touch it again. |
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13518
Location: West Coast, USA
|
| Posted: Mon Jan 06, 2014 5:00 pm Post subject: |
|
|
Great post. Now let's just hope the new folks can read the FAQs and find it
Don't really dirty grounds slow starter operation too? Not sure if you could loop that in with A B or C.
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42706
Location: at the beach
|
| Posted: Mon Jan 06, 2014 5:25 pm Post subject: |
|
|
| asiab3 wrote: |
Great post. Now let's just hope the new folks can read the FAQs and find it
Don't really dirty grounds slow starter operation too? Not sure if you could loop that in with A B or C. |
Any time the voltage falls it affects the solenoid's ability to pull in. That is why sometimes on cars all you hear when the battery is down is a solenoid chattering - sounds like a clicking. One should clean the battery cables and grounds every few years - or at least when the problem occurs. Low voltage can sometimes be a bad ground, cable or ground strap.
For example - I did not know about the clutch cable stretching issue with a bad ground until seeing it here on the forum a few times. Never came across it with my 1971. However I do know that the prior owner of my 1977 bus went thru many clutch cables the last few years she owned it. I also know the ground strap was very corroded when I cleaned it during the restoration so that may have been the cause - or perhaps a bad bowden etc. |
|
| Back to top |
|
|
cdennisg
Samba Member
Joined: November 02, 2004
Posts: 20845
Location: Sandpoint, ID
|
| Posted: Mon Jan 06, 2014 9:53 pm Post subject: |
|
|
Excellent post. Thanks for the clear, concise description of the system, its problematic symptoms, and a good solution. Well done.
I will say, I have found white lithium grease in spray form to be a handy product. It works great on sticky shift mechanisms and door locks, too.
_________________
Confusious say it takes it takes two wipes to know you need three, but it takes three wipes to know it only needed two. |
|
| Back to top |
|
|
Hoody
Samba Member
Joined: November 28, 2007
Posts: 1948
|
| Posted: Mon Jan 06, 2014 11:42 pm Post subject: |
|
|
| Keep up the good work Steve! This site needs more people like yourself who selflessly help out the community....and don't sugar coat it. |
|
| Back to top |
|
|
telford dorr
Samba Member
Joined: March 11, 2009
Posts: 3625
Location: San Diego (Encinitas)
|
| Posted: Tue Jan 07, 2014 12:35 am Post subject: |
|
|
Excellent write-up - I nominate it for a 'sticky'.
Couple of points:
- taping the contact housing to the solenoid body, even though it has a gasket, is critical - otherwise moisture seems to get in there and muck everything up. A couple turns of GOOD electrical tape works well.
- the contact housing is made from a bakelite type of material, and cracks easily. Don't impact it with anything, and don't over-tighten the nuts on the contact lugs.
- I used "Super Lube" synthetic grease from Synco Chemical Corporation, Bohemia, NY, http://www.super-lube.com, on the last solenoid I reassembled. A thin film works well - don't overdo it (with any lube). This grease has a very thin consistency, and seems to stay that way even in cold temperatures (it's rated -45F to 450F). Seems to be available in sizes from 1 cc packet to 400 lb drums (if you do a lot of solenoids..) If you're in San Diego, it's available from Marshall's Industrial Hardware in a 3 oz tube, p/n 21030. [If you've never been there, it's a remarkable place. They've got everything you can think of, by the piece if you want (no 'blister packs'!]
_________________
'71 panel, now with FI
'Experience' is the ability to recognize a mistake when you're making it again - Franklin P. Jones
In theory, theory works in practice; in practice, it doesn't - William T. Harbaugh
When you're dead, you don't know you're dead. The pain is only felt by others.
Same thing happens when you're stupid. - Philippe Geluck
More VW electrical at http://telforddorr.com/ (available 9am to 9pm PST) |
|
| Back to top |
|
|
kkjellquist
Samba Member
Joined: June 04, 2013
Posts: 752
Location: Asheville, NC
|
| Posted: Wed Jan 08, 2014 2:21 pm Post subject: |
|
|
| asiab3 wrote: |
Don't really dirty grounds slow starter operation too? Not sure if you could loop that in with A B or C. |
Did for me! I was thinking about doing this job and decided to take an emory cloth to my ground cable and the body where it attached. Ding ding...winner!
_________________
1977 Sage Green Deluxe Campmobile - "Turtel"
(1978 2L FI, Pertronix, Hydraulic Lifters)
Turtel - http://www.thesamba.com/vw/forum/viewtopic.php?t=561195
Pisgah Bus Rally - New Year's Day
http://pisgahbusrally.blogspot.com/ |
|
| Back to top |
|
|
Hoody
Samba Member
Joined: November 28, 2007
Posts: 1948
|
| Posted: Wed Jan 08, 2014 9:49 pm Post subject: |
|
|
| If the brushes need to be replaced on a Late Bay starter does anyone know what the correct part number is and a source for them. I think I remember them being listed on the BD site. |
|
| Back to top |
|
|
Danwvw
Samba Member
Joined: July 31, 2012
Posts: 8895
Location: Oregon Coast
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42706
Location: at the beach
|
| Posted: Thu Jan 09, 2014 1:47 pm Post subject: |
|
|
| Hoody wrote: |
| If the brushes need to be replaced on a Late Bay starter does anyone know what the correct part number is and a source for them. I think I remember them being listed on the BD site. |
Bob - it would be really rare and more trouble than it is worth as I recall they are soldered in. My 77 resto had either 114,000 or 214,000 miles on it based on service records. (I recollect that I could not determine if one of the service records was 106,000 or 186,000 due to paper damage and the ODO read 109,000. The engine was rebuilt about the time of that record so the question is did the cheap rebuild get 3,000+ miles before it failed again or 36,000+/- before it failed again? She was barely driving it at the time so I don't know as the original failure was bearings and that is what failed again for her.). That said, when the starter brushes were checked they were barely worn. I have only once worn out brushes on a 1971 bus and it was at close to 400,000 miles. |
|
| Back to top |
|
|
Hoody
Samba Member
Joined: November 28, 2007
Posts: 1948
|
| Posted: Thu Jan 09, 2014 5:31 pm Post subject: |
|
|
| Ok Thanks Steve. No need to go that far then. |
|
| Back to top |
|
|
tootype2crazy
Samba Member
Joined: October 08, 2007
Posts: 1276
Location: St. Louis Missouri
|
| Posted: Thu Jan 09, 2014 5:52 pm Post subject: |
|
|
| telford dorr wrote: |
Excellent write-up - I nominate it for a 'sticky'.
Couple of points:
- taping the contact housing to the solenoid body, even though it has a gasket, is critical - otherwise moisture seems to get in there and muck everything up. A couple turns of GOOD electrical tape works well.
- the contact housing is made from a bakelite type of material, and cracks easily. Don't impact it with anything, and don't over-tighten the nuts on the contact lugs.
- I used "Super Lube" synthetic grease from Synco Chemical Corporation, Bohemia, NY, http://www.super-lube.com, on the last solenoid I reassembled. A thin film works well - don't overdo it (with any lube). This grease has a very thin consistency, and seems to stay that way even in cold temperatures (it's rated -45F to 450F). Seems to be available in sizes from 1 cc packet to 400 lb drums (if you do a lot of solenoids..) If you're in San Diego, it's available from Marshall's Industrial Hardware in a 3 oz tube, p/n 21030. [If you've never been there, it's a remarkable place. They've got everything you can think of, by the piece if you want (no 'blister packs'!] |
I second super lube. It contains PTFE (teflon). It is clear and seems low in the soap factor which so many other greases have a lot of. After the engine heats cycles so many times the oil in the mix with the soap melts away and leaves only soap. Super lube seems to me to contain little to no soap. Also it is clear and non staining. I also have it lubing my sunroof cables and the slides as it wont stain clothes when you lean on it. It is really amazing stuff.
_________________
air-cooled or nothing for me
1978 Sunroof Deluxe Bus (daily driver)
1978 Transporter (mom's, making into a camper)
1970 Single Cab 2.1 turbo/EFI 6 Rib, 78 front beam, vanagon backing plates on rear (project)
2001 GTI VR6 (wife's) |
|
| Back to top |
|
|
chabanais
Samba Member
Joined: July 27, 2002
Posts: 4866
|
| Posted: Thu Jan 09, 2014 5:54 pm Post subject: |
|
|
I just restart the Bus when I park and it's fine.
