PostPosted: Tue Sep 20, 2016 6:24 pm    Post subject: A true spray nozzle | In Production! Reply with quote

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.


Hello All,

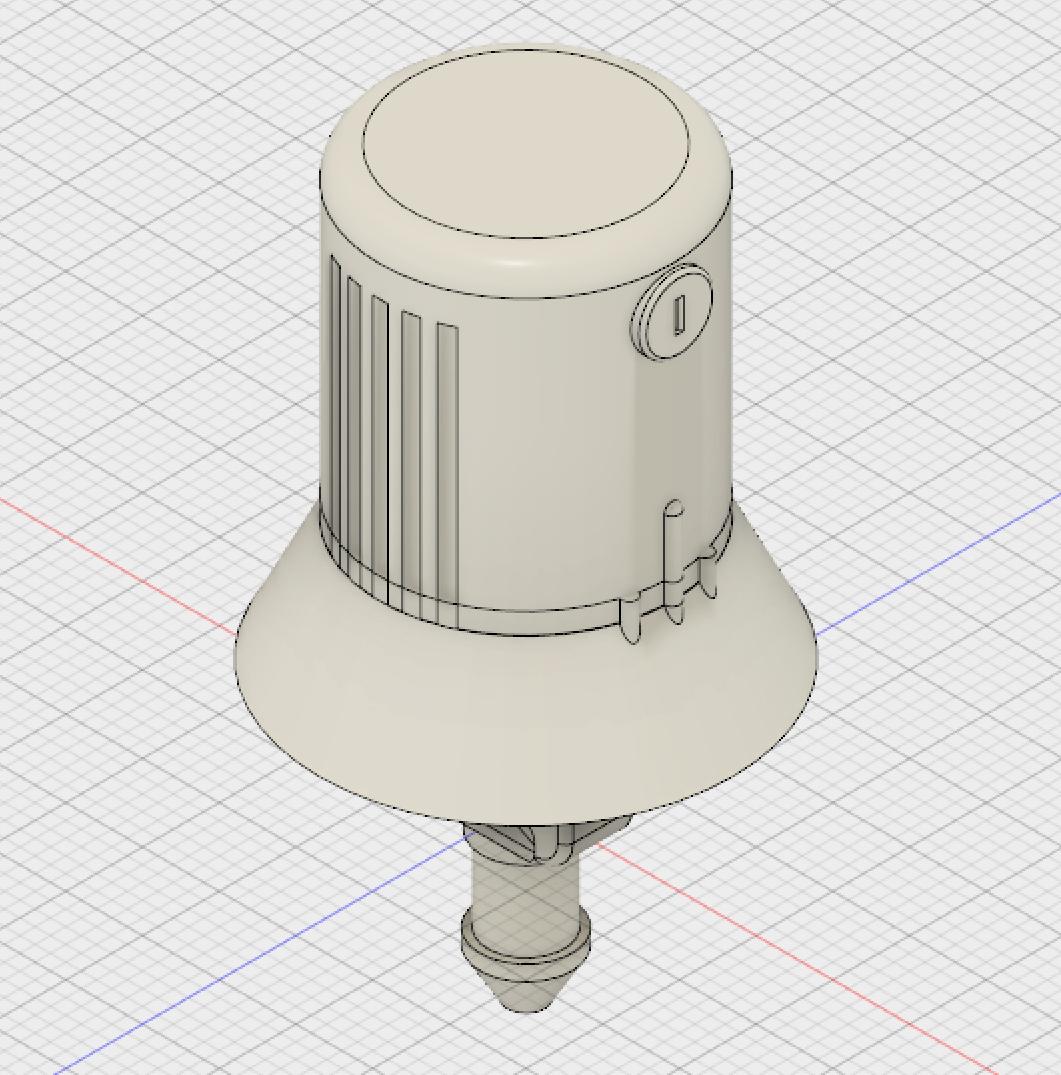

This is a small project that I gave myself a couple of days to complete. The main goal was to create a windshield spray nozzle that would actually create a fan pattern versus the squirt gun effect we are all familiar with. The nozzle consists of two parts; upper and lower. The upper portion is able to rotate along the Z-axis a total of 30 degrees to get the desired spray location.

Image may have been reduced in size. Click image to view fullscreen.


I have tested the version above with a spare windshield washer pump and it works quite well. I am going to install them on the van soon.

Would anyone be interested in testing them out?
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
ohhorob
Samba Member


Joined: September 26, 2013
Posts: 199
Location: Santa Cruz
ohhorob is offline

PostPosted: Tue Sep 20, 2016 6:32 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

How hard is it to fit them? Can it be done from the outside??
_________________
"Gundy" - '85 Westfalia
GoWesty 2300cc, Digijet
Back to top
View user's profile Send private message Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Tue Sep 20, 2016 6:38 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

ohhorob wrote:
How hard is it to fit them? Can it be done from the outside??


Yes, they can be installed from the outside. I replicated the stock mounting method. They are as easy to install as others that are available on the market.
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
foodeater
Samba Member


Joined: July 13, 2007
Posts: 1307
Location: Newburgh, NY
foodeater is offline

PostPosted: Tue Sep 20, 2016 6:51 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

I'd be interested in testing them.

Send me a PM with details, or just post in this thread.
_________________
89 Bluestar-2.5 Subaru Powered-RIP
'84 Westy Tiico-daily driver-sold
'82 Caddy diesel-sold
'87 Vanagon Syncro-RIP
'81 diesel rabbit-sold
'82 Vanagon auto-RIP
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Michael4104
Samba Member


Joined: February 09, 2014
Posts: 340
Location: Livermore, Ca
Michael4104 is offline

PostPosted: Tue Sep 20, 2016 7:51 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

I to will help test them for you.
_________________
1990 Wolfsburg Carat with new poptop.
1985 Westy now sporting a 1995 Jetta ABA 2.0L. Sold
Back to top
View user's profile Send private message Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Tue Sep 20, 2016 9:43 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

Thanks for the replies.

I'll send a pair for free to the first three people who PM me with their shipping information. I'll most likely need you guys to cover the shipping charge though.

I look forward to seeing how they work for you.
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Wed Sep 21, 2016 7:19 am    Post subject: Re: A true spray nozzle | In Progress Reply with quote

Hello Everyone,

Thanks to the following for being the first three to send me a PM:

Alaskaberrys
Gizmoman
jimf909

I'll be in touch with each of you individually. I plan to work out some final details of the design today, and then I should be able to start manufacturing them.

Thanks for your interest to those of you who were PM# 4, 5, 6, 7...I can only afford to offer a few of these for free since it is coming out of my pocket, however, I am trying to make them as affordable as can be!
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
bmxanddie
Samba Member


Joined: November 16, 2012
Posts: 37
Location: Seattle Wa
bmxanddie is offline

PostPosted: Wed Sep 21, 2016 8:19 am    Post subject: Re: A true spray nozzle | In Progress Reply with quote

I would love to test them out as well. I always seem to find myself on muddy/dirt roads so these would be quite helpful!
_________________
I am also a Local Washington State Home Inspector!
Call me directly at (206) 799-6084
www.WestInspectllc.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
Honuak
Samba Member


Joined: April 21, 2009
Posts: 393
Location: AK
Honuak is offline

PostPosted: Wed Sep 21, 2016 8:28 am    Post subject: Re: A true spray nozzle | In Progress Reply with quote

This is an example of why I love the SAMBA community, recalcitrants and all. With the slush season fast approaching I am eagerly awaiting results.
SAMBA!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jake de Villiers
Samba Member


Joined: October 24, 2007
Posts: 5557
Location: Crescent Beach, BC
Jake de Villiers is offline

PostPosted: Wed Sep 21, 2016 8:45 am    Post subject: Re: A true spray nozzle | In Progress Reply with quote

Great idea, Forrest! I hope they work out for you - and us. Wink
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
bluebus86
Banned


Joined: September 02, 2010
Posts: 11075

bluebus86 is offline

PostPosted: Wed Sep 21, 2016 9:42 am    Post subject: Re: A true spray nozzle | In Progress Reply with quote

to make the fan pattern, makemsure you did not shrink the orifice size to small, else it can clog.
_________________
Help Prevent VW Engine Fires, see this link.....Engine safety wire information

Stop introducing dirt into your oil when adjusting valves ... https://www.thesamba.com/vw/forum/viewtopic.php?t=683022
Back to top
View user's profile Send private message Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Wed Sep 21, 2016 10:53 am    Post subject: Re: A true spray nozzle | In Progress Reply with quote

bluebus86 wrote:
to make the fan pattern, makemsure you did not shrink the orifice size to small, else it can clog.


Thanks for the heads-up. I scaled the opening of the nozzle on my design to resemble the internal opening size of the stock nozzle. All nozzles are prone to clogging, so tests will tell.
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Wed Sep 21, 2016 11:20 am    Post subject: Re: A true spray nozzle | In Progress Reply with quote

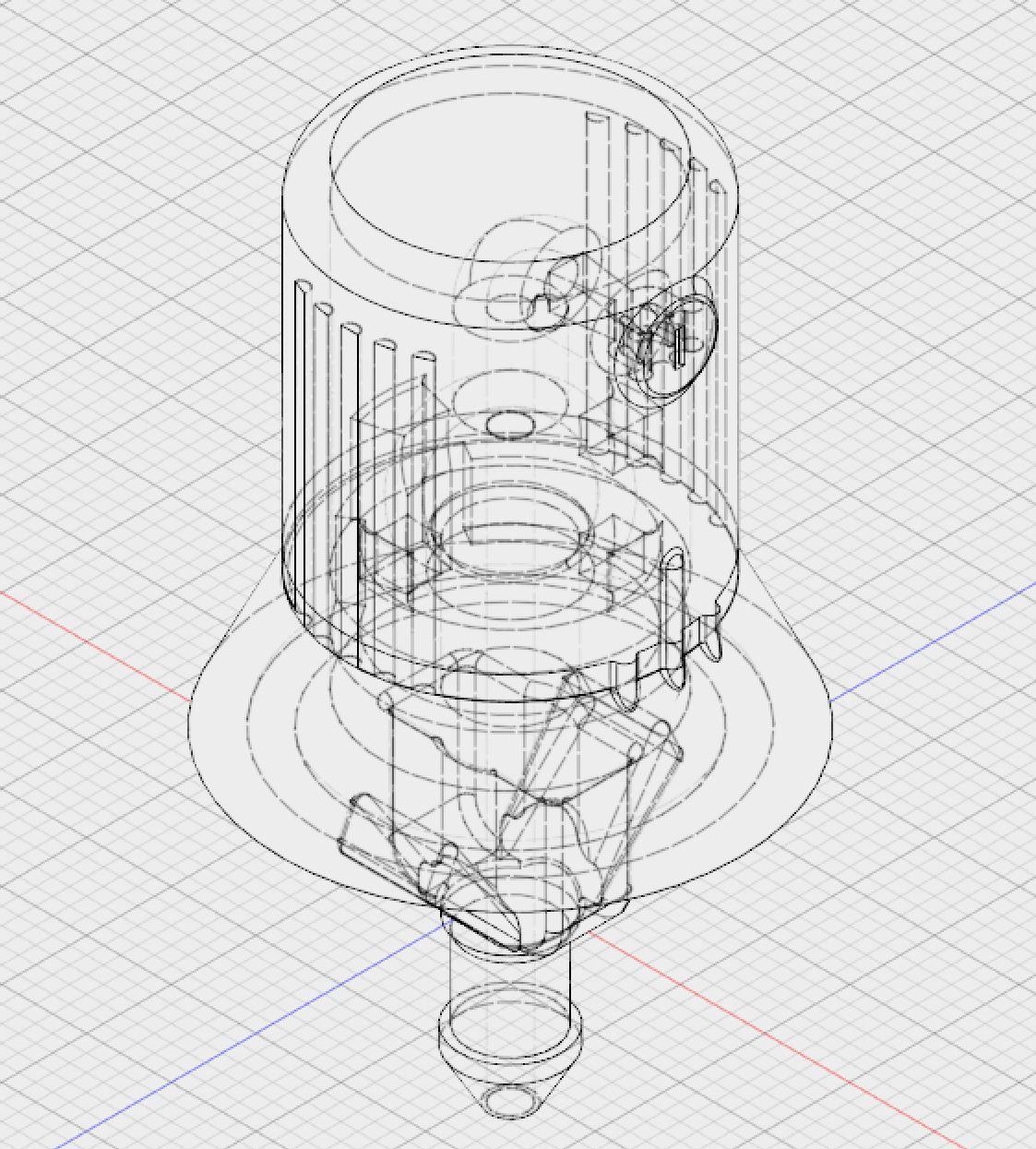

For those of you who like this type of drawing:

Image may have been reduced in size. Click image to view fullscreen.

_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11473
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Wed Sep 21, 2016 12:51 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

You have any pictures of the actual part? I like the idea a lot but a finished looking part is important to me if you go into production/sales. The GW sunvisor sockets look is the opposite of what I would spend money on.
Thanks
Back to top
View user's profile Send private message Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Wed Sep 21, 2016 1:23 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

syncrodoka wrote:
You have any pictures of the actual part? I like the idea a lot but a finished looking part is important to me if you go into production/sales. The GW sunvisor sockets look is the opposite of what I would spend money on.
Thanks


I totally agree with you. Those are some of the worst 3D-printed parts I have ever seen.

I am in the midst of printing another prototype, and it's way better than GW 'finished' part. I'll post a picture of it later on today. Keep in mind that it is a prototype, and that the color of filament is solely for testing fitment. The production part will be black.
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
nilza
Samba Member


Joined: May 21, 2007
Posts: 334
Location: brisbane australia
nilza is offline

PostPosted: Wed Sep 21, 2016 6:43 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

Nice work forrest, what material do you plan on making this from. I haven't been happy with the UV resistance of anything I have tried, with out adding paint to protect it.

I too have had requests to redo the GW visor parts in something decent Razz
_________________
still floating around the web somewhere
Back to top
View user's profile Send private message Send e-mail MSN Messenger Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Wed Sep 21, 2016 6:56 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

nilza wrote:
Nice work forrest, what material do you plan on making this from. I haven't been happy with the UV resistance of anything I have tried, with out adding paint to protect it.


Thanks Nils. I will be using a fairly standard thermoplastic using an SLS printer. UV resistance has been a huge thought, since the part will often see large amounts of it. I will be sealing the parts with UV resistant epoxy resin. I will also be testing another type of material on an FDM printer. I want to see the pros/cons of both.

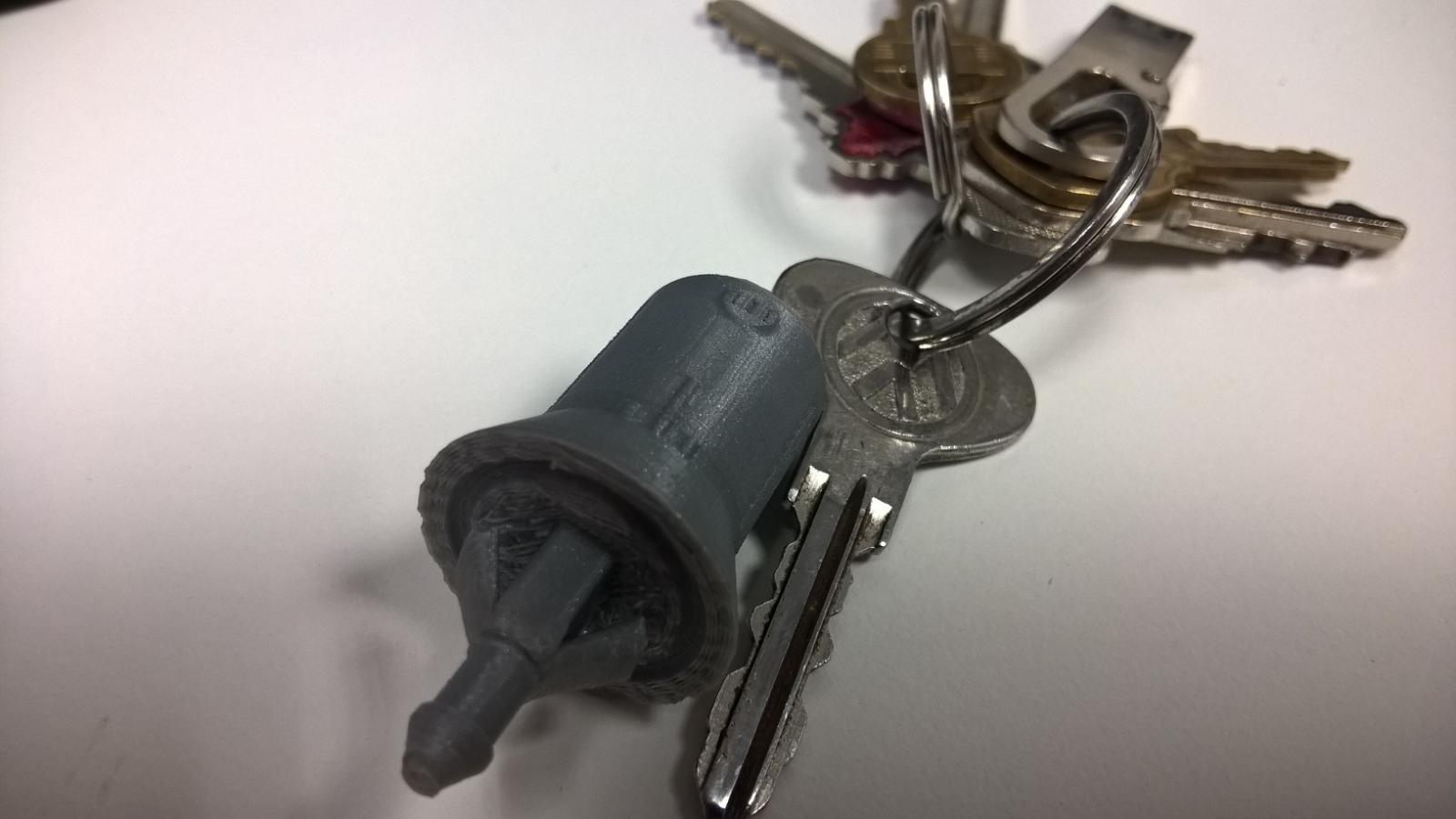

Here are some images:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The resolution of the final part will be as good, or better than what is pictured.
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts


Last edited by agon.parts on Thu Sep 22, 2016 5:18 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Thu Sep 22, 2016 3:37 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

Just a quick update:

I should have my materials and models 100% checked by the end of this week. I'll probably start manufacturing them next week!
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
agon.parts
Samba Member


Joined: August 21, 2010
Posts: 269
Location: Central Coast, CA
agon.parts is offline

PostPosted: Mon Sep 26, 2016 5:12 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

Just a quick update:

The few pairs of spray nozzles will begin production tomorrow. I will contact the individuals who will be receiving the first batch once they are ready to ship.

Let me know if you have any questions/concerns or any address changes.

I look forward to you trying them out soon!
_________________
Forrest Walker Whitmore
AGON
[email protected]
www.agon.parts

FREEBIES
www.print.agon.parts
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
Alaskaberrys Premium Member
Samba Member


Joined: June 19, 2016
Posts: 824
Location: SE Alaska
Alaskaberrys is offline

PostPosted: Mon Sep 26, 2016 9:17 pm    Post subject: Re: A true spray nozzle | In Progress Reply with quote

forrest.whitmore wrote:
Just a quick update:

The few pairs of spray nozzles will begin production tomorrow. I will contact the individuals who will be receiving the first batch once they are ready to ship.

Let me know if you have any questions/concerns or any address changes.

I look forward to you trying them out soon!


Hey Forrest, was happy to make the list for trials but I'm realizing a won't be able to install till the end of October (our van will stored in Salt Lake at the end of this trip we are currently enjoying and will awaiting our return from Alaska at that time). You may want, and be able to get, faster feedback from the next in line.

Still be more then happy to trial them if your timeline alows! If not, sign me up for the first pair....these stock ones suck. Musta stopped to clean my window at least five times today (....I think I got most of the bugs in Montana, might be a few left... d'oh!)
_________________
'91 Westfalia, Bordeaux Red Pearl 2.1L 2wd Auto
'91 T3 Syncro Doka, Escorial Green 1.9L TD AAZ “Gremian” (to provoke, irritate, exasperate, vex...)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Page 1 of 9


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
