Emeraldlion
Samba Member


Joined: April 13, 2005
Posts: 702
Location: Texarkana, TX
Emeraldlion is offline

PostPosted: Tue Feb 27, 2018 5:38 pm    Post subject: 100mm clutch arm Reply with quote

Anyone know a source for the 100mm clutch arm? Other than a 75 or later beetle Laughing
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rcooled
Samba Member


Joined: September 20, 2008
Posts: 2300
Location: Santa Cruz, CA
rcooled is offline

PostPosted: Tue Feb 27, 2018 7:06 pm    Post subject: Re: 100mm clutch arm Reply with quote

The ad doesn't say if it's 100mm, but it looks quite a bit longer than a regular arm.
https://www.thesamba.com/vw/classifieds/detail.php?id=801962

You might consider that a longer arm will change the angle of the clutch cable as it exits the end of Bowden tube. When used on an an older transmission, this'll cause the cable to start sawing into the end of the tube. Probably not the best thing for the cable...
_________________
'63 Ragtop (current)
'65 Ghia coupe (totaled)
'67 Ghia convertible (current)
'69.5 Ghia convertible and
'62, '63, '65, '69 Bugs (all long gone)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Emeraldlion
Samba Member


Joined: April 13, 2005
Posts: 702
Location: Texarkana, TX
Emeraldlion is offline

PostPosted: Tue Feb 27, 2018 7:41 pm    Post subject: Re: 100mm clutch arm Reply with quote

I appreciate the post, however that is an inactive ad. Bruce does not have any listed currently . You are correct in that the bowden tube may need to be adjusted, but with a heavier pressure plate and clutch the difference in clutch effort is more than worth it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4842
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Wed Feb 28, 2018 5:45 am    Post subject: Re: 100mm clutch arm Reply with quote

The reason Bruce's ad is inactive is because they are no longer available new. Like everything else popular that's nla, they pop up in the classifieds every once in a while. I've been searching on-off the last few years for some, only to find one. Good luck.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Emeraldlion
Samba Member


Joined: April 13, 2005
Posts: 702
Location: Texarkana, TX
Emeraldlion is offline

PostPosted: Wed Feb 28, 2018 5:47 am    Post subject: Re: 100mm clutch arm Reply with quote

That''s what I was afraid of. Will keep looking. I was hoping someone would have heard of a place that was making them. Question sera....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 17015
Location: Left coast, Canada
Bruce is offline

PostPosted: Sun Mar 04, 2018 3:15 pm    Post subject: Re: 100mm clutch arm Reply with quote

rcooled wrote:

You might consider that a longer arm will change the angle of the clutch cable as it exits the end of Bowden tube. When used on an an older transmission, this'll cause the cable to start sawing into the end of the tube. Probably not the best thing for the cable...

I thought that would be the case, so I did some testing.
First, the various clutch arms:
Image may have been reduced in size. Click image to view fullscreen.

# 1, 3, and 4 are what VW of Germany installed on Type 1 transmissions.
#1 was from about 1965 to 1972. 73mm long
#3 is from 73 to 75. 90mm long
#4 is 75 to 1980. 100mm long

Image may have been reduced in size. Click image to view fullscreen.

Here's an early swing axle side cover showing how the cable lines up with the 90mm long arm. Note, this is a combination of parts VW never offered. The cast in support on the side cover was eliminated and replaced with a steel bracket by the time the 90mm arm appeared. The cable is perfectly centered in the clutch cable tube.

Image may have been reduced in size. Click image to view fullscreen.

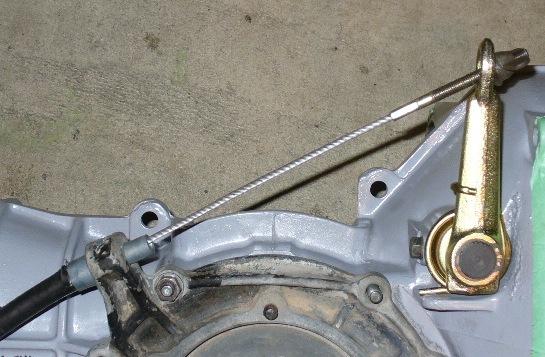

Here's that same side cover with the cable in the 100mm arm. As expected, the cable rides higher in the tube it exits.

Image may have been reduced in size. Click image to view fullscreen.

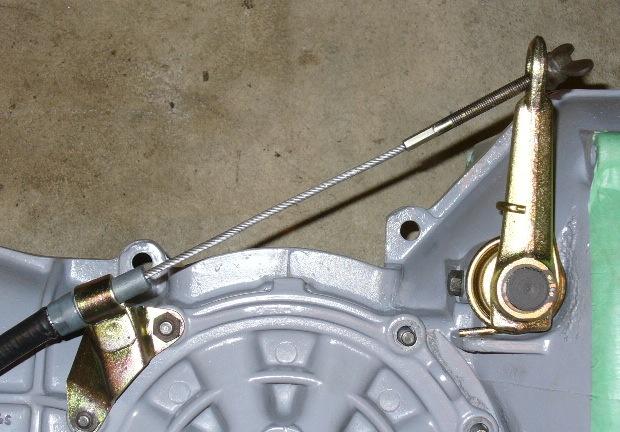

Now the later bolt on bracket for the clutch tube and the 100mm arm. Still rides a bit high exiting the tube.

Image may have been reduced in size. Click image to view fullscreen.

Here's a late model Mexican Beetle. Still exiting high in the tube.

What this shows is that it doesn't matter how the end of your clutch tube is supported, it's aimed exactly the same. It appears to me that VW didn't see the slight variation in the exit angle of the cable as a problem.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Emeraldlion
Samba Member


Joined: April 13, 2005
Posts: 702
Location: Texarkana, TX
Emeraldlion is offline

PostPosted: Sun Mar 04, 2018 4:23 pm    Post subject: Re: 100mm clutch arm Reply with quote

Those are great reference photos Bruce, thanks.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
XXX-1.8T
Samba Member


Joined: May 01, 2010
Posts: 115
Location: Australia
XXX-1.8T is offline

PostPosted: Sun Feb 17, 2019 6:11 pm    Post subject: Re: 100mm clutch arm Reply with quote

anyone have a part number for a 1975 Beetle Clutch arm?
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4842
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sun Feb 17, 2019 6:46 pm    Post subject: Re: 100mm clutch arm Reply with quote

The 20mm shaft 100mm long arm is 111-141-719-F.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
XXX-1.8T
Samba Member


Joined: May 01, 2010
Posts: 115
Location: Australia
XXX-1.8T is offline

PostPosted: Sun Feb 17, 2019 9:50 pm    Post subject: Re: 100mm clutch arm Reply with quote

Thanks what about for 16mm shaft?
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4842
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Mon Feb 18, 2019 6:23 am    Post subject: Re: 100mm clutch arm Reply with quote

Aircooled.net last had them listed as 080-141-719.1. CSP has Flat 4ís version they are making as 141 719 1130. Empi has a 16mm shaft arm that is as long as the early 20mm shaft arms, about 85mm, and itís #16-9918.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
APPLEGREENVW
Samba Member


Joined: November 30, 2003
Posts: 2203
Location: Seekonk,Massachusetts USA
APPLEGREENVW is offline

PostPosted: Mon Feb 18, 2019 6:42 am    Post subject: Re: 100mm clutch arm Reply with quote

Its available here.

https://weddleindustries.com/product/1001274
_________________
Parts for sale https://www.thesamba.com/vw/classifieds/search.php?username=APPLEGREENVW

02/76 Beetle sedan
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4842
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Mon Feb 18, 2019 7:02 am    Post subject: Re: 100mm clutch arm Reply with quote

APPLEGREENVW wrote:
Its available here.

https://weddleindustries.com/product/1001274


That will work for the 20mm shaft. The VW version for the 16mm shaft has been nla for 5 years or so.
Back to top
