Charcoal canister of 74 Beetle 1200 STD

[seiyaTokyo]

Hello from Tokyo Japan, I am beginner of this forum.
Recently I bought 74beetle 1200 STD RHD.

I have a question about the Charcoal canister of my beetle.

The pipe is from the fan housing but another pipe doesn't connect to anywhere.
Should I connect it to somewhere or it is OK not to connect?

Thank you very much.

seiyaTokyo

[AlmostHeavenWV_VW]

Hello! Welcome to the forum!
That canister is part of a fuel vapor venting/recovery/recycling system for the vapors which are created by the fuel in the gas tank. Here is a general schematic of this entire system.

This forum discussion speaks about the entire system at length:
https://www.thesamba.com/vw/forum/viewtopic.php?t=389074
This forum discussion covers the vent lines and expansion tank which are present in the front trunk with the gas tank:
https://www.thesamba.com/vw/forum/viewtopic.php?t=313050
This discussion relates to the hard metal line which connects to the venting line from the trunk, across the firewall, and then the line runs down the side of the floor pan on the Right hand side underneath the car:
https://www.thesamba.com/vw/forum/viewtopic.php?t=583736

The charcoal canister has three pipes coming out, the larger two pipes which connect to the fan housing and connects to a pipe on the right hand side of the air cleaner box (on top of the carburetor). The photo below shows both large hoses, but does not have the smaller line.

It also should have a small pipe on the bottom of the canister which connects a fuel vapor line from the gas tank.
Here is how that small line runs in the wheel well which connects to the line which runs along the side of the floor pan. The numbered circles in this picture indicates the fender bolts which mount the line brackets in the wheel well. You can see one of the line brackets hanging near the center of the line in this photo. You could likely secure the line well with only three such brackets.
You can also see the small line attached to the small canister pipe in this photo near the red arrow.

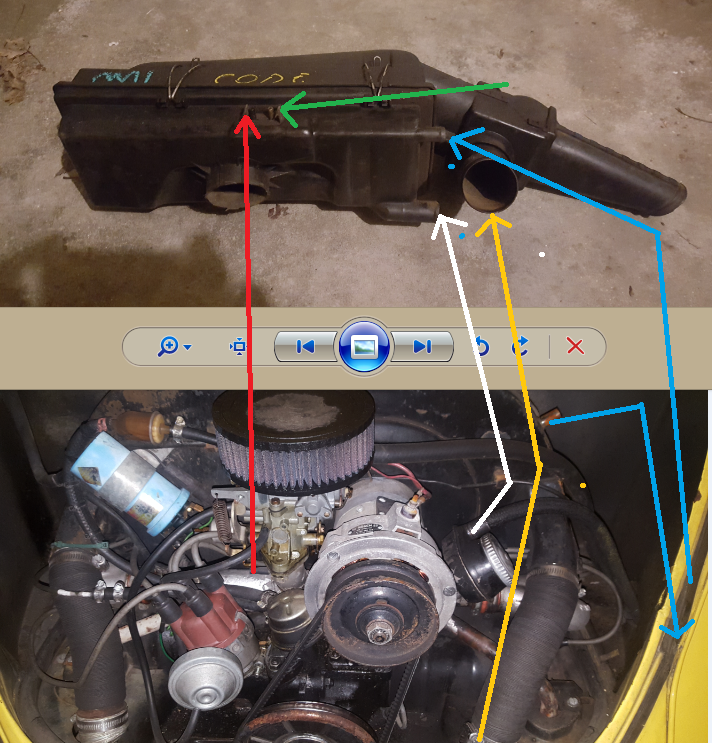

The photo below has color coded arrows for the connections. You are concerned with the blue arrows for the charcoal canister.

Good luck! Any questions just ask everyone on here, we will help you.
