 Posted: Tue Oct 22, 2019 8:24 pm Post subject: 1969 Ghia dash restoration tutorial |
 |
|
I couldnt find any pictures of how to do this so thought I'd document my efforts.
My car's interior is pretty original so I took a bunch of pictures to insure the replacement pieces fit the same.
The first step was to remove the dash pad which meant I had to remove the wiper assembly and glove box to get to the nuts. The pad came right off.
I then removed the gauges which push through the dash. Removed the switches which required me to make a special tool to remove them. The brake warning light simply pushes through.
I then removed two bolts holding the steering column up, removed the ashtray and bracket, and then the kick pad.

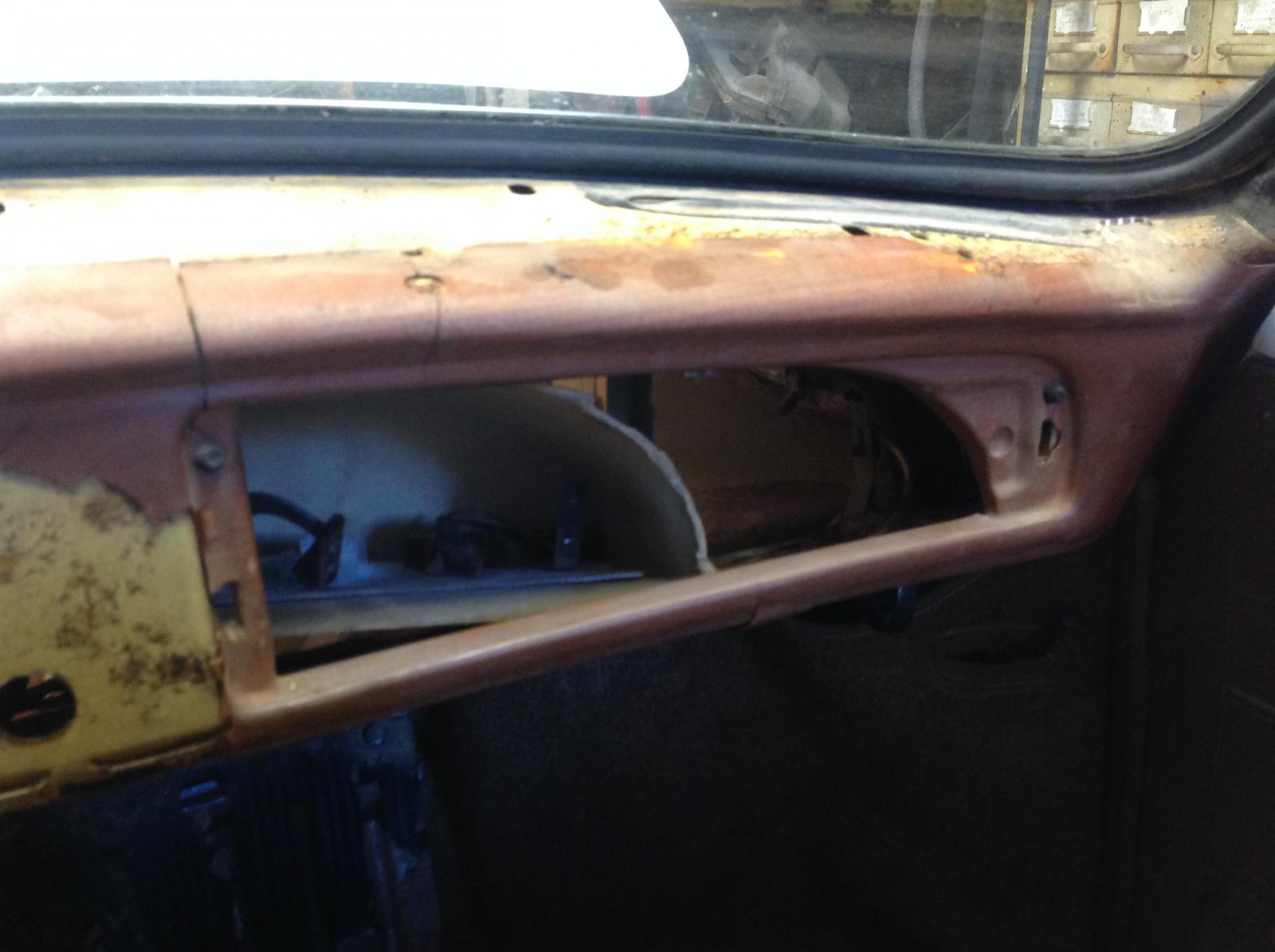

I was now ready to remove the dash cover.
I was mostly interested in how the holes for the gauges and switches were dealt with.

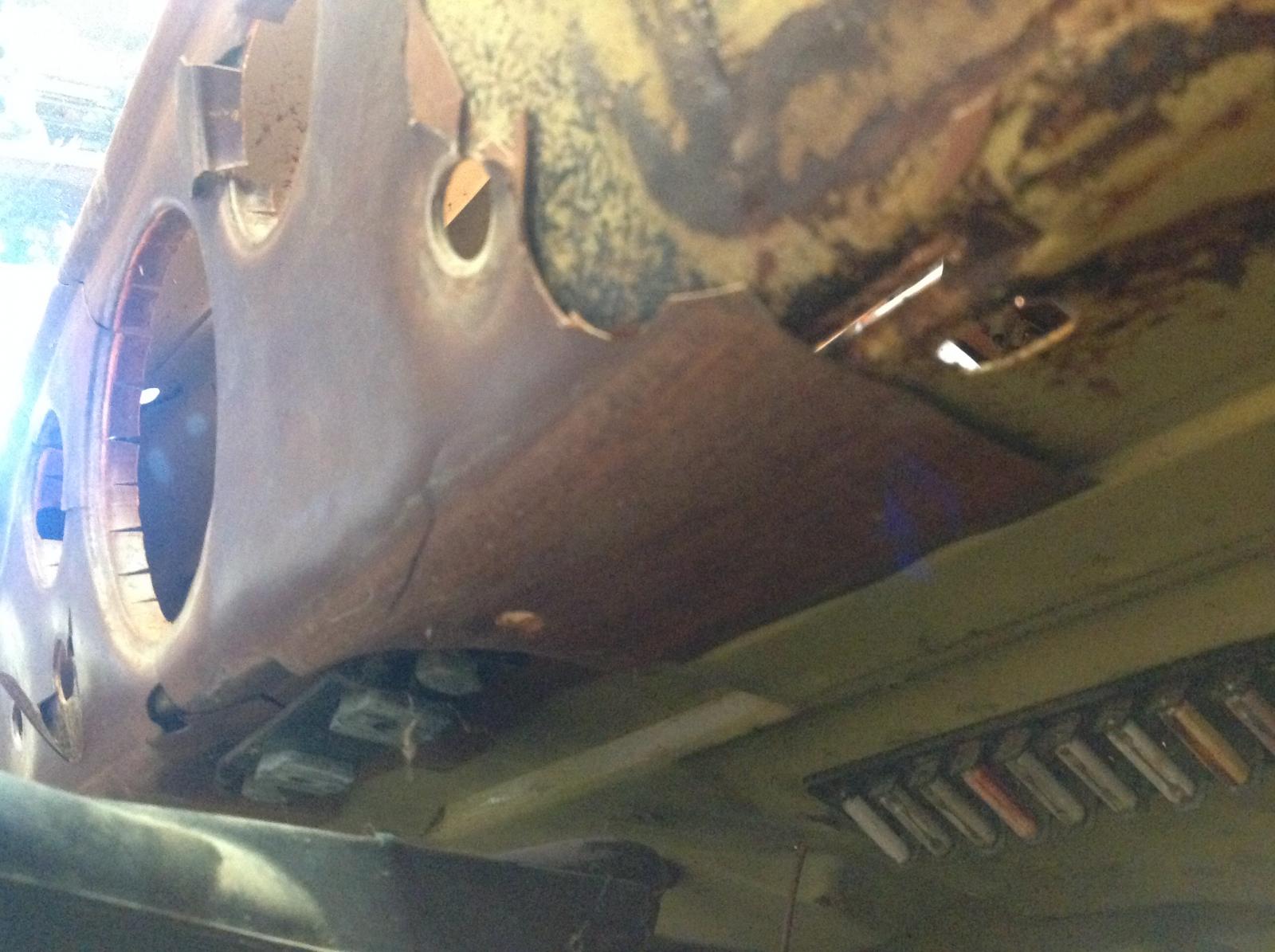

Obviously they cut and folded in the sections around the gauge holes but simply cut around for the switches. The glove box was also folded in.
Removing the veneer was easy. The glue was brittle so it just peeled off.
I then used acetone and a green scrub pad to remove the glue residue.
I bought the dash cover from KGPR along with the recommended spray glue they sell. The glue tacked up super fast, maybe too fast? I sprayed both surfaces and then simply pressed it on with my hands. It acted like contact cement so I simply rubbed my hands over the surface to avoid and bubbles.
I let the cover dry over night. I then used a hot knife I bought off of Amazon to cut the holes. I had to cut a series of them on the top of the dash for the studs for the dash pad to fit through. I then installed the pad which fit perfectly.
I used a heat gun to heat the material enough to fold it into the gauge holes. I got the area too hot in a couple spots which caused some partial delamination around the radio, so be very careful with the heat, you just need enough so it bends and stays bent.
For the gauges I had to make a series of small cuts, for the glove box I made larger ones.

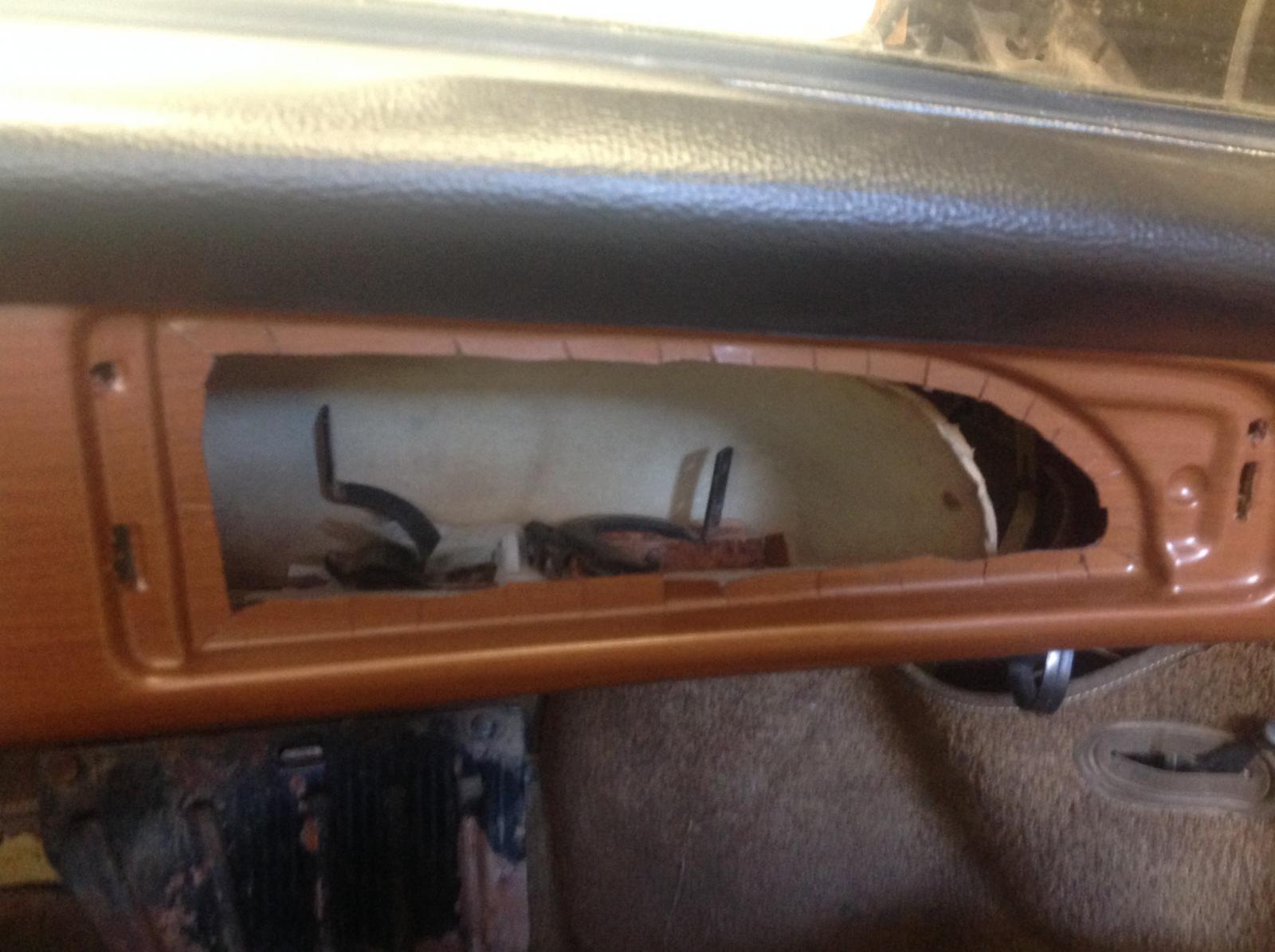

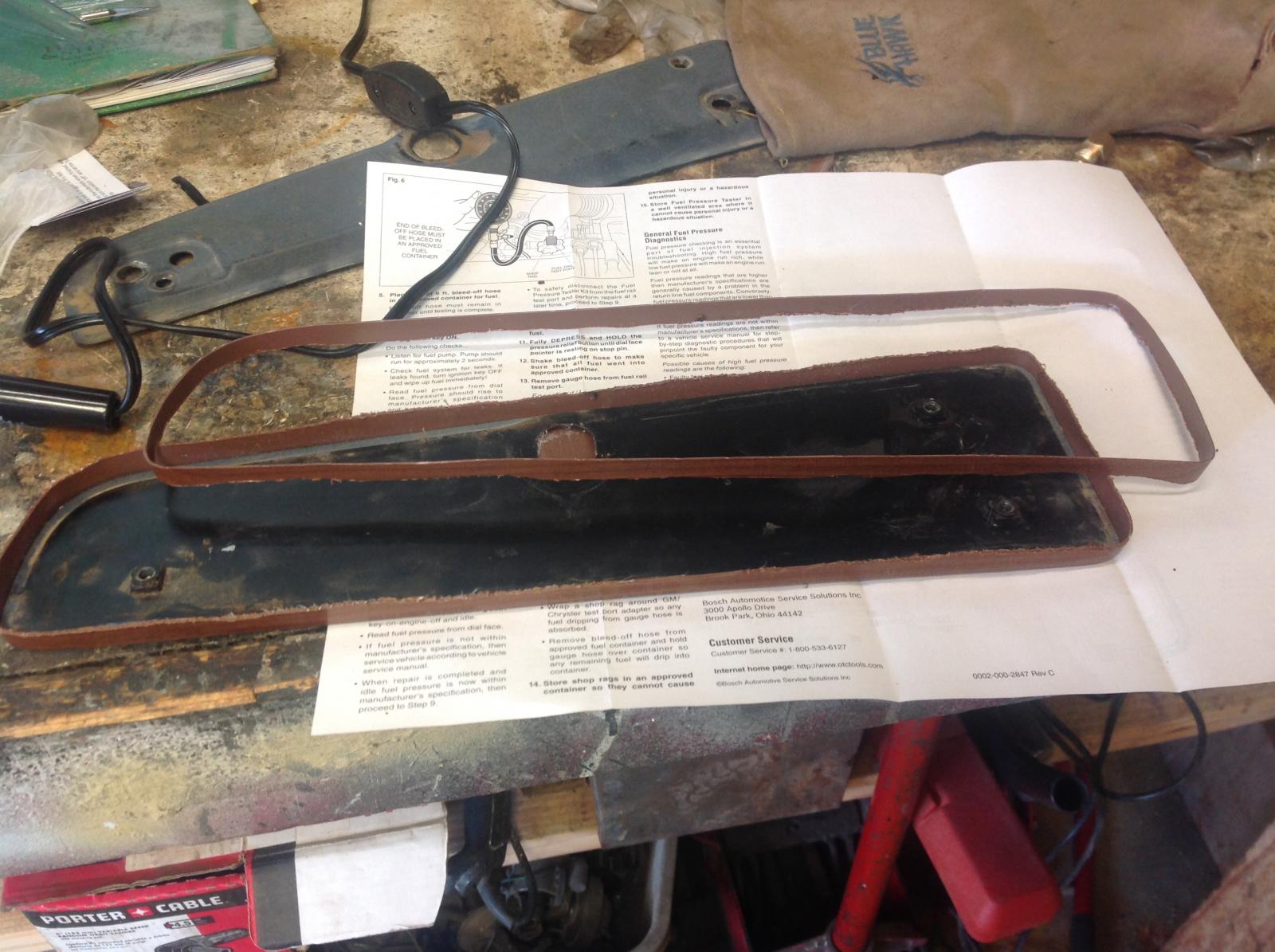

I did the glove box door last. It comes apart and you glue the face on, then trim, heat and bend and reassemble. The material seems thicker than the original so the back didn't fit as tight as originally.
After the dash face was installed and the gauges and switches installed I put on the kickpad. Dash is done and looks much nicer than the before.
