PostPosted: Tue Apr 13, 2021 12:36 pm    Post subject: AAZ- Once More, Into The Breach...... Reply with quote

Thank you, Uncle Sam, for the Stimulus Check!
It's given me what I need to start this again!

I'm not even going to bother with the old engine, I am getting a complete new one, and a new turbo (K14 (stock) this time! No more messing with ill fitting parts!)!

I've got a four-week wait for the motor to get here. I've just about got all of my seals and sauces and turbos and cornbread, so it's now a matter of organizing the transport to the shop!

After the old motor comes out, and the work is done, I plan on shipping the old motor back to the builder and just get it the F*CK out of my life!
NO autopsy!

Wish me luck!
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
DanHoug
Samba Member


Joined: December 05, 2016
Posts: 2567
Location: Bemidji, MN
DanHoug is offline

PostPosted: Tue Apr 13, 2021 12:49 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

like a NEW new motor or a rebuilt?

sometimes it just takes a reset to make everything right. it'll feel great.
_________________
-dan

He who knows he knows, doesn't know. But he who knows he doesn't know, knows.

'87 Westy, ratty but drive anywhere.
'89 Westy, gorgeous but hasn't been gone thru to drive anywhere.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2357
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Tue Apr 13, 2021 12:54 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

I may be inviting trouble, but I'm getting a 0km rebuild from the same company.
Shocked Rolling Eyes
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 11073
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Tue Apr 13, 2021 4:01 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

GEX FTW!
_________________
Casey--
Volkswagens powered by Volkswagen
'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender VR6 -->2.5 TDI Syncro?
Oly Bulli
'87 300TD OM606 7mm Myna pump and HX30
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2357
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Sat Apr 17, 2021 2:45 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

So, I posted this in another thread, but I would like to mount an EGT sensor and gauge, but need to find one.
Also, Gnarlodious, could you remind me of the larger exhaust set-up you did? I think I might try that out, too.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
Gnarlodious Premium Member
Samba Member


Joined: September 28, 2013
Posts: 1975
Location: Adobe Jungle USA
Gnarlodious is offline

PostPosted: Sat Apr 17, 2021 7:23 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

I installed a 2½” exhaust, coudn’t be happier!
https://www.thesamba.com/vw/forum/viewtopic.php?t=728825
_________________
Vanagon ’83 diesel AAZ w/Giles injection, 5spd 4.57R&P+TBD.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2357
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Wed May 12, 2021 5:37 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

So, here I am, at the workshop again.
Pulling the engine out, again.
Kinda disheartening to see gear oil coming out of the CV joint...
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 13297
Location: Brookeville, MD
dobryan is offline

PostPosted: Wed May 12, 2021 5:42 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Team WorldTour wrote:
So, here I am, at the workshop again.
Pulling the engine out, again.
Kinda disheartening to see gear oil coming out of the CV joint...


Why do you need to pull the engine for gear oil in the CV? Isn't that usually due to the CV flange seal at the transmission?
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The West Coast Westy
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 14847
Location: Palm Beach County, Florida
MarkWard is offline

PostPosted: Wed May 12, 2021 7:15 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Gear oil out of the cv joint is likely the half dollar size cap has fallen out of position in the drive flange. I will smear a film of silicone around the outer edge once installed to help retain it. It can be knocked loose installing a cv shaft.
_________________
1982 Vanagon Camper with ALH TDI.
1990 Vanagon Camper Syncro.
In Car https://youtu.be/5hbfdUJR88Q
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 13297
Location: Brookeville, MD
dobryan is offline

PostPosted: Wed May 12, 2021 7:30 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The West Coast Westy
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Gnarlodious Premium Member
Samba Member


Joined: September 28, 2013
Posts: 1975
Location: Adobe Jungle USA
Gnarlodious is offline

PostPosted: Wed May 12, 2021 8:21 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

The output shaft is supposed to have a seal the prevents oil from coming out. I myself have had a chronic problem with oil leaking out the driver’s side output shaft into the CV boot. Even after replacing the seal it still leaks...
_________________
Vanagon ’83 diesel AAZ w/Giles injection, 5spd 4.57R&P+TBD.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 13297
Location: Brookeville, MD
dobryan is offline

PostPosted: Wed May 12, 2021 8:58 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Gnarlodious wrote:
The output shaft is supposed to have a seal the prevents oil from coming out. I myself have had a chronic problem with oil leaking out the driver’s side output shaft into the CV boot. Even after replacing the seal it still leaks...


Many times that seal does not work very well on its own. Did you add any RTV?
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The West Coast Westy
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2357
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Wed May 12, 2021 10:32 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Yup, that little seal was loose.

Motor is out for changing. After dinner I will update the thread with pictures 😃!
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2357
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Wed May 12, 2021 12:17 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Okey-Dokey Folks!
I'm happy to report, it was a good day of wrenching!

Wait, back up....

On Saturday, I got a trailer, and moved Frank to the workshop.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


And from there I dropped the engine and trans together (to save time).




Image may have been reduced in size. Click image to view fullscreen.


This is the Turbo. Nice and clean. 7,000 kilometers old.
(Oh, by the way, the van has been sitting in my driveway since I last wrote about him. 7ish months ago, or so. I haven't cleaned anything first.)


Image may have been reduced in size. Click image to view fullscreen.


Air Plenum, oil soaked. I haven't opened it up yet. That's tomorrow!


Image may have been reduced in size. Click image to view fullscreen.


Oil on the bell housing, but not the oil pan. I pulled the plug, but it was dry.


Image may have been reduced in size. Click image to view fullscreen.

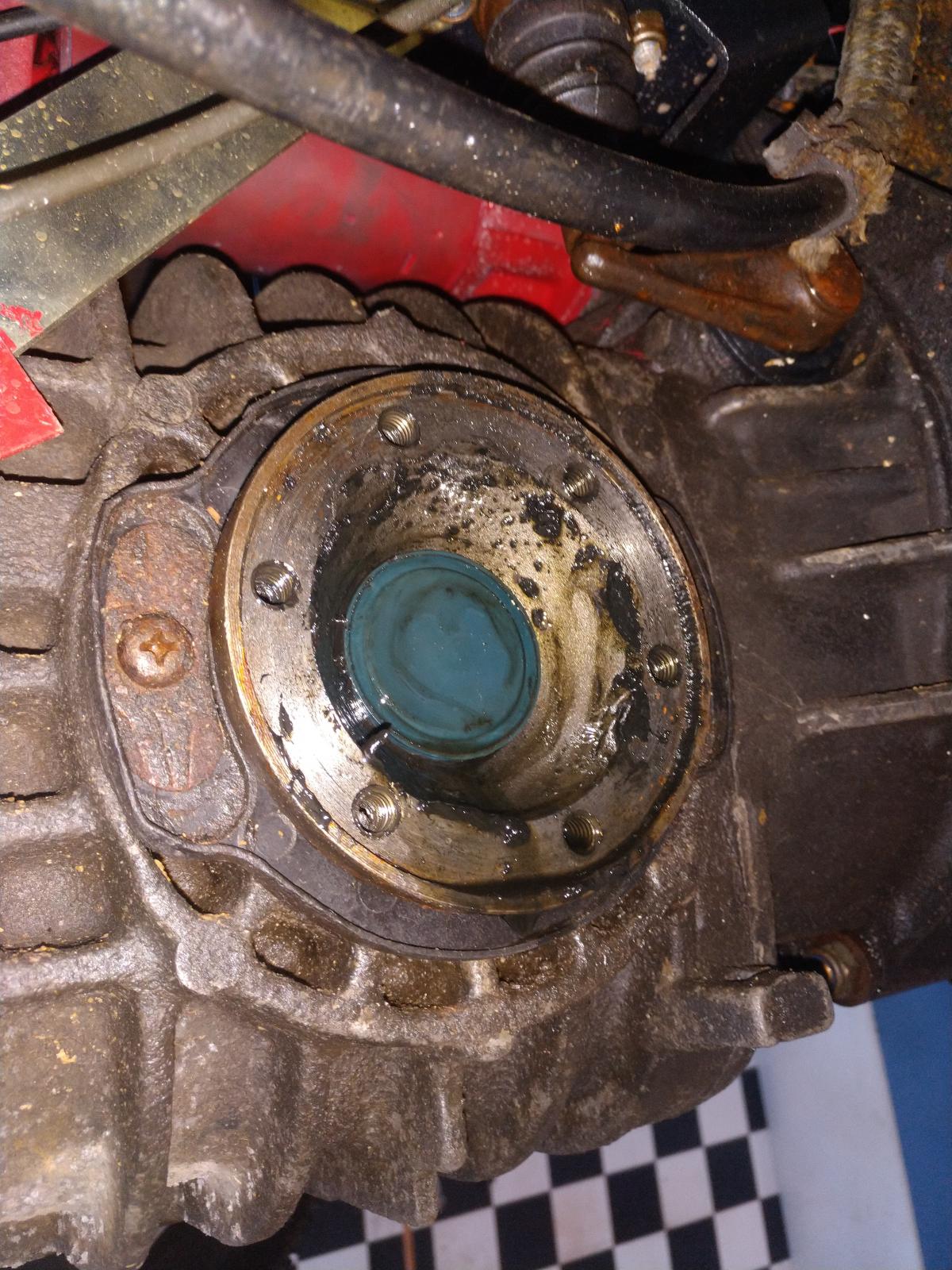

As promised, a CV leaking gear oil.


Image may have been reduced in size. Click image to view fullscreen.


Yup, the little cap was loose. I tapped it back in with a socket and hammer. I'll give it a smear with RTV tomorrow.


Image may have been reduced in size. Click image to view fullscreen.

Now here's a funny thing....
This is the bolt hole for the turbo bracket. The one I thought was sealed. (I used the wrong bolt the first time, broke it. It dripped. To my surprise, when the first motor was sent back for the roasted bearings, I got the same block back, with this repair.)

Image may have been reduced in size. Click image to view fullscreen.


This is curious. My air ducting is (was\ should be) complete and assembled, so I'm not sure how this got flooded. Really, I wasn't planning on replacing the air filter. It's still new. It's soaked. Trip through the sandblaster, paint, find the next fault, Lather, Rinse, Repeat.

Image may have been reduced in size. Click image to view fullscreen.


And here it is, four and a half hours later, out.

Tomorrow I will split the trans and motor and start pulling stuff off. I've got a bunch of new stuff, like the oil pump and Turbo, as well.

I'll take more pictures.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2357
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Wed May 12, 2021 12:44 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Oh, and I also got some lighting upgrades.
I've got a question for the ones who have done the LED upgrade....

Where did you get a mounting ring for the lights?


Image may have been reduced in size. Click image to view fullscreen.


It fits just fine, but a little loose.....


Image may have been reduced in size. Click image to view fullscreen.


The H4 bulbs have the tabs mounted to itself. Can't get those off.....
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 8806
Location: Where?
?Waldo? is offline

PostPosted: Wed May 12, 2021 3:25 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

The US spec round headlights all came with the rings.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 14847
Location: Palm Beach County, Florida
MarkWard is offline

PostPosted: Wed May 12, 2021 3:31 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Team WorldTour wrote:
So, here I am, at the workshop again.
Pulling the engine out, again.
Kinda disheartening to see gear oil coming out of the CV joint...


It sounded like you already swapped the engine and then found the gear oil leaking. I’d reseal the trans while you have the engine out.
_________________
1982 Vanagon Camper with ALH TDI.
1990 Vanagon Camper Syncro.
In Car https://youtu.be/5hbfdUJR88Q
Back to top
View user's profile Send private message Gallery Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1169
Location: Newfoundland
old_man is offline

PostPosted: Wed May 12, 2021 4:38 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

[quote="Team WorldTour"

Where did you get a mounting ring for the lights?

[/quote]

I made some temp ones until I got the proper rings. Funny thing about temp fixes and how they end up permanent.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2357
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Wed May 12, 2021 10:57 pm    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Anyone feeling generous and charitable.....?
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2357
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Yesterday 8:43 am    Post subject: Re: AAZ- Once More, Into The Breach...... Reply with quote

Double post.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan


Last edited by Team WorldTour on Yesterday 8:45 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
