 Posted: Tue May 13, 2025 12:52 pm Post subject: Exhaust leaks |
 |
|
I'm having problems with my 42mm ( ~1 5/8") CSP Python exhaust. I used the little nuts that came with the system at the head flanges. They keep getting loose and replacing the gaskets requires dropping the engine and disassembling the exhaust. The little nuts take a 10mm wrench and for the forward cylinders I can only get an open-end on them.
I would imagine this is a common problem with larger diameter exhausts. Perhaps someone with experience in this area can offer some advice.
Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836 |
|
| Back to top |
|
 |
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23396
Location: Kimball, Mi
|
| Posted: Tue May 13, 2025 2:06 pm Post subject: Re: Exhaust leaks |
|
|
It might be worth looking on CB Performances web site and see if they offer some small copper self locking nuts with an 8mm thread. I know I got some from somebody like them for both my intake manifolds, and a couple of them for the exhaust system.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11048
Location: Black Forest, CO
|
|
| Back to top |
|
|
nogoodwithusernames
Samba Member
Joined: November 10, 2014
Posts: 654
Location: CA, USA
|
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23396
Location: Kimball, Mi
|
| Posted: Wed May 14, 2025 3:08 pm Post subject: Re: Exhaust leaks |
|
|
I think my son is using some brass nuts on his type 4 engine too. They use an 11mm socket to tighten/remove. I think he got them from CIP.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11048
Location: Black Forest, CO
|
| Posted: Wed May 14, 2025 3:45 pm Post subject: Re: Exhaust leaks |
|
|
Well, they didn't work for me.

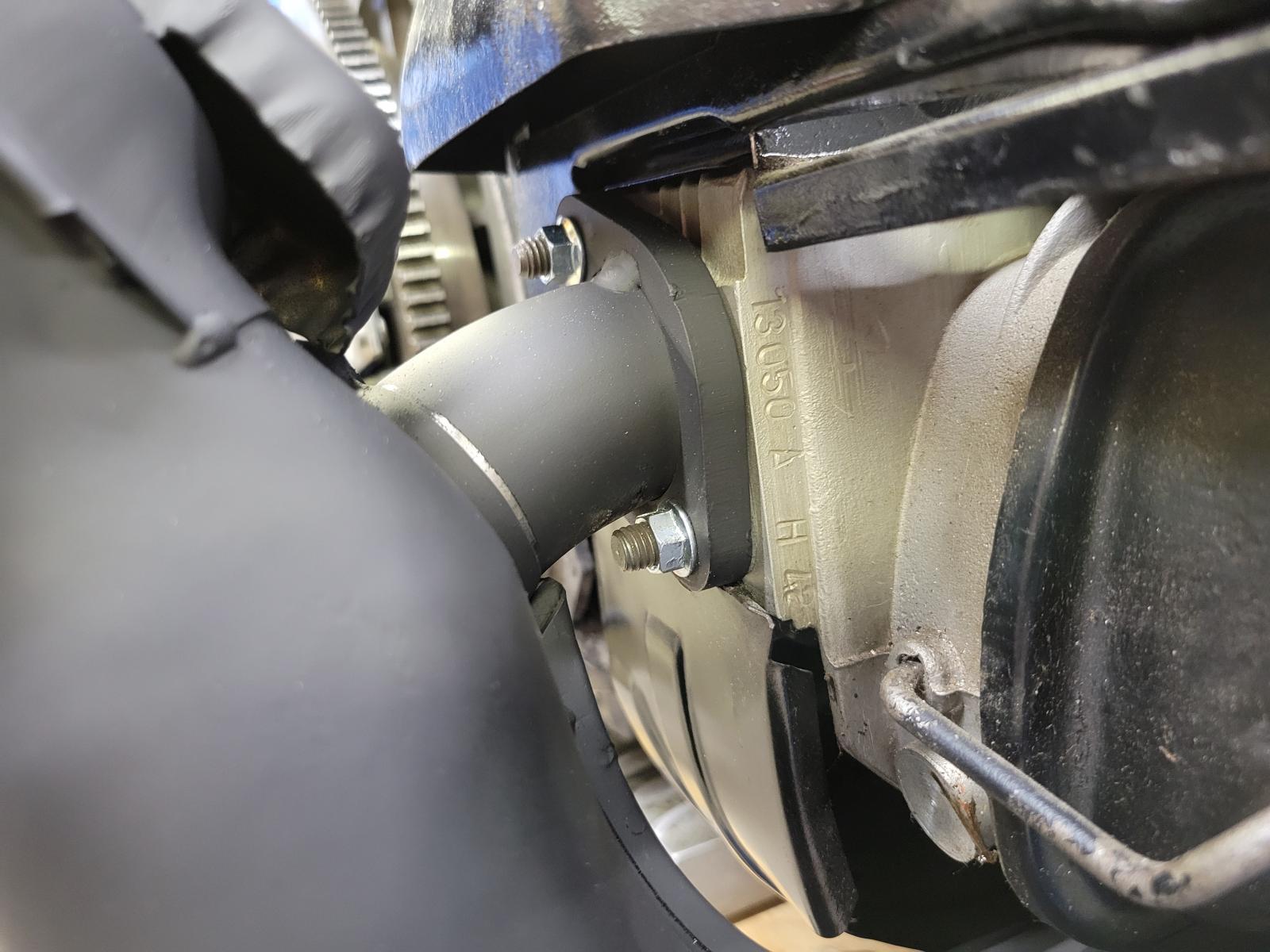

What I'm trying is full-sized nuts and lock-washers. Hacked up a 13mm so I could get some swing on the lower nuts of cylinders 1 and 3.
So this has been a bit of a job. Getting the heater boxes off requires taking off the mustache-bar. This is because of a tiny screw holding a bracket up to the cylinder tin. For that little screw pretty much the entire fan and shroud had to come off.
Before putting the heater-boxes back on, I've cut off that little bracket. More trouble than it's worth.
Tomorrow is stabbing the engine back in the car.
Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836 |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23396
Location: Kimball, Mi
|
| Posted: Thu May 15, 2025 12:16 pm Post subject: Re: Exhaust leaks |
|
|
| Max Welton wrote: |
Well, they didn't work for me.
What I'm trying is full-sized nuts and lock-washers. Hacked up a 13mm so I could get some swing on the lower nuts of cylinders 1 and 3.
So this has been a bit of a job. Getting the heater boxes off requires taking off the mustache-bar. This is because of a tiny screw holding a bracket up to the cylinder tin. For that little screw pretty much the entire fan and shroud had to come off.
Before putting the heater-boxes back on, I've cut off that little bracket. More trouble than it's worth.
Tomorrow is stabbing the engine back in the car.
Max |
On my Notch, I ground away a little of the weld to clear the stock nut. But on my intake manifolds, I ground the stock welds a little so I could get full purchase on the smaller nuts I used to hold the manifolds on (ground the clearance for the tools I used). It's been a while since I did that though. I ground quite a bit on my aluminum ICT manifolds to do something similar on my spare engine too. Sometimes it's worth it to grind a little beforehand just to make assembly easier. As for that screw that connects the heater box to the engine bar, I just swapped out the screw with a hex head one to make my life easier. I'm not a stock nazi, so it's no big deal to me if it isn't a slotted screw. In fact most of my slotted screws have been swapped to hex head to make my life easier. In fact that one might have been the first to get changed, so I could just remove it with my 1/4 drive ratchet and a 10mm socket. I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11048
Location: Black Forest, CO
|
| Posted: Thu May 15, 2025 5:23 pm Post subject: Re: Exhaust leaks |
|
|
Alrighty. Everything is stuffed back in the car. No breakage. Although I did forget to hook up the vacuum hose for the MAP sensor. Runs crummy that way.
All set to drive to lunch w/friends tomorrow and VWs on the Green Sunday up in Littleton. Weather guy says breezy on Sunday. Maybe it will be a tail-wind.
Max
