 Posted: Fri Nov 29, 2024 10:58 am Post subject: New Type 3 Parts from ISP West Thread |
 |
|

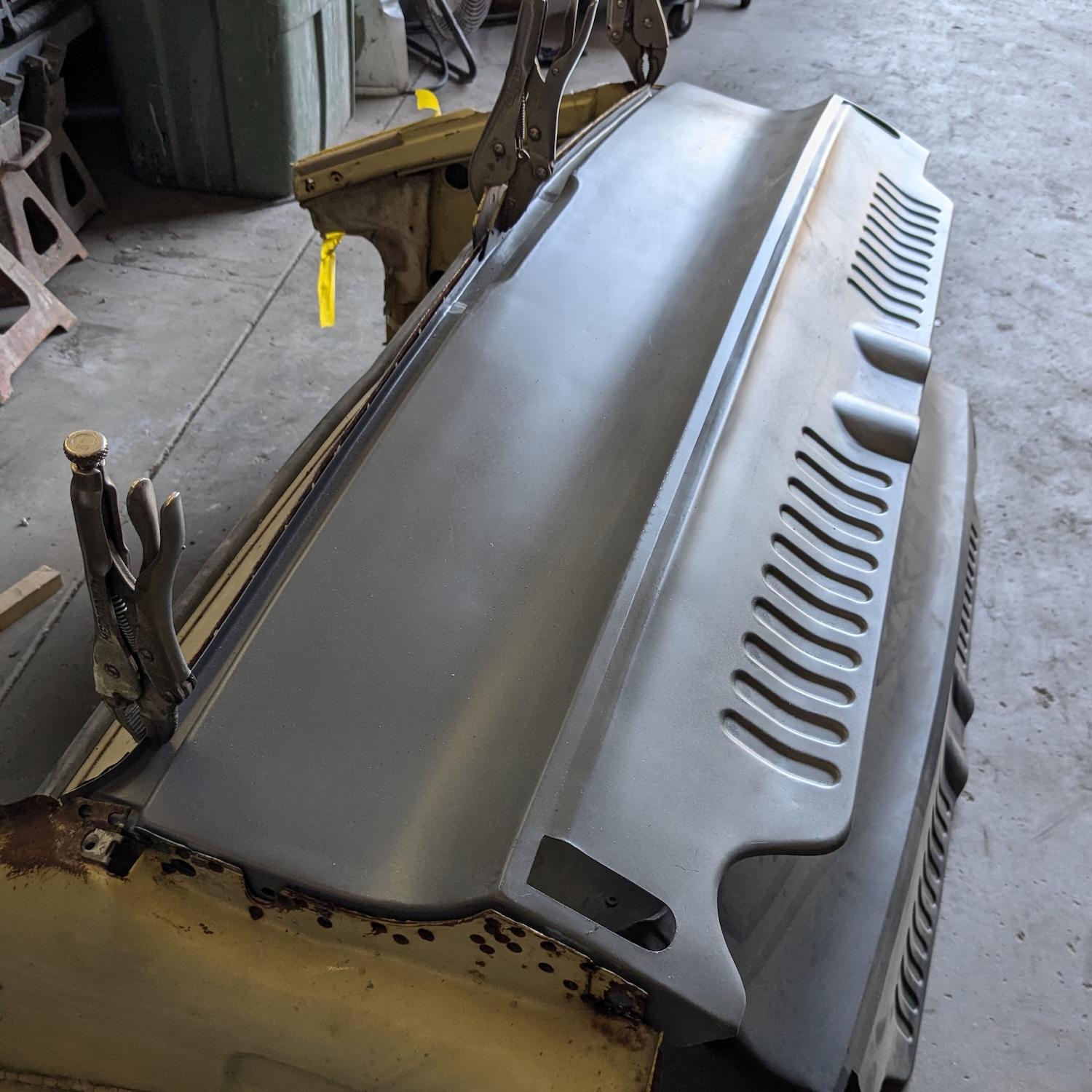

Hey everyone, I just wanted to share the huge news. We have finally released our new Squareback rear apron skin. These are stamped steel, NOT fiberglass. After many months of test fitting and modifying samples, these are finally ready to go. Check out the pictures and I'll see what else I can share here from the development process. I would love to keep you all in the loop with what we are working on.
We also have Fastback rear apron skins in the work. They are pretty much the same, but feature the mounting spots for the license plate bracket. I'll share when those are available.
_________________
1963 Notchback - Ruby Red
1963 Squareback - Pearl White
1965 Squareback - Baltic Blue
Follow ISP West on:
Facebook - www.facebook.com/ispwest
Instagram - @ispwest - www.instagram.com/ispwest
Last edited by squaretobehip on Fri Dec 06, 2024 5:57 pm; edited 2 times in total |
|
| Back to top |
|
 |
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23294
Location: Kimball, Mi
|
| Posted: Fri Nov 29, 2024 11:03 am Post subject: Re: New Squareback rear apron skin from ISP West |
|
|
Looks good from here. Now all you need to do is take out that upper indent, so we can use them on a Notchback.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 10982
Location: Black Forest, CO
|
|
| Back to top |
|
|
Zwitterkafer
Samba Member
Joined: November 17, 2007
Posts: 993
Location: Lanark County, Ontario, Canada
|
| Posted: Sat Nov 30, 2024 11:00 am Post subject: Re: New Squareback rear apron skin from ISP West |
|
|
Beautiful!!
_________________
"Criticism comes easier than Craftsmanship"
- Zeuxius, 400 BC |
|
| Back to top |
|
|
squaretobehip
Samba Member
Joined: August 23, 2004
Posts: 4011
Location: San Jose, CA
|
| Posted: Fri Dec 06, 2024 5:58 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
We just received our latest rear apron skin for Fastbacks. These are just like the Squareback skins, but have the nuts for the license plate bracket.
_________________
1963 Notchback - Ruby Red
1963 Squareback - Pearl White
1965 Squareback - Baltic Blue
Follow ISP West on:
Facebook - www.facebook.com/ispwest
Instagram - @ispwest - www.instagram.com/ispwest |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23294
Location: Kimball, Mi
|
| Posted: Sat Dec 07, 2024 11:12 am Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
| squaretobehip wrote: |
We just received our latest rear apron skin for Fastbacks. These are just like the Squareback skins, but have the nuts for the license plate bracket.
|
Those are good looking pieces, but if I needed one for my wife's Fastback, I'd have to order one for a Squareback due to the license plate mounting of a bracket on the trunk lid (no plate holes in the rear apron). I think that's a 70-73 thing for a Fastback. KTPhil, can you verify this on your 71?
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Dfasty
Samba Member
Joined: November 22, 2005
Posts: 540
Location: north bay,ca.
|
| Posted: Sat Dec 07, 2024 1:25 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
That must be for early fastbacks my 70 has the plate on the lid.
Who has an early car 66 or 67
_________________
70 fastback automatic 06 invader |
|
| Back to top |
|
|
swhitcomb
Samba Member
Joined: November 05, 2003
Posts: 5726
Location: Inwood WV
|
| Posted: Sat Dec 07, 2024 1:56 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
My 66
My wife’s 67
_________________
My 71 Ghia Been in my family since 1980
My Patina 66
My 74 Ghia
07 Boxster |
|
| Back to top |
|
|
squaretobehip
Samba Member
Joined: August 23, 2004
Posts: 4011
Location: San Jose, CA
|
| Posted: Sat Dec 07, 2024 2:21 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
This is a good point, thanks. I have to fix the year / models on both.
_________________
1963 Notchback - Ruby Red
1963 Squareback - Pearl White
1965 Squareback - Baltic Blue
Follow ISP West on:
Facebook - www.facebook.com/ispwest
Instagram - @ispwest - www.instagram.com/ispwest |
|
| Back to top |
|
|
swhitcomb
Samba Member
Joined: November 05, 2003
Posts: 5726
Location: Inwood WV
|
| Posted: Sat Dec 07, 2024 3:07 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
I am by no means an expert, but I think Fastback aprons changed in 1970.
_________________
My 71 Ghia Been in my family since 1980
My Patina 66
My 74 Ghia
07 Boxster |
|
| Back to top |
|
|
Dfasty
Samba Member
Joined: November 22, 2005
Posts: 540
Location: north bay,ca.
|
| Posted: Sat Dec 07, 2024 5:00 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
I think the the license light went up in 68
_________________
70 fastback automatic 06 invader |
|
| Back to top |
|
|
swhitcomb
Samba Member
Joined: November 05, 2003
Posts: 5726
Location: Inwood WV
|
| Posted: Sat Dec 07, 2024 6:04 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
| Dfasty wrote: |
| I think the the license light went up in 68 |
There is a 69’ for sale by me right now with the plate in the same place as my 2 earlier cars.
_________________
My 71 Ghia Been in my family since 1980
My Patina 66
My 74 Ghia
07 Boxster
Last edited by swhitcomb on Sun Dec 08, 2024 10:08 am; edited 1 time in total |
|
| Back to top |
|
|
swhitcomb
Samba Member
Joined: November 05, 2003
Posts: 5726
Location: Inwood WV
|
|
| Back to top |
|
|
Dfasty
Samba Member
Joined: November 22, 2005
Posts: 540
Location: north bay,ca.
|
| Posted: Sat Dec 07, 2024 6:26 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
Your right I just looked at to many gallery pages and 68 and 69 had a low plate placement
_________________
70 fastback automatic 06 invader |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23294
Location: Kimball, Mi
|
| Posted: Sun Dec 08, 2024 12:45 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
| squaretobehip wrote: |
| This is a good point, thanks. I have to fix the year / models on both. |
No problem, I just thought I'd point it out that there was a year change on that part. Since I have a 70 Fastback here with the plate bracket on the trunk lid with the higher mounted plate light. From 70 on it would use your Squareback apron.
If you guys could take the upper indent out, then add the plate nuts to it, then you'd have an all years Notch back rear apron, since they didn't change thru the years (61-73). Just a thought.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35720
Location: Conejo Valley, CA
|
| Posted: Sun Dec 08, 2024 9:16 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
| Bobnotch wrote: |
Those are good looking pieces, but if I needed one for my wife's Fastback, I'd have to order one for a Squareback due to the license plate mounting of a bracket on the trunk lid (no plate holes in the rear apron). I think that's a 70-73 thing for a Fastback. KTPhil, can you verify this on your 71? |
Yes, the '70-up fastbacks mounted both the license plate andlamp on the deckled. The earlies had the plate on the apron and the lamp assembly at the lowest edge of the deckled. Something about license plate and bumper height standards maybe?
_________________
Current Fleet:
- '71 Fastback
- '69 Westfalia
Retired:
- '67 Beetle
- '65 Beetle (x2)
- '65 Bus
- '71 Squareback |
|
| Back to top |
|
|
squaretobehip
Samba Member
Joined: August 23, 2004
Posts: 4011
Location: San Jose, CA
|
| Posted: Sun Dec 15, 2024 5:04 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|

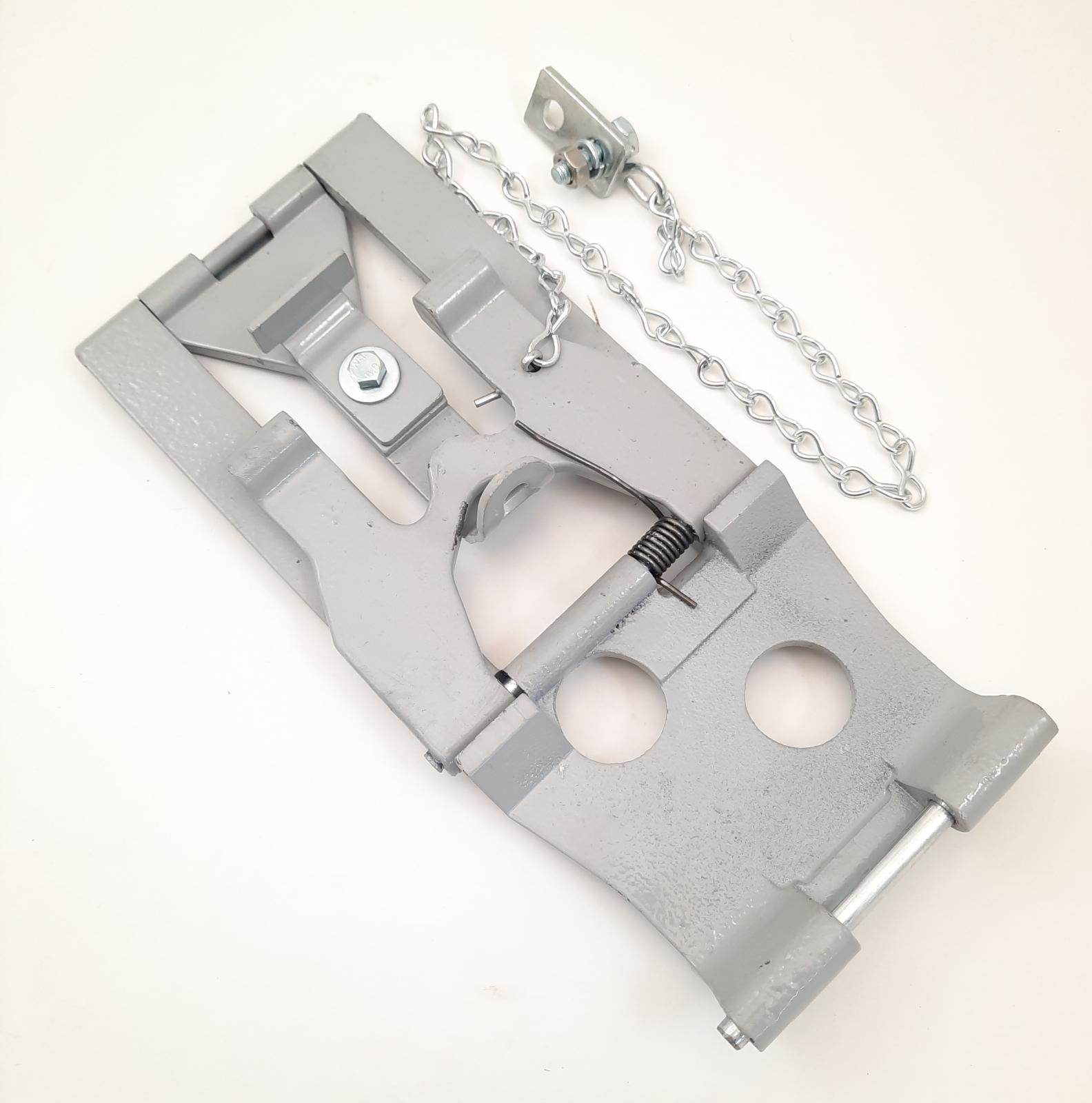

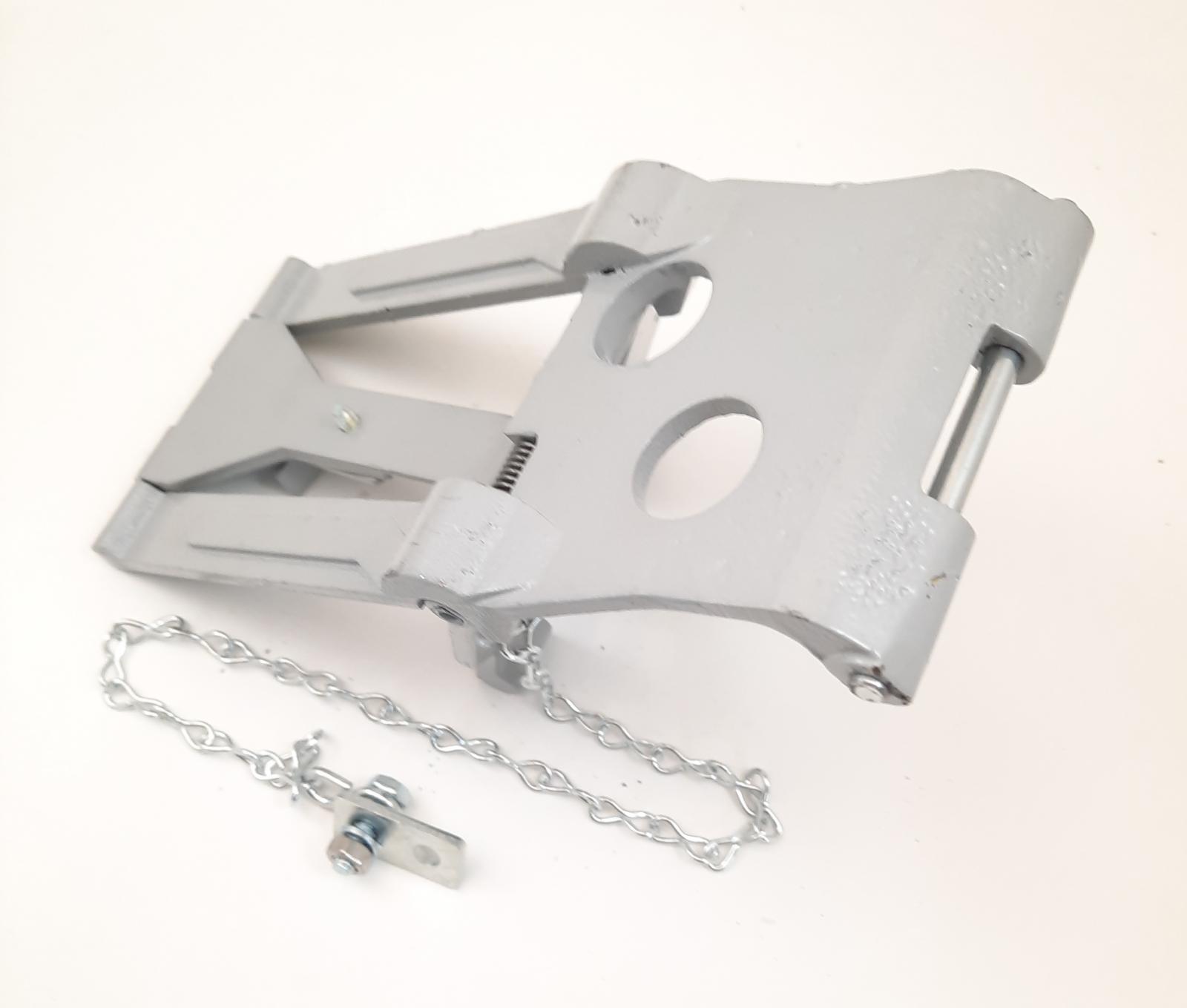

Here are the reproduction "Hüls" camping hinges we recently finished. I've wanted to make these for the longest time and after donating a hinge for the project, we were able to make it happen.

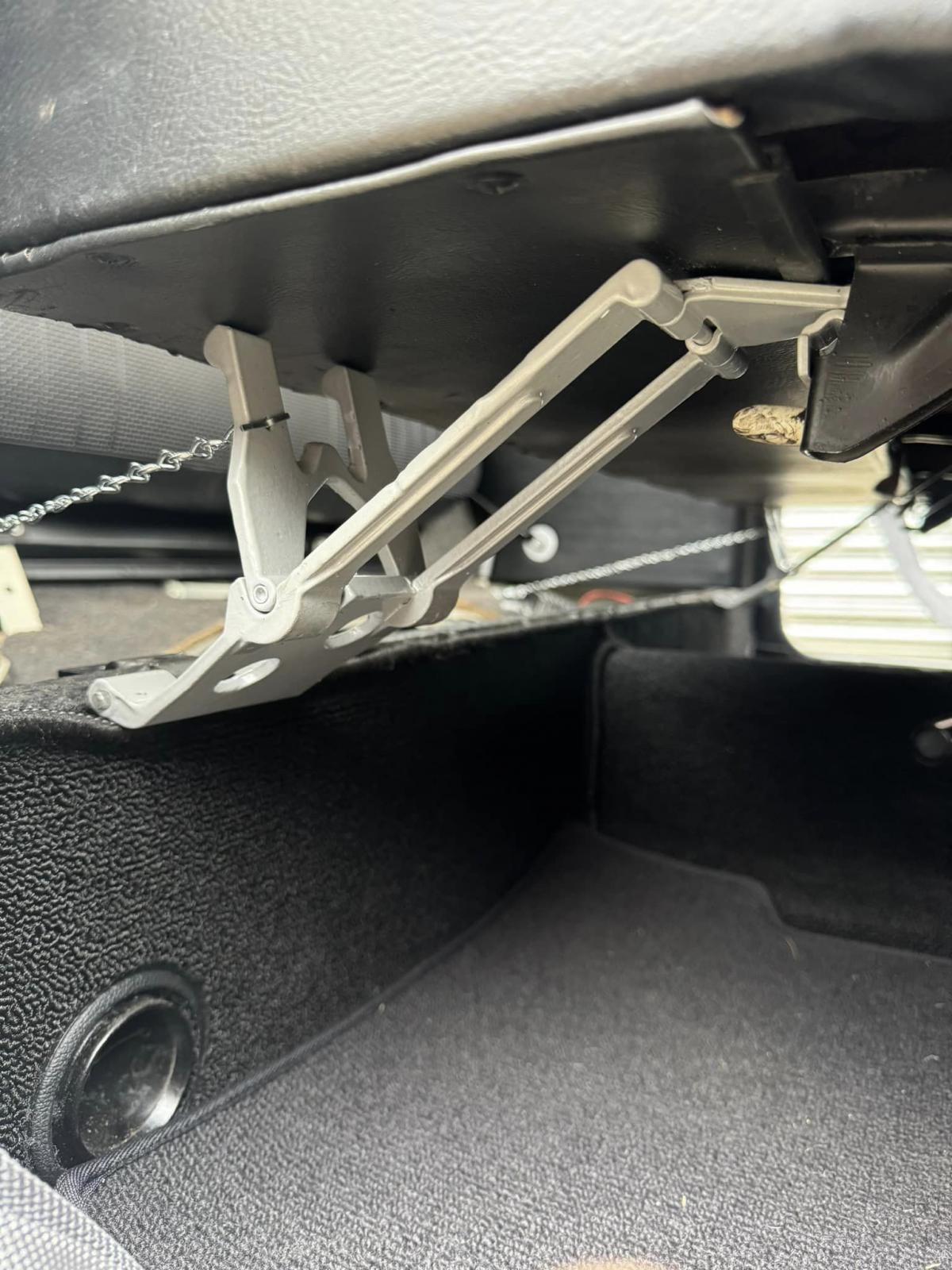

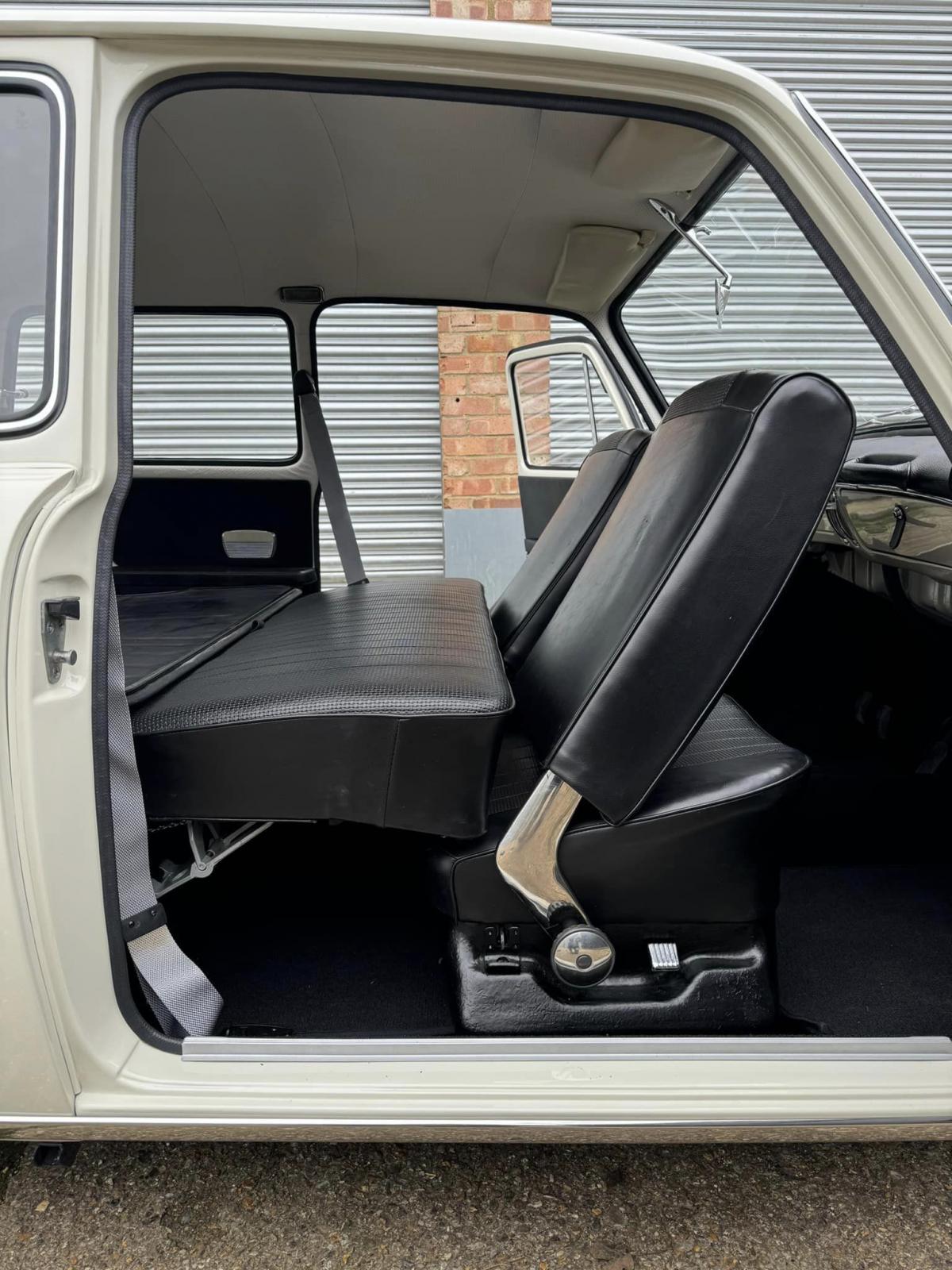

Here they are installed in a customer Squareback:
_________________
1963 Notchback - Ruby Red
1963 Squareback - Pearl White
1965 Squareback - Baltic Blue
Follow ISP West on:
Facebook - www.facebook.com/ispwest
Instagram - @ispwest - www.instagram.com/ispwest |
|
| Back to top |
|
|
danielzink
Samba Member
Joined: August 03, 2004
Posts: 288
Location: Lansing Michigan
|
| Posted: Sat Dec 28, 2024 9:11 am Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
Just dipping in to ask.
Any word on the early Type3 gas tanks ? (311201055B)
Thanks, Dan
_________________
1965 Notchback 2300cc Type4
Subaru Powered Rail
1915 Rail
www.danielzink.com |
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7762
Location: Santa Cruz
|
| Posted: Sun Dec 29, 2024 9:56 am Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
Those rear apron skins are -SO- needed.
Pretty much every type 3 out there has the apron all bent up from someone clearancing for a header at a point in the car's life.
Once the ribs at the bottom get crooked, they tend to stay that way,
And the bodywork to get them back straight again? Brutal.
Nice work. Big contribution to the type 3 community.
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
squaretobehip
Samba Member
Joined: August 23, 2004
Posts: 4011
Location: San Jose, CA
|
| Posted: Sun Dec 29, 2024 1:02 pm Post subject: Re: New Type 3 Parts from ISP West Thread |
|
|
| Clatter wrote: |
Those rear apron skins are -SO- needed.
Pretty much every type 3 out there has the apron all bent up from someone clearancing for a header at a point in the car's life.
Once the ribs at the bottom get crooked, they tend to stay that way,
And the bodywork to get them back straight again? Brutal.
Nice work. Big contribution to the type 3 community. |
I am super stoked to have these. We used to have so many apron sections and had new cars coming in to cut up. Those days seem to be over and it's probably for the best considering every Type 3 we cut up is one less future customer!
_________________
1963 Notchback - Ruby Red
1963 Squareback - Pearl White
1965 Squareback - Baltic Blue
Follow ISP West on:
Facebook - www.facebook.com/ispwest
Instagram - @ispwest - www.instagram.com/ispwest |
|
