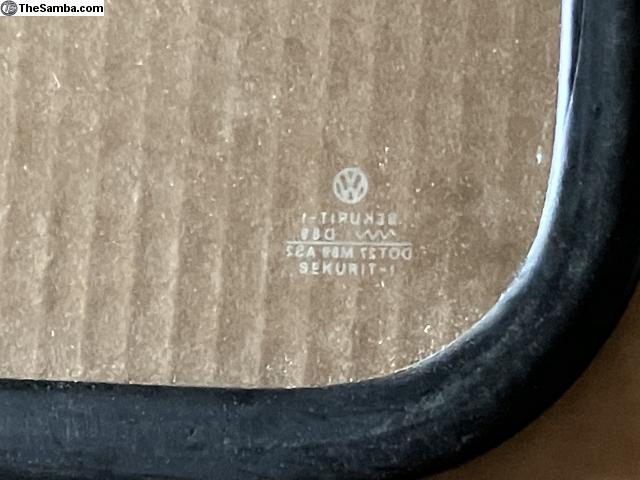

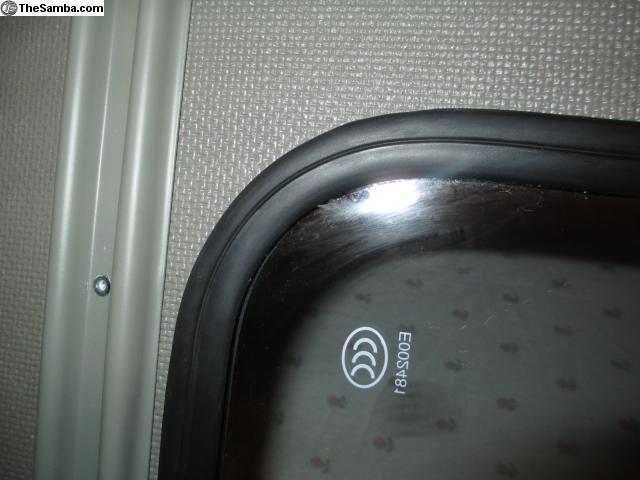

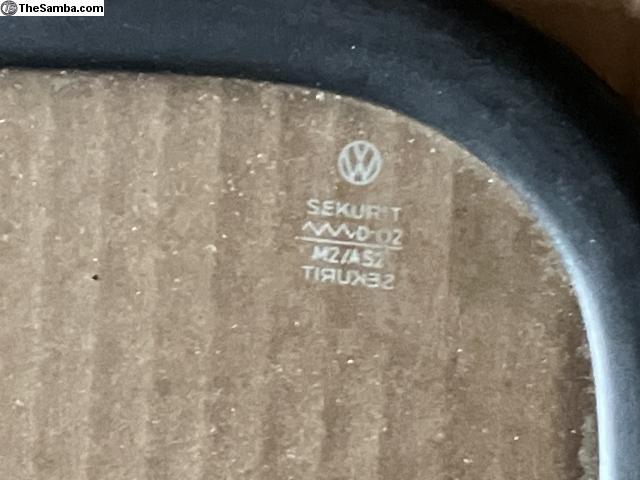

logo on the new glass
Photo Photo Photo
Photo Photo

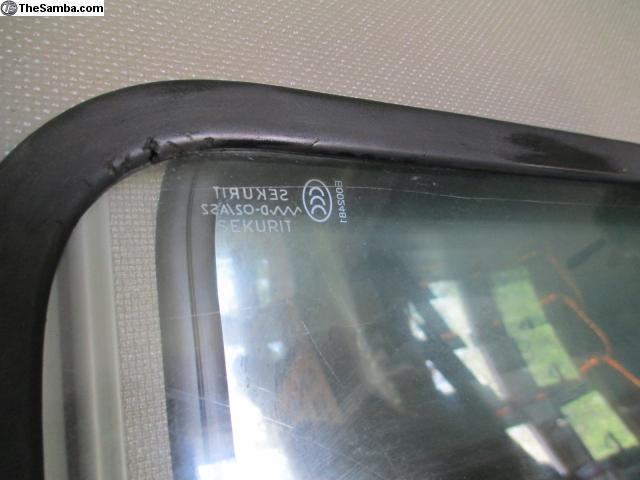

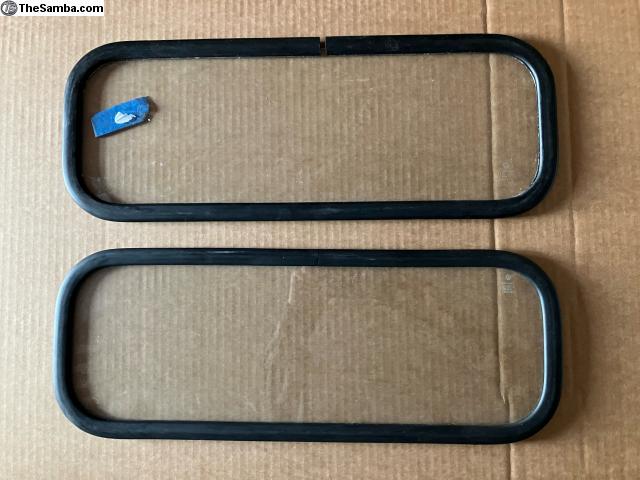

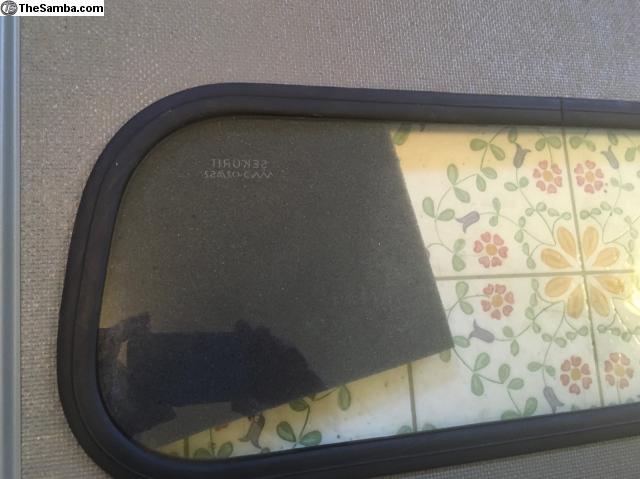

og logo is different, og seals tend to have cracks
photo credit to Adam
photo credit to Adam
barndoor
barndoor
barndoor
barndoor
pic by Greg B
'55-'67 or barndoor panelvan cab divider - New   Price: $249
Complete New '55-'67 split panelvan cab divider - $249

estimated shipping as of Aug 2018
to California is ~$45.
to Florida/ east coast is ~$65
Please let me know your zip code, to help me find the shipping cost.

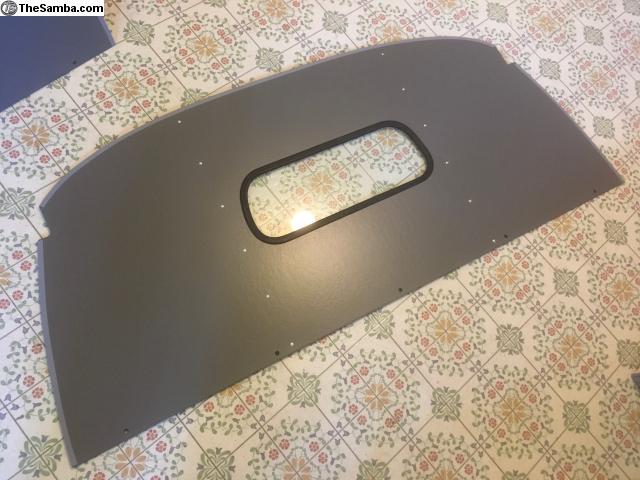

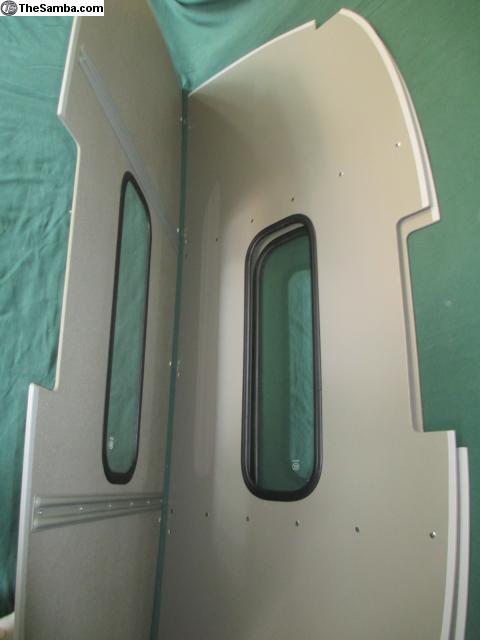

This is a reproduction '55-'67 split bus cab divider.

It is complete with a
new piece of tempered glass,
new seal, and
new powdercoated grey reinforcement rails.

It has all of the same features of an original piece, except the glass is not scratched, the seal is not cracked or ratty, and the board is not dog-eared or broken and does not have extra holes drilled or cut into it.

I also offer complete panelvan interior panel sets - all years. Please email me for details or take a look at my other ads on this website.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
I can make this for a barndoor, but I do not have any og BD cab divider glass.
The BD glass is trapezoidal. It is shaped like the BD rear window, but smaller.
EDIT: Barndoor cab divider glass is available new repro. If you have the repro glass sent to me, I can make the divider with it. The price is $300 + you provide the glass.
for barndoor glass: https://www.thesamba.com/vw/classifieds/detail.php?id=2283569

I can make a cab divider with a later shape repro glass, for your barndoor. No air vent notch. The price is $275.

If you have a piece of og glass, you can send it to me and I'll install it in a new cab divider for you.
The price is the same as with the repro glass.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

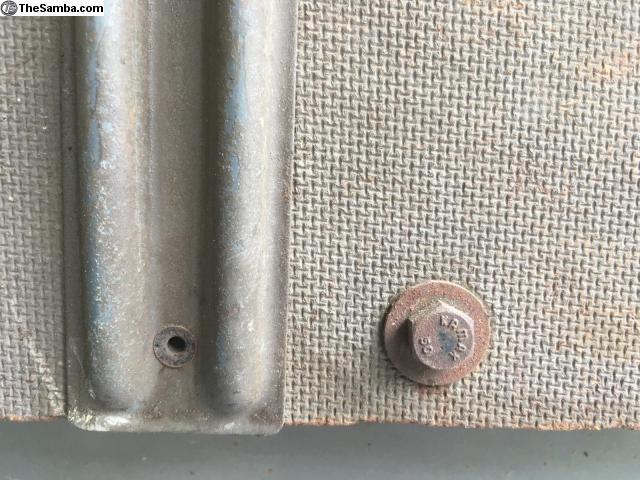

This divider is held in place with five machine bolts with large flat washers, not included. They have 10 mm heads. I think it is M6. They have the same threads the M6 bolts used around your VW have, same as the engine tin screw threads.
Do chase the threads in your bulkhead, so the bolts thread in by hand. You may need to straighten/ open the channel on the walls and roof, in case it was squashed narrower at some point.
Install cab roof panels before installing the cab divider.

To install, find the five captive nuts/ threaded holes in the bulkhead. You might want to chase the threads of the captive nuts first. Have the bolts, wide washers, and a 10 mm socket on a ratchet handy.

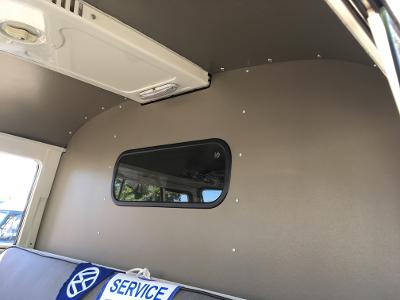

The smooth side of divider faces the front of the bus, textured side to the cargo area.
Hold the divider up to the bulkhead from the cargo area side, a couple inches below where it bolts in. Slide the divider up and into the channels on the sides and the roof. Fit a bolt at each side so it does not slip down. Then you should be able to let go.
Fit the rest of the bolts, then snug to ~ 7.5 ft lbs.

_________________
- - - - - - - -
Here is a link to pictures with installation tips:
http://goo.gl/WX1Y6
