edgood1
Samba Member
Joined: September 30, 2004
Posts: 2151
Location: Plymouth, MA
|
 Posted: Thu Aug 22, 2024 8:41 am Post subject: Re: '63 Panel Camper to Deluxe conversion project |
 |
|
| Nacho_74 wrote: |
Please post more on the interior door panels. I've been pondering on making my own as well but need some pictorials. Great work BTW!  |
Here's how I make the panels.
Disclaimer: I'm not an upholster. I make a lot of guitar amps and old radio enclosures and I apply my experience with those to panels, whether right or wrong
First I go through the gallery on this site to find as many pictures original instances of the panel I'm interested to get an idea of how they fit. Then I take detailed measurements from the bus. For the more complex panels I'll make cardboard templates. Having several buses to use as reference is a huge help, especially since this one is cobbled together. Also worth referencing, sgellis made an extremely helpful post with diagrams for all the panels in his amazing '64 camper: https://www.thesamba.com/vw/forum/viewtopic.php?t=...p;start=40.

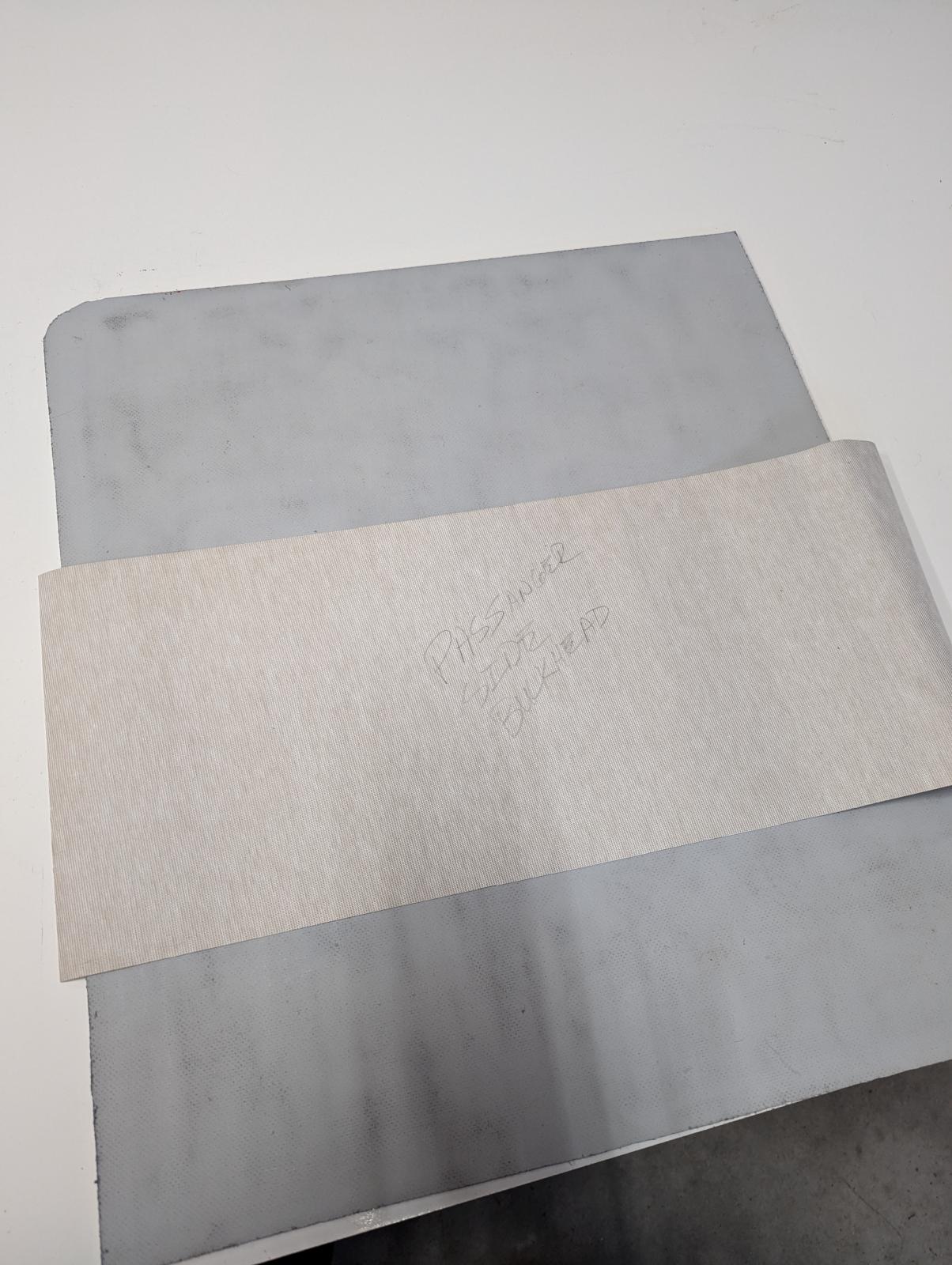

Once I'm confident with the measurements of the panel I cut them out of 1/8" hardboard with a circular saw for straight cuts and a jig saw for radiuses. I'm using ecualite tile board this time around. It's hardboard but one side has a textured, pvc-like finish. I install the vinyl on the rough, unfinished side of the board. This saves me having to install a vapor barrier or painting the exposed side of the panel so it won't warp over time. I did some adhesion tests on a few different hardboard types. The Weldwood landau adhesive bonds very well to just about anything. I also tested the "dry erase" hardboard and it worked great on that as well, I might use that next. While the weldwood contact adhesive works great, 3M 90 has about half the adhesion. I could pull it off the board without damaging the board where the weldwood would take some of the panel off with the material, meaning a very strong bond. Here's a link to these panels at home depot: https://www.homedepot.com/pep/EUCATILE-32-sq-ft-96...lsrc=aw.ds

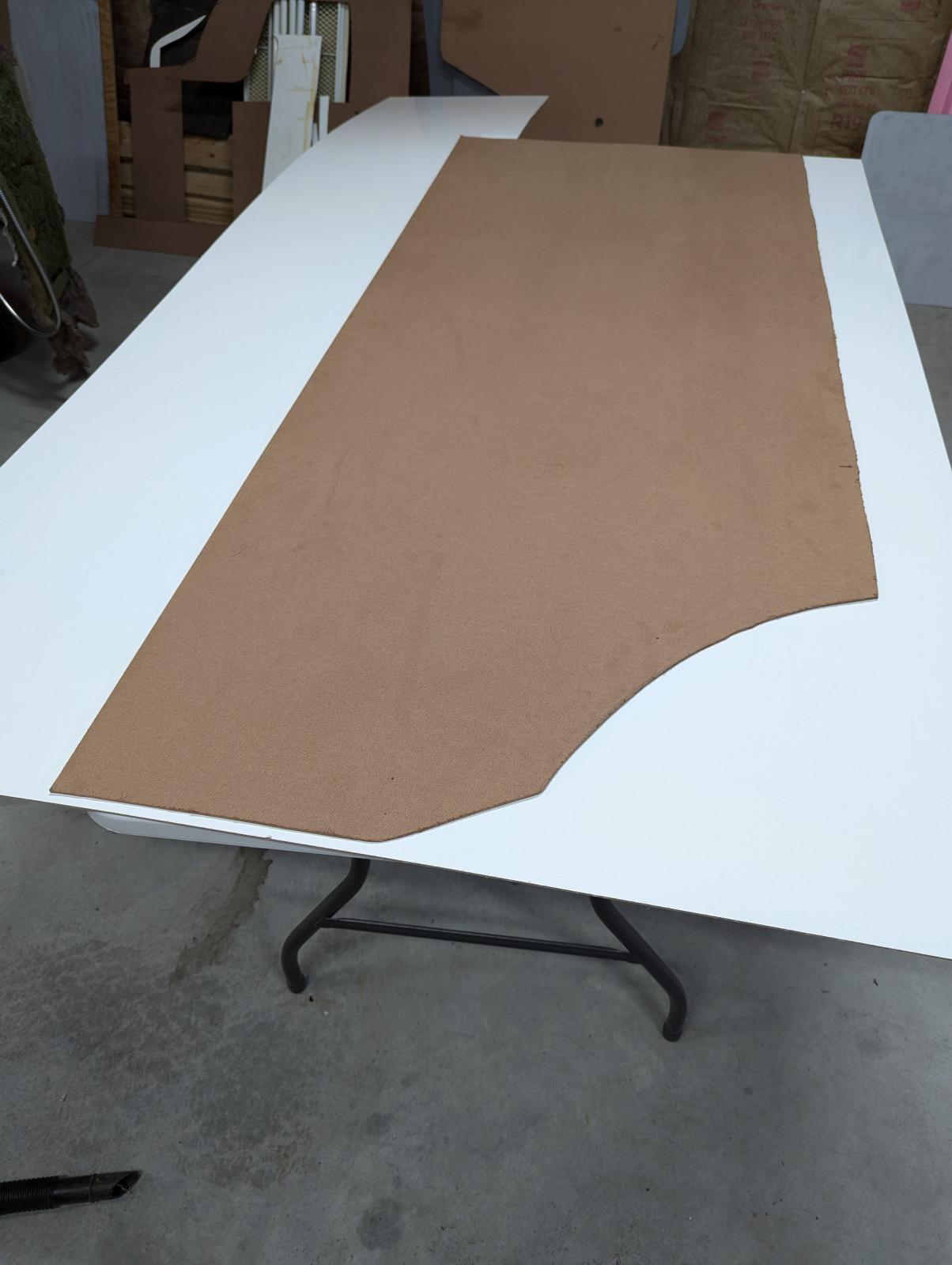

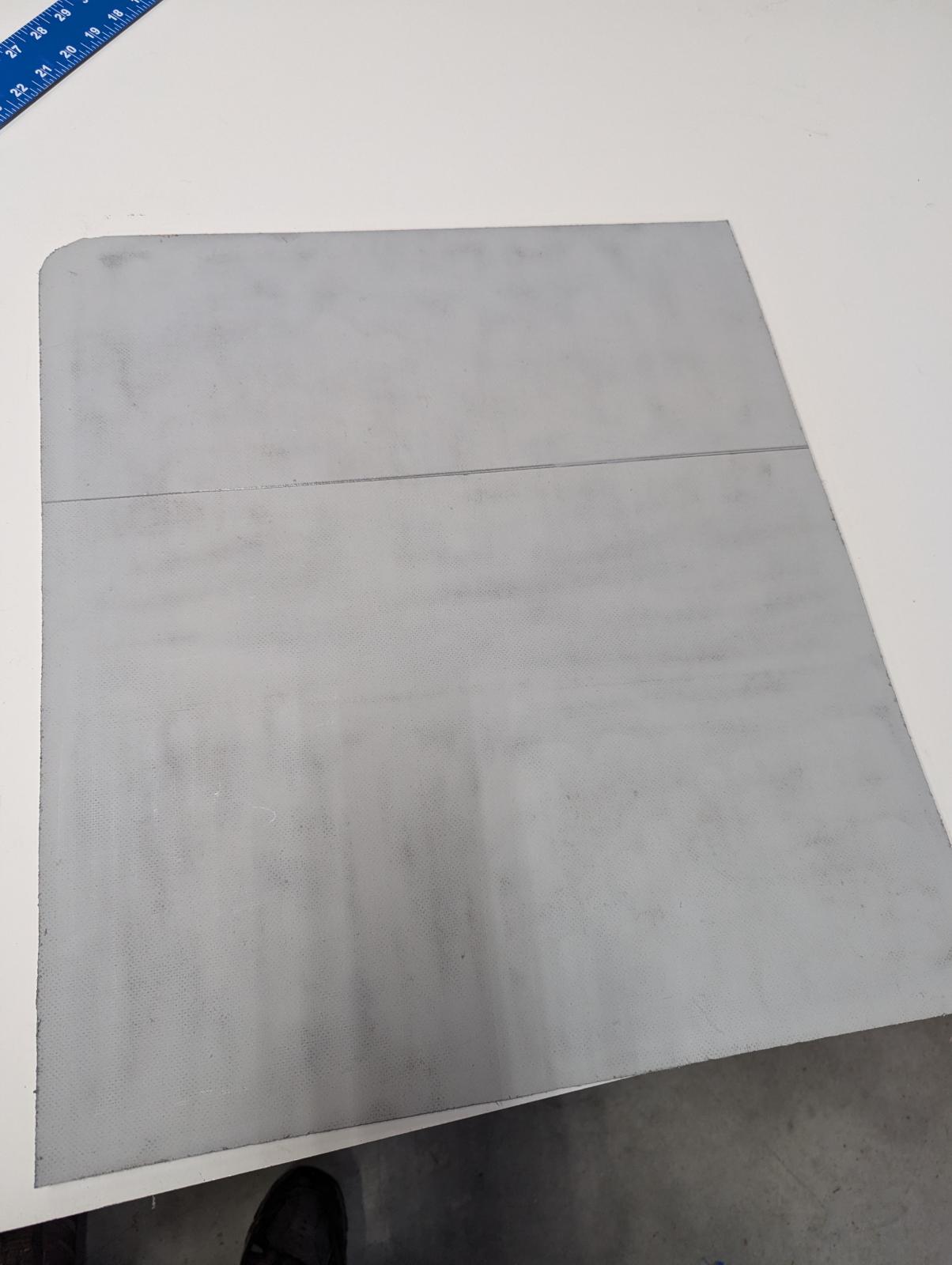

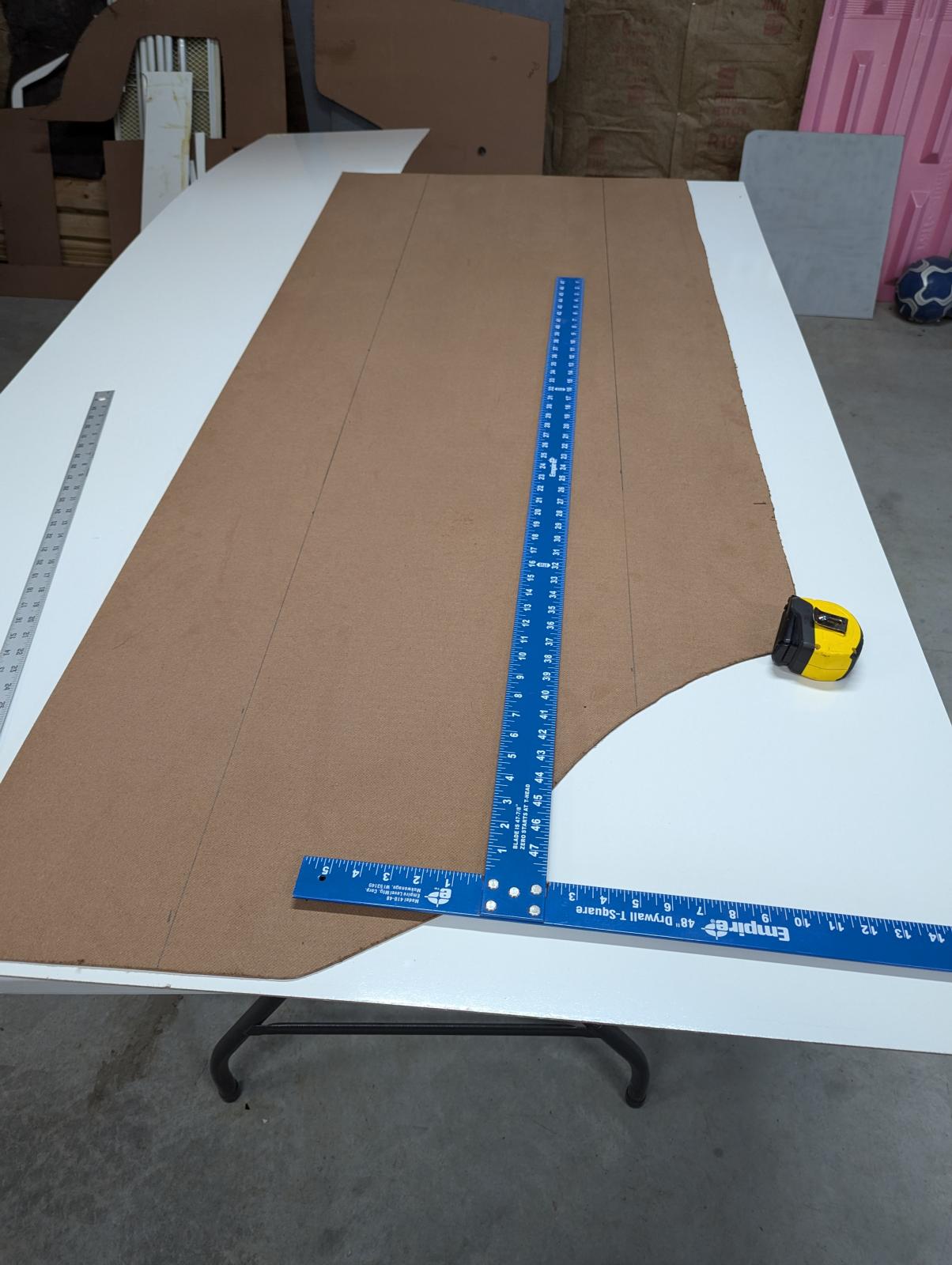

Long Panel cut out:

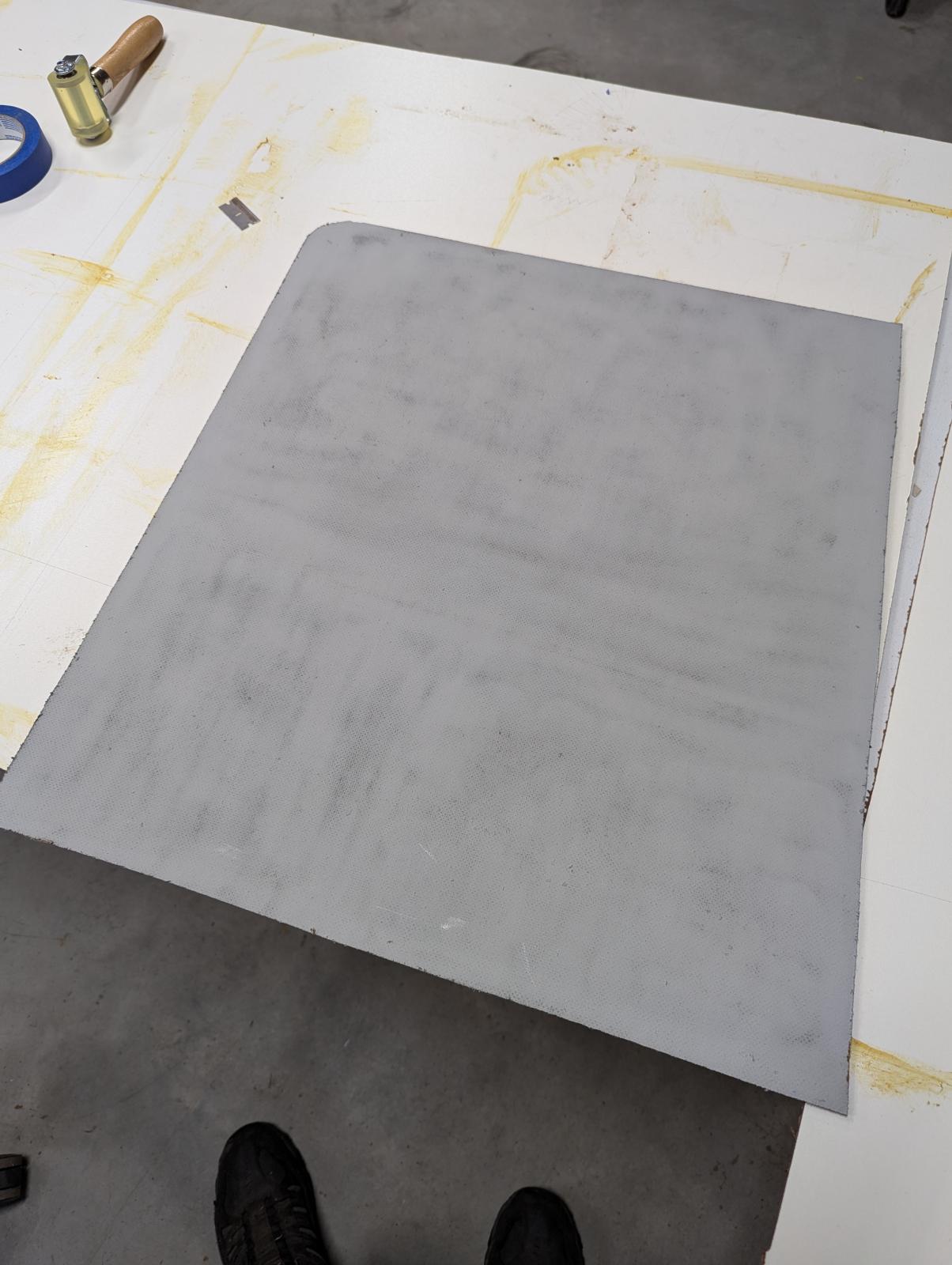

Today I did the passenger side walk through partition panel, so we'll focus on that. I used a gray sealer on the rough side as an experiment to see if it would absorb less glue, but it didn't make a difference. Either way works.
Next I draw lines where the two pieces of fabric meet. The partition panels only have two "stripes" where all the other panels have three.
I used a fabric kit from https://deutschpolster.com/. It is a drop dead spot on match to the original. It's likely the best quality deluxe bus upholstery kit out there.

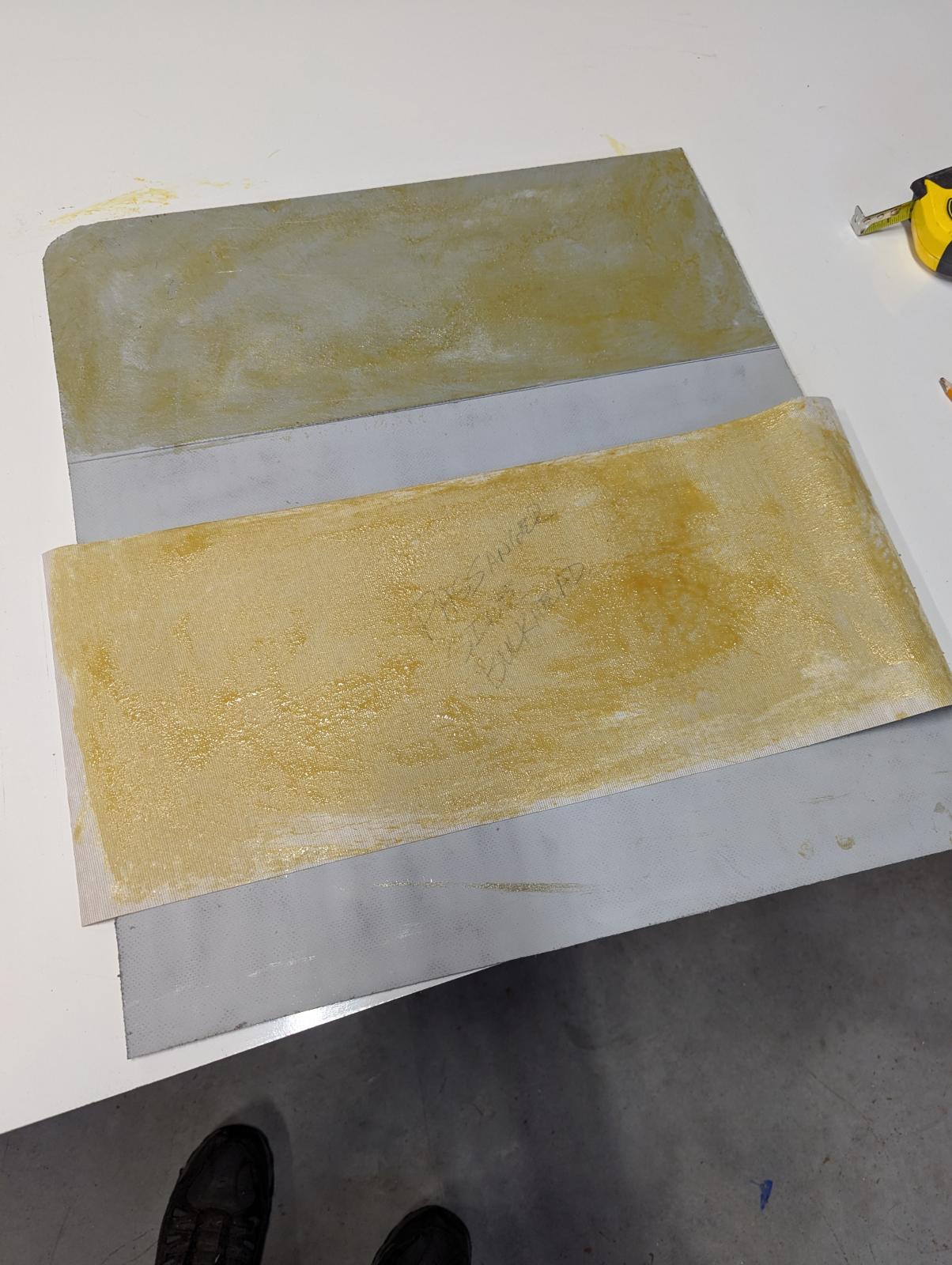

Then I lay down the top "stripe" upside-down on the line and start applying glue:
For this one I made today it was very early and I applied the glue with a brush and roller. I'd much prefer to spray it but I didn't want to run my compressor and wake up the neighborhood at 5:30am. It's much more challenging and time consuming to brush or roll this glue. It takes some practice. The goal is to get a consistent thin layer on both the panel and material but it tends to get tacky fast and impossible to spread around with a brush or roller. Spraying is sooo much faster and easier.
The next very, very important step is to wait about 10 minutes for the glue to tack up. Per the instructions, wait until you can touch it with a gloved finger without it pulling off. If you don't wait long enough all kinds of bad things happen, bubbles, bad texture, etc.

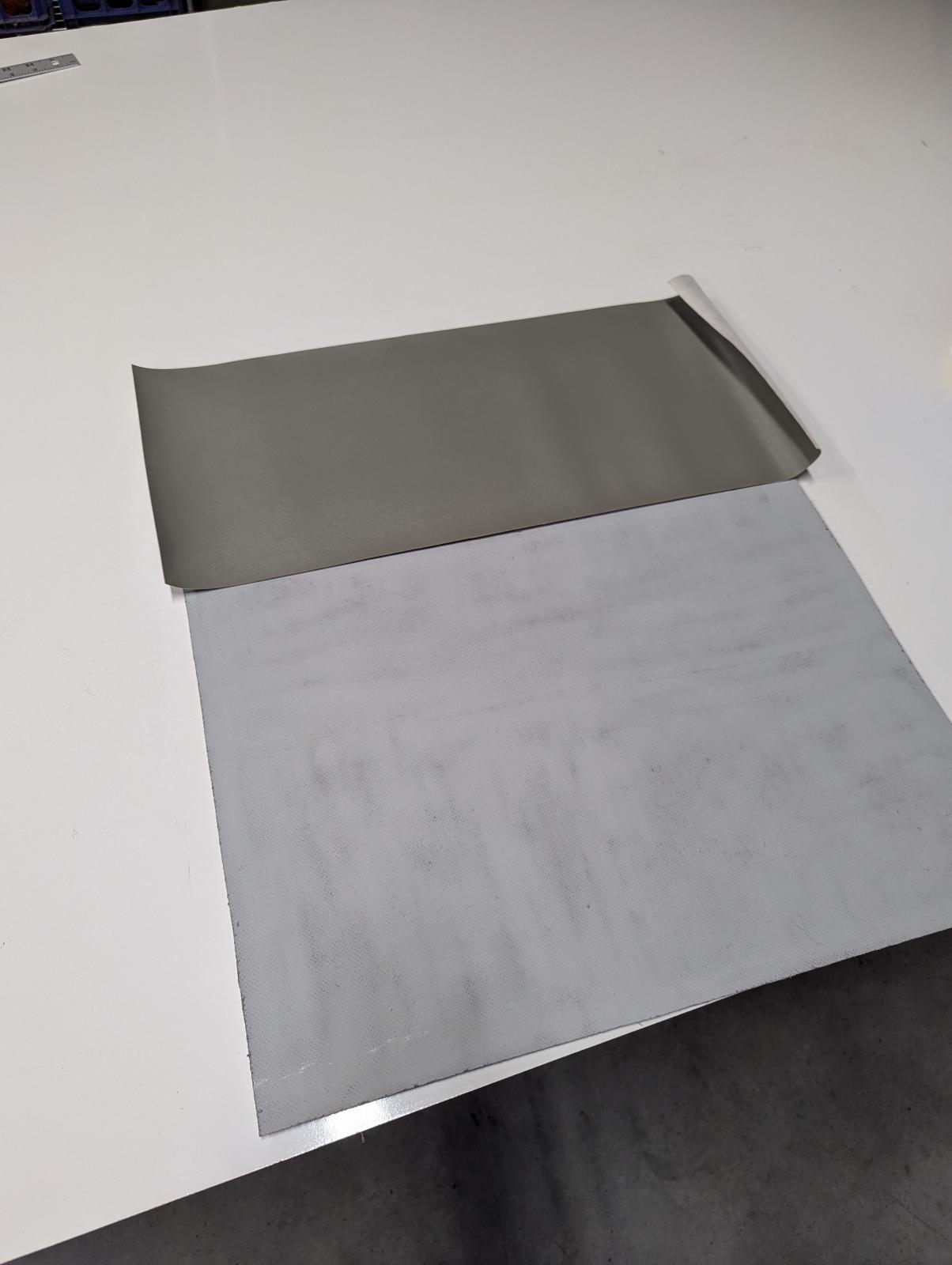

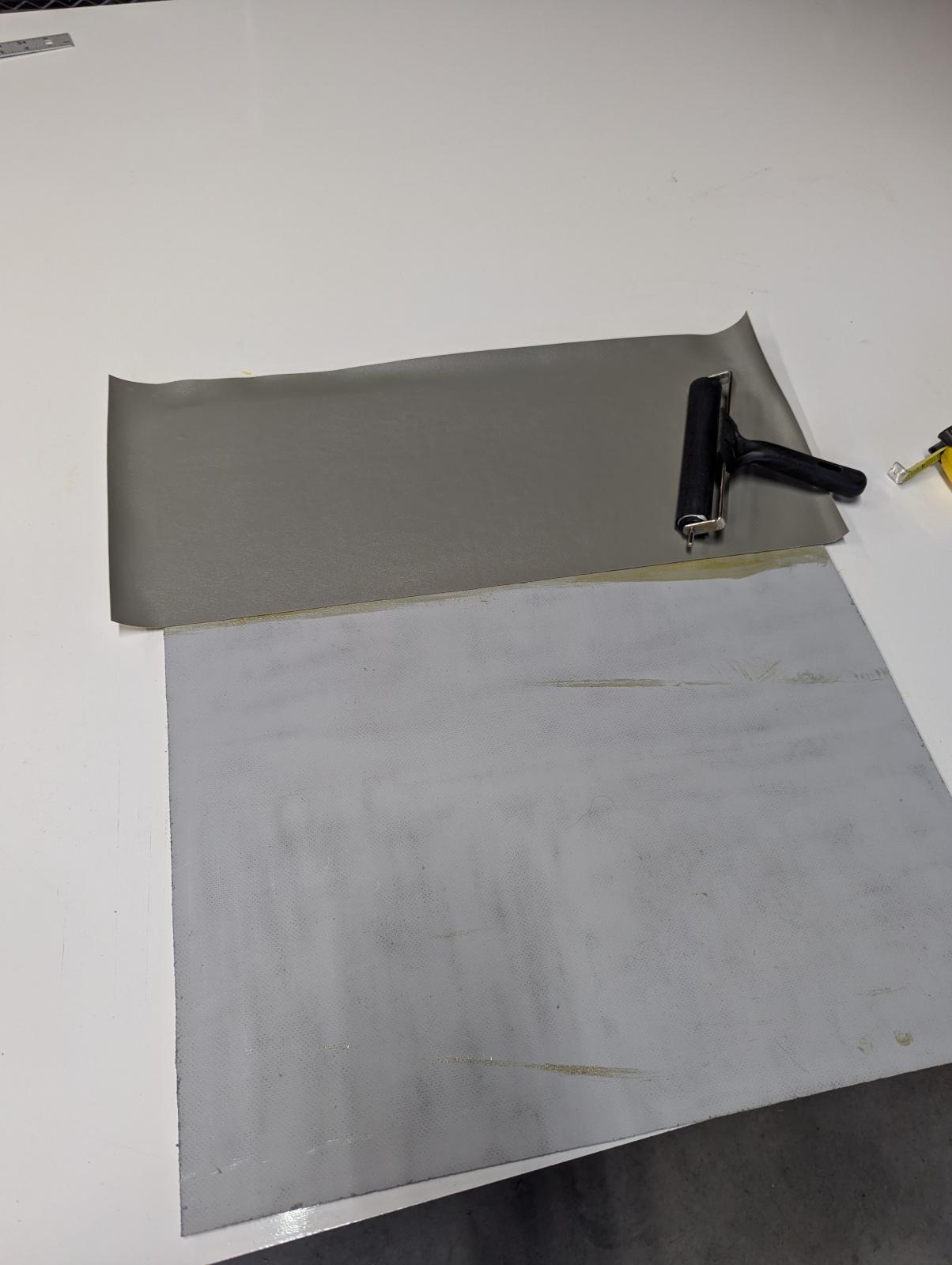

Then I very carefully place the first piece of material on the panel, and then smooth it out with a roller:

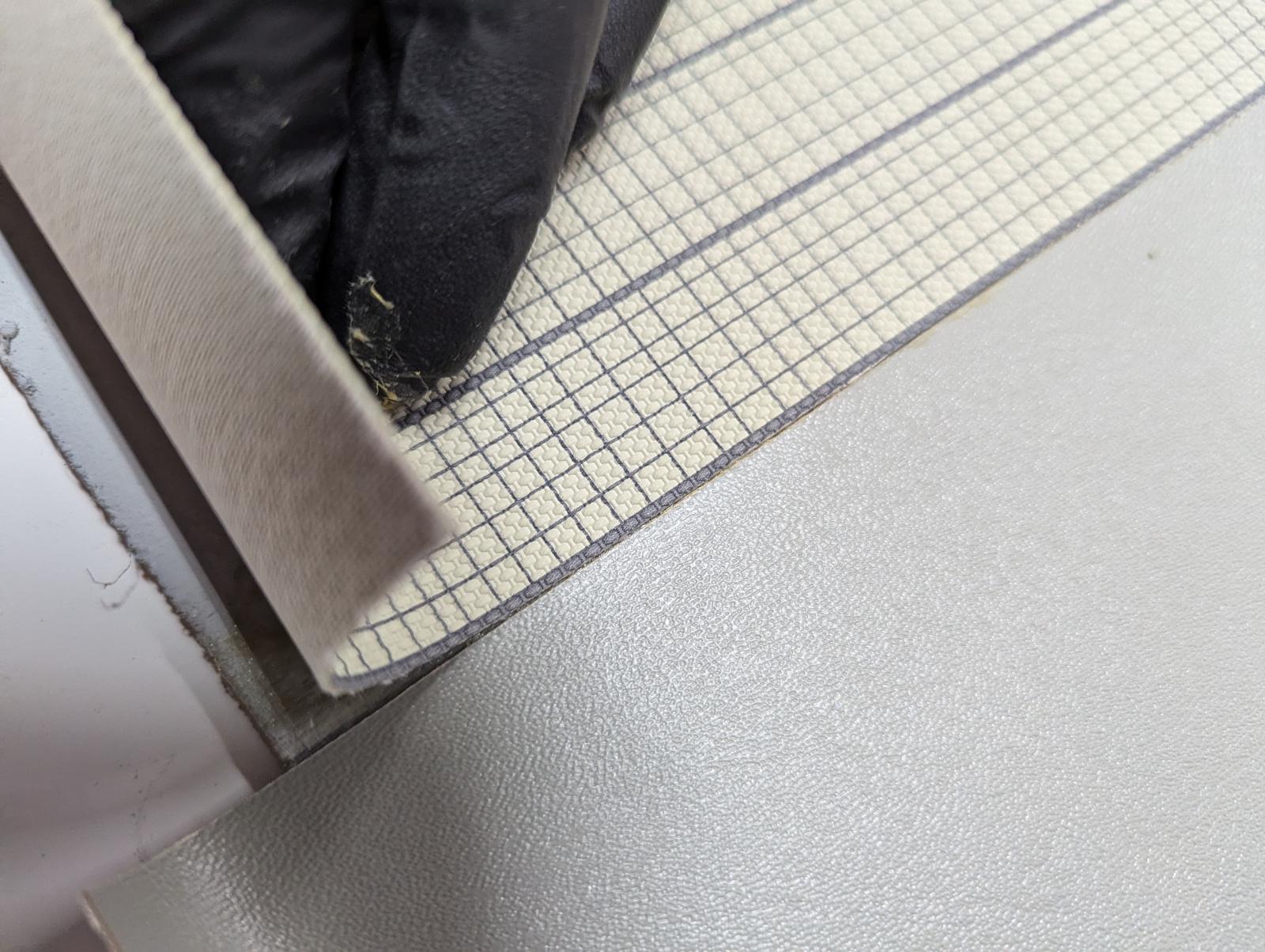

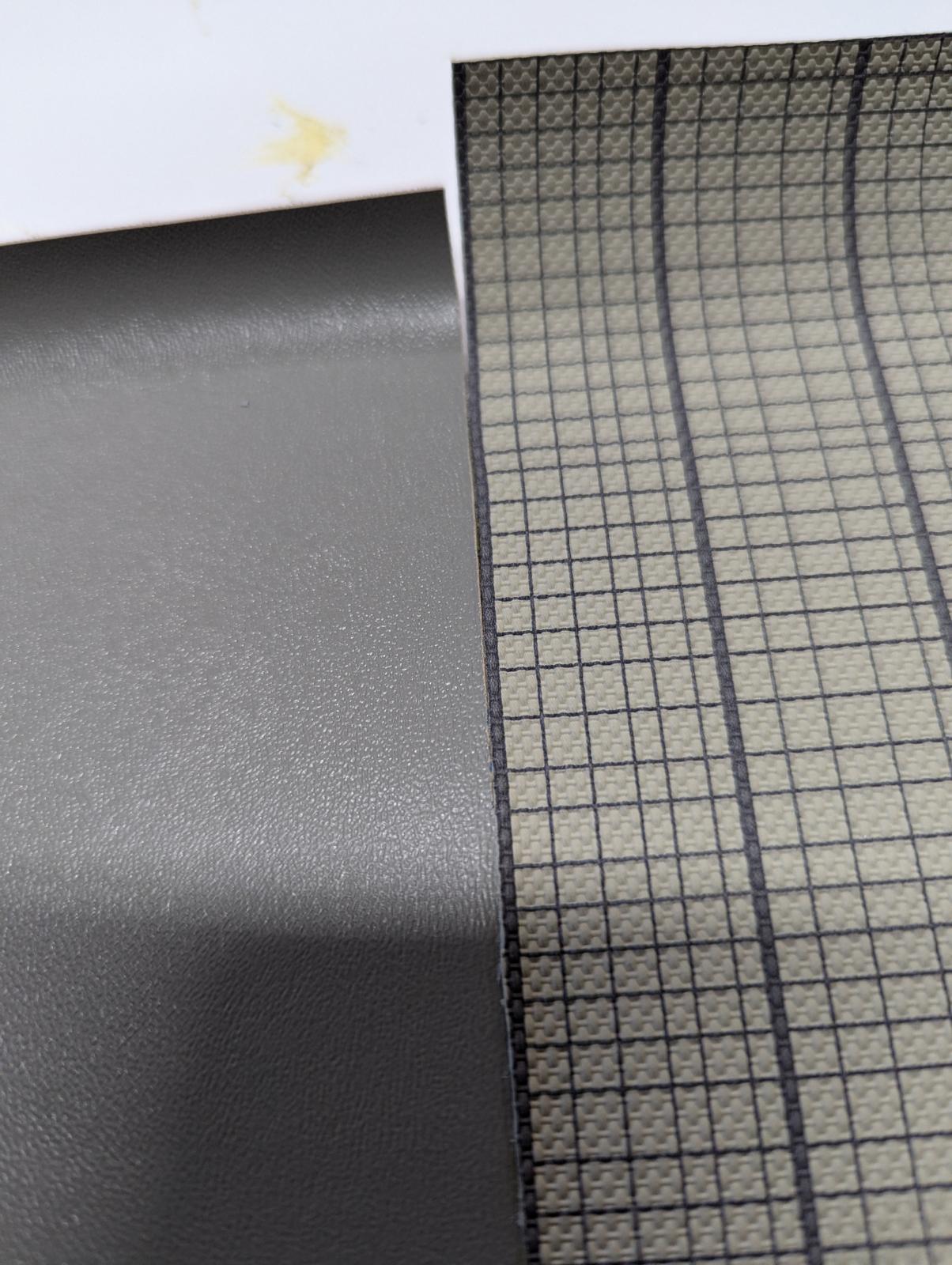

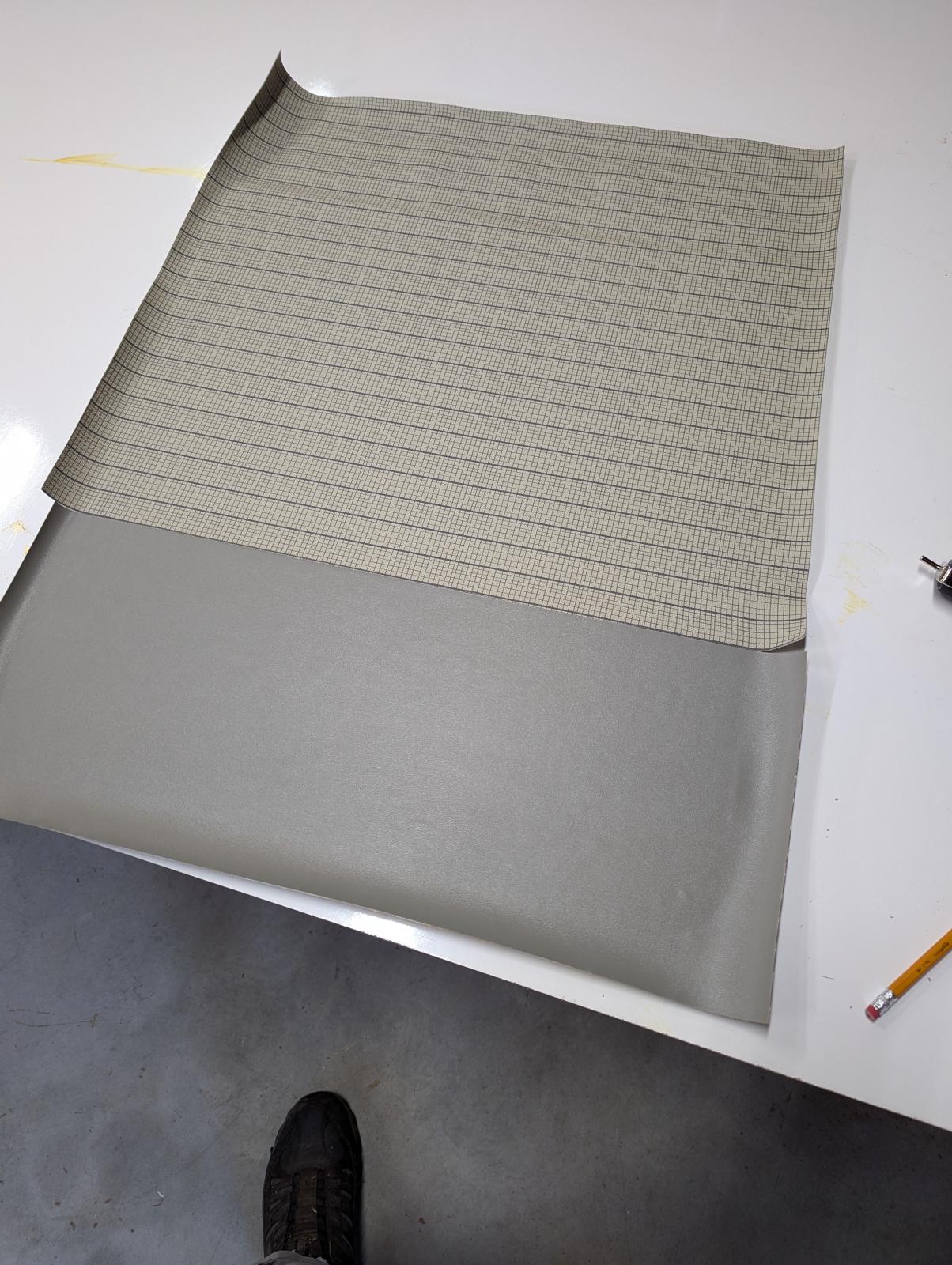

Next I test fit the second piece of material. I try to get them to butt up against each other like puzzle pieces. You can overlap them, but I think it looks cleaner if you can lay them next to each other. We'll cover most of the seam with the chrome trim later.

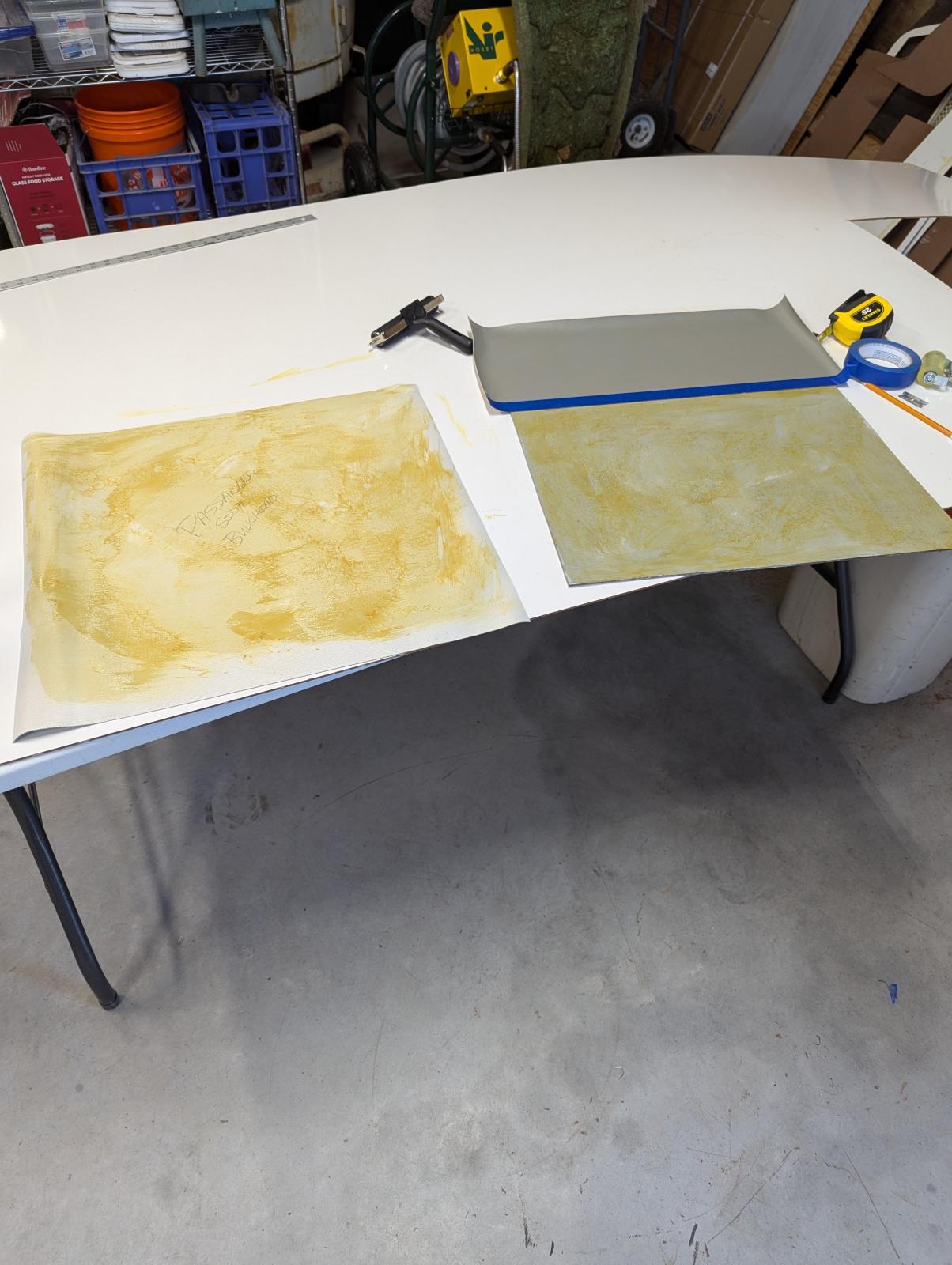

Then I mask the first piece of fabric and start applying more glue
Carefully apply the next sheet of material and roll it on:

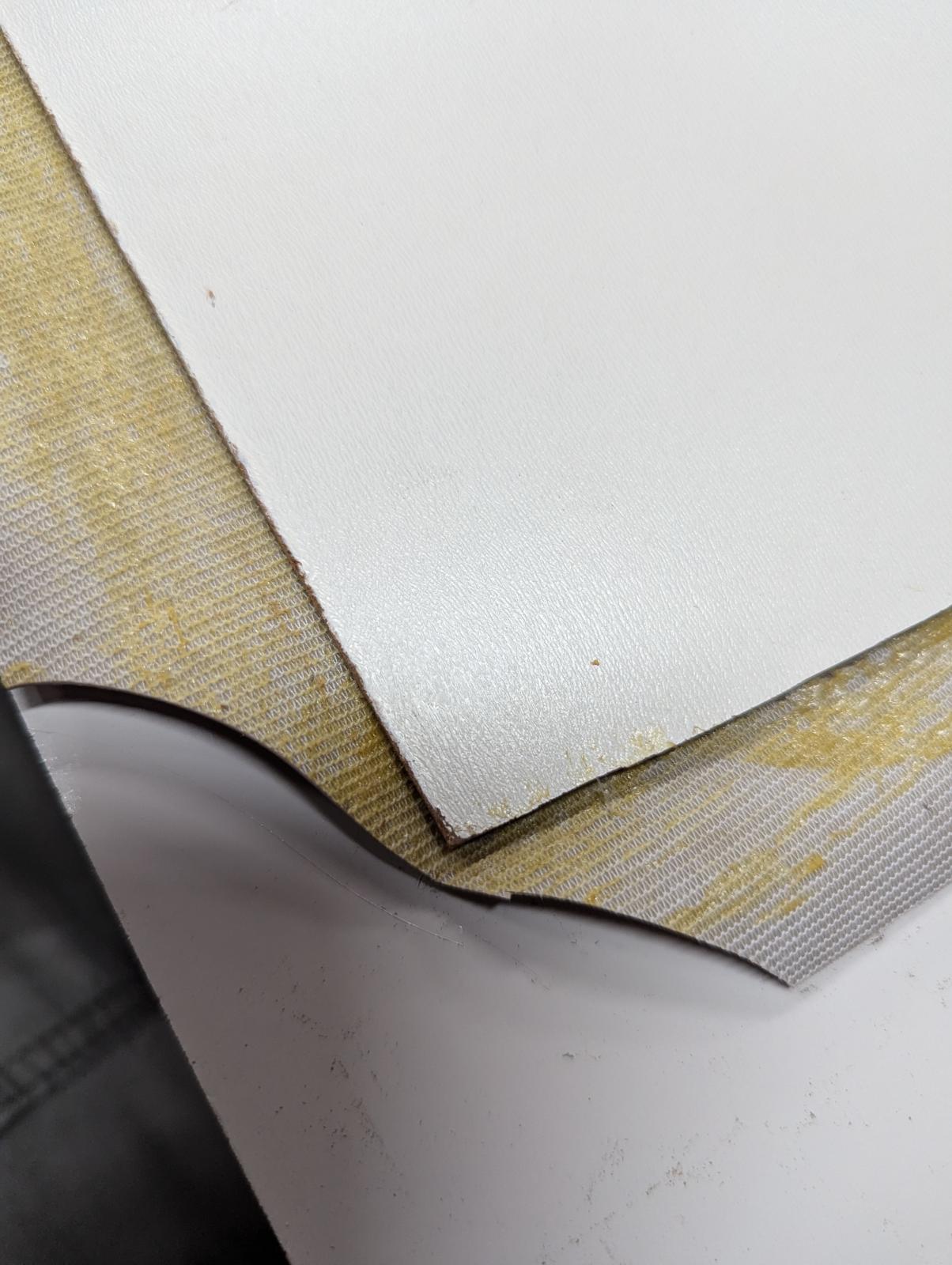

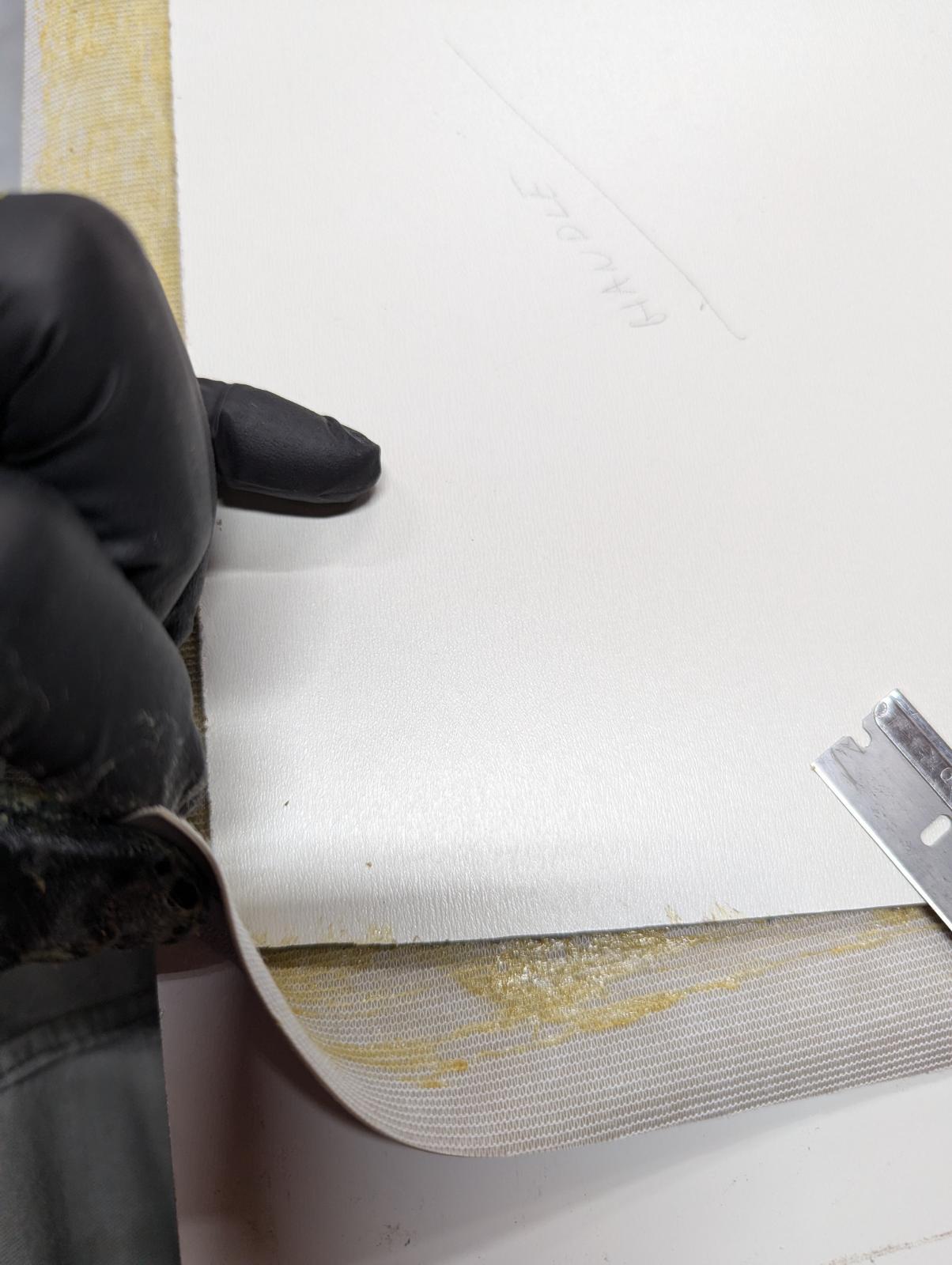

I let it dry for a bit, flip it and start working on the edges

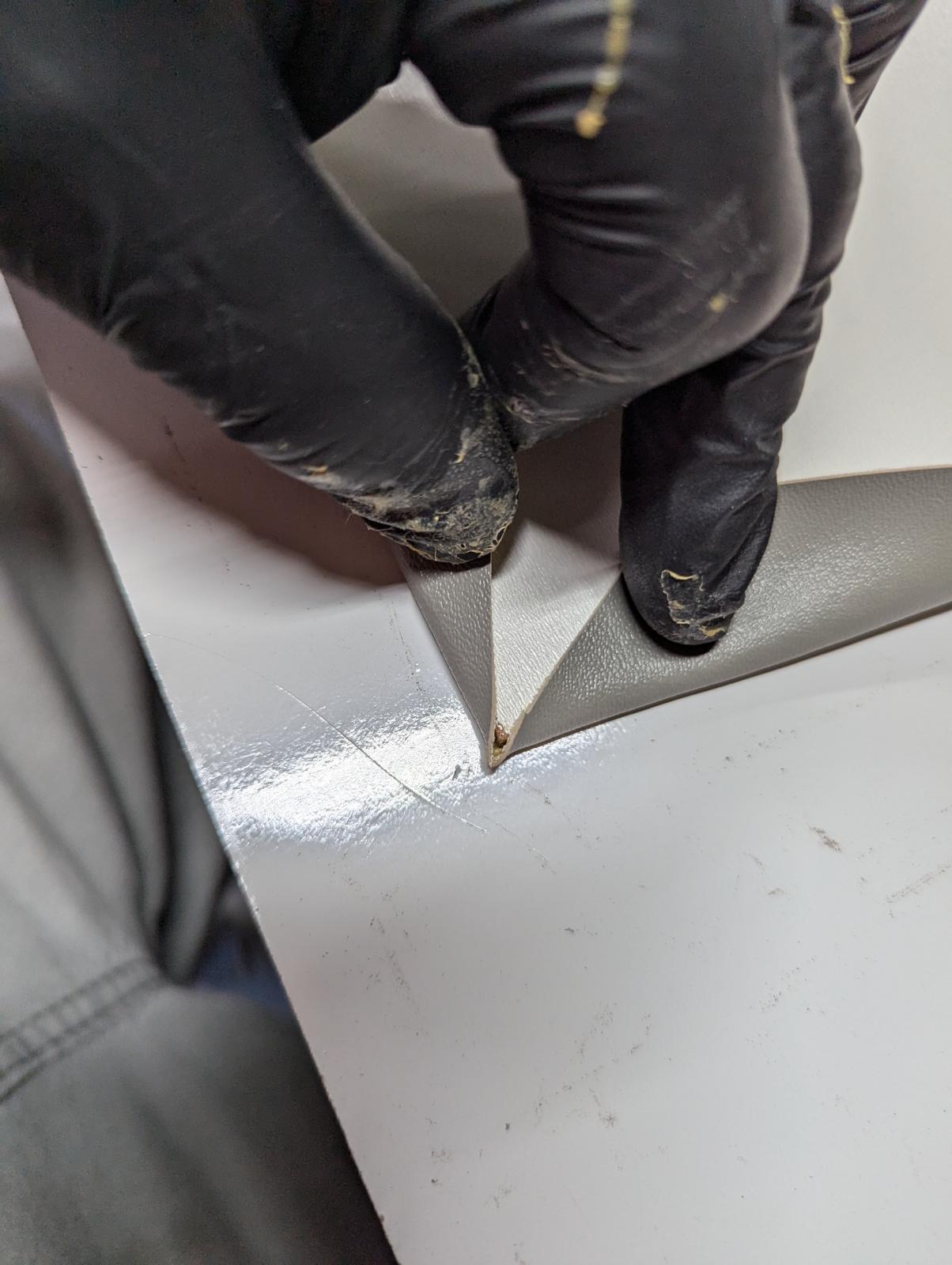

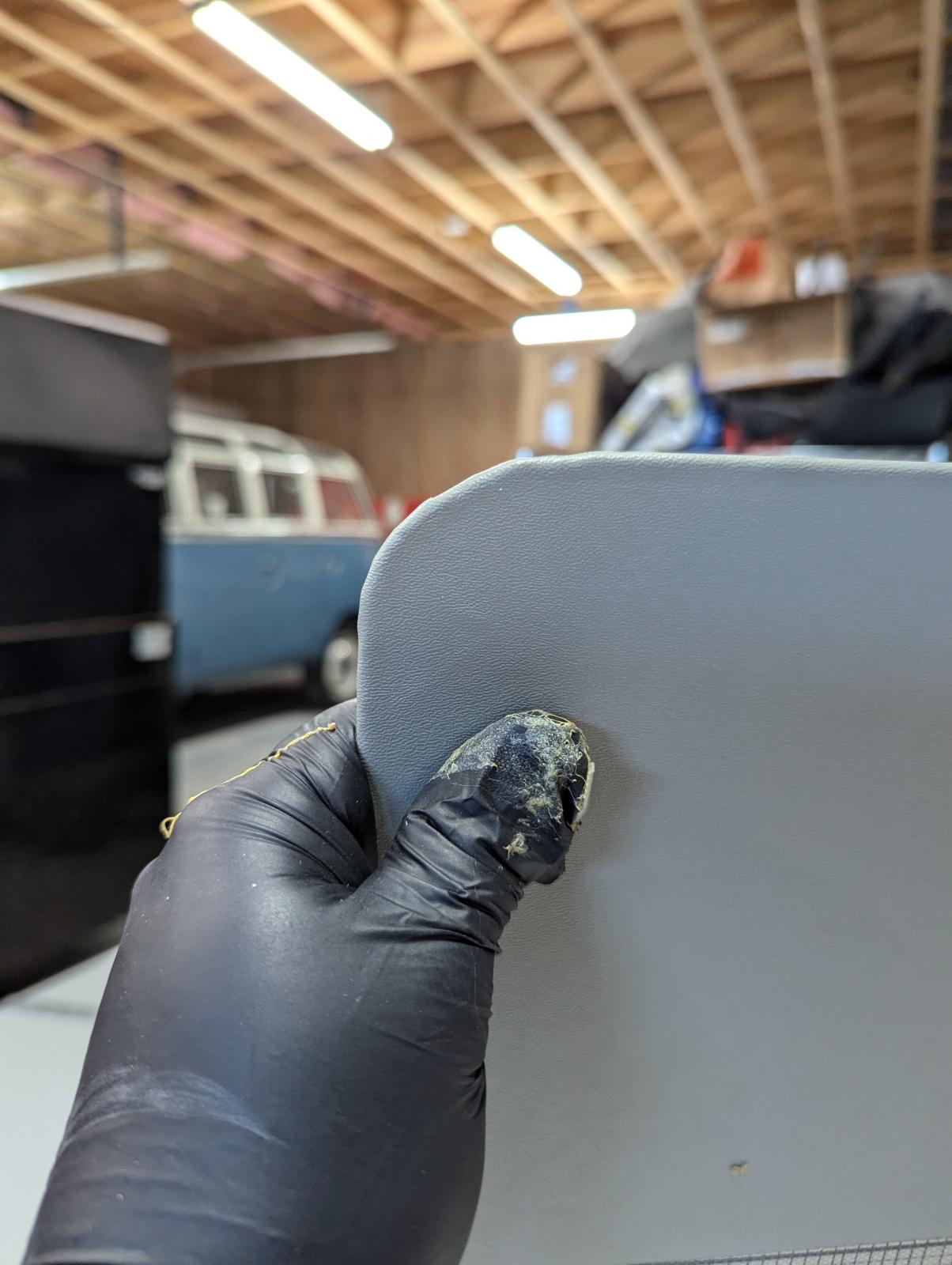

For the sharp corners I fold the two sides and determine where to make a cut for a clean corner:

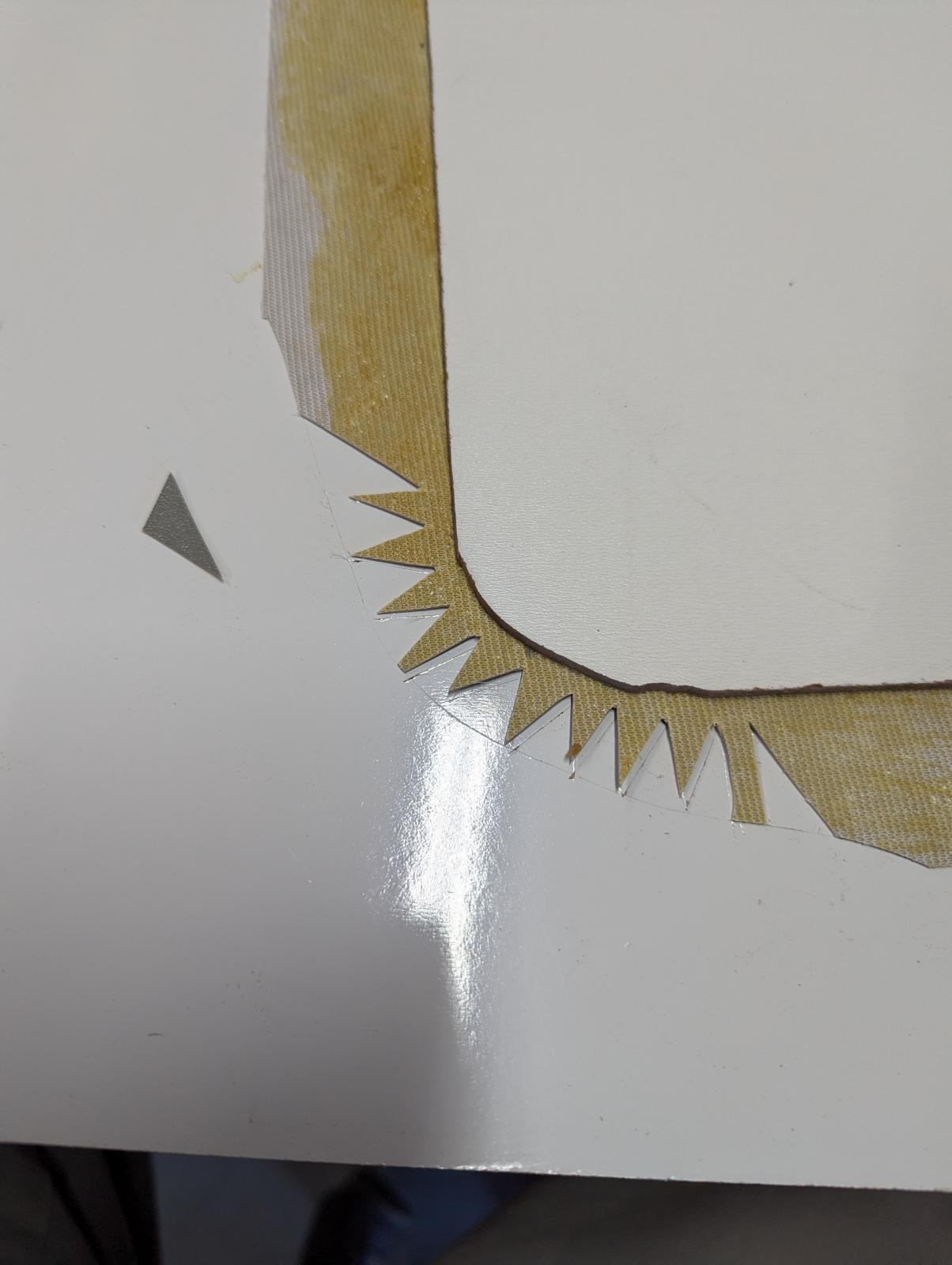

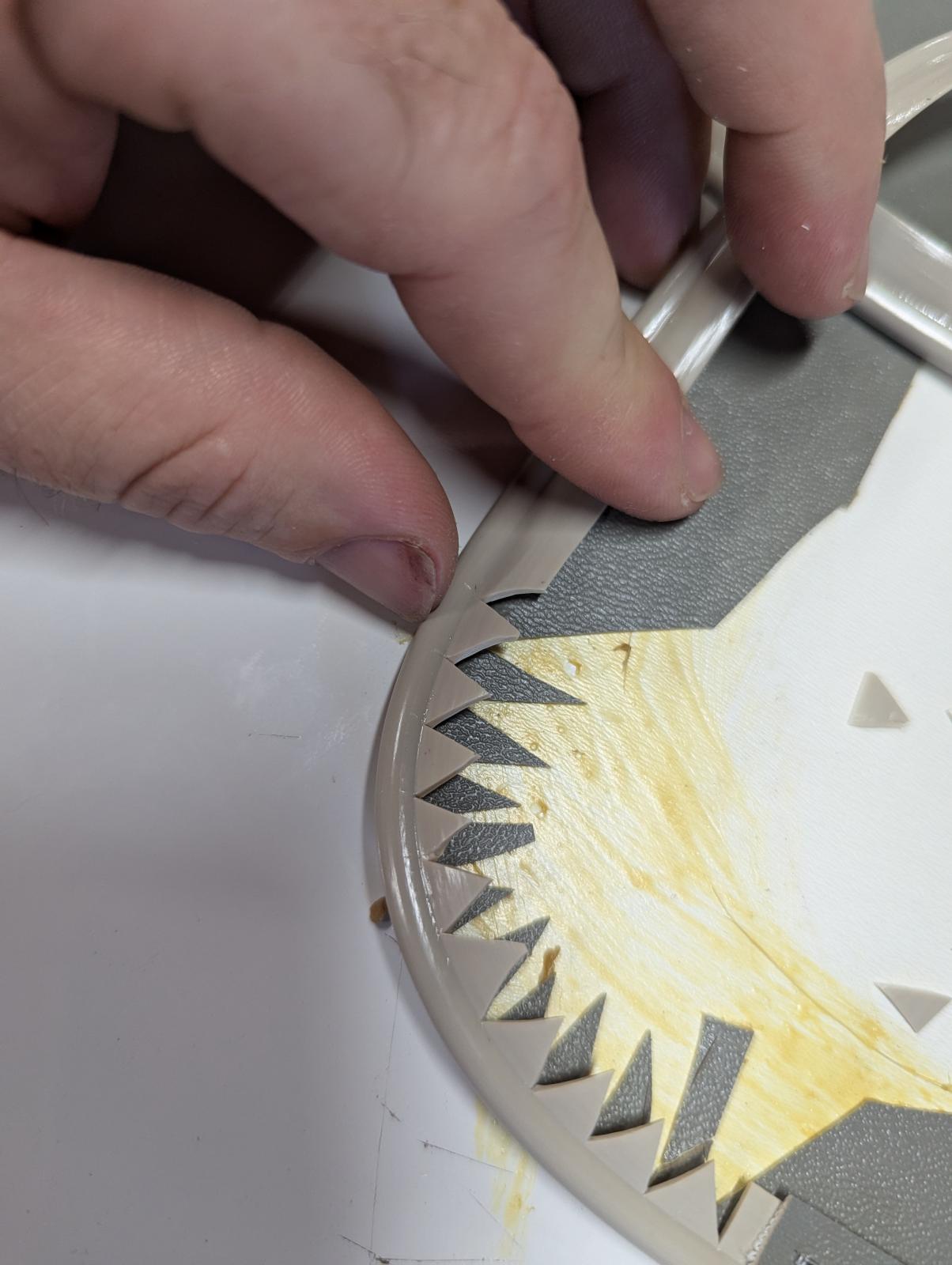

For the round corners I cut shark teeth:

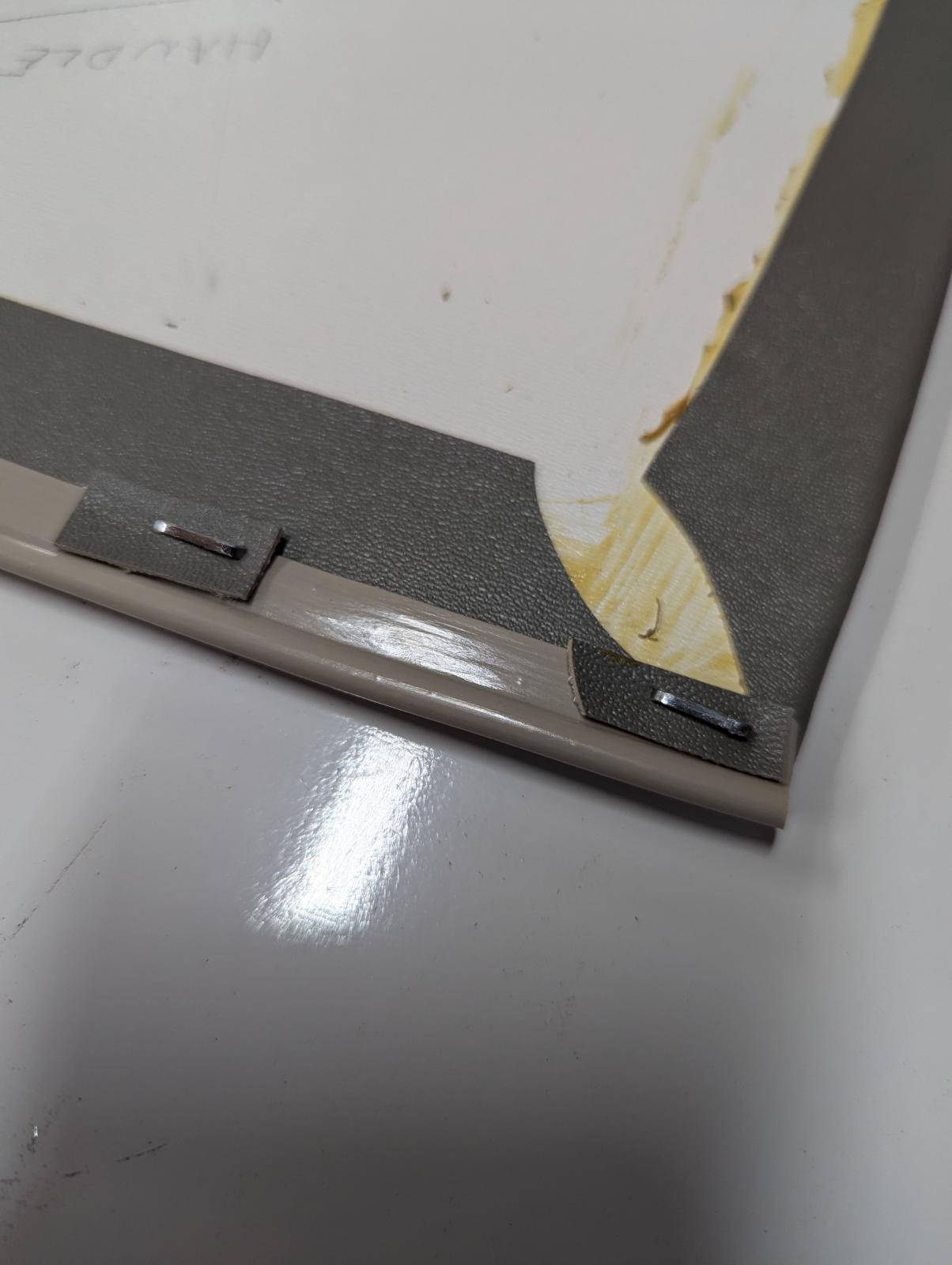

Then I glue and fold over all the overlapping material. I try to clean up the excess glue while I'm there:
I intentionally left the bottom material on this panel loose because I'm not exactly sure how its going to meld into the trim and wrap that goes at the bottom of the walk-through partitions. It will most likely just get glued like the rest.
I let that dry for a bit and then start on the beading. After some experimentation I landed on using 1/4" staples to attach the beading with small bits of scrap vinyl on top to act as a spacer and buffer so the staples don't poke through the finished side. Installation is pretty straight forward:

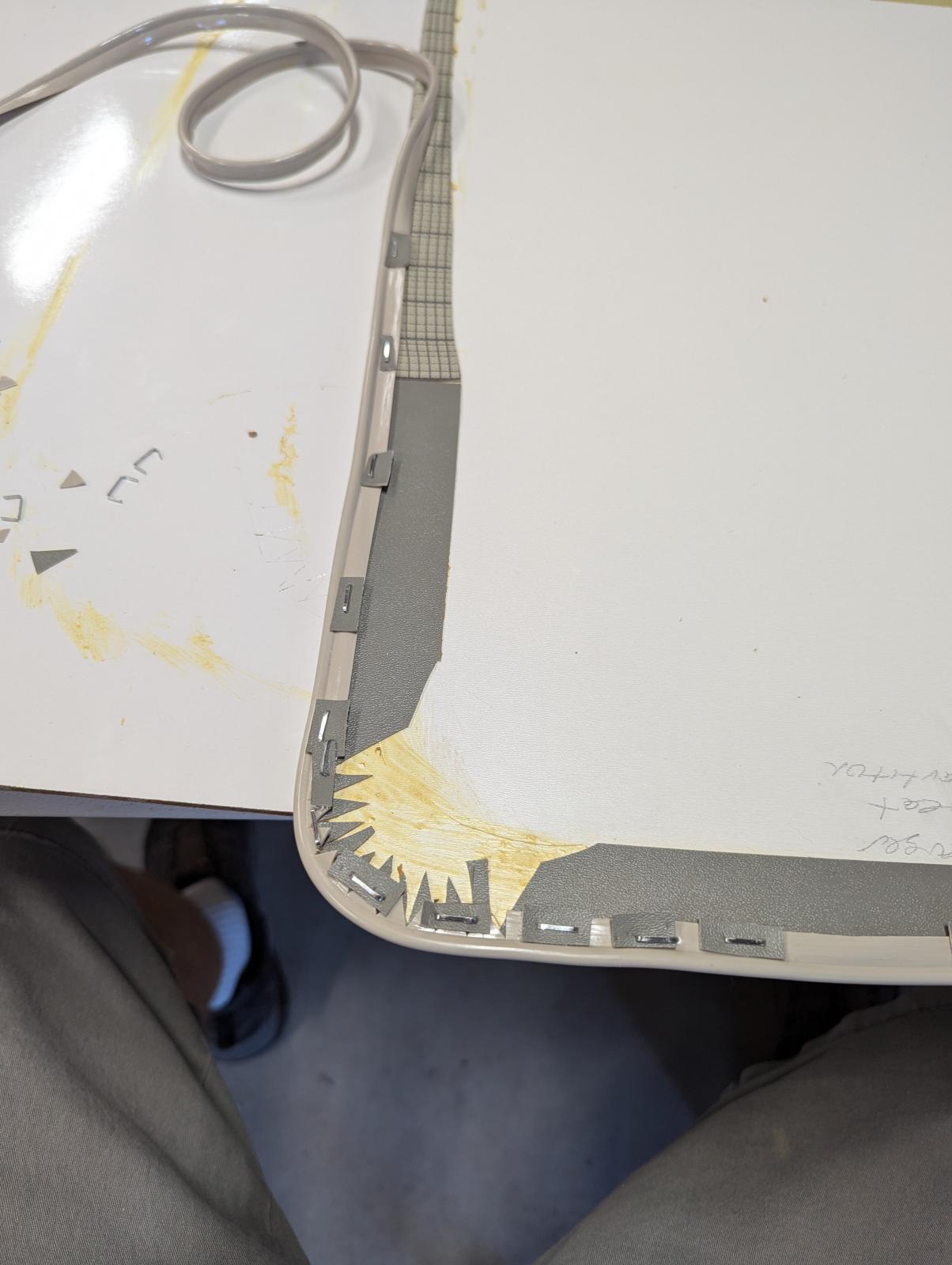

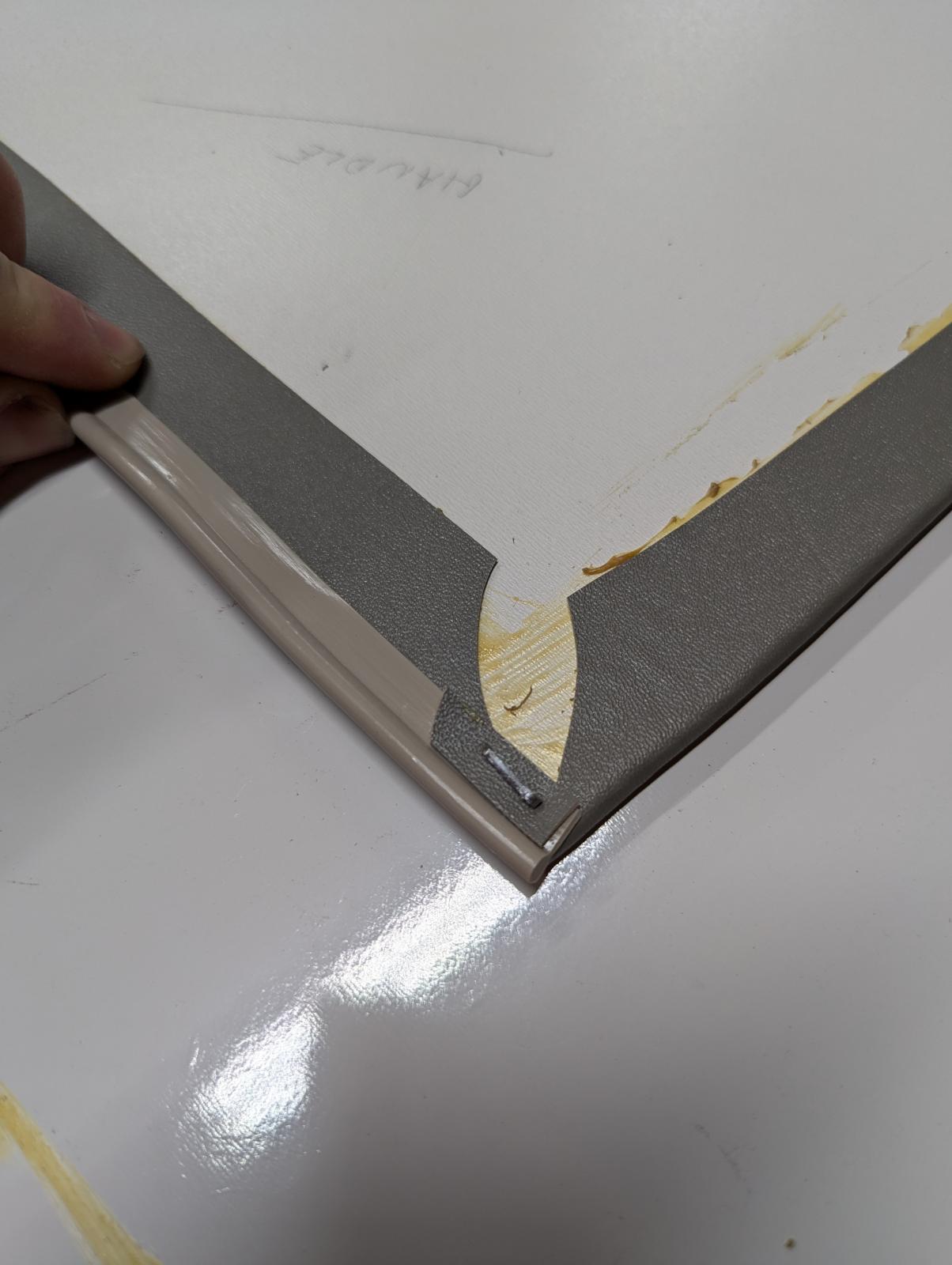

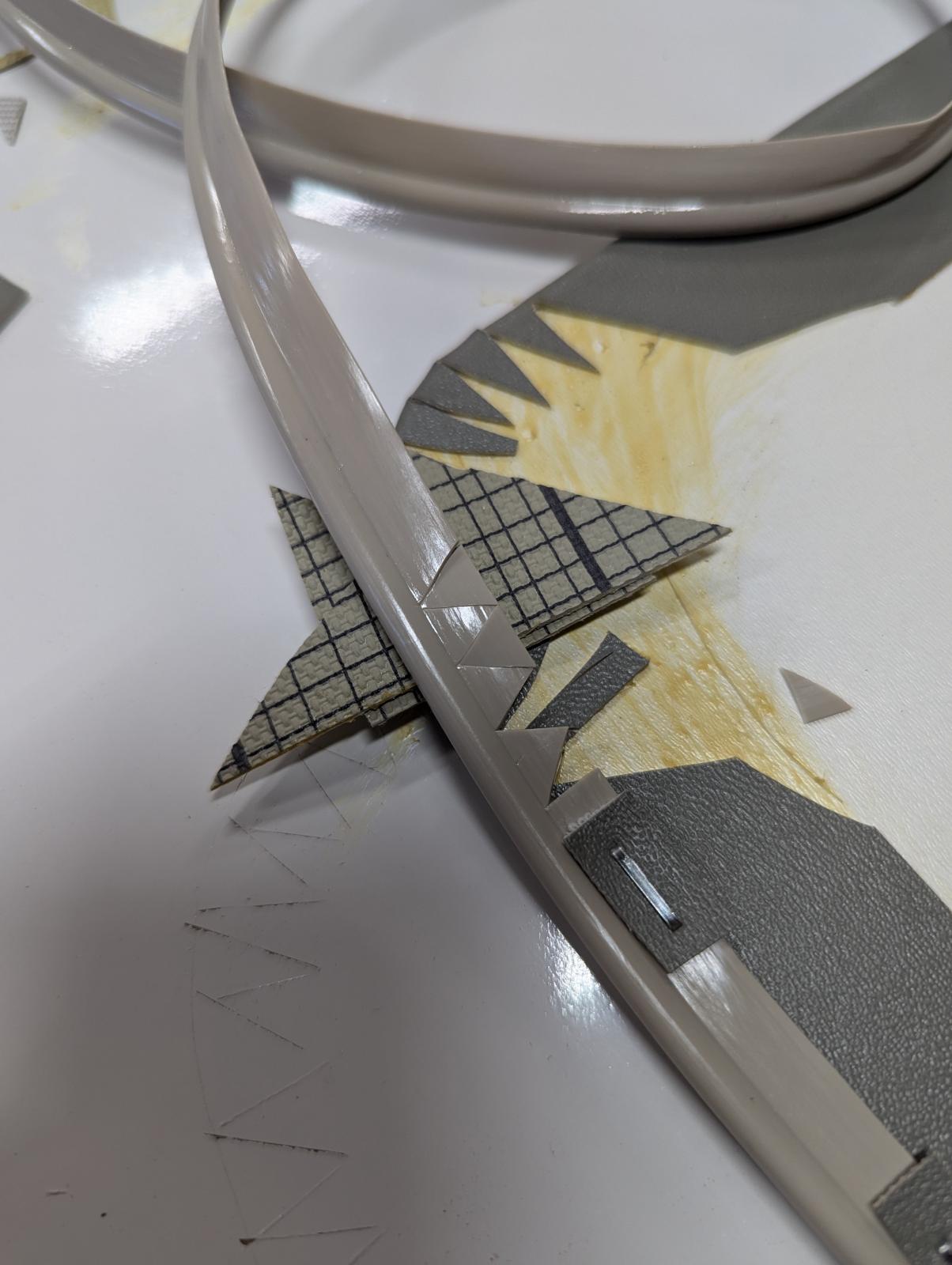

I cut shark teeth into the beading when we get to the radiused corner:

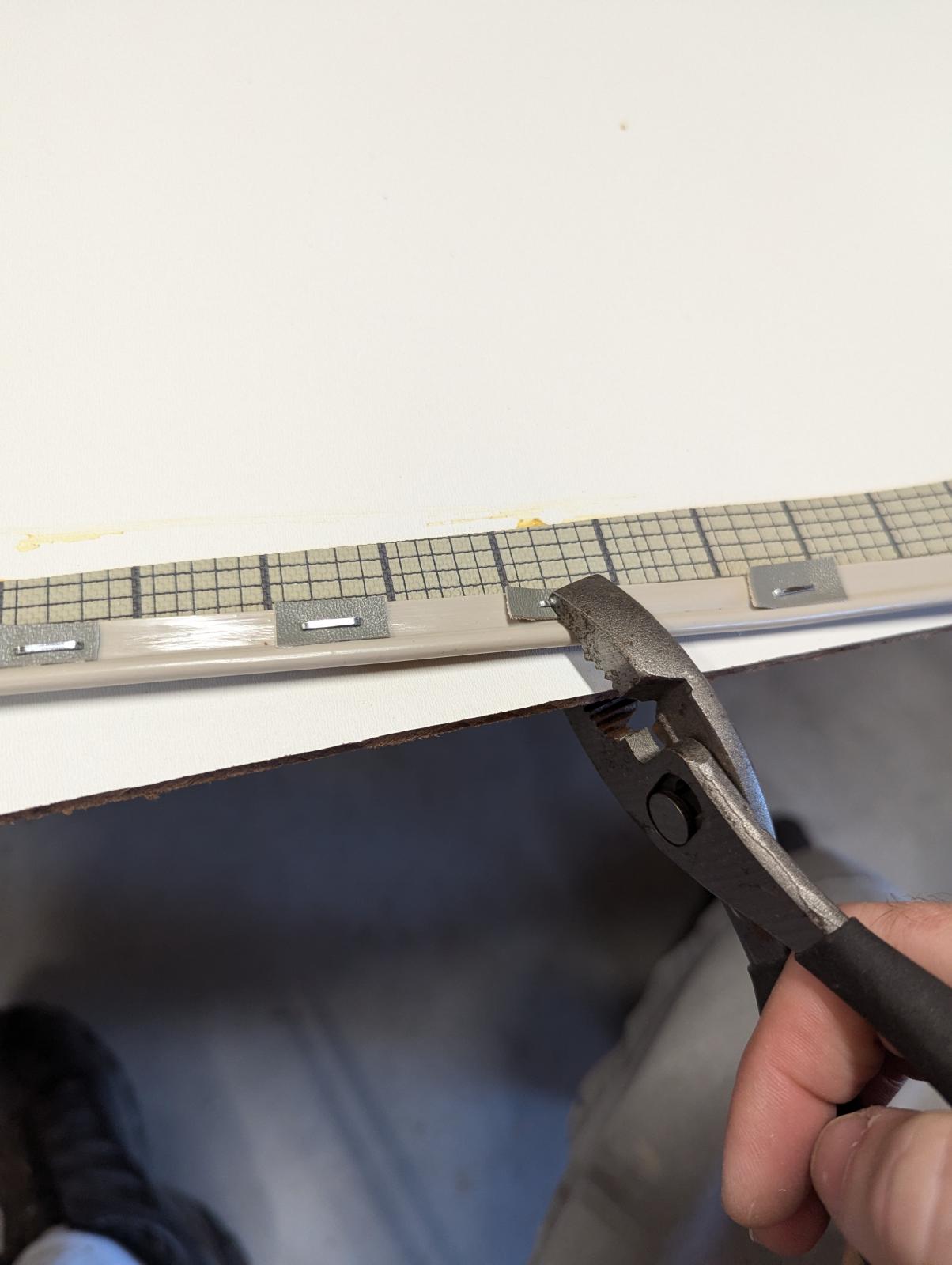

Finally I adjust the staples with some pliers to get the beading where I want it. You can adjust it in our a bit and drive home any staples that didn't fully seat:

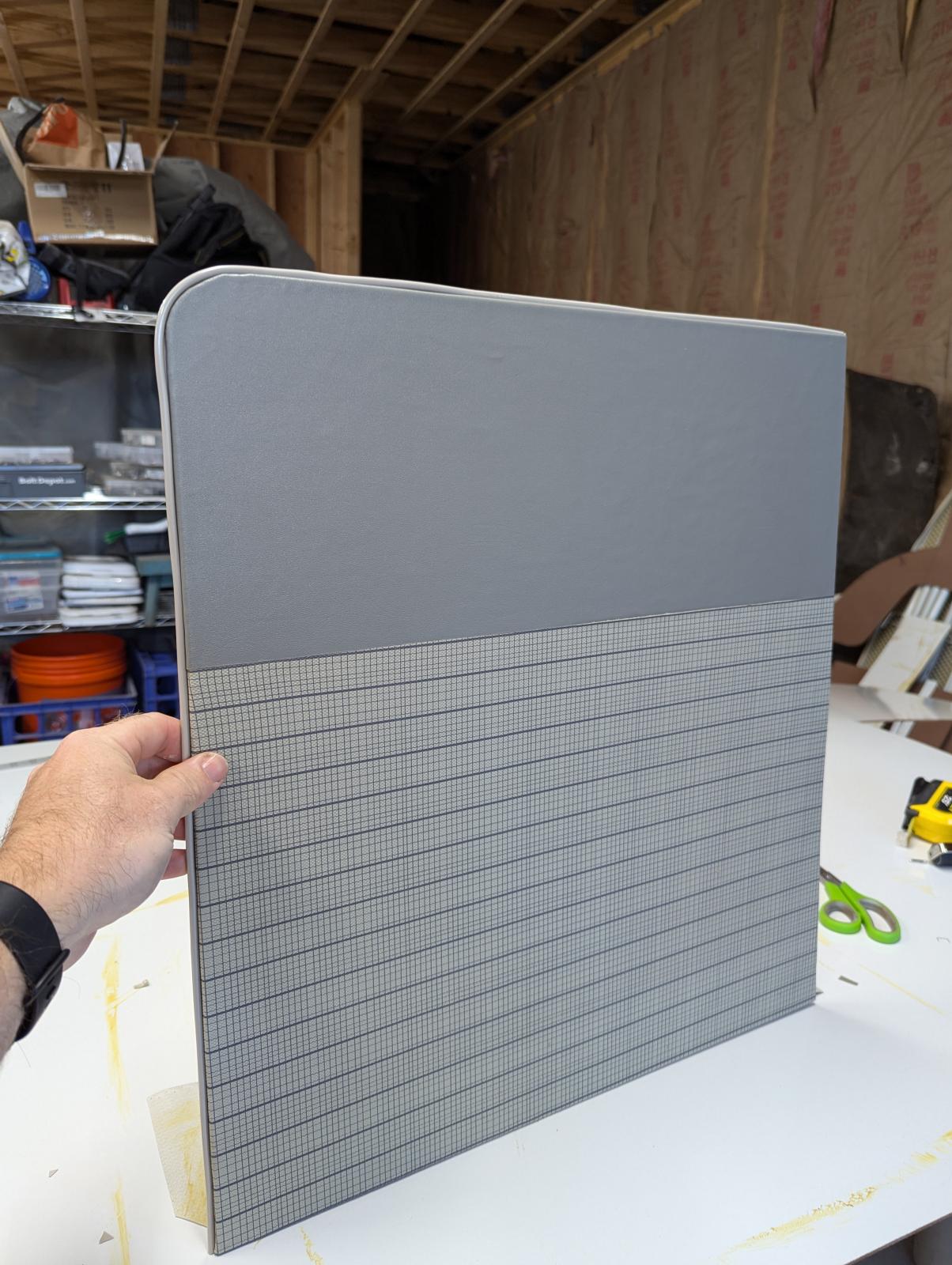

Here's the finished product, minus the chrome trim.
When it gets installed the beading presses up against the panel and looks a lot cleaner. I'll take some pics when I get that far.
_________________
'87 Syncro :: Subaru eng
'63 Samba Conversion ::(photo album)
'65 Westfalia
'65 Bug |
|
