 Posted: Sat Sep 17, 2016 12:35 pm Post subject: Byron's Bay Window |
 |
|
Hello everyone! I'm just back from a two-day, 20 hour drive to Florida where I delivered an oval window bug and brought back a 71 bay window. I'm super excited to have one and a big 'thank you' to Nathan.
Enjoyed talking to so many people at every rest area I stopped at who wanted to tell their VW story. Seems that everyone over a certain age has at least one to tell. And most are happy except for one of my wife's co-workers who as a child was laying on that flat area above the engine and Dad accelerated from a stop sign, the door flipped up and she fell out the back. She grabbed the bumper and he drug her just a few feet since his wife and the other kids were screaming at him that Maria was dead in the road.
If you all are like the folks in the oval window forum then it didn't happen without pictures. Here is proof that I am now one of you.
I have worked my way through about half the stupid questions sticky so I will wait until I have finished that before I bore you all with my stupid questions (which I will post in the appropriate place).
Lots of rust in all the usual places; I'll get to that one day (or not).
I just want to get her running and enjoy cruising town with my wife. Nathan says it probably needs a clutch and throw out bearing and it makes a clunking sound as it turns over. Time to get my hands dirty!
Byron
_________________
1957 Oval Window
1963 Alabama Camper Bus
1971 Ghia
1971 Baywindow Bus
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
 |
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
|
| Back to top |
|
|
Hikelite
Samba Member
Joined: August 31, 2012
Posts: 557
Location: Colville, WA
|
| Posted: Sat Sep 17, 2016 4:53 pm Post subject: Re: Byron's Bay Window |
|
|
71 is a great year.
Congratulations. She's pretty.
_________________
~Kevin
My 1968 Campmobile |
|
| Back to top |
|
|
Gwdghiaguy
Samba Member
Joined: December 06, 2013
Posts: 340
Location: Greenwood, SC
|
| Posted: Sat Sep 17, 2016 5:14 pm Post subject: Re: Byron's Bay Window |
|
|
| Hikelite wrote: |
71 is a great year.
Congratulations. She's pretty. |
Thank you. Was this the last year for the upright engine? It's the same one as in my ghia. If I can work on that one I should be ok on this one.
byron
_________________
1957 Oval Window
1963 Alabama Camper Bus
1971 Ghia
1971 Baywindow Bus
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2734
Location: Gullane, Scotland
|
|
| Back to top |
|
|
exotic plants
Samba Member
Joined: January 30, 2006
Posts: 301
Location: God's Zoo
|
| Posted: Sun Sep 18, 2016 6:16 am Post subject: Re: Byron's Bay Window |
|
|
It was a real pleasure meeting Byron. So glad the bus has someone to love it again.
Best of luck getting her back on the road!
_________________
1956 Beetle - Jungle Green.
Parts needed to complete:
Front driver side fender.
Rear driver side fender.
Cash waiting.
------------------------------------------------------------ |
|
| Back to top |
|
|
Gwdghiaguy
Samba Member
Joined: December 06, 2013
Posts: 340
Location: Greenwood, SC
|
| Posted: Tue Sep 20, 2016 7:46 pm Post subject: Re: Byron's Bay Window |
|
|
So I got some time to spend with the bus. Just wanted to try to get it running. Wouldn't start for nothing. I think this had something to do with it:
So I took the rotor off my 71 Ghia as well as a new distributor cap since the one on the bus was full of crud and it started right up! But with a very nasty rattle/grinding type sound.

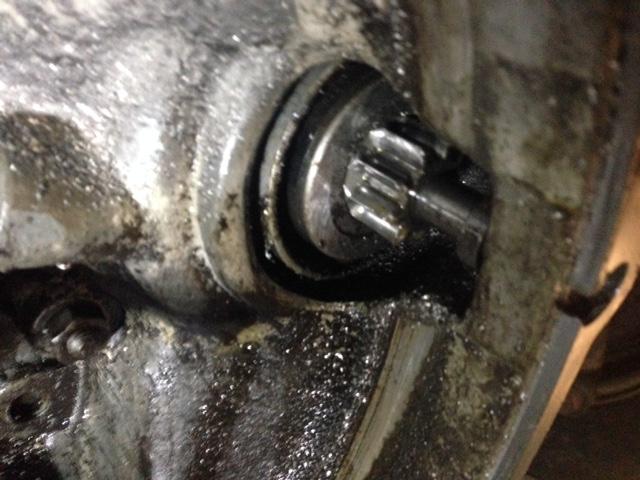

Dropped the engine and found lots of shiny metal bits:
I'm guessing this is from the starter not disengaging? Here are some more shots:
Here it is on the stand. I think I'll clean it up and replace the clutch and flywheel if you all think I should or do they look ok to you all? Is there an easy way to test the starter or do I just replace it?
I also killed two rats that had taken up residence. Definitely the hardest job all day.
Thanks for looking in and any comments.
Byron
_________________
1957 Oval Window
1963 Alabama Camper Bus
1971 Ghia
1971 Baywindow Bus
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Tue Sep 20, 2016 8:42 pm Post subject: Re: Byron's Bay Window |
|
|
This looks shinny. Is the flywheel hitting. What trans is that?
Tcash |
|
| Back to top |
|
|
Gwdghiaguy
Samba Member
Joined: December 06, 2013
Posts: 340
Location: Greenwood, SC
|
| Posted: Wed Sep 21, 2016 4:07 am Post subject: Re: Byron's Bay Window |
|
|
| Tcash wrote: |
This looks shinny. Is the flywheel hitting. What trans is that?
Tcash |
your circle is just a camera flash but all the silver points are bits of metal. As far as I know it is the transmission that's been on it for at least the past 10 years. The flywheel is chewed up a little but not too bad imho. Does the starter look ok to you all?
byron
_________________
1957 Oval Window
1963 Alabama Camper Bus
1971 Ghia
1971 Baywindow Bus
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
jtauxe
Samba Member
Joined: September 30, 2004
Posts: 5980
Location: Los Alamos, New Mexico, USA
|
| Posted: Wed Sep 21, 2016 7:16 am Post subject: Re: Byron's Bay Window |
|
|
| Gwdghiaguy wrote: |
| Hello everyone! I'm just back from a two-day, 20 hour drive to Florida where I delivered an oval window bug and brought back a 71 bay window. |
Good trade!
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
|
|
| Back to top |
|
|
mark d
Samba Member
Joined: February 06, 2013
Posts: 247
Location: Costa Rica
|
| Posted: Wed Sep 21, 2016 11:41 am Post subject: Re: Byron's Bay Window |
|
|
looks great, good luck
_________________
1972ish westfalia
"what good are tractors without violins ?" jose figueres |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Wed Sep 21, 2016 12:27 pm Post subject: Re: Byron's Bay Window |
|
|
Use a magnet and see if the metal flakes are metal.
Some of the flywheel teeth look like they have been slammed into by the starter bendix (gear)
With the starter in the trans. Hook up jumper cables and test the starter.
The starter gear should twist slightly as it is coming out and not start spinning until it is almost all the way out.
The starter gear should completely retract every time you disconnect power from the starter.
thnx sgkent
How to fix a sticky starter FAQ
http://www.thesamba.com/vw/forum/viewtopic.php?t=581254
tcash |
|
| Back to top |
|
|
Gwdghiaguy
Samba Member
Joined: December 06, 2013
Posts: 340
Location: Greenwood, SC
|
| Posted: Sat Sep 24, 2016 1:22 pm Post subject: Re: Byron's Bay Window |
|
|
| Gwdghiaguy wrote: |
| Tcash wrote: |
This looks shinny. Is the flywheel hitting. What trans is that?
Tcash |
your circle is just a camera flash but all the silver points are bits of metal. As far as I know it is the transmission that's been on it for at least the past 10 years. The flywheel is chewed up a little but not too bad imho. Does the starter look ok to you all?
byron |
Well I should listen to my elders. That wasn't just a camera flash; it was where the flywheel was rubbing. It was doing it in four places too.

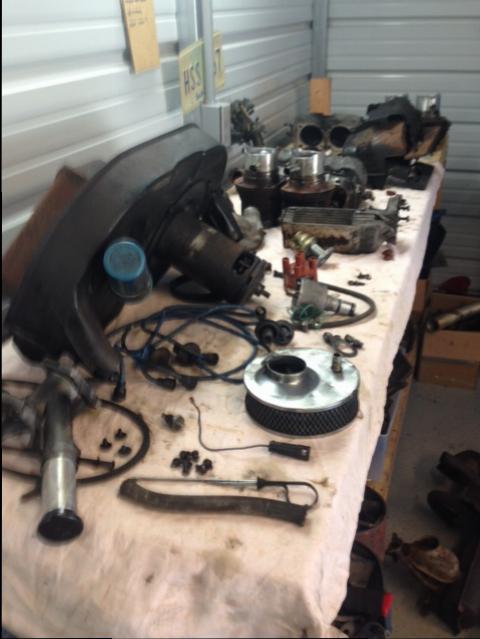

Here is where I stand today:
I discovered that I have almost an eighth inch free play. Quite a bit more than .004, huh? So I'll be tearing into this case. Ordered my Tom Wilson book on rebuilding these things too. I'll let you all know how it goes; please offer comments or scathing criticism as I enter unknown territory. I can take it! My friend who has forgotten more about air cooled vw engines than I'll ever know said I'm probably looking at align-boring. I'll post pictures of what I find and wait for your advice.
Found a nice middle seat too:
And I've started cleaning up the inside:
Having lots of fun and everyone I talk to about it has a bus story. Talked to a friend last night who as a youngster toured Europe with his family in a vw camper. He looked very nostalgic as he reminisced. Something about these vehicles, isn't there?
Byron
_________________
1957 Oval Window
1963 Alabama Camper Bus
1971 Ghia
1971 Baywindow Bus
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Sat Sep 24, 2016 2:48 pm Post subject: Re: Byron's Bay Window |
|
|
This is extreme but will give you the idea of what is going on. Hopefully your case is not this bad.
Find a shop that specializes in VW's. I also recommend buying the bearings from the machine shop. That way they are sure to fit right.
Link
Good luck
Tcash |
|
| Back to top |
|
|
wcfvw69
Samba Purist
Joined: June 10, 2004
Posts: 13701
Location: Arizona
|
| Posted: Mon Sep 26, 2016 8:50 pm Post subject: Re: Byron's Bay Window |
|
|
You're screwed now.. You own a bus! Welcome to the addiction! I hope you keep posting your progress as you go through it.
My link below shows me going through my 70's mechanicals. These things drive wonderfully once they are put back to original condition while replacing worn parts, etc..
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc
40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.
**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours** |
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13629
Location: West Coast, USA
|
| Posted: Tue Sep 27, 2016 8:35 am Post subject: Re: Byron's Bay Window |
|
|
| Gwdghiaguy wrote: |
I discovered that I have almost an eighth inch free play. Quite a bit more than .004, huh? So I'll be tearing into this case.
|
Wait! Is your flywheel off? End play must only be measured with the flywheel on and torqued down!
Not to bag on you, but that engine looks a little dirty to be sitting there with the cylinders off if you plan on putting it back together. A few hours in a body shop with an open engine orifice was enough to clog the pushrod oil galleries with dust on an engine I saw last week. I hope you really cleaned the outside of that case before opening the cylinder spigots, or you might have to strip it down for cleaning anyway.
Crankcase hygiene is pretty important on an engine with no oil filter…
Robbie
_________________
WTB: 215mm Type 4 flywheel. Cash in hand.
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
Road trip reports and tech blog:
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
Gwdghiaguy
Samba Member
Joined: December 06, 2013
Posts: 340
Location: Greenwood, SC
|
| Posted: Tue Sep 27, 2016 12:10 pm Post subject: Re: Byron's Bay Window |
|
|
| asiab3 wrote: |
| Gwdghiaguy wrote: |
I discovered that I have almost an eighth inch free play. Quite a bit more than .004, huh? So I'll be tearing into this case.
|
Wait! Is your flywheel off? End play must only be measured with the flywheel on and torqued down!
Not to bag on you, but that engine looks a little dirty to be sitting there with the cylinders off if you plan on putting it back together. A few hours in a body shop with an open engine orifice was enough to clog the pushrod oil galleries with dust on an engine I saw last week. I hope you really cleaned the outside of that case before opening the cylinder spigots, or you might have to strip it down for cleaning anyway.
Crankcase hygiene is pretty important on an engine with no oil filter…
Robbie |
No the flywheel is still attached and yes I did get most of the topsoil off before removing the cylinders. I plan to throughly clean everything if this case is salvagable. Going by my flaps to borrow a pulley puller; didn't have an issue when i rebuilt my 36hp but this one will not budge. Thanks for looking in and your comments; all you guys rock!
byron
_________________
1957 Oval Window
1963 Alabama Camper Bus
1971 Ghia
1971 Baywindow Bus
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Tue Sep 27, 2016 1:25 pm Post subject: Re: Byron's Bay Window |
|
|
Start soaking the pulley with some rust penetrant and give the center of the pulley some love taps.
Pull from the two slots in the center. If you crab it from its outer circumference chances are you will bend it.
Good luck
Tcash
http://www2.cip1.com/ProductDetails.asp?ProductCode=ACC-C10-7013 |
|
| Back to top |
|
|
Gwdghiaguy
Samba Member
Joined: December 06, 2013
Posts: 340
Location: Greenwood, SC
|
| Posted: Tue Sep 27, 2016 3:57 pm Post subject: Re: Byron's Bay Window |
|
|
Why didn't I come in and read this first? So I'll be in the market for a new pulley. In my defense, I couldn't find a puller that would fit the inside holes and the pulley had a big crack in it anyway. So it took me and four of my best friends to get it out.
I'm sure you old hats have seen this many times before and are sitting there shaking your heads and laughing at me. Have mercy on a newby like me.
And what's up with these cylinder heads? Anyone recognize this? Any good or just throw them away?
I didn't clean that; it came off that clean.
Thanks for looking in and your comments are always welcome!
Byron
_________________
1957 Oval Window
1963 Alabama Camper Bus
1971 Ghia
1971 Baywindow Bus
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
dmcglynn
Samba Member
Joined: October 21, 2014
Posts: 39
Location: Michigan
|
| Posted: Tue Sep 27, 2016 4:00 pm Post subject: Re: Byron's Bay Window |
|
|
| Unrelated, but I like that vise! I've never seen one with graduations on it like that - almost like a mill or something? |
|
