| Author |
Message |
Syncro Jael
Samba Member
Joined: December 19, 2013
Posts: 2204
Location: Utah
|
 Posted: Fri Nov 22, 2019 10:21 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
 |
|
I have never had any issues with the Propex 2800 at high altitudes. We live at 4800ft and often camp at 10,000ft +. It always performed flawlessly.
The diesel heaters have issues and you need to set the fuel/air mixture for a clean burn and to get enough oxygen to the unit.
This is very simple to do and I already have the pump/fan settings for when we camp at elevation.
Just an FYI for you high altitude camping friends.

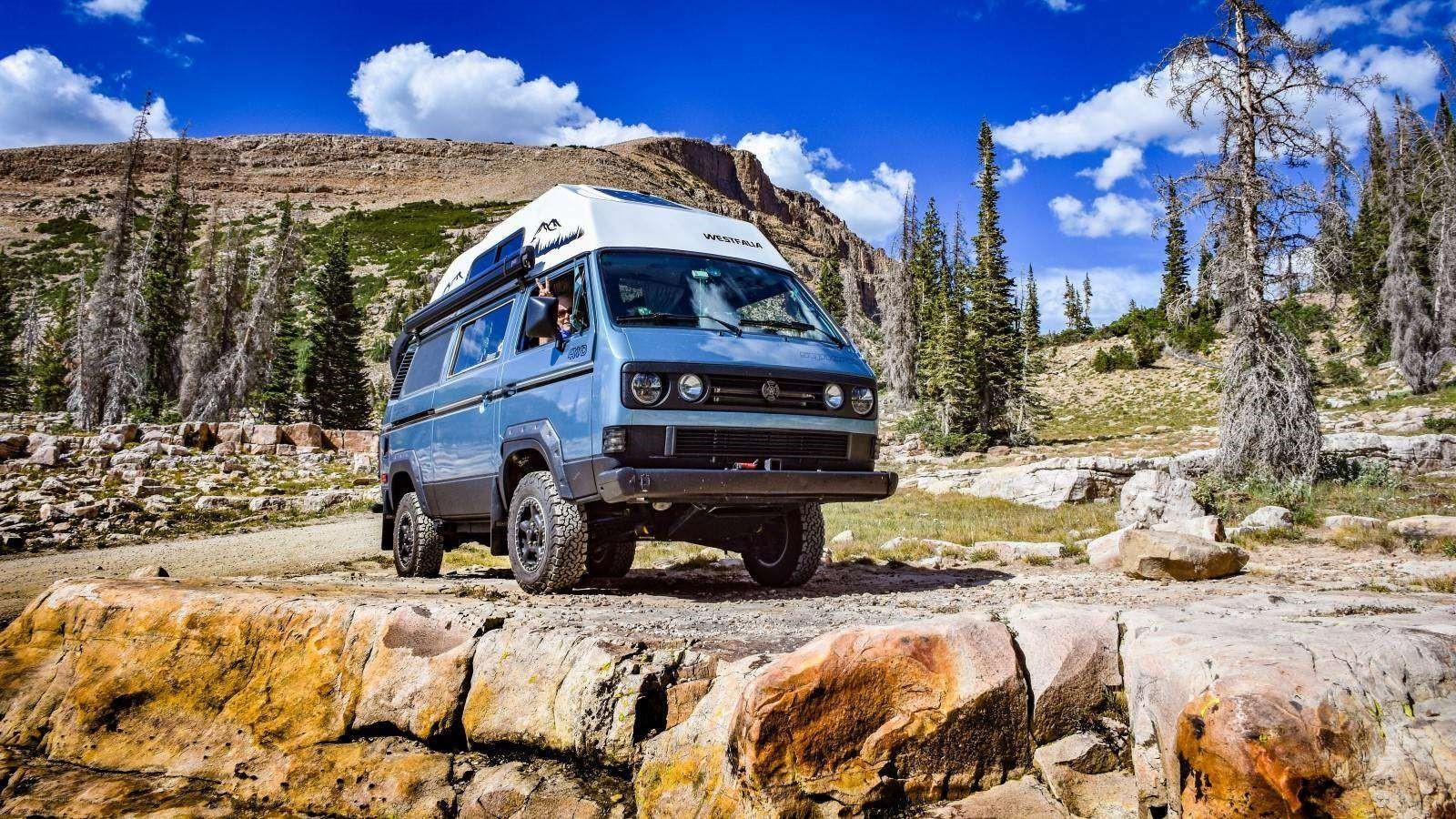

This is at 10kft.
_________________
1987 Syncro Westfalia Hightop - NAHT
Subaru EJ25 Forged Frankenmotor, Triple Knob.
Jael = (Mountain Goat) |
|
| Back to top |
|
 |
vanagonjr
Samba Member
Joined: October 07, 2010
Posts: 3622
Location: Dartmouth, Mass.
|
| Posted: Fri Nov 22, 2019 10:11 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| danfromsyr wrote: |
| might have been a lack of foresight for the John Deere Gator folks and why there's a surplus of nos install kits. I'm sure there are Gators at altitudes above 6oooft who'd like heat. |
I have a friend who is one of them. But his is diesel powered.
_________________
John - 86 Wolfsburg Westfalia "Weekender"
Flint reversed 1.8T W/Passat 5-Speed
LiMBO (late model bus club) www.limbobus.org
LiMBO is on Facebook too! https://www.facebook.com/groups/
FAQ thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=525798 |
|
| Back to top |
|
|
danfromsyr
Samba Member
Joined: March 01, 2004
Posts: 15347
Location: Syracuse, NY
|
| Posted: Fri Nov 22, 2019 8:25 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| might have been a lack of foresight for the John Deere Gator folks and why there's a surplus of nos install kits. I'm sure there are Gators at altitudes above 6oooft who'd like heat. |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17136
Location: Brookeville, MD
|
| Posted: Fri Nov 22, 2019 7:50 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
I asked Heatso about the B1LC gasoline models from 2011 and if there was a high altitude capability for them. Here is their response.
"Unfortunately, we are unable to offer any options for B1LC to cope with high altitudes. High altitude sensor would not communicate with ECU, therefore it would not work with the pump. High altitude pump is not available for petrol versions."
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD
"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson
MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646
Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794 |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17136
Location: Brookeville, MD
|
| Posted: Wed Nov 20, 2019 9:26 pm Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| Syncro Jael wrote: |
| dobryan wrote: |
Westy with pop top up, no insulation.
Propex HS2000, 32 degrees in Moab over night. No problem keeping warm. Only needed a blanket even in top bunk. |
It must have been a "THICK" blanket. Under 40Β°f ambient and the upper bunk, in the tent, without insulation, is very cold at the rear. I have camped too often and been cold up there. But I like it around 65-70 to sleep. Just preference. |
Ron, this was at syncro solstice in 2017 with my 80 year old mom in the bottom bed and me up top. The HS2000 easily kept temps
in the mid 60βs. Maybe ran 20 minutes an hour. Or I was
only conscious 20 minutes an hour.
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD
"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson
MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646
Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794 |
|
| Back to top |
|
|
Vanlife Geek
Samba Member
Joined: September 19, 2014
Posts: 285
Location: CO
|
| Posted: Tue Nov 19, 2019 2:13 pm Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| westyventures wrote: |
There is a thread re: 'hacking' the older thermostat to a lower range. I'm sure you can find that with a little searching, or someone reading here can find it.
|
I think this is the thread Karl was referencing about "hacking" the older thermostat to a lower range. https://www.thesamba.com/vw/forum/viewtopic.php?t=553389&highlight=propex+thermostat+setting
The pictures are partially blurred out from Photobucket, but you can still understand what's being described. It's probably beyond any project I would want to undertake, but someone else might find it useful. I think I will just upgrade to the digital thermometer and new wiring harness at some point.
I plan to move into my Westy full time in the next couple of years with high altitude locations in the summer to beat the heat and warmer desert locales in the winter, making my thermostat problems mostly moot. Although I'm sure I'll still want to do some winter camping in the high country occasionally.
_________________
Vanlife Geek
Current:
1986 Syncro Westy
Previous:
1983 Westy
1981 Westy
1972 Bug (Last year you could buy a new one for under $2,000)
1965/66 Bug (2 bugs from a junk yard combined to make 1 functional bug)
1959 Bug (Pre Gas Gauge Era) |
|
| Back to top |
|
|
Abscate
Samba Member
Joined: October 05, 2014
Posts: 23823
Location: NYC/Upstate/ROW
|
| Posted: Tue Nov 19, 2019 11:51 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| Quote: |
| But I like it around 65-70 to sleep. Just preference. |
Hilton has a nice solution for that, and its even Paris based.
_________________
πΊπΈ πΊπΈ πΊπΈ πΊπΈ πΊπΈ πΊπΈ πΊπΈ π π π |
|
| Back to top |
|
|
danfromsyr
Samba Member
Joined: March 01, 2004
Posts: 15347
Location: Syracuse, NY
|
| Posted: Tue Nov 19, 2019 11:48 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
heck I wouldn't run my heater @ 40*f for sleeping if it wasn't for my SO, and she sleeps in the lower bunk.
fwiw, my ASI has the vinyl coated top fabric, so it really doesn't leak air/drafts.
except around the 40year old stitching  |
|
| Back to top |
|
|
Syncro Jael
Samba Member
Joined: December 19, 2013
Posts: 2204
Location: Utah
|
| Posted: Tue Nov 19, 2019 11:34 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| dobryan wrote: |
Westy with pop top up, no insulation.
Propex HS2000, 32 degrees in Moab over night. No problem keeping warm. Only needed a blanket even in top bunk. |
It must have been a "THICK" blanket. Under 40Β°f ambient and the upper bunk, in the tent, without insulation, is very cold at the rear. I have camped too often and been cold up there. But I like it around 65-70 to sleep. Just preference.
_________________
1987 Syncro Westfalia Hightop - NAHT
Subaru EJ25 Forged Frankenmotor, Triple Knob.
Jael = (Mountain Goat) |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17136
Location: Brookeville, MD
|
|
| Back to top |
|
|
danfromsyr
Samba Member
Joined: March 01, 2004
Posts: 15347
Location: Syracuse, NY
|
| Posted: Tue Nov 19, 2019 7:00 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
that really depends on many personal factors.
personal comfort levels
actual air/wind exposure/impacts
BTU capability of your heat source.
I've camped in cold, in snow with my propex 2800 2.5kw ~9k BTU) heater in temps in the low teens, in an 8in snowfall @ 8,oooft in Yellowstone and with blankets been quite comfy, the Ms comfy as well.
my camper is a ASI Riviera and I sleep in the top bunk. girl and the dog get the lower bed.
| kguarnotta wrote: |
One note or question about all these heater options - when folks say they heat the bus great for camping, please let us know if this is with the pop-top up or down - or for that matter if you even have a pop-top.
. |
|
|
| Back to top |
|
|
Vanlife Geek
Samba Member
Joined: September 19, 2014
Posts: 285
Location: CO
|
| Posted: Tue Nov 19, 2019 12:22 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| westyventures wrote: |
| epbiggs wrote: |
Thanks for the info! I'll give the hot water trick on the tank. To confirm, the new digital thermostat is doable with the new 6 pin wiring harness? And the 6 pin harness plug is compatible with the "older" HS2800? How much is the harness? The new 2 knob version with the "freeze setting" sounds great, but it seems to me if I were to upgrade, I might as well go with the digital version for more precise control and the timer feature. I'll also search for the hack you mentioned. Thanks again! |
Yes, and you can find pricing and such through the web link in my signature. |
Is it the Thermostat Cable for $30? That was the only cable product I could find on your site in one of the drop downs, but it didn't say how many pins. Also, I think I found the hack you mentioned and just started reading about changing a resistor. Unfortunately, all the pictures are blurred out by photobucket but I think I can still figure it out. Thanks
_________________
Vanlife Geek
Current:
1986 Syncro Westy
Previous:
1983 Westy
1981 Westy
1972 Bug (Last year you could buy a new one for under $2,000)
1965/66 Bug (2 bugs from a junk yard combined to make 1 functional bug)
1959 Bug (Pre Gas Gauge Era) |
|
| Back to top |
|
|
Outback Kampers
Samba Member
Joined: December 29, 2004
Posts: 2340
Location: Oregon Outback
|
| Posted: Tue Nov 19, 2019 12:12 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| epbiggs wrote: |
Thanks for the info! I'll give the hot water trick on the tank. To confirm, the new digital thermostat is doable with the new 6 pin wiring harness? And the 6 pin harness plug is compatible with the "older" HS2800? How much is the harness? The new 2 knob version with the "freeze setting" sounds great, but it seems to me if I were to upgrade, I might as well go with the digital version for more precise control and the timer feature. I'll also search for the hack you mentioned. Thanks again! |
Yes, and you can find pricing and such through the web link in my signature.
_________________
Karl Mullendore
1990 Syncro 16" sunroof Reimo highroof conversion
1990 Westy Multivan 112i automatic
1992 LT31 Karmann Distance Wide 'La Tortuga'
2014 Touareg X TDI |
|
| Back to top |
|
|
Vanlife Geek
Samba Member
Joined: September 19, 2014
Posts: 285
Location: CO
|
| Posted: Mon Nov 18, 2019 11:38 pm Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| westyventures wrote: |
| epbiggs wrote: |
I sure wish there was a way to tell how much propane is left in my tank, but that's just the way it is, I guess.
The main issue I have is with the thermostat. When I'm winter camping I can stay toasty sleeping in my -20 down bag, but would like to keep the van above 32 degrees to keep the water tank and other stuff from freezing overnight. At the lowest setting, it keeps the van at around 50ish degrees, which is warmer than I need for sleeping and if I'm out for a couple of weeks, I worry about running out of propane. Does anyone know of any hacks to adjust the standard thermostat to maintain a lower temperature, or do i need to spend the $80 to get the Propex digital thermostat (Van Cafe/RMW has them, so I can pick it up locally), which I assume would solve the issue, but may require a new wiring harness. Does anyone have any experience with the Propex digital thermostat version?
|
Boil a pot of water and throw it against the tank, it will show a frost line at the propane level.
There is a thread re: 'hacking' the older thermostat to a lower range. I'm sure you can find that with a little searching, or someone reading here can find it.
The new style thermostat (2-knob) has a freeze setting of 40, but the heating range if 60-80 beyond that. The digital thermostat / timer recently introduced has a 32-86 degree set range, and also gives you the option of setting a timer to turn it on 1-16 hours later. Both of the newer versions require the newer harness which uses 6 wires vs 5 as well as different plugs on both ends. I (the importer) sell all. |
Thanks for the info! I'll give the hot water trick on the tank. To confirm, the new digital thermostat is doable with the new 6 pin wiring harness? And the 6 pin harness plug is compatible with the "older" HS2800? How much is the harness? The new 2 knob version with the "freeze setting" sounds great, but it seems to me if I were to upgrade, I might as well go with the digital version for more precise control and the timer feature. I'll also search for the hack you mentioned. Thanks again!
_________________
Vanlife Geek
Current:
1986 Syncro Westy
Previous:
1983 Westy
1981 Westy
1972 Bug (Last year you could buy a new one for under $2,000)
1965/66 Bug (2 bugs from a junk yard combined to make 1 functional bug)
1959 Bug (Pre Gas Gauge Era) |
|
| Back to top |
|
|
rmcd
Samba Member
Joined: October 29, 2010
Posts: 1350
Location: PNW - its a dry rain.
|
| Posted: Mon Nov 18, 2019 10:03 pm Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| vwwestyman wrote: |
| rmcd wrote: |
| vwwestyman wrote: |
I guess I don't know what size fuel inlet there is for the heater pump, but you only need to use that small diameter, hard plastic fuel line between the pump and heater. You should be able to feed the pump with rubber hose.
But however you get fuel TO the pump, you NEED to use the plastic line between the pump and heater. That is how it pulses fuel into the heater; rubber would absorb the pulses too easily and it wouldn't meter properly. |
.
Great point! Thanks. |
And to add to that a little, you just use small bits of the rubber hose to join the plastic hose to the pump and heater. You should shove them all together so there is little to no space between the plastic and heater/fuel pump nipples, then clamp down on the rubber to join it all together. |
Gonna bump this again cause I thought the plastic hose setup was a nightmare waiting to happen so I have been thinking about how to all this without it. Thanks again.
Great note.
_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight= |
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5824
Location: Wamego, Kansas, USA
|
| Posted: Mon Nov 18, 2019 2:44 pm Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| rmcd wrote: |
| vwwestyman wrote: |
I guess I don't know what size fuel inlet there is for the heater pump, but you only need to use that small diameter, hard plastic fuel line between the pump and heater. You should be able to feed the pump with rubber hose.
But however you get fuel TO the pump, you NEED to use the plastic line between the pump and heater. That is how it pulses fuel into the heater; rubber would absorb the pulses too easily and it wouldn't meter properly. |
.
Great point! Thanks. |
And to add to that a little, you just use small bits of the rubber hose to join the plastic hose to the pump and heater. You should shove them all together so there is little to no space between the plastic and heater/fuel pump nipples, then clamp down on the rubber to join it all together.
_________________
Dave Cook
President, Wild Westerner Club
1978 Champagne Edition Westy, repowered to '97 Jetta TDI
1973 Wild Westerner
My Thing |
|
| Back to top |
|
|
rmcd
Samba Member
Joined: October 29, 2010
Posts: 1350
Location: PNW - its a dry rain.
|
| Posted: Mon Nov 18, 2019 2:35 pm Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
| vwwestyman wrote: |
I guess I don't know what size fuel inlet there is for the heater pump, but you only need to use that small diameter, hard plastic fuel line between the pump and heater. You should be able to feed the pump with rubber hose.
But however you get fuel TO the pump, you NEED to use the plastic line between the pump and heater. That is how it pulses fuel into the heater; rubber would absorb the pulses too easily and it wouldn't meter properly. |
.
Great point! Thanks.
_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight= |
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5824
Location: Wamego, Kansas, USA
|
| Posted: Mon Nov 18, 2019 7:12 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
I've got a pop-top and camp with it up whenever possible.
I made a layer of reflectix insulation that just press-fits on the inside that I put up in cold weather. That seems to help cut the draftiness from the canvas. I'm sure it is still cooler up there (my wife and I sleep downstairs) but the heater still helps take the chill off, for sure. Others who have slept up there haven't complained.
Sometimes I'll set a small battery powered fan blowing upwards to help get some warm air to circulate into the upper berth.
_________________
Dave Cook
President, Wild Westerner Club
1978 Champagne Edition Westy, repowered to '97 Jetta TDI
1973 Wild Westerner
My Thing |
|
| Back to top |
|
|
kguarnotta
Samba Member
Joined: April 01, 2004
Posts: 1207
Location: Woodstock, NH
|
| Posted: Mon Nov 18, 2019 7:01 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
One note or question about all these heater options - when folks say they heat the bus great for camping, please let us know if this is with the pop-top up or down - or for that matter if you even have a pop-top.
Phishman 068 - I am thinking of going the same way as you - a webasto that runs on the regular gasoline. Which type of controller are you using?
Afterburner question - is there a thread that discusses using these? and would they work with a gasoline Webasto? I would think it would, but i don't fully understand how they work yet.
_________________
-Kevin
Lincoln, MA
2001 Eurovan
'86 Triple Knob Syncro w/EJ22
'78 Westy
'69 Single Cab
'65 Kombi - EZ-Camper |
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5824
Location: Wamego, Kansas, USA
|
| Posted: Mon Nov 18, 2019 4:41 am Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy |
|
|
I guess I don't know what size fuel inlet there is for the heater pump, but you only need to use that small diameter, hard plastic fuel line between the pump and heater. You should be able to feed the pump with rubber hose.
But however you get fuel TO the pump, you NEED to use the plastic line between the pump and heater. That is how it pulses fuel into the heater; rubber would absorb the pulses too easily and it wouldn't meter properly.
_________________
Dave Cook
President, Wild Westerner Club
1978 Champagne Edition Westy, repowered to '97 Jetta TDI
1973 Wild Westerner
My Thing |
|
| Back to top |
|
|
|
