Nova Scotian 54 standard restoration

[sgellis]

Another part done

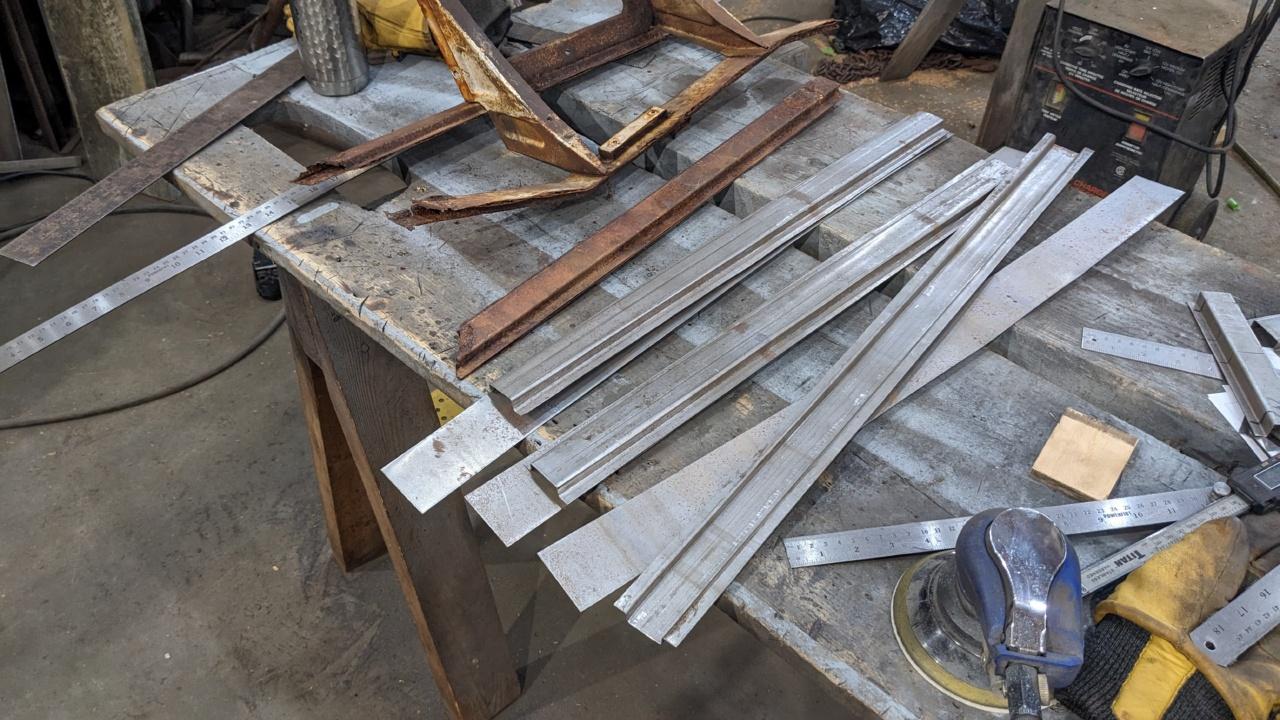

Used a tipping die in the bead roller to start the lip. Shrinker and hammer/dolly to finish. It did straighten it slightly so made a wood die and pressed a few spots to get the curve back.

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)

[sgellis]

Made a pattern off my 64 that includes the A pillars. Pillar position is very important to get correct .Also made a drawing to create a flat pattern.

Cut out the panel and added the two bends. Used my new stretcher to create the curve to match the pattern. Added the end bends with a press and stretched the flange to get correct angle.

Next I will use a tipping die in the bead roller to add the lips

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)

[sgellis]

Started on the front valance. Didn't have much to go by. I recieved some drawings of NOS brackets. They were quite different from mine. Many photos I looked at were different. From the original bits I had, drawings, photos and my 64 I am quite confident in my drawings except the inner reinforcement dimensions are probably not exact.

Something I didn't notice before was the 1.5 mm step down on the front frame. My original rusted frame bit had it. Oddly my 64 also has the step.

Got the brackets started and they fit nice.

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)

[KOMBI NIKO]

That spot welder is the goods, nice and long reach.
_________________
https://www.instagram.com/demop_vw_garage/

https://www.facebook.com/Demopgarage/

https://www.youtube.com/@Demop_VW_garage

[sgellis]

Wheel wells finally done. That was a lot of work.

I made electrodes for the spot welder. The 8 mm copper is easy to shape for hard to get spots. I need to make a short set of bars as the long ones are a little awkward.

My spot welder is not heavy enough for this so could only do 2 or 3 welds at a time between cool downs.

I knotched some hardwood to roll the lip and it worked very nice.

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)

[sgellis]

Left wheel well done. Right side is welded.

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)

[sgellis]

Got my shrinker/stretcher. Works great. It has fine teeth so doesn't leave much of a mark.

Flattened the top panels that were warped badly. Fitted and tacked in the left side. It will need a slight shrink on the outside edge after but very happy with how they are coming along.

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)

[KOMBI NIKO]

Yes I do need to make a thread here I just need chassis measurements as its in sections. Front holes to rear positions so I can get it bolted down for welding back together.
_________________
https://www.instagram.com/demop_vw_garage/

https://www.facebook.com/Demopgarage/

https://www.youtube.com/@Demop_VW_garage

[sgellis]

[KOMBI NIKO]

Great work mate, My new project has arrived and I may need some help with measurements on your frame table.
_________________
https://www.instagram.com/demop_vw_garage/

https://www.facebook.com/Demopgarage/

https://www.youtube.com/@Demop_VW_garage

[banana split]

Killing it! Fantastic work. Keep those updates coming
_________________
My Beetles :
1951 Crotch Cooler 11G Split Ragtop
1953 Zwitter
1964 Chop Top

[sgellis]

Bit more done. I ordered a shrinker/stretcher. I was going to need one eventually and it will make this job easier

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)

[sgellis]

[ddutch]

Impressive work (again!), on that X-panel. I admire your precision and dedication on this massive restoration.
What brand of 3D printer do you use to print those parts/stamps?

[sgellis]

Pressed in the X

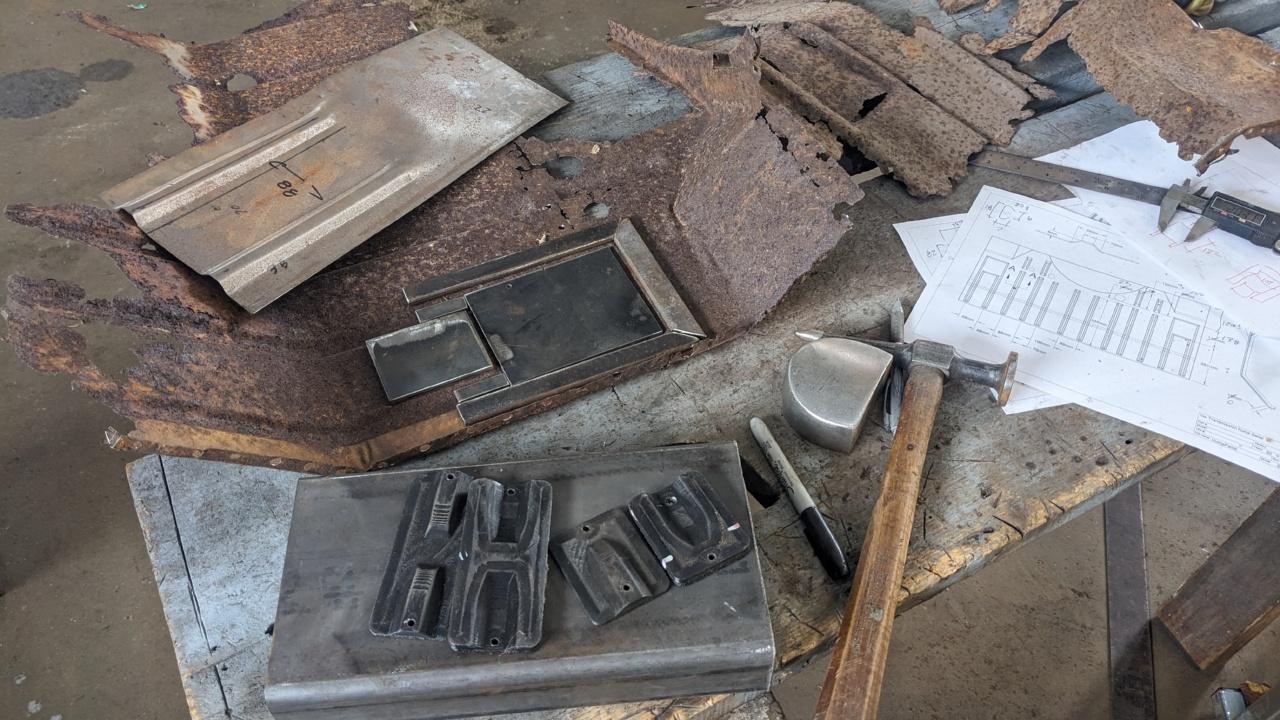

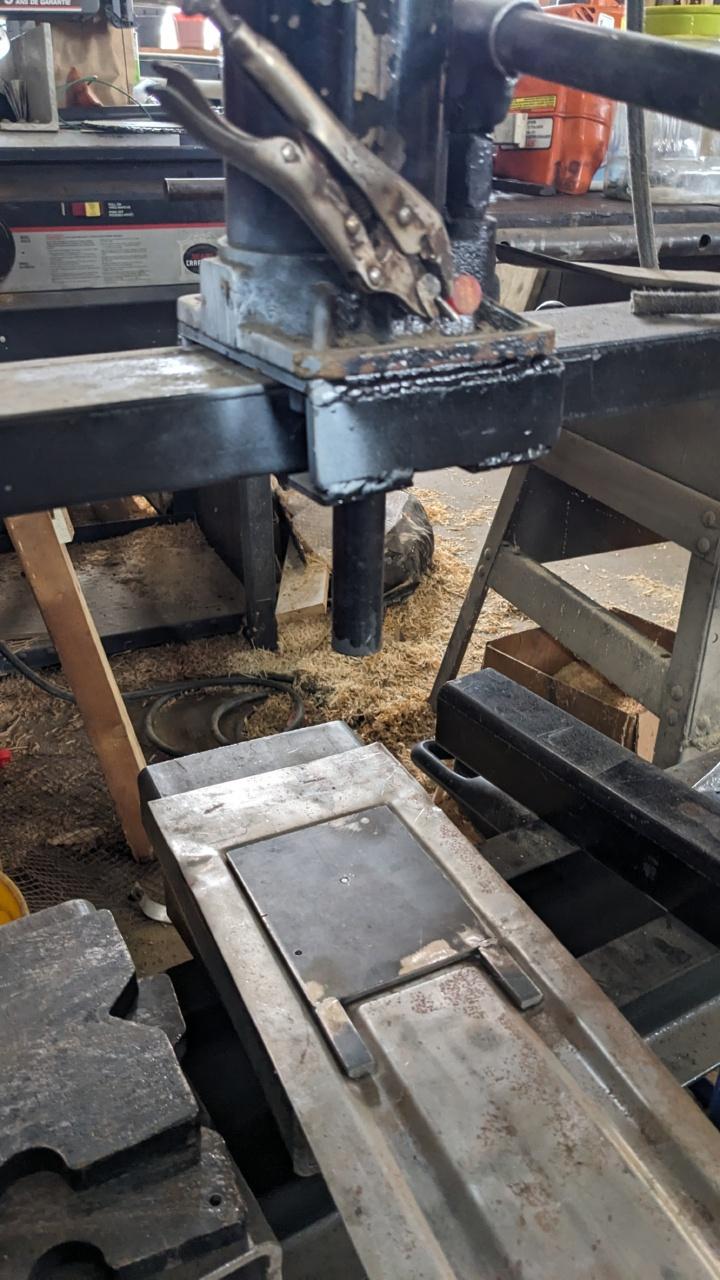

I printed a new die and it did a much nicer job. Still needs quite a bit of tidying and shrinking on the edge. All the issues can be fixed with a little time.
