 Posted: Mon Dec 30, 2024 11:33 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
 |
|
Thank you.

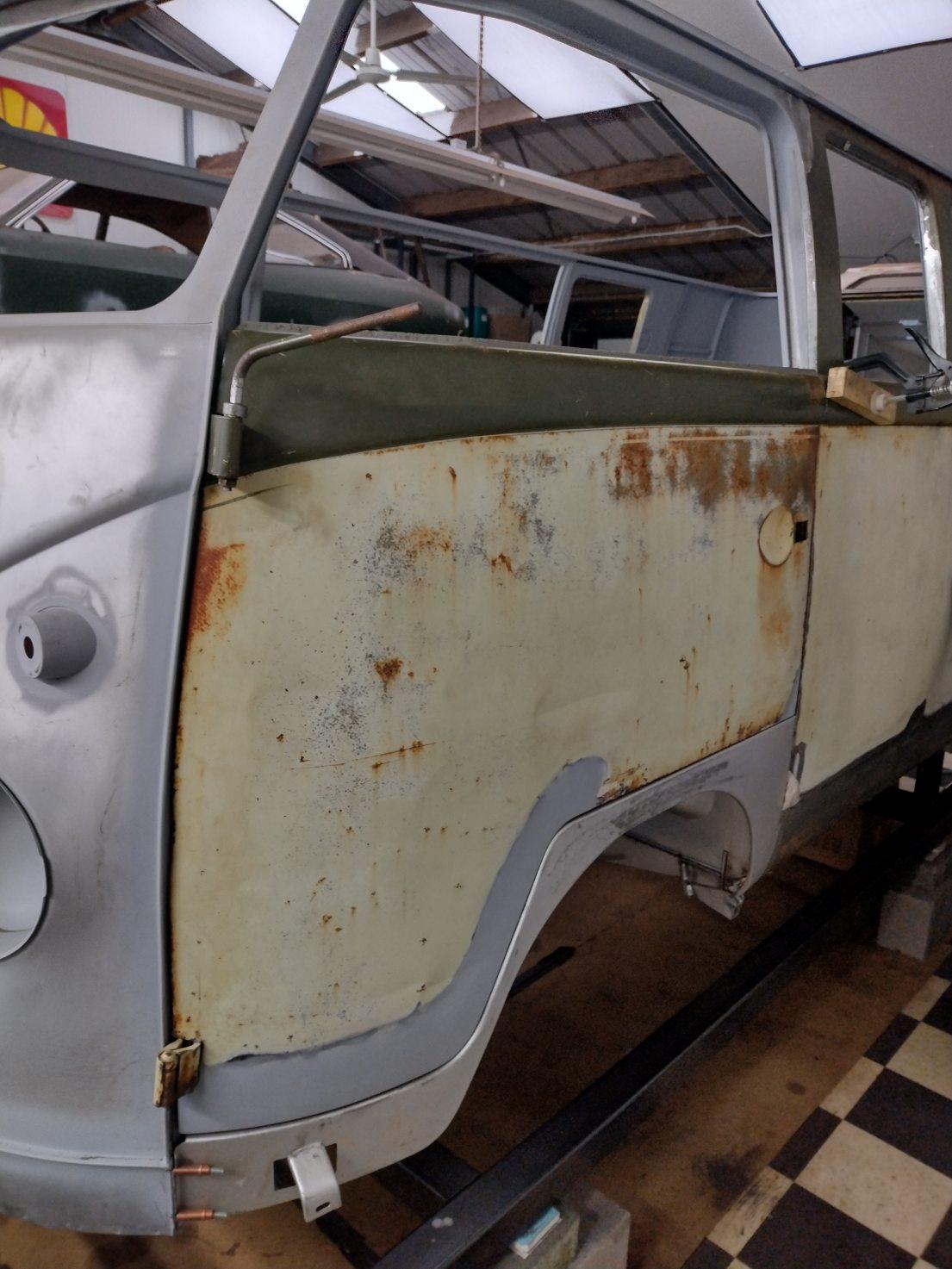

I now have the bolts for the upper hinges and have welded on the first mirror arm. Now I can align the door exactly and fit the dogleg
_________________
my current challenge
https://www.thesamba.com/vw/forum/viewtopic.php?t=779910
Instagram: ringfree_marc_roder |
|
| Back to top |
|
|
edgood1
Samba Member
Joined: September 30, 2004
Posts: 2118
Location: Plymouth, MA
|
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1332
Location: Austria
|
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 159
Location: Belgium / Germany
|
| Posted: Tue Dec 31, 2024 8:06 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
Thanks,
Yes. I definitely didn't want stainless steel repro arms. Also, the bolt had to be thicker because the hinge had a lot of play
_________________
my current challenge
https://www.thesamba.com/vw/forum/viewtopic.php?t=779910
Instagram: ringfree_marc_roder |
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1332
Location: Austria
|
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 159
Location: Belgium / Germany
|
| Posted: Wed Jan 22, 2025 10:56 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
Hello everyone,
less happens in winter. It's too cold for me in the workshop. Everything you touch is freezing cold. Also had a job on another car in a smaller garage, not quite as cold.

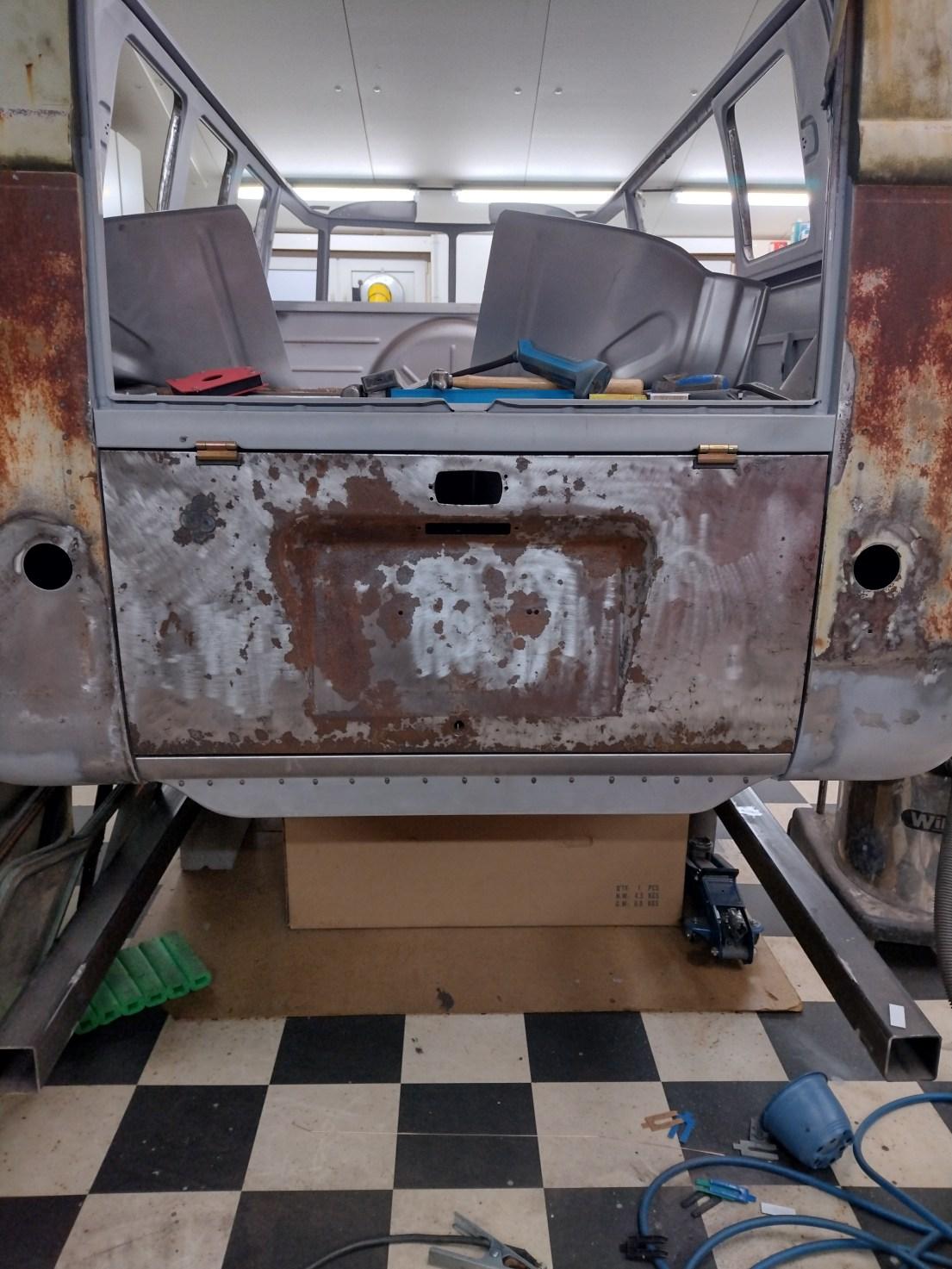

I've managed something but haven't posted it yet. I found an engine lid in the summer. I was missing it.

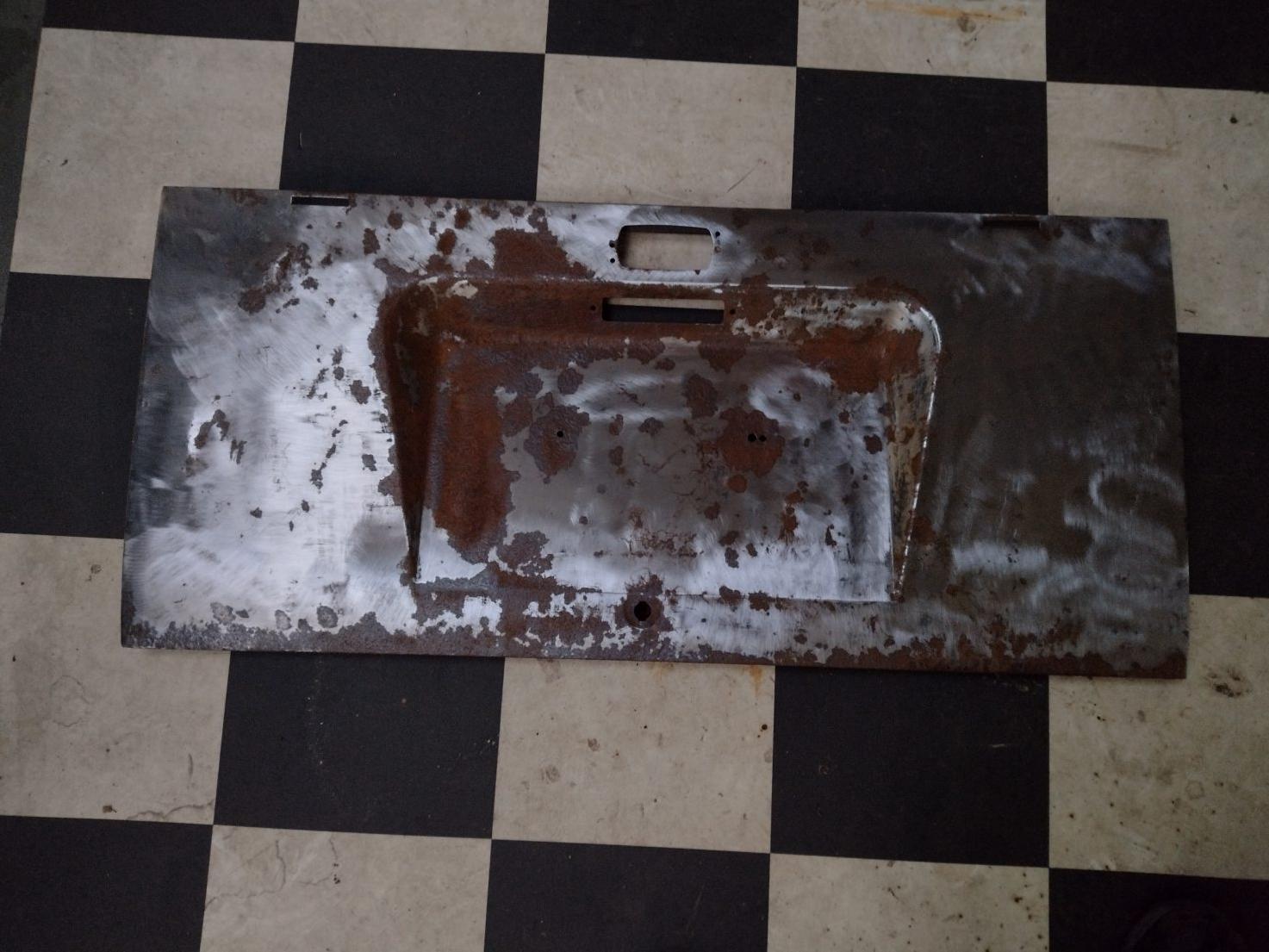

I removed the blue paint and repaired a piece for the bracket.
I welded in the holder for the engine lid in the engine compartment.

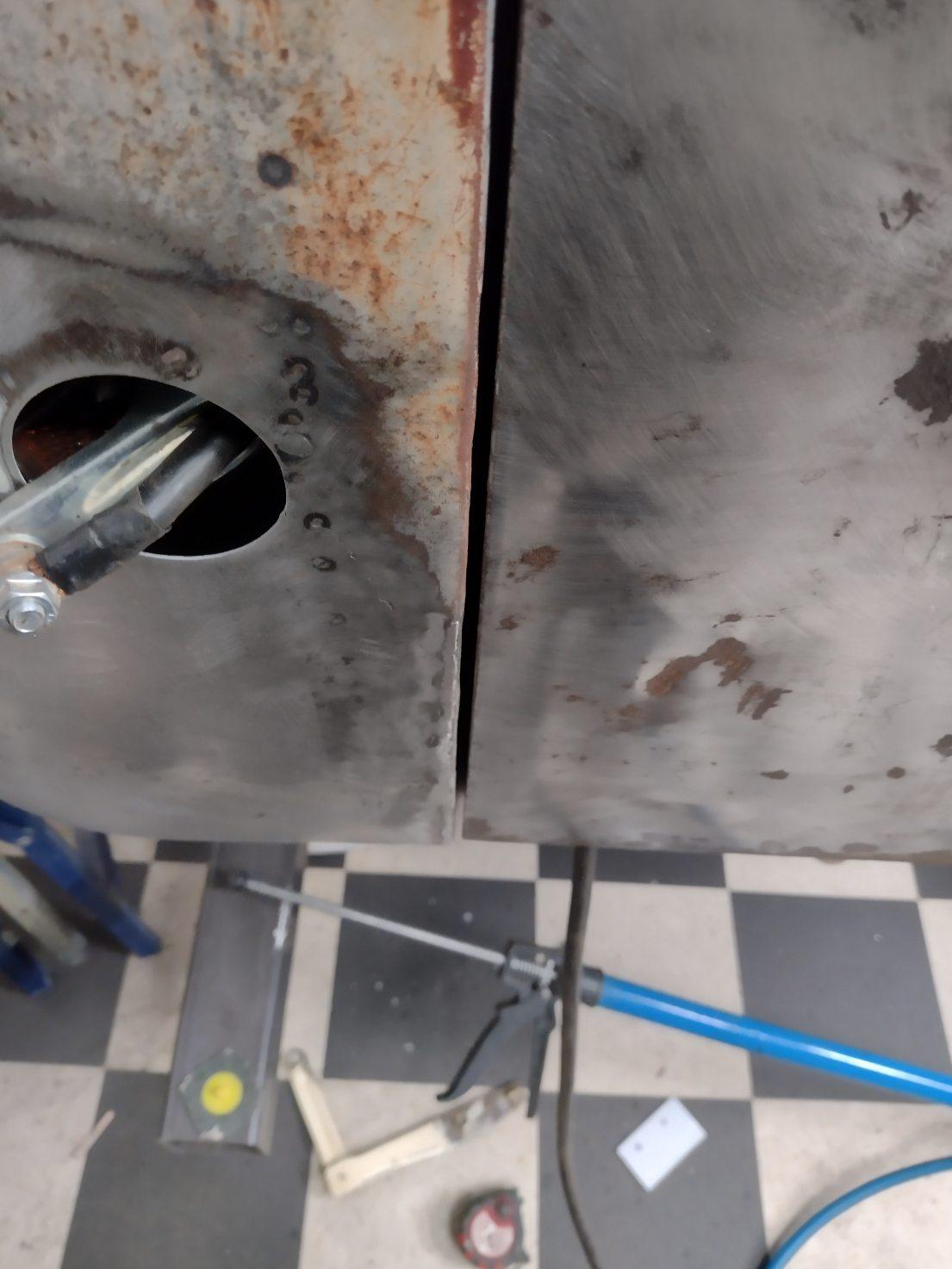

I had to adjust the bottom left corner again. A bit of welding and it warps a little. Since I didn't have an engine lid, I didn't notice it
_________________
my current challenge
https://www.thesamba.com/vw/forum/viewtopic.php?t=779910
Instagram: ringfree_marc_roder |
|
| Back to top |
|
|
Stocknazi
Samba Member
Joined: June 18, 2004
Posts: 5458
|
| Posted: Thu Jan 23, 2025 9:53 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
| Ring-Free wrote: |
Thank you.
I now have the bolts for the upper hinges and have welded on the first mirror arm. Now I can align the door exactly and fit the dogleg
|
I assume you turned these on a lathe and weld them to your original arms.
Did you heat treat them? Curious why the one is purple/blue.
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).
"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants."
Thomas Jefferson |
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 159
Location: Belgium / Germany
|
| Posted: Thu Jan 23, 2025 10:35 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
Yes, I have hardened the lower part. I don't know if it does any good, but it can't do any harm either. The edge was also not yet rounded
_________________
my current challenge
https://www.thesamba.com/vw/forum/viewtopic.php?t=779910
Instagram: ringfree_marc_roder |
|
| Back to top |
|
|
AndyMRowe
Samba Member
Joined: August 19, 2019
Posts: 20
Location: UK
|
| Posted: Sun Feb 16, 2025 12:59 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
| Still my favourite build, roll on warmer weather |
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 159
Location: Belgium / Germany
|
| Posted: Sun Feb 16, 2025 3:32 am Post subject: Re: "Ring frei" for Ring-Free 1957 PGSG |
|
|

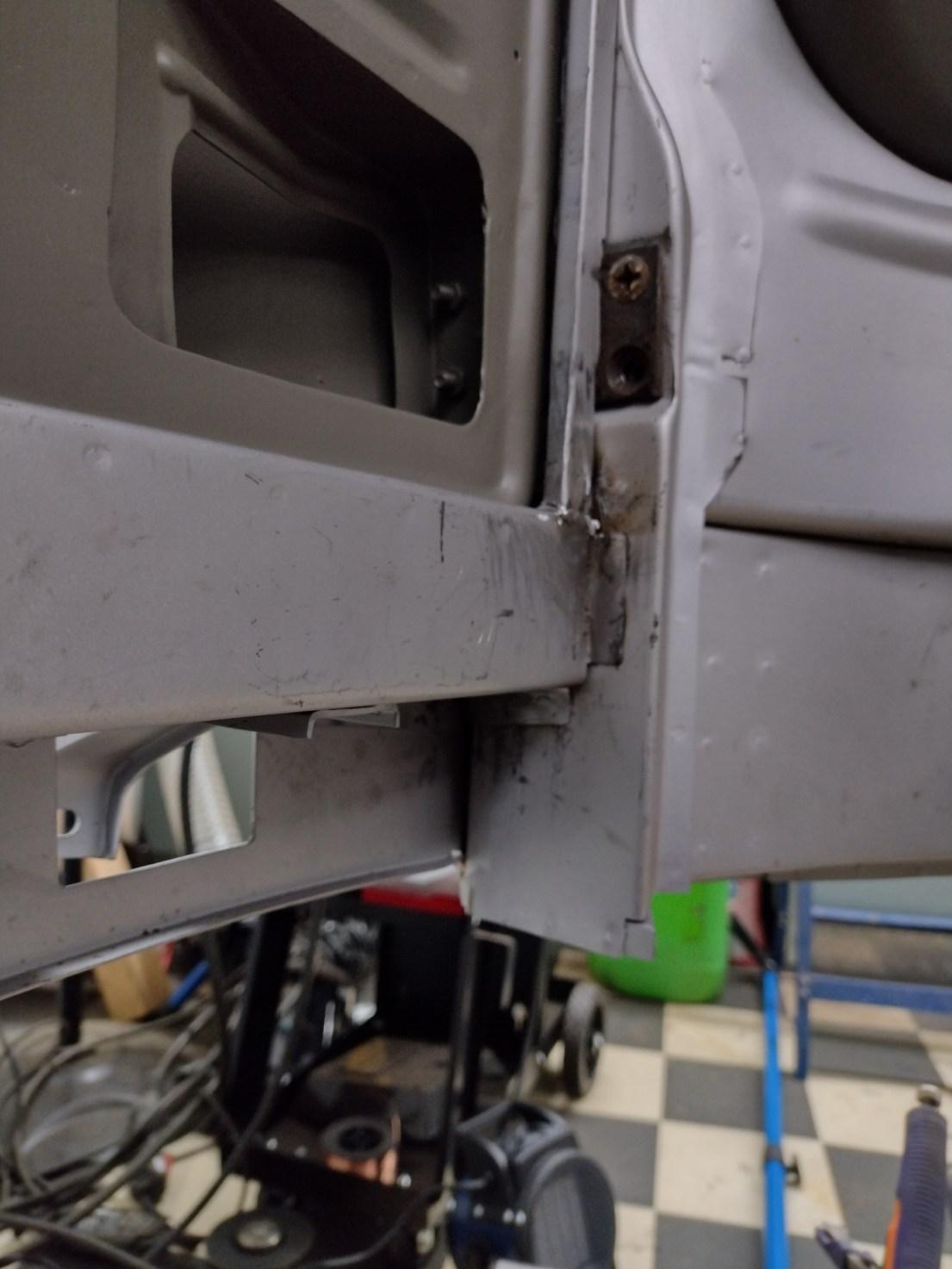

I welded in the first dogleg. It took quite a beating. It's too round.  But it now fits the character of the bus.
There was a missing material on the inside and the sealing bed was too short, so I put in a few patches.
The passenger side still needs more beating
_________________
my current challenge
https://www.thesamba.com/vw/forum/viewtopic.php?t=779910
Instagram: ringfree_marc_roder |
|
| Back to top |
|
|
AndyMRowe
Samba Member
Joined: August 19, 2019
Posts: 20
Location: UK
|
| Posted: Sun Feb 16, 2025 6:09 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
| It’s going to be epic when finished |
|
| Back to top |
|
|
Fleetline15
Samba Member
Joined: October 12, 2006
Posts: 15
Location: An tInbhear Mór
|
|
| Back to top |
|
|
pondoras box
Samba Member
Joined: March 22, 2004
Posts: 1578
Location: Eerie PA
|
| Posted: Tue Feb 18, 2025 5:35 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
I am envious of your metal working abilities I have learned quite a bit from your detailed pics. I am getting better at it but nowhere near this level. Keep posting your progress its appreciated! Once my 11 window is on the road I will use what I’ve learned from that and threads like this to start on my 23 window.
_________________
Looking for anything from Hal Casey Motors out of Hamburg New York, from license plate surrounds to matchbooks.
1961 23 Window (Bobo)
1965 11 Window (Zelda). https://www.thesamba.com/vw/forum/viewtopic.php?t=563183
1965 13 Window (Lucas)
1957 Oval ragtop
1960 hardtop
1964 hardtop
1965 hardtop
1988 Cabriolet VR6 conversion
Plus a lot of other rusty junk |
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 159
Location: Belgium / Germany
|
| Posted: Tue Feb 18, 2025 10:44 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
@Fleetline15
I already have a small collection
@pondoras box
Thank you for the kind words.
I am also learning a lot in this forum, looking left and right at what other members are doing. That's the nice thing. You find ideas, tricks, information and motivation. If others find that in my thread, .... great
_________________
my current challenge
https://www.thesamba.com/vw/forum/viewtopic.php?t=779910
Instagram: ringfree_marc_roder |
|
| Back to top |
|
|
TRS63
Samba Member
Joined: December 17, 2017
Posts: 1130
Location: Stuttgart - Germany
|
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 159
Location: Belgium / Germany
|
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 159
Location: Belgium / Germany
|
| Posted: Thu Feb 27, 2025 11:37 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|

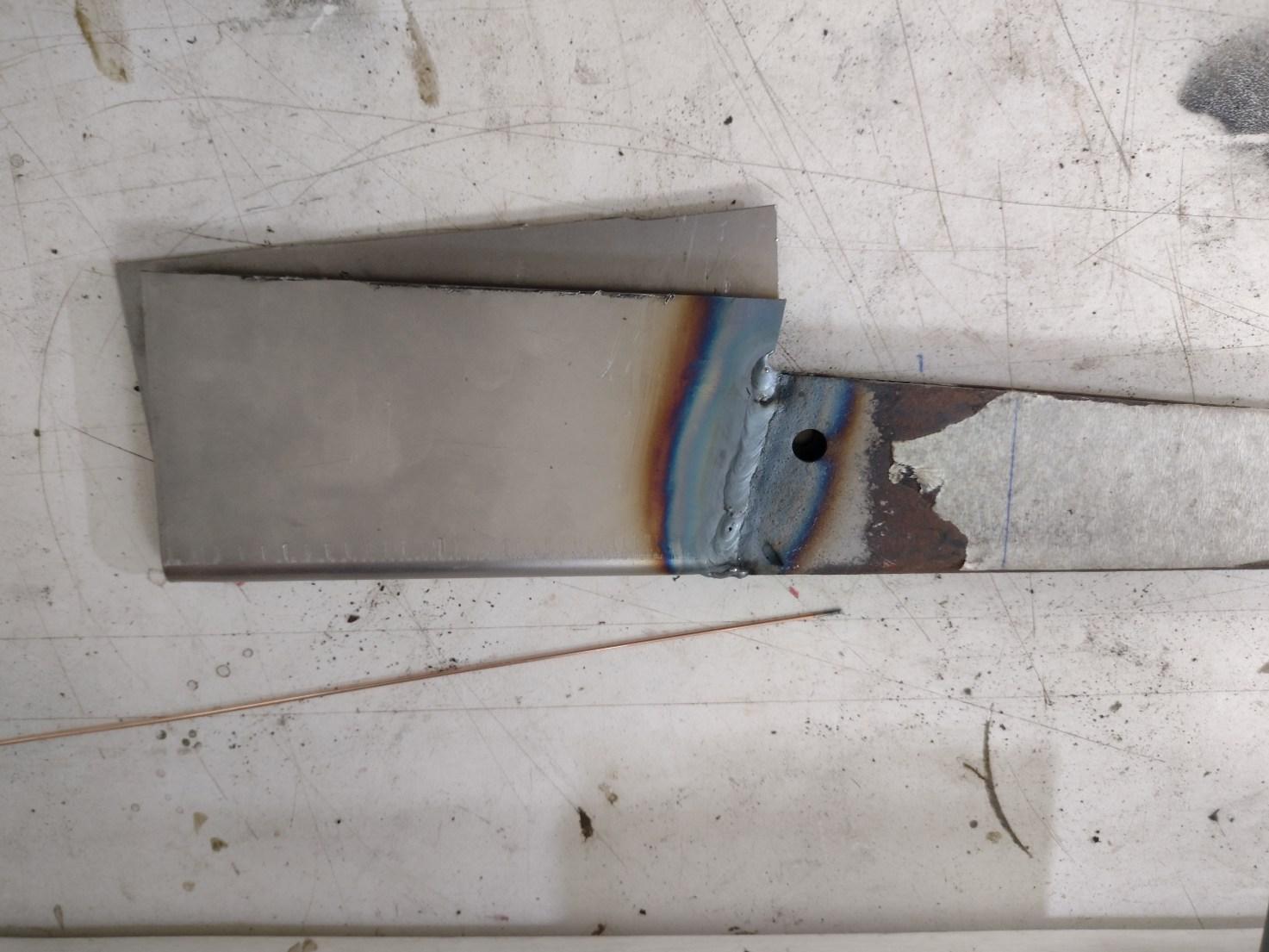

A small repair in between. I replaced the lower part of my handbrake lever and saved the part. Works perfectly again and was a nice job
_________________
my current challenge
https://www.thesamba.com/vw/forum/viewtopic.php?t=779910
Instagram: ringfree_marc_roder |
|
| Back to top |
|
|
velvetgreen
Samba Member
Joined: August 17, 2004
Posts: 2892
Location: Canada
|
| Posted: Thu Feb 27, 2025 2:14 pm Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|
| ^^ amazing work- i would have given up and bought another one- well done on that save! |
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 159
Location: Belgium / Germany
|
| Posted: Sun Mar 02, 2025 11:01 am Post subject: Re: "Ring frei" for Ring-Free 1957 |
|
|

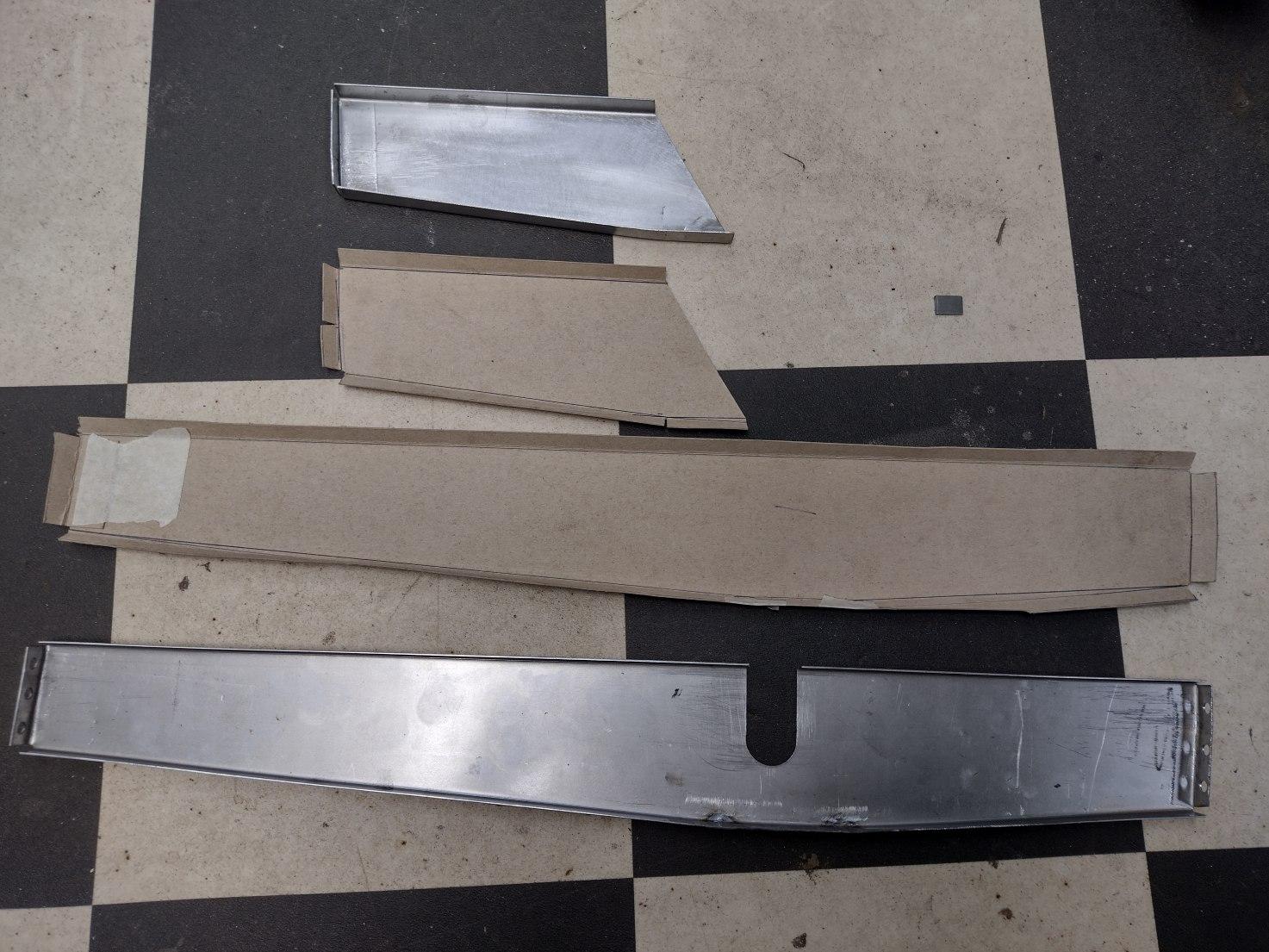

Next I made 2 plates that still belong to the front frame. The deflection for the gas cable will come later. Now the holder for the handbrake has to be fitted and the heating pipes can go back in place
Can anyone confirm that the bracket is welded from above at the marked points?
