PostPosted: Thu Jul 31, 2014 9:10 pm    Post subject: Reply with quote

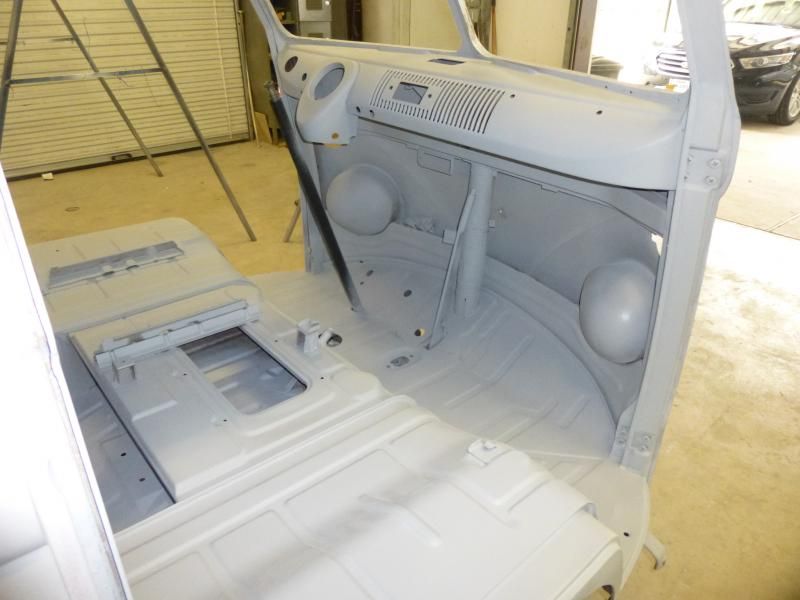

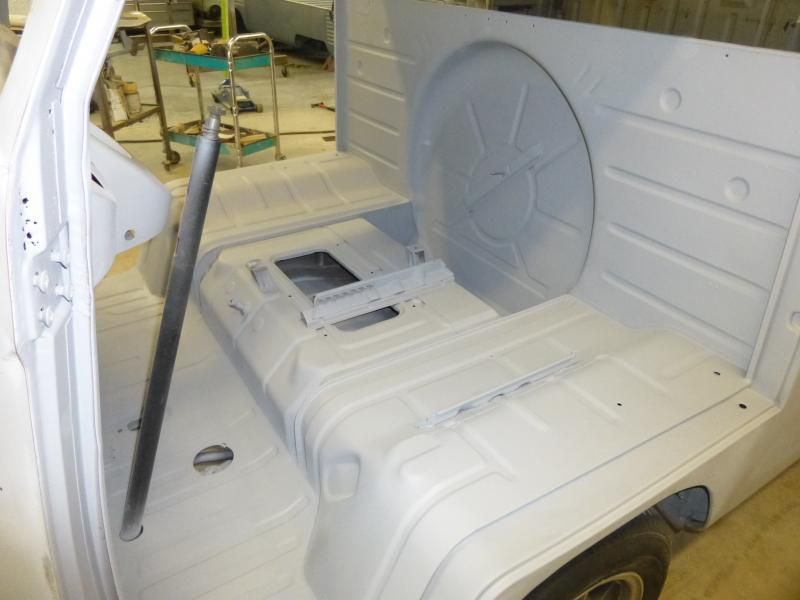

Making progress. Caney Creek boys are taking over, finishing the last few issues and going to paint.

Caney Creek progress.

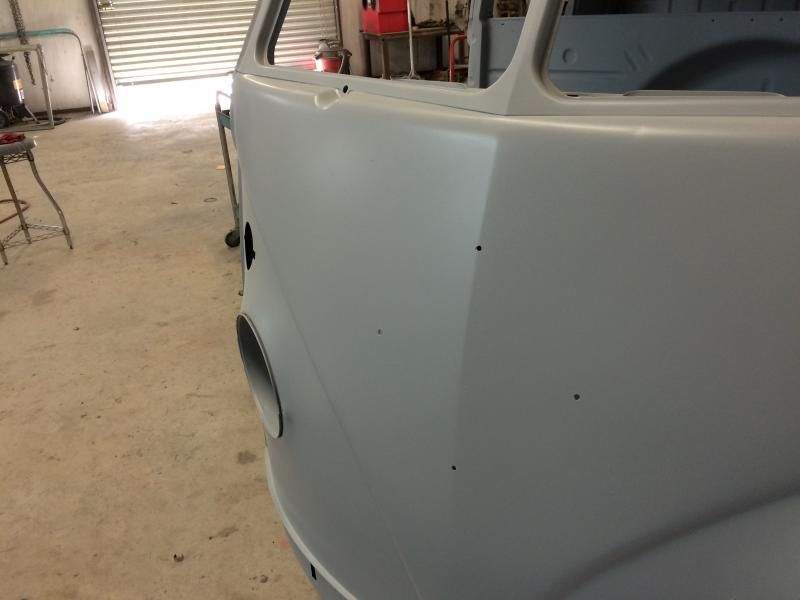

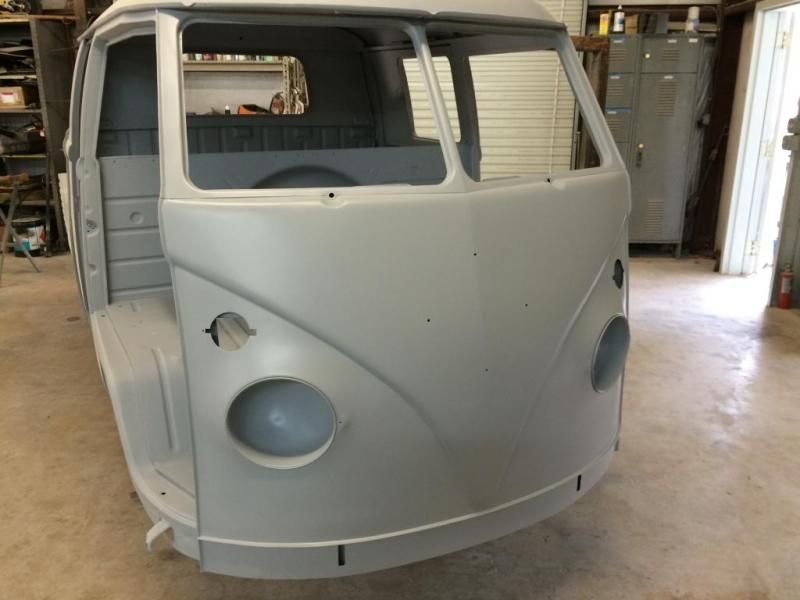

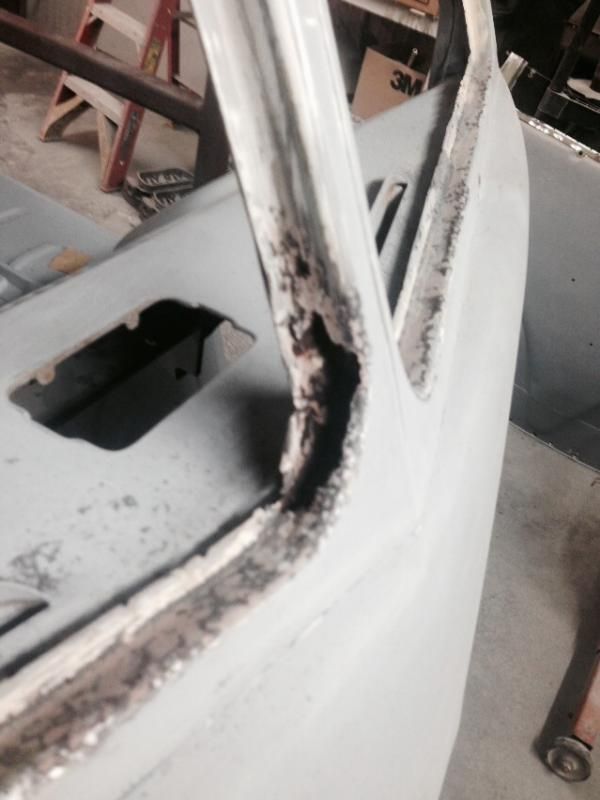

Front of cab blasted, primed, some more swiss cheese to fix in the upper driver A pillar.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image

Last edited by EDragnDean on Fri May 04, 2018 6:26 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Jul 31, 2014 9:12 pm    Post subject: Reply with quote

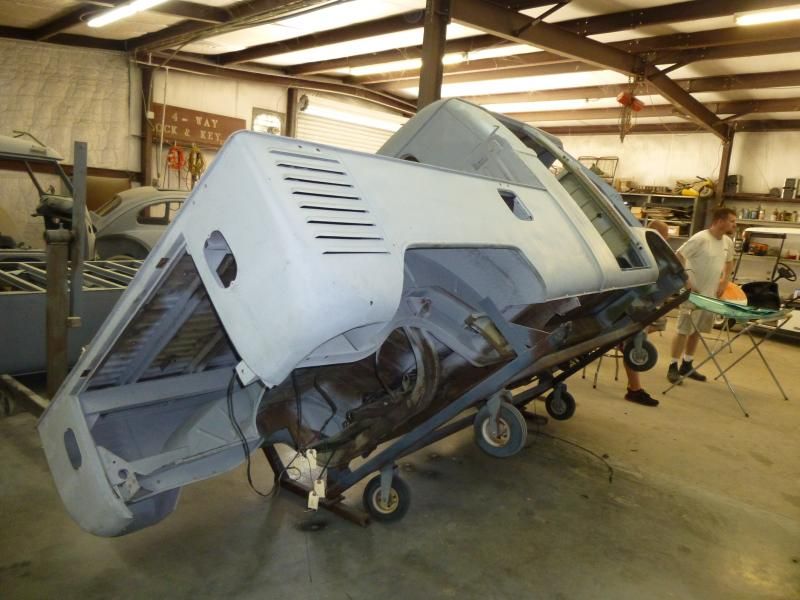

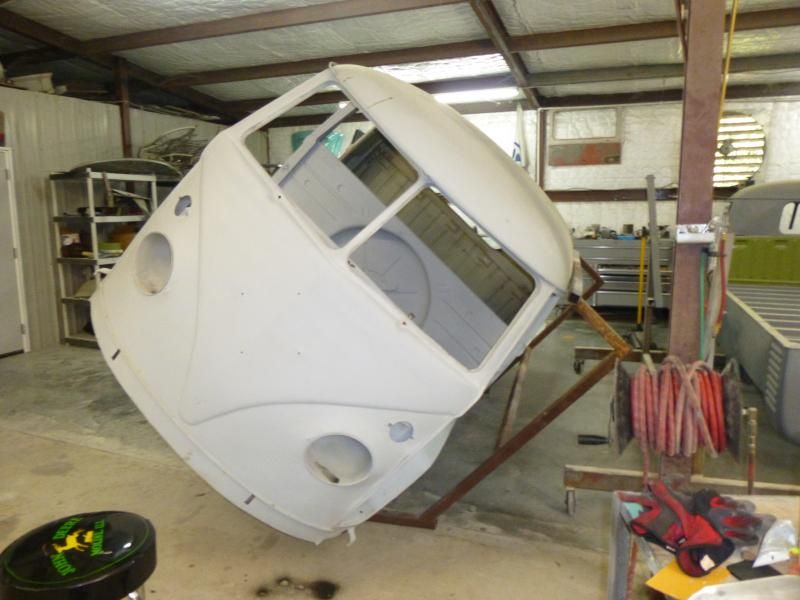

Rotisserie action...

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

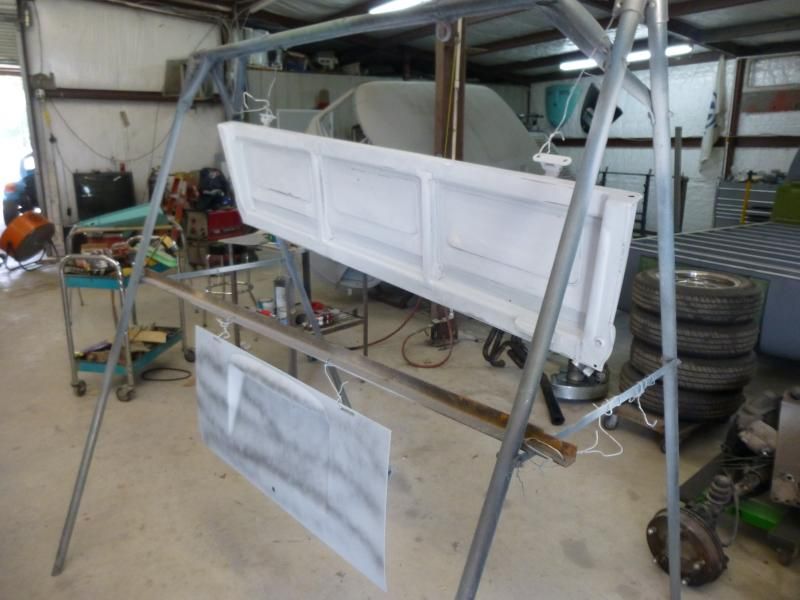

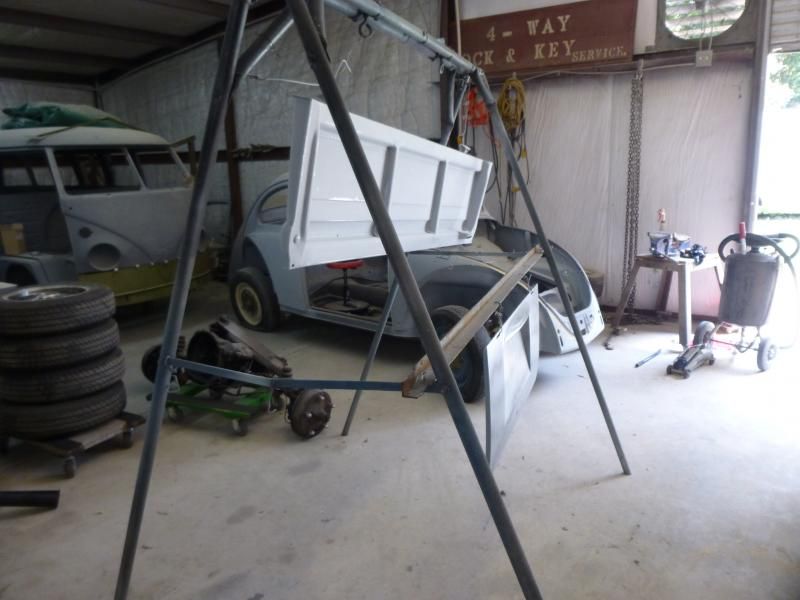

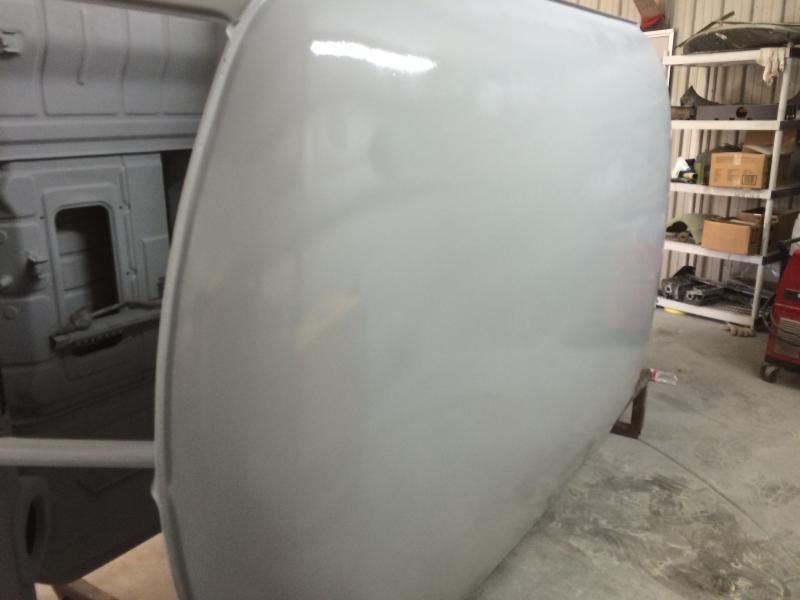

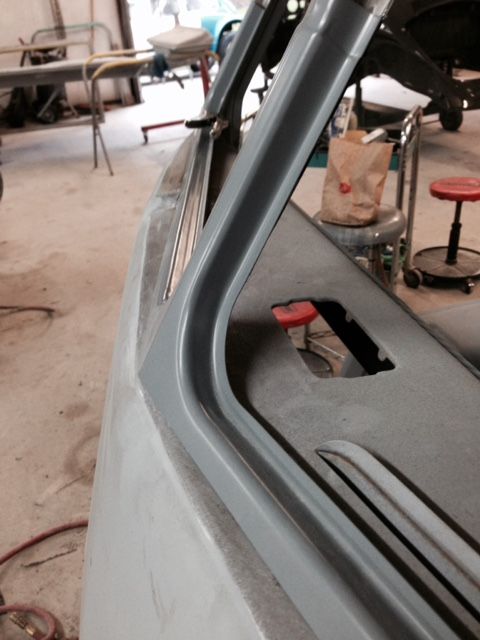

Smoothing the rear gate.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image

Last edited by EDragnDean on Fri May 04, 2018 6:29 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Jul 31, 2014 9:17 pm    Post subject: Reply with quote

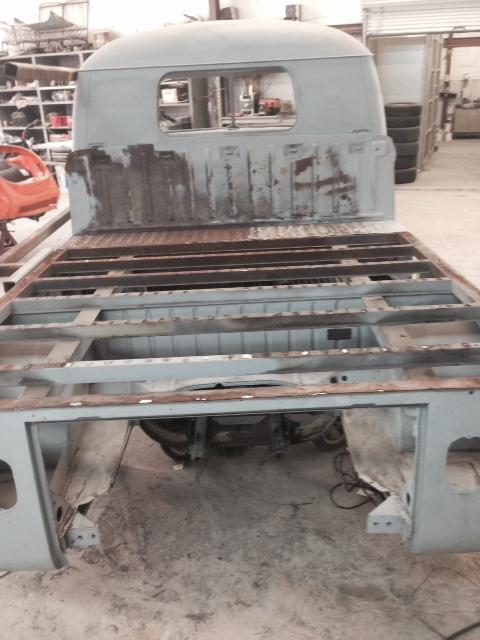

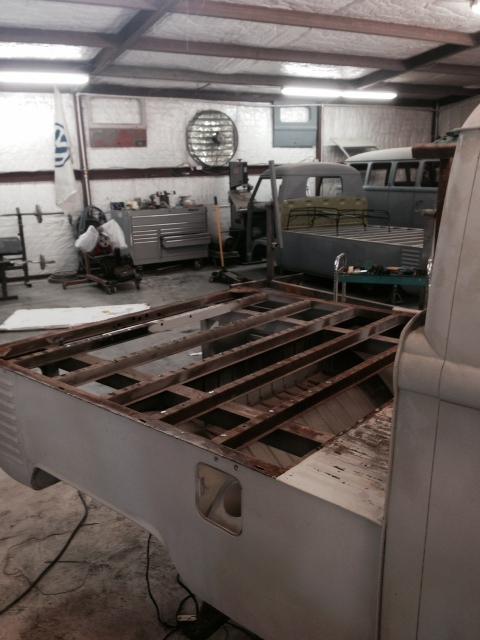

Replacing the bed. Klassic Fab already here.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Culito
11010101


Joined: December 07, 2006
Posts: 5674
Location: Columbia Missourah
Culito is offline
PostPosted: Thu Jul 31, 2014 9:31 pm    Post subject: Reply with quote
You're doing this truck some real justice.
Nice work.
_________________
Copyright CJ Industries, Inc.
'64 standard
'62 bug
johnnypan wrote:
...dont pay no attention to Culito,he's a cornhole..
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
ssx
Samba Member


Joined: May 19, 2004
Posts: 640
Location: Big Isle Hawaii
ssx is offline
PostPosted: Fri Aug 01, 2014 10:47 am    Post subject: Reply with quote
Awesome...can't wait to see it finished
_________________
1956 Oval/Ragtop
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lee Hedges
Samba Member


Joined: November 09, 2000
Posts: 772
Location: San Diego
Lee Hedges is offline
PostPosted: Fri Aug 01, 2014 11:28 am    Post subject: Reply with quote
Beautiful work on the 1963! We've just bought a 1963 DC as well so we're learning a lot from your previous work and will be watching as it gets closer to completion! Well done!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Aug 07, 2014 7:49 am    Post subject: Reply with quote
New bed panels arrived from Gerson... awesome quality, much better than the WW units with the edges already folded.

Not sure why the extra hole on the front panesl, the threaded insert is for the hoops.

Is there a link to the install/welding in of these?

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
south_island_surf
Samba Member


Joined: September 23, 2004
Posts: 147
Location: Victoria, BC, Canada
south_island_surf is offline
PostPosted: Tue Sep 23, 2014 9:25 pm    Post subject: Reply with quote
Great build! Looking forward to updates. Thanks for sharing.
_________________
Art

My '65 single cab project:
http://www.thesamba.com/vw/forum/viewtopic.php?t=491474
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Dec 25, 2014 5:30 pm    Post subject: Reply with quote

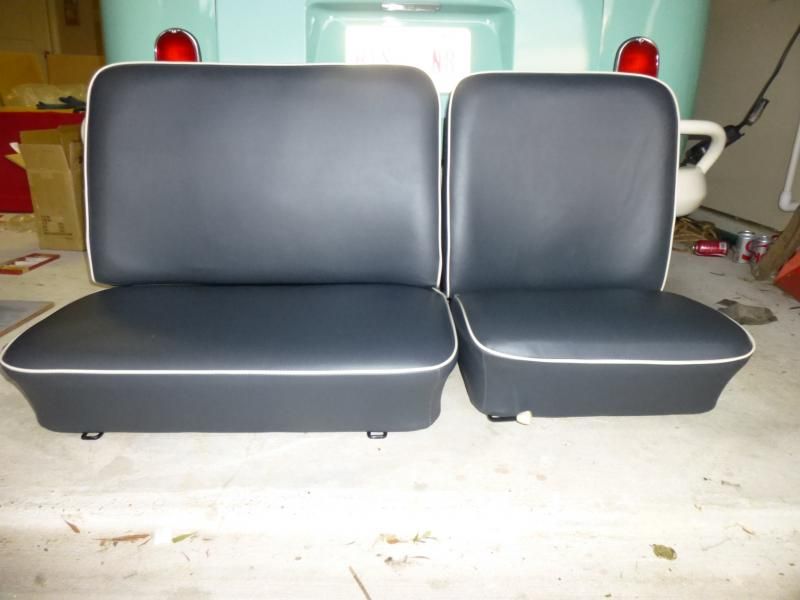

New covers by Sewfine.
Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image

Last edited by EDragnDean on Fri May 04, 2018 6:30 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
norcalmike
Samba Member


Joined: May 14, 2005
Posts: 4750
Location: Monterey Bay
norcalmike is offline
PostPosted: Thu Dec 25, 2014 5:40 pm    Post subject: Reply with quote
Looks nice! Thanks for passing along your old ones to me. Gonna look great in my 63 panel
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Dec 25, 2014 5:44 pm    Post subject: Reply with quote
norcalmike wrote:
Looks nice! Thanks for passing along your old ones to me. Gonna look great in my 63 panel


No problem!
_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Dec 25, 2014 5:47 pm    Post subject: Reply with quote

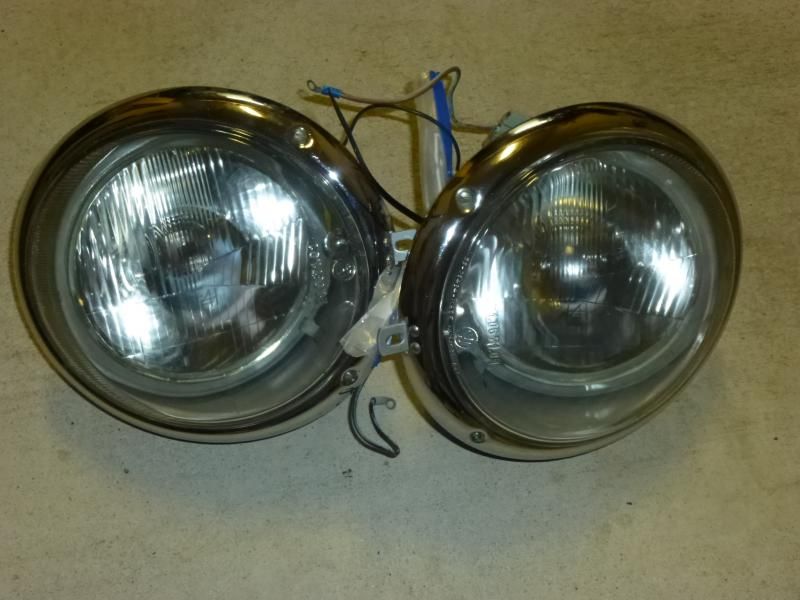

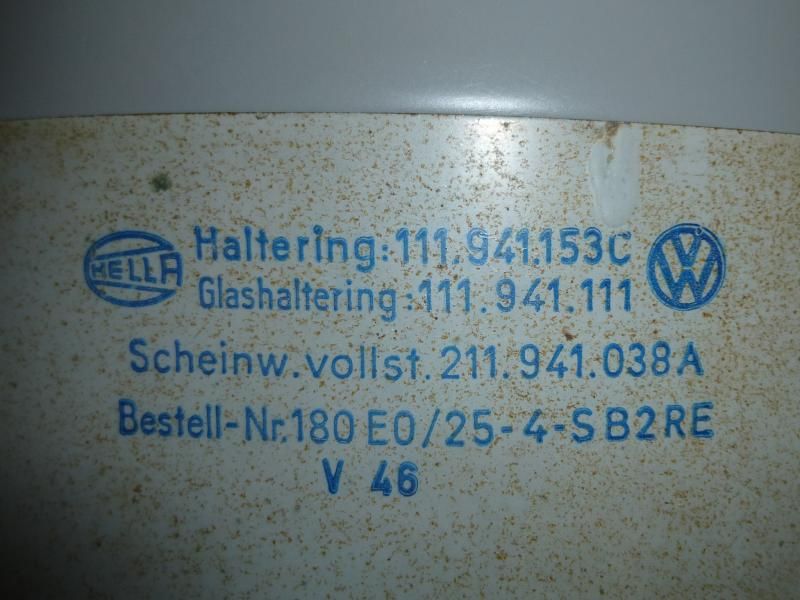

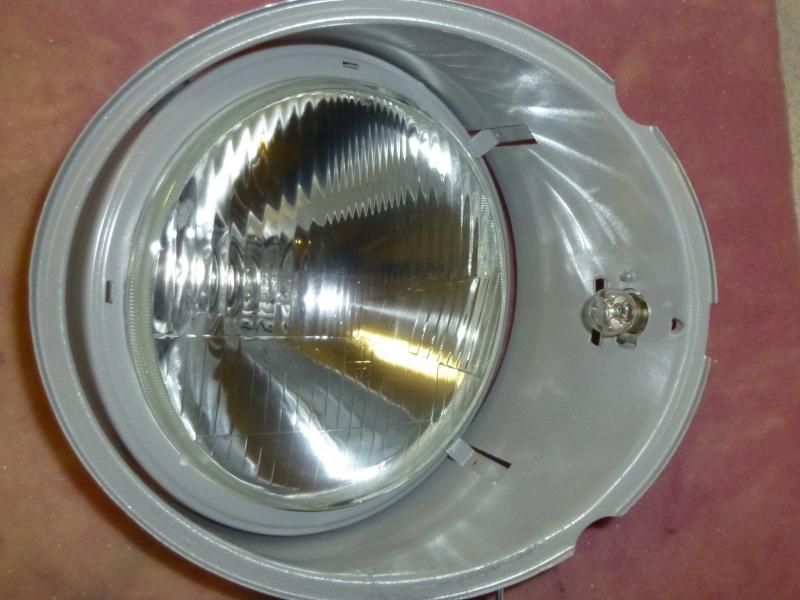

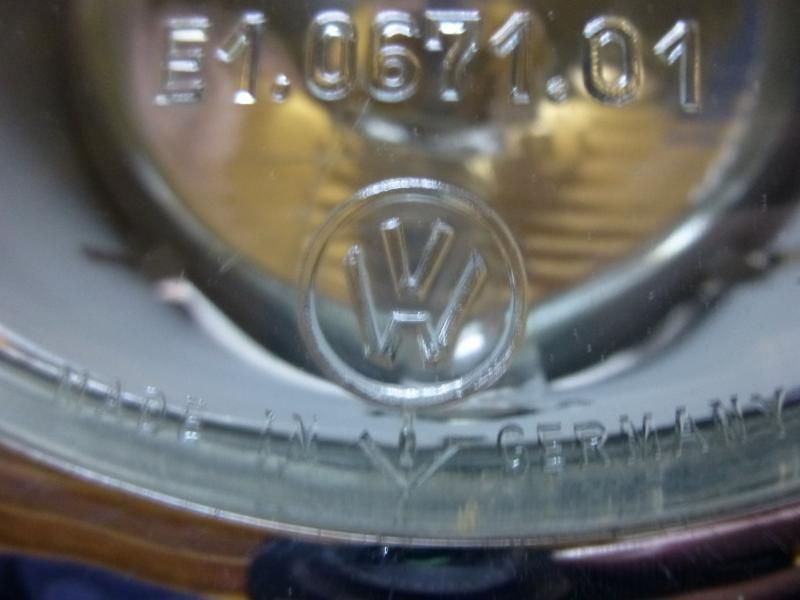

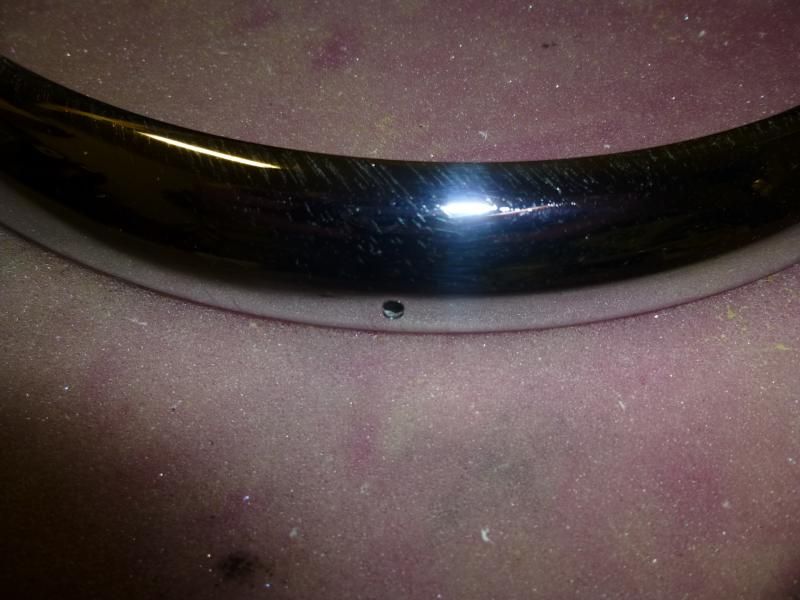

Sourced and restored a set of correct headlights.

Bus only drain holes. Left and right. Proper "VW" glass lense. Sanded down and repainted the inside of the rings, left the logos intact.

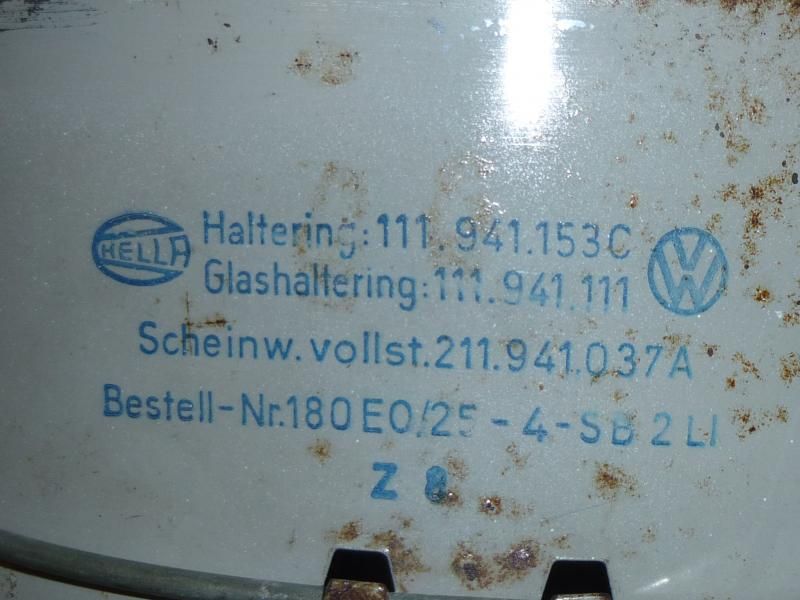

One is the correct "Z" code. If someone has a second, 63 "Z" coded bucket, send me a PM.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image

Last edited by EDragnDean on Fri May 04, 2018 6:34 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Dec 25, 2014 5:54 pm    Post subject: Reply with quote

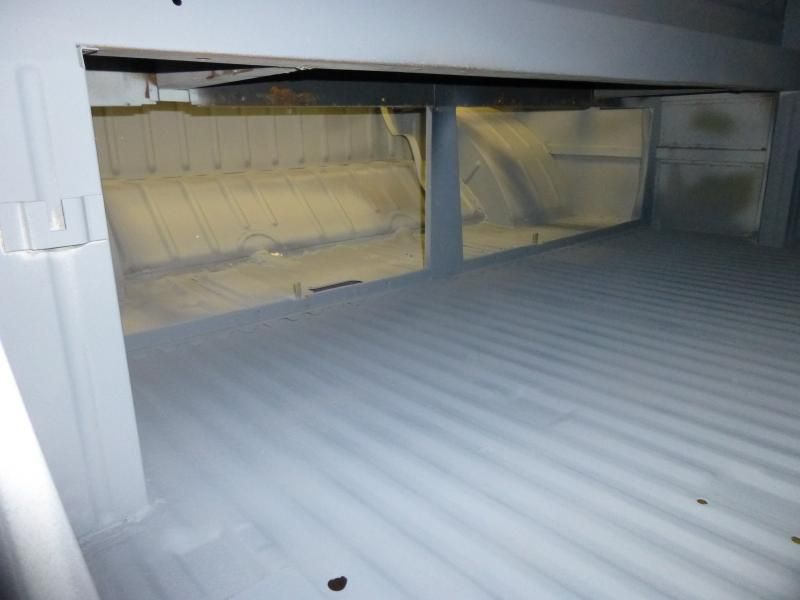

More rust repair, almost done.

Jason at Caney Creek is doing the work. Some photos are mine, some Jason, credit also to Ethan.

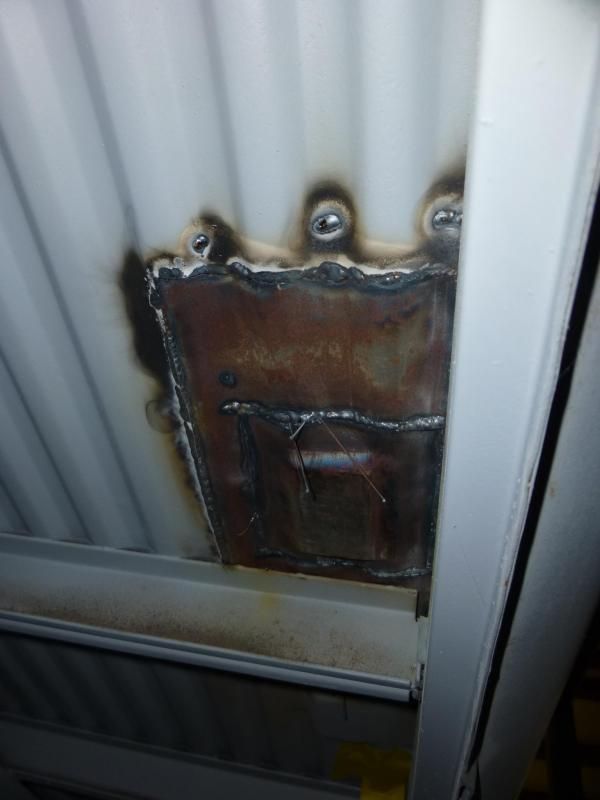

Under the rear seat pedestal hold down was rusted out.

Image may have been reduced in size. Click image to view fullscreen.

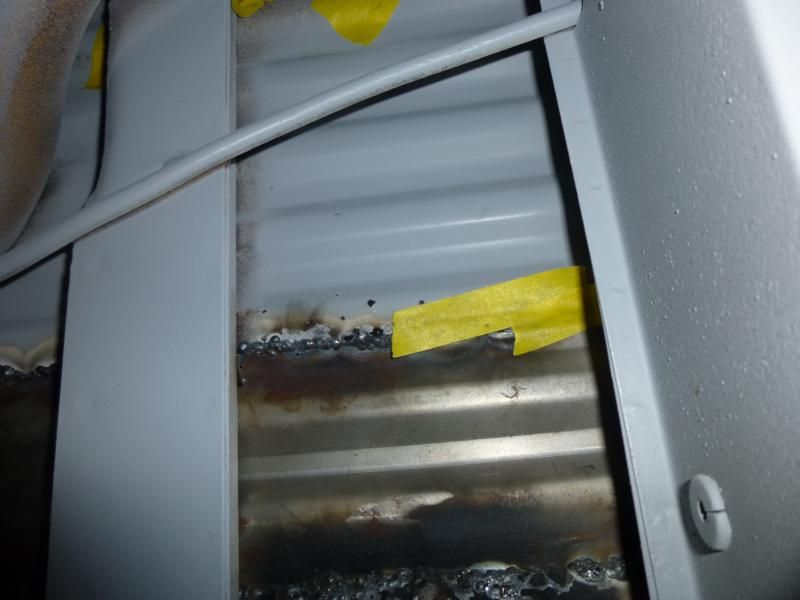

And under the fuel tank hold down.

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image

Last edited by EDragnDean on Fri May 04, 2018 6:35 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Dec 25, 2014 6:01 pm    Post subject: Reply with quote

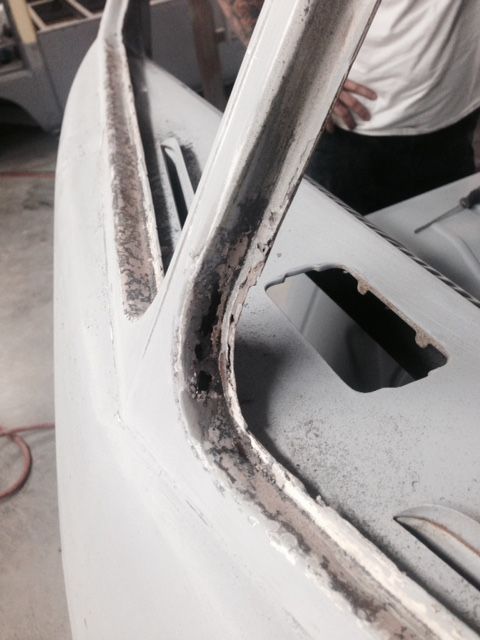

Lower front window replacement.

Wolfsburg West. Quality was good, pressing was a good match, wiper pivot holes at proper location. WW needs to include the inner triangle like Klassic Fab does.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image

Last edited by EDragnDean on Fri May 04, 2018 6:38 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Dec 25, 2014 6:19 pm    Post subject: Reply with quote

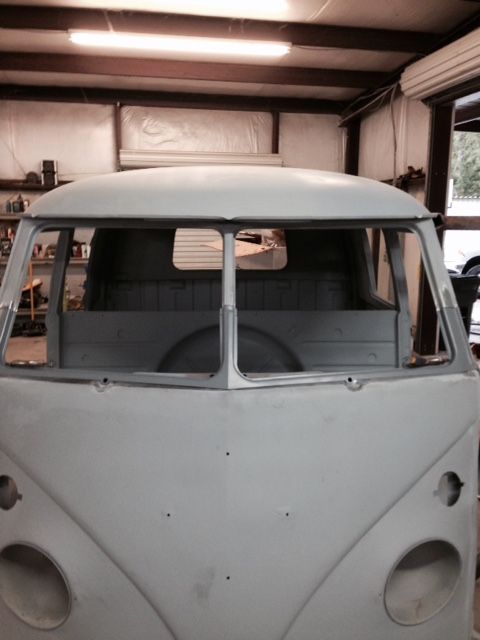

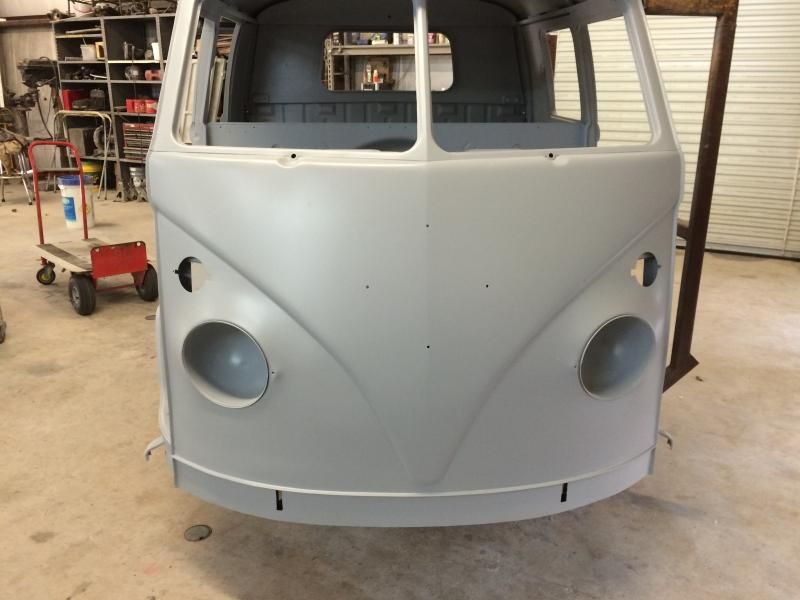

Getting closer.

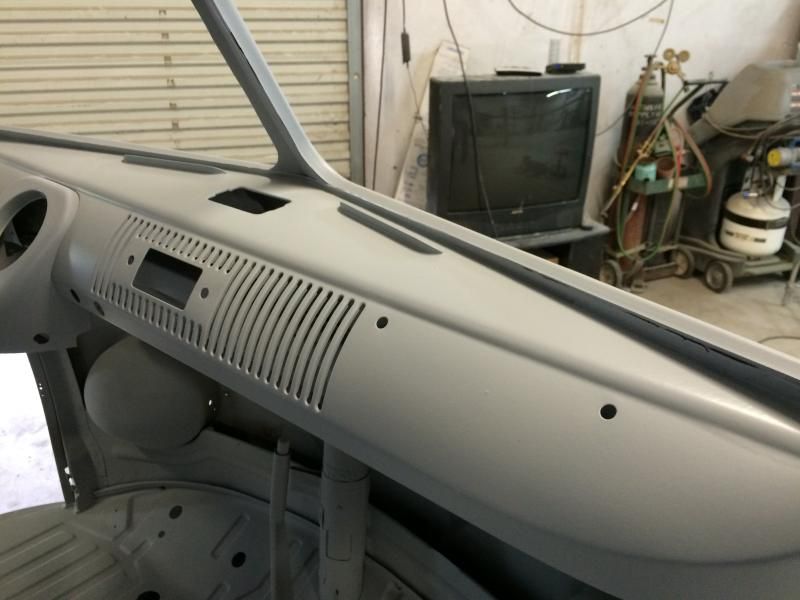

Nose, roof, dash, floors... done. Rust "gone."

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image

Last edited by EDragnDean on Fri May 04, 2018 6:40 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Thu Dec 25, 2014 6:27 pm    Post subject: Reply with quote

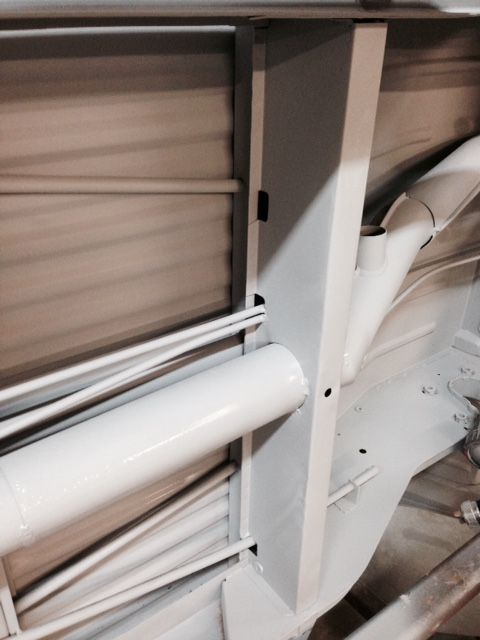

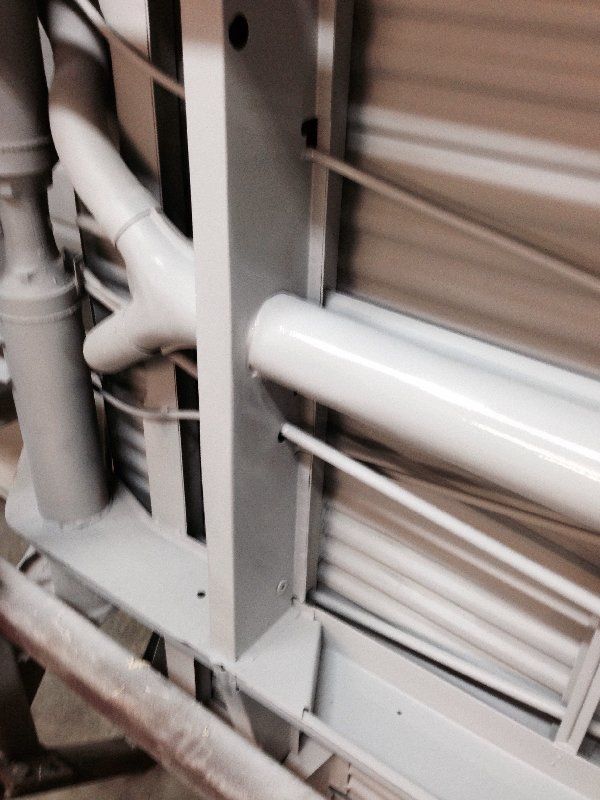

Underside of frame cleaned up.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image

Last edited by EDragnDean on Fri May 04, 2018 6:41 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
cat1pro
Samba Member


Joined: December 05, 2014
Posts: 91
Location: Florida
cat1pro is offline
PostPosted: Fri Dec 26, 2014 4:47 am    Post subject: Reply with quote
Looks like all the vendors you have chosen are doing a fantastic job. Keep updating us on your progress
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lee Hedges
Samba Member


Joined: November 09, 2000
Posts: 772
Location: San Diego
Lee Hedges is offline
PostPosted: Fri Dec 26, 2014 10:34 am    Post subject: Reply with quote
Great work! Thanks for sharing all of the detailed photos. Very inspiring!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 826
Location: Spring, Texas
ConcreteAce is offline
PostPosted: Sun Jan 04, 2015 6:12 pm    Post subject: Reply with quote
Here are a couple of shots I took of your DC today Dean
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
EDragnDean Premium Member
Samba Member


Joined: July 13, 2005
Posts: 1113
Location: Vancouver, WA
EDragnDean is offline
PostPosted: Sun Jan 04, 2015 6:50 pm    Post subject: Reply with quote
Thanks Ethan!
_________________
63 Double Cab http://www.thesamba.com/vw/forum/viewtopic.php?t=443823&highlight=deanos
66 Bus Click to view image - SOLD
73 Thing http://www.thesamba.com/vw/forum/viewtopic.php?p=8111202#8111202
70 BusClick to view image
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6, 7, 8  Next
Page 3 of 8


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
